23 At a glance
Cockpit
Item
Page
1
Steering wheel gearshift
buttons
(CLK 500, CLK 55 AMG)
171
2
Combination switch

Turn signals


Windshield wipers


High beam
51
52
51
3
Cruise control lever
255
4
Multifunction steering
wheel
26,
134
5
Instrument cluster
24,
130
6
Starter switch
34
7
Front Parktronic* warning
indicators
262
8
Overhead control panel
29
Item
Page
9
Glove box
269
a
Cup holder
271
b
Center console
27, 28
c
Hood lock release
305
d
Horn
e
Steering wheel adjustment
stalk
40
f
Parking brake pedal
49
g
Door control panel
30
h
Parking brake release
49
j
Exterior lamp switch
50,
122
k
Exterior rear view mirror
adjustment
41
l
Headlamp washer switch*
176

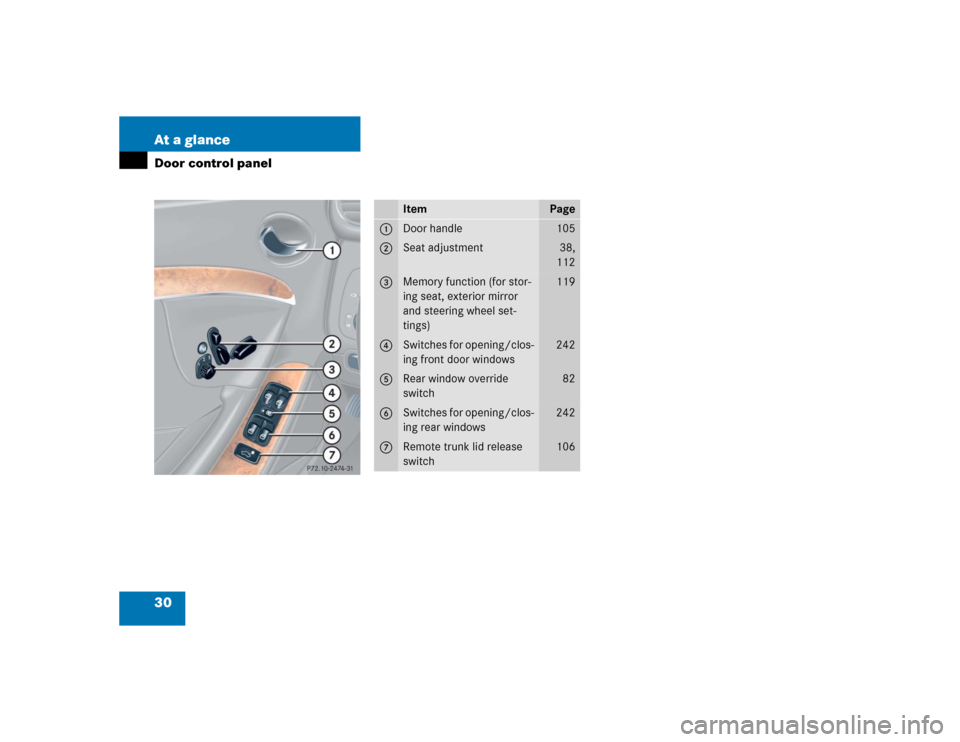

30 At a glanceDoor control panel
Item
Page
1
Door handle
105
2
Seat adjustment
38,
112
3
Memory function (for stor-
ing seat, exterior mirror
and steering wheel set-
tings)
119
4
Switches for opening/clos-
ing front door windows
242
5
Rear window override
switch
82
6
Switches for opening/clos-
ing rear windows
242
7
Remote trunk lid release
switch
106

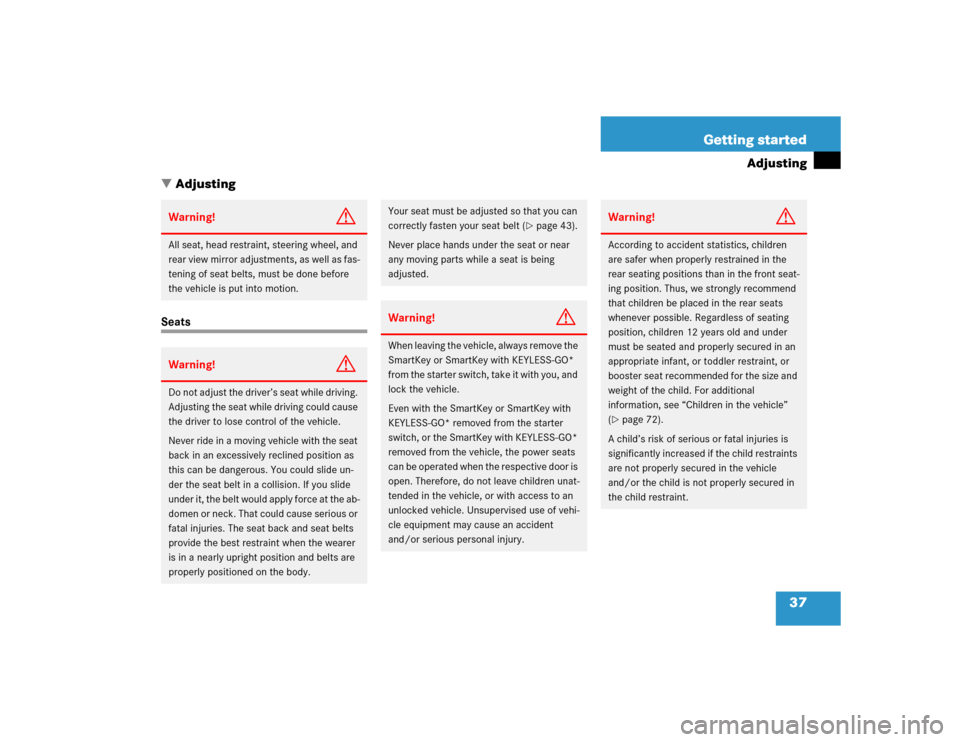

37 Getting started
Adjusting
Adjusting
SeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 43).
Never place hands under the seat or near
any moving parts while a seat is being
adjusted.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch, or the SmartKey with KEYLESS-GO*
removed from the vehicle, the power seats
can be operated when the respective door is
open. Therefore, do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional
information, see “Children in the vehicle”
(page 72).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

38 Getting startedAdjustingSeat adjustment
The seat adjustment switches are located
in each door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Backrest tilt
Switch on the ignition (
page 34).
or

Open the respective door.Seat fore and aft adjustment

Press switch forward or backward in
direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat height

Press switch up or down in direction of
arrow2.
Seat cushion tilt

Press switch up or down in direction of
arrow3 until your upper legs are
lightly supported.
Seat backrest tilt

Press switch forward or backward in
direction of arrow5 until your arms
are slightly angled when holding the
steering wheel.
Head restraint height

Press switch up or down in direction of
arrow1.
!When moving the seat, be sure that
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.iThe memory function (
page 119) lets
you store the setting for the seat posi-
tion together with the setting for the
steering wheel and the exterior rear
view mirrors.
iAdjust the head restraint in such a way
that it is as close to the head as
possible.

40 Getting startedAdjustingFolding backrests forward
Pull release lever1 forward and fold
the seat backrest forward.
The head restraint will automatically
move down.
Folding backrests back

Fold and press the backrest rearward
until it engages in driving position.
The head restraint returns to its previ-
ous position.
For more information, see “Easy-entry/ex-
it feature” (
page 112).
Steering wheel Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down

Switch on the ignition (
page 34).
or

Open the driver’s door.
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch, or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated
when the driver’s door is open. Therefore,
do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

42 Getting startedAdjustingThe buttons are located above the exterior
lamp switch.
1Adjustment button
2Passenger-side exterior rear view
mirror button
3Driver’s side exterior rear view mirror
button

Switch on the ignition (
page 34).

Press button3 for the driver’s side
exterior rear view mirror or button2
for the passenger-side exterior rear
view mirror.

Push adjustment button1 up, down,
left, or right, according to the desired
setting.
For more information, see “Rear view mir-
rors” (
page 176).
!If an exterior rear view mirror was
forcibly pushed forward (hit from the
rear) or forcibly pushed rearward (hit
from the front), reposition it by
applying firm pressure until it snaps
into place. The mirror housing is now
properly positioned and you can adjust
the mirror normally.
iThe memory function (
page 119) lets
you store the setting for the exterior
rear view mirrors together with the set-
tings for the steering wheel and seat
position.
iAt low ambient temperatures, the
exterior rear view mirrors will be
heated automatically.

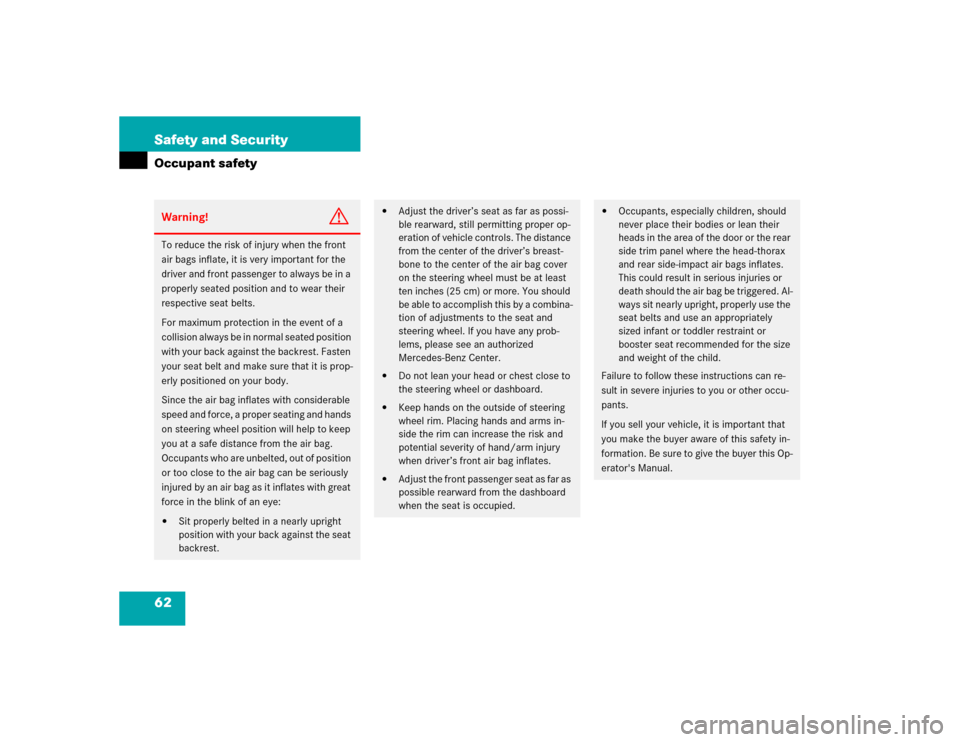

62 Safety and SecurityOccupant safetyWarning!
G
To reduce the risk of injury when the front
air bags inflate, it is very important for the
driver and front passenger to always be in a
properly seated position and to wear their
respective seat belts.
For maximum protection in the event of a
collision always be in normal seated position
with your back against the backrest. Fasten
your seat belt and make sure that it is prop-
erly positioned on your body.
Since the air bag inflates with considerable
speed and force, a proper seating and hands
on steering wheel position will help to keep
you at a safe distance from the air bag.
Occupants who are unbelted, out of position
or too close to the air bag can be seriously
injured by an air bag as it inflates with great
force in the blink of an eye:

Sit properly belted in a nearly upright
position with your back against the seat
backrest.


Adjust the driver’s seat as far as possi-
ble rearward, still permitting proper op-
eration of vehicle controls. The distance
from the center of the driver’s breast-
bone to the center of the air bag cover
on the steering wheel must be at least
ten inches (25 cm) or more. You should
be able to accomplish this by a combina-
tion of adjustments to the seat and
steering wheel. If you have any prob-
lems, please see an authorized
Mercedes-Benz Center.


Do not lean your head or chest close to
the steering wheel or dashboard.


Keep hands on the outside of steering
wheel rim. Placing hands and arms in-
side the rim can increase the risk and
potential severity of hand/arm injury
when driver’s front air bag inflates.


Adjust the front passenger seat as far as
possible rearward from the dashboard
when the seat is occupied.


Occupants, especially children, should
never place their bodies or lean their
heads in the area of the door or the rear
side trim panel where the head-thorax
and rear side-impact air bags inflates.
This could result in serious injuries or
death should the air bag be triggered. Al-
ways sit nearly upright, properly use the
seat belts and use an appropriately
sized infant or toddler restraint or
booster seat recommended for the size
and weight of the child.
Failure to follow these instructions can re-
sult in severe injuries to you or other occu-
pants.
If you sell your vehicle, it is important that
you make the buyer aware of this safety in-
formation. Be sure to give the buyer this Op-
erator's Manual.

112 Controls in detailSeatsFor information on seat adjustment, see
“Adjusting” (
page 37).
Easy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle.

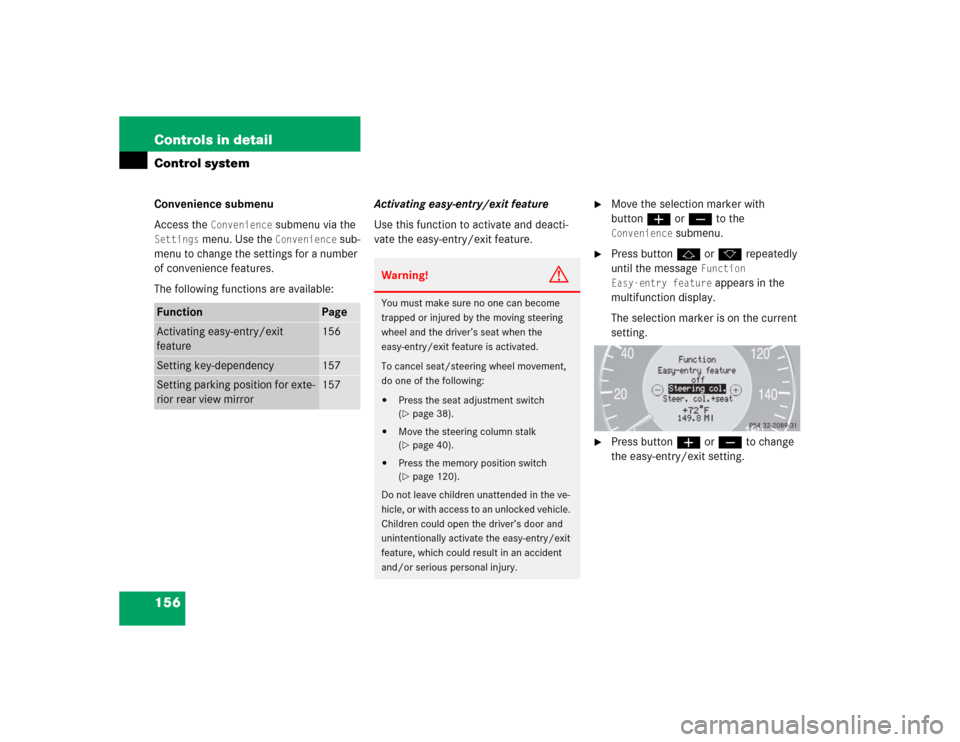

The easy-entry/exit feature can be
activated or deactivated in the Convenience
submenu of the control
system (
page 156).When exiting the vehicle, with the
easy-entry/exit feature activated and
depending on your selection, the steering
wheel tilts upwards and/or the driver’s
seat moves a few inches to the rear when
you:


remove the SmartKey from the starter
switch,
or


open the driver’s door with the
SmartKey in starter switch position0
or1 or the KEYLESS-GO* start/stop
button (
page 35) in position1.
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and driver’s seat when the
easy-entry / exit feature is activated.
To cancel seat /steering wheel movement,
do one of the following:

Press the seat adjustment switch
(page 38).


Move the steering column stalk
(page 40).


Press the memory position switch
(page 120).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver's door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
iIf the current position for the steering
wheel is in the uppermost tilt position,
the steering wheel will no longer be
able to move upward when the
easy-entry/exit feature is activated.

156 Controls in detailControl systemConvenience submenu
Access the
Convenience
submenu via the
Settings
menu. Use the
Convenience
sub-
menu to change the settings for a number
of convenience features.
The following functions are available:Activating easy-entry/exit feature
Use this function to activate and deacti-
vate the easy-entry/exit feature.

Move the selection marker with
buttonæ orç to the Convenience
submenu.

Press buttonj ork repeatedly
until the message
Function
Easy-entry feature appears in the
multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to change
the easy-entry/exit setting.
Function
Page
Activating easy-entry/exit
feature
156
Setting key-dependency
157
Setting parking position for exte-
rior rear view mirror
157
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and the driver’s seat when the
easy-entry/exit feature is activated.
To cancel seat/steering wheel movement,
do one of the following:

Press the seat adjustment switch
(page 38).


Move the steering column stalk
(page 40).


Press the memory position switch
(page 120).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.

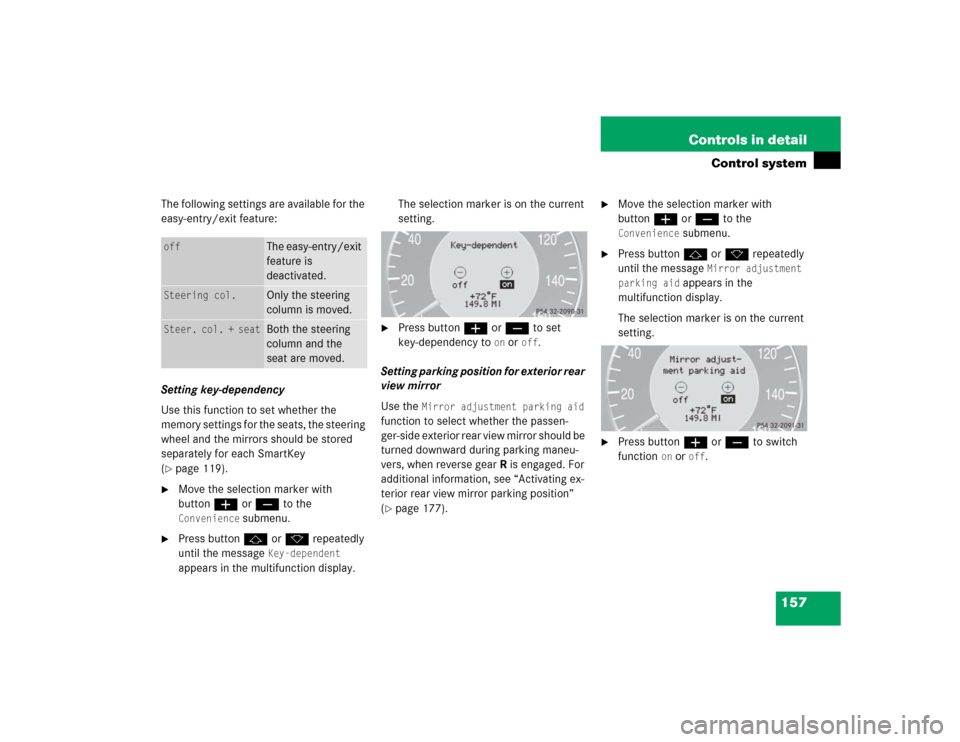

157 Controls in detail
Control system
The following settings are available for the
easy-entry/exit feature:
Setting key-dependency
Use this function to set whether the
memory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each SmartKey
(page 119).

Move the selection marker with
buttonæ orç to the Convenience
submenu.

Press buttonj ork repeatedly
until the message
Key-dependent

appears in the multifunction display.The selection marker is on the current
setting.

Press buttonæ orç to set
key-dependency to
on or
off
.
Setting parking position for exterior rear
view mirror
Use the
Mirror adjustment parking aid

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers, when reverse gear R is engaged. For
additional information, see “Activating ex-
terior rear view mirror parking position”
(
page 177).

Move the selection marker with
buttonæ orç to the Convenience
submenu.

Press buttonj ork repeatedly
until the message
Mirror adjustment
parking aid
appears in the
multifunction display.
The selection marker is on the current
setting.

Press buttonæ orç to switch
function
on or
off
.
off
The easy-entry/exit
feature is
deactivated.
Steering col.
Only the steering
column is moved.
Steer. col. + seat
Both the steering
column and the
seat are moved.
