331 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
.

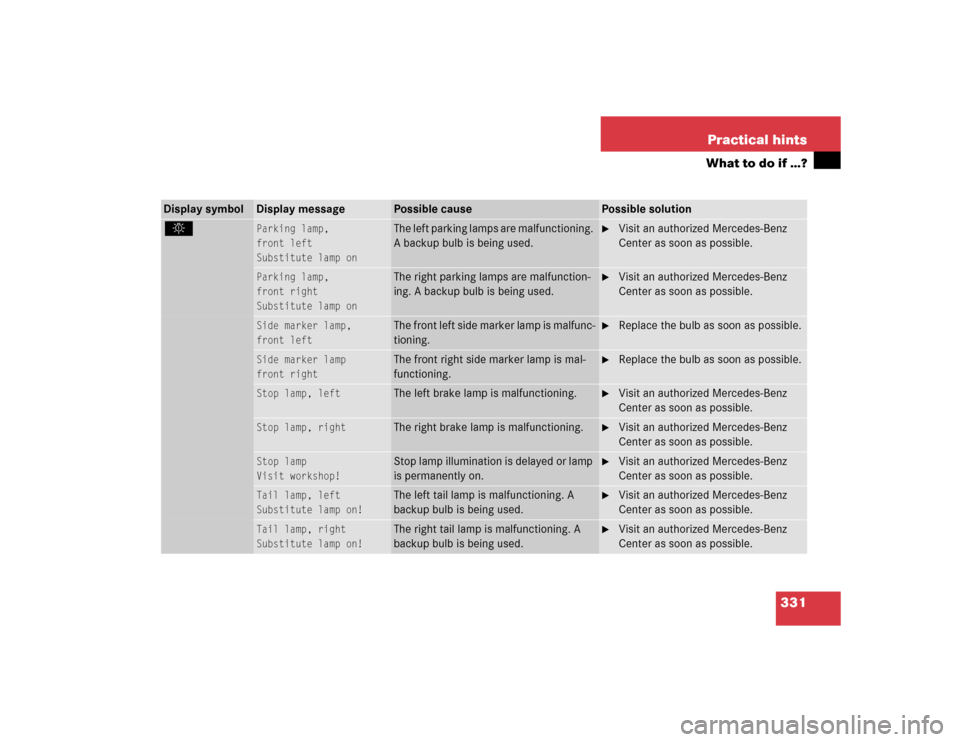

Parking lamp,
front left

Substitute lamp on

The left parking lamps are malfunctioning.
A backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp,
front right

Substitute lamp on

The right parking lamps are malfunction-
ing. A backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Side marker lamp,
front left
T h e f r o n t l e f t s i d e m a r k e r l a m p i s m a l f u n c -
tioning.

Replace the bulb as soon as possible.
Side marker lamp
front right
The front right side marker lamp is mal-
functioning.

Replace the bulb as soon as possible.
Stop lamp, left
The left brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Stop lamp, right
The right brake lamp is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Stop lamp
Visit workshop!
Stop lamp illumination is delayed or lamp
is permanently on.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp, left
Substitute lamp on!

The left tail lamp is malfunctioning. A
backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp, right
Substitute lamp on!

The right tail lamp is malfunctioning. A
backup bulb is being used.

Visit an authorized Mercedes-Benz
Center as soon as possible.

332 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution
.

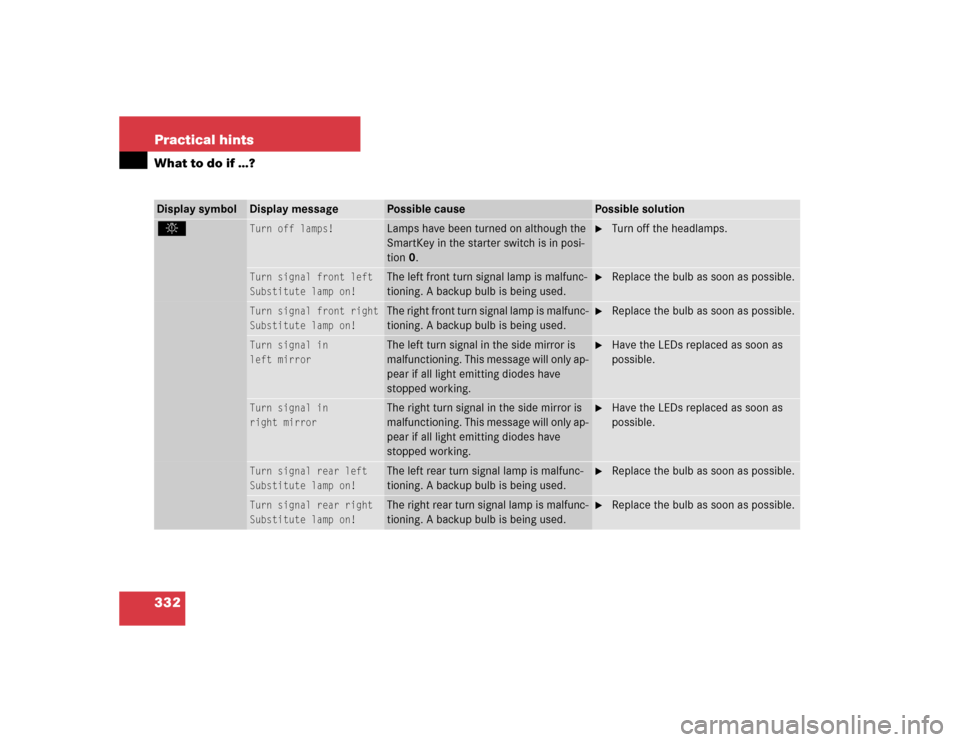

Turn off lamps!
Lamps have been turned on although the
SmartKey in the starter switch is in posi-
tion 0.

Turn off the headlamps.
Turn signal front left
Substitute lamp on!

The left front turn signal lamp is malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as possible.
Turn signal front right
Substitute lamp on!

The right front turn signal lamp is malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as possible.
Turn signal in
left mirror
The left turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal in
right mirror
The right turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.

Have the LEDs replaced as soon as
possible.
Turn signal rear left
Substitute lamp on!

The left rear turn signal lamp is malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as possible.
Turn signal rear right
Substitute lamp on!

The right rear turn signal lamp is malfunc-
tioning. A backup bulb is being used.

Replace the bulb as soon as possible.

333 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
<

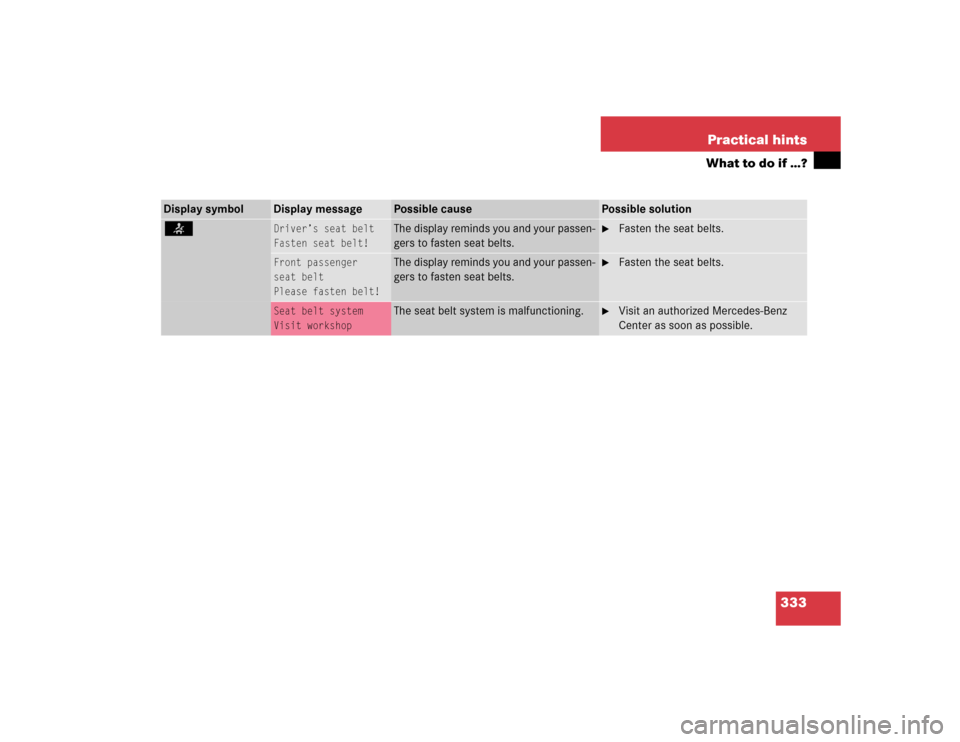

Driver’s seat belt
Fasten seat belt!
The display reminds you and your passen-
gers to fasten seat belts.

Fasten the seat belts.
Front passenger
seat belt
Please fasten belt!
The display reminds you and your passen-
gers to fasten seat belts.

Fasten the seat belts.
Seat belt system
Visit workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.

334 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution

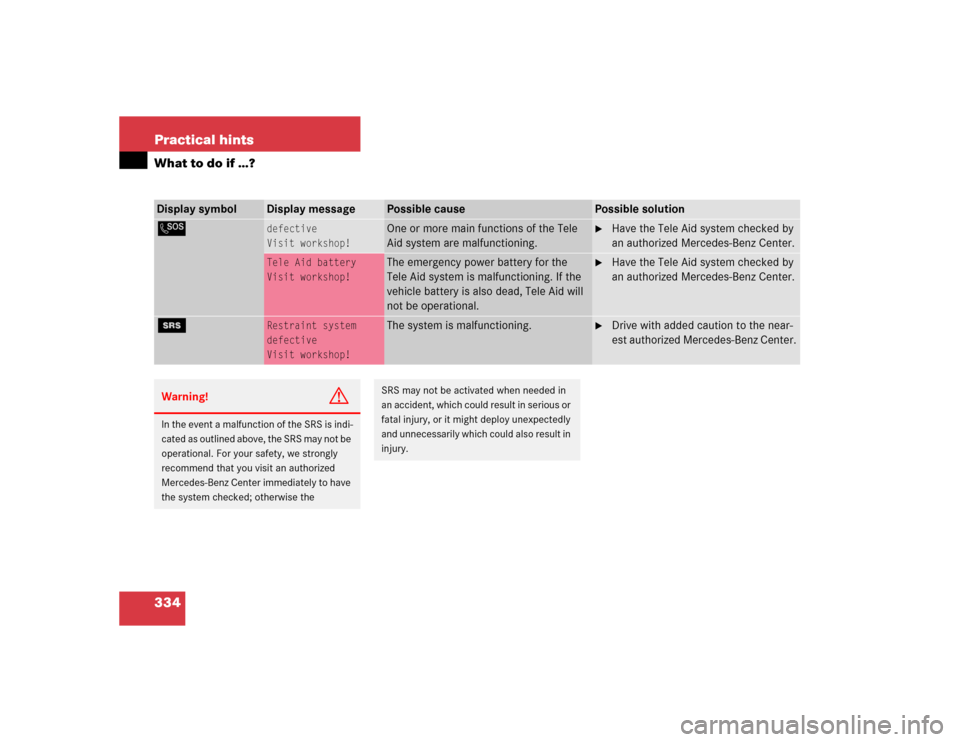

L
defective
Visit workshop!
One or more main functions of the Tele
Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
Tele Aid battery
Visit workshop!
The emergency power battery for the
Tele Aid system is malfunctioning. If the
vehicle battery is also dead, Tele Aid will
not be operational.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
defective
Visit workshop!
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the
SRS may not be activated when needed in
an accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could also result in
injury.

335 Practical hints
What to do if …?
Display symbol
Display message
Possible cause
Possible solution
_

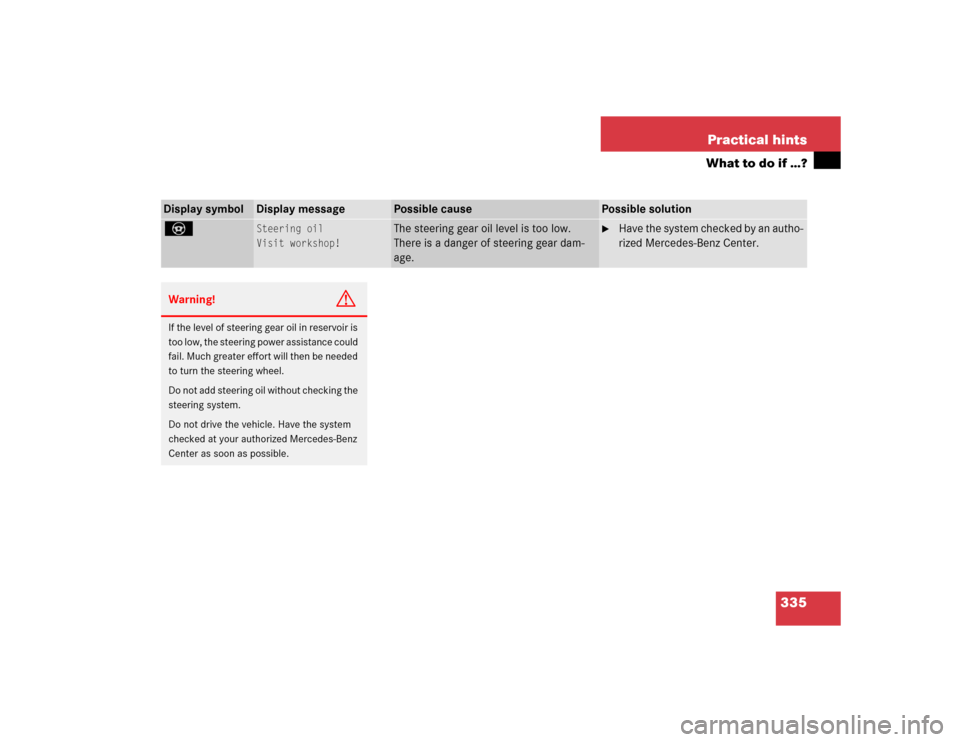

Steering oil
Visit workshop!
The steering gear oil level is too low.
There is a danger of steering gear dam-
age.

Have the system checked by an autho-
rized Mercedes-Benz Center.
Warning!
G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at your authorized Mercedes-Benz
Center as soon as possible.

336 Practical hintsWhat to do if …?Display symbol
Display message
Possible cause
Possible solution

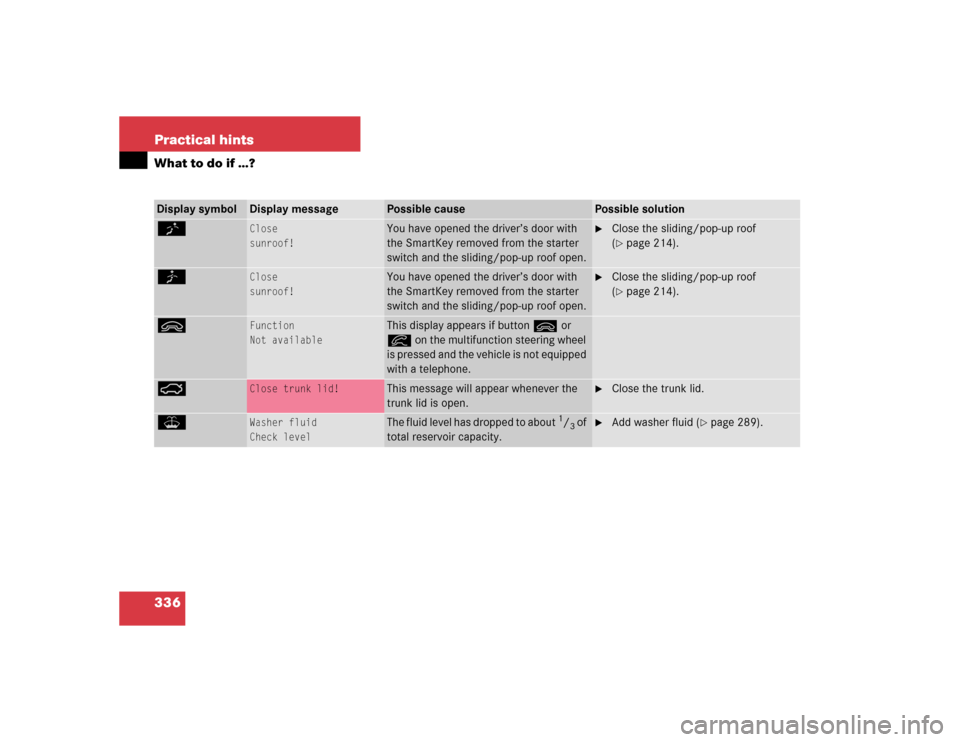

K
Close
sunroof!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding/pop-up roof open.

Close the sliding/pop-up roof
(page 214).
J
Close
sunroof!
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the sliding/pop-up roof open.

Close the sliding/pop-up roof
(page 214).
ì
Function
Not available
This display appears if button ì or
í on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
Close trunk lid!
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
Washer fluid
Check level
The fluid level has dropped to about
1/3 of
total reservoir capacity.

Add washer fluid (
page 289).

337 Practical hints
Where will I find...?
Where will I find...?
First aid kit
The first aid kit is stored in left hand side of
the trunk.
Loosen Velcro fastener.

Remove first aid kit.
Vehicle tool kit
The vehicle tool kit is stored in the com-
partment underneath the trunk floor.
The following is included:

Towing eye bolt


Alignment bolt


Wheel wrench


Vehicle jack


Wheel boltsRemoving the vehicle tool kit

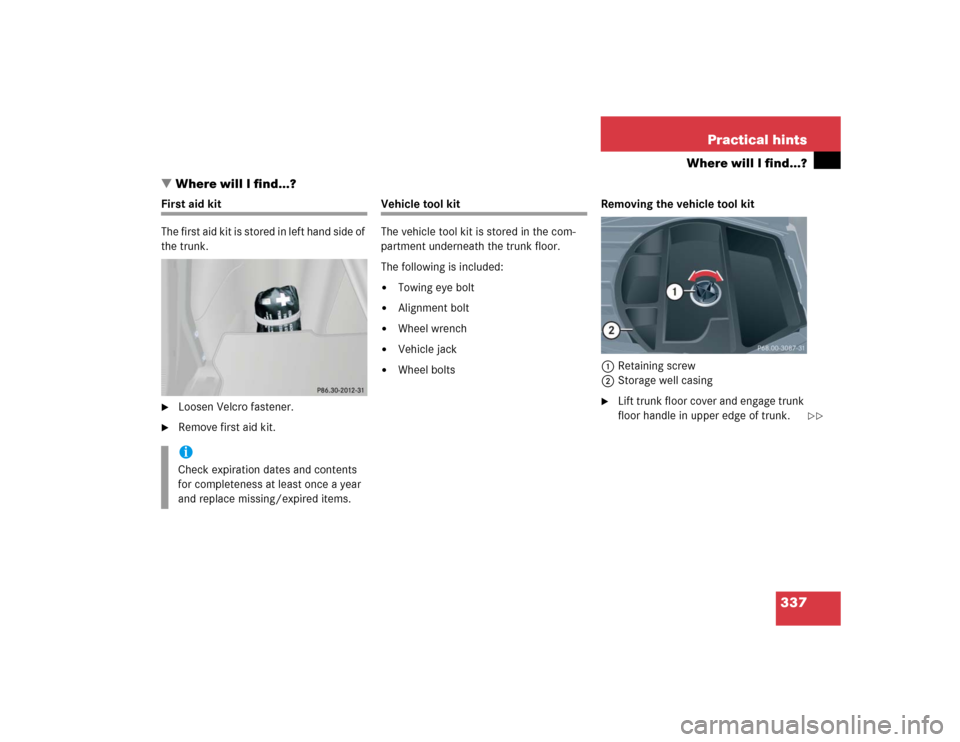

1Retaining screw
2Storage well casing

Lift trunk floor cover and engage trunk
floor handle in upper edge of trunk.
iCheck expiration dates and contents
for completeness at least once a year
and replace missing/expired items.


338 Practical hintsWhere will I find...?
Loosen retaining screw 1 in the mid-
dle of storage well casing2.

Remove storage well casing2.

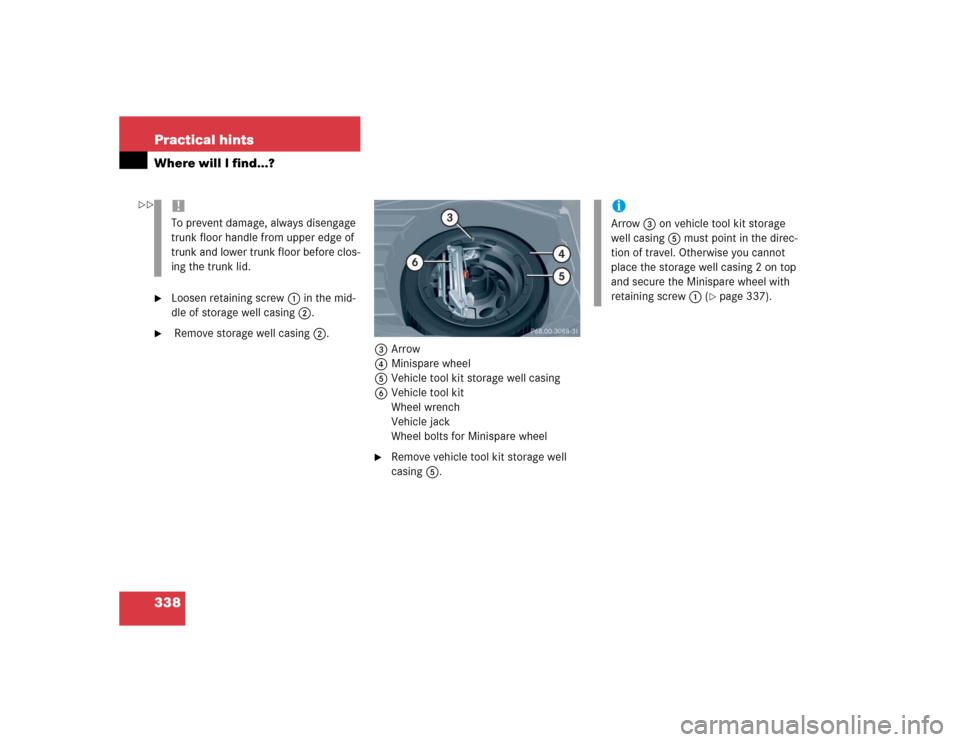

3Arrow
4Minispare wheel
5Vehicle tool kit storage well casing
6Vehicle tool kit
Wheel wrench
Vehicle jack
Wheel bolts for Minispare wheel

Remove vehicle tool kit storage well
casing5.
!To prevent damage, always disengage
trunk floor handle from upper edge of
trunk and lower trunk floor before clos-
ing the trunk lid.
iArrow3 on vehicle tool kit storage
well casing 5 must point in the direc-
tion of travel. Otherwise you cannot
place the storage well casing 2 on top
and secure the Minispare wheel with
retaining screw 1 (
page 337).


339 Practical hints
Where will I find...?

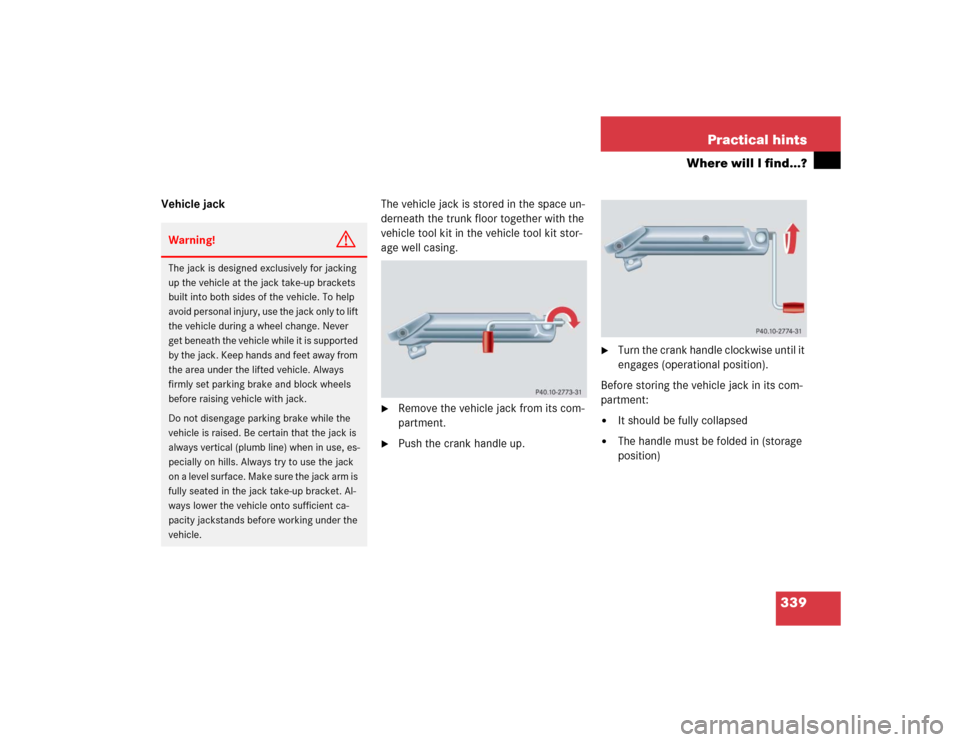

Vehicle jackThe vehicle jack is stored in the space un-
derneath the trunk floor together with the
vehicle tool kit in the vehicle tool kit stor-
age well casing.

Remove the vehicle jack from its com-
partment.

Push the crank handle up.

Turn the crank handle clockwise until it
engages (operational position).
Before storing the vehicle jack in its com-
partment:


It should be fully collapsed


The handle must be folded in (storage
position)
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on a level surface. Make sure the jack arm is
fully seated in the jack take-up bracket. Al-
ways lower the vehicle onto sufficient ca-
pacity jackstands before working under the
vehicle.

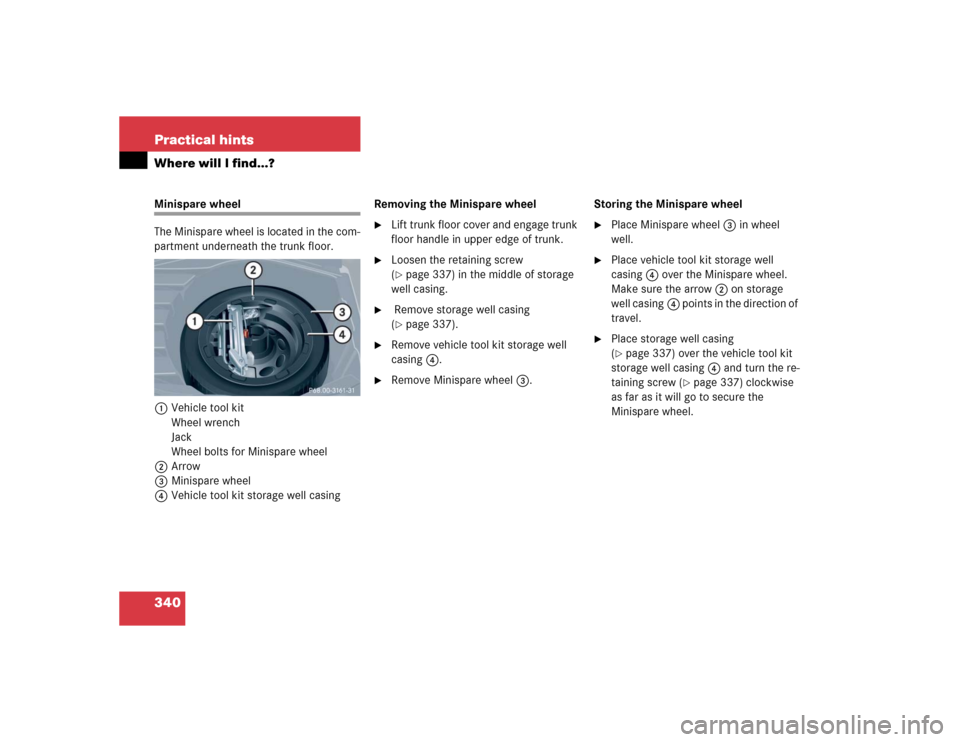

340 Practical hintsWhere will I find...?Minispare wheel
The Minispare wheel is located in the com-
partment underneath the trunk floor.
1Vehicle tool kit
Wheel wrench
Jack
Wheel bolts for Minispare wheel
2Arrow
3Minispare wheel
4Vehicle tool kit storage well casingRemoving the Minispare wheel

Lift trunk floor cover and engage trunk
floor handle in upper edge of trunk.

Loosen the retaining screw
(page 337) in the middle of storage
well casing.

Remove storage well casing
(page 337).

Remove vehicle tool kit storage well
casing4.

Remove Minispare wheel3.Storing the Minispare wheel

Place Minispare wheel3 in wheel
well.

Place vehicle tool kit storage well
casing4 over the Minispare wheel.
Make sure the arrow 2 on storage
well casing4 points in the direction of
travel.

Place storage well casing
(page 337) over the vehicle tool kit
storage well casing 4 and turn the re-
taining screw (
page 337) clockwise
as far as it will go to secure the
Minispare wheel.
