MERCEDES-BENZ CLK55AMG COUPE 2004 C209 Owner's Manual

381 Technical data
Rims and tires
Rims and tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er flap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

382 Technical dataRims and tiresSame size tires
16" tires
17" tires
CLK 320
CLK 500
CLK 320 (Appearance Package*)
CLK 55 AMG
Rims (light alloy)
7J x 16 H2
-
-
Wheel offset
1.45 in (37 mm)
-
-
Winter tires (radial-ply
tires)
205/55 R16 91H M+S
-
-
CLK 320
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Rims (light alloy)
71/2 J x 17 H2
71/2 J x 17 H2
71/2 Jx17H2
Wheel offset
1.42 in (36 mm)
1.45 in (37 mm)
1.45 in (37 mm)
Winter tires (radial-ply
tires)
225/45 R 17 91 H M+S
1
225/45 R 17 91 H M+S
1
225 / 45 R17 91 H M+S
1
1Must not be used with snow chains.

383 Technical data
Rims and tires
Mixed size tires
CLK 320
CLK 320*
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Front axle:Rims (light alloy)
7 J x 16 H2
71/2 J x 17 H2
71/2 J x 17 H2
Wheel offset
1.45 in (37 mm)
1.42 in (36 mm)
1.45 in (37 mm)
Summer tires
(radial-ply tires)
-
225/45 R17 91W
225/45 R17 91Y
All-season tires
(radial-ply tires)
205/55 R16 91H M+S
-
-
Rear axle:Rims (light alloy)
8 J x 16 H2
81/2 J x17 H2
81/2 J x17 H2
Wheel offset
1.26 in (32 mm)
1.18 in (30 mm)
1.18 in (30 mm)
Summer tires (radial-ply
tires)
-
245/40 R17 91W
1
1Must not be used with snow chains.
245/40 R17 91Y
1
All-season tires
(radial-ply tires)
225/50 R16 92H M+S
1
-
-

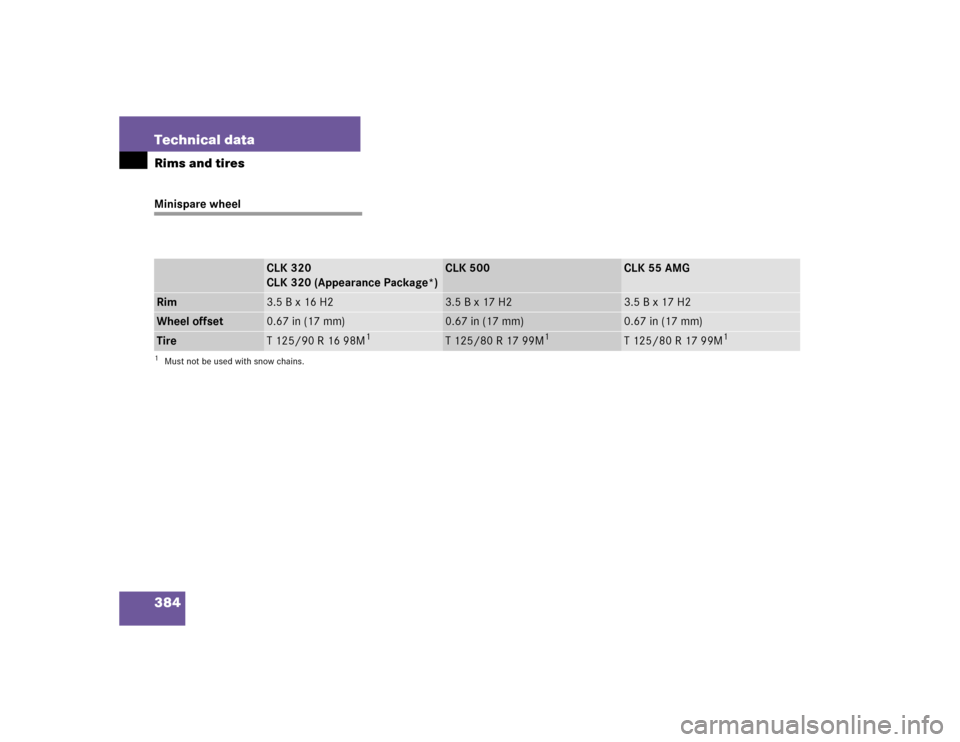

384 Technical dataRims and tiresMinispare wheel
CLK 320
CLK 320 (Appearance Package*)
CLK 500
CLK 55 AMG
Rim
3.5 B x 16 H2
3.5 B x 17 H2
3.5 B x 17 H2
Wheel offset
0.67 in (17 mm)
0.67 in (17 mm)
0.67 in (17 mm)
Tire
T 125/90 R 16 98M
1
1Must not be used with snow chains.
T 125/80 R 17 99M
1
T 125/80 R 17 99M
1

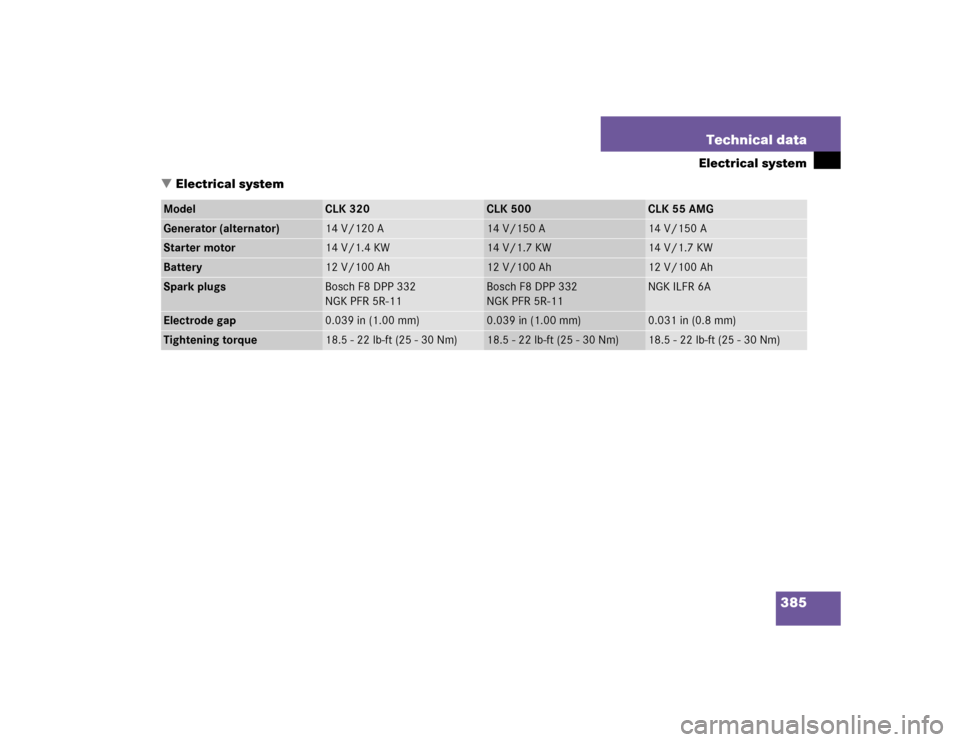

385 Technical data
Electrical system
Electrical system
Model
CLK 320
CLK 500
CLK 55 AMG
Generator (alternator)
14 V/120 A
14 V/150 A
14 V/150 A
Starter motor
14 V/1.4 KW
14 V/1.7 KW
14 V/1.7 KW
Battery
12 V/100 Ah
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch F8 DPP 332
NGK PFR 5R-11
Bosch F8 DPP 332
NGK PFR 5R-11
NGK ILFR 6A
Electrode gap
0.039 in (1.00 mm)
0.039 in (1.00 mm)
0.031 in (0.8 mm)
Tightening torque
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)

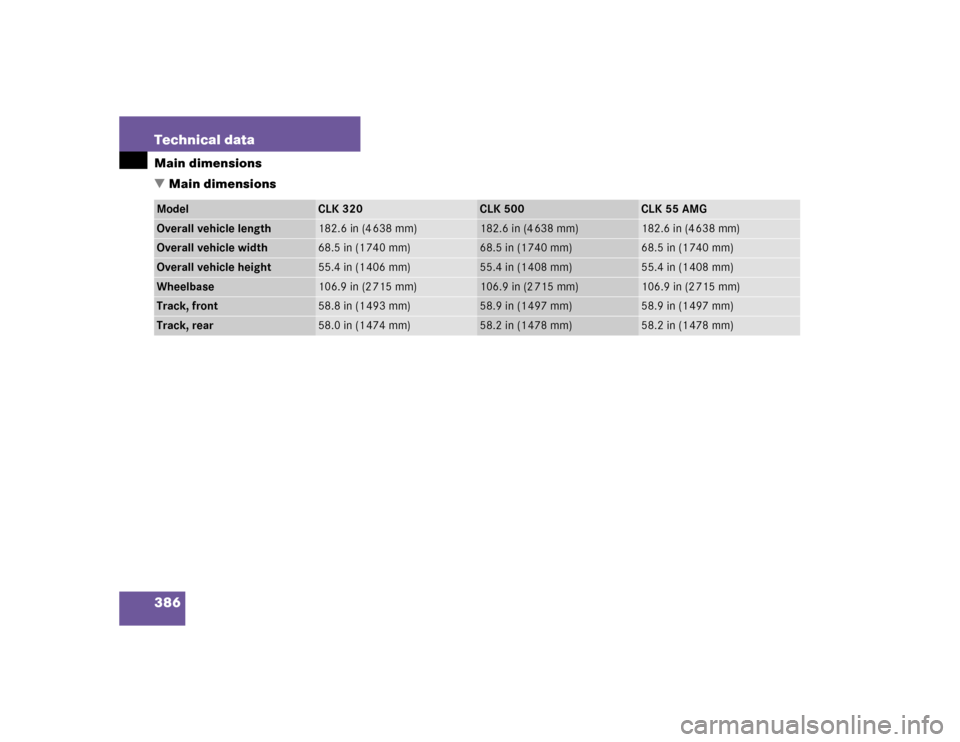

386 Technical dataMain dimensions
Main dimensionsModel
CLK 320
CLK 500
CLK 55 AMG
Overall vehicle length
182.6 in (4 638 mm)
182.6 in (4 638 mm)
182.6 in (4 638 mm)
Overall vehicle width
68.5 in (1 740 mm)
68.5 in (1 740 mm)
68.5 in (1 740 mm)
Overall vehicle height
55.4 in (1 406 mm)
55.4 in (1 408 mm)
55.4 in (1 408 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.9 in (1 497 mm)
58.9 in (1 497 mm)
Track, rear
58.0 in (1 474 mm)
58.2 in (1 478 mm)
58.2 in (1 478 mm)

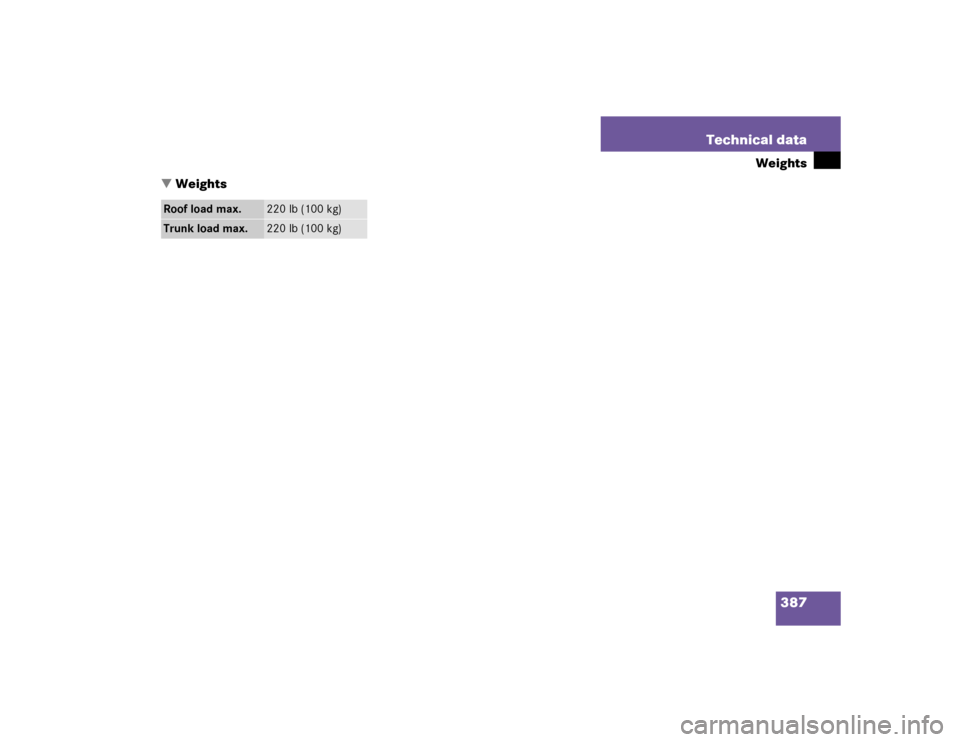

387 Technical data
Weights
Weights
Roof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

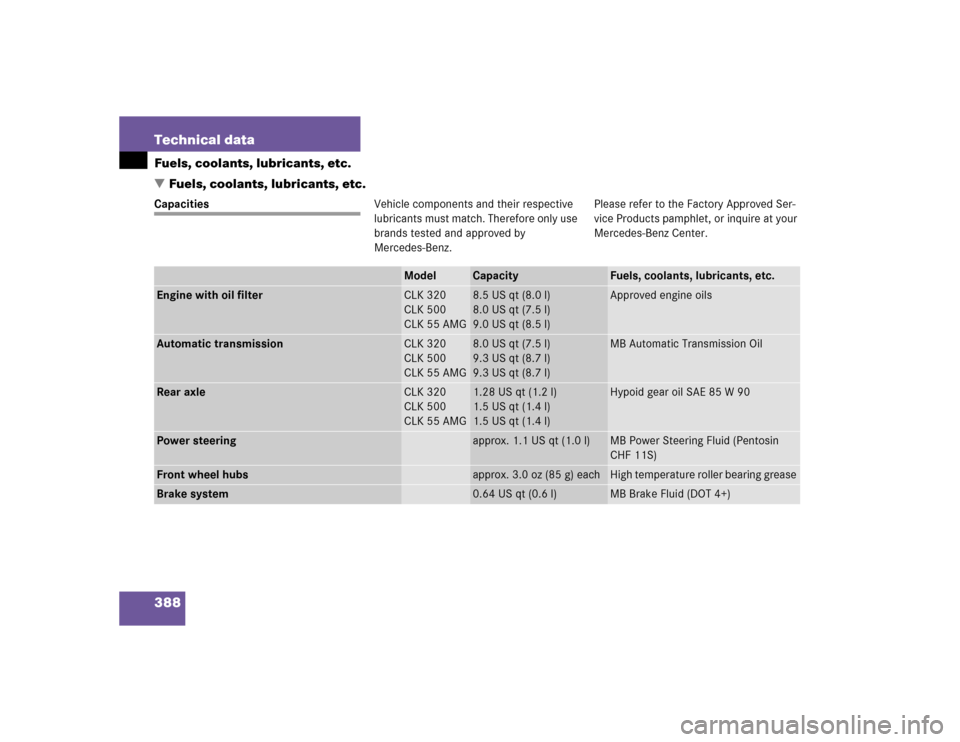

388 Technical dataFuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.CapacitiesVehicle components and their respective
lubricants must match. Therefore only use
brands tested and approved by
Mercedes-Benz.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
CLK 320
CLK 500
CLK 55 AMG
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
9.0 US qt (8.5 l)
Approved engine oils
Automatic transmission
CLK 320
CLK 500
CLK 55 AMG
8.0 US qt (7.5 l)
9.3 US qt (8.7 l)
9.3 US qt (8.7 l)
MB Automatic Transmission Oil
Rear axle
CLK 320
CLK 500
CLK 55 AMG
1.28 US qt (1.2 l)
1.5 US qt (1.4 l)
1.5 US qt (1.4 l)
Hypoid gear oil SAE 85 W 90
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin
CHF 11S)
Front wheel hubs
approx. 3.0 oz (85 g) each
High temperature roller bearing grease
Brake system
0.64 US qt (0.6 l)
MB Brake Fluid (DOT 4+)

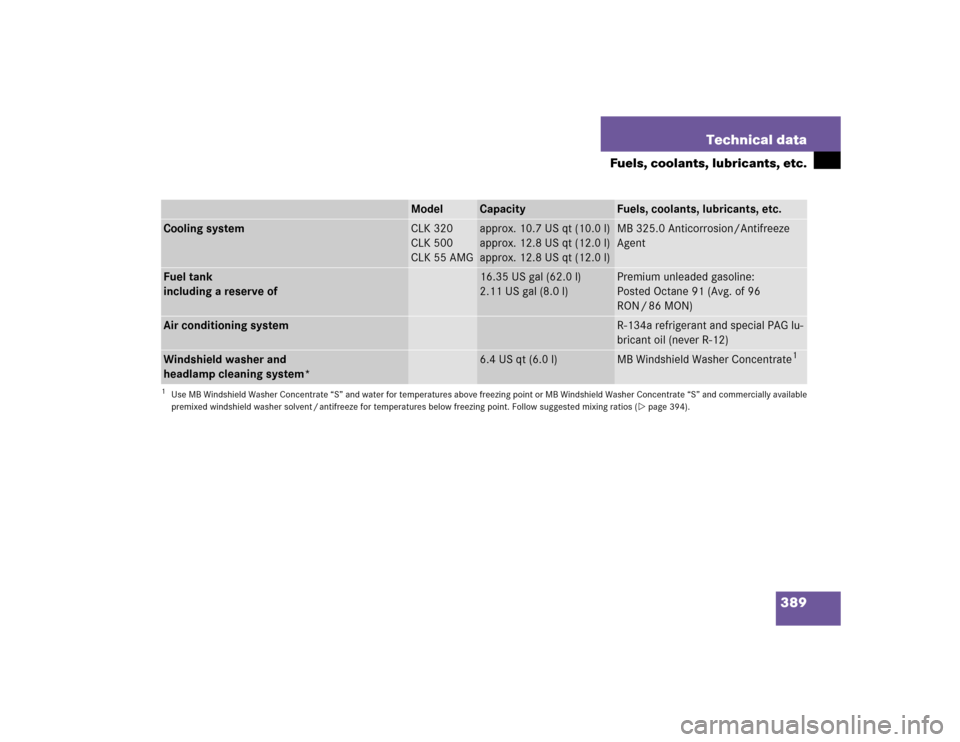

389 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
CLK 320
CLK 500
CLK 55 AMG
approx. 10.7 US qt (10.0 l)
approx. 12.8 US qt (12.0 l)
approx. 12.8 US qt (12.0 l)
MB 325.0 Anticorrosion/Antifreeze
Agent
Fuel tank
including a reserve of
16.35 US gal (62.0 l)
2.11 US gal (8.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96
RON / 86 MON)
Air conditioning system
R-134a refrigerant and special PAG lu-
bricant oil (never R-12)
Windshield washer and
headlamp cleaning system*
6.4 US qt (6.0 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent / antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 394).

390 Technical dataFuels, coolants, lubricants, etc.Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, only
use engine oils approved by
Mercedes-Benz. Information on approved
engine oils is available in the Factory Ap-
proved Service Products pamphlet, or at
your authorized Mercedes-Benz Center.Please follow FSS recommendations for
scheduled oil changes. Failure to do so
could result in engine damage not covered
by the Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.Never use R-12 (CFC) or mineral-based lu-
bricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
!Always check the oil filler cap
(page 285) for important information
pertaining to the engine oil needing to
meet a specific Mercedes-Benz specifi-
cation (e.g. MB 229.5). If such informa-
tion is printed on the oil filler cap, only
use an engine oil from the list of ap-
proved engine oils in the Factory Ap-
proved Service Products pamphlet that
meets the specification indicated on
the oil filler cap.
Using engine oils of other specification
may cause the FSS to incorrectly deter-
mine the next service interval and will
result in engine damage not covered by
the Mercedes-Benz Limited Warranty.
