MERCEDES-BENZ CLS 2014 Owners Manual

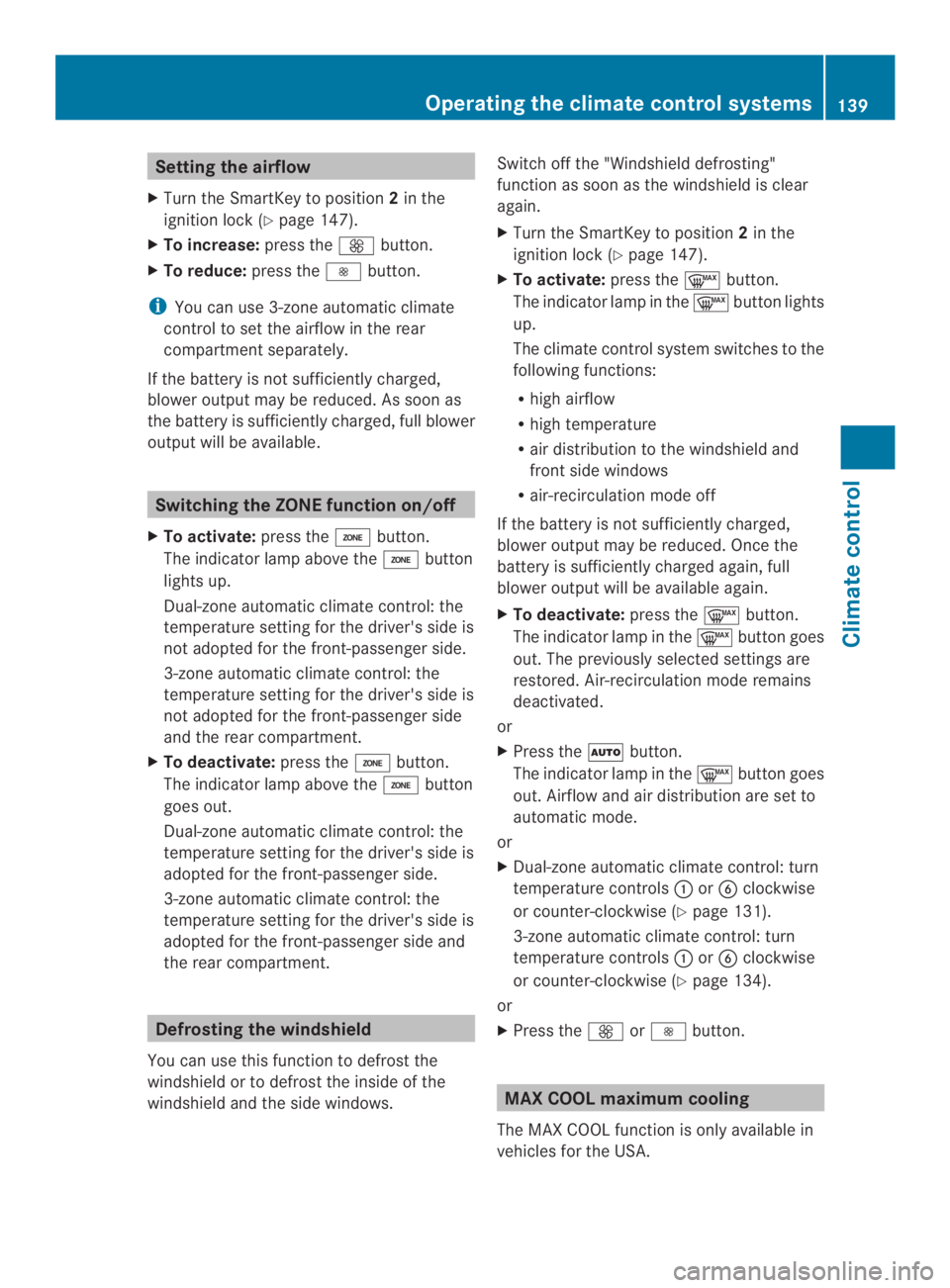

Setting the airflow
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
XTo increase:press thebutton.
XTo reduce:press thebutton.
iYou can use 3-zone automatic climate
control to set the airflow in the rear
compartmentseparately.
If the batteryisnot sufficiently charged,
blower output may be reduced. As soon as
the batteryissufficiently charged, full blower
output will be available.
Switching the ZONE function on/off
XTo activate:press thebutton.
The indicator lamp above thebutton
lights up.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
not adopted for the front-passenger side.
3-zone automatic climate control: the
temperature setting for the driver's side is
not adopted for the front-passenger side
and the rear compartment.
XTo deactivate:press thebutton.
The indicator lamp above thebutton
goes out.
Dual-zone automatic climate control: the
temperature setting for the driver's side is
adopted for the front-passenger side.
3-zone automatic climate control: the
temperature setting for the driver's side is
adopted for the front-passenger side and
the rear compartment.
Defrosting the windshield
You can use this function to defrost the
windshield or to defrost the inside of the
windshield and the side windows.
Switchoff the "Windshield defrosting"
function as soon as the windshield is clear
again.
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up.
The climate control system switches to the
following functions:
Rhigh airflow
Rhigh temperature
Rair distribution to the windshield and
frontside windows
Rair-recirculation mode off
If the battery is not sufficiently charged,
blower output may be reduced. Oncethe
battery is sufficiently charged again, full
blower output will be available again.
XTo deactivate:press thebutton.
The indicator lamp in thebutton goes
out. The previously selected settings are
restored. Air-recirculation mode remains
deactivated.
or
XPress the\rbutton.
The indicator lamp in thebutton goes
out. Airflow and air distribution are set to
automatic mode.
or
XDual-zoneautomatic climate control: turn
temperature controlsor%clockwise
or counter-clockwise (Ypage 131).
3-zoneautomatic climate control: turn
temperature controlsor%clockwise
or counter-clockwise (Ypage 134).
or
XPress theorbutton.
MAX COOL maximum cooling
The MAX COOL function is only available in
vehicles for the USA.
Operating theclimate control systems139
Climate control

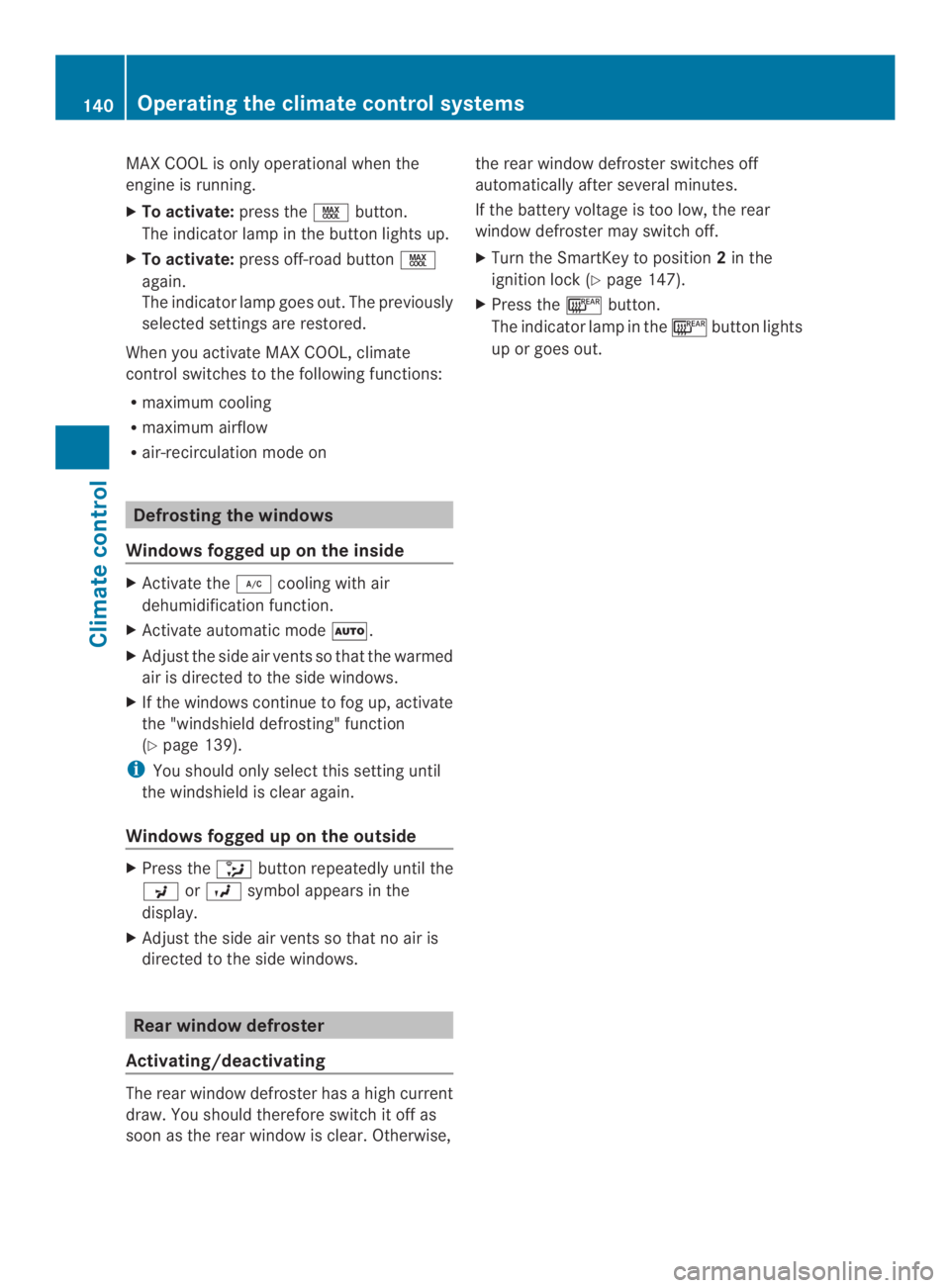

MAX COOL is only operational when the
engine is running.
XTo activate:press thebutton.
The indicator lamp in the button lights up.
XTo activate:press off-road button
again.
The indicator lamp goes out. The previously
selected settings are restored.
When you activate MAX COOL, climate
control switches to the following functions:
Rmaximum cooling
Rmaximum airflow
Rair-recirculation mode on
Defrosting the windows
Windows fogged up on the inside
XActivate thecooling with air
dehumidification function.
XActivate automatic mode\r.
XAdjust the side air ventssothat the warmed
air is directed to the side windows.
XIf the windows continue to fog up, activate
the "windshielddefrosting" function
(Ypage 139).
iYou should only select this settinguntil
the windshield is clear again.
Windows fogged up on the outside
XPress thebutton repeatedly until the
orsymbol appears in the
display.
XAdjust the side air ventssothat no air is
directed to the side windows.
Rear window defroster
Activating/deactivating
The rear window defroster hasahigh current
draw. You should thereforeswitch it off as
soon as the rear window is clear. Otherwise,
the rear window defroster switches off
automatically after several minutes.
If the battery voltage is too low, the rear
window defroster may switch off.
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
XPress thebutton.
The indicator lamp in thebutton lights
up or goes out.
140Operating the climate control systems
Climate control

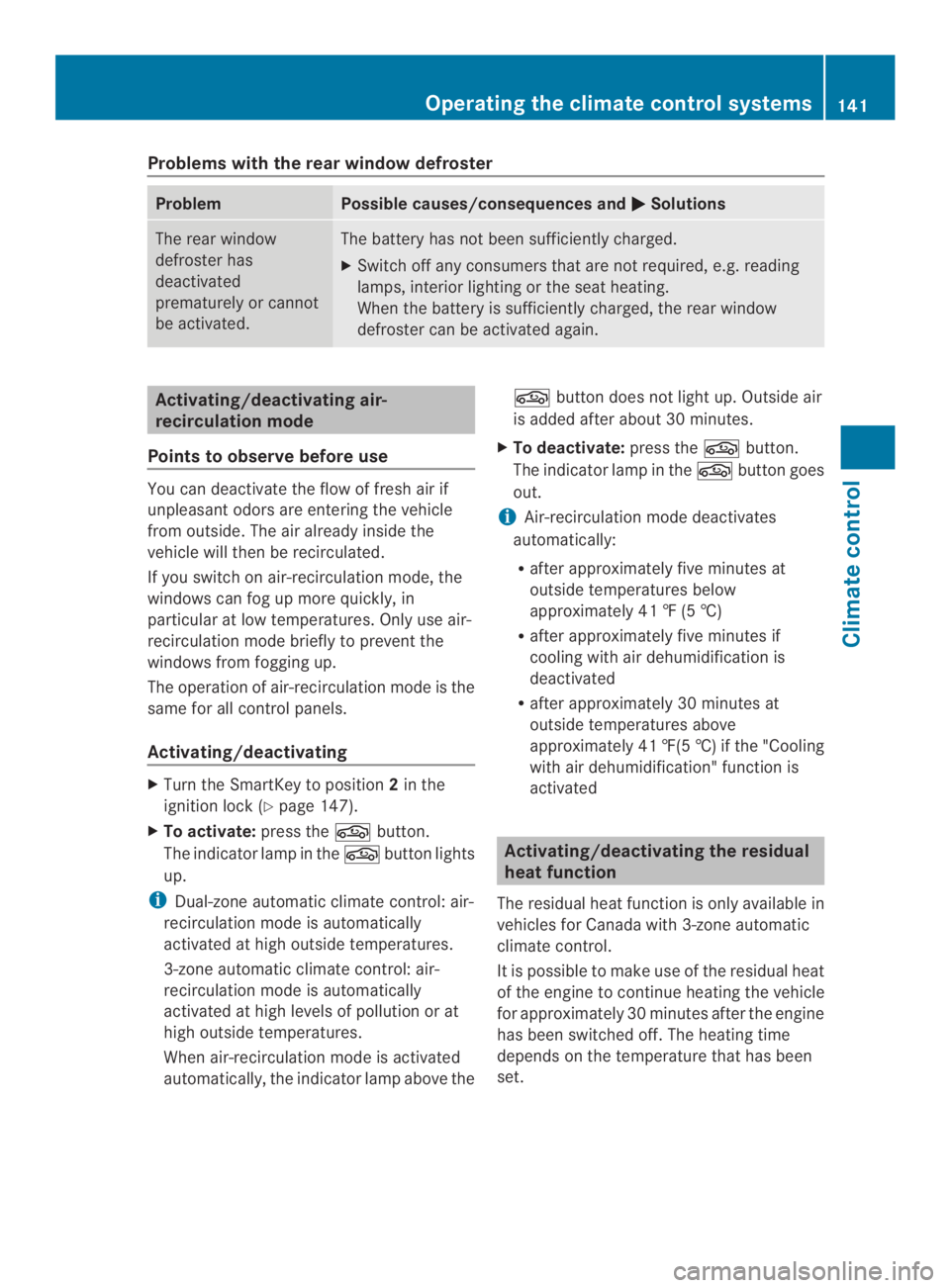

Problems with the rear window defroster
ProblemPossible causes/consequences andSolutions
The rear window
defroster has
deactivated
prematurely or cannot
be activated.
The battery has not been sufficiently charged.
XSwitch off any consumers that are not required, e.g. reading
lamps, interior lighting or the seat heating.
When the battery is sufficiently charged, the rear window
defroster can be activated again.
Activating/deactivating air-
recirculation mode
Points to observe before use
You can deactivate the flow of fresh air if
unpleasant odors are enteringthe vehicle
from outside. The air already inside the
vehicle will then be recirculated.
If you switch on air-recirculation mode, the
windows can fog up more quickly, in
particular at low temperatures. Only use air-
recirculation mode briefly to prevent the
windows from fogging up.
The operation of air-recirculation mode is the
same for all control panels.
Activating/deactivating
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up.
iDual-zone automatic climate control: air-
recirculation mode is automatically
activated at high outside temperatures.
3-zone automatic climate control: air-
recirculation mode is automatically
activated at high levels of pollution or at
high outside temperatures.
When air-recirculation mode is activated
automatically,the indicator lamp above the
button does not light up. Outside air
is added after about 30 minutes.
XTo deactivate:press thebutton.
The indicator lamp in thebutton goes
out.
iAir-recirculation mode deactivates
automatically:
Rafter approximately five minutes at
outside temperatures below
approximately 41‡(5†)
Rafter approximately five minutes if
cooling with air dehumidification is
deactivated
Rafter approximately 30 minutes at
outside temperatures above
approximately 41 ‡(5†)if the "Cooling
with air dehumidification" function is
activated
Activating/deactivating theresidual
heat function
The residual heat function is only available in
vehicles for Canada with 3-zoneautomatic
climate control.
It is possible to makeuse of the residual heat
of the engine to continue heatingthe vehicle
for approximately 30 minutes after the engine
has been switched off.The heating time
depends on the temperature that has been
set.
Operating the climate control systems141
Climat ec ontrol

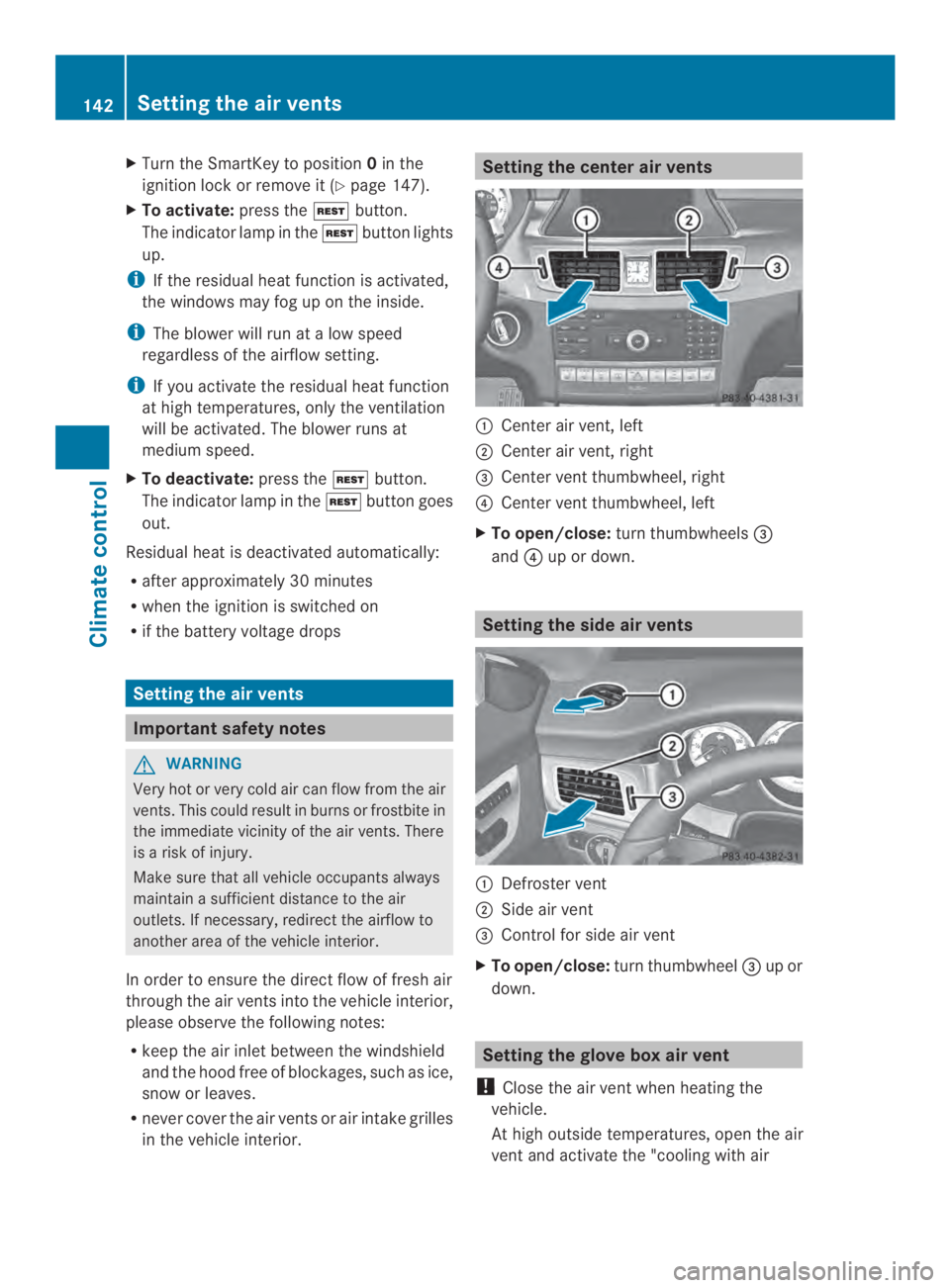

XTurn the SmartKey to position0in the
ignition lock or remove it (Ypage 147).
XTo activate:press thebutton.
The indicator lamp in thebutton lights
up.
iIf the residual heat function is activated,
the windows may fog up on the inside.
iThe blower will run atalow speed
regardless of the airflow setting.
iIf you activatethe residual heat function
at high temperatures, only the ventilation
will be activated. The blower runs at
medium speed.
XTo deactivate:press thebutton.
The indicator lamp in thebutton goes
out.
Residualheat is deactivated automatically:
Rafter approximately 30 minutes
Rwhen the ignition is switched on
Rif the battery voltage drops
Setting the air vents
Important safety notes
GWARNING
Very hot or very cold air can flow from the air
vents. This could result in burns or frostbite in
the immediate vicinityofthe air vents. There
isarisk of injury.
Make sure that all vehicle occupantsalways
maintainasufficient distancetothe air
outlets. If necessary, redirect the airflow to
another area of the vehicle interior.
In order to ensure the direct flow of fresh air
through the air ventsinto the vehicle interior,
please observe the following notes:
Rkeep the air inlet between the windshield
and the hood free of blockages, such as ice,
snow or leaves.
Rnever cover the air ventsorair intakegrilles
in the vehicle interior.
Setting the center air vents
Center air vent,left
Center air vent,right
$Center vent thumbwheel, right
!Center vent thumbwheel, left
XTo open/close:turn thumbwheels$
and!up or down.
Setting the side air vents
Defroster vent
Side air vent
$Control for side air vent
XTo open/close:turn thumbwheel$up or
down.
Setting the glove box air vent
!Close the air vent when heating the
vehicle.
At high outside temperatures, open the air
vent and activatethe "cooling with air
142Setting the air vents
Climate control

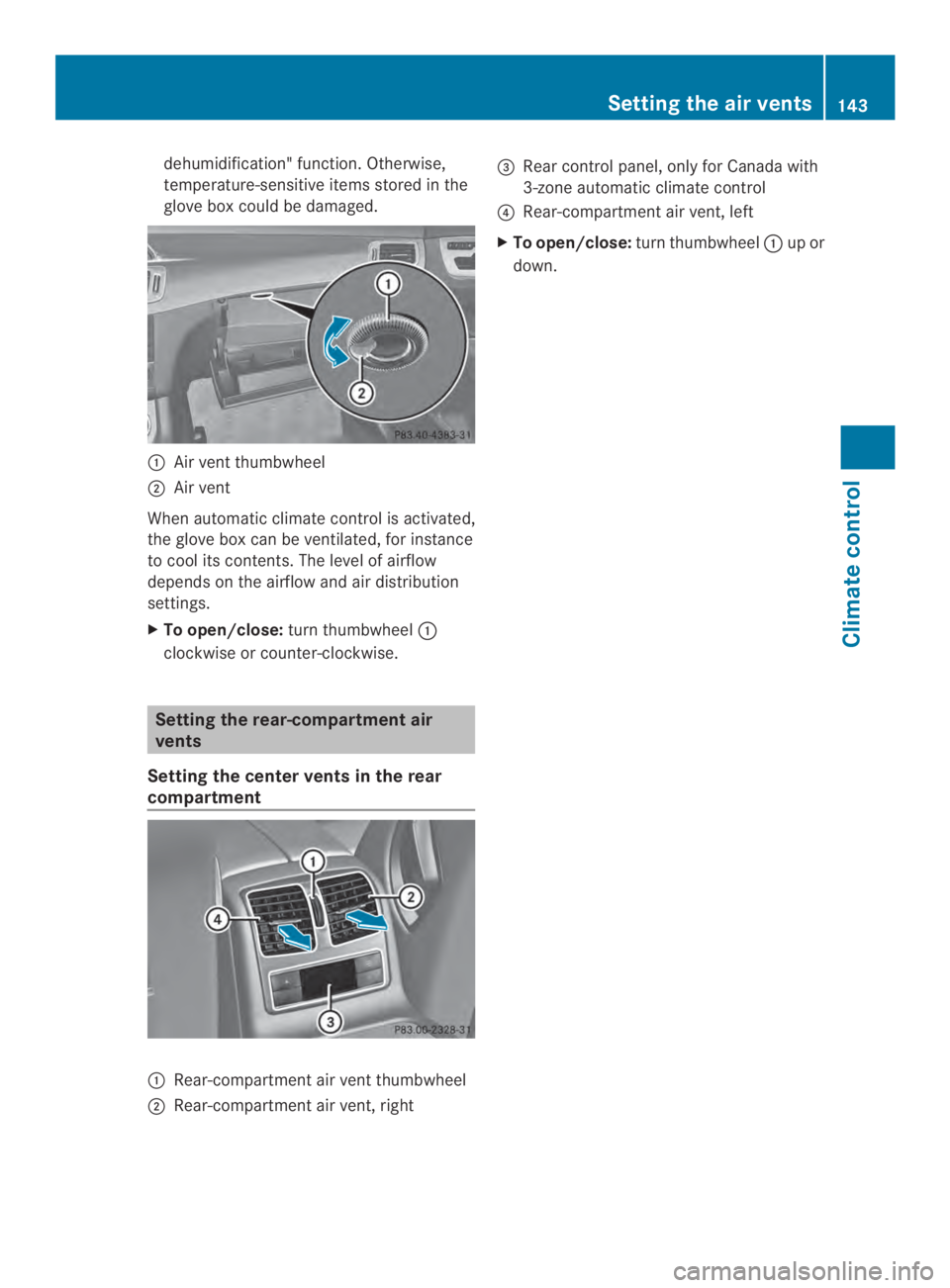

dehumidification" function.Otherwise,
temperature-sensitive items stored in the
glove boxcould be damaged.
Air vent thumbwheel
Air vent
When automatic climate control is activated,
the glove box can be ventilated, for instance
to cool its contents.The level of airflow
depends on the airflow and air distribution
settings.
XTo open/close:turn thumbwheel
clockwise or counter-clockwise.
Setting the rear-compartment air
vents
Setting the center vents in the rear
compartment
Rear-compartment air vent thumbwheel
Rear-compartment air vent,right
$Rear control panel, only for Canada with
3-zone automatic climate control
!Rear-compartment air vent,left
XTo open/close:turn thumbwheelup or
down.
Setting the air vents143
Climat ec ontrol
Z

144

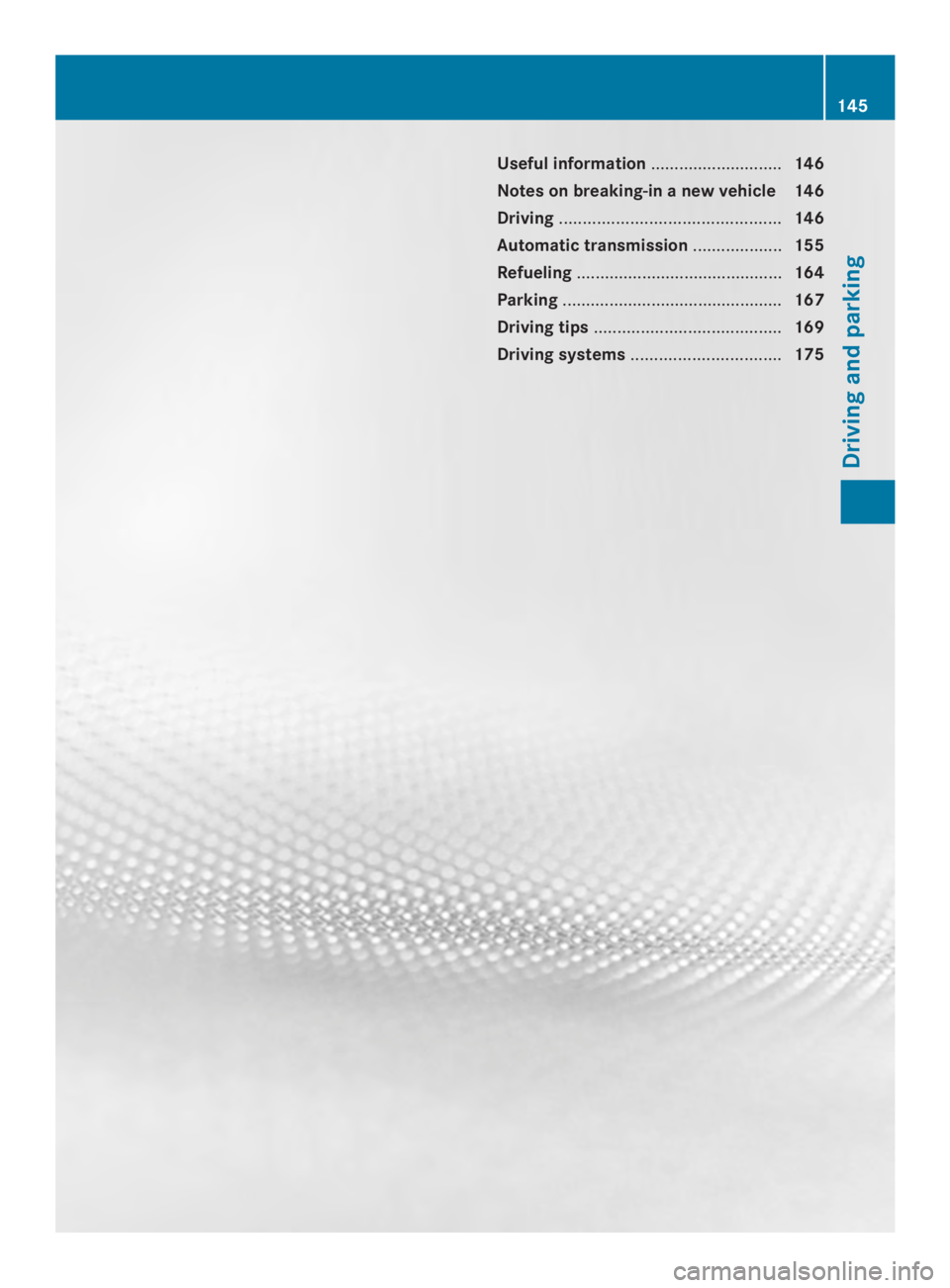

Useful information............................146
Notes on breaking-inanew vehicle 146
Driving...............................................146
Automatic transmission...................155
Refueling............................................164
Parking...............................................167
Driving tips........................................169
Driving systems................................175
145
Driving and parking

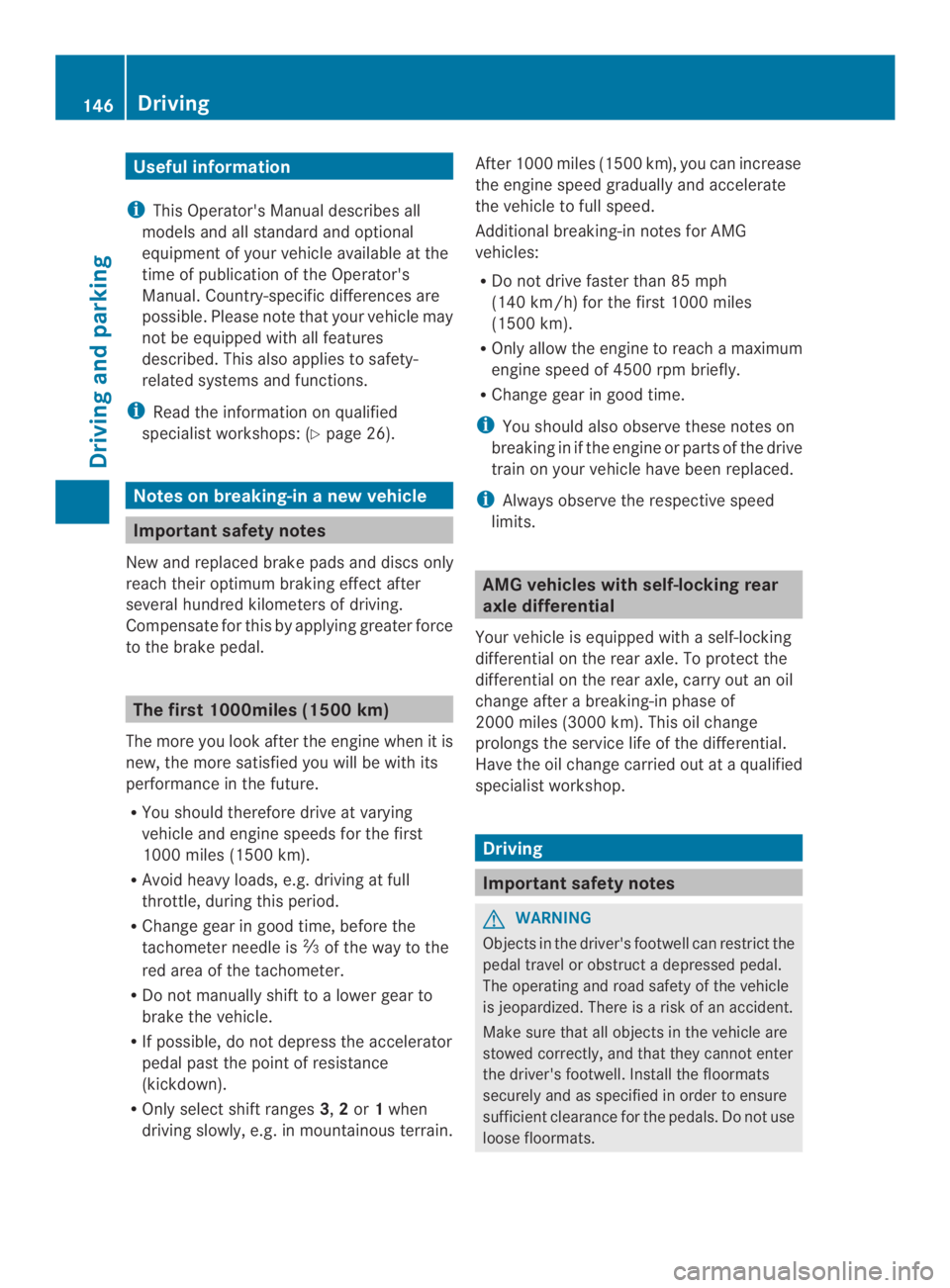

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please notethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related systemsand functions.
iRead the information on qualified
specialist workshops: (Ypage 26).
Notes on breaking-inanew vehicle
Important safety notes
New and replaced brakepads and discsonly
reachtheir optimum braking effect after
several hundred kilometers of driving.
Compensate for this by applyinggreater force
to thebrakepedal.
Thefirst 1000miles (1500 km)
The moreyou look after theengine when it is
new, themoresatisfied you will be with its
performanceinthefuture.
RYou should therefore driveatvarying
vehicle and engine speedsfor thefirst
1000 miles (1500 km).
RAvoid heavy loads, e.g.driving at full
throttle, during this period.
RChange gearingood time, before the
tachometer needle isof the way to the
red area of the tachometer.
RDo not manually shift toalower gear to
brake the vehicle.
RIf possible, do not depress the accelerator
pedal past the point of resistance
(kickdown).
ROnly select shift ranges3,2or1when
driving slowly, e.g. in mountainous terrain.
After 1000 miles (1500 km), you can increase
the engine speed graduallyand accelerate
the vehicle to full speed.
Additional breaking-in notes for AMG
vehicles:
RDo not drive faster than 85 mph
(140 km/h) for the first 1000 miles
(1500 km).
ROnly allow the engine to reachamaximum
engine speed of 4500 rpm briefly.
RChange gear in good time.
iYou should also observe these notes on
breaking in if the engine or parts of the drive
train on your vehicle have been replaced.
iAlways observe the respective speed
limits.
AMG vehicles with self-locking rear
axle differential
Your vehicle is equipped withaself-locking
differential on the rear axle. To protectthe
differential on the rear axle, carry out an oil
change afterabreaking-in phase of
2000miles (3000 km). This oil change
prolongs the servicelife of the differential.
Have the oil change carried out ataqualified
specialist workshop.
Driving
Important safetynotes
GWARNING
Objects in the driver's footwell can restrict the
pedal travel or obstructadepressed pedal.
The operatingand road safety of the vehicle
is jeopardized. There isarisk of an accident.
Make sure that all objects in the vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Install the floormats
securely and as specified in order to ensure
sufficientclearancefor the pedals. Do not use
loose floormats.
146Driving
Driving and parking

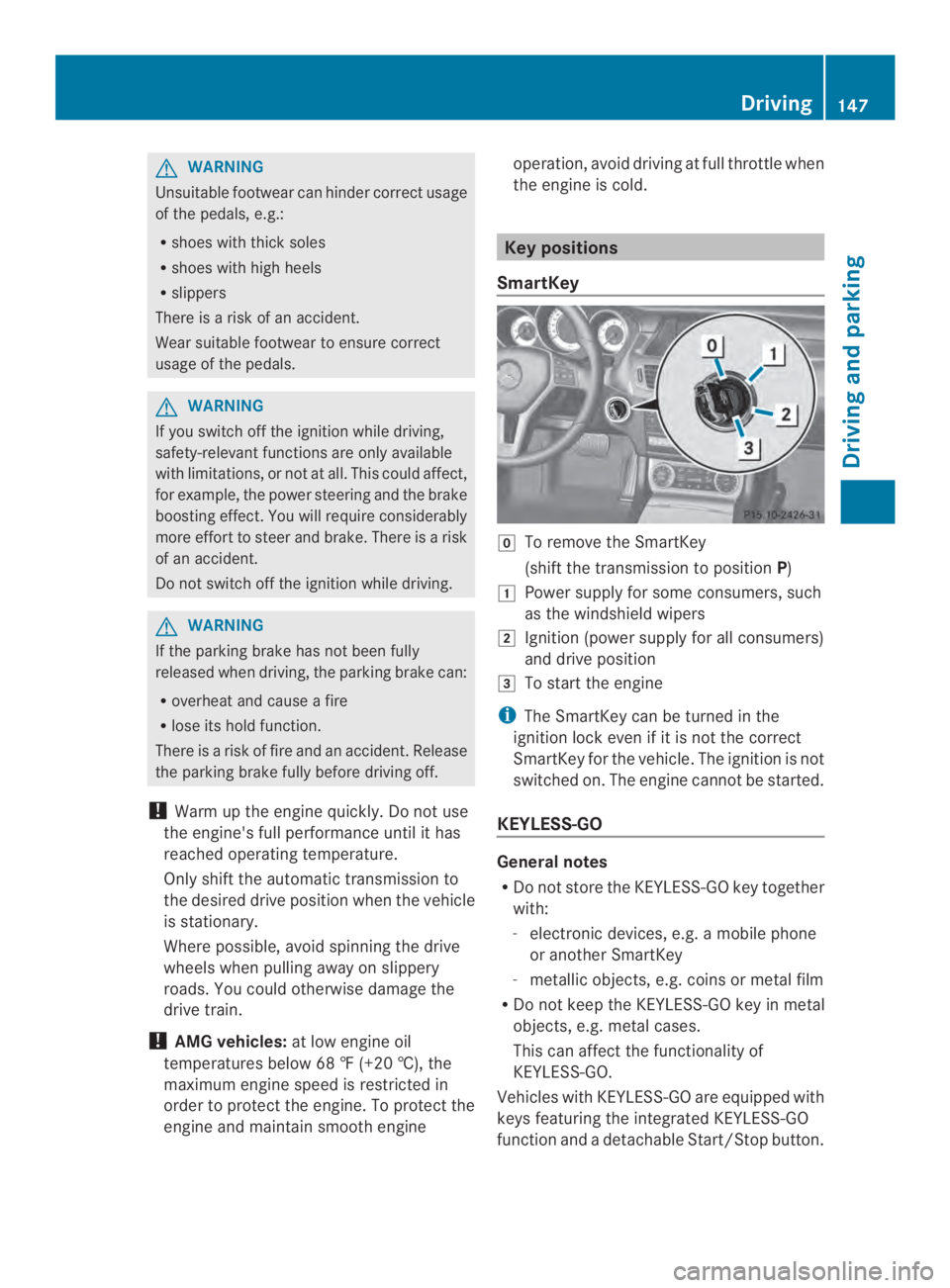

GWARNING
Unsuitable footwearcan hinder correctusage
of the pedals, e.g.:
Rshoes with thick soles
Rshoes with high heels
Rslippers
There isarisk of an accident.
Wear suitable footwear to ensure correct
usage of the pedals.
GWARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect,
for example, the power steering and the brake
boosting effect. You will require considerably
more effort to steer and brake. There isarisk
of an accident.
Do not switch off the ignition while driving.
GWARNING
If the parking brake has not been fully
released when driving, the parking brake can:
Roverheat and causeafire
Rlose its hold function.
There isarisk of fire and an accident. Release
the parking brake fully before driving off.
!Warm up the engine quickly. Do not use
the engine's full performance until it has
reached operating temperature.
Only shift the automatic transmission to
the desired drive position when the vehicle
is stationary.
Where possible,avoid spinning the drive
wheels when pulling awayonslippery
roads. You could otherwise damage the
drive train.
!AMG vehicles:at low engine oil
temperatures below 68‡(+20 †), the
maximumengine speed is restrictedin
order to protect the engine.Toprotectthe
engine and maintain smooth engine
operation, avoid driving at full throttle when
the engine is cold.
Key positions
SmartKey
To remove the SmartKey
(shift the transmission to positionP)

Power supply for some consumers, such
as the windshield wipers
Ignition (power supply for all consumers)
and drive position
To start the engine
iThe SmartKey can be turned in the
ignition lock even if it is not the correct
SmartKey for the vehicle. The ignition is not
switched on. The engine cannot be started.
KEYLESS-GO
General notes
RDo not store the KEYLESS-GO key together
with:
-electronic devices, e.g.amobile phone
or another SmartKey
-metallic objects, e.g. coins or metal film
RDo not keep the KEYLESS-GO key in metal
objects, e.g. metal cases.
This can affect the functionality of
KEYLESS-GO.
Vehicles with KEYLESS-GO are equipped with
keys featuring the integrated KEYLESS-GO
function andadetachable Start/Stop button.
Driving147
Driving and parking
Z

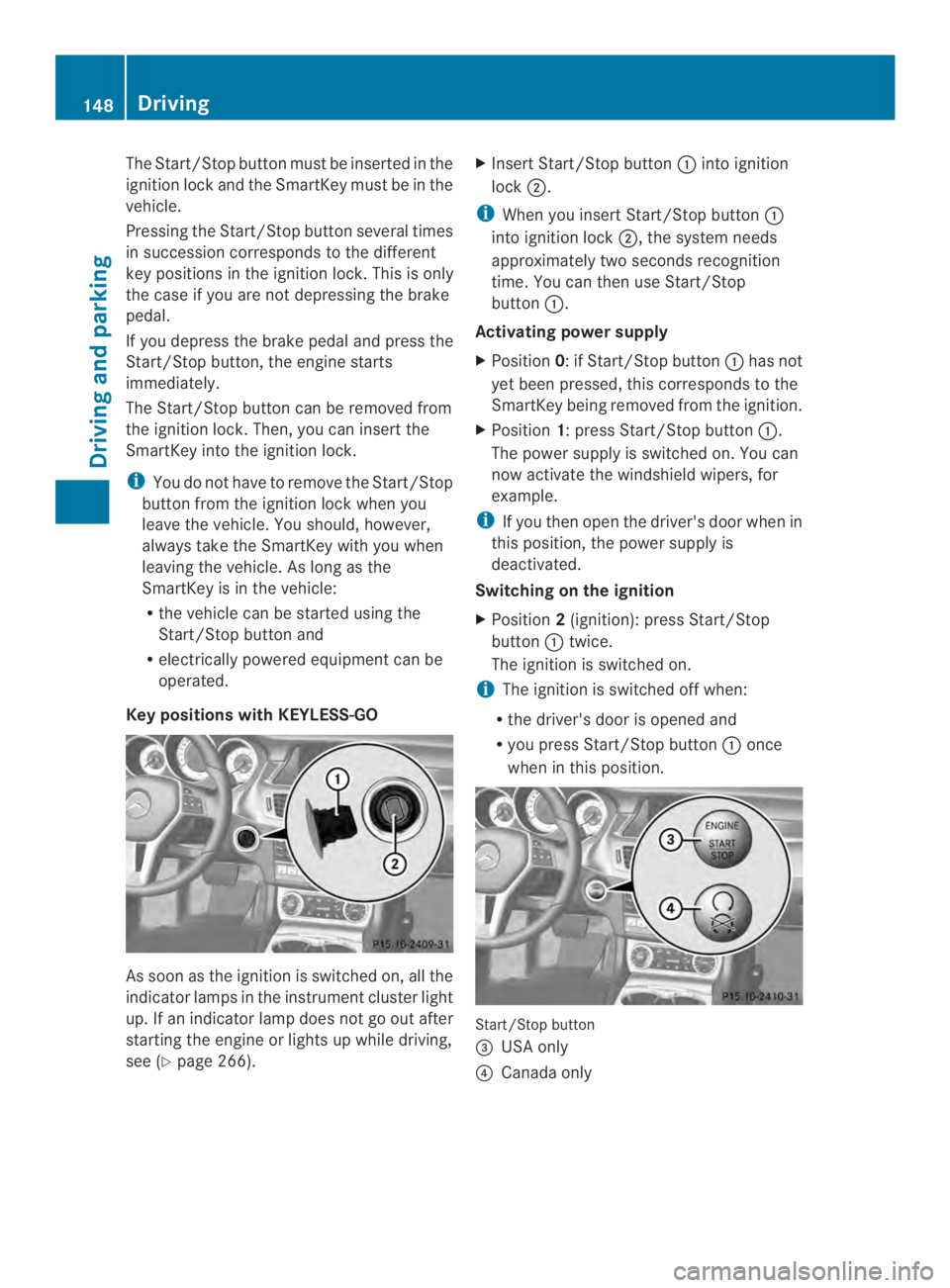

The Start/Stop button must be inserted in the
ignition lock and the SmartKey must be in the
vehicle.
Pressing the Start/Stop button several times
in succession corresponds to the different
key positions in the ignition lock. This is only
the case if you are not depressing the brake
pedal.
If you depress the brake pedal and press the
Start/Stop button,the engine starts
immediately.
The Start/Stop button can be removed from
the ignition lock. Then, you can insert the
SmartKey into the ignition lock.
iYou do not have to remove the Start/Stop
button from the ignition lock when you
leave the vehicle. You should, however,
alwaystake the SmartKey with you when
leaving the vehicle. As long as the
SmartKey is in the vehicle:
Rthe vehicle can be started using the
Start/Stop button and
Relectrically powered equipment can be
operated.
Key positions with KEYLESS-GO
As soon as the ignition is switched on, all the
indicator lamps in the instrument cluster light
up. If an indicator lamp does not go out after
starting the engine or lights up while driving,
see (Ypage 266).
XInsert Start/Stop buttoninto ignition
lock.
iWhen you insert Start/Stop button
into ignition lock,the system needs
approximately two seconds recognition
time. You can then use Start/Stop
button.
Activating power supply
XPosition0:ifStart/Stop buttonhas not
yet been pressed, this corresponds to the
SmartKey being removed from the ignition.
XPosition1:press Start/Stop button.
The power supply is switched on. You can
now activatethe windshield wipers, for
example.
iIf you then open the driver's door when in
this position, the power supply is
deactivated.
Switching on the ignition
XPosition2(ignition): press Start/Stop
buttontwice.
The ignition is switched on.
iThe ignition is switched off when:
Rthe driver's door is opened and
Ryou press Start/Stop buttononce
when in this position.
Start/Stop button
$USA only
!Canada only
148Driving
Driving and parking
