MERCEDES-BENZ CLS 2014 Owners Manual

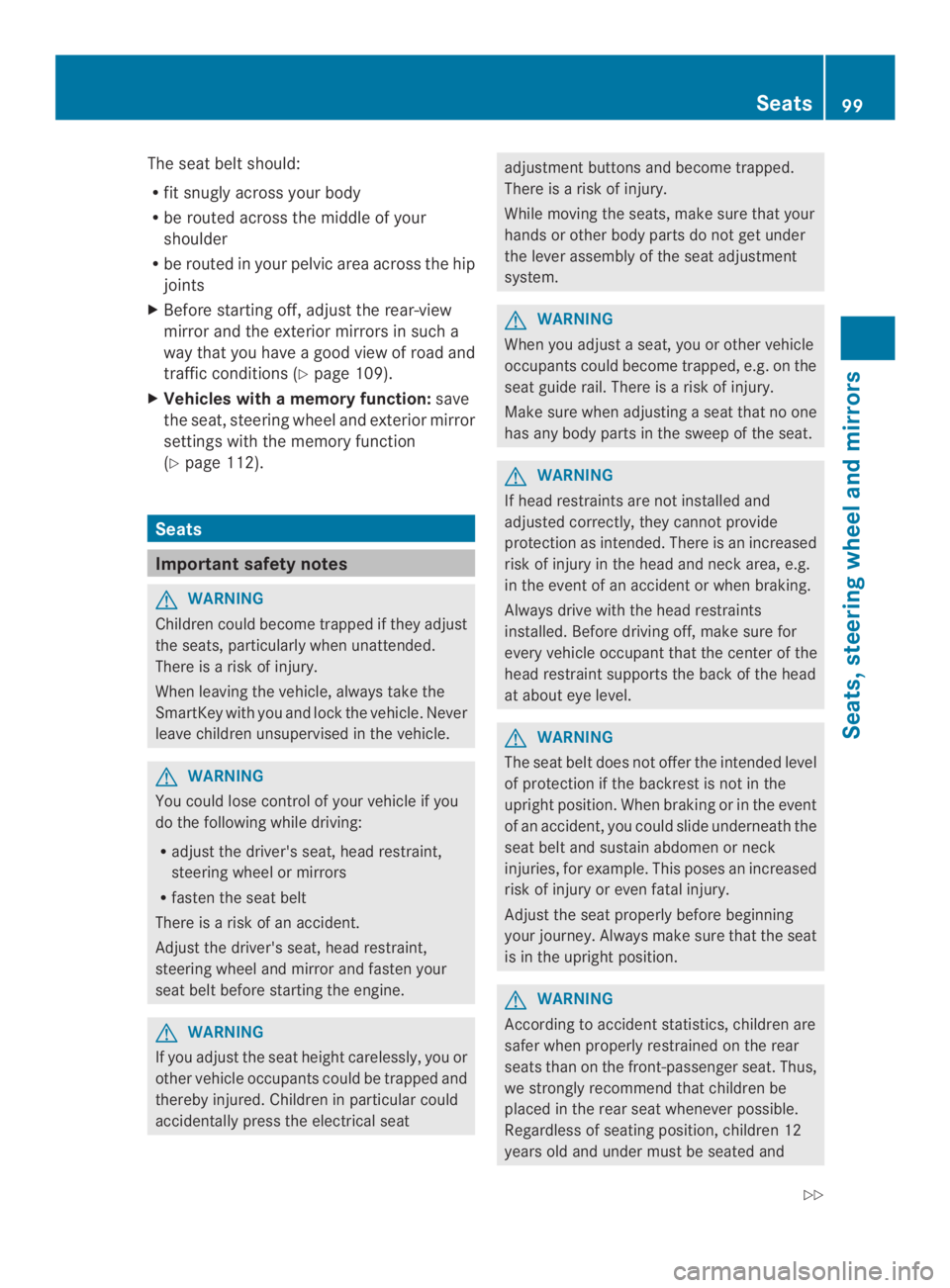

The seat belt should:
Rfit snugly across your body
Rbe routed across the middle of your
shoulder
Rbe routed in your pelvic area across the hip
joints
XBefore starting off, adjust the rear-view
mirror and the exterior mirrors in such a
way that you haveagood view of road and
traffic conditions (Ypage 109).
XVehicles withamemoryfunction:save
the seat, steeringwheel and exterior mirror
settings with the memory function
(Ypage 112).
Seats
Important safety notes
GWARNING
Children could become trapped if they adjust
the seats, particularly when unattended.
There isarisk of injury.
When leaving the vehicle, alwaystake the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steeringwheel or mirrors
Rfasten the seat belt
There isarisk of an accident.
Adjust the driver's seat, head restraint,
steeringwheel and mirror and fasten your
seat belt before starting the engine.
GWARNING
If you adjust the seat height carelessly, you or
other vehicle occupantscould be trapped and
thereby injured. Children in particular could
accidentally press the electrical seat
adjustmentbuttonsand become trapped.
Thereisariskofinjury.
While moving the seats, make sure thatyour
hands or other body parts do not get under
the lever assembly of the seat adjustment
system.
GWARNING
When you adjustaseat, you or other vehicle
occupantscould become trapped, e.g. on the
seat guide rail. There isarisk of injury.
Make sure when adjustingaseat that no one
has any body parts in the sweep of the seat.
GWARNING
If head restraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the head and neck area, e.g.
in the event of an accident or when braking.
Always drive with the head restraints
installed. Beforedriving off, make sure for
every vehicle occupant that the center of the
head restraint supports the back of the head
at about eye level.
GWARNING
The seat belt does not offer the intended level
of protection if the backrest is not in the
upright position.When braking or in the event
of an accident, you could slide underneath the
seat belt and sustain abdomen or neck
injuries, for example. This poses an increased
risk of injury or even fatal injury.
Adjust the seat properly before beginning
your journey. Always make sure that the seat
is in the upright position.
GWARNING
According to accident statistics, children are
safer when properly restrained on the rear
seats than on the front-passenger seat. Thus,
we strongly recommendthat children be
placed in the rear seat whenever possible.
Regardless of seating position, children 12
years old and under must be seated and
Seats99
Seats, steering whee la nd mirrors
Z

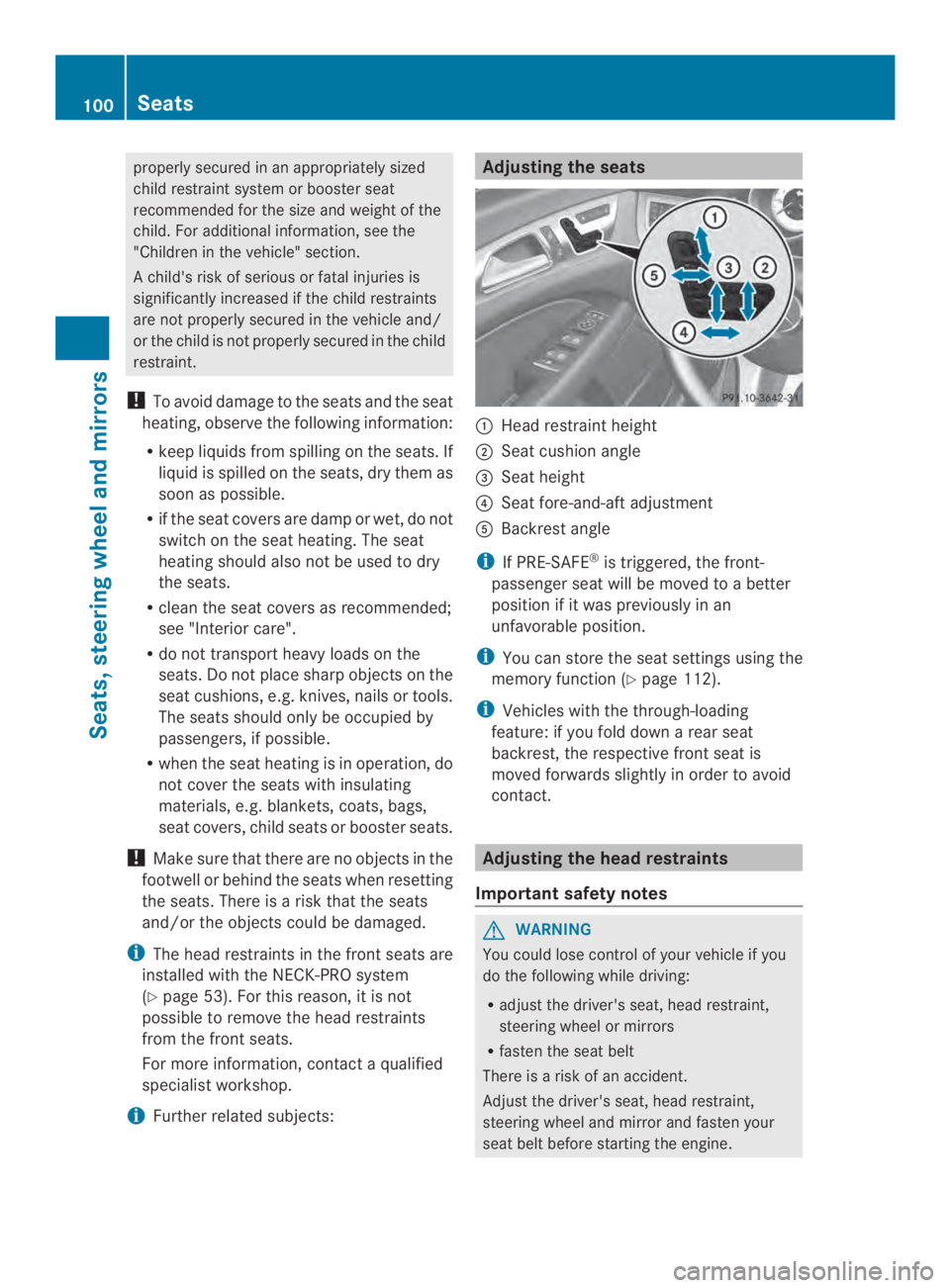

properly secured in an appropriately sized
child restraint system or booster seat
recommended for the size and weight of the
child. For additional information,see the
"Children in the vehicle" section.
Achild's risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and/
or the child is not properly secured in the child
restraint.
!To avoid damage to the seats and the seat
heating, observe the following information:
Rkeep liquids from spilling on the seats. If
liquidisspilled on the seats, dry them as
soon as possible.
Rif the seat covers are damp or wet, do not
switch on the seat heating. The seat
heating should also not be used to dry
the seats.
Rclean the seat covers as recommended;
see "Interior care".
Rdo not transport heavy loads on the
seats. Do not place sharp objectsonthe
seat cushions, e.g. knives, nails or tools.
The seats should only be occupied by
passengers, if possible.
Rwhen the seat heating is in operation, do
not cover the seats with insulating
materials, e.g. blankets, coats, bags,
seat covers, child seats or booster seats.
!Make sure that there are no objectsinthe
footwell or behind the seats when resetting
the seats. There isarisk that the seats
and/or the objectscould be damaged.
iThe head restraintsinthe front seats are
installed with the NECK-PRO system
(Ypage 53). For this reason, it is not
possible to remove the head restraints
from the front seats.
For more information,contactaqualified
specialist workshop.
iFurther related subjects:
Adjusting the seats
Head restraint height
Seat cushion angle
$Seat height
!Seat fore-and-aft adjustment
Backrest angle
iIf PRE-SAFE®is triggered, the front-
passenger seat will be moved toabetter
position if it was previously in an
unfavorable position.
iYou can store the seat settings using the
memory function (Ypage 112).
iVehicles with the through-loading
feature: if you fold downarear seat
backrest, the respective front seat is
moved forwards slightly in order to avoid
contact.
Adjusting the head restraints
Important safety notes
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There isarisk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before startingthe engine.
100Seats
Seats, steering whee la nd mirrors

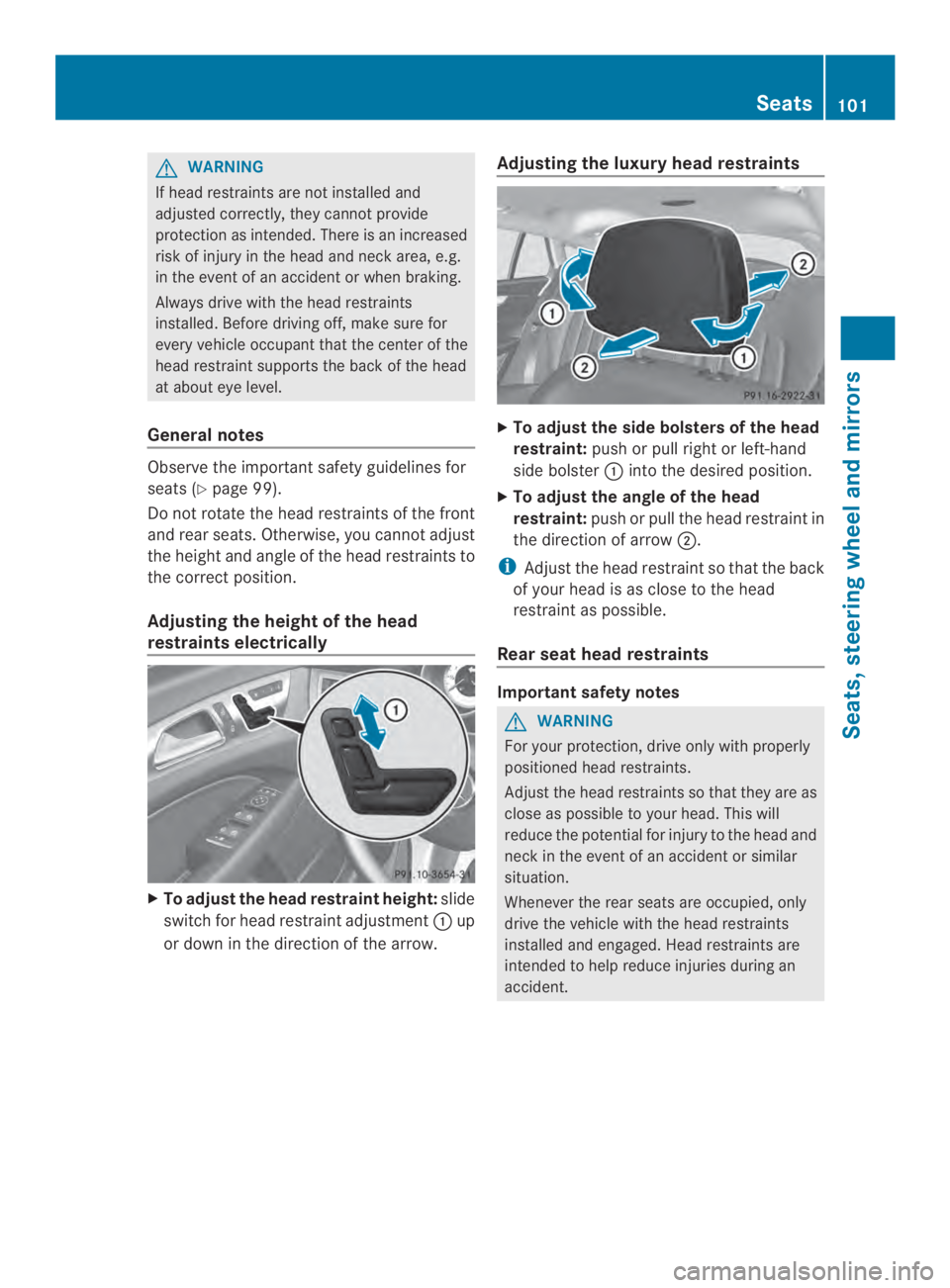

GWARNING
If headrestraints are not installed and
adjusted correctly, they cannot provide
protection as intended. There is an increased
risk of injury in the headand neck area,e.g.
in the event of an accident or when braking.
Always drive with the headrestraints
installed. Before driving off, make sure for
every vehicleoccupant that the center of the
head restraint supports the back of the head
at about eye level.
General notes
Observe the important safety guidelines for
seats (Ypage99).
Do not rotate the headrestraints of the front
and rear seats. Otherwise, you cannot adjust
the height and angle of the headrestraints to
the correct position.
Adjusting the height of the head
restraints electrically
XTo adjust the head restraint height:slide
switch for headrestraint adjustmentup
or downinthe direction of the arrow.
Adjusting the luxury head restraints
XTo adjust the side bolsters of the head
restraint:pushorpullright or left-hand
side bolsterinto the desired position.
XTo adjust the angle of the head
restraint:pushorpullthe headrestraint in
the direction of arrow.
iAdjust the headrestraint so that the back
of yourhead is as close to the head
restraint as possible.
Rear seat head restraints
Important safetynotes
GWARNING
For your protection,drive only with properly
positioned head restraints.
Adjust the head restraintssothat they are as
close as possible to your head. This will
reduce the potential for injury to the head and
neck in the event of an accident or similar
situation.
Whenever the rear seats are occupied, only
drive the vehicle with the head restraints
installed and engaged. Head restraintsare
intended to help reduce injuries during an
accident.
Seats101
Seats, steering wheel and mirrors
Z

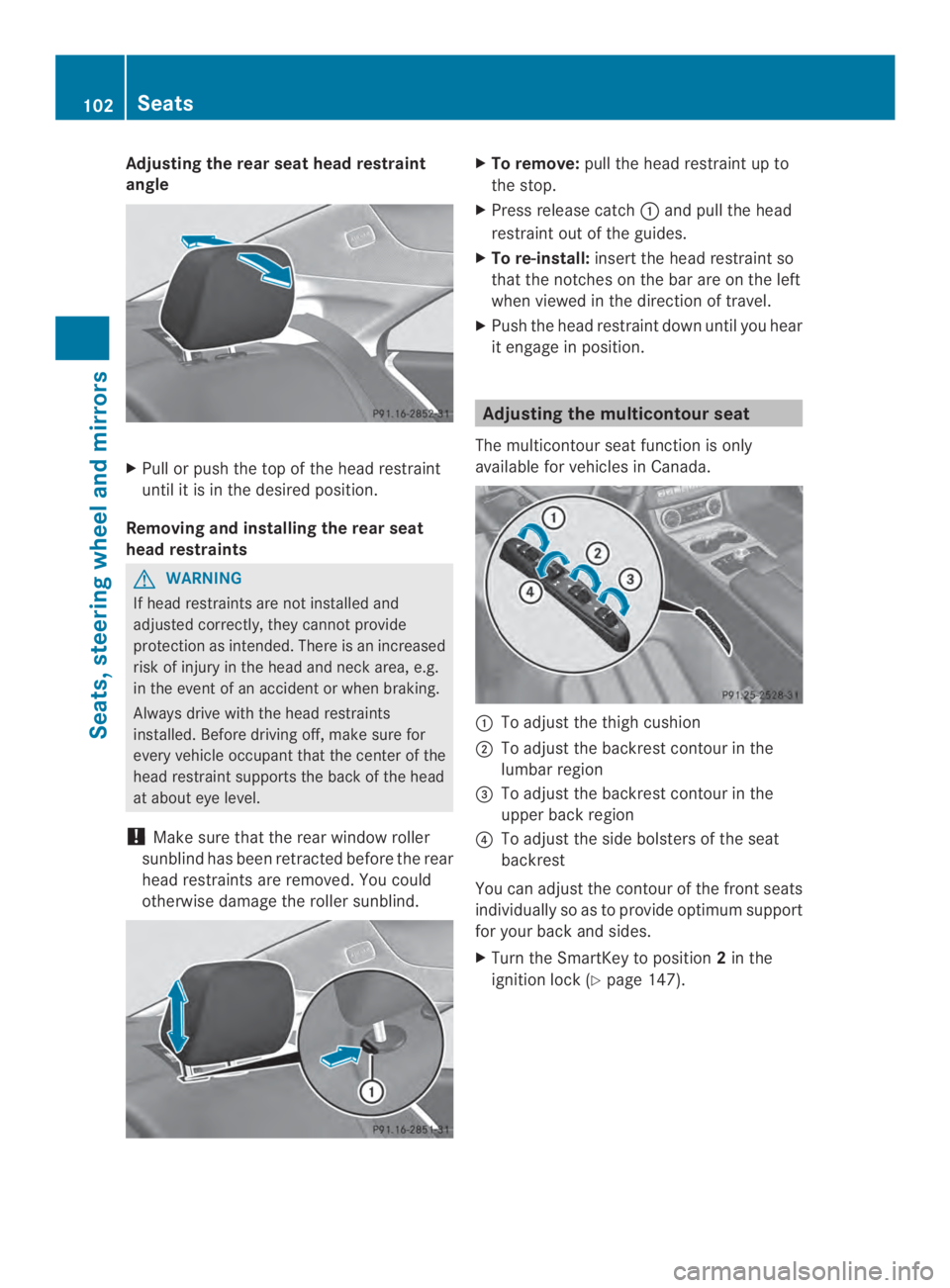

Adjusting therearseat headrestraint
angle
XPull or push thetopof thehead restraint
until it is in thedesired position.
Removing and installing therearseat
headrestraints
GWARNING
If head restraints are not installedand
adjusted correctly, they cannot provide
protection as intended. Thereisanincreased
risk of injury in thehead and neckarea, e.g.
in theeventofanaccidentorwhen braking.
Always drivewith thehead restraints
installed. Before driving off,makesure for
everyvehicle occupant that thecenter of the
head restraintsupports theback of thehead
at about eye level.
!Makesure that therear window roller
sunblindhas been retractedbefore the rear
head restraintsare removed. You could
otherwise damage the roller sunblind.
XTo remove:pull the head restraint up to
the stop.
XPress release catchand pull the head
restraint out of the guides.
XTo re-install:insert the head restraint so
that the notches on the bar are on the left
when viewed in the direction of travel.
XPush the head restraint down until you hear
it engage in position.
Adjusting the multicontour seat
The multicontour seat function is only
available for vehicles in Canada.
To adjust the thigh cushion
To adjust the backrest contour in the
lumbar region
$To adjust the backrest contour in the
upper back region
!To adjust the side bolsters of the seat
backrest
You can adjust the contour of the frontseats
individually so as to provide optimum support
for your back and sides.
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
102Seats
Seats, steering wheel and mirrors

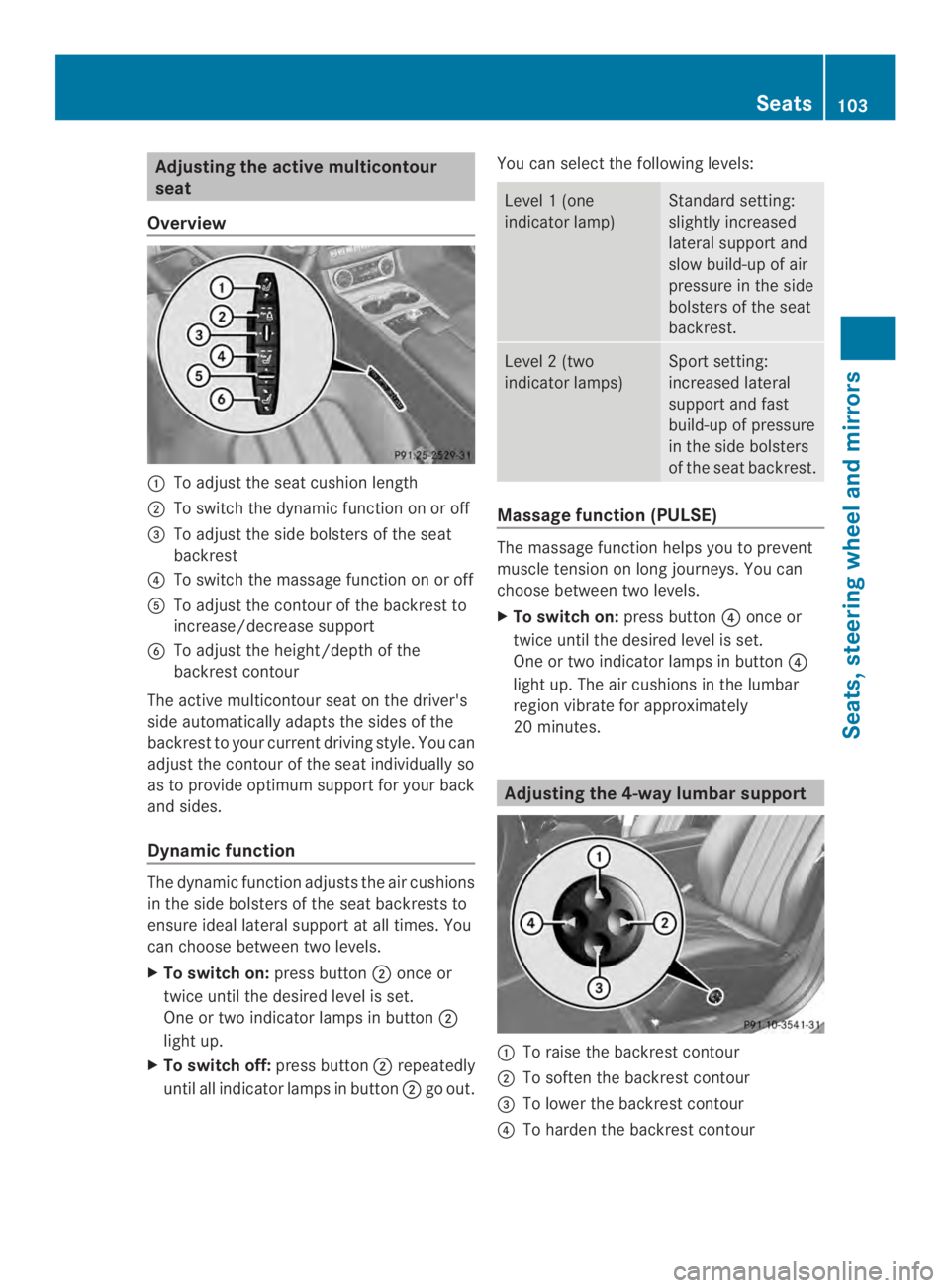

Adjusting theactive multicontour
seat
Overview
To adjust theseat cushion length
To switch thedynamic function on or off
$To adjust theside bolsters of theseat
backrest
!To switch themassage function on or off
To adjust thecontourofthebackrest to
increase/decreasesupport
%To adjust theheight/depthofthe
backrest contour
The active multicontour seat on thedriver's
side automatically adaptsthesidesofthe
backrest to your currentdriving style.You can
adjust the contour of the seat individuallyso
as to provide optimum support for your back
and sides.
Dynamic function
The dynamic function adjusts the air cushions
in the side bolsters of the seat backreststo
ensure ideal lateral support at all times. You
can choose between two levels.
XTo switch on:press buttononce or
twice until the desired level is set.
One or two indicator lamps in button
light up.
XTo switch off:press buttonrepeatedly
until all indicator lamps in buttongo out.
You can select the following levels:
Level1(one
indicator lamp)
Standard setting:
slightly increased
lateral support and
slow build-up of air
pressure in the side
bolsters of the seat
backrest.
Level2(two
indicator lamps)
Sport setting:
increased lateral
support and fast
build-up of pressure
in the side bolsters
of the seat backrest.
Massage function (PULSE)
The massage function helps you to prevent
muscle tension on long journeys. You can
choose between two levels.
XTo switch on:press button!once or
twice until the desired level is set.
One or two indicator lamps in button!
light up. The air cushions in the lumbar
region vibrate for approximately
20 minutes.
Adjusting the 4-way lumbar support
To raise the backrest contour
To soften the backrest contour
$To lower the backrest contour
!To harden the backrest contour
Seats103
Seats, steering wheel and mirrors
Z

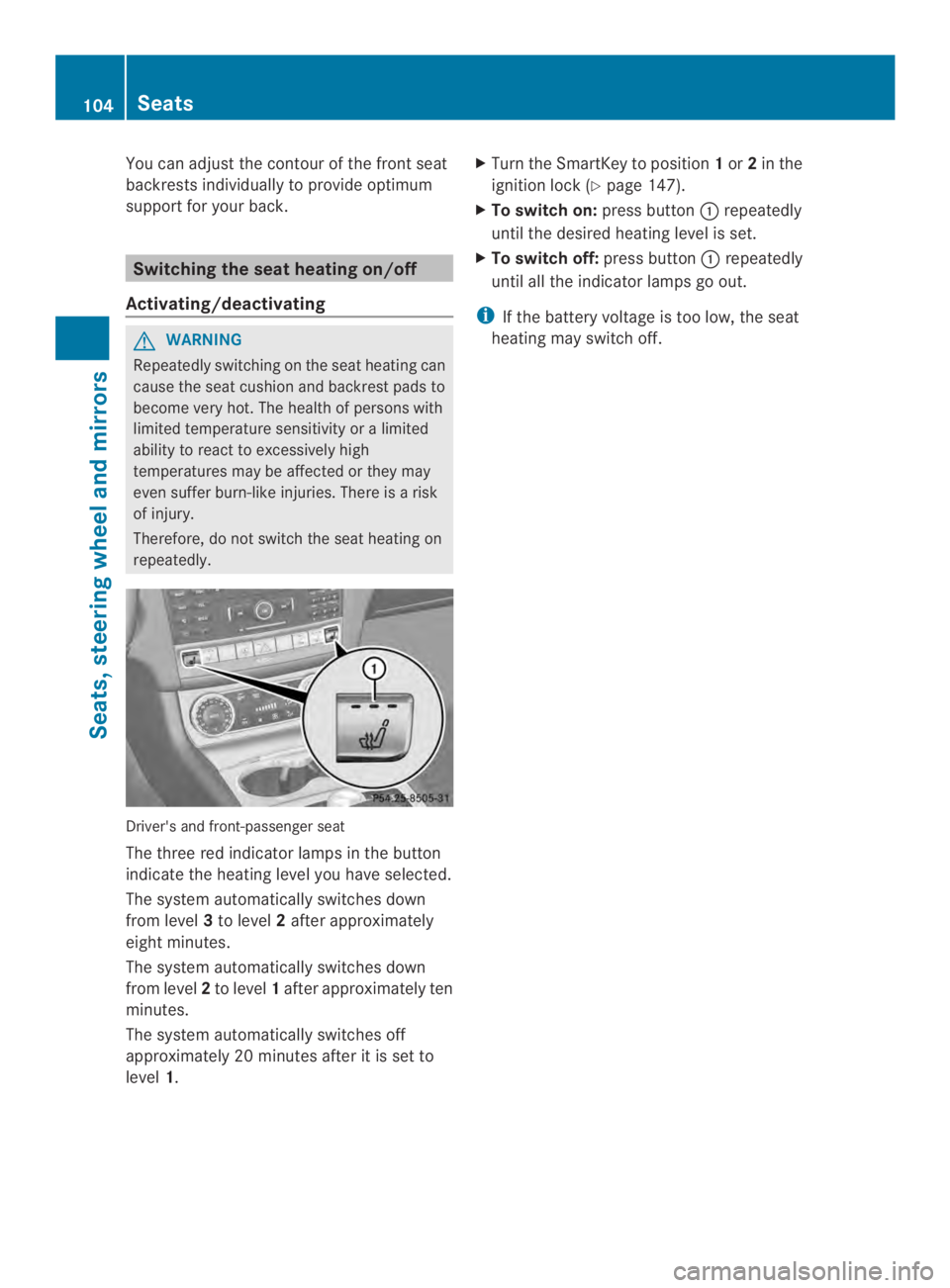

You can adjust the contour of the front seat
backrestsindividually to provide optimum
support for your back.
Switchingtheseat heating on/off
Activating/deactivating
GWARNING
Repeatedly switching on the seat heatingcan
cause the seat cushionand backrestpads to
become veryhot.The health of persons with
limited temperature sensitivity oralimited
ability to react to excessively high
temperatures may be affected or they may
even suffer burn-like injuries. There isarisk
of injury.
Therefore, do not switch the seat heating on
repeatedly.
Driver's and front-passenger seat
The three red indicator lamps in the button
indicate the heating level you have selected.
The system automatically switches down
from level3to level2after approximately
eight minutes.
The system automatically switches down
from level2to level1after approximately ten
minutes.
The system automatically switches off
approximately 20 minutes after it is set to
level1.
XTurn the SmartKey to position1or2in the
ignition lock (Ypage 147).
XTo switch on:press buttonrepeatedly
until the desired heating level is set.
XTo switch off:press buttonrepeatedly
until all the indicator lamps go out.
iIf the battery voltage is too low, the seat
heating may switch off.
104Seats
Seats, steering whee la nd mirrors

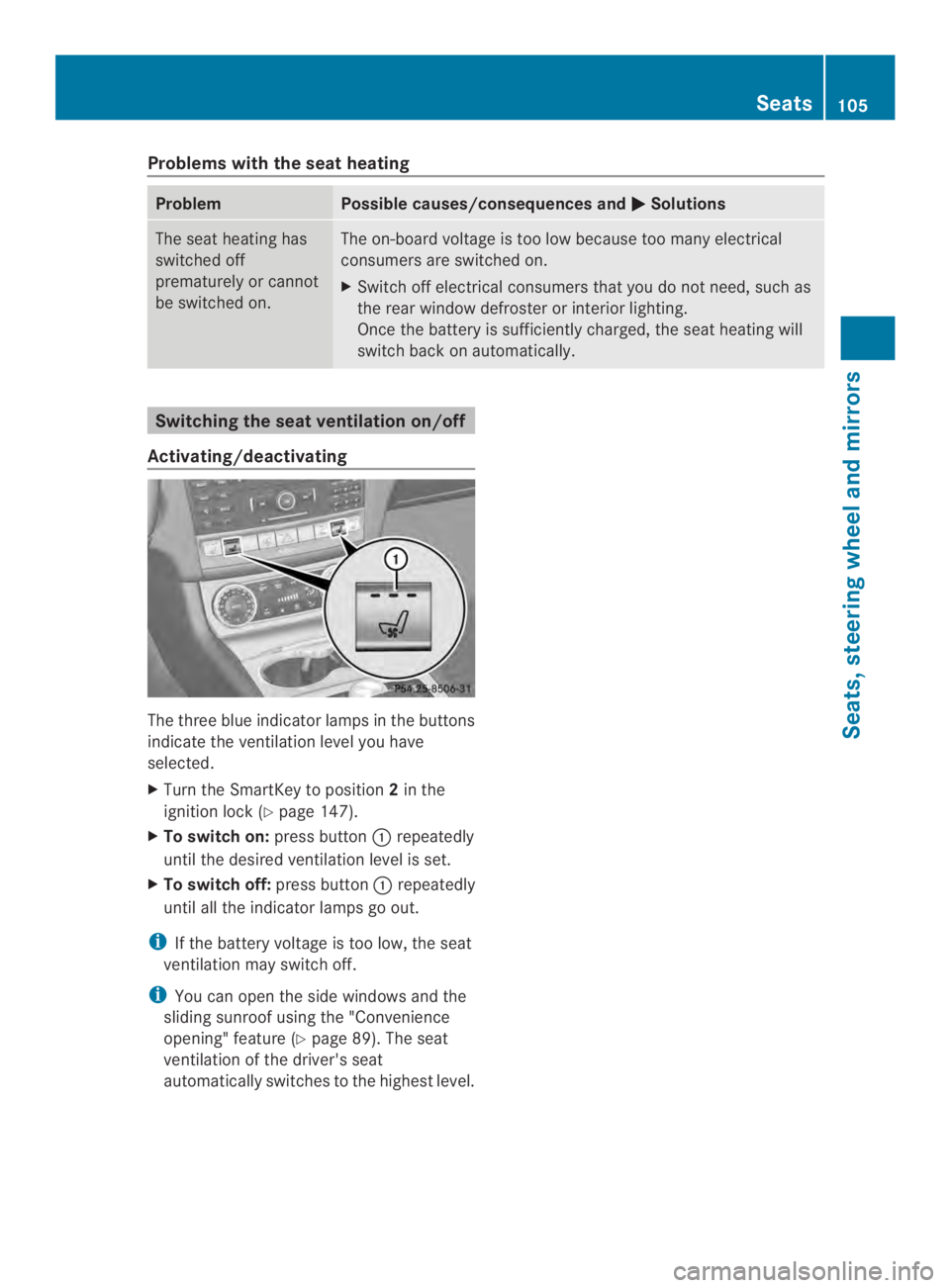

Problems with the seat heating
ProblemPossible causes/consequences andSolutions
The seat heating has
switched off
prematurely or cannot
be switched on.
The on-board voltage is too low because too many electrical
consumers are switched on.
XSwitch off electrical consumers that you do not need, such as
the rear window defroster or interior lighting.
Once the battery is sufficiently charged, the seat heating will
switch back on automatically.
Switching the seat ventilation on/off
Activating/deactivating
The three blue indicator lamps in the buttons
indicate the ventilation level you have
selected.
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
XTo switch on:press buttonrepeatedly
until the desired ventilation level is set.
XTo switch off:press buttonrepeatedly
until all the indicator lamps go out.
iIf the battery voltage is too low, the seat
ventilation may switch off.
iYou can open the side windows and the
sliding sunroof using the "Convenience
opening" feature (Ypage 89). The seat
ventilation of the driver's seat
automatically switches to the highest level.
Seats105
Seats, steering whee la nd mirrors
Z

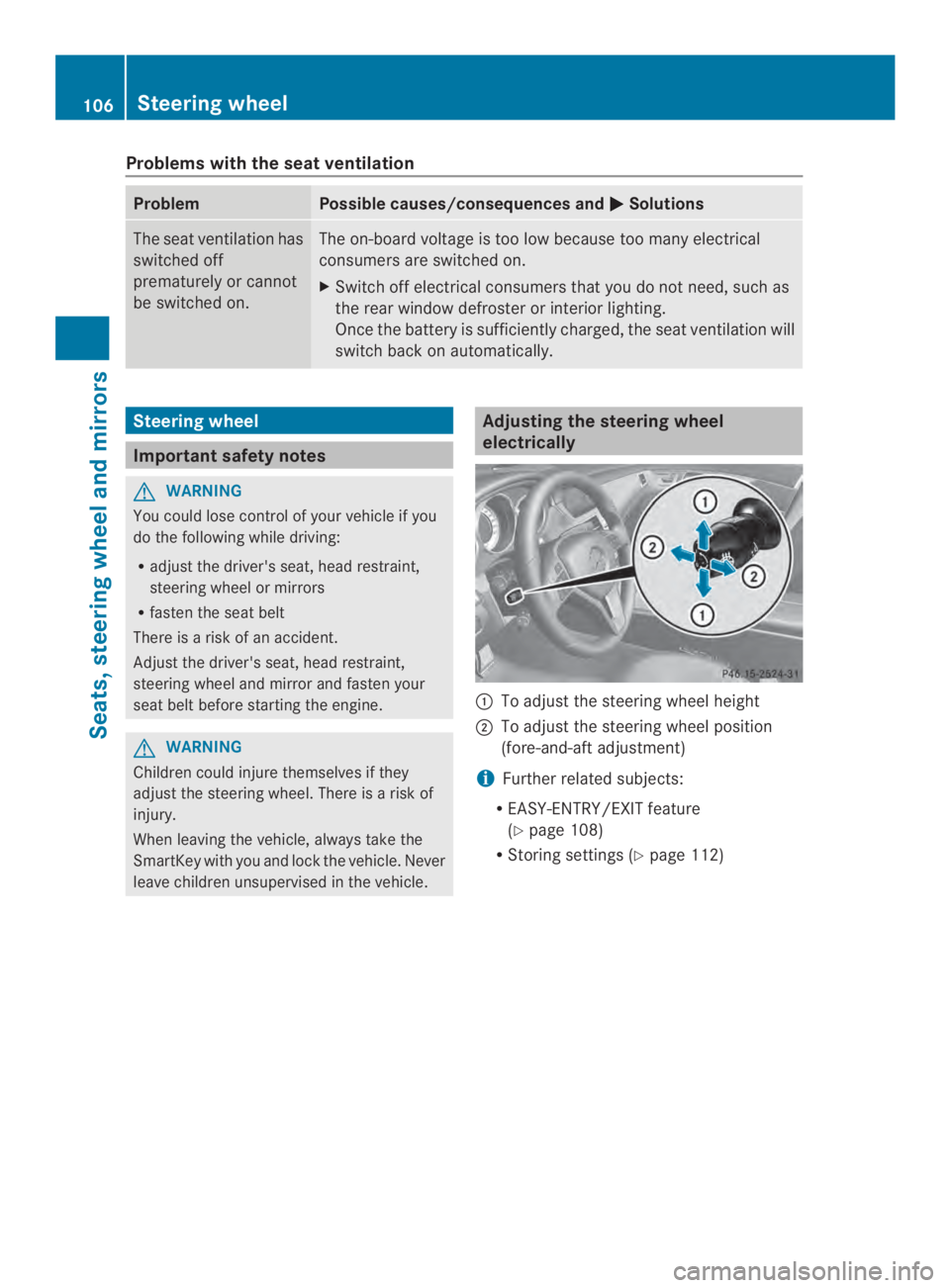

Problems with the seat ventilation
ProblemPossible causes/consequences andSolutions
The seat ventilation has
switched off
prematurely or cannot
be switched on.
The on-board voltage is too low because too many electrical
consumers are switched on.
XSwitch off electrical consumers that you do not need, such as
the rear window defroster or interior lighting.
Once the battery is sufficiently charged, the seat ventilation will
switch back on automatically.
Steering wheel
Important safety notes
GWARNING
You could lose control of your vehicle if you
do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There isarisk of an accident.
Adjust the driver's seat, head restraint,
steering wheel and mirror and fasten your
seat belt before startingthe engine.
GWARNING
Children could injure themselves if they
adjust the steering wheel. There isarisk of
injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
Adjusting the steering wheel
electrically
To adjust the steering wheel height
To adjust the steering wheel position
(fore-and-aft adjustment)
iFurther related subjects:
REASY-ENTRY/EXIT feature
(Ypage 108)
RStoring settings (Ypage 112)
106Steering wheel
Seats, steering whee la nd mirrors

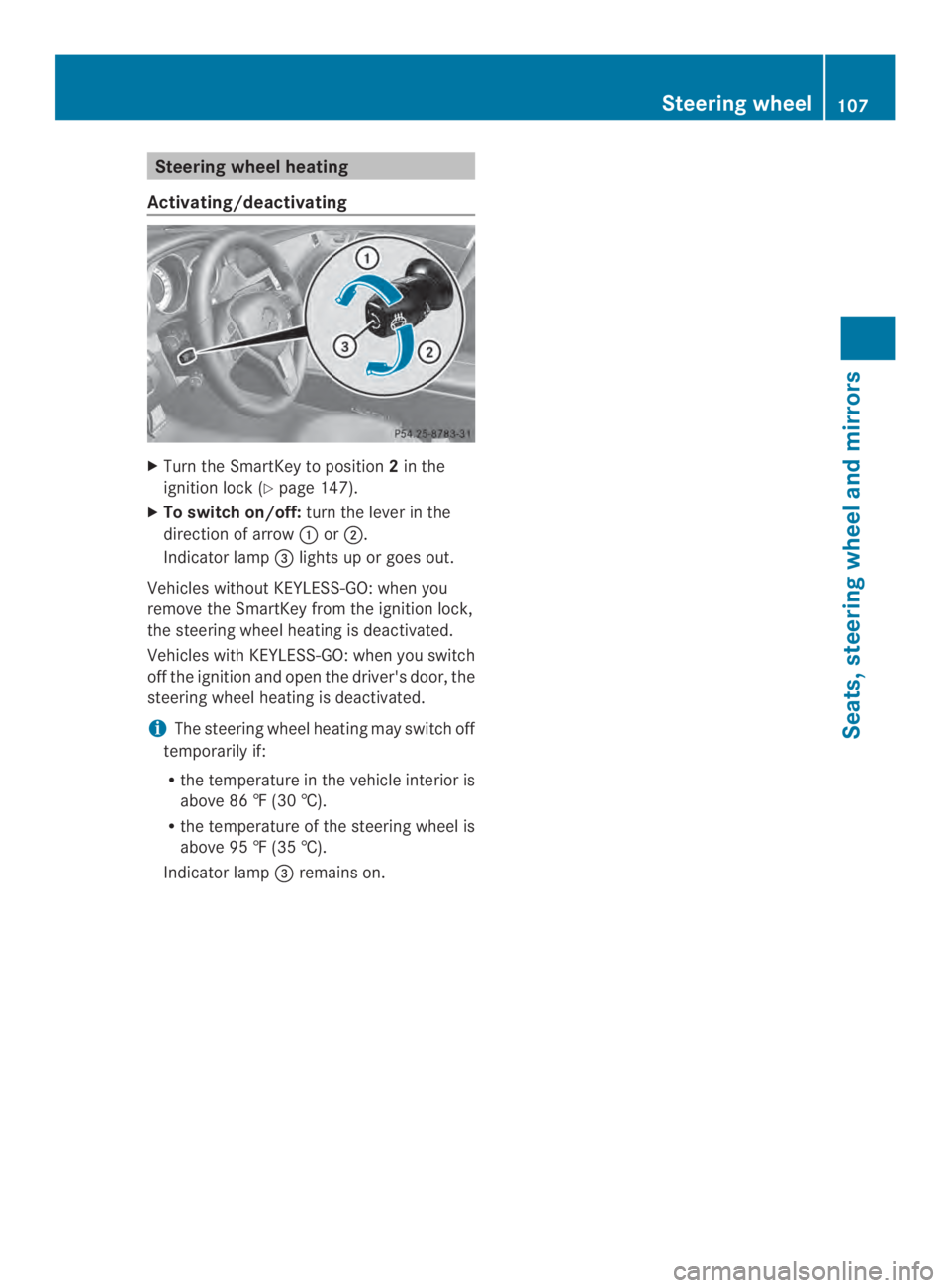

Steering wheel heating
Activating/deactivating
XTurn the SmartKey to position2in the
ignition lock (Ypage 147).
XTo switch on/off:turn the lever in the
direction of arrowor.
Indicator lamp$lights up or goes out.
Vehicles without KEYLESS-GO: when you
remove the SmartKey from the ignition lock,
the steering wheel heating is deactivated.
Vehicles with KEYLESS-GO: when you switch
off the ignition and open the driver's door, the
steering wheel heating is deactivated.
iThe steering wheel heating may switch off
temporarily if:
Rthe temperature in the vehicle interior is
above 86‡(30 †).
Rthe temperature of the steering wheel is
above 95‡(35 †).
Indicator lamp$remains on.
Steering wheel107
Seats, steering whee la nd mirrors
Z

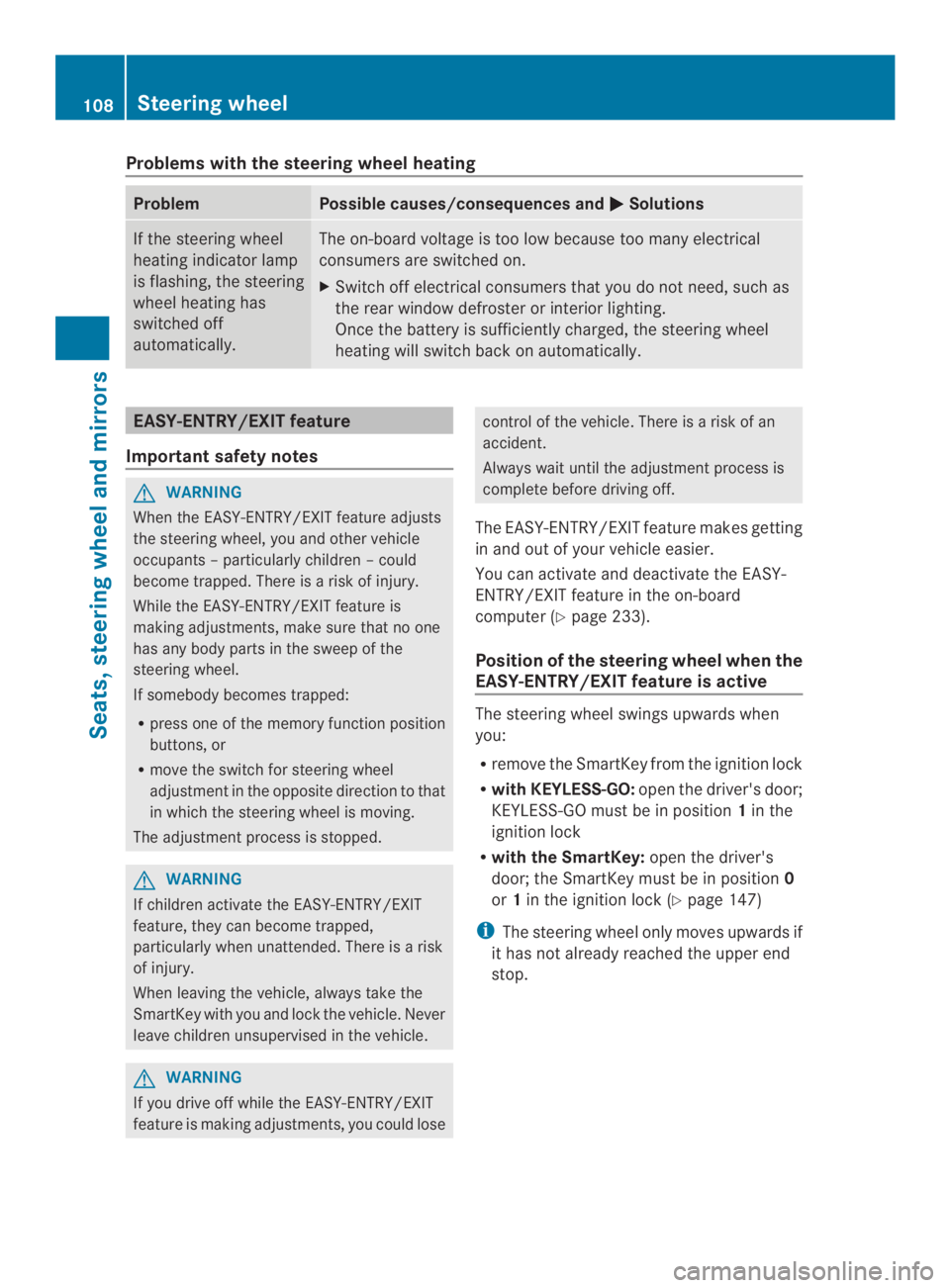

Problems with the steering wheel heating
ProblemPossible causes/consequences andSolutions
If the steering wheel
heating indicator lamp
is flashing, the steering
wheel heating has
switched off
automatically.
The on-board voltage is too low because too many electrical
consumers are switched on.
XSwitch off electrical consumers that you do not need, such as
the rear window defroster or interior lighting.
Once the battery is sufficiently charged, the steering wheel
heating will switch back on automatically.
EASY-ENTRY/EXIT feature
Important safety notes
GWARNING
When the EASY-ENTRY/EXIT feature adjusts
the steering wheel, you and other vehicle
occupants–particularly children–could
become trapped. There isarisk of injury.
While the EASY-ENTRY/EXIT feature is
making adjustments, make sure that no one
has any body parts in the sweep of the
steering wheel.
If somebody becomes trapped:
Rpress one of the memory function position
buttons, or
Rmove the switch for steering wheel
adjustmentinthe opposite direction to that
in which the steering wheel is moving.
The adjustment process is stopped.
GWARNING
If children activate the EASY-ENTRY/EXIT
feature, they can become trapped,
particularly when unattended. There isarisk
of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
GWARNING
If you drive off while the EASY-ENTRY/EXIT
feature is making adjustments, you could lose
control of the vehicle. There isarisk of an
accident.
Always wait until the adjustment process is
complete before driving off.
The EASY-ENTRY/EXITfeature makes getting
in and out of your vehicle easier.
You can activate and deactivate the EASY-
ENTRY/EXIT feature in the on-board
computer (Ypage 233).
Position of the steering wheel when the
EASY-ENTRY/EXIT featureisactive
The steeringwheel swings upwards when
you:
Rremove the SmartKey from the ignition lock
Rwith KEYLESS-GO:open the driver's door;
KEYLESS-GO must be in position1in the
ignition lock
Rwith the SmartKey:open the driver's
door; the SmartKey must be in position0
or1in the ignition lock (Ypage 147)
iThe steeringwheel only moves upwards if
it has not already reached the upper end
stop.
108Steering wheel
Seats, steering wheel and mirrors
