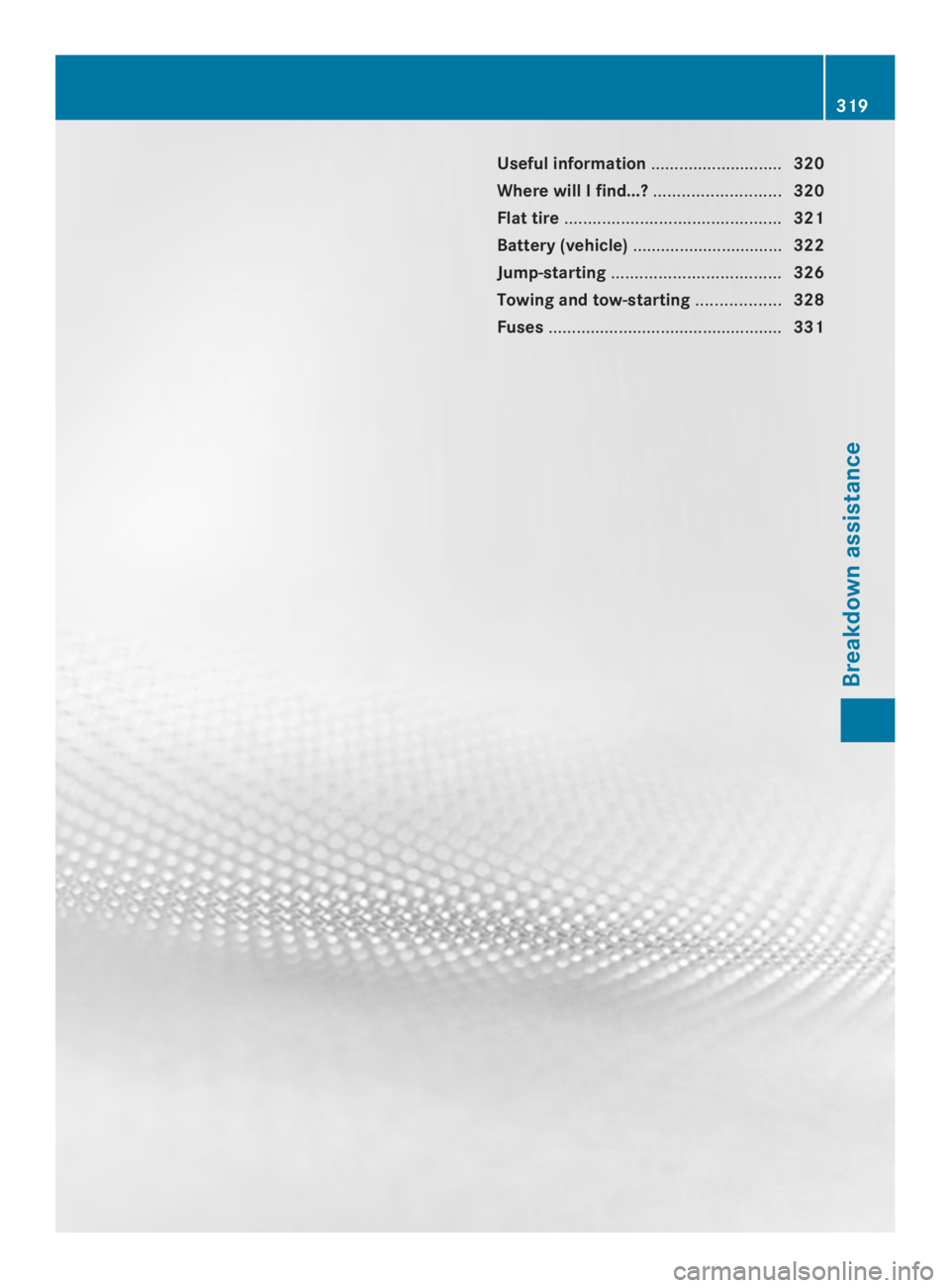

MERCEDES-BENZ CLS 2014 Owners Manual

Useful information............................320
WherewillIfind...?...........................320
Flat tire..............................................321
Battery(vehicle)................................322
Jump-starting....................................326
Towing and tow-starting..................328
Fuses..................................................331
319

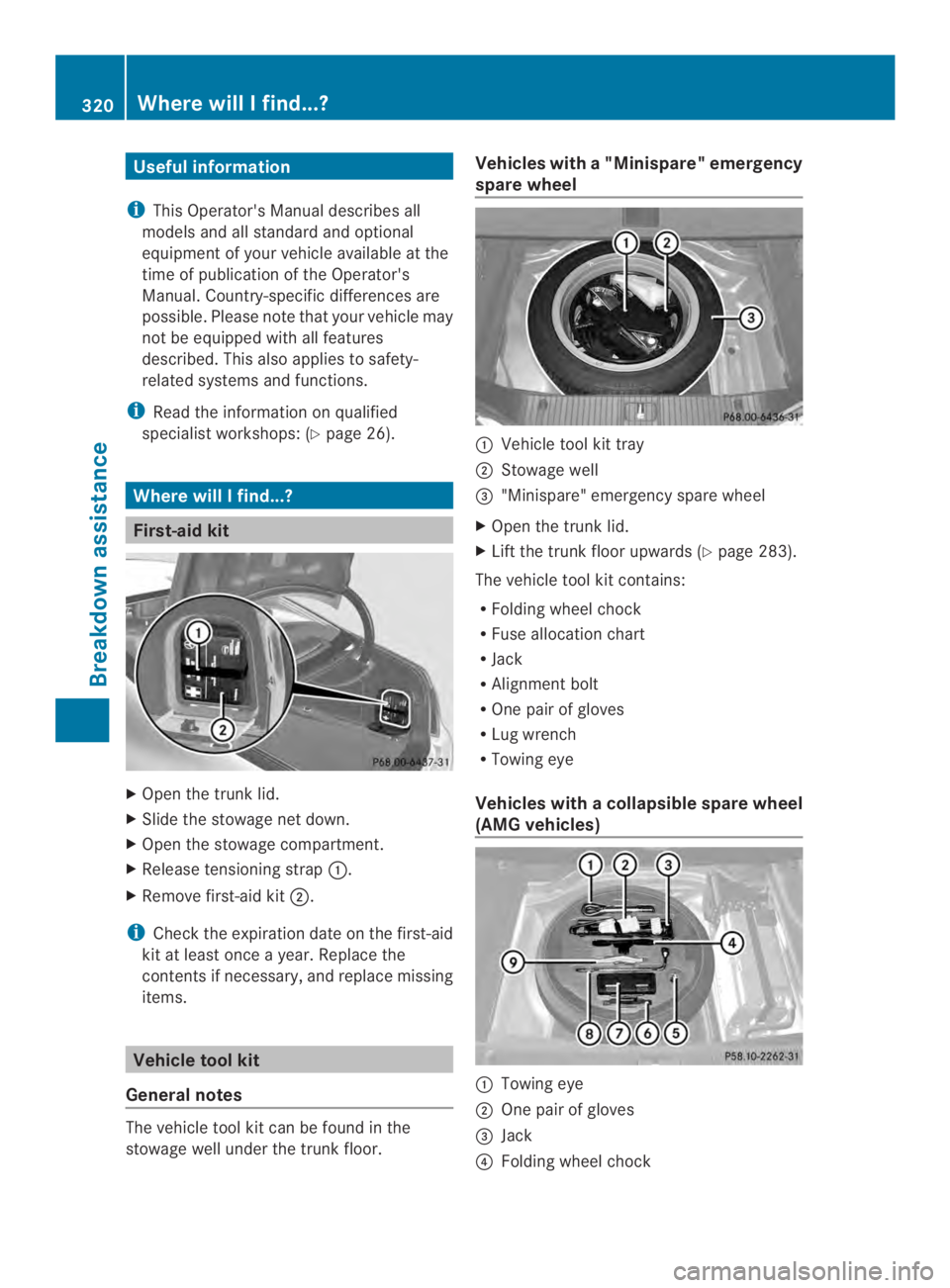

Breakdown assistance

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please notethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related systemsand functions.
iRead the information on qualified
specialist workshops: (Ypage 26).
WherewillIfind...?
First-aid kit
XOpen the trunklid.
XSlide the stowage net down.
XOpen the stowage compartment.
XRelease tensioning strap.
XRemove first-aid kit.
iCheck the expiration date on the first-aid
kit at least onceayear. Replace the
contents if necessary, and replacemissing
items.
Vehicle tool kit
General notes
The vehicle toolkit can be foundinthe
stowage well under the trunk floor.
Vehicles witha"Minispare" emergency
spare wheel
Vehicle tool kit tray
Stowagewell
$"Minispare" emergency spare wheel
XOpen the trunk lid.
XLift the trunk floor upwards (Ypage283).
The vehicletool kit contains:
RFolding wheelchock
RFuse allocation chart
RJack
RAlignment bolt
ROne pairofgloves
RLug wrench
RTowing eye
Vehicles withacollapsible spare wheel
(AMG vehicles)
Towingeye
Onepair of gloves
$Jack
!Folding wheel chock
320Where willIfind...?
Breakdown assistance

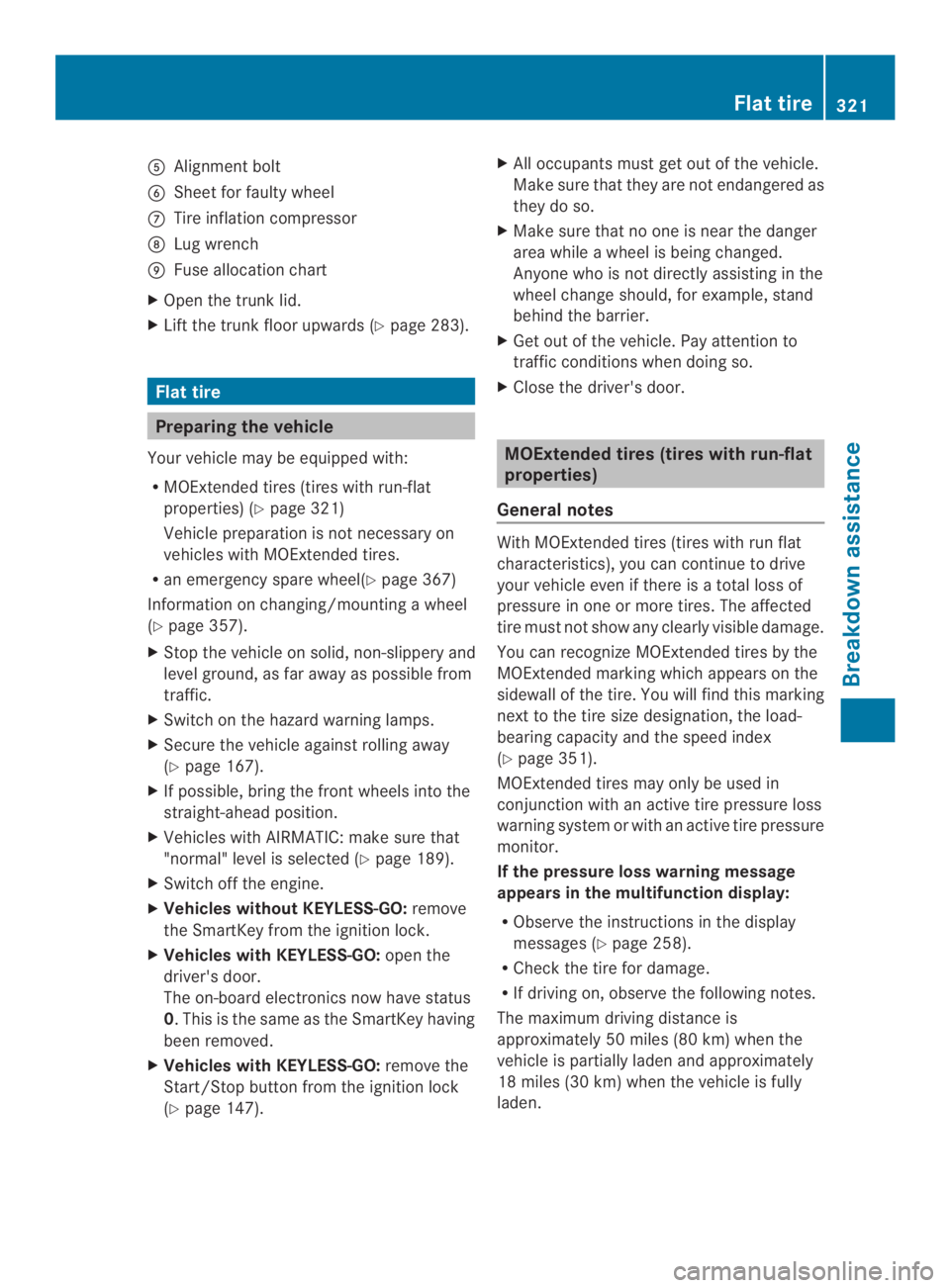

Alignment bolt
%Sheet for faulty wheel
Tire inflation compressor
Lugwrench
Fuseallocation chart
XOpenthe trunk lid.
XLift the trunk floor upwards (Ypage 283).
Flat tire
Preparing the vehicle
Your vehicle may be equipped with:
RMOExtended tires (tires with run-flat
properties) (Ypage 321)
Vehicle preparation is not necessary on
vehicles with MOExtended tires.
Ran emergency spare wheel(Ypage 367)
Information on changing/mountingawheel
(Ypage 357).
XStop the vehicle on solid, non-slippery and
level ground, as far away as possible from
traffic.
XSwitch on the hazard warning lamps.
XSecure the vehicle against rolling away
(Ypage 167).
XIf possible, bring the front wheels into the
straight-ahead position.
XVehicles with AIRMATIC: make sure that
"normal" level is selected (Ypage 189).
XSwitch off the engine.
XVehicles without KEYLESS-GO:remove
the SmartKey from the ignition lock.
XVehicles with KEYLESS-GO:open the
driver's door.
The on-board electronicsnow have status
0.This is the same as the SmartKey having
been removed.
XVehicles with KEYLESS-GO:remove the
Start/Stop button from the ignition lock
(Ypage 147).
XAll occupants must get out of the vehicle.
Make sure that they are not endangered as
they do so.
XMake sure that no one is near the danger
area whileawheel is being changed.
Anyone who is not directly assisting in the
wheel change should, for example, stand
behind the barrier.
XGet out of the vehicle. Pay attention to
traffic conditionswhen doing so.
XClose the driver's door.
MOExtended tires (tires with run-flat
properties)
General notes
With MOExtended tires (tires with run flat
characteristics), you can continue to drive
your vehicle even if there isatotal loss of
pressure in one or more tires. The affected
tire must not show any clearly visible damage.
You can recognizeMOExtended tires by the
MOExtended marking which appears on the
sidewall of the tire. You will find this marking
next to the tire size designation, the load-
bearing capacity and the speed index
(Ypage 351).
MOExtended tires may only be used in
conjunction with an active tire pressure loss
warning system or with an active tire pressure
monitor.
If the pressureloss warning message
appearsinthe multifunction display:
RObserve the instructions in the display
messages (Ypage 258).
RCheck the tire for damage.
RIf driving on, observe the following notes.
The maximum driving distance is
approximately 50 miles (80 km) when the
vehicle is partially laden and approximately
18 miles (30 km) when the vehicle is fully
laden.
Flat tire321
Breakdown assistance

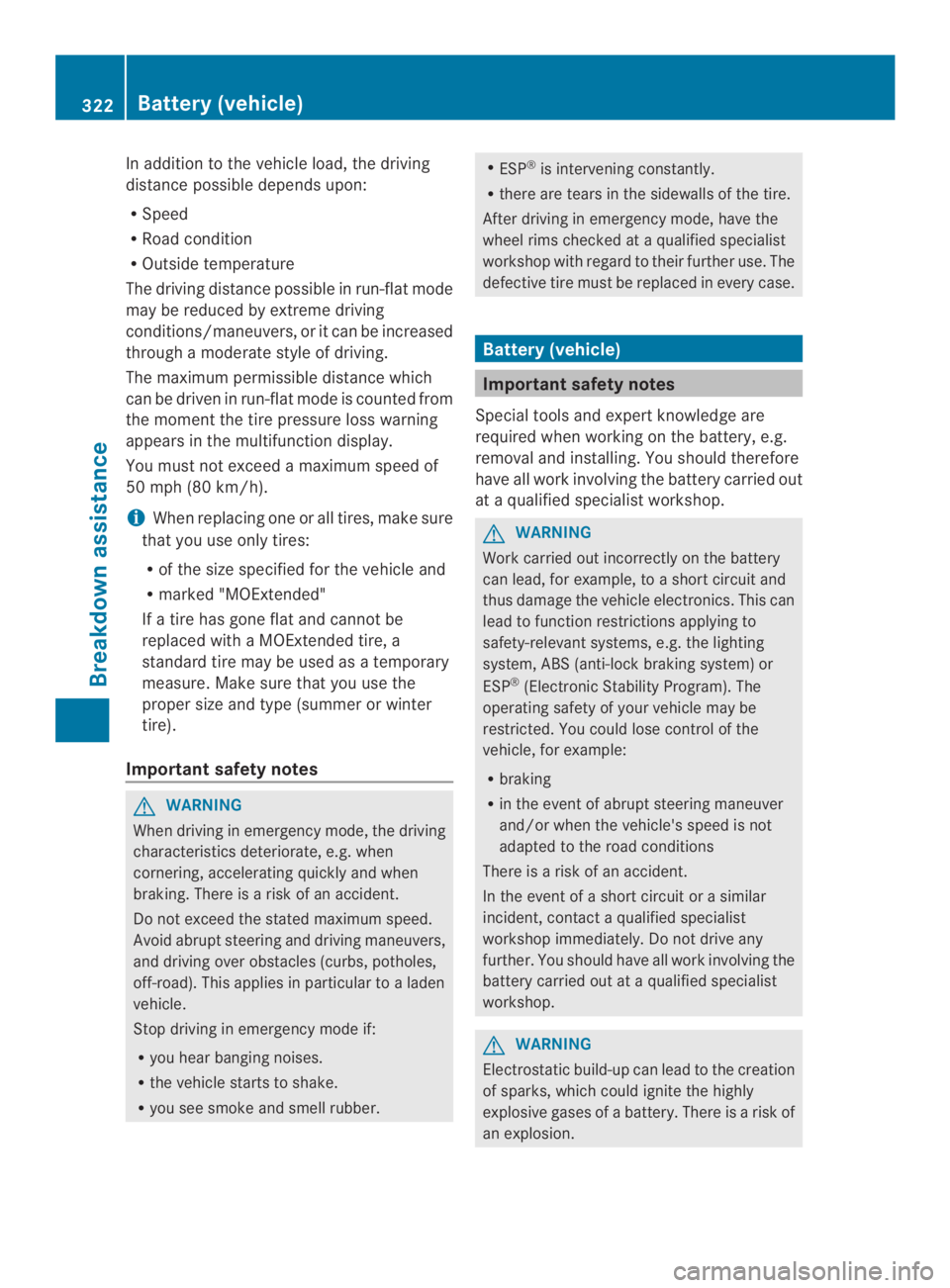

In addition to the vehicle load, the driving
distance possible depends upon:
RSpeed
RRoadcondition
ROutside temperature
The driving distance possible in run-flat mode
may be reduced by extreme driving
conditions/maneuvers, or it can be increased
throughamoderate style of driving.
The maximum permissible distance which
can be driven in run-flat mode is counted from
the moment the tire pressure loss warning
appears in the multifunction display.
You must not exceedamaximum speed of
50 mph (80 km/h).
iWhen replacing one or all tires, make sure
that you use only tires:
Rof the size specified for the vehicle and
Rmarked "MOExtended"
Ifatire has gone flat and cannot be
replaced withaMOExtended tire, a
standard tire may be used asatemporary
measure. Make sure that you use the
proper size and type (summerorwinter
tire).
Important safety notes
GWARNING
When drivinginemergencymode, the driving
characteristics deteriorate, e.g. when
cornering, accelerating quickly and when
braking. There isarisk of an accident.
Do not exceed the stated maximum speed.
Avoid abrupt steeringand drivingmaneuvers,
and drivingover obstacles (curbs, potholes,
off-road). This applies in particular toaladen
vehicle.
Stop drivinginemergencymode if:
Ryou hear bangingnoises.
Rthe vehicle starts to shake.
Ryou see smokeand smell rubber.
RESP®is interveningconstantly.
Rthere are tearsinthe sidewalls of the tire.
After drivinginemergency mode, have the
wheel rims checked ataqualified specialist
workshop with regardtotheir further use. The
defectivetiremust be replaced in everycase.
Battery (vehicle)
Important safety notes
Special tools and expert knowledge are
requiredwhen working on the battery, e.g.
removal and installing. You should therefore
have all work involvingthe battery carried out
ataqualified specialist workshop.
GWARNING
Work carried out incorrectly on the battery
can lead, for example, toashortcircuit and
thus damage the vehicle electronics. This can
lead to function restrictionsapplying to
safety-relevantsystems,e.g.thelighting
system, ABS(anti-lockbrakingsystem) or
ESP®(Electronic StabilityProgram). The
operating safetyofyour vehiclemay be
restricted. You could lose control of the
vehicle, for example:
Rbraking
Rin theevent of abruptsteeringmaneuver
and/orwhen the vehicle's speed is not
adapted to the road conditions
There isarisk of an accident.
In the event ofashort circuit orasimilar
incident, contactaqualified specialist
workshop immediately. Do not drive any
further. You should have all work involving the
battery carried out ataqualifiedspecialist
workshop.
GWARNING
Electrostatic build-up can lead to thecreation
of sparks,whichcould ignite thehighly
explosive gases ofabattery. Thereisariskof
an explosion.
322Battery (vehicle)
Breakdown assistance

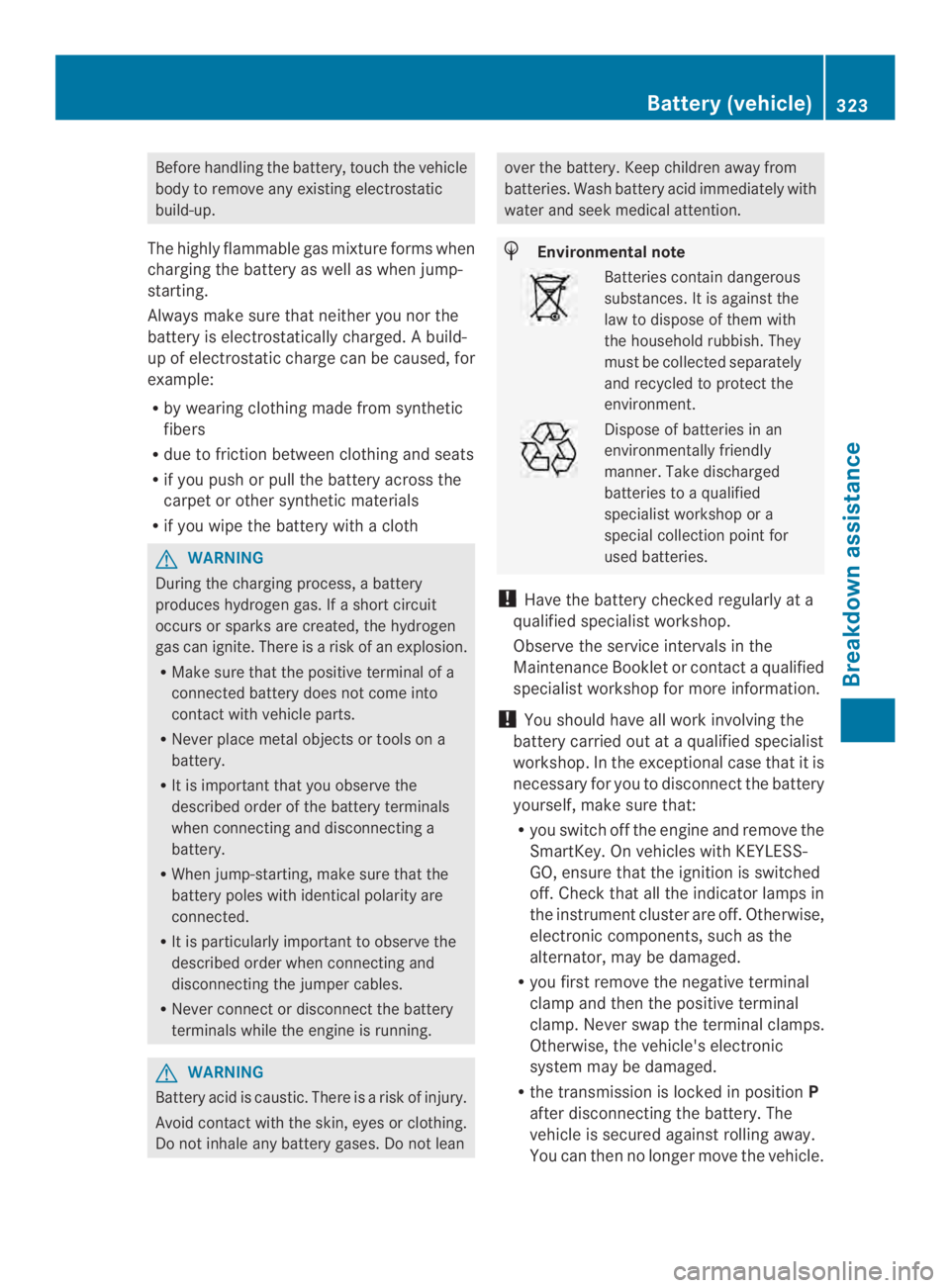

Beforehandling the battery,touch the vehicle
bodytoremove any existing electrostatic
build-up.
The highly flammable gasmixture forms when
charging the battery as well as whenjump-
starting.
Always makesure that neither you northe
battery is electrostatically charged.Abuild-
up of electrostaticcharge can be caused, for
example:
Rby wearing clothing made from synthetic
fibers
Rdue to friction between clothing and seats
Rif you push or pull the battery across the
carpet or other synthetic materials
Rif you wipe the battery withacloth
GWARNING
During the charging process,abattery
produces hydrogen gas. Ifashort circuit
occurs or sparks are created, the hydrogen
gas can ignite. There isarisk of an explosion.
RMake sure that the positive terminal of a
connected battery does not come into
contact with vehicle parts.
RNever place metal objectsortools on a
battery.
RIt is important that you observe the
described order of the battery terminals
when connecting and disconnecting a
battery.
RWhen jump-starting, make sure that the
battery poles with identical polarity are
connected.
RIt is particularly important to observe the
described order when connecting and
disconnecting the jumper cables.
RNever connect or disconnectthe battery
terminals while the engine is running.
GWARNING
Batteryacid is caustic. There isarisk of injury.
Avoid contact with the skin, eyes or clothing.
Do not inhale any battery gases. Do not lean
over the battery. Keep children away from
batteries. Wash battery acid immediately with
water and seek medical attention.
HEnvironmental note
Batteries contain dangerous
substances. It is against the
law to dispose of them with
the household rubbish. They
must be collected separately
and recycled to protect the
environment.
Dispose of batteries in an
environmentally friendly
manner. Take discharged
batteries toaqualified
specialist workshop or a
special collection point for
used batteries.
!Have the battery checked regularly at a
qualified specialist workshop.
Observe the service intervals in the
MaintenanceBooklet or contactaqualified
specialist workshop for more information.
!You should have all work involving the
battery carried out ataqualified specialist
workshop. In theexceptional casethatitis
necessaryfor you to disconnect thebattery
yourself, makesure that:
Ryou switch off theengineand remove the
SmartKey. On vehicles withKEYLESS-
GO, ensure that theignition is switched
off.Check that all the indicator lamps in
the instrumentcluster are off.Otherwise,
electroniccomponents, such as the
alternator,may be damaged.
Ryou first remove the negative terminal
clamp and then the positive terminal
clamp. Never swap the terminal clamps.
Otherwise, the vehicle's electronic
system may be damaged.
Rthe transmission is locked in positionP
after disconnectingthe battery. The
vehicle is secured against rolling away.
You can then no longer move the vehicle.
Battery (vehicle)323
Breakdown assistance
Z

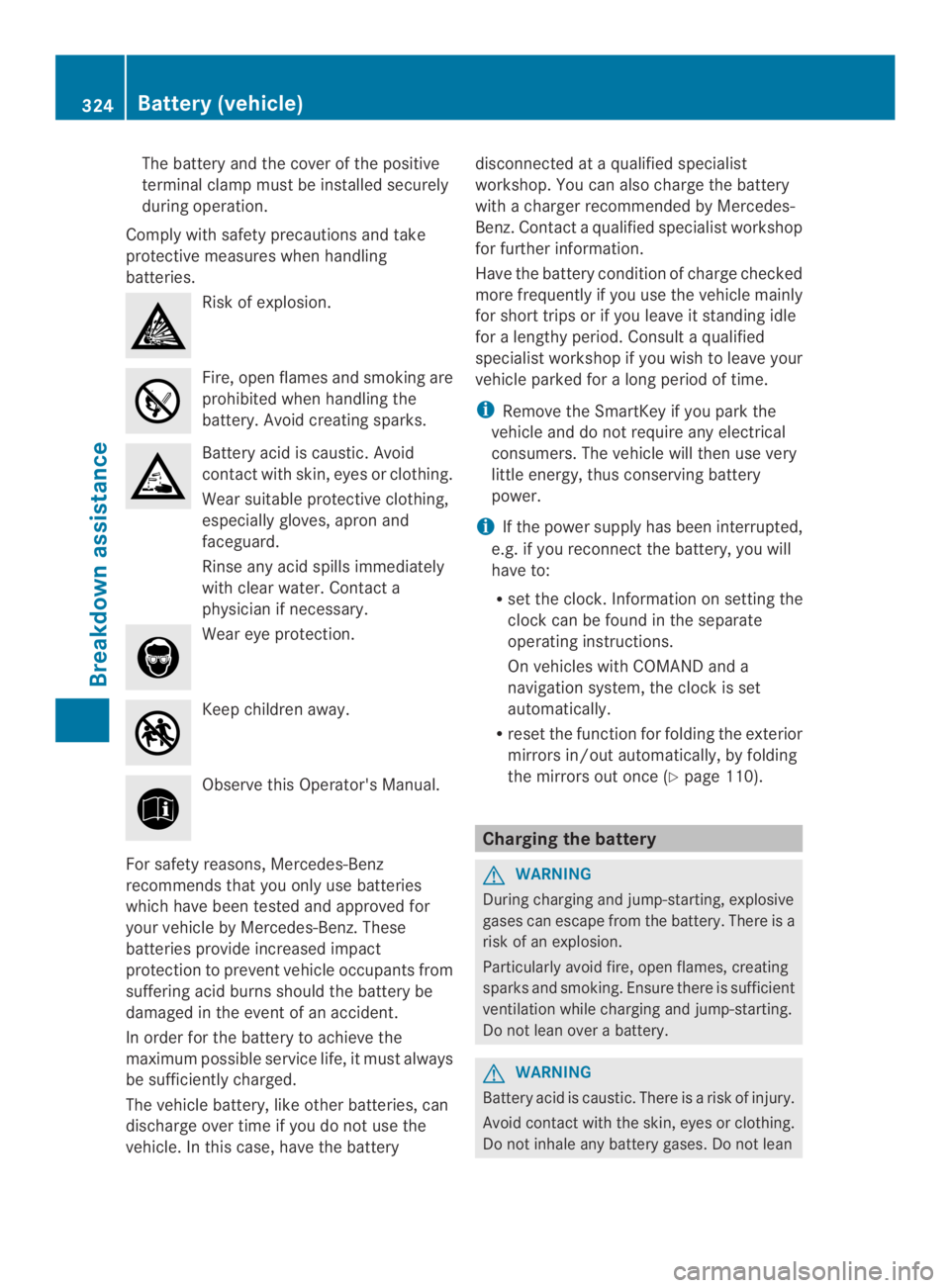

The battery and the cover of the positive
terminal clamp must be installed securely
during operation.
Comply with safety precautions and take
protective measures when handling
batteries.
Risk of explosion.
Fire, open flames and smokingare
prohibited when handling the
battery. Avoid creatingsparks.
Battery acid is caustic. Avoid
contact with skin, eyes or clothing.
Wear suitable protective clothing,
especially gloves, apron and
faceguard.
Rinse any acid spills immediately
with clear water. Contact a
physician if necessary.
Wear eye protection.
Keep children away.
Observe this Operator's Manual.
For safety reasons, Mercedes-Benz
recommends that you only use batteries
which have been tested and approved for
your vehicle by Mercedes-Benz.These
batteries provide increased impact
protection to prevent vehicle occupants from
suffering acid burns should the battery be
damaged in the event of an accident.
In order for the battery to achieve the
maximum possible service life, it must always
be sufficiently charged.
The vehicle battery, like other batteries, can
discharge over time if you do not use the
vehicle. In this case, have the battery
disconnected ataqualified specialist
workshop. You can also charge the battery
withacharger recommended by Mercedes-
Benz.Contactaqualified specialist workshop
for further information.
Have the battery condition of charge checked
more frequently if you use the vehicle mainly
for short trips or if you leave it standingidle
foralengthy period. Consultaqualified
specialist workshop if you wish to leave your
vehicle parked foralong period of time.
iRemove the SmartKey if you park the
vehicle and do not require any electrical
consumers. The vehicle will then use very
little energy, thus conserving battery
power.
iIf the power supply has been interrupted,
e.g. if you reconnect the battery, you will
have to:
Rset the clock.Information on setting the
clock can be found in the separate
operating instructions.
On vehicles with COMAND and a
navigation system, the clock is set
automatically.
Rreset the function for folding the exterior
mirrors in/out automatically, by folding
the mirrors out once (Ypage 110).
Charging the battery
GWARNING
During charging and jump-starting, explosive
gases can escape from the battery. There is a
risk of an explosion.
Particularly avoid fire, open flames, creating
sparks and smoking. Ensure there is sufficient
ventilation while charging and jump-starting.
Do not lean overabattery.
GWARNING
Battery acid is caustic. There isarisk of injury.
Avoid contact with the skin, eyes or clothing.
Do not inhale any battery gases. Do not lean
324Battery (vehicle)
Breakdown assistance

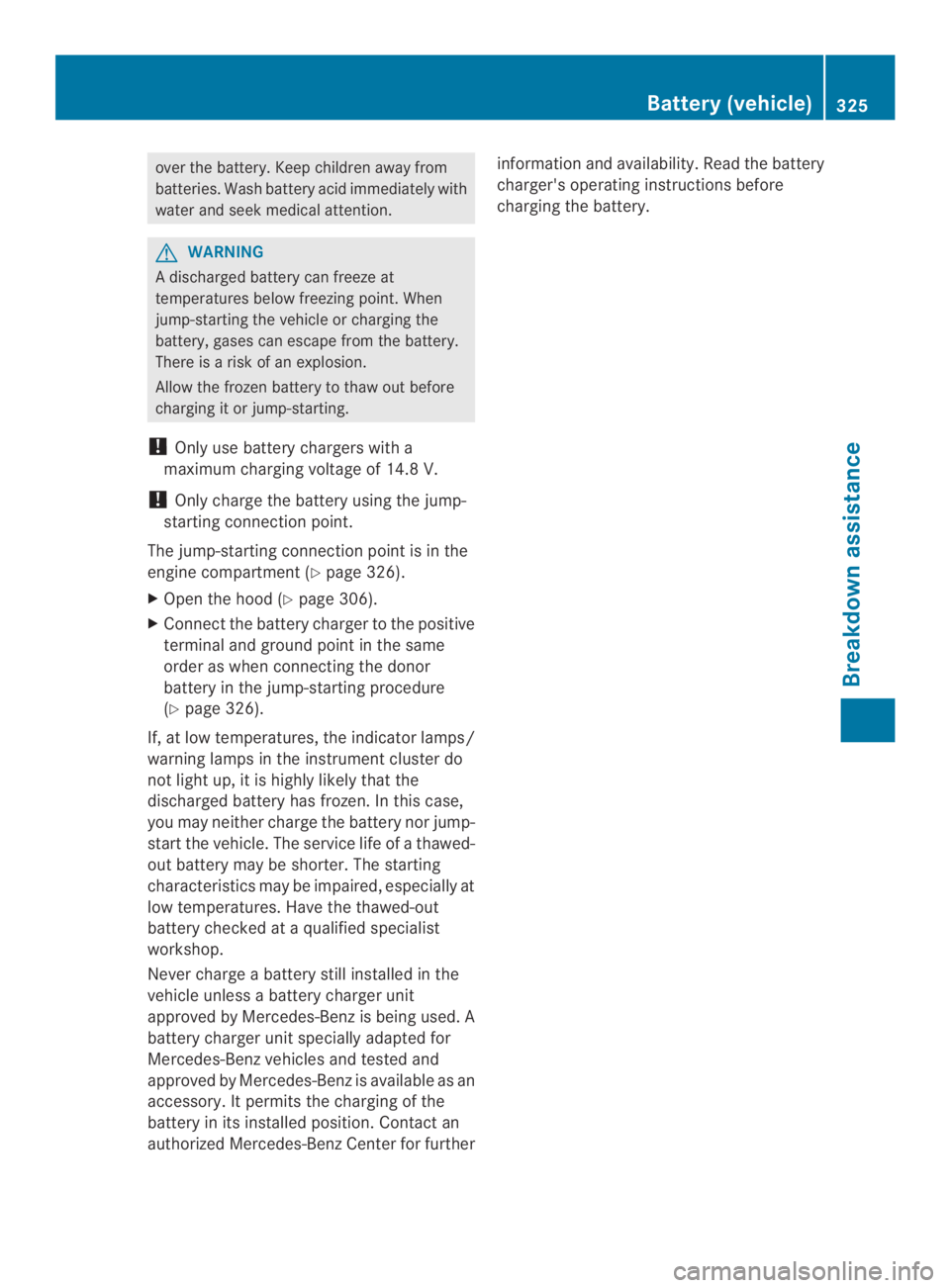

over the battery. Keep children away from
batteries. Wash battery acid immediately with
water and seek medical attention.
GWARNING
Adischarged battery can freeze at
temperatures below freezingpoint.When
jump-starting the vehicle or charging the
battery, gases can escape from the battery.
There isarisk of an explosion.
Allow the frozen battery to thaw out before
charging it or jump-starting.
!Only use battery chargers with a
maximum charging voltage of 14.8 V.
!Only charge the battery using the jump-
startingconnection point.
The jump-starting connection point is in the
engine compartment(Ypage 326).
XOpen the hood (Ypage 306).
XConnect the battery charger to the positive
terminal and ground point in the same
order as when connecting the donor
battery in the jump-starting procedure
(Ypage 326).
If, at low temperatures, the indicator lamps/
warning lamps in the instrumentcluster do
not light up, it is highly likely that the
discharged battery has frozen.Inthis case,
you may neither charge the battery nor jump-
start the vehicle. The service life ofathawed-
out battery may be shorter. The starting
characteristics may be impaired, especiallyat
low temperatures. Have the thawed-out
battery checked ataqualified specialist
workshop.
Never chargeabattery still installed in the
vehicle unlessabattery charger unit
approved by Mercedes-Benzisbeing used. A
battery charger unit speciallyadapted for
Mercedes-Benz vehicles and tested and
approved by Mercedes-Benz is available as an
accessory. It permits the charging of the
battery in its installed position. Contact an
authorized Mercedes-Benz Center for further
information and availability. Read the battery
charger's operating instructions before
charging the battery.
Battery (vehicle)325
Breakdown assistance
Z

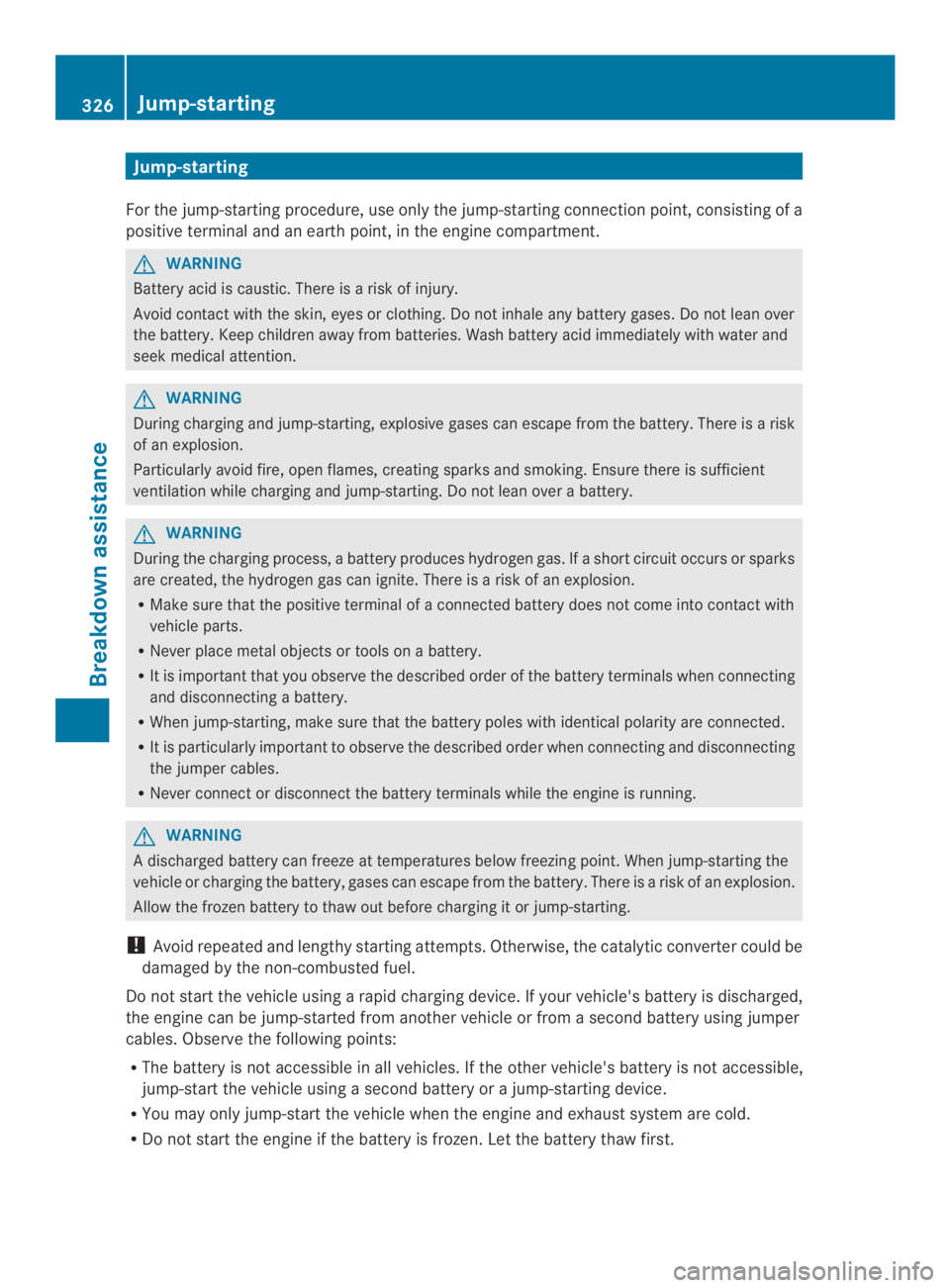

Jump-starting
For the jump-starting procedure, use only the jump-starting connection point, consisting of a
positive terminal and an earth point, in the engine compartment.
GWARNING
Battery acid is caustic. There isarisk of injury.
Avoid contact with the skin, eyes or clothing. Do not inhale any battery gases. Do not lean over
the battery. Keep children away from batteries. Wash battery acid immediately with water and
seek medical attention.
GWARNING
During charging and jump-starting, explosive gases can escape from the battery. There isarisk
of an explosion.
Particularly avoid fire, open flames, creating sparks and smoking. Ensure there is sufficient
ventilation while charging and jump-starting. Do not lean overabattery.
GWARNING
During the charging process,abattery produces hydrogen gas. Ifashort circuit occurs or sparks
are created, the hydrogen gas can ignite. There isarisk of an explosion.
RMake sure that the positive terminal ofaconnected battery does not come into contact with
vehicle parts.
RNever place metal objects or tools onabattery.
RIt is important that you observe the described order of the battery terminals when connecting
and disconnectingabattery.
RWhen jump-starting, make sure that the battery poles with identical polarity are connected.
RIt is particularly important to observe the described order when connecting and disconnecting
the jumper cables.
RNever connect or disconnectthe battery terminals while the engine is running.
GWARNING
Adischarged battery can freeze at temperatures below freezingpoint.When jump-starting the
vehicle or charging the battery, gases can escape from the battery. There isarisk of an explosion.
Allow the frozen battery to thaw out before charging it or jump-starting.
!Avoid repeated and lengthy startingattempts. Otherwise, the catalytic converter could be
damaged by the non-combusted fuel.
Do not start the vehicle usingarapid charging device. If your vehicle's battery is discharged,
the engine can be jump-started from another vehicle or fromasecond battery using jumper
cables. Observe the following points:
RThe battery is not accessible in all vehicles. If the other vehicle's battery is not accessible,
jump-start the vehicle usingasecond battery orajump-starting device.
RYou may only jump-start thevehiclewhen theengineand exhaust system are cold.
RDo notstart theengineifthebattery is frozen.Let thebattery thaw first.
326Jump-starting
Breakdown assistance

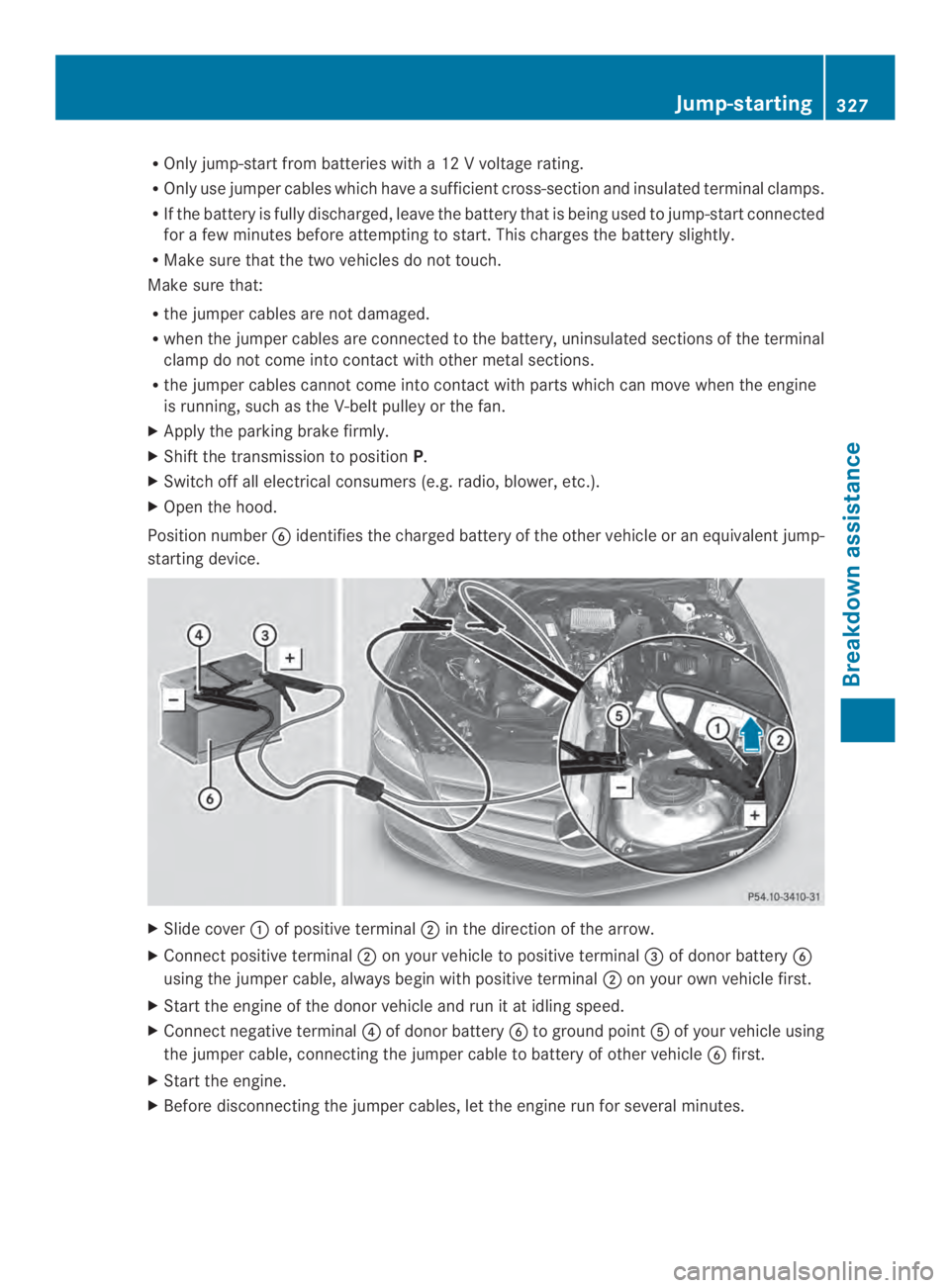

ROnly jump-start from batteries witha12Vvoltage rating.
ROnly use jumper cables which haveasufficient cross-section and insulated terminal clamps.
RIf the battery is fully discharged, leave the battery that is being used to jump-start connected
forafew minutes before attempting to start. This charges the battery slightly.
RMake sure that the two vehicles do not touch.
Make sure that:
Rthe jumper cables are not damaged.
Rwhen the jumper cables are connected to the battery, uninsulated sections of the terminal
clamp do not come into contact with other metal sections.
Rthe jumper cables cannot come into contact with parts which can move when the engine
is running, such as the V-belt pulley or the fan.
XApply the parking brake firmly.
XShift the transmission to positionP.
XSwitch off all electrical consumers (e.g. radio, blower, etc.).
XOpen the hood.
Position number%identifies the charged battery of the other vehicle or an equivalent jump-
starting device.
XSlide coverof positive terminalin the direction of the arrow.
XConnect positive terminalon your vehicle to positive terminal$of donor battery%
using the jumper cable, always begin with positive terminalon your own vehicle first.
XStart the engine of the donor vehicle and run it at idling speed.
XConnect negative terminal!of donor battery%to ground pointof your vehicle using
the jumper cable, connecting the jumper cable to battery of other vehicle%first.
XStart the engine.
XBefore disconnecting the jumper cables, let the engine run for several minutes.
Jump-starting327
Breakdown assistance
Z

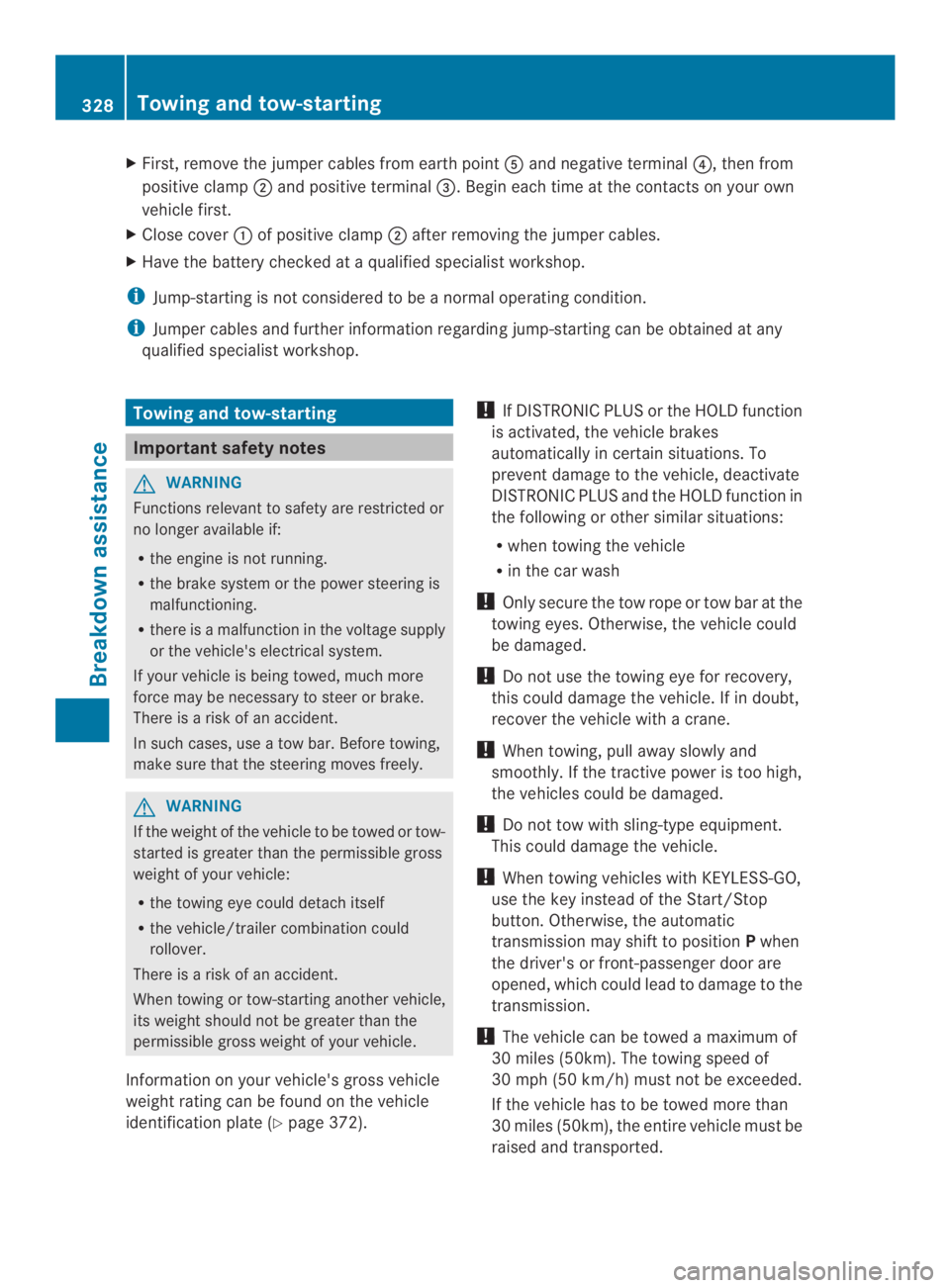

XFirst, remove the jumper cablesfrom earth pointand negative terminal!,then from
positiveclampand positiveterminal$.Begineachtime at the contacts on your own
vehicle first.
XClose coverof positiveclampafterremoving the jumper cables.
XHave the battery checkedataqualified specialist workshop.
iJump-startingisnot considered to beanormal operatingcondition.
iJumper cables and further information regardingjump-starting can be obtained at any
qualified specialist workshop.
Towing and tow-starting
Importantsafetynotes
GWARNING
Functionsrelevant to safety are restricted or
no longer available if:
Rthe engineisnot running.
Rthe brake system or the power steering is
malfunctioning.
Rthereisamalfunction in the voltage supply
or the vehicle's electrical system.
If your vehicle is being towed, much more
forcemay be necessary to steer or brake.
There isarisk of an accident.
In such cases, useatow bar. Beforetowing,
make sure that the steering moves freely.
GWARNING
If the weight of the vehicle to be towed or tow-
started is greater than the permissible gross
weight of your vehicle:
Rthe towingeye could detach itself
Rthe vehicle/trailer combination could
rollover.
There isarisk of an accident.
When towingortow-starting another vehicle,
its weight should not be greater than the
permissible gross weight of your vehicle.
Information on your vehicle's gross vehicle
weight ratingcan be found on the vehicle
identification plate (Ypage 372).
!If DISTRONIC PLUS or the HOLD function
is activated, the vehicle brakes
automatically in certain situations. To
preventdamage to thevehicle,deactivate
DISTRONICPLUS and the HOLD function in
the following or other similar situations:
Rwhen towing the vehicle
Rin the car wash
!Only secure the tow rope or tow bar at the
towing eyes. Otherwise,the vehicle could
be damaged.
!Do not use the towing eye for recovery,
this could damage the vehicle.Ifindoubt,
recover the vehicle withacrane.
!When towing, pullawayslowly and
smoothly.Ifthe tractive power is too high,
the vehicles could be damaged.
!Do not tow with sling-type equipment.
This could damage the vehicle.
!When towing vehicles with KEYLESS-GO,
use the key instead of the Start/Stop
button. Otherwise, the automatic
transmission may shift to positionPwhen
the driver's or front-passenger door are
opened, which could lead to damage to the
transmission.
!The vehicle can be towedamaximum of
30 miles (50km). The towing speed of
30 mph (50 km/h) must not be exceeded.
If the vehicle has to be towed more than
30 miles(50km), the entire vehicle must be
raised and transported.
328Towing and tow-starting
Breakdown assistance
