Triggeringthe vehicle alarm
With thisfunction, youcan triggerthe
vehicle's panic alarm via text message. An
alarm sounds and the exterior lighting
flashes. Depending on the setting, the panic
alarm lasts five or ten seconds. Afterwards,
the alarm switches off.

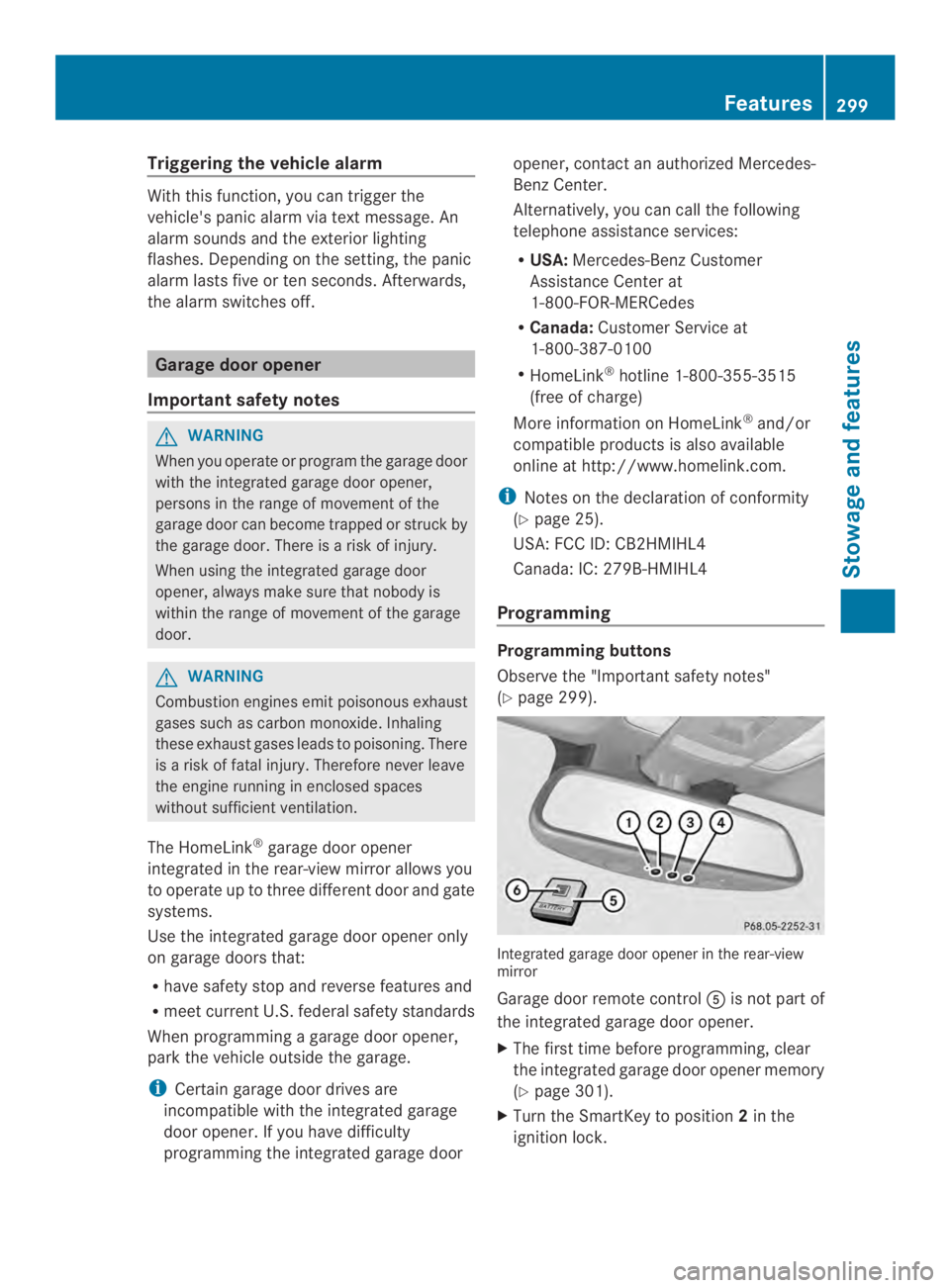

Garage door opener
Important safety notes
GWARNING
When you operate or program the garage door
with the integrated garage door opener,
persons in the range of movement of the
garage door can become trapped or struck by
the garage door. There isarisk of injury.
When using the integrated garage door
opener, always make sure that nobody is
within the rangeofmovementofthe garage
door.
GWARNING
Combustion engines emit poisonous exhaust
gases such as carbonmonoxide. Inhaling
these exhaust gases leads to poisoning. There
isarisk of fatal injury. Therefore never leave
the engine runninginenclosed spaces
without sufficient ventilation.
The HomeLink®garage door opener
integrated in the rear-view mirror allows you
to operate up to three different door and gate
systems.
Use the integrated garage door opener only
on garage doors that:
Rhave safety stop and reverse features and
Rmeet current U.S. federal safety standards
When programmingagarage door opener,
park the vehicle outside the garage.
iCertain garage door drives are
incompatible with the integrated garage
door opener. If you have difficulty
programming the integrated garage door
opener, contact an authorized Mercedes-
Benz Center.
Alternatively, you can call the following
telephone assistance services:
RUSA:Mercedes-Benz Customer
Assistance Center at
1-800-FOR-MERCedes
RCanada:Customer Serviceat
1-800-387-0100
RHomeLink®hotline 1-800-355-3515
(free of charge)
More information on HomeLink®and/or
compatible products is also available
online at http://www.homelink.com.
iNotes on the declaration of conformity
(Ypage 25).
USA:FCC ID: CB2HMIHL4
Canada: IC: 279B-HMIHL4
Programming
Programming buttons
Observe the "Important safety notes"
(Ypage 299).
Integrated garage door opener in the rear-viewmirror
Garage door remote controlis not part of
the integrated garage door opener.
XThe first time before programming, clear
the integrated garage door opener memory
(Ypage 301).
XTurn the SmartKey to position2in the
ignition lock.
Features299
Stowage and features
Z

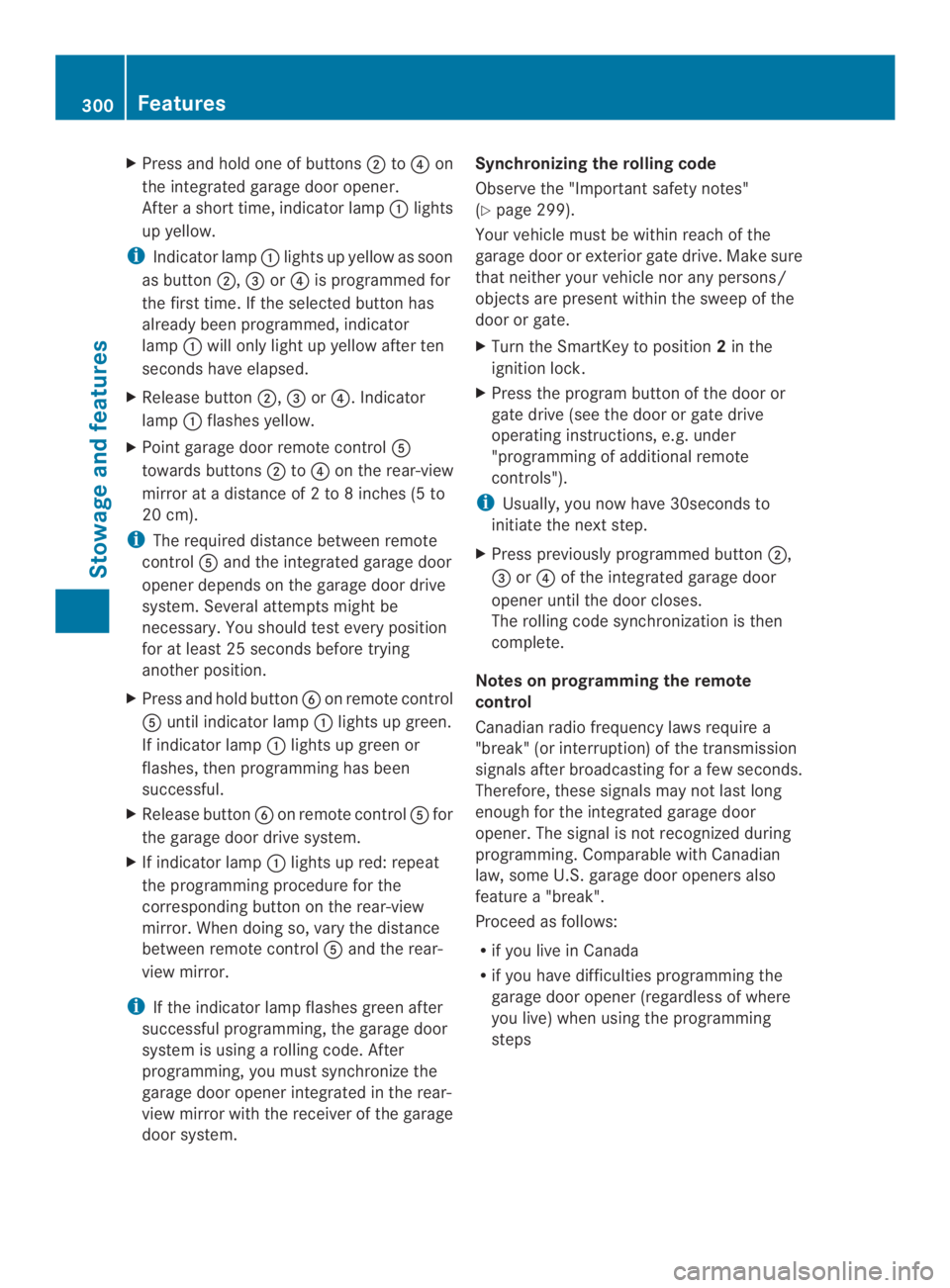

XPress and hold one of buttonsto!on
the integrated garage door opener.
Afterashort time, indicator lamplights
up yellow.
iIndicator lamplights up yellow as soon
as button,$or!is programmed for
the first time. If the selected button has
already been programmed, indicator
lampwill only light up yellow after ten
seconds have elapsed.
XRelease button,$or!.Indicator
lampflashes yellow.
XPoint garage door remotecontrol
towards buttonsto!on the rear-view
mirror atadistanceof2to8inches (5 to
20 cm).
iThe required distancebetween remote
controland the integrated garage door
opener depends on the garage door drive
system. Several attempts might be
necessary. You should test every position
for at least 25 seconds before trying
another position.
XPress and hold button%on remotecontrol
until indicator lamplights up green.
If indicator lamplights up green or
flashes, then programming has been
successful.
XRelease button%on remote controlfor
the garage door drive system.
XIf indicator lamplights up red: repeat
the programming procedure for the
corresponding button on the rear-view
mirror. When doing so, vary the distance
between remote controland the rear-
view mirror.
iIf the indicator lamp flashes green after
successful programming, the garage door
system is usingarolling code. After
programming, you must synchronize the
garage door opener integrated in the rear-
view mirror with the receiver of the garage
door system.
Synchronizing the rolling code
Observe the "Important safety notes"
(Ypage 299).
Your vehicle must be within reach of the
garage door or exterior gate drive. Make sure
that neither your vehicle nor any persons/
objectsare present within the sweep of the
door or gate.
XTurn the SmartKey to position2in the
ignition lock.
XPress the program button of the door or
gate drive (see the door or gate drive
operating instructions, e.g. under
"programming of additional remote
controls").
iUsually,you now have 30seconds to
initiate the next step.
XPress previously programmed button,
$or!of the integrated garage door
opener until the door closes.
The rolling code synchronization is then
complete.
Notes on programming the remote
control
Canadianradio frequency laws require a
"break"(or interruption)ofthetransmission
signals after broadcastingforafew seconds.
Therefore, these signals may notlast long
enough for theintegratedgaragedoor
opener. The signal is notrecognized during
programming. Comparable with Canadian
law, some U.S.garage door openers also
featurea"break".
Proceedasfollows:
Rif you live in Canada
Rif you have difficulties programmingthe
garagedoor opener (regardless of where
you live)when usingtheprogramming
steps
300Features
Stowage and features

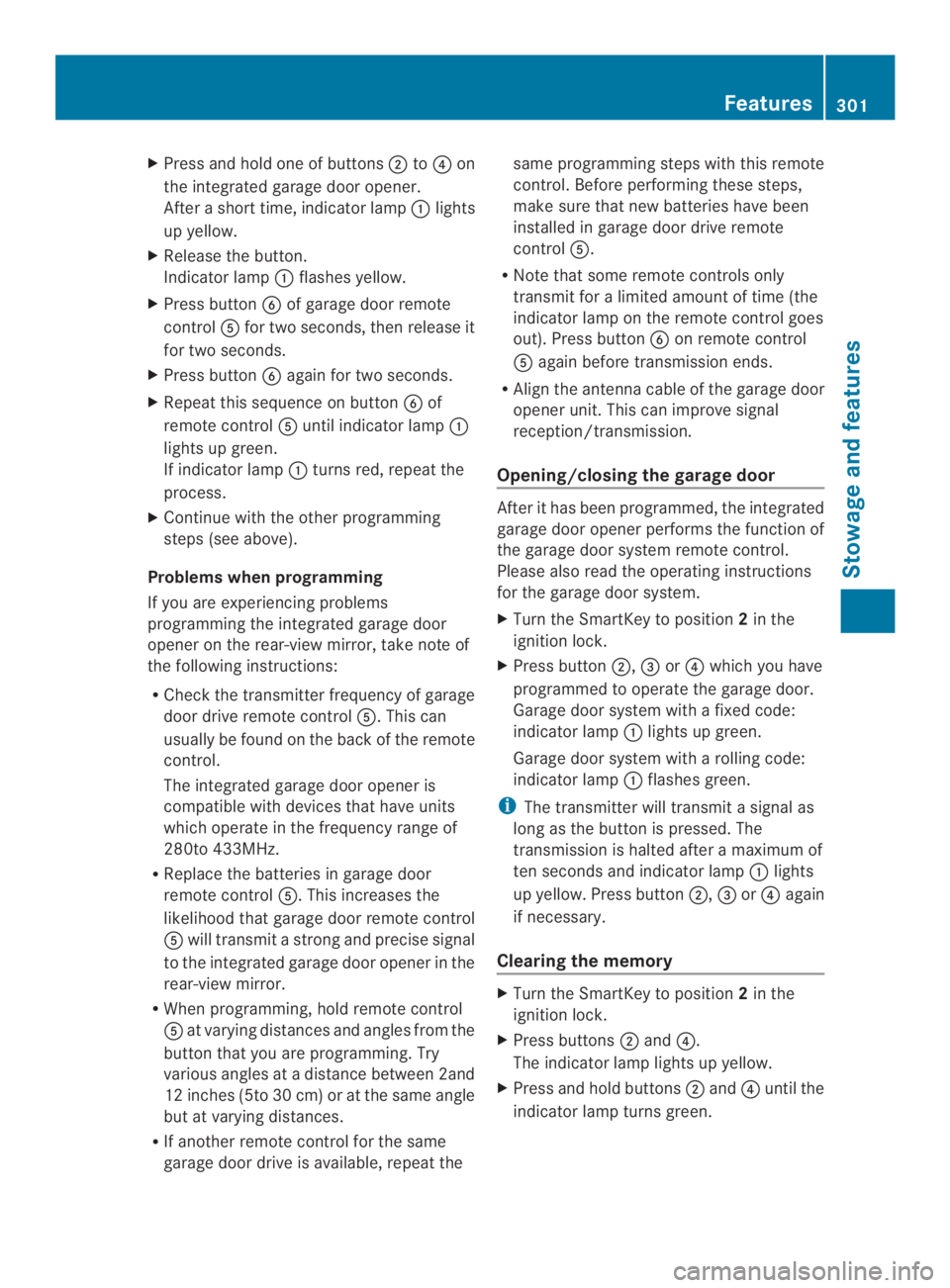

XPress and hold one of buttonsto!on
the integrated garage door opener.
Afterashort time, indicator lamplights
up yellow.
XRelease the button.
Indicator lampflashes yellow.
XPress button%of garage door remote
controlfor two seconds, then release it
for two seconds.
XPress button%again for two seconds.
XRepeat this sequence on button%of
remotecontroluntil indicator lamp
lights up green.
If indicator lampturnsred, repeat the
process.
XContinue with the other programming
steps (see above).
Problems when programming
If you are experiencing problems
programmingthe integrated garage door
opener on the rear-view mirror, take noteof
the following instructions:
RCheck the transmitter frequencyofgarage
door drive remotecontrol.This can
usually be found on the back of the remote
control.
The integrated garage door opener is
compatible with devices that have units
which operate in the frequency range of
280to433MHz.
RReplace the batteries in garage door
remote control.This increases the
likelihood that garage door remote control
will transmitastrongand precisesignal
to the integrated garage door openerinthe
rear-view mirror.
RWhen programming, hold remote control
at varying distances and angles from the
button that you are programming. Try
various angles atadistance between 2and
12 inches (5to 30 cm) or at the same angle
but at varying distances.
RIf another remote control for the same
garage door drive is available, repeat the
same programming steps with this remote
control. Before performing these steps,
make sure that new batteries have been
installed in garage door drive remote
control.
RNote that some remote controls only
transmit foralimited amount of time (the
indicator lamp on the remote control goes
out). Press button%on remote control
again before transmission ends.
RAlign the antennacable of the garage door
opener unit. This can improve signal
reception/transmission.
Opening/closing the garage door
After it has been programmed, the integrated
garage door opener performs the function of
the garage door system remote control.
Please also read the operating instructions
for the garage door system.
XTurn the SmartKey to position2in the
ignition lock.
XPress button,$or!which you have
programmed to operate the garage door.
Garage door system withafixed code:
indicator lamplights up green.
Garage door system witharolling code:
indicator lampflashes green.
iThe transmitter will transmitasignal as
long as the button is pressed. The
transmission is halted afteramaximum of
ten seconds and indicator lamplights
up yellow. Press button,$or!again
if necessary.
Clearing the memory
XTurn the SmartKey to position2in the
ignition lock.
XPress buttonsand!.
The indicator lamp lights up yellow.
XPress and hold buttonsand!until the
indicator lamp turns green.
Features301
Stowage and features
Z

iMake sure that you clear the memory of
the integrated garage door opener before
selling the vehicle.

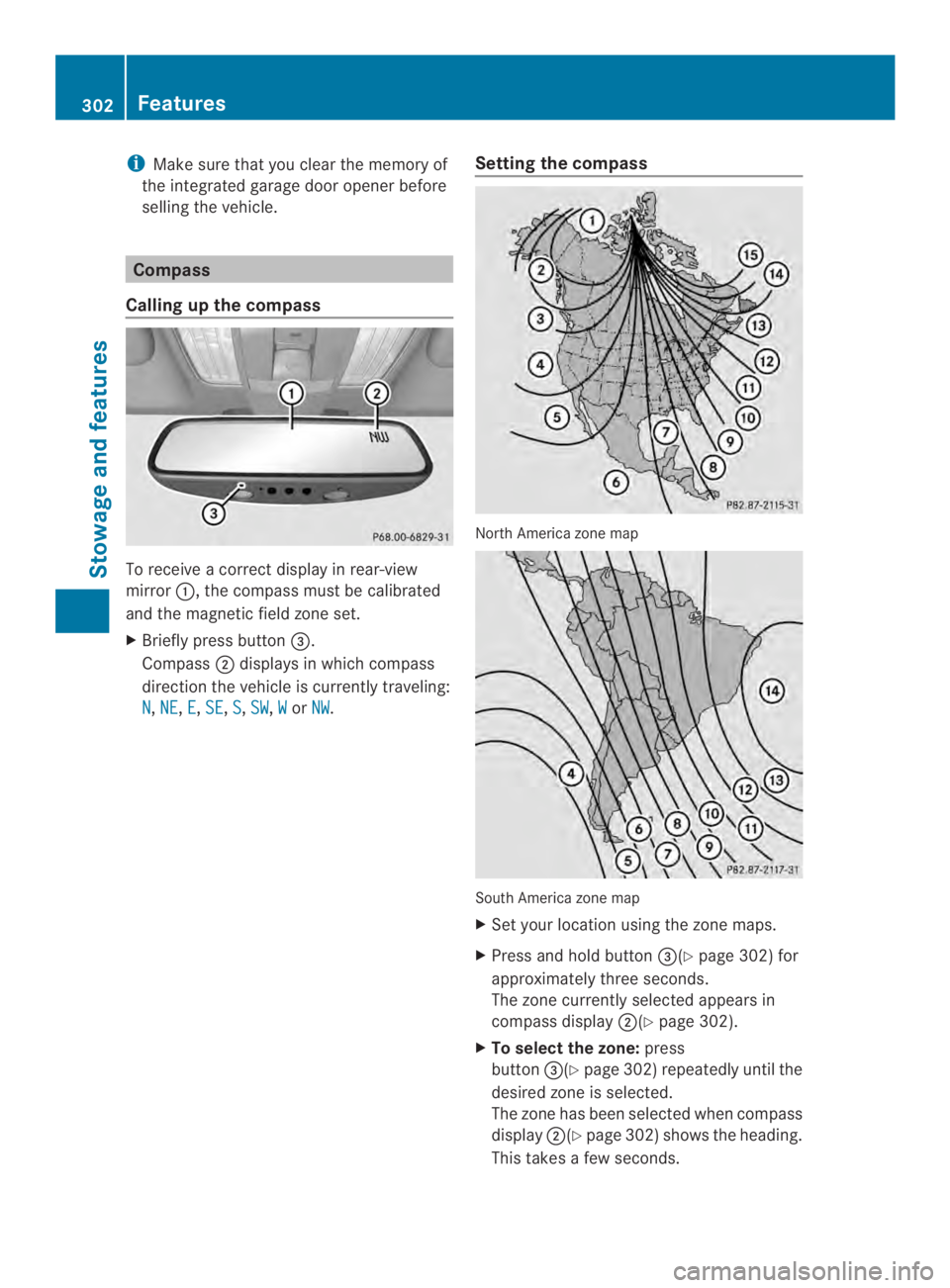

Compass
Calling up the compass
To receiveacorrect displayinrear-view
mirror,the compass must be calibrated
and the magnetic field zone set.
XBriefly press button$.
Compassdisplays in which compass
direction the vehicle is currently traveling:
N,NE,E,SE,S,SW,WorNW.
Setting the compass
North America zone map
South America zone map
XSet your location using the zone maps.
XPress and hold button$(Ypage 302) for
approximately three seconds.
The zone currently selected appears in
compass display(Ypage 302).
XTo selectthe zone:press
button$(Ypage302) repeatedlyuntil the
desired zone is selected.
The zone has been selected whencompass
display(Ypage 302) shows the heading.
This takesafew seconds.
302Features
Stowage and features

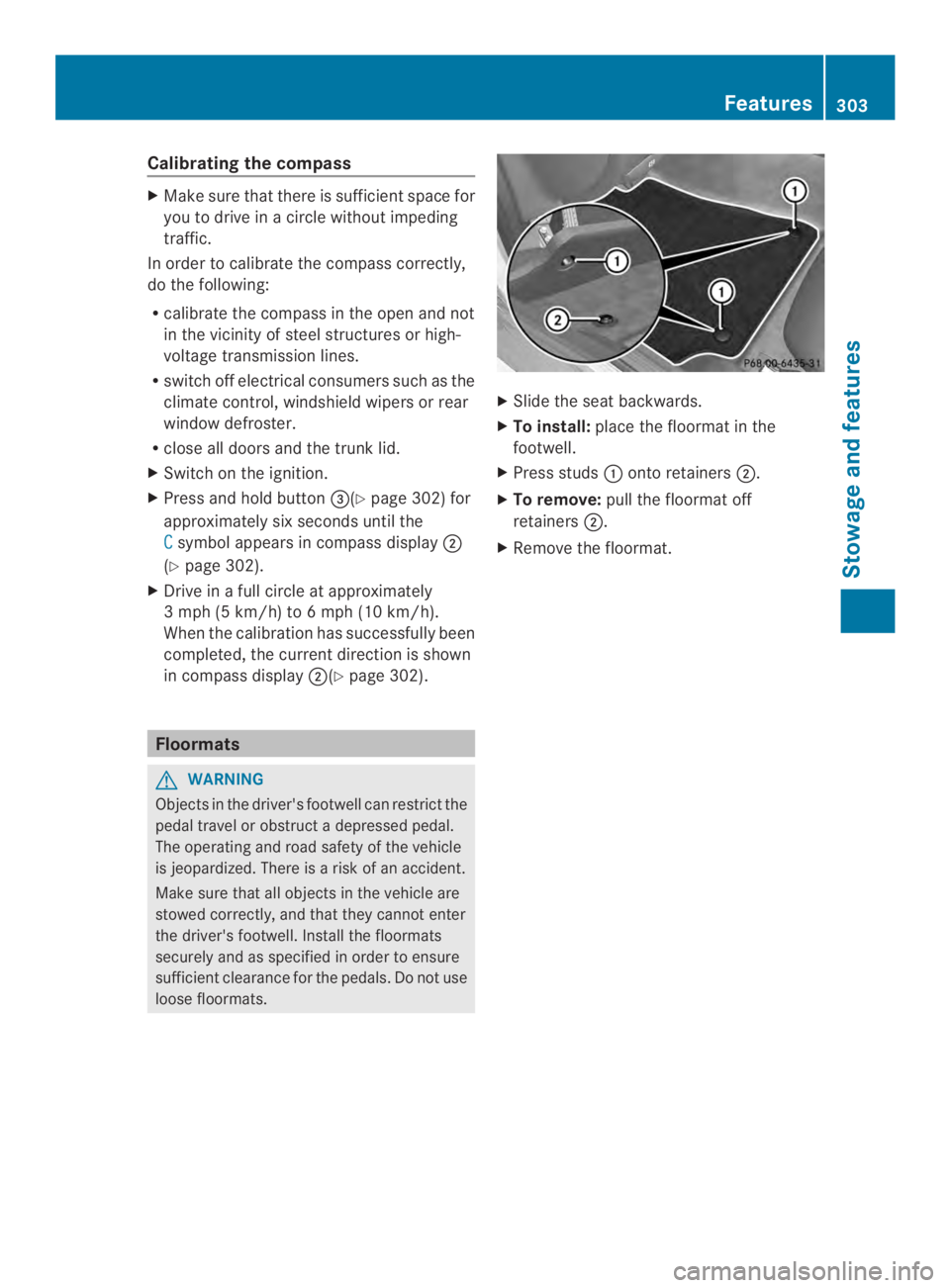

Calibratingthecompass
XMakesure that there is sufficient spacefor
you to driveinacircle without impeding
traffic.
In order to calibratethecompasscorrectly,
do thefollowing:
Rcalibratethecompassintheopen and not
in thevicinity of steel structures or high-
voltage transmission lines.
Rswitch off electrical consumerssuchasthe
climate control, windshield wipersorrear
window defroster.
Rclose all doorsand thetrunk lid.
XSwitch on theignition.
XPress and hold button$(Ypage 302) for
approximately six seconds until the
Csymbol appearsincompassdisplay
(Ypage 302).
XDrive inafull circle at approximately
3mph (5 km/h)to6mph (10 km/h).
When thecalibration has successfully been
completed, thecurrentdirection is shown
in compass display(Ypage 302).
Floormats
GWARNING
Objectsinthe driver's footwell can restrictthe
pedal travel or obstructadepressed pedal.
The operatingand road safety of the vehicle
is jeopardized. There isarisk of an accident.
Make sure that all objects in the vehicle are
stowed correctly, and that they cannot enter
the driver's footwell. Install the floormats
securely and as specified in order to ensure
sufficientclearancefor the pedals. Do not use
loose floormats.
XSlide the seat backwards.
XTo install:place the floormat in the
footwell.
XPress studsontoretainers.
XTo remove:pull the floormat off
retainers.
XRemove the floormat.
Features303
Stowage and features
Z

304

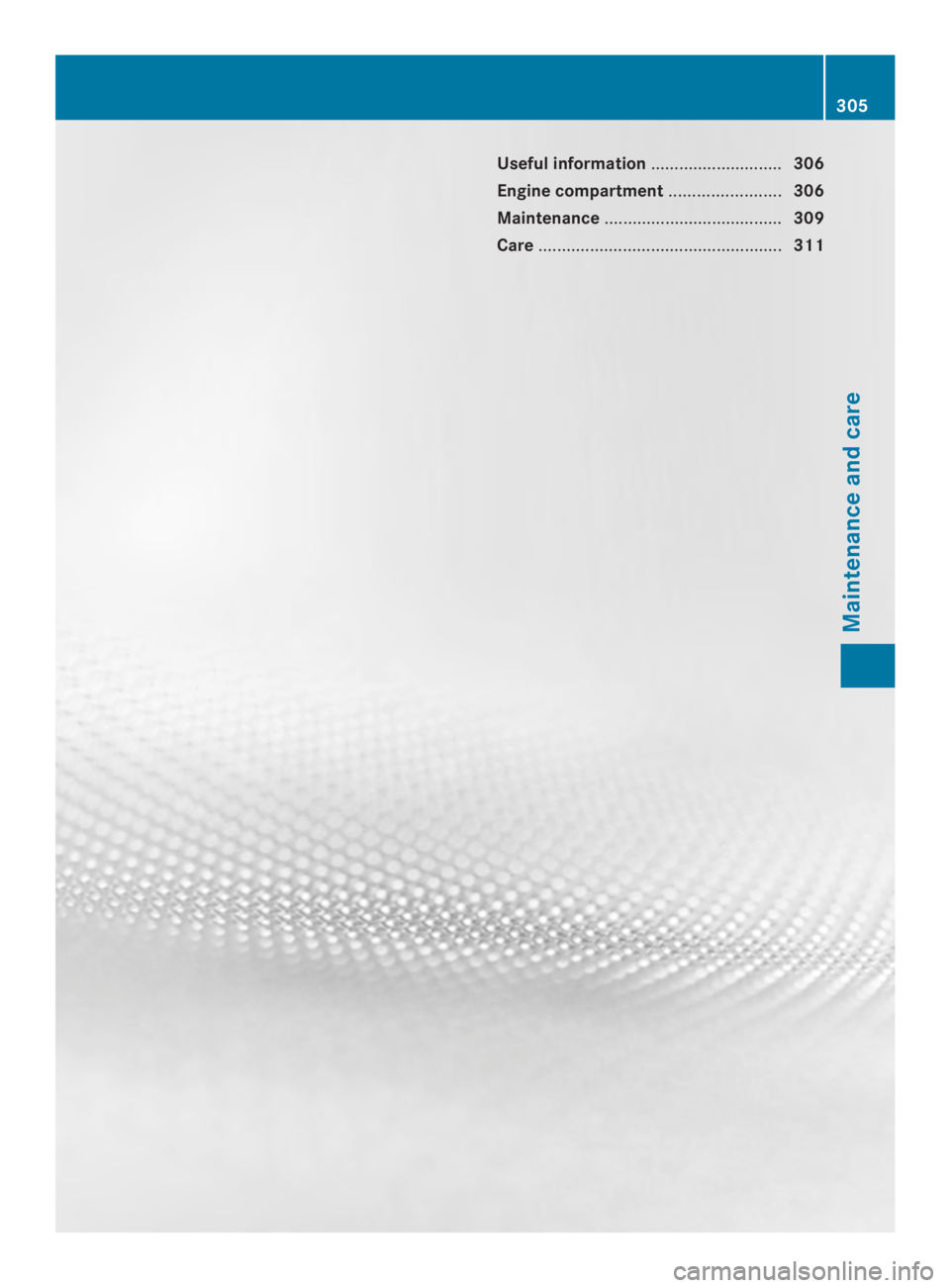

Useful information............................306
Engine compartment........................306
Maintenance......................................309
Care....................................................311
305
Maintenance and care

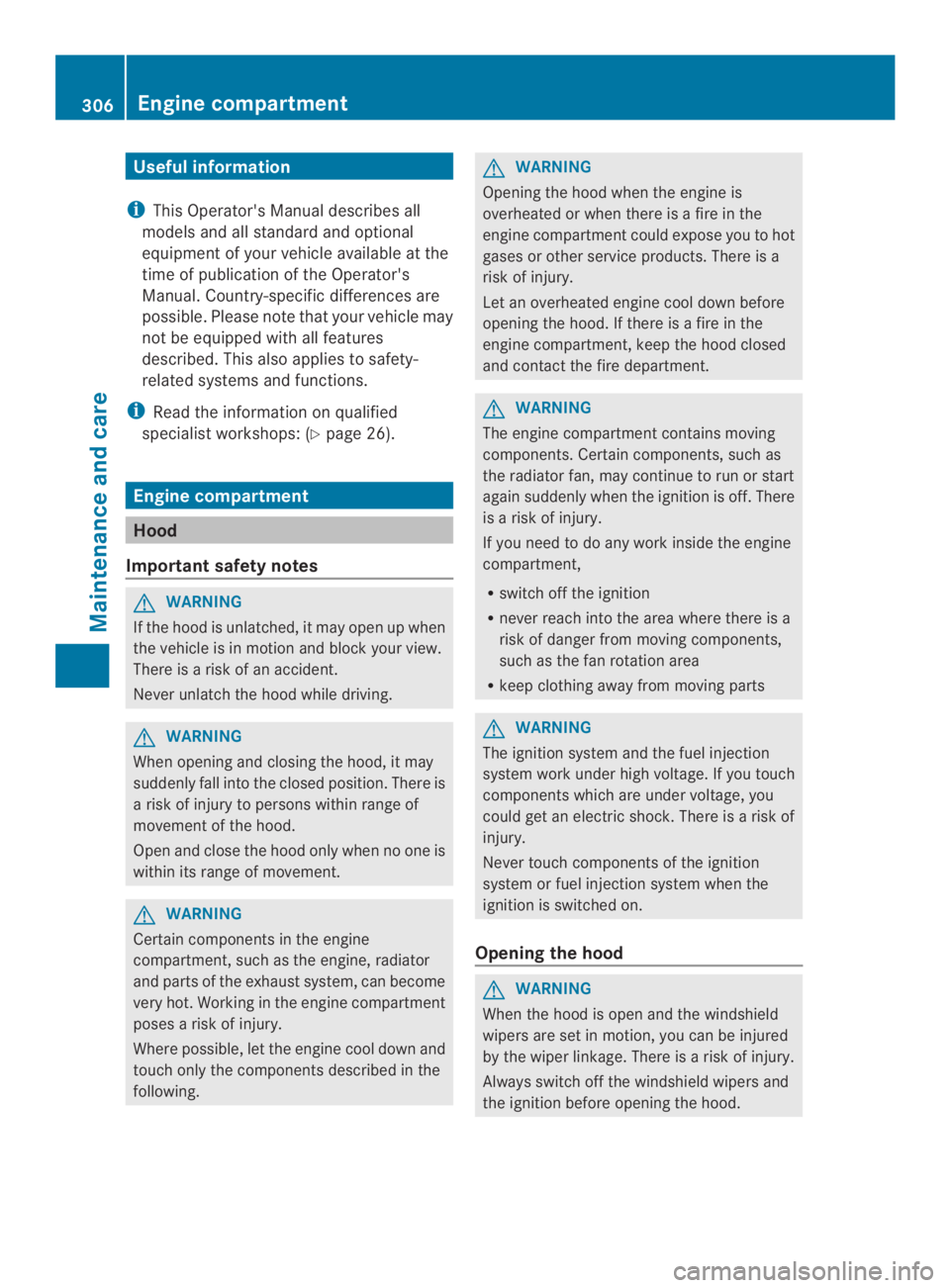

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please notethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related systemsand functions.
iRead the information on qualified
specialist workshops: (Ypage 26).
Engine compartment
Hood
Important safetynotes
GWARNING
If the hood is unlatched, it may open up when
the vehicle is in motion and block your view.
There isarisk of an accident.
Never unlatchthe hood while driving.
GWARNING
When openingand closingthe hood, it may
suddenly fall intothe closed position.There is
arisk of injury to persons within range of
movement of the hood.
Open and close the hood only when no one is
within its range of movement.
GWARNING
Certain components in the engine
compartment, such as the engine, radiator
and parts of the exhaust system, can become
very hot. Working in the engine compartment
posesarisk of injury.
Where possible, let the engine cool down and
touch only the components described in the
following.
GWARNING
Opening the hood when the engine is
overheated or when there isafire in the
engine compartmentcould expose you to hot
gases or other service products. There is a
risk of injury.
Let an overheated engine cool down before
opening the hood. If there isafire in the
engine compartment, keep the hood closed
and contact the fire department.
GWARNING
The engine compartment contains moving
components. Certain components, such as
the radiator fan, may continue to run or start
again suddenly when the ignition is off. There
isarisk of injury.
If you need to do any work inside the engine
compartment,
Rswitch off the ignition
Rnever reach into the area where there is a
risk of danger from moving components,
such as the fan rotation area
Rkeep clothingaway from moving parts
GWARNING
The ignition system and the fuel injection
system work under high voltage. If you touch
components which are under voltage, you
could get an electric shock. There isarisk of
injury.
Never touch components of the ignition
system or fuel injection system when the
ignition is switched on.
Opening the hood
GWARNING
When the hood is open and the windshield
wipers are set in motion,you can be injured
by the wiper linkage. There isarisk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
306Engine compartment
Maintenance and care

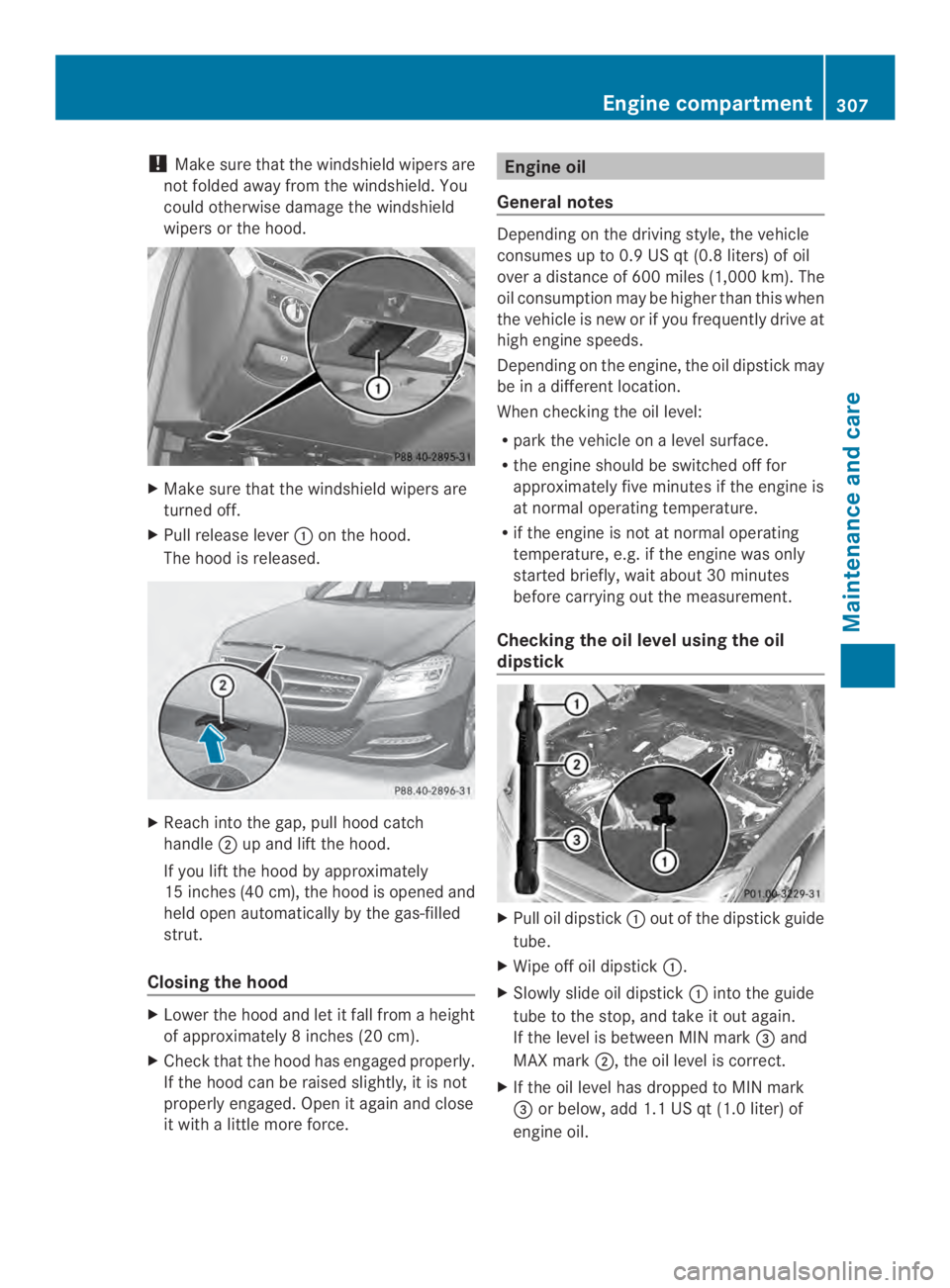

!Make sure that the windshieldwipers are
not folded away fromthe windshield. You
could otherwise damage the windshield
wipers or the hood.
XMake sure that the windshield wipers are
turned off.
XPull release leveron the hood.
The hood is released.
XReach into the gap, pull hood catch
handleup and lift the hood.
If you lift the hood by approximately
15 inches(40cm),the hood is opened and
held open automatically by the gas-filled
strut.
Closing thehood
XLower the hood and let it fall fromaheight
of approximately8inches(20 cm).
XCheck that the hood has engaged properly.
If the hood can be raised slightly,itisnot
properly engaged. Open it again and close
it withalittle more force.
Engine oil
General notes
Depending on the driving style, the vehicle
consumesupto0.9 US qt (0.8 liters) of oil
overadistanceof600 miles(1,000 km). The
oil consumption may be higher than this when
the vehicle is new or if you frequently drive at
high enginespeeds.
Depending on the engine, the oil dipstickmay
be inadifferent location.
When checking theoil level:
Rpark thevehicle onalevelsurface.
Rtheengineshould be switched off for
approximately fiveminutesiftheengineis
at normal operatingtemperature.
Rif theengineisnotat normal operating
temperature, e.g.ifthe engine was only
started briefly, wait about 30 minutes
before carrying out the measurement.
Checking the oil level using the oil
dipstick
XPull oil dipstickout of the dipstick guide
tube.
XWipe off oil dipstick.
XSlowly slide oil dipstickinto the guide
tube to the stop, and take it out again.
If the level is between MIN mark$and
MAX mark,the oil level is correct.
XIf the oil level has dropped to MIN mark
$or below, add 1.1 US qt (1.0 liter) of
engine oil.
Engine compartment307
Maintenance and care
Z

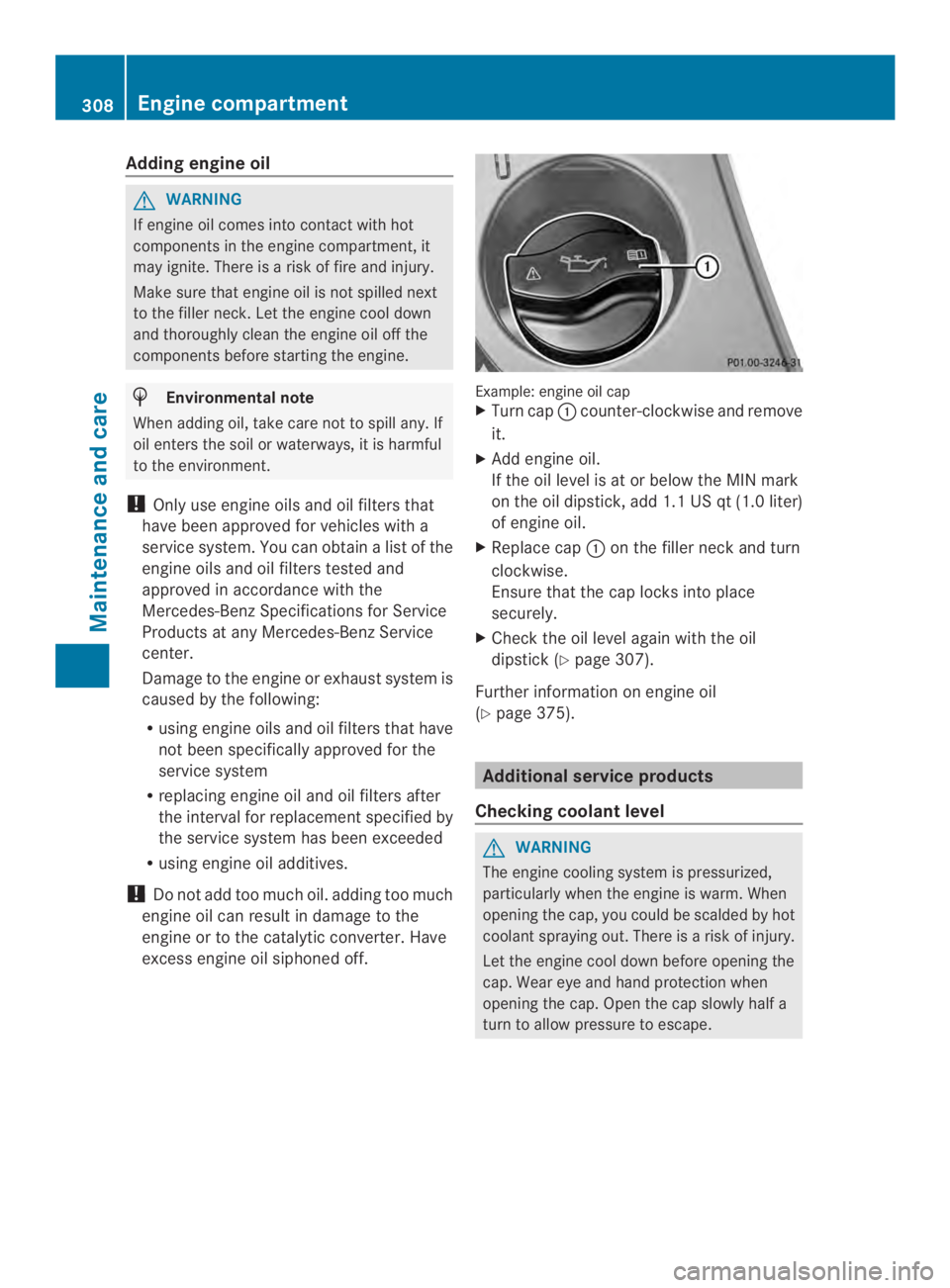

Adding engineoil
GWARNING
If engineoil comes intocontactwithhot
componentsintheenginecompartment, it
may ignite. There isariskoffireand injury.
Makesurethatengineoil is notspilled next
to the filler neck. Let the enginecool down
and thoroughly clean the engineoil off the
componentsbefore starting the engine.
HEnvironmental note
When adding oil, take care not to spill any. If
oil enters the soil or waterways, it is harmful
to the environment.
!Only use engineoils and oil filtersthat
have been approved for vehicles with a
servicesystem. You can obtainalist of the
engineoils and oil filterstested and
approved in accordance with the
Mercedes-Benz Specificationsfor Service
Productsatany Mercedes-Benz Service
center.
Damage to the engineorexhaust system is
caused by the following:
Rusing engineoils and oil filtersthat have
not been specifically approved for the
servicesystem
Rreplacing engineoil and oil filtersafter
the interval for replacementspecified by
the servicesystem has been exceeded
Rusing engineoil additives.
!Do not add too much oil. adding too much
engineoil can result in damage to the
engineortothe catalytic converter. Have
excess engineoil siphoned off.
Example: engineoil capXTurn capcounter-clockwise and remove
it.
XAdd engineoil.
If the oil level is at or below the MIN mark
on the oil dipstick, add 1.1 US qt(1.0 liter)
of engine oil.
XReplace capon the fillerneck and turn
clockwise.
Ensurethatthe cap locks into place
securely.
XCheck the oillevel againwith the oil
dipstick (Ypage 307).
Further information on engine oil
(Ypage 375).
Additionalservice products
Checking coolant level
GWARNING
The engine cooling system is pressurized,
particularly when the engine is warm. When
opening the cap, you could be scaldedbyhot
coolantspraying out. There isarisk of injury.
Let the enginecool down before openingthe
cap. Wear eye and hand protection when
openingthe cap. Open the cap slowly half a
turn to allow pressure to escape.
308Engine compartment
Maintenance and care
