MERCEDES-BENZ CLS 2014 Owners Manual

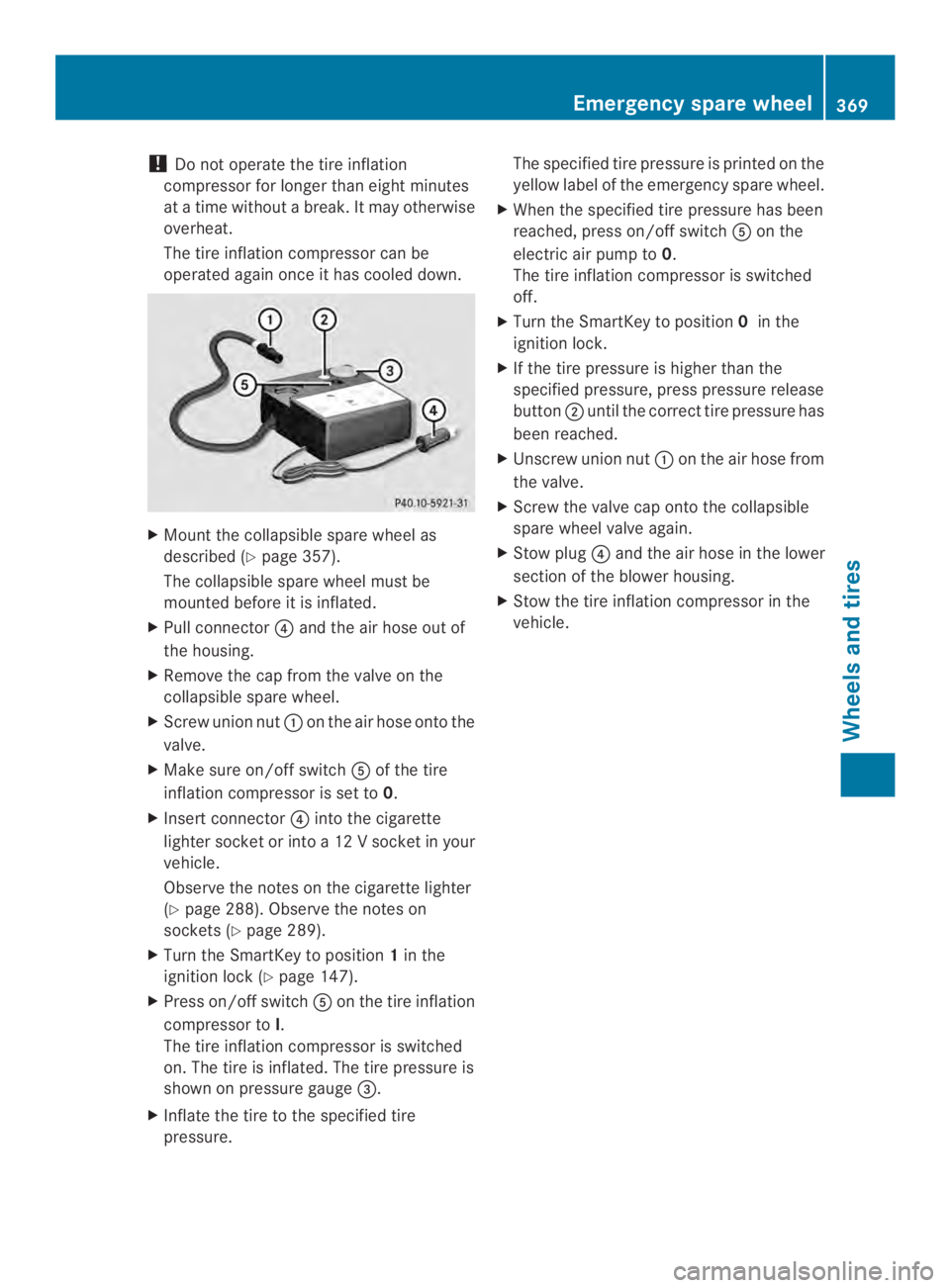

!Do not operate the tire inflation
compressor for longer than eight minutes
atatime withoutabreak. It may otherwise
overheat.
The tire inflation compressor can be
operated againonce it hascooleddown.
XMount the collapsiblespare wheelas
described (Ypage 357).
The collapsible spare wheel must be
mounted before it is inflated.
XPull connector!and the air hose out of
the housing.
XRemove the cap from the valve on the
collapsible spare wheel.
XScrew union nuton the air hose ontothe
valve.
XMake sure on/off switchof the tire
inflation compressor is set to0.
XInsert connector!intothe cigarette
lighter socket or intoa12Vsocket in your
vehicle.
Observe the notes on the cigarettelighter
(Ypage 288). Observe the notes on
sockets(Ypage 289).
XTurn the SmartKey to position1in the
ignition lock (Ypage 147).
XPress on/offswitchon thetireinflation
compressor toI.
The tireinflationcompressor is switched
on. The tire is inflated. The tire pressure is
shown on pressure gauge$.
XInflate the tire to the specified tire
pressure.
The specified tire pressure is printed on the
yellow label of the emergencyspare wheel.
XWhen the specified tire pressure has been
reached, press on/offswitchon the
electric air pump to0.
The tireinflationcompressor is switched
off.
XTurn the SmartKey to position0in the
ignition lock.
XIf the tire pressure is higher than the
specified pressure, press pressure release
buttonuntil the correcttire pressure has
been reached.
XUnscrew union nuton the air hose from
the valve.
XScrew the valve cap ontothe collapsible
spare wheel valve again.
XStow plug!and the air hose in the lower
section of the blower housing.
XStow the tire inflation compressor in the
vehicle.
Emergency sparewheel369
Wheels and tires
Z

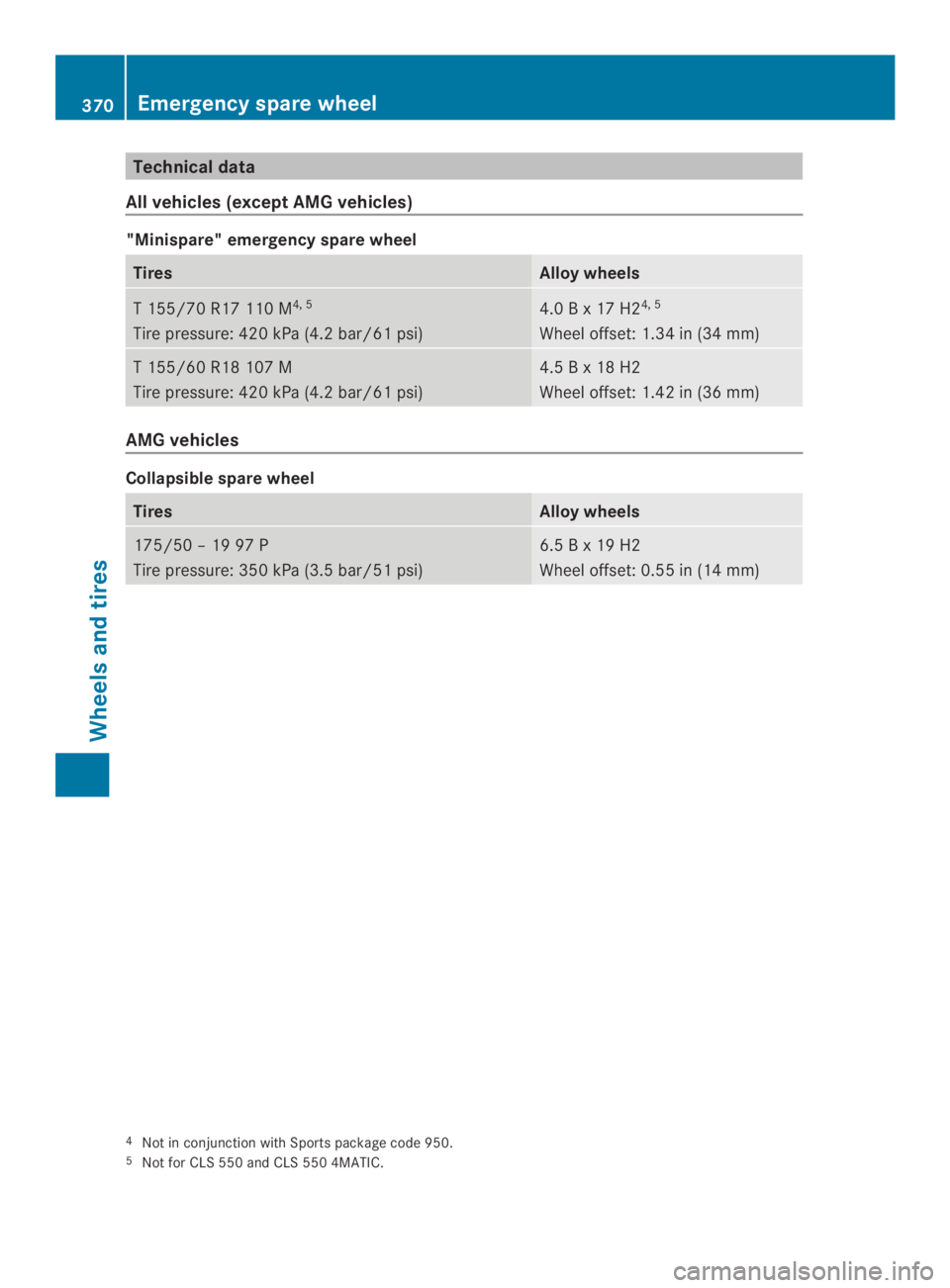

Technicaldata
Allvehicles(except AMGvehicles)
"Minispare" emergency spare wheel
TiresAlloy wheels
T155/70R17 110M4, 5
Tire pressure: 420kPa(4.2bar/61 psi)
4.0Bx17H24, 5
Wheel offset:1.34in(34 mm)
T155/60R18 107M
Tire pressure: 420kPa(4.2bar/61 psi)
4.5Bx18H2
Wheel offset:1.42in(36 mm)
AMG vehicles
Collapsible spare wheel
TiresAlloy wheels
175/50–1997P
Tire pressure: 350kPa(3.5bar/51 psi)
6.5Bx19H2
Wheel offset:0.55in(14 mm)
4Not in conjunction with Sportspackage code950.5Not for CLS 550and CLS 5504MATIC.
370Emergency spare wheel
Wheels and tires

Useful information............................372
Information regarding technical
data....................................................372
Warranty............................................372
Identification plates.........................372
Service products and filling capaci-
ties.....................................................373
Vehicle data......................................379
371
Technical data

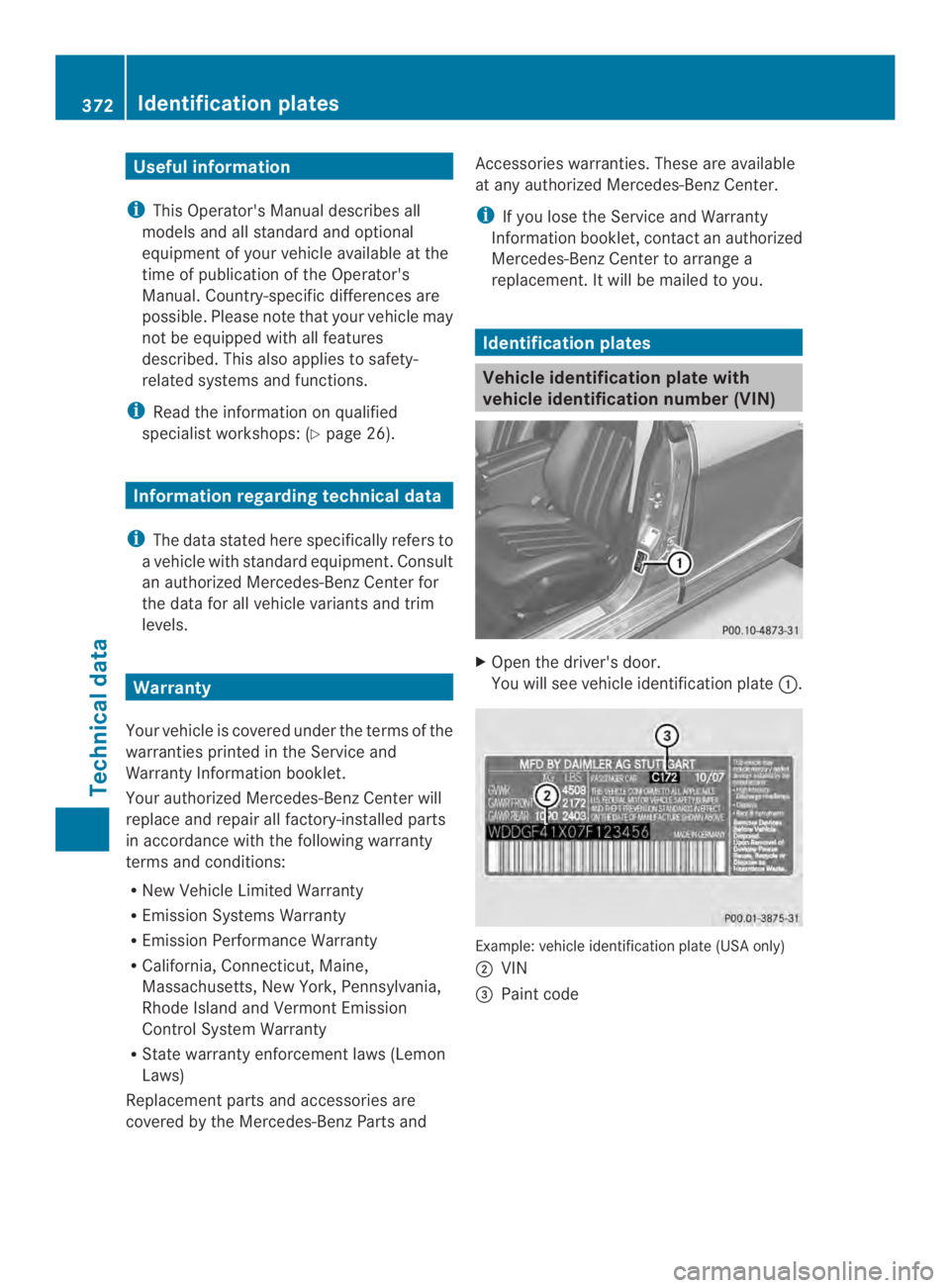

Useful information
iThis Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible. Please notethat your vehicle may
not be equipped with all features
described. This also applies to safety-
related systemsand functions.
iRead the information on qualified
specialist workshops: (Ypage 26).
Information regarding technical data
iThe data stated here specifically refersto
avehicle with standard equipment.Consult
an authorized Mercedes-Benz Center for
the data for all vehicle variants and trim
levels.
Warranty
Your vehicle is covered under the terms of the
warranties printed in the Serviceand
Warranty Information booklet.
Your authorized Mercedes-Benz Center will
replace and repair all factory-installed parts
in accordancewith the following warranty
terms and conditions:
RNew Vehicle Limited Warranty
REmission Systems Warranty
REmission Performance Warranty
RCalifornia, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island and Vermont Emission
Control System Warranty
RStatewarranty enforcement laws (Lemon
Laws)
Replacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories warranties. These are available
at any authorized Mercedes-Benz Center.
iIf you lose the Serviceand Warranty
Information booklet, contact an authorized
Mercedes-Benz Center to arrange a
replacement.Itwill be mailed to you.
Identification plates
Vehicle identification plate with
vehicle identification number (VIN)
XOpen the driver's door.
You will see vehicle identification plate.
Example: vehicle identification plate (USA only)
VIN
$Paint code
372Identification plates
Technica ld ata

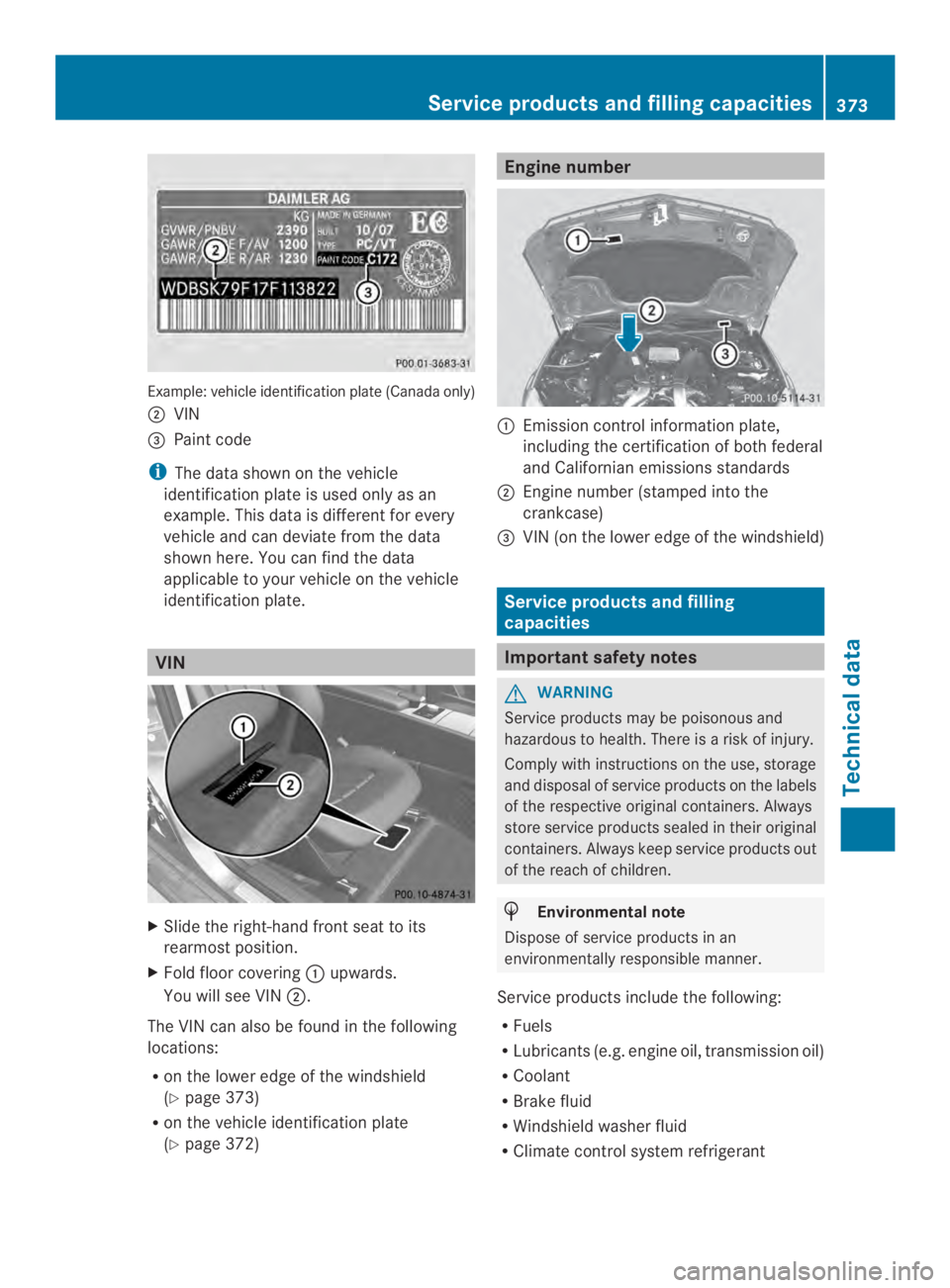

Example: vehicleidentification plate (Canada only)
VIN
$Paint code
iThe data shown on the vehicle
identificationplate is used only as an
example. This data is differentfor every
vehicle and can deviate from the data
shown here. You can find the data
applicabletoyour vehicle on the vehicle
identification plate.
VIN
XSlide the right-hand front seat to its
rearmost position.
XFold floor coveringupwards.
You will see VIN.
The VIN can also be found in the following
locations:
Ron the lower edge of the windshield
(Ypage 373)
Ron the vehicle identification plate
(Ypage 372)
Engine number
Emission control information plate,
including the certification of both federal
and Californian emissions standards
Engine number (stamped into the
crankcase)
$VIN (on the lower edge of the windshield)
Service products and filling
capacities
Important safety notes
GWARNING
Serviceproducts may be poisonous and
hazardous to health. There isarisk of injury.
Comply with instructions on the use, storage
and disposal of service products on the labels
of the respective original containers. Always
store service products sealed in their original
containers. Always keep service products out
of the reach of children.
HEnvironmental note
Dispose of service products in an
environmentally responsible manner.
Serviceproducts include the following:
RFuels
RLubricants (e.g. engine oil, transmission oil)
RCoolant
RBrake fluid
RWindshield washer fluid
RClimate control system refrigerant
Service products and filling capacities373
Technical data
Z

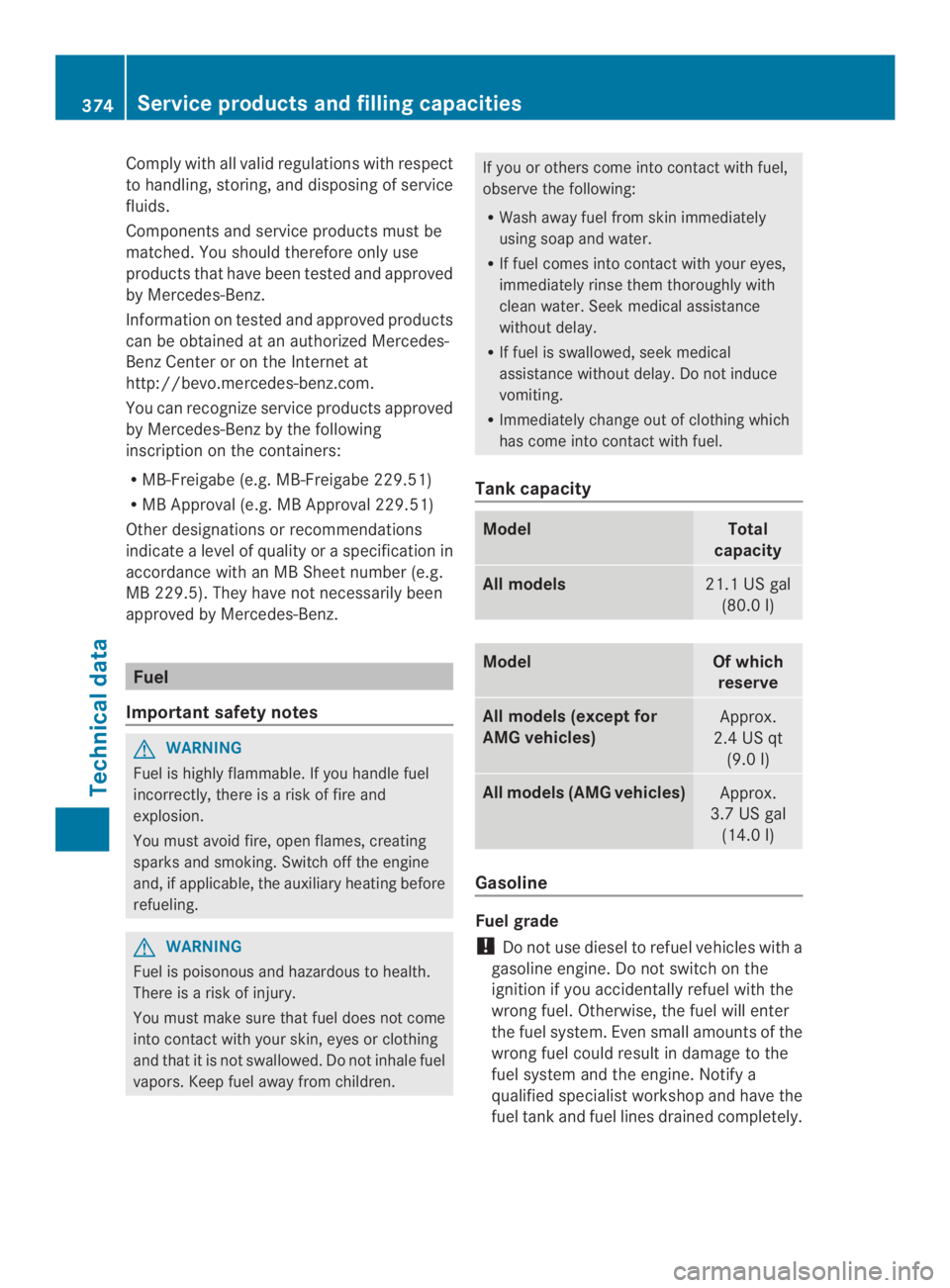

Comply withall valid regulationswithrespect
to handling, storing,and disposingofservice
fluids.
Components and serviceproductsmust be
matched. You should thereforeonly use
products thathave been tested and approved
by Mercedes-Benz.
Information on tested and approved products
can be obtainedatanauthorized Mercedes-
BenzCenterorontheInternet at
http://bevo.mercedes-benz.com.
You can recognize service products approved
by Mercedes-Benzbythefollowing
inscription on thecontainers:
RMB-Freigabe (e.g. MB-Freigabe 229.51)
RMB Approval (e.g. MB Approval 229.51)
Other designationsorrecommendations
indicatealevel of qualityoraspecification in
accordance withanMBSheet number (e.g.
MB 229.5). Theyhave notnecessarily been
approved by Mercedes-Benz.
Fuel
Important safetynotes
GWARNING
Fuel is highly flammable. If you handle fuel
incorrectly, there isarisk of fire and
explosion.
You must avoid fire, open flames, creating
sparks and smoking. Switchoff the engine
and, if applicable, the auxiliary heating before
refueling.
GWARNING
Fuel is poisonous and hazardous to health.
There isarisk of injury.
You must make sure that fuel does not come
into contact with your skin,eyes or clothing
and that it is not swallowed. Do not inhale fuel
vapors. Keep fuel away from children.
If you or otherscome into contact with fuel,
observe the following:
RWash away fuel from skin immediately
using soap and water.
RIf fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance
without delay.
RIf fuel is swallowed, seek medical
assistancewithout delay. Do not induce
vomiting.
RImmediately change out of clothing which
has come into contact with fuel.
Tank capacity
ModelTotal
capacity
All models21.1USgal
(80.0l)
ModelOf which
reserve
All models (except for
AMG vehicles)
Approx.
2.4 US qt
(9.0 l)
All models (AMG vehicles)Approx.
3.7 US gal
(14.0l)
Gasoline
Fuel grade
!Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the
ignition if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the
wrong fuel could result in damage to the
fuel system and the engine. Notifya
qualified specialist workshopand have the
fuel tank and fuel lines drained completely.
374Service products and filling capacities
Technical data

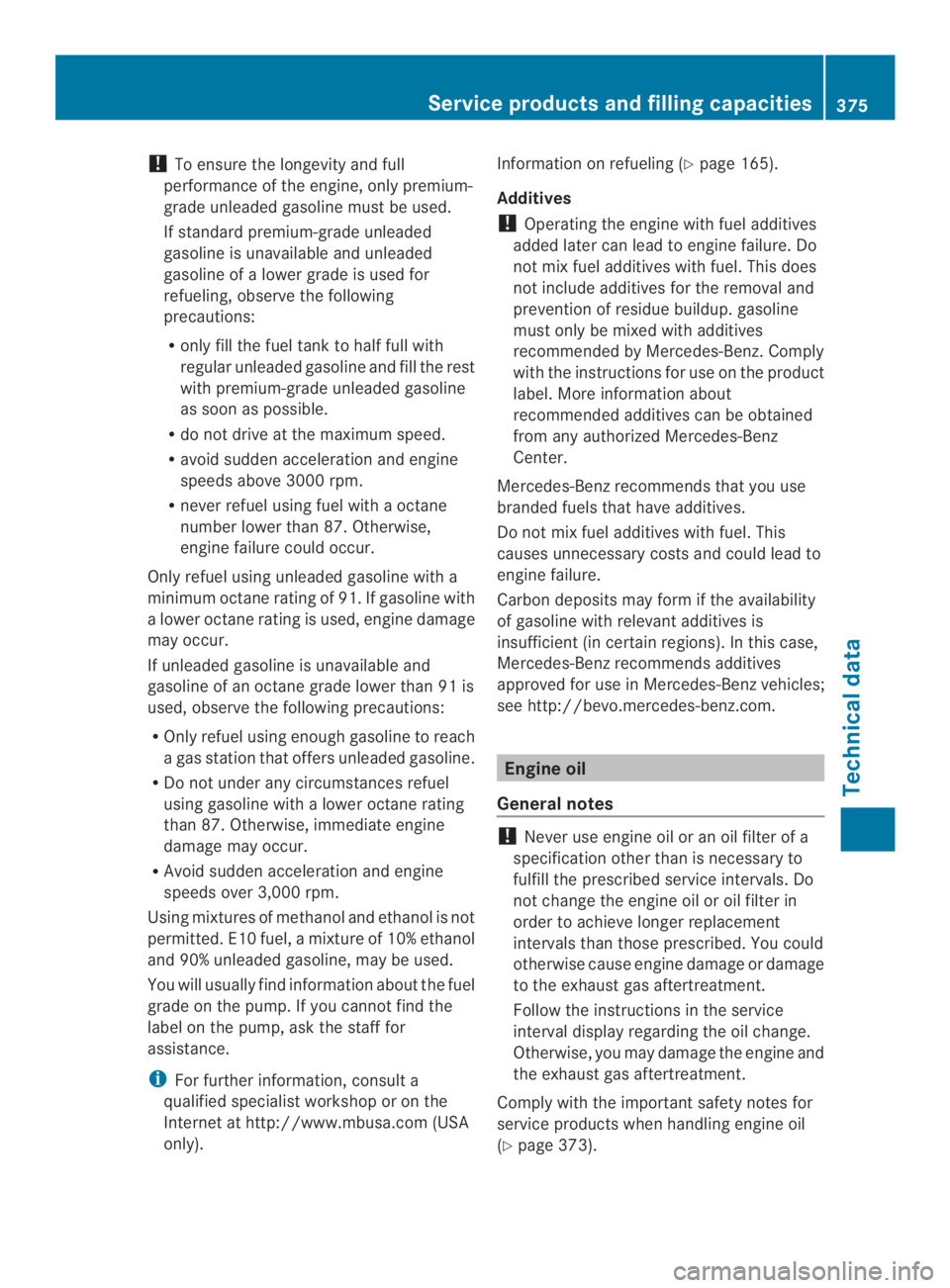

!To ensure the longevity and full
performance of the engine, only premium-
grade unleaded gasoline must be used.
If standard premium-grade unleaded
gasoline is unavailable and unleaded
gasoline ofalower grade is used for
refueling, observe the following
precautions:
Ronly fill the fuel tank to half full with
regularunleaded gasoline and fillthe rest
with premium-gradeunleadedgasoline
as soonaspossible.
Rdo not drive at the maximum speed.
Ravoid sudden acceleration and engine
speeds above 3000 rpm.
Rnever refuel using fuel withaoctane
number lower than 87. Otherwise,
engine failure could occur.
Only refuel using unleadedgasoline with a
minimum octane rating of 91. If gasoline with
alower octane rating is used, engine damage
may occur.
If unleadedgasoline is unavailable and
gasoline of an octane grade lower than 91 is
used, observe the following precautions:
ROnly refuel using enough gasoline to reach
agas station that offers unleadedgasoline.
RDo not under any circumstances refuel
using gasoline withalower octane rating
than 87. Otherwise, immediate engine
damage may occur.
RAvoid sudden acceleration and engine
speeds over 3,000 rpm.
Using mixtures of methanol and ethanol is not
permitted. E10 fuel,amixture of 10% ethanol
and 90% unleadedgasoline, may be used.
You will usually find information aboutthe fuel
grade on the pump. If you cannot find the
label on the pump, ask the staff for
assistance.
iFor further information,consult a
qualified specialist workshop or on the
Internet at http://www.mbusa.com (USA
only).
Information on refueling (Ypage 165).
Additives
!Operating the engine with fuel additives
added later can lead to engine failure. Do
not mix fuel additives with fuel. This does
not include additives for the removal and
prevention of residue buildup. gasoline
must only be mixed with additives
recommended by Mercedes-Benz. Comply
with the instructions for use on the product
label.More information about
recommended additives can be obtained
from any authorized Mercedes-Benz
Center.
Mercedes-Benz recommends that you use
branded fuels that have additives.
Do not mix fuel additives with fuel. This
causes unnecessary costsand could lead to
engine failure.
Carbon deposits may form if the availability
of gasoline with relevant additives is
insufficient (in certain regions). In this case,
Mercedes-Benz recommends additives
approved for use in Mercedes-Benz vehicles;
see http://bevo.mercedes-benz.com.
Engine oil
General notes
!Never use engine oil or an oil filter of a
specification other than is necessary to
fulfill the prescribed service intervals. Do
not change the engine oil or oil filter in
order to achieve longer replacement
intervals than those prescribed. You could
otherwise cause engine damage or damage
to the exhaust gas aftertreatment.
Follow the instructions in the service
interval display regarding the oil change.
Otherwise, you may damage the engine and
the exhaust gas aftertreatment.
Comply with the important safety notes for
service products when handling engine oil
(Ypage 373).
Service products and filling capacities375
Technical data
Z

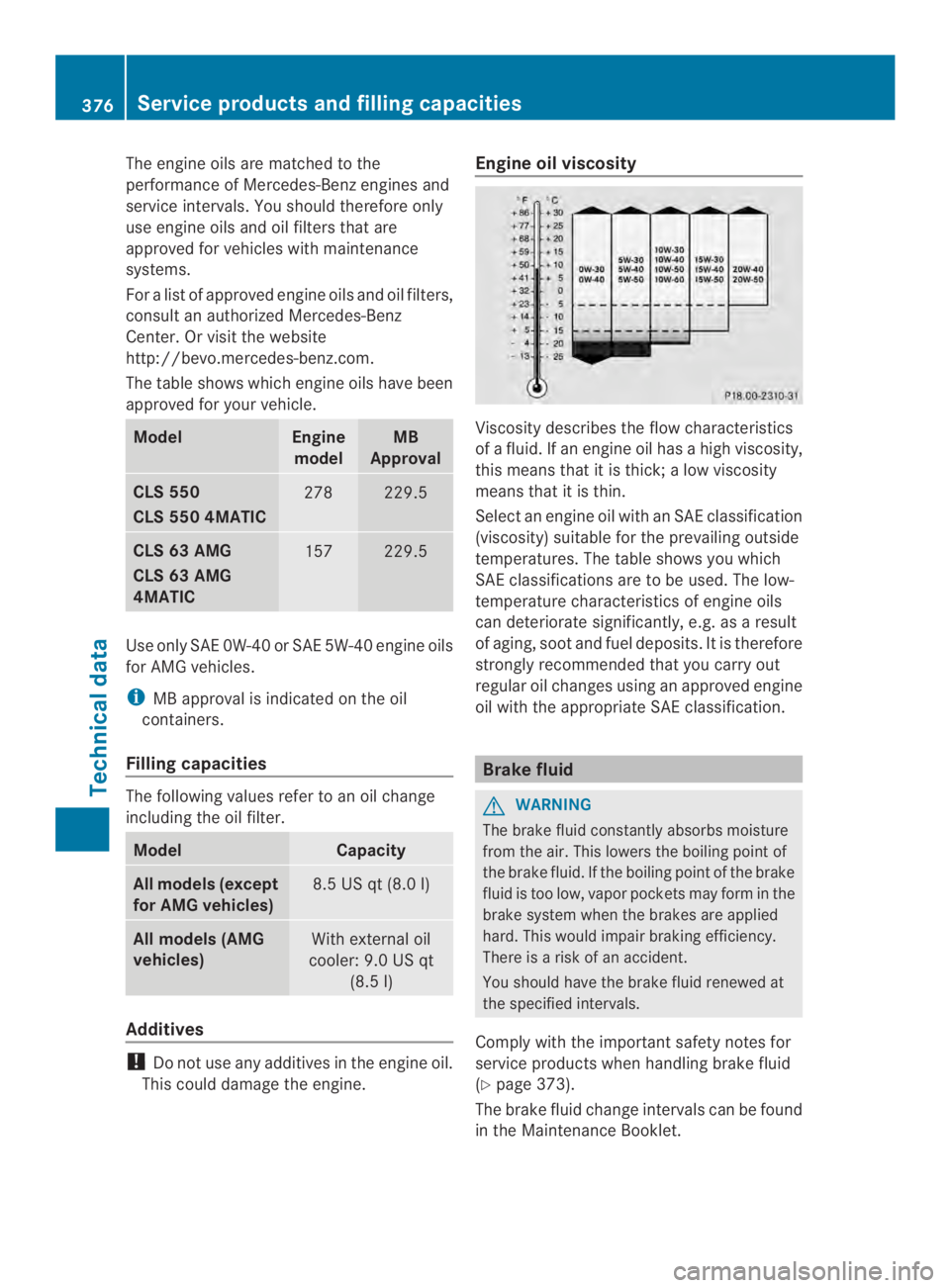

The engine oils are matched to the
performance of Mercedes-Benz engines and
service intervals. You should therefore only
use engine oils and oil filters that are
approved for vehicles with maintenance
systems.
Foralist of approved engine oils and oil filters,
consult an authorized Mercedes-Benz
Center. Or visit the website
http://bevo.mercedes-benz.com.
The table shows which engine oils have been
approved for your vehicle.
ModelEngine
model
MB
Approval
CLS 550
CLS 550 4MATIC
278229.5
CLS 63 AMG
CLS 63 AMG
4MATIC
157229.5
Use only SAE 0W-40orSAE 5W-40 engine oils
for AMG vehicles.
iMB approval is indicated on the oil
containers.
Fillingcapacities
The following values refer to an oil change
including the oil filter.
ModelCapacity
All models (except
for AMG vehicles)
8.5 US qt (8.0 l)
All models (AMG
vehicles)
With external oil
cooler: 9.0 US qt
(8.5 l)
Additives
!Do not use any additives in the engine oil.
This coulddamage the engine.
Engine oil viscosity
Viscosity describes the flow characteristics
ofafluid. If an engine oil hasahigh viscosity,
this means that it is thick;alow viscosity
means that it is thin.
Select an engine oil with an SAE classification
(viscosity) suitable for the prevailing outside
temperatures. The table showsyou which
SAE classifications are to be used. The low-
temperature characteristics of engine oils
can deteriorate significantly, e.g. asaresult
of aging, soot and fuel deposits. It is therefore
strongly recommendedthat you carry out
regular oil changes using an approved engine
oil with the appropriate SAE classification.
Brake fluid
GWARNING
The brake fluidconstantly absorbs moisture
from the air. This lowers the boiling point of
the brake fluid. If the boiling point of the brake
fluidistoo low,vaporpocketsmay form in the
brake system when the brakes are applied
hard. This would impair braking efficiency.
There isarisk of an accident.
You should have the brake fluid renewed at
the specified intervals.
Comply with the important safety notes for
service products when handling brake fluid
(Ypage 373).
The brake fluid change intervals can be found
in the Maintenance Booklet.
376Service products and filling capacities
Technical data

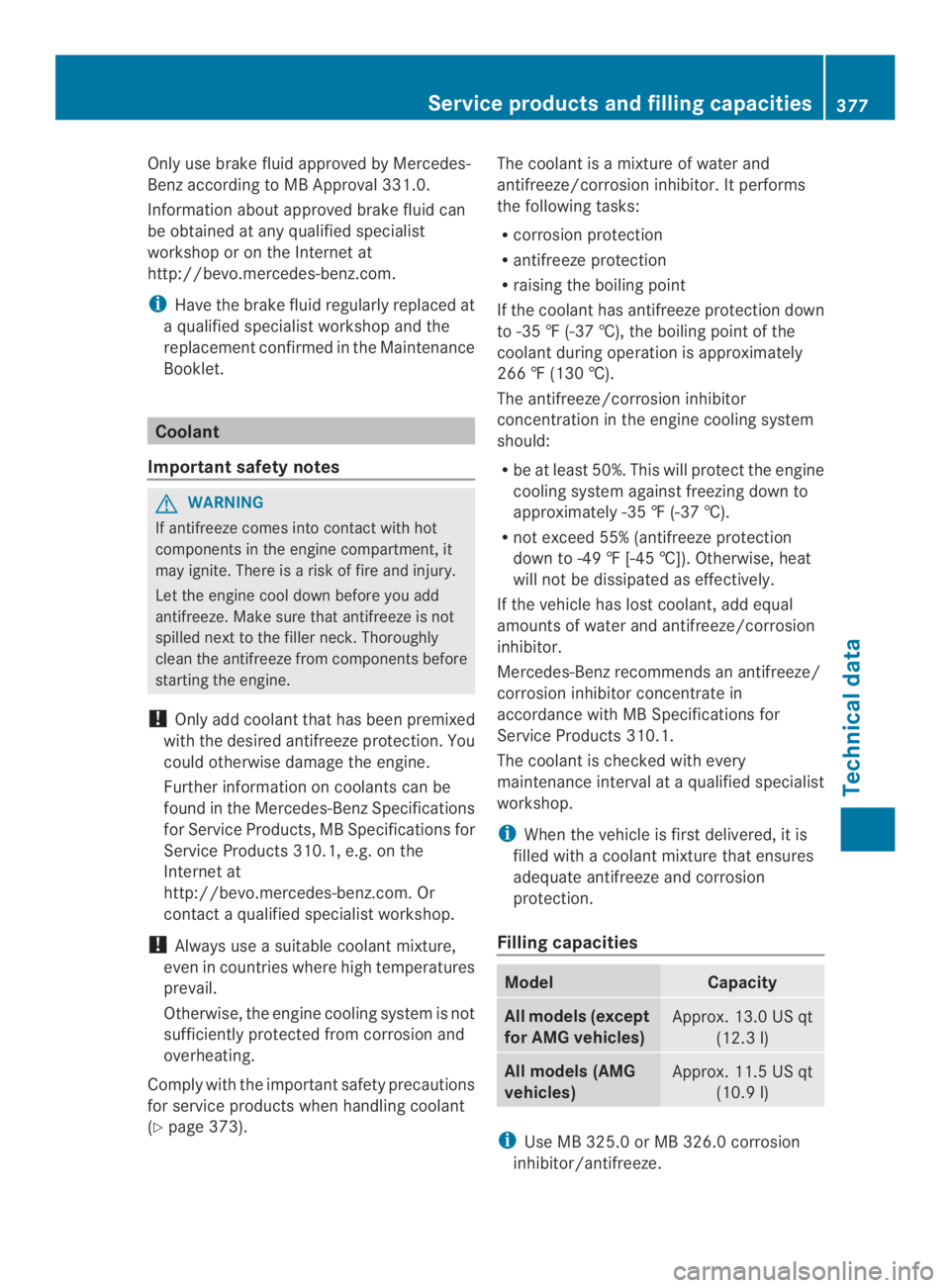

Only use brake fluid approved by Mercedes-
Benz according to MB Approval 331.0.
Information aboutapproved brake fluid can
be obtainedatany qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.com.
iHave the brake fluid regularly replaced at
aqualified specialist workshop and the
replacementconfirmed in the Maintenance
Booklet.
Coolant
Important safety notes
GWARNING
If antifreezecomes into contact with hot
components in the engine compartment, it
may ignite. There isarisk of fire and injury.
Let the engine cool down before you add
antifreeze. Make sure that antifreezeisnot
spilled next to the filler neck.Thoroughly
clean the antifreeze from components before
startingthe engine.
!Only add coolant that has been premixed
with the desired antifreezeprotection. You
couldotherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the
Internet at
http://bevo.mercedes-benz.com.Or
contactaqualified specialist workshop.
!Always useasuitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosionand
overheating.
Comply with the important safety precautions
for service products when handling coolant
(Ypage373).
The coolant isamixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
Rcorrosionprotection
Rantifreeze protection
Rraising the boiling point
If the coolant has antifreeze protection down
to -35‡(-37†),the boiling point of the
coolant during operationisapproximately
266‡(130 †).
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
Rbe at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35‡(-37 †).
Rnot exceed 55% (antifreeze protection
down to -49‡[-45 †]). Otherwise, heat
will not be dissipated as effectively.
If the vehicle has lost coolant, add equal
amounts of water and antifreeze/corrosion
inhibitor.
Mercedes-Benz recommends an antifreeze/
corrosion inhibitor concentrate in
accordance with MB Specifications for
Service Products 310.1.
The coolant is checked with every
maintenance interval ataqualified specialist
workshop.
iWhen the vehicle is first delivered, it is
filled withacoolant mixture that ensures
adequate antifreeze and corrosion
protection.
Filling capacities
ModelCapacity
All models (except
for AMG vehicles)
Approx. 13.0 US qt
(12.3 l)
All models (AMG
vehicles)
Approx. 11.5 US qt
(10.9 l)
iUse MB 325.0 or MB 326.0 corrosion
inhibitor/antifreeze.
Service products and filling capacities377
Technical data
Z

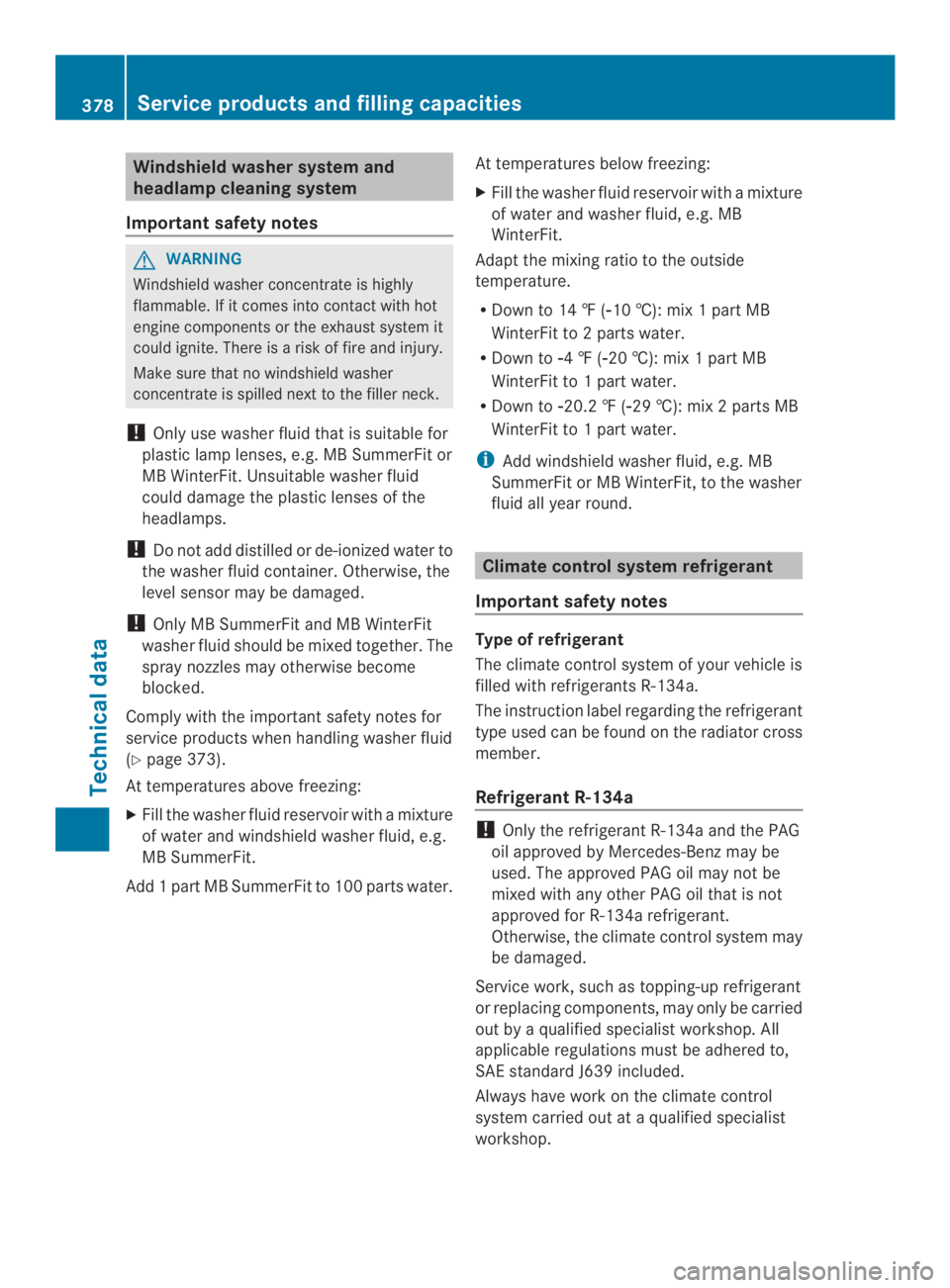

Windshield washersystemand
headlamp cleaning system
Important safety notes
GWARNING
Windshieldwasher concentrate is highly
flammable. If it comes into contact with hot
engine components or the exhaust systemit
could ignite. There isariskoffire and injury.
Make sure that no windshield washer
concentrate is spilled nexttothe filler neck.
!Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
!Do not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
!Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
Comply with the importantsafetynotesfor
serviceproductswhen handlingwasher fluid
(Ypage 373).
At temperatures abovefreezing:
XFill thewasherfluid reservoir withamixture
of water and windshield washer fluid, e.g.
MB SummerFit.
Add1part MB SummerFit to 100 partswater.
At temperatures below freezing:
XFill thewasherfluid reservoir withamixture
of water and washer fluid, e.g. MB
WinterFit.
Adapt the mixing ratio to the outside
temperature.
RDown to 14‡("10 †): mix1part MB
WinterFit to2partswater.
RDown to"4‡("20 †): mix1part MB
WinterFit to1part water.
RDown to"20.2‡("29 †): mix2partsMB
WinterFit to1part water.
iAdd windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Climate control system refrigerant
Important safety notes
Typeofrefrigerant
The climate control system of your vehicle is
The instruction label regarding the refrigerant
type used can be foundonthe radiator cross
member.
Refrigerant R-134a
!Only the refrigerantR-134a and the PAG
oil approved by Mercedes-Benzmay be
used. The approved PAGoil may notbe
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-uprefrigerant
or replacing components, may only be carried
out byaqualified specialist workshop.All
applicable regulations must be adhered to,
SAEstandard J639 included.
Always have work on the climate control
system carried out ataqualified specialist
workshop.
378Service products and filling capacities
Technica ld ata
filled with refrigerantsR-134a.
