Tyres and wheels

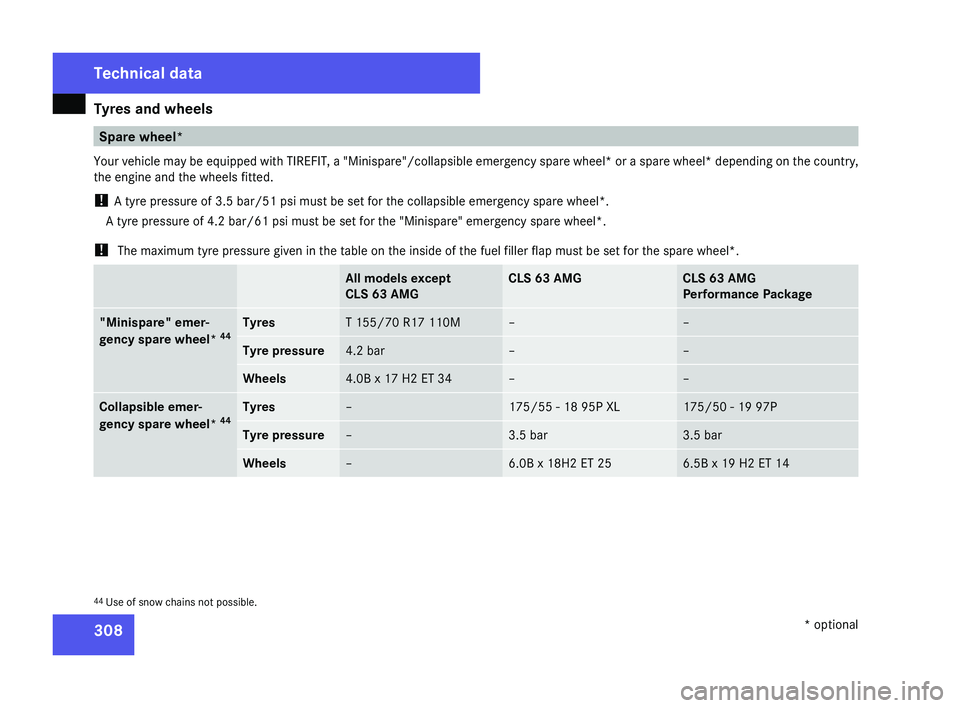

308 Spare wheel*
Your vehicle may be equipped with TIREFIT, a "Minispare"/collapsible emergency spare wheel* or a spare wheel* depending on the country,
the engine and the wheels fitted.
! A tyre pressure of 3.5 bar/51 psi must be set for the collapsible emergency spare wheel* .
A tyre pressure of 4.2 bar/61 psi must be set for the "Minispare" emergency spare wheel*.
! The maximum tyre pressure given in the table on the inside of the fuel filler flap must be set for the spare wheel*. All models except
CLS 63 AMG CLS 63 AMG CLS 63 AMG
Performance Package
"Minispare" emer-
gency spare wheel*

44 Tyres T 155/70 R17 110M – –
Tyre pressure 4.2 bar – –
Wheels 4.0B x 17 H2 ET 34 – –
Collapsible emer-
gency spare wheel*

44 Tyres – 175/55 - 18 95P XL 175/50 - 19 97P
Tyre pressure – 3.5 bar 3.5 bar
Wheels – 6.0B x 18H2 ET 25 6.5B x 19 H2 ET 14
44
Use of snow chains not possible. Technical data
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 308

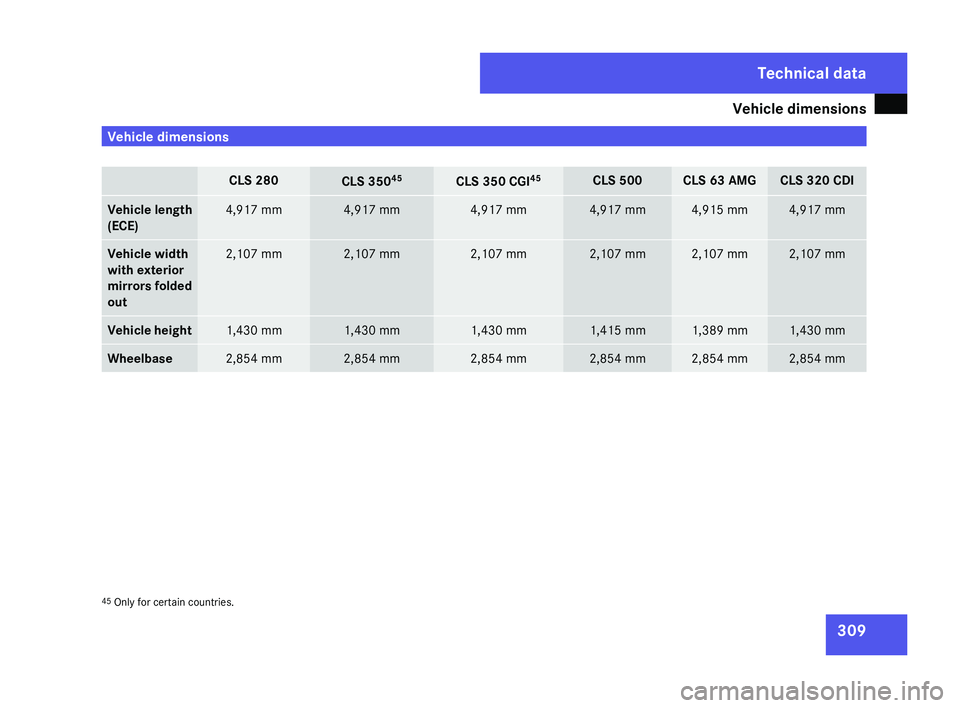

Vehicle dimensions
309Vehicle dimensions
CLS 280
CLS 350
45 CLS 350 CGI
45 CLS 500 CLS 63 AMG CLS 320 CDI
Vehicle length
(ECE) 4,917 mm 4,917 mm 4,917 mm 4,917 mm 4,915 mm 4,917 mm
Vehicle width
with exterior
mirrors
folded
out 2,107 mm 2,107 mm 2,107 mm 2,107 mm 2,107 mm 2,107 mm
Vehicle height 1,430 mm 1,430 mm 1,430 mm 1,415 mm 1,389 mm 1,430 mm
Wheelbase 2,854 mm 2,854 mm 2,854 mm 2,854 mm 2,854 mm 2,854 mm
45
Only for certain countries. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 309

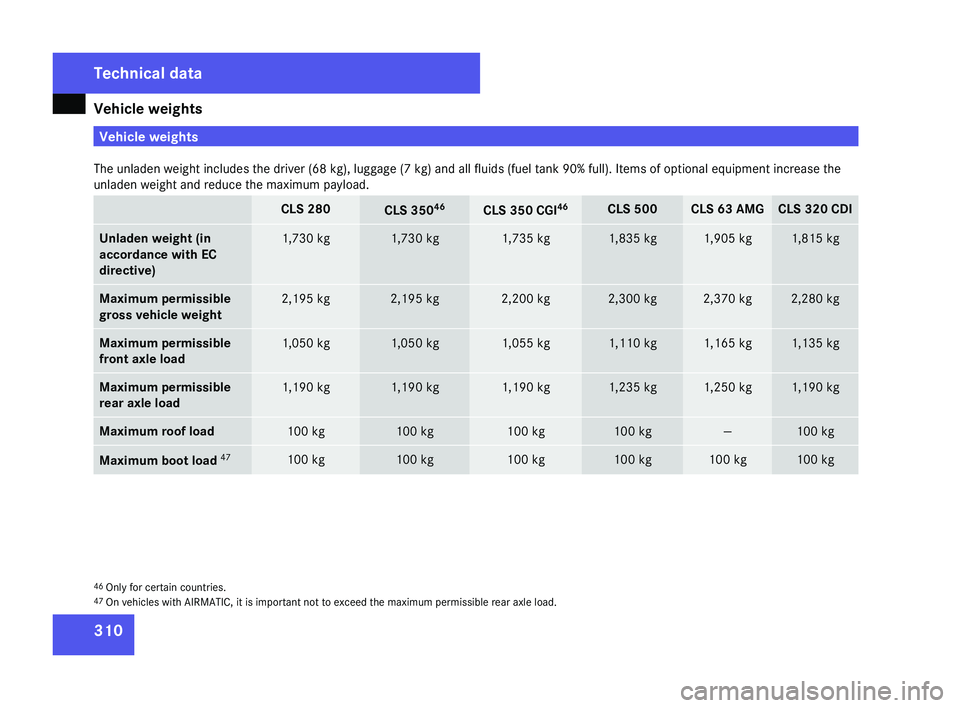

Vehicle weights
310 Vehicle weights
The unladen weight includes the driver (68 kg), luggage (7 kg) and all fluids (fuel tank 90% full). Items of optional equipment increase the
unladen weight and reduce the maximum payload. CLS 280
CLS 350
46 CLS 350 CGI
46 CLS 500 CLS 63 AMG CLS 320 CDI
Unladen weight (in
accordance with EC
directive) 1,730 kg 1,730 kg 1,735 kg 1,835 kg 1,905 kg 1,815 kg
Maximum permissible
gross vehicle weight 2,195 kg 2,195 kg 2,200 kg 2,300 kg 2,370 kg 2,280 kg
Maximum permissible
front axle load 1,050 kg 1,050 kg 1,055 kg 1,110 kg 1,165 kg 1,135 kg
Maximum permissible
rear axle load 1,190 kg 1,190 kg 1,190 kg 1,235 kg 1,250 kg 1,190 kg
Maximum roof load 100 kg 100 kg 100 kg 100 kg — 100 kg
Maximum boot load
47 100 kg 100 kg 100 kg 100 kg 100 kg 100 kg
46
Only for certain countries.
47 On vehicles with AIRMATIC, it is important not to exceed the maximum permissible rear axle load. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 310

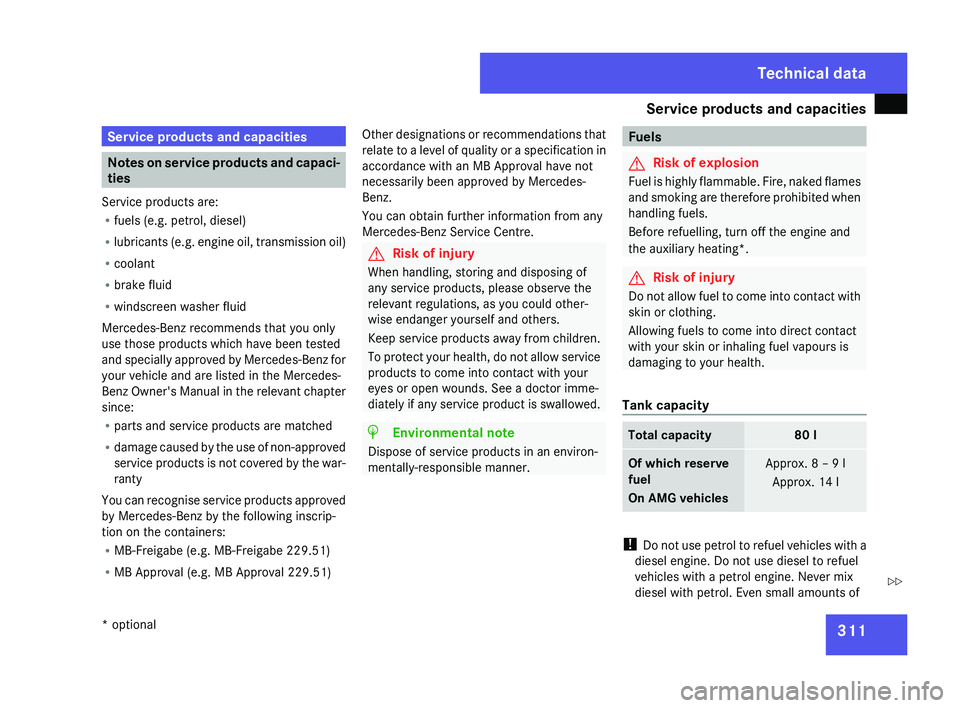

Service products and capacities
311Service products and capacities
Notes on service products and capaci-
ties
Service products are:
R fuels (e.g. petrol, diesel)
R lubricants
(e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windscreen washer fluid
Mercedes-Benz recommends that you only
use those products which have been tested
and specially approved by Mercedes-Benz for
your vehicle and are listed in the Mercedes-
Benz Owner's Manual in the relevant chapter
since:
R parts and service products are matched
R damage caused by the use of non-approved
service products is not covered by the war-
ranty
You can recognise service products approved
by Mercedes-Benz by the following inscrip-
tion on the containers:
R MB-Freigabe (e.g. MB-Freigabe 229.51)
R MB Approval (e.g. MB Approval 229.51) Other designations or recommendations that
relate

to a level of quality or a specification in
accordance with an MB Approval have not
necessarily been approved by Mercedes-
Benz.
You can obtain further information from any
Mercedes-Benz Service Centre. G
Risk of injury
When handling, storing and disposing of
any service products, please observe the
relevant regulations, as you could other-
wise endanger yourself and others.
Keep

service products away from children.
To protect your health, do not allow service
products to come into contact with your
eyes or open wounds. See a doctor imme-
diately if any service product is swallowed. H
Environmental note
Dispose of service products in an environ-
mentally-responsible manner. Fuels
G
Risk of explosion
Fuel is highly flammable. Fire, naked flames
and
smoking are therefore prohibited when
handling fuels.
Before refuelling, turn off the engine and
the auxiliary heating*. G
Risk of injury
Do not allow fuel to come into contact with
skin or clothing.
Allowing fuels to come into direct contact
with your skin or inhaling fuel vapours is
damaging to your health.
Tank capacity Total capacity 80 l
Of which reserve
fuel
On AMG vehicles Approx. 8 – 9 l
Approx. 14 l !
Do
not use petrol to refuel vehicles with a
diesel engine. Do not use diesel to refuel
vehicles with a petrol engine. Never mix
diesel with petrol. Even small amounts of Technical data
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 311 Z

Service products and capacities

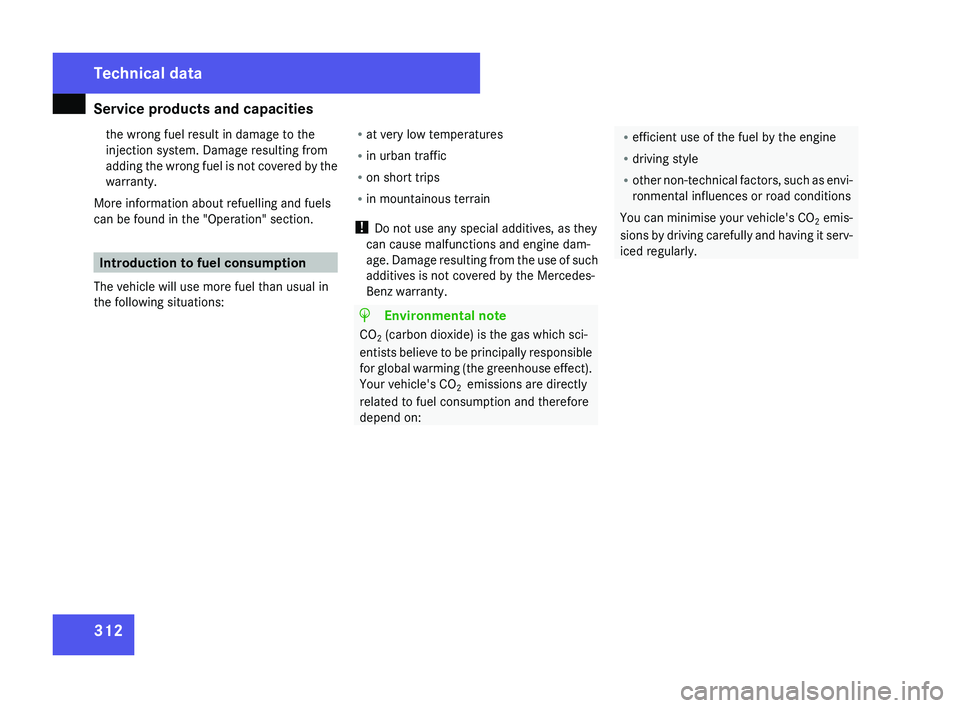

312the wrong fuel result in damage to the
injection system. Damage resulting from
adding
the wrong fuel is not covered by the
warranty.
More information about refuelling and fuels
can be found in the "Operation" section. Introduction to fuel consumption
The vehicle will use more fuel than usual in
the following situations: R
at very low temperatures
R in urban traffic
R on short trips
R in mountainous terrain
! Do not use any special additives, as they
can cause malfunctions and engine dam-
age.
Damage resulting from the use of such
additives is not covered by the Mercedes-
Benz warranty. H
Environmental note
CO 2 (carbon dioxide) is the gas which sci-
entists
believe to be principally responsible
for global warming (the greenhouse effect).
Your vehicle's CO 2 emissions are directly
related to fuel consumption and therefore
depend on: R
efficient use of the fuel by the engine
R driving style
R other

non-technical factors, such as envi-
ronmental influences or road conditions
You can minimise your vehicle's CO 2 emis-
sions by driving carefully and having it serv-
iced regularly. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 312

Service products and capacities

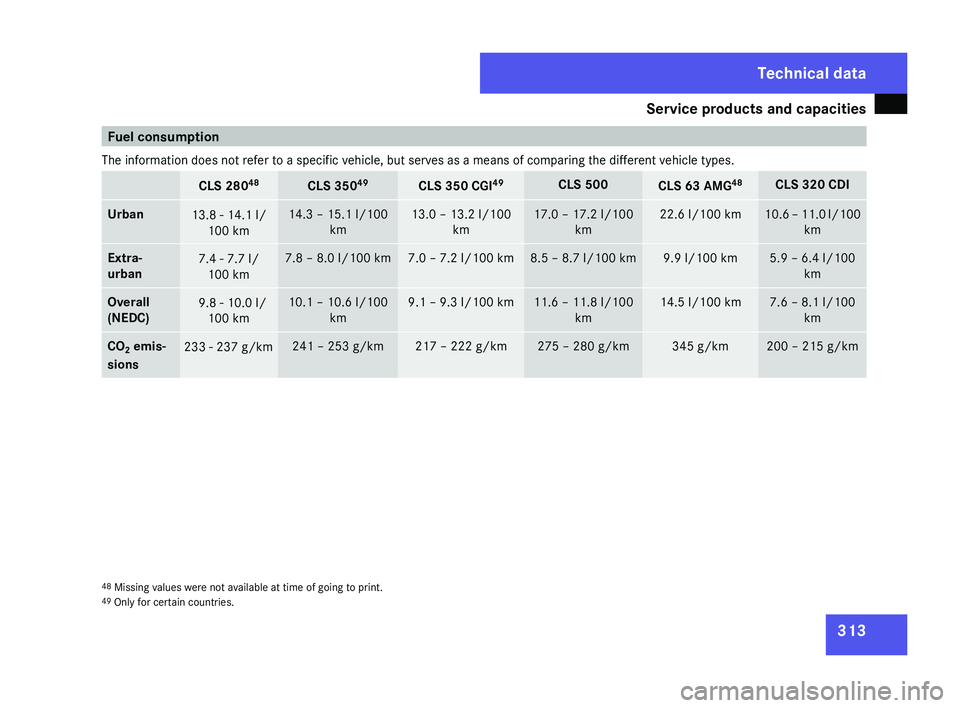

313Fuel consumption
The information does not refer to a specific vehicle, but serves as a means of comparing the different vehicle types. CLS 280
48 CLS 350
49 CLS 350 CGI
49 CLS 500
CLS 63 AMG
48 CLS 320 CDI
Urban 14.3 – 15.1 l/100
km 13.0 – 13.2 l/100
km 17.0 – 17.2 l/100
km 22.6 l/100 km 10.6 – 11.0 l/100
km Extra-
urban 7.8 – 8.0 l/100 km 7.0 – 7.2 l/100 km 8.5 – 8.7 l/100 km 9.9 l/100 km 5.9 – 6.4 l/100
km Overall
(NEDC) 10.1 – 10.6 l/100
km 9.1 – 9.3 l/100 km 11.6 – 11.8 l/100
km 14.5 l/100 km 7.6 – 8.1 l/100
km CO
2 emis-
sions 241 – 253 g/km 217 – 222 g/km 275 – 280 g/km 345 g/km 200 – 215 g/km
48
Missing values were not available at time of going to print.
49 Only for certain countries. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 313
13.8 - 14.1 l/
100 km
100 km
100 km
233 - 237 g/km 7.4 - 7.7 l/
9.8 - 10.0 l/

Service products and capacities
314 Engine oil
A list of engine oils tested and approved in accordance with the Mercedes-Benz Specifications for Service Products is available from any
Mercedes-Benz Service Centre. Approval by Mercedes-Benz is also often indicated by the MB Sheet number on the oil container. The table
shows which MB Sheet number applies to which engine: CLS 280
CLS 350
50
CLS 350 CGI 50 CLS 500 CLS 63 AMG CLS 320 CDI
MB Sheet num-
ber 229.3/229.5 229.3/229.5 229.3/229.5
229.5
51 –
MB Sheet num-
ber
(vehicles
without
a diesel particle
filter) 52 – – – – 228.3/228.5/
228.51
229.3/229.31/ 229.5/229.51 MB Sheet num-
ber
(vehicles with a
diesel

particle fil-
ter) – – – – 228.51/229.31/
229.51 i
In the event that the:
50 Only for certain countries.
51 Restriction: only SAE XW-40

engine oils may be used.
52 Only for certain countries. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 314

Service products and capacities
315

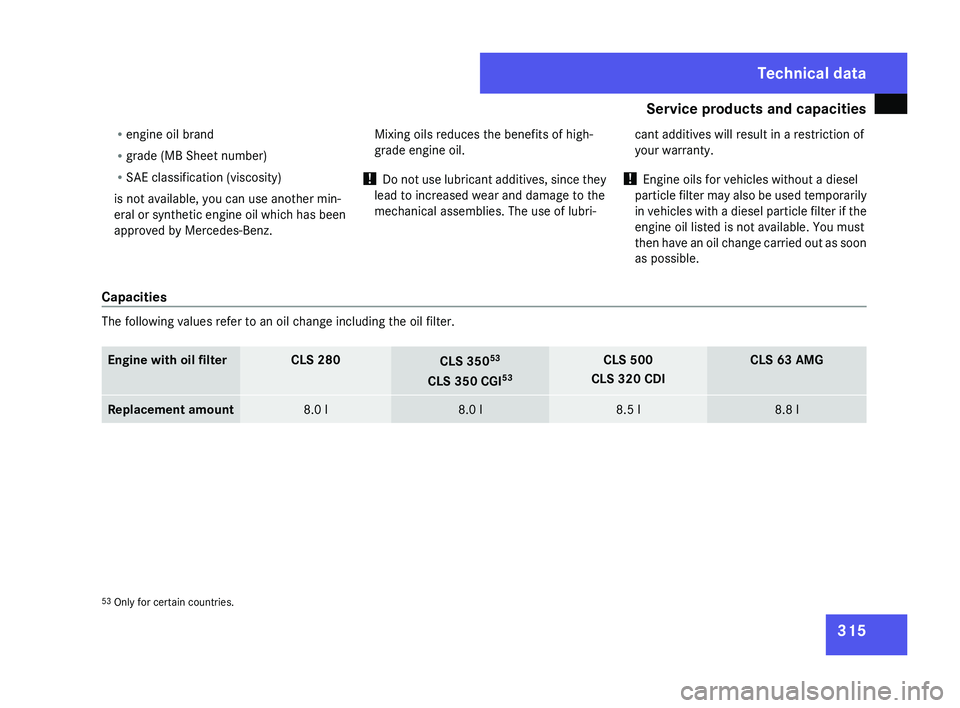

R
engine oil brand
R grade (MB Sheet number)
R SAE classification (viscosity)
is not available, you can use another min-
eral
or synthetic engine oil which has been
approved by Mercedes-Benz. Mixing oils reduces the benefits of high-
grade engine oil.
! Do
not use lubricant additives, since they
lead to increased wear and damage to the
mechanical assemblies. The use of lubri- cant additives will result in a restriction of
your warranty.
! Engine oils for vehicles without a diesel
particle
filter may also be used temporarily
in vehicles with a diesel particle filter if the
engine oil listed is not available. You must
then have an oil change carried out as soon
as possible.
Capacities The following values refer to an oil change including the oil filter.
Engine with oil filter CLS 280
CLS 350
53
CLS 350 CGI 53 CLS 500
CLS 320 CDI CLS 63 AMG
Replacement amount 8.0 l 8.0 l 8.5 l 8.8 l
53
Only for certain countries. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 315

Service products and capacities

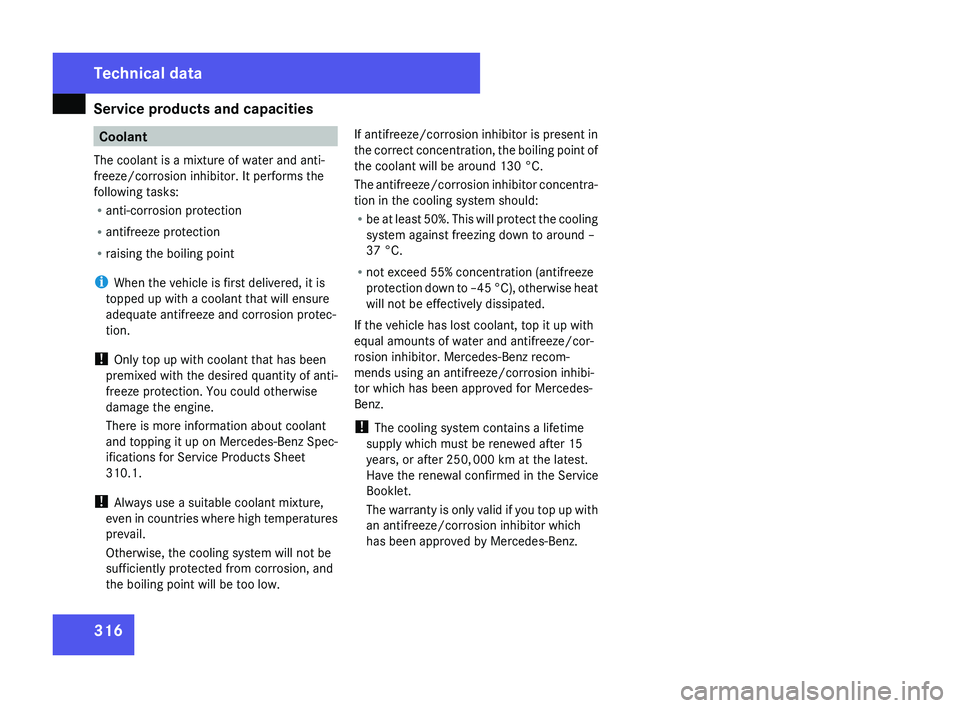

316 Coolant
The coolant is a mixture of water and anti-
freeze/corrosion inhibitor. It performs the
following tasks:
R anti-corrosion protection
R antifreeze protection
R raising the boiling point
i When the vehicle is first delivered, it is
topped up with a coolant that will ensure
adequate antifreeze and corrosion protec-
tion.
! Only top up with coolant that has been
premixed
with the desired quantity of anti-
freeze protection. You could otherwise
damage the engine.
There is more information about coolant
and topping it up on Mercedes-Benz Spec-
ifications for Service Products Sheet
310.1.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the cooling system will not be
sufficiently protected from corrosion, and
the boiling point will be too low. If antifreeze/corrosion inhibitor is present in
the
correct concentration, the boiling point of
the coolant will be around 130 °C.
The antifreeze/corrosion inhibitor concentra-
tion in the cooling system should:
R be at least 50%. This will protect the cooling
system against freezing down to around –
37 °C.
R not exceed 55% concentration (antifreeze
protection down to –45 °C), otherwise heat
will not be effectively dissipated.
If the vehicle has lost coolant, top it up with
equal amounts of water and antifreeze/cor-
rosion inhibitor. Mercedes-Benz recom-
mends using an antifreeze/corrosion inhibi-
tor which has been approved for Mercedes-
Benz.
! The cooling system contains a lifetime
supply which must be renewed after 15
years, or after 250, 000 km at the latest.
Have the renewal confirmed in the Service
Booklet.
The warranty is only valid if you top up with
an antifreeze/corrosion inhibitor which
has been approved by Mercedes-Benz. Technical data
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 316

Service products and capacities
317

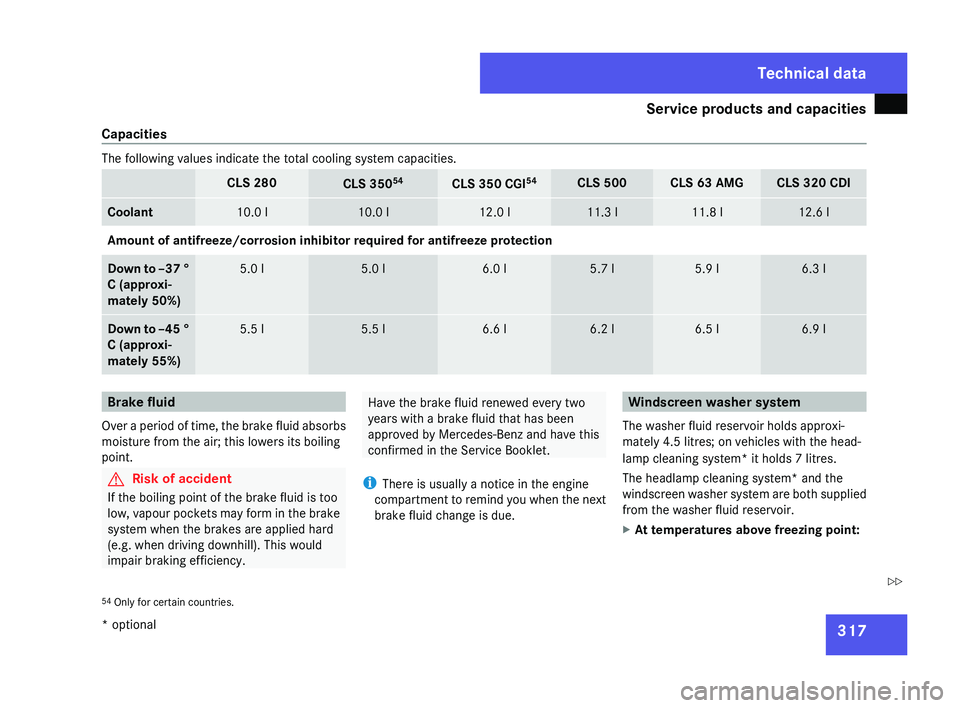

Capacities The following values indicate the total cooling system capacities.
CLS 280
CLS 350
54 CLS 350 CGI
54 CLS 500 CLS 63 AMG CLS 320 CDI
Coolant 10.0 l 10.0 l 12.0 l 11.3 l 11.8 l 12.6 l
Amount of antifreeze/corrosion inhibitor required for antifreeze protection
Down to –37 °
C (approxi-
mately 50%) 5.0 l 5.0 l 6.0 l 5.7 l 5.9 l 6.3 l
Down to –45 °
C (approxi-
mately 55%) 5.5 l 5.5 l 6.6 l 6.2 l 6.5 l 6.9 l
Brake fluid
Over a period of time, the brake fluid absorbs
moisture from the air; this lowers its boiling
point. G
Risk of accident
If the boiling point of the brake fluid is too
low,
vapour pockets may form in the brake
system when the brakes are applied hard
(e.g. when driving downhill). This would
impair braking efficiency. Have the brake fluid renewed every two
years with a brake fluid that has been
approved by Mercedes-Benz and have this
confirmed in the Service Booklet.
i There is usually a notice in the engine
compartment

to remind you when the next
brake fluid change is due. Windscreen washer system
The washer fluid reservoir holds approxi-
mately 4.5 litres; on vehicles with the head-
lamp cleaning system* it holds 7 litres.
The headlamp cleaning system*
and the
windscreen washer system are both supplied
from the washer fluid reservoir.
X At temperatures above freezing point:
54 Only for certain countries. Technical data
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 317 Z
