Instrument cluster
28 MilesAt a glance
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 28

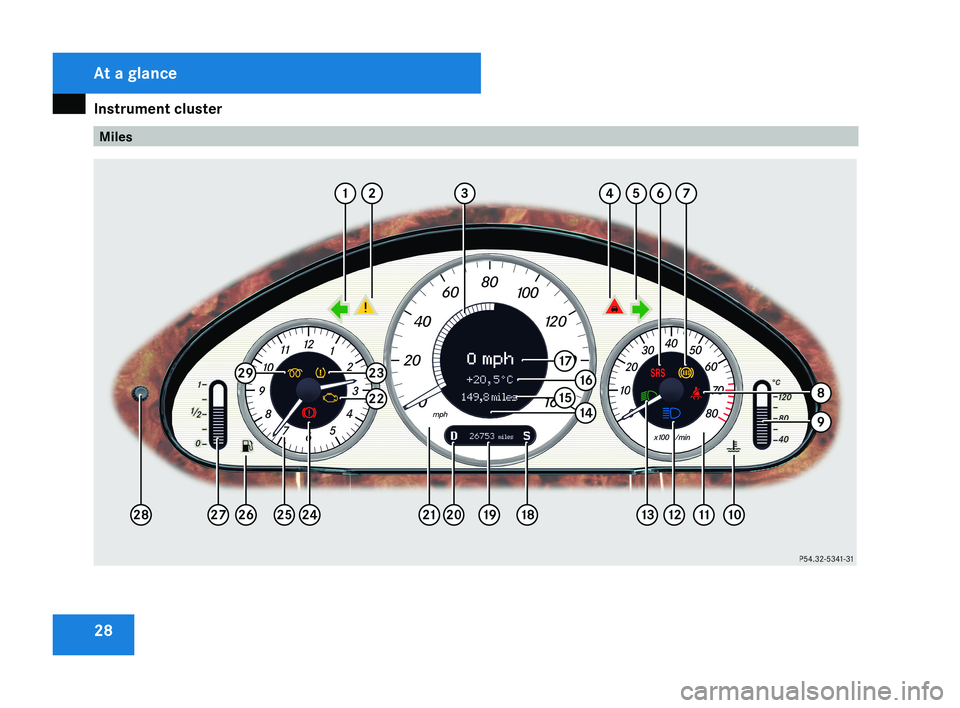

Instrument cluster
29Function Page
1 Turn signal indicator lamp,
left
94
2
ESP
®
warning lamp 244
3 Segments
4
Distance warning lamp*
3 245
5 Turn signal indicator lamp,
right
94
6 SRS warning lamp
248
7 ABS warning lamp
244
8 Seat belt warning lamp
249
9 Coolant temperature gauge
110
a Coolant warning lamp
246
b Rev counter
111
c Main-beam indicator lamp
94 Function Page
d Dipped-beam indicator
lamp
92
e Multi-function display
112
f Trip meter
110
g Depending on the setting in
the on-board computer:
124
• Outside temperature
4 • Digital speedometer
h Standard display
115
j Gearshift program display
104
k Total distance recorder
l Selector lever indicator
105
m Speedometer
n Engine diagnostic warning
lamp
247 Function Page
o Tyre pressure warning
lamp*
248
p Brake system warning lamp
245
q Clock
125
r Reserve fuel warning lamp
250
s Fuel gauge
t Reset button
110
u Diesel engine: preglow indi-
cator lamp
102
3
On vehicles without Distronic*, the symbol lights up briefly but has no function.
4 Vehicles for the United Kingdom: the speed in km/h
is always shown instead of the outside temperature. At a glance
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 29

Multi-function steering wheel
30 Multi-function steering wheelFunctionPage
1Multi-function display112
2s
t
Accepts or rejects/
ends a call*
æ
-• Selects submenus
in the Settings
menu
• Adjusts the values
• Adjusts the volume
3è
ÿ
Selecting menus:
scrolls back and
forth
FunctionPage
j
kPress briefly
to
scroll back and forth
in a menu.
In the Audio/TV*/
DVD* menu: selects
a stored station, an
audio track or a
video scene*.
In the Telephone*
menu: switches to
the phone book and
selects a name or
phone number.
j Press and hold in
the Audio/TV*/
DVD* menu:
selects the next/
previous station or
selects an audio
track or a video
scene* using rapid
scrolling.
Press and hold in the
Telephone* menu:
starts rapid scrolling
At a glance
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 30

Multi-function steering wheel

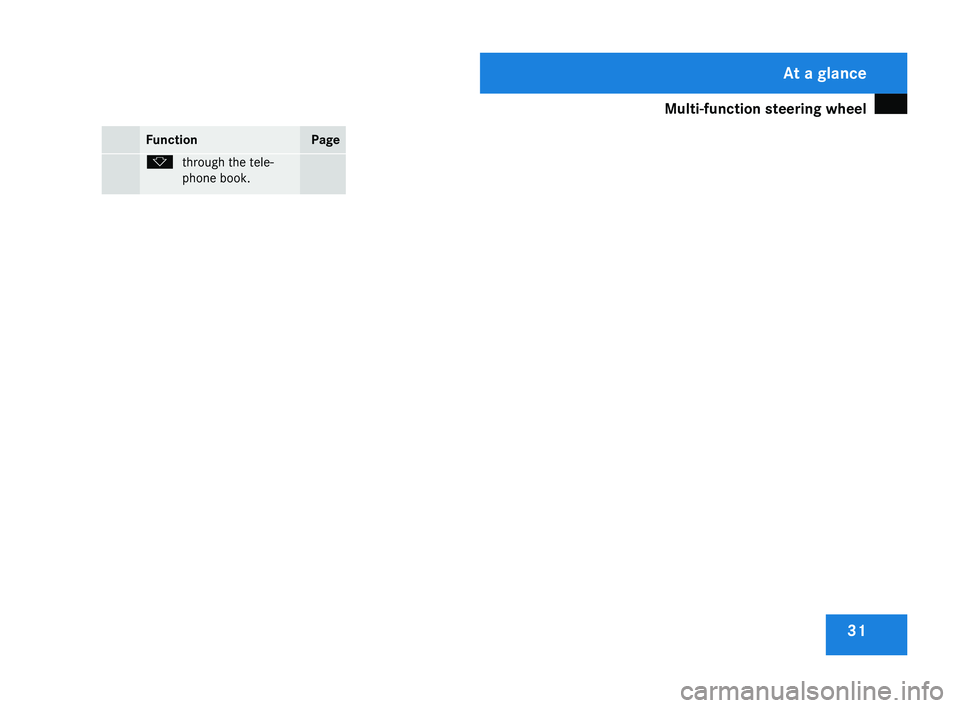

31Function Page
k
through the tele-
phone book. At a glance
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 31

Centre console

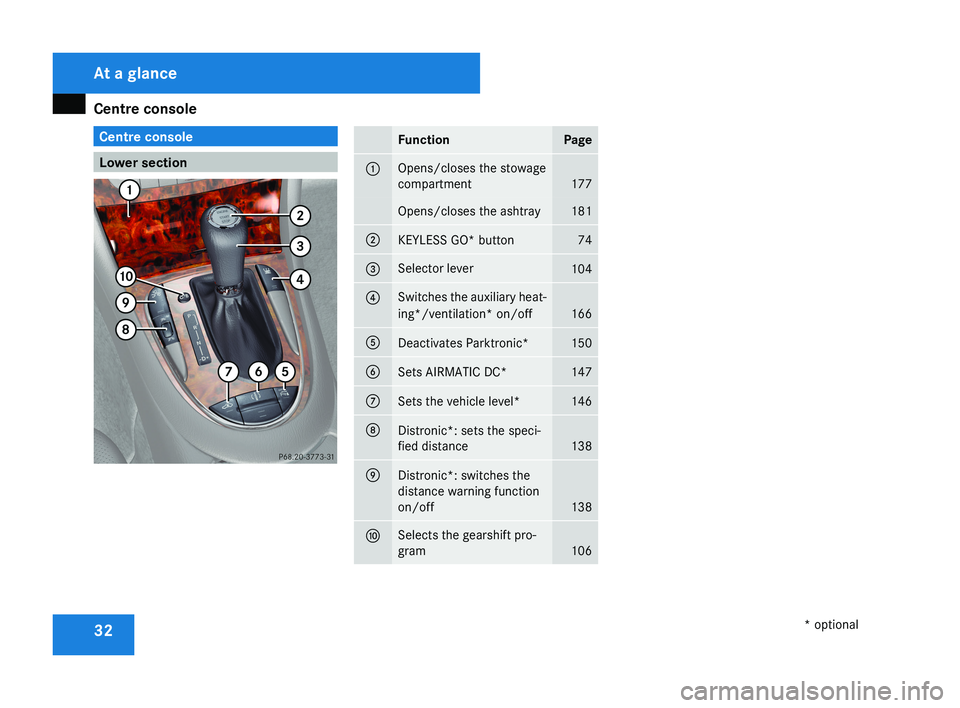

32 Centre console
Lower section FunctionPage
1Opens/closes the stowage
compartment
177
Opens/closes the ashtray181
2KEYLESS GO* button74
3Selector lever104
4Switches the auxiliary heat-
ing*/ventilation* on/off
166
5Deactivates Parktronic*150
6Sets AIRMATIC DC*147
7Sets the vehicle level*146
8Distronic*: sets the speci-
fied distance
138
9Distronic*: switches the
distance warning function
on/off
138
aSelects the gearshift pro-
gram
106
At a glance
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 32

33219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 33

Centre console
34 Upper section At a glance
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 34

Centre console

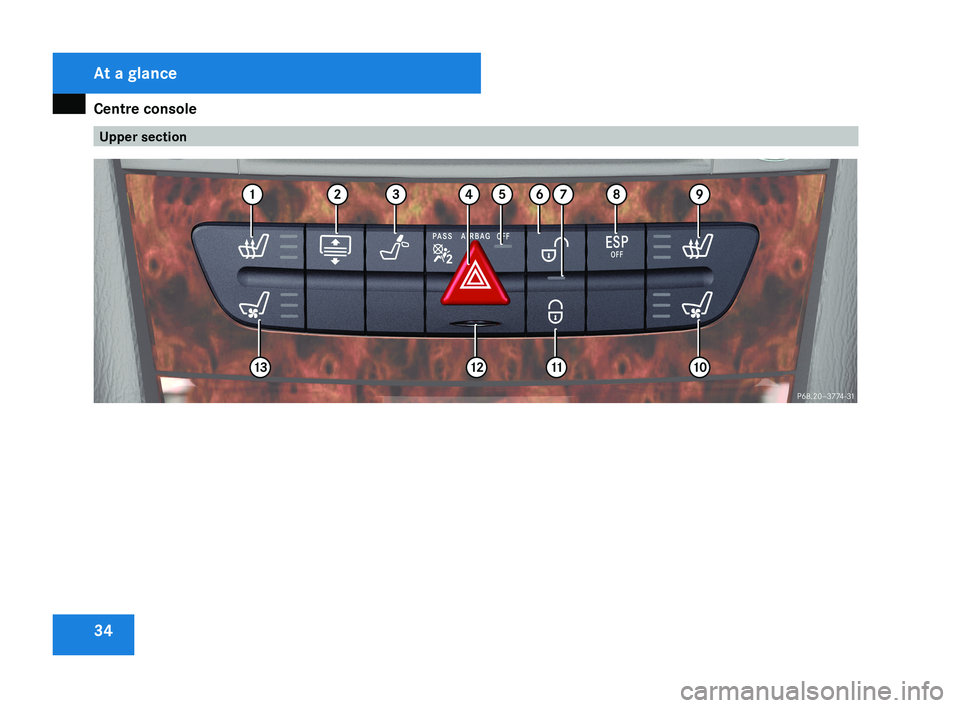

35Function Page
1
Switches the seat heating*
on the left-hand side on/off
80
2 Rolls the rear window
blind* up/down
180
3 Folds back the rear seat
head restraints
79
4 Switches the hazard warn-
ing lamps on/off
94
5 5 PASSENGER AIRBAG
OFF warning lamp
5 51
6 Unlocks the vehicle
70
7
ATA indicator lamp* 61
8 Deactivates/activates
ESP
® 59
9
Switches the seat heating*
on the right-hand side on/
off
80 Function Page
a Switches the seat ventila-
tion* on the right-hand side
on/off
80
b Locks the vehicle
70
c Opening button CD
changer*– see the
the separate operating
instructions
d Switches the seat ventila-
tion* on the left-hand side
on/off
80
5
The warning lamp lights up briefly when the key is turned to position 2 in the ignition lock, even on vehicles which do not have automatic child seat recognition* on
the front-passenger seat. In that case it has no function and does not indicate that the front-passenger seat is equipped with automatic child seat recognition*. At a glance
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 35

Overhead control panel
36 Overhead control panelFunctionPage
1ò Switches the rear
interior lighting on/off
96
2¡ Switches the auto-
matic interior lighting on/
off
96
3ð Switches the front
interior lighting on/off
96
4Opens/closes the sliding/
tilting sunroof*
169
5Primes/deactivates the
interior motion sensor*
62
6X Switches the right-
hand reading lamp on/off
96
7Rear-view mirror83
8Reading lamp96
9Transmitter buttons for
garage door opener*
186
aPrimes/deactivates tow-
away protection*
62
FunctionPage
bInterior light96
cX Switches the left-
hand reading lamp on/off
96
dAmbient light96
At a glance
* optional
219_AKB; 2; 4, en-GB
mkalafa,
2007-11-13T09:28:36+01:00 - Seite 36

Door control panel
37Door control panelFunctionPage
1Opens the door69
2Adjusts the seat electri-
cally*
75
3Stores settings for the seat,
exterior mirrors and steer-
ing wheel*
86
4Adjusts the exterior mirrors84
5Opens/closes the side win-
dows
98
6Unlocks the boot lid71
Remote boot lid closing fea-
ture*: automatically opens
or closes the boot lid
73
At a glance
* optional
219_AKB; 2; 4, en-GB
