90 Safety and SecurityDriving safety systems
The electro-hydraulic brake system is auto-
matically activated when you

unlock the vehicle with the SmartKey
or the KEYLESS-GO*


open the driver’s or passenger door


turn the SmartKey in the starter switch
to position1


in vehicles with KEYLESS-GO*, press
the start/stop button on the gear
selector lever once


depress the brake pedal


release the parking brake
Warning!
G
The electro-hydraulic brake system requires
electrical power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. In such a case, the
red brake warning lamp (
page 354) and
warning messages in the instrument cluster
(
page 363) come on while driving. To
brake, the driver must then apply signifi-
cantly greater brake pedal pressure and
depress the pedal much further to obtain
the expected braking effect. If necessary,
apply full pressure to the brake pedal.
Brakes may only be applied to the front
wheels. Stopping distance is increased!
If there is a malfunction in the
electro-hydraulic brake system, we recom-
mend that the vehicle be transported with
all wheels off the ground using flatbed or ap-
propriate wheel lift/dolly equipment.
A tow bar must be used if circumstances do
not permit the use of the recommended
towing methods and the vehicle requires
towing with all four wheels on the ground.
Towing the vehicle with all four wheels on
the ground is only permissible for distances
up to 30 miles (50 km) and at a speed not to
exceed 30 mph (50 km/h). For more infor-
mation, refer to “Towing the vehicle”
(page 437).

91 Safety and Security
Driving safety systems
The electro-hydraulic brake servo assis-
tance switches off automatically

approximately 2 minutes after you
turned the SmartKey in the starter
switch to position0 or removed the
SmartKey


approximately 2 minutes after you
pressed the KEYLESS-GO* start/stop
button to turn off the engine or power
supply and opened the driver’s door
(with driver’s door open, the starter
switch is set to position0, same as
SmartKey removed from starter
switch)


approximately 20 seconds after you
locked the vehicle from outside
iIf the electro-hydraulic brake system is
activated as the brake pedal is first de-
pressed, you may feel a reduced pedal
resistance and longer pedal travel than
normal. When releasing the pedal, you
may also feel the brake pedal pulsate
and you may hear a sound which is
caused by the activation of the
electro-hydraulic brake system pump.
This is normal and not an indication of
a malfunction. Pedal travel returns to
normal when you release the brake
pedal and the sound soon ceases.
If you experience the above while driv-
ing and the red brake warning lamp
(page 354) illuminates and/or warn-
ing messages appear in the instrument
cluster (
page 363), the brake system
is malfunctioning. Follow the instruc-
tions of the warning message(s) and
have the brake system checked imme-
diately.
Warning!
G
Have brake pad replacement and other work
on the electro-hydraulic brake system car-
ried out by qualified technicians only. Con-
tact an authorized Mercedes-Benz Center
for further information. The electro-hydrau-
lic brake system must be deactivated prior
to working on the system. High pressure is
intermittently built up in the system as part
of its automatic self-test. In addition, the
system is automatically activated when the
vehicle is unlocked by SmartKey, when the
driver or passenger door is opened, when
the starter switch is turned to position1,
when the brake pedal is depressed or when
the parking brake is released. Failure to de-
activate the system prior to maintenance
will cause brake pistons to extend and brake
fluid to leak, which may result in injuries
(contusions and acid burns). Extended
brake pistons may also cause injury.

92 Safety and SecurityDriving safety systemsNote on driving with the
electro-hydraulic brake system

Following extended periods of only
minor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This
improves the grip of the brake pads.


After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be
installed on your vehicle. Brake pads
not approved by Mercedes-Benz may
impair the safety of your vehicle.
Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.

93 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating
With the SmartKey
Remove the SmartKey from the starter
switch.
The immobilizer is activated.
With KEYLESS-GO*

Press the KEYLESS-GO start/stop but-
ton once.
The engine is turned off.

Open the driver’s door.Deactivating
With the SmartKey

Turn the SmartKey in the starter switch
to position2 (
page 36).
With KEYLESS-GO*

Start the engine by means of the
start/stop button on the gear selector
lever.
Anti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the trunk


the hood
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle
(only vehicles with tow-away alarm)


the vehicle is opened with the mechan-
ical key


someone opens a door from the inside


someone opens the trunk with the
emergency release button
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).

94 Safety and SecurityAnti-theft systems
Arming the alarm system
The indicator lamp located in the central
locking switch in the center console.
1Indicator lamp

Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The turn signal lamps flash three times
to indicate that the alarm system is
armed. The indicator lamp1 begins to
flash after approximately 30 seconds
after arming the alarm system.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 261) provided
Tele Aid service was subscribed to and
properly activated, and that necessary
cellular service and GPS coverage are
available.
iIf the turn signal lamps do not flash
three times, one of the following ele-
ments may not be properly closed:

a door


the trunk
Close the respective element and lock
the vehicle again.

95 Safety and Security
Anti-theft systems
Disarming the alarm system
Unlock the vehicle with the SmartKey
or KEYLESS-GO*.
The turn signal lamps flash once to
indicate that the alarm system is
disarmed.Canceling the alarm
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press the Œ or ‹button on the
SmartKey.
The alarm is canceled.
With KEYLESS-GO*

Pull an outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button.
The SmartKey with KEYLESS-GO must
be inside the vehicle.
The alarm is canceled.
Tow-away alarm
Depending on vehicle production date, the
vehicle may not be equipped with the
tow-away alarm.
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.
iThe alarm system will rearm automati-
cally after approximately 40 seconds if
neither a door nor the trunk was
opened.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system (
page 261), provided
that the Tele Aid service was sub-
scribed to and properly activated, and
that necessary cellular service and GPS
coverage are available.

96 Safety and SecurityAnti-theft systemsArming the tow-away alarm
Lock the vehicle with the SmartKey or
KEYLESS-GO*.
The tow-away alarm is automatically
armed after about 30 seconds.
Disarming the tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm
before towing the vehicle, or when parking
on a surface subject to movement, such as
a ferry or auto train.The button is located on the overhead con-
trol panel.
1Tow-away alarm off button

Switch off the ignition and remove the
SmartKey from the starter switch.

Press button1.
The indicator lamp in the button comes
on briefly.

Exit and lock the vehicle with the
SmartKey or (vehicles with
KEYLESS-GO*) an lock button at each
outside door handle.
iYou cannot disarm the tow-away alarm
when the ignition is switched on.
iWhen you unlock the vehicle, the
tow-away protection disarms automati-
cally.
The tow-away alarm remains disarmed
until you lock the vehicle again.

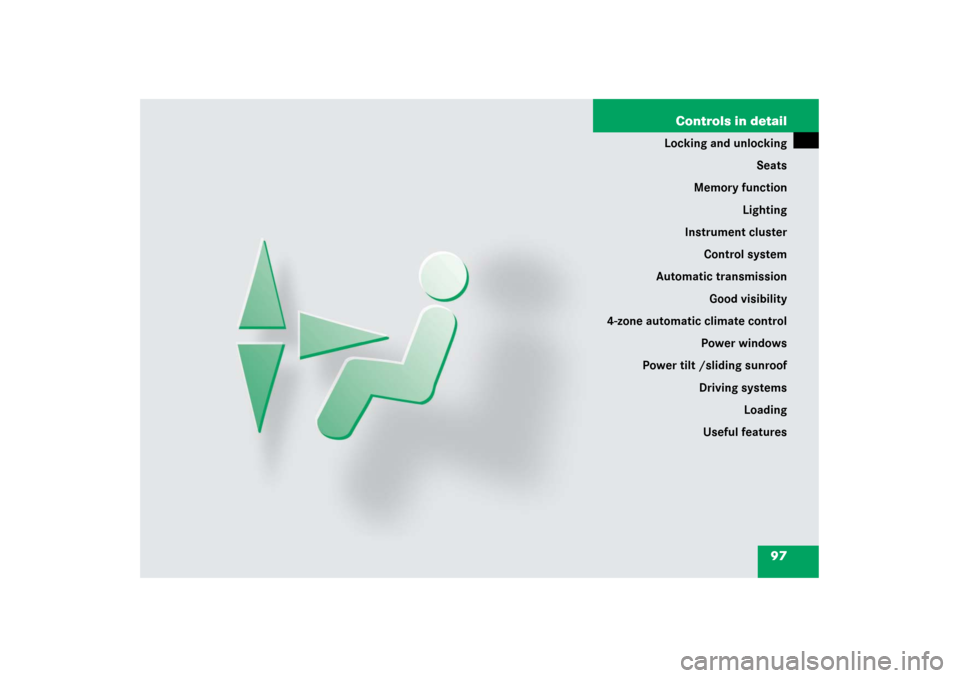

97 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
4-zone automatic climate control
Power windows
Power tilt /sliding sunroof
Driving systems
Loading
Useful features

98 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.Locking and unlocking
For more information on locking and un-
locking, see “Getting started” (
page 34)
and (
page 60).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key. The locking
tabs for the mechanical key portion of the
two SmartKeys are a different color to help
distinguish each key unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks

the doors


the trunk


the fuel filler flap
SmartKey with remote control1‹ Lock button
2Š Unlock button for the trunk
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 83)

99 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a looked door from the
inside, which could result in an accident
and/or serious personal injury.iWhen you open a door, the side window
on that side lowers slightly. Once you
close the door, the window moves up
again.
!If the battery is discharged or the side
windows are covered with ice, the side
windows will not move up or down. In
this case, you will not be able to close
the door. Do not try to close the door
with force. The door or the window
could otherwise be damaged.!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
