MERCEDES-BENZ CLS500 2006 W219 Owner's Guide

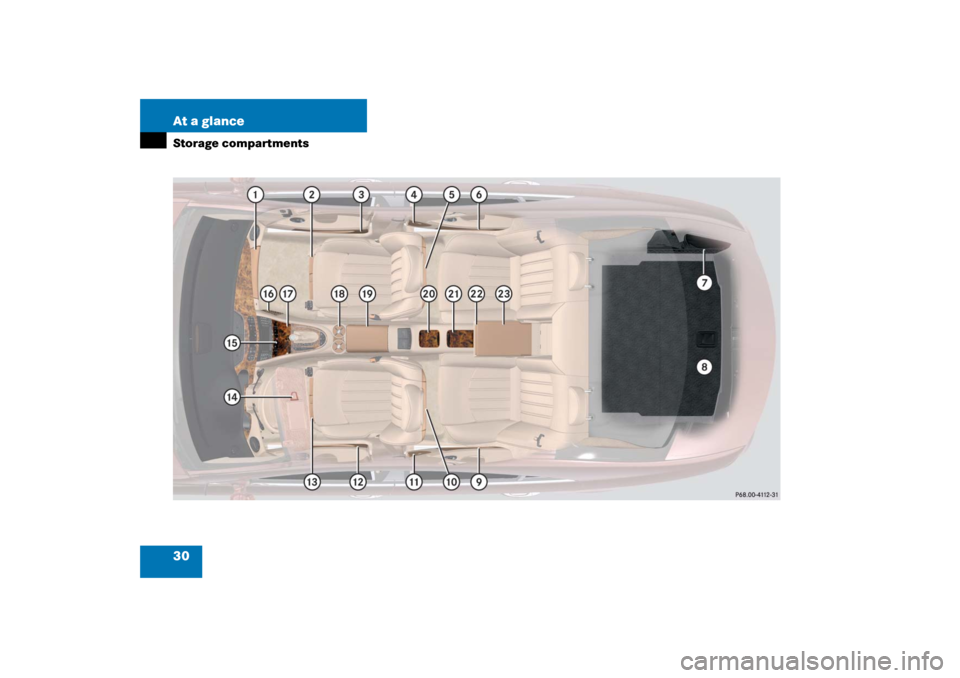

30 At a glanceStorage compartments

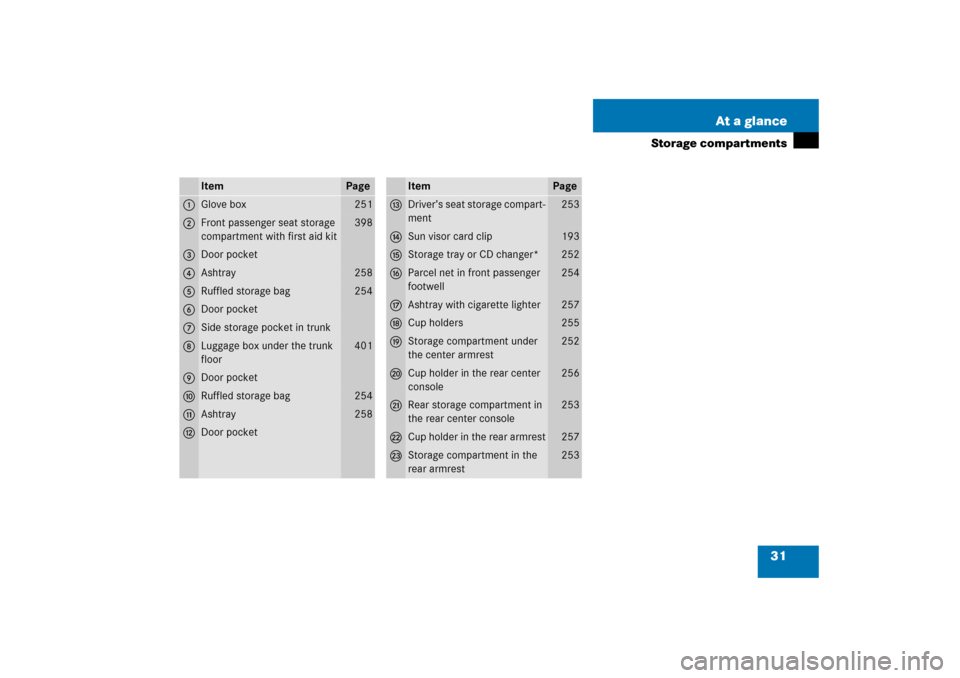

31 At a glance
Storage compartments
Item
Page
1
Glove box
251
2
Front passenger seat storage
compartment with first aid kit
398
3
Door pocket
4
Ashtray
258
5
Ruffled storage bag
254
6
Door pocket
7
Side storage pocket in trunk
8
Luggage box under the trunk
floor
401
9
Door pocket
a
Ruffled storage bag
254
b
Ashtray
258
c
Door pocket
Item
Page
d
Driver’s seat storage compart-
ment
253
e
Sun visor card clip
193
f
Storage tray or CD changer*
252
g
Parcel net in front passenger
footwell
254
h
Ashtray with cigarette lighter
257
j
Cup holders
255
k
Storage compartment under
the center armrest
252
l
Cup holder in the rear center
console
256
m
Rear storage compartment in
the rear center console
253
n
Cup holder in the rear armrest
257
o
Storage compartment in the
rear armrest
253

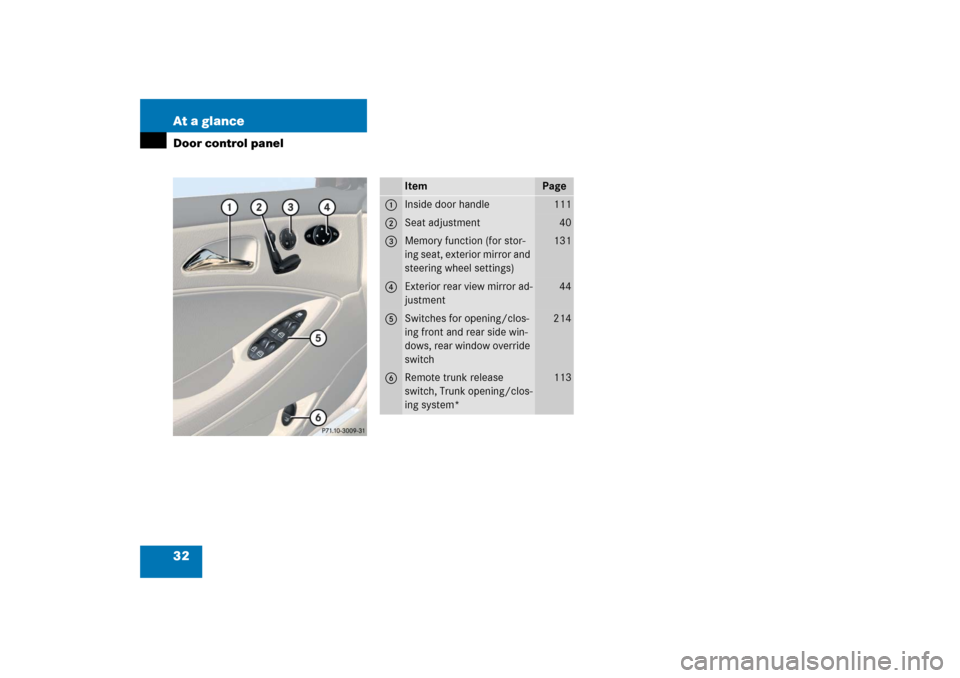

32 At a glanceDoor control panel
Item
Page
1
Inside door handle
111
2
Seat adjustment
40
3
Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)
131
4
Exterior rear view mirror ad-
justment
44
5
Switches for opening/clos-
ing front and rear side win-
dows, rear window override
switch
214
6
Remote trunk release
switch, Trunk opening/clos-
ing system*
113

33 Getting started
Unlocking
Adjusting
Driving
Parking and locking

34 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.Unlocking
Unlocking with the SmartKeySmartKey with remote control1‹Lock button
2ŠUnlock button for trunk
3ŒUnlock button
4ÂPanic button (
page 83)

Press unlock buttonΠon the
SmartKey.

All turn signal lamps flash once.


An acoustic signal sounds once.
For more information, see “Factory
setting” (
page 100).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

35 Getting started
Unlocking

Get in the vehicle and insert the
SmartKey in the starter switch.
For more information, see “Locking and
unlocking” (
page 98).
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.

Pull an outside door handle.

All turn signal lamps flash once.


An acoustic signal sounds once.
For more information, see “Factory
setting” (
page 107).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.

Get in the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 103).
iThe electro-hydraulic brake system is
activated (
page 89).
iOpening a door causes the window on
that door to open slightly. They will re-
turn to the up position when the door is
closed.
iTo unlock the vehicle, the SmartKey
with KEYLESS-GO must be outside the
vehicle, no further than approximately
3 feet (1 meter) away from the door. Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iThe electro-hydraulic brake system is
activated (
page 89).
iOpening a door causes the window on
that door to open slightly. They will re-
turn to the up position when the door is
closed.

36 Getting startedUnlockingStarter switch positions SmartKey
Starter switch0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 352)
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
iWhen you switch on the ignition, the
indicator and warning lamps (except
high beam headlamp indicator lamp
and turn signal indicator lamps unless
activated) in the instrument cluster
come on. The indicator and warning
lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps if activated) should go out when
the engine is running. This indicates
that the respective systems are opera-
tional.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.

37 Getting started
Unlocking
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 50).SmartKey with KEYLESS-GO*
Pressing the KEYLESS-GO start/stop but-
ton on the gear selector lever corresponds
to turning the SmartKey to the various
starter switch positions.
If you firmly depress the brake pedal dur-
ing pressing KEYLESS-GO start/stop but-
ton, the engine starts automatically.
KEYLESS-GO start/stop button1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.

Do not depress the brake pedal.
!If the SmartKey can still not be turned,
the battery may not be sufficiently
charged.

Check the battery and charge it if
necessary (
page 433).


Get a jump start (
page 435).
To prevent accelerated battery dis-
charge or a completely discharged
battery, always remove the SmartKey
from the starter switch when the en-
gine is not in operation.
iThe function of the SmartKey overrules
the KEYLESS-GO function.

38 Getting startedUnlockingPosition 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status0 (as with
SmartKey removed).
Position 1
Press KEYLESS-GO start/stop button
once.
This supplies power for some electrical
consumers, such as seat adjustment.Ignition (or position 2)

Press KEYLESS-GO start/stop button
twice.
This supplies power for all electrical
consumers.
This supplies power to all electrical
consumers. All lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. If a lamp in the instrument cluster
fails to come on when the ignition is
switched on, have it checked and
replaced if necessary. If a lamp in the
instrument cluster remains on after
starting the engine or comes on while
driving, see “Lamps in instrument clus-
ter” (
page 352).
For information on starting the engine
using the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 50).
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2)
is switched on.


twice, the power supply is again
switched off.
iIf you now press the KEYLESS-GO
start/stop button once, the power
supply is again switched off.iWhen you switch on the ignition, the
indicator and warning lamps (except
high beam headlamp indicator lamp
and turn signal indicator lamps unless
activated) in the instrument cluster
come on. The indicator and warning
lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps if activated) should go out when
the engine is running. This indicates
that the respective systems are opera-
tional.

39 Getting started
Adjusting
Adjusting
SeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 46).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the
starter switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and / or serious personal
injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 75).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
