450 Technical dataRims and tires
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar. Some vehicles may have sup-
plemental tire inflation pressure infor-
mation for driving at high speeds
(page 312) or for vehicle loads less
than the maximum loaded vehicle con-
dition. If such information is provided,
it can be found on the placard located
on the inside of the fuel filler flap. The
tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
manufacturer’s maintenance recom-
mendation included with vehicle.
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Appearance Package, Sport
Package etc.), equipping your vehicle
with winter tires approved for your ve-
hicle model may also require the pur-
chase of two or four wheel rims of the
recommended size for use with these
winter tires. See an authorized
Mercedes-Benz Center for more infor-
mation.

451 Technical data
Rims and tires
Same size tires
CLS 500
Rims (light alloy)
8.5 J x 18 H2
Wheel offset (front axle)
1.38 in (28 mm)
Wheel offset (rear axle)
0.71 in (18 mm)
Summer tires
1
-
Winter tires
1,2
245/40 R18 97V XL (Extra Load) M+S.
1Radial-ply tires2Not available as factory equipment.!Winter tires on rims with different
wheel offset front vs. rear cannot be
rotated.

452 Technical dataRims and tires
CLS 500 (Sport Package*)
CLS 55 AMG
Rims (light alloy)
8.5Jx18H2
8.5 J x 18 H2
Wheel offset
0.98 in (25 mm)
0.98 in (25 mm)
Summer tires
1
-
-
Winter tires
1,2
245/40 R18 97V XL (Extra Load) M+S.
245/40 R18 97V XL (Extra Load) M+S.
1Radial-ply tires2Not available as factory equipment.
CLS 55 AMG (Performance Package*)
Rims (light alloy)
8.5Jx19H2
Wheel offset
0.98 in (25 mm)
Summer tires
1
-
Winter tires
1,2,3
245/35 R19 93V XL (Extra Load) M+S.
1Radial-ply tires2Not available as factory equipment.3Maximum permissible vehicle speed of 137 mph (220 km/h).

453 Technical data
Rims and tires
Mixed size tires
CLS 500
CLS 500 (Sport Package*)
Front axle:
Rims (light alloy)
8.5Jx18H2
8.5Jx18H2
Wheel offset
1.10 in (28 mm)
0.98 in (25 mm)
Summer tires
1
1Radial-ply tires
-
255/40 ZR18 95Y
or
255/40 ZR18 99Y XL (Extra Load)
All-season tires
1
245/40 R18 93V M+S
-
Winter tires
-
-
Rear axle:
Rims (light alloy)
9.5Jx18H2
9.5Jx18H2
Wheel offset
1.30 in (33 mm)
1.10 in (28 mm)
Summer tires
1,2
2Must not be used with snow chains.
-
285/35 ZR18 97Y
or
285/35 ZR18 101Y XL (Extra Load)
All-season tires
1, 2
275/35 R18 95V M+S
-
Winter tires
-
-

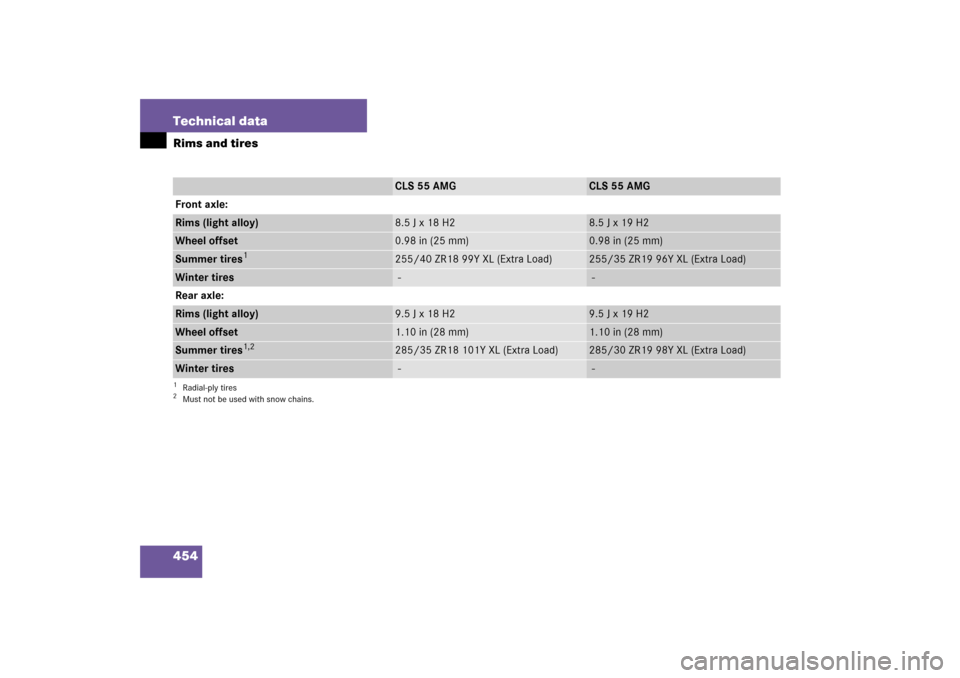

454 Technical dataRims and tires
CLS 55 AMG
CLS 55 AMG
Front axle:
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 19 H2
Wheel offset
0.98 in (25 mm)
0.98 in (25 mm)
Summer tires
1
1Radial-ply tires
255/40 ZR18 99Y XL (Extra Load)
255/35 ZR19 96Y XL (Extra Load)
Winter tires
-
-
Rear axle:
Rims (light alloy)
9.5 J x 18 H2
9.5Jx19H2
Wheel offset
1.10 in (28 mm)
1.10 in (28 mm)
Summer tires
1,2
2Must not be used with snow chains.
285/35 ZR18 101Y XL (Extra Load)
285/30 ZR19 98Y XL (Extra Load)
Winter tires
-
-

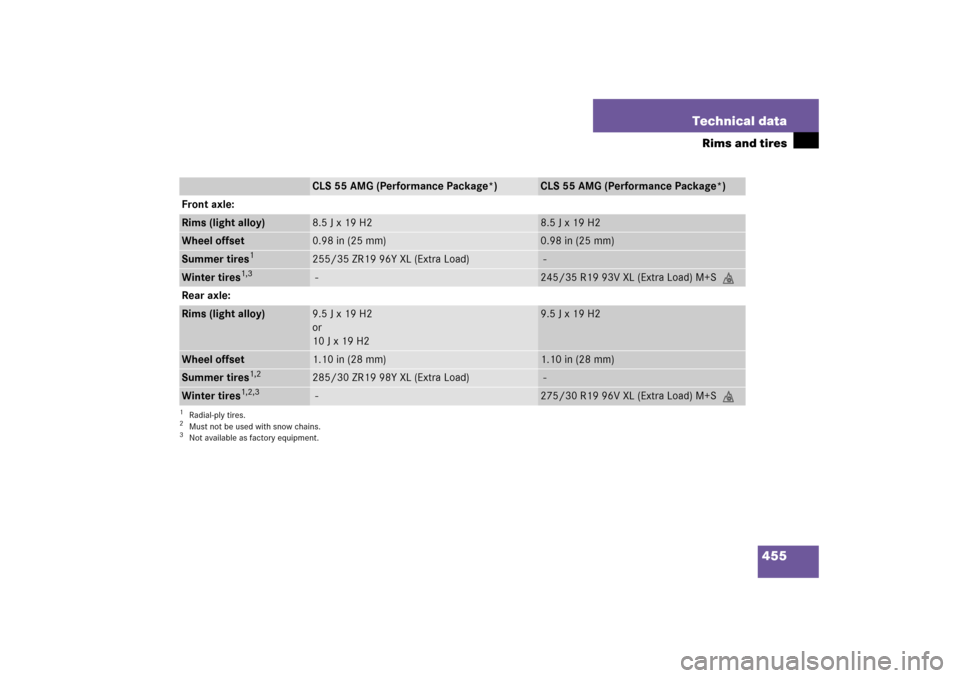

455 Technical data
Rims and tires
CLS 55 AMG (Performance Package*)
CLS 55 AMG (Performance Package*)
Front axle:
Rims (light alloy)
8.5 J x 19 H2
8.5 J x 19 H2
Wheel offset
0.98 in (25 mm)
0.98 in (25 mm)
Summer tires
1
1Radial-ply tires.
255/35 ZR19 96Y XL (Extra Load)
-
Winter tires
1,3
-
245/35 R19 93V XL (Extra Load) M+S.
Rear axle:
Rims (light alloy)
9.5Jx19H2
or
10 J x 19 H2
9.5Jx19H2
Wheel offset
1.10 in (28 mm)
1.10 in (28 mm)
Summer tires
1,2
285/30 ZR19 98Y XL (Extra Load)
-
Winter tires
1,2,3
2Must not be used with snow chains.3Not available as factory equipment.
-
275/30 R19 96V XL (Extra Load) M+S.

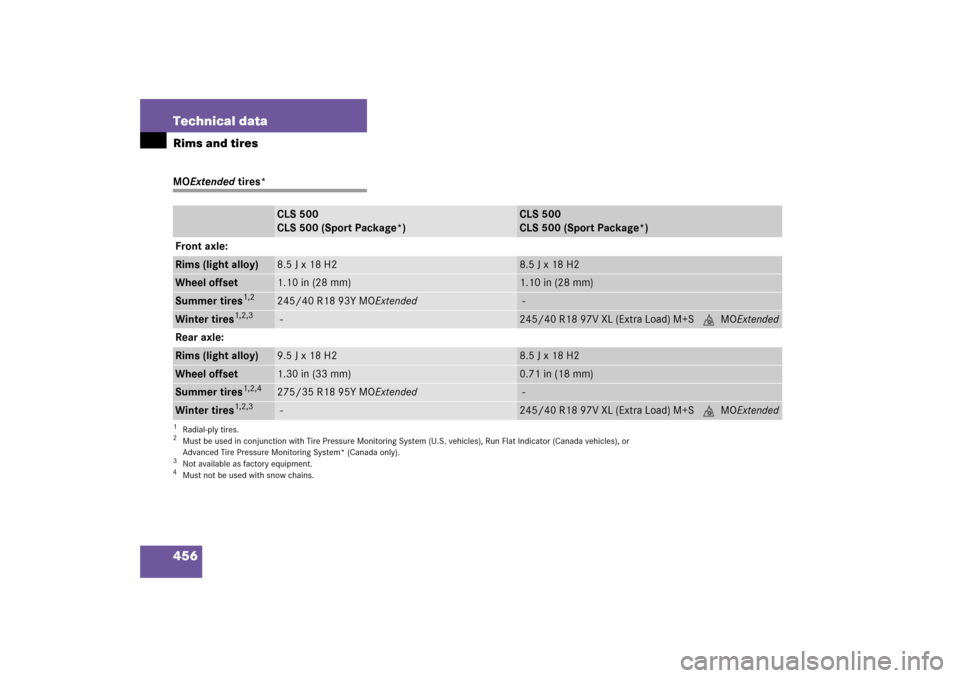

456 Technical dataRims and tiresMOExtended tires*
CLS 500
CLS 500 (Sport Package*)
CLS 500
CLS 500 (Sport Package*)
Front axle:
Rims (light alloy)
8.5 J x 18 H2
8.5 J x 18 H2
Wheel offset
1.10 in (28 mm)
1.10 in (28 mm)
Summer tires
1,2
1Radial-ply tires.2Must be used in conjunction with Tire Pressure Monitoring System (U.S. vehicles), Run Flat Indicator (Canada vehicles), or
Advanced Tire Pressure Monitoring System* (Canada only).
245/40 R18 93Y MOExtended
-
Winter tires
1,2,3
3Not available as factory equipment.
-
245/40 R18 97V XL (Extra Load) M+S .MOExtended
Rear axle:
Rims (light alloy)
9.5Jx18H2
8.5Jx18H2
Wheel offset
1.30 in (33 mm)
0.71 in (18 mm)
Summer tires
1,2,4
4Must not be used with snow chains.
275/35 R18 95Y MOExtended
-
Winter tires
1,2,3
-
245/40 R18 97V XL (Extra Load) M+S .MOExtended

457 Technical data
Rims and tires
Spare wheel
CLS 500
CLS 500 (Sport Package*)
CLS 55 AMG
Rim
4.0 B x 17 H2
6.0 B x 18 H2
Wheel offset
1.34 in (34 mm)
0.98 in (25 mm)
Minispare tire
T 155/70 R17 110M
1
1Must not be used with snow chains.
-
Collapsible tire
-
175/55-18 95P
1
!Please compare the recommended tire
inflation pressure for your vehicle with
the tire inflation pressure on the yellow
label located on the spare wheel rim.
If the tire inflation pressure on the yel-
low label on the spare wheel rim differs
from the values given in this Operator’s
Manual, inflate the spare wheel tire to
the recommended tire inflation pres-
sure given on the yellow label on the
spare wheel rim.
iPlease note that the tire inflation pres-
sure of the Minispare tire and the
collapsible tire differs from the tire
inflation pressure of the road tires.
Make sure the Minispare tire is inflated
to approximately 61 psi (4.2 bar).
Inflate the collapsible tire to approxi-
mately 51 psi (3.5 bar).
iThe CLS 55 AMG with Performance
Package* does not have a spare wheel.
The CLS 55 AMG with Performance
Package* is equipped with TIREFIT
(page 419).

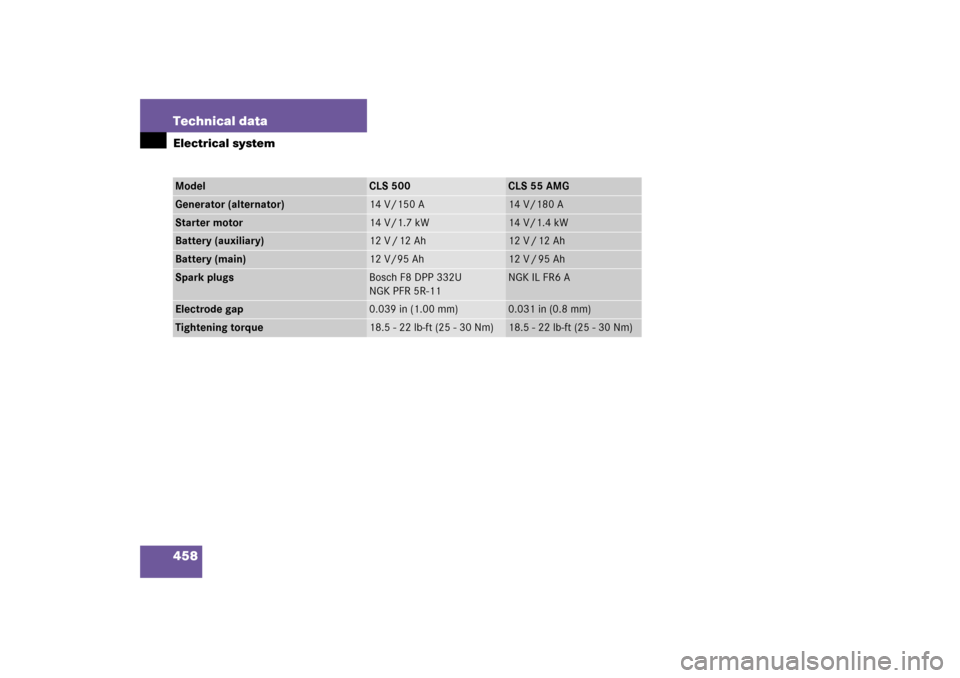

458 Technical dataElectrical systemModel
CLS 500
CLS 55 AMG
Generator (alternator)
14 V/150 A
14 V/180 A
Starter motor
14 V/1.7 kW
14 V/1.4 kW
Battery (auxiliary)
12 V / 12 Ah
12 V / 12 Ah
Battery (main)
12 V/95 Ah
12 V / 95 Ah
Spark plugs
Bosch F8 DPP 332U
NGK PFR 5R-11
NGK IL FR6 A
Electrode gap
0.039 in (1.00 mm)
0.031 in (0.8 mm)
Tightening torque
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)

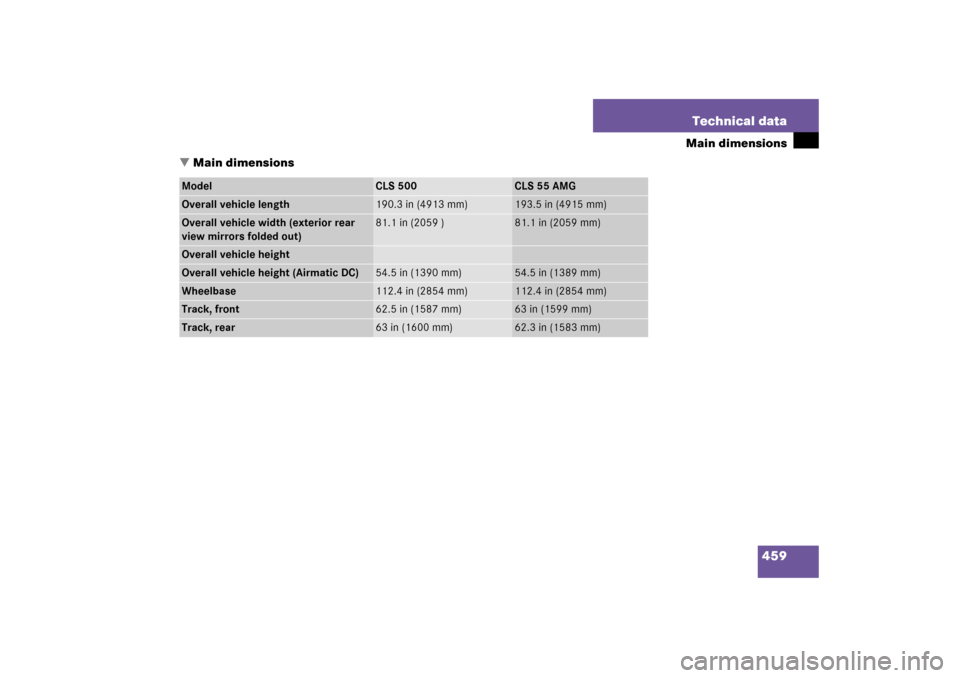

459 Technical data
Main dimensions
Main dimensions
Model
CLS 500
CLS 55 AMG
Overall vehicle length
190.3 in (4913 mm)
193.5 in (4915 mm)
Overall vehicle width (exterior rear
view mirrors folded out)
81.1 in (2059 )
81.1 in (2059 mm)
Overall vehicle heightOverall vehicle height (Airmatic DC)
54.5 in (1390 mm)
54.5 in (1389 mm)
Wheelbase
112.4 in (2854 mm)
112.4 in (2854 mm)
Track, front
62.5 in (1587 mm)
63 in (1599 mm)
Track, rear
63 in (1600 mm)
62.3 in (1583 mm)
