70 Safety and Security
Occupant safety
The air bags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.The front passenger air bag will only be
deployed if:

the front passenger seat is occupied

the 75indicator lamp in
the center console is not lit
(
page 75)

the impact exceeds a preset deploy-
ment threshold
Knee bag
The knee bag is located on the driver-side
lower instrument panel. It is designed to
operate together with the driver air bag in
certain frontal impacts exceeding a preset
threshold. The knee bag operates best in
conjunction with a properly positioned and
fastened seat belt.Side impact air bags, window curtain
air bags
1Front side impact air bags
2Window curtain air bag
3Rear side impact air bags
iThe front air bags in this vehicle have been
designed to inflate in two stages. This allows the
air bag to have different rates of inflation that are
based on the rate of vehicle deceleration as as-
sessed by the air bag control unit.
On the front passenger side, the front air bag de-
ployment is additionally influenced by the pas-
senger’s weight category as identified by the
Occupant Classification System (OCS)
(
page 71).
The lighter the front passenger side occupant,
the higher the vehicle deceleration rate required
for the second stage inflation of the air bag.

71 Safety and Security
Occupant safety
The side impact air bags and window cur-
tain air bags are deployed:

on the impacted side of the vehicle

in impacts exceeding a preset deploy-
ment threshold

independently of the front air bags
In addition, the window curtain air bags2
are deployed:

in certain vehicle rollovers
The side impact air bags and window cur-
tain air bags are not deployed in impacts
which do not exceed the system’s deploy-
ment threshold.
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a po-
sition that is as upright as possible with
their back against the seat backrest and
feet on the floor to be correctly classified.
If the occupant’s weight is transferred to
another object in the vehicle (e.g. by lean-
ing on armrests), the OCS may not be able
to properly approximate the occupant’s
weight category. Furthermore, the occupant weight may ap-
pear to increase or decrease due to
objects hanging on the seat, other passen-
gers pushing on the seat, objects lodged
underneath the seat or stuffed between
seat and middle console or between seat
and door or due to objects applying pres-
sure on the back of the seat. Always make
sure that the seat has clearance in all di-
rections at all times.
Both driver and the front passenger should
always use the 75 indicator
lamp as an indication of whether or not the
front passenger is properly positioned.
iThe system does not deactivate the front
passenger side impact air bag, the window cur-
tain air bag and the Emergency Tensioning De-
vice.
iIf your seat, including your trim cover and
cushion needs to be serviced in any way, take
the vehicle to an authorized Mercedes-Benz
Center.
Only seat accessories approved by
Mercedes-Benz may be used.

72 Safety and Security
Occupant safety
Warning!G
If the 75 indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
75 indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display mes-
sages (
page 364).
In the event of a collision, the air bag control
unit will not allow front passenger front
air bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child re-
straint, the 75 indicator lamp
will illuminate when the engine is started
and remain illuminated, indicating that the
front passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
75 indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front passen-
ger front air bag is deactivated. When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 75 indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings from the
seat, remain illuminated or go out. With the
75 indicator lamp illuminated,
the front passenger front air bag is deacti-
vated. With the 75 indicator
lamp out, the front passenger front air bag is
activated.
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
75 indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is acti-
vated.

73 Safety and Security
Occupant safety
If the 75 indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 75 indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the side impact
air bags
If the front passenger front air bag is
deployed, the rate of inflation will be
influenced by:

the rate of relevant vehicle deceleration
as assessed by the air bag control unit

front passenger’s weight category as
identified by the Occupant Classification
System (OCS)
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.
Always sit as upright as possible, properly
use the seat belts and for children 12 years
old and under, use an appropriately sized in-
fant restraint, toddler restraint, or booster
seat recommended for the size and weight
of the child.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.

A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates in a collision
which could occur under some circum-
stances, even with the air bag technolo-
gy installed in your vehicle. The only
means to completely eliminate this risk
is to never place a child in a rear-facing
child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.


74 Safety and Security
Occupant safety

If you must install a rear-facing child re-
straint on the front passenger seat be-
cause circumstances require you to do
so, make sure that the
75indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the indicator lamp not illuminate or go
out while the restraint is installed,
please check installation. Periodically
check the indicator lamp while driving to
make sure the lamp is illuminated. If the
75indicator lamp goes out
or remains out, do not transport a child
on the front passenger seat until the
system has been repaired. A child in a
rear-facing child restraint on the front
passenger seat will be seriously injured
or even killed if the front passenger front
air bag inflates.
If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be activat-
ed (
page 72).
iDeployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 71)
may have determined:

that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint - both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag

that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint - instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front
air bag


75 Safety and Security
Occupant safety
The 75 indicator lamp is lo-
cated in the center console.
1Indicator lamp
The 75 indicator lamp1 will
be illuminated, except with the SmartKey
removed or in starter switch position0
(
page 38).
Warning!G
If the 1indicator lamp and the
75 indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case.
Have the system checked as soon as possi-
ble by qualified technicians. Contact an au-
thorized Mercedes-Benz Center.
Only have the seat repaired or replaced by
an authorized Mercedes-Benz Center.
In order to ensure proper operation of the
air bag system and OCS:

Do not place more than 4.4 lbs (2 kg)
into the ruffled storage bag on the back
of the front passenger seat. Otherwise,
the OCS may not be able to properly ap-
proximate the occupant weight
category.

Do not place objects under and/or
around the front passenger seat.

Do not hang anything from or attach any
items to the seats.

Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.

Do not move the front passenger seat
backwards against stiff objects.

Sit properly belted in a position that is
as upright as possible with your back
against the seat backrest.

While seated, an occupant should not
position him/herself in such a way as to
cause the occupant’s weight to be lifted
from the seat bottom as this may result
in the OCS being unable to correctly ap-
proximate the occupant’s weight cate-
gory.

Read and observe all warnings in this
chapter.

76 Safety and Security
Occupant safety
Self-test Occupant Classification
System
After turning the SmartKey in the starter
switch to position1 or2 or pressing the
KEYLESS-GO* start/stop button once or
twice, the 75 indicator lamp
located in the center console illuminates. If
an adult occupant is properly sitting on the
front passenger seat and the system sens-
es the occupant as being an adult, the
75 indicator lamp will illumi-
nate and go out after approximately
6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the 75 indicator lamp
will illuminate and not go out. For more information, see the “Practical
hints” section (
page 356).
Seat belts
The use of seat belts and infant and child
restraint systems is required by law in all
50 states, the District of Columbia, the
U.S. territories and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
For more information, see “Fastening the
seat belts” (
page 48).
Warning!G
If the 75 indicator lamp should
not illuminate, the system is not functioning.
You must see an authorized Mercedes-Benz
Center before seating any child on the front
passenger seat.
Warning!G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant Classifi-
cation System. The bottom of the child seat
must make full contact with the passenger
seat cushion. An incorrectly mounted child
seat could cause injuries to the child in case
of an accident, instead of increasing protec-
tion for the child.
Follow the manufacturer’s instructions for
installation of child seats.
iFor information on infants and children trav-
eling with you in the vehicle and restraint sys-
tems for infants and children, see “Children in
the vehicle” (
page 82).

77 Safety and Security
Occupant safety

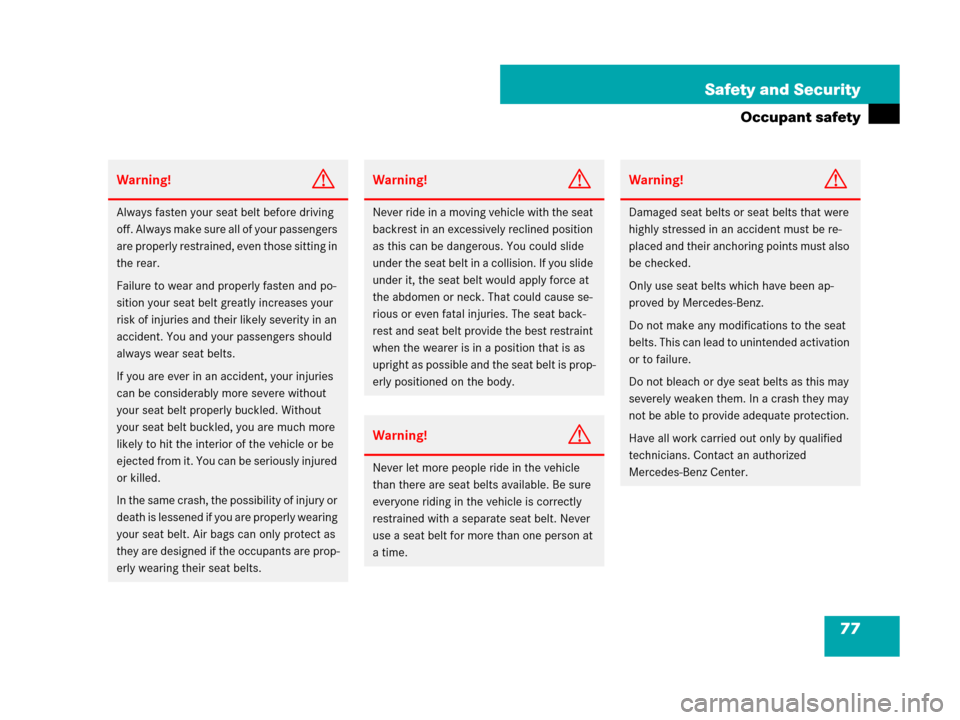

Warning!G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are prop-
erly wearing their seat belts.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the seat belt would apply force at
the abdomen or neck. That could cause se-
rious or even fatal injuries. The seat back-
rest and seat belt provide the best restraint
when the wearer is in a position that is as
upright as possible and the seat belt is prop-
erly positioned on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!G
Damaged seat belts or seat belts that were
highly stressed in an accident must be re-
placed and their anchoring points must also
be checked.
Only use seat belts which have been ap-
proved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
or to failure.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.

78 Safety and Security
Occupant safety
Warning!G

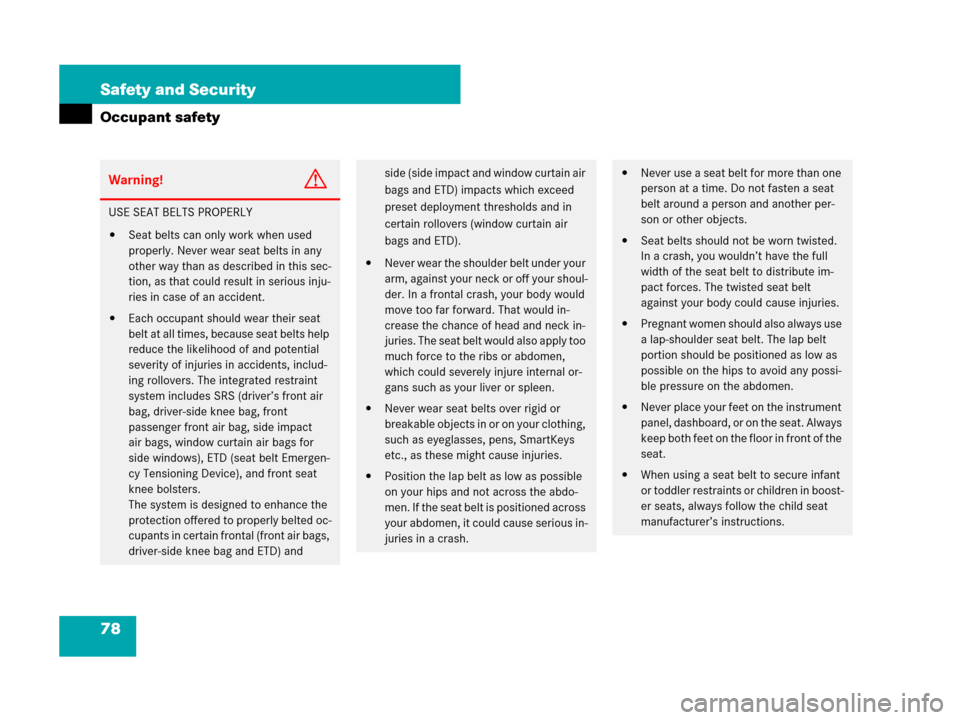

USE SEAT BELTS PROPERLY

Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.

Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver’s front air
bag, driver-side knee bag, front
passenger front air bag, side impact
air bags, window curtain air bags for
side windows), ETD (seat belt Emergen-
cy Tensioning Device), and front seat
knee bolsters.
The system is designed to enhance the
protection offered to properly belted oc-
cupants in certain frontal (front air bags,
driver-side knee bag and ETD) and
side (side impact and window curtain air
bags and ETD) impacts which exceed
preset deployment thresholds and in
certain rollovers (window curtain air
bags and ETD).

Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a frontal crash, your body would
move too far forward. That would in-
crease the chance of head and neck in-
juries. The seat belt would also apply too
much force to the ribs or abdomen,
which could severely injure internal or-
gans such as your liver or spleen.

Never wear seat belts over rigid or
breakable objects in or on your clothing,
such as eyeglasses, pens, SmartKeys
etc., as these might cause injuries.

Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the seat belt is positioned across
your abdomen, it could cause serious in-
juries in a crash.

Never use a seat belt for more than one
person at a time. Do not fasten a seat
belt around a person and another per-
son or other objects.

Seat belts should not be worn twisted.
In a crash, you wouldn’t have the full
width of the seat belt to distribute im-
pact forces. The twisted seat belt
against your body could cause injuries.

Pregnant women should also always use
a lap-shoulder seat belt. The lap belt
portion should be positioned as low as
possible on the hips to avoid any possi-
ble pressure on the abdomen.

Never place your feet on the instrument
panel, dashboard, or on the seat. Always
keep both feet on the floor in front of the
seat.

When using a seat belt to secure infant
or toddler restraints or children in boost-
er seats, always follow the child seat
manufacturer’s instructions.

79 Safety and Security
Occupant safety
When the engine is started, the seat belt
telltale< will always illuminate
for 6 seconds to remind you and your pas-
sengers to fasten your seat belts.
If the driver’s seat belt is not fastened
when the engine is started, an additional
warning chime will also sound for a maxi-
mum of 6 seconds or until the driver’ s
seat belt is fastened.
If after these 6 seconds the driver’s or the
front passenger’s seat belt (with the front
passenger seat occupied) is not fastened
with front doors closed,

the seat belt telltale< remains illu-
minated for as long as either the driv-
er’s or front passenger’s seat belt is not
fastened.

and if the vehicle speed once exceeds
15 mph (25 km/h), the seat belt
telltale< starts flashing and a
warning chime sounds with increasing
intensity for a maximum of 60 seconds
or until the driver’s and the front pas-
senger’s seat belt are fastened.If the driver’s or the front passenger’s
seat belt remains unfastened after
60 seconds, the warning chime stops
sounding, the seat belt telltale<
stops flashing but continues to be illu-
minated.
The seat belt telltale < will only go out
if both the driver’s and front passenger’s
seat belt (with the front passenger seat oc-
cupied) are fastened, or the vehicle is
standing still and a front door is opened.
For more information, see “Practical hints”
(
page 351).
Emergency Tensioning Device (ETD),
seat belt force limiter
The seat belts for the front and rear outer
seats are equipped with Emergency Ten-
sioning Devices and seat belt force limit-
ers.
The ETD is designed to activate in the fol-
lowing cases:

in frontal or rear-end impacts exceed-
ing the system deployment threshold

in certain vehicle rollovers

if the restraint systems are operational
and functioning correctly, see
1indicator lamp (
page 64)
In an impact, Emergency Tensioning Devic-
es remove slack from the seat belts. Seat
belt force limiters reduce the peak force
exerted by the seat belts on occupants
during a crash.
iThe ETDs for the front seats will only acti-
vate if the front seat belts are fastened (latch
plate properly inserted into buckle).
The ETDs for the rear outer seats will activate
with or without the respective seat belts fas-
tened.
Warning!G
An Emergency Tensioning Device (ETD) that
was activated must be replaced.
When disposing of the Emergency Tension-
ing Device, our safety instructions must be
followed. These are available at any autho-
rized Mercedes-Benz Center.
