MERCEDES-BENZ CLS63AMG 2007 W219 Owner's Manual

250 Controls in detailUseful featuresReinstalling ashtray insert
Install insert by pushing it back into
frame until it engages again.

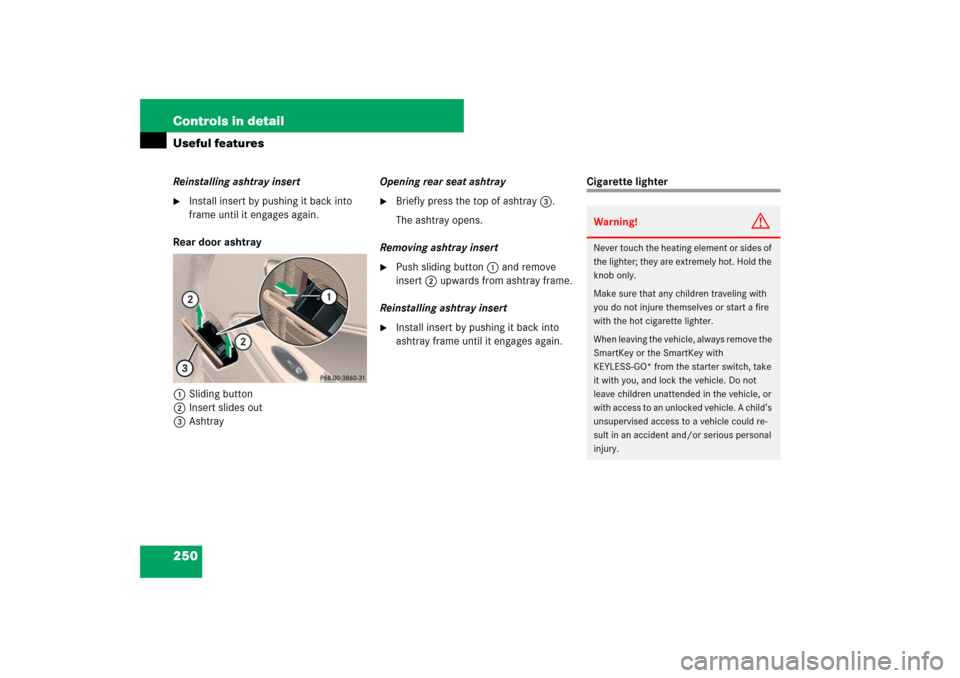

Rear door ashtray
1Sliding button
2Insert slides out
3AshtrayOpening rear seat ashtray

Briefly press the top of ashtray3.
The ashtray opens.
Removing ashtray insert

Push sliding button1 and remove
insert2 upwards from ashtray frame.
Reinstalling ashtray insert

Install insert by pushing it back into
ashtray frame until it engages again.
Cigarette lighterWarning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
Make sure that any children traveling with
you do not injure themselves or start a fire
with the hot cigarette lighter.
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could re-
sult in an accident and/or serious personal
injury.

251 Controls in detail
Useful features
The cigarette lighter is located in the cen-
ter console compartment in front of the
center armrest (
page 30).

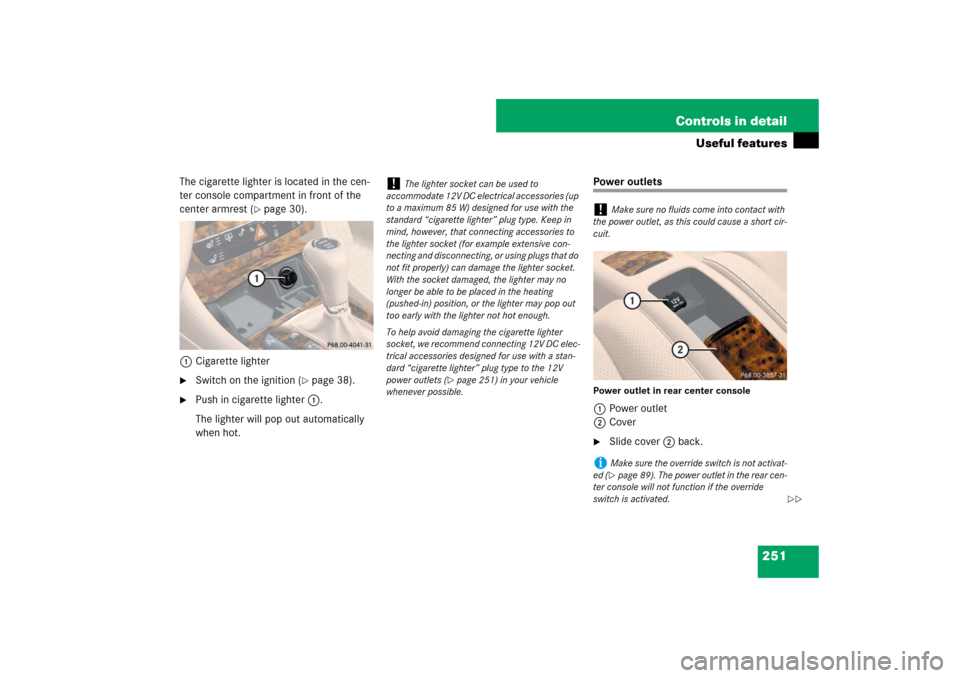

1Cigarette lighter

Switch on the ignition (
page 38).

Push in cigarette lighter1.
The lighter will pop out automatically
when hot.
Power outletsPower outlet in rear center console1Power outlet
2Cover
Slide cover2 back.
!
The lighter socket can be used to
accommodate 12V DC electrical accessories (up
to a maximum 85 W) designed for use with the
standard “cigarette lighter” plug type. Keep in
mind, however, that connecting accessories to
the lighter socket (for example extensive con-
necting and disconnecting, or using plugs that do
not fit properly) can damage the lighter socket.
With the socket damaged, the lighter may no
longer be able to be placed in the heating
(pushed-in) position, or the lighter may pop out
too early with the lighter not hot enough.
To help avoid damaging the cigarette lighter
socket, we recommend connecting 12V DC elec-
trical accessories designed for use with a stan-
dard “cigarette lighter” plug type to the 12V
power outlets (
page 251) in your vehicle
whenever possible.
!
Make sure no fluids come into contact with
the power outlet, as this could cause a short cir-
cuit.
i
Make sure the override switch is not activat-
ed (page 89). The power outlet in the rear cen-
ter console will not function if the override
switch is activated.


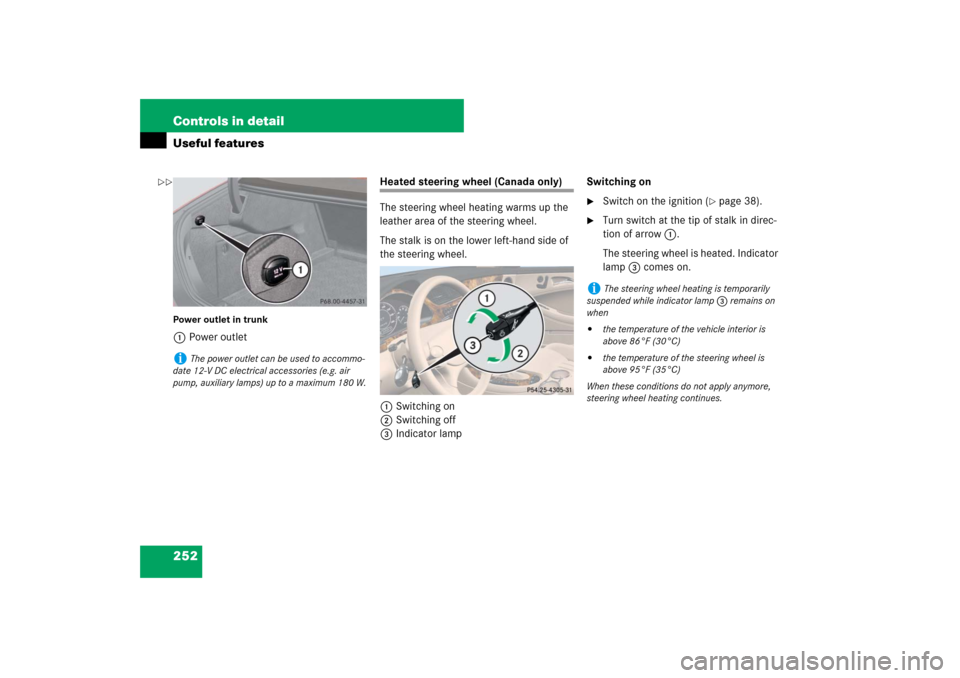

252 Controls in detailUseful featuresPower outlet in trunk1Power outlet
Heated steering wheel (Canada only)
The steering wheel heating warms up the
leather area of the steering wheel.
The stalk is on the lower left-hand side of
the steering wheel.
1Switching on
2Switching off
3Indicator lampSwitching on

Switch on the ignition (
page 38).

Turn switch at the tip of stalk in direc-
tion of arrow1.
The steering wheel is heated. Indicator
lamp3 comes on.
i
The power outlet can be used to accommo-
date 12-V DC electrical accessories (e.g. air
pump, auxiliary lamps) up to a maximum 180 W.
i
The steering wheel heating is temporarily
suspended while indicator lamp3 remains on
when


the temperature of the vehicle interior is
above 86°F (30°C)


the temperature of the steering wheel is
above 95°F (35°C)
When these conditions do not apply anymore,
steering wheel heating continues.


253 Controls in detail
Useful features
Switching off
Turn switch at the tip of stalk in direc-
tion of arrow2.
The heated steering wheel is switched
off. Indicator lamp3 goes out.
For information on steering wheel, see
“Multifunction steering wheel”
(
page 142).

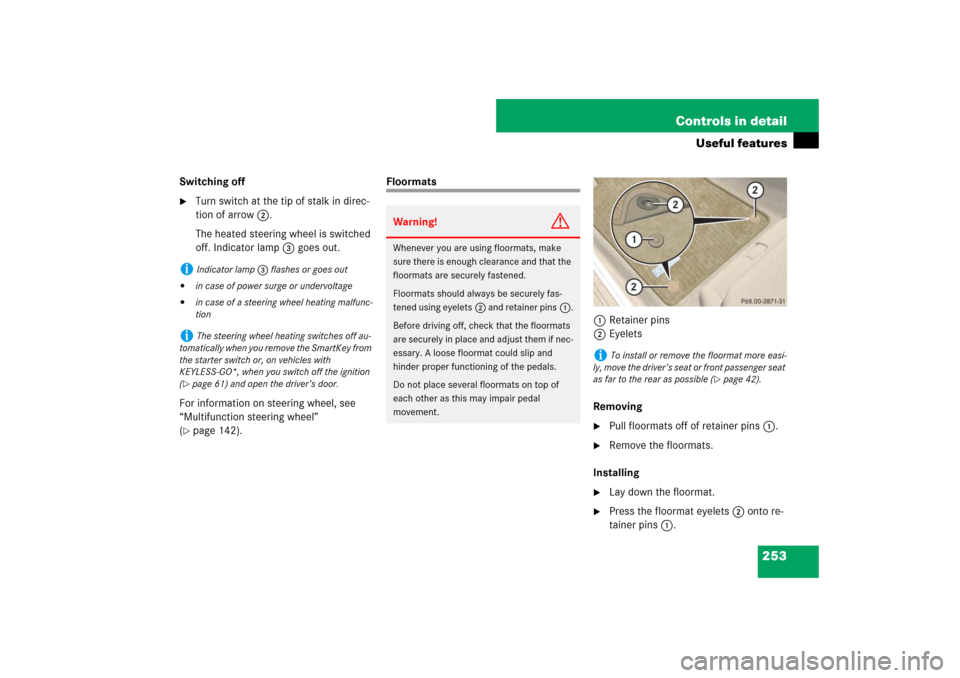

Floormats
1Retainer pins
2Eyelets
Removing

Pull floormats off of retainer pins1.

Remove the floormats.
Installing

Lay down the floormat.

Press the floormat eyelets2 onto re-
tainer pins1.
i
Indicator lamp3 flashes or goes out


in case of power surge or undervoltage


in case of a steering wheel heating malfunc-
tion
i
The steering wheel heating switches off au-
tomatically when you remove the SmartKey from
the starter switch or, on vehicles with
KEYLESS-GO*, when you switch off the ignition
(
page 61) and open the driver’s door.
Warning!
G
Whenever you are using floormats, make
sure there is enough clearance and that the
floormats are securely fastened.
Floormats should always be securely fas-
tened using eyelets2 and retainer pins1.
Before driving off, check that the floormats
are securely in place and adjust them if nec-
essary. A loose floormat could slip and
hinder proper functioning of the pedals.
Do not place several floormats on top of
each other as this may impair pedal
movement.
i
To install or remove the floormat more easi-
ly, move the driver’s seat or front passenger seat
as far to the rear as possible (
page 42).

254 Controls in detailUseful featuresTelephone*
Radio transmitters, such as a portable tele-
phone or a citizens band unit, should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
The external antenna must be approved by
Mercedes-Benz. Please contact an autho-
rized Mercedes-Benz Center for informa-
tion on the installation of an approved
external antenna. Refer to the radio trans-
mitter operation instructions regarding use
of an external antenna.When the mobile phone is inserted in the
cradle, you can operate the telephone us-
ing the following devices:


mobile phone keypad


COMAND (see separate operating in-
structions)


buttonss andt on the multi-
function steering wheel


Voice Control* (see separate operating
instructions)
See also separate operating manual for in-
structions on how to use the mobile phone.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or serious
personal injury.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call.
If you choose to use the telephone
1 while
driving, please use the hands-free device
and only use the telephone when road,
weather and traffic conditions permit. Some
jurisdictions prohibit the driver from using a
mobile telephone while driving a vehicle.
Only operate the COMAND (Cockpit Man-
agement and Data System)
1 if road, weather
and traffic conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
1Observe all legal requirements.
i
Various mobile phone cradles can be in-
stalled in the cockpit. These mobile phone cra-
dles can be obtained from an authorized
Mercedes-Benz Center.
The functions and services available to you while
using the mobile phone depend on your service
provider and the type of mobile phone you are
using.

255 Controls in detail
Useful features
The cradle is located in the center armrest.
Open the telephone compartment un-
der center armrest (
page 244).
Inserting mobile phone in mobile phone
cradle
Once the mobile phone has been inserted
in the mobile phone cradle, calls can only
be made via the Voice Control*.

If applicable, remove the cover for the
external antenna connection from the
back of the mobile phone and store it in
a s a f e p l a c e . B e s u r e t o c o m p l y w i t h t h e
mobile phone’s operating instructions,
as well.

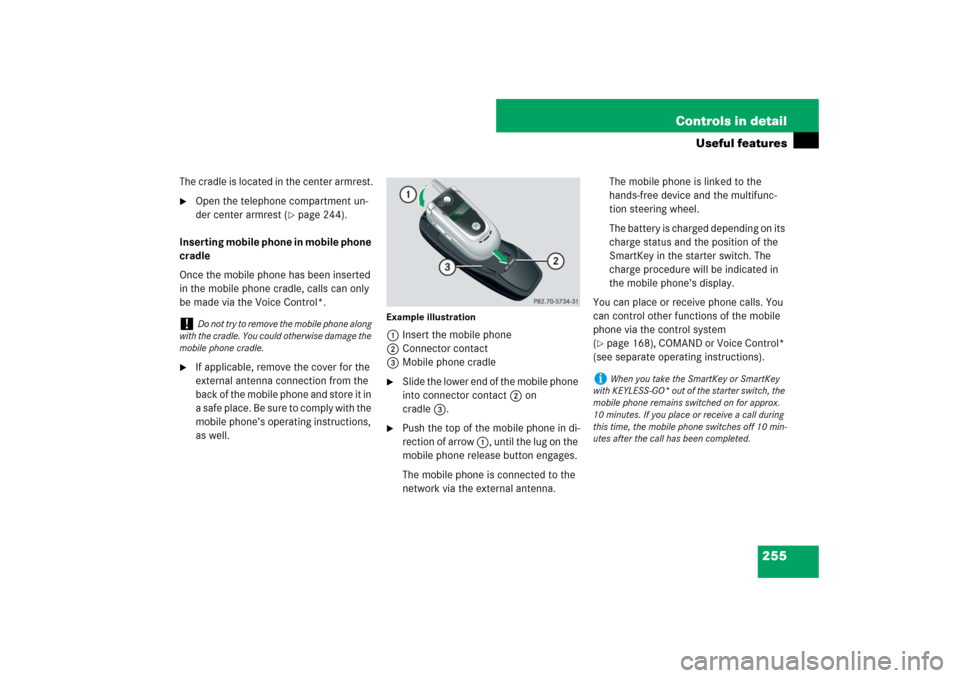

Example illustration1Insert the mobile phone
2Connector contact
3Mobile phone cradle
Slide the lower end of the mobile phone
into connector contact 2 on
cradle3.

Push the top of the mobile phone in di-
rection of arrow 1, until the lug on the
mobile phone release button engages.
The mobile phone is connected to the
network via the external antenna. The mobile phone is linked to the
hands-free device and the multifunc-
tion steering wheel.
The battery is charged depending on its
charge status and the position of the
SmartKey in the starter switch. The
charge procedure will be indicated in
the mobile phone’s display.
You can place or receive phone calls. You
can control other functions of the mobile
phone via the control system
(
page 168), COMAND or Voice Control*
(see separate operating instructions).
!
Do not try to remove the mobile phone along
with the cradle. You could otherwise damage the
mobile phone cradle.
i
When you take the SmartKey or SmartKey
with KEYLESS-GO* out of the starter switch, the
mobile phone remains switched on for approx.
10 minutes. If you place or receive a call during
this time, the mobile phone switches off 10 min-
utes after the call has been completed.

256 Controls in detailUseful featuresRemoving mobile phone from mobile

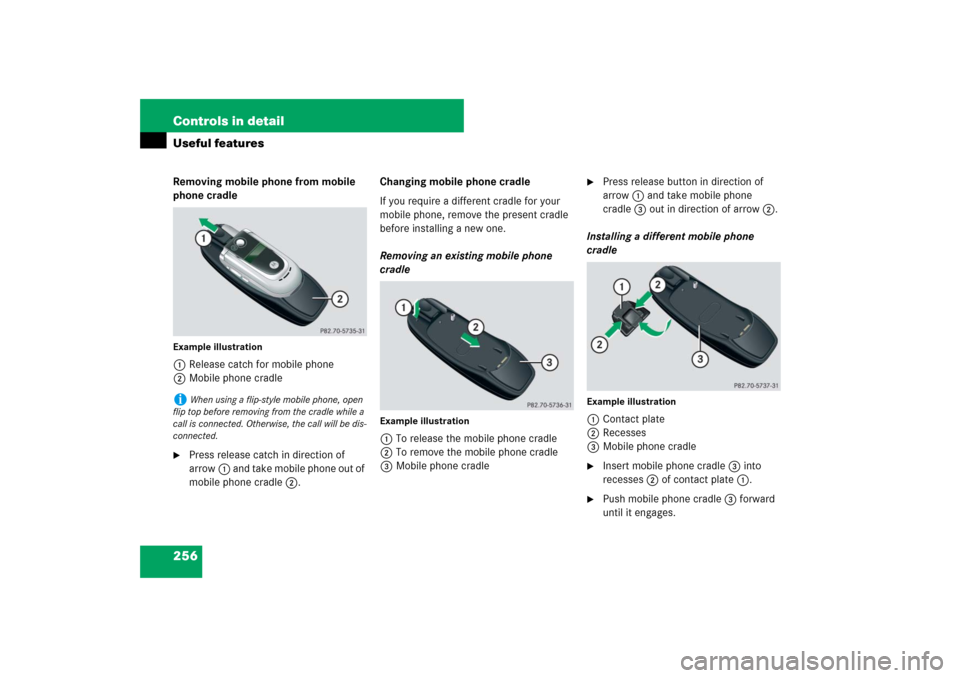

phone cradleExample illustration1Release catch for mobile phone
2Mobile phone cradle
Press release catch in direction of
arrow1 and take mobile phone out of
mobile phone cradle2.Changing mobile phone cradle
If you require a different cradle for your
mobile phone, remove the present cradle
before installing a new one.
Removing an existing mobile phone
cradle
Example illustration1To release the mobile phone cradle
2To remove the mobile phone cradle
3Mobile phone cradle

Press release button in direction of
arrow1 and take mobile phone
cradle3 out in direction of arrow2.
Installing a different mobile phone
cradle
Example illustration1Contact plate
2Recesses
3Mobile phone cradle
Insert mobile phone cradle3 into
recesses2 of contact plate1.

Push mobile phone cradle3 forward
until it engages.
i
When using a flip-style mobile phone, open
flip top before removing from the cradle while a
call is connected. Otherwise, the call will be dis-
connected.

257 Controls in detail
Useful features
Tele Aid
Shortly after the completion of your Tele
Aid acquaintance call, you will receive a
user ID and password. By visiting
www.mbusa.com and selecting “Tele Aid”
(USA only), you will have access to account
information, remote door unlock and
more.The Tele Aid system
(Tele
matic A
larm I
dentification on
D
emand)
The Tele Aid system consists of three
types of response:

automatic and manual emergency


roadside assistance


information
The Tele Aid system is operational provid-
ing that the vehicle’s battery is charged,
properly connected, not damaged and cel-
lular and GPS coverage is available.
The speaker volume of a Tele Aid call can
be adjusted when using the volume control
on the COMAND System or on the multi-
function steering wheel. To raise, turn the
rotary volume control on COMAND System
clockwise or press buttonæ on the
multifunction steering wheel. To lower,
turn the rotary volume control on
COMAND System control counterclock-
wise or press buttonç on the multi-
function steering wheel.

To activate, press the SOS button, the
Roadside Assistance button• or
the Information button¡, depend-
ing on the type of response required.
!
The initial activation of the Tele Aid system
may only be performed by completing the sub-
scriber agreement and placing an acquaintance
call using the ¡button. Failure to complete
either of these steps will result in a system that
is not activated.
If you have any questions regarding activation,
please call the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada).
i
The SOS button is located in the overhead
control panel (
page 259).
The Roadside Assistance button• and the
Information button¡ are located below the
center armrest cover (
page 244).

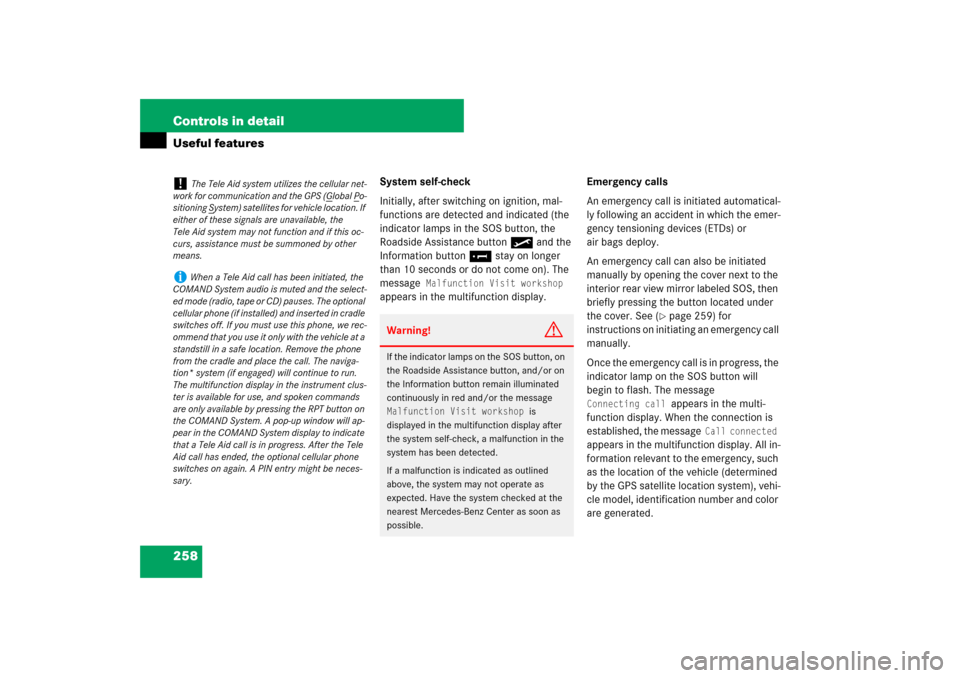

258 Controls in detailUseful features
System self-check
Initially, after switching on ignition, mal-
functions are detected and indicated (the
indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than 10 seconds or do not come on). The
message
Malfunction Visit workshop
appears in the multifunction display.Emergency calls
An emergency call is initiated automatical-
ly following an accident in which the emer-
gency tensioning devices (ETDs) or
air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 259) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp on the SOS button will
begin to flash. The message

Connecting call
appears in the multi-
function display. When the connection is
established, the message
Call connected
appears in the multifunction display. All in-
formation relevant to the emergency, such
as the location of the vehicle (determined
by the GPS satellite location system), vehi-
cle model, identification number and color
are generated.
!
The Tele Aid system utilizes the cellular net-
work for communication and the GPS (G
lobal P
o-
sitioning S
ystem) satellites for vehicle location. If
either of these signals are unavailable, the
Tele Aid system may not function and if this oc-
curs, assistance must be summoned by other
means.
i
When a Tele Aid call has been initiated, the
COMAND System audio is muted and the select-
ed mode (radio, tape or CD) pauses. The optional
cellular phone (if installed) and inserted in cradle
switches off. If you must use this phone, we rec-
ommend that you use it only with the vehicle at a
standstill in a safe location. Remove the phone
from the cradle and place the call. The naviga-
tion* system (if engaged) will continue to run.
The multifunction display in the instrument clus-
ter is available for use, and spoken commands
are only available by pressing the RPT button on
the COMAND System. A pop-up window will ap-
pear in the COMAND System display to indicate
that a Tele Aid call is in progress. After the Tele
Aid call has ended, the optional cellular phone
switches on again. A PIN entry might be neces-
sary.
Warning!
G
If the indicator lamps on the SOS button, on
the Roadside Assistance button, and/or on
the Information button remain illuminated
continuously in red and/or the message

Malfunction Visit workshop
is
displayed in the multifunction display after
the system self-check, a malfunction in the
system has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.

259 Controls in detail
Useful features
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
The Response Center will attempt to
determine more precisely the nature of the
accident provided they can speak to an
occupant of the vehicle.
The Tele Aid system is available if

it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the response cen-
terInitiating an emergency call manually
1Cover
2SOS button

Briefly press on cover1.
The cover will open.

Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.

Wait for a voice connection to the
Response Center.

Close cover1 after the emergency
call is concluded.
i
Location of the vehicle on a map is only pos-
sible if the vehicle is able to receive signals from
the GPS satellite network and pass the informa-
tion on to the Response Center.Warning!
G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed
appears in the
multifunction display for approximately
10 seconds.
Should this occur, assistance must be sum-
moned by other means.
