432 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz Parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz Parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.
!
The use of non-genuine Mercedes-Benz
parts and accessories not authorized by
Mercedes-Benz could damage the vehicle, which
is not covered by the Mercedes-Benz Limited
Warranty, or could compromise the vehicle’s du-
rability or safety.

433 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information Booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Car Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control System
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories Warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information Booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

434 Technical dataIdentification labels1Certification label (includes Paintwork
code)
The V
ehicle I
dentification N
umber (VIN)
can be found in the following locations:


on the Certification label


embossed underneath a cover in the
center armrest


on the lower edge of the windshield
Example Certification label (U.S. vehicles)2VIN
3Paintwork code
Example Certification label
(Canada vehicles)2VIN
3Paintwork codei
Data shown on Certification label are for il-
lustration purposes only. These data are specific
to each vehicle and may vary from data shown in
the illustration. Refer to Certification label on ve-
hicle for actual data specific to your vehicle.

435 Technical data
Identification labels

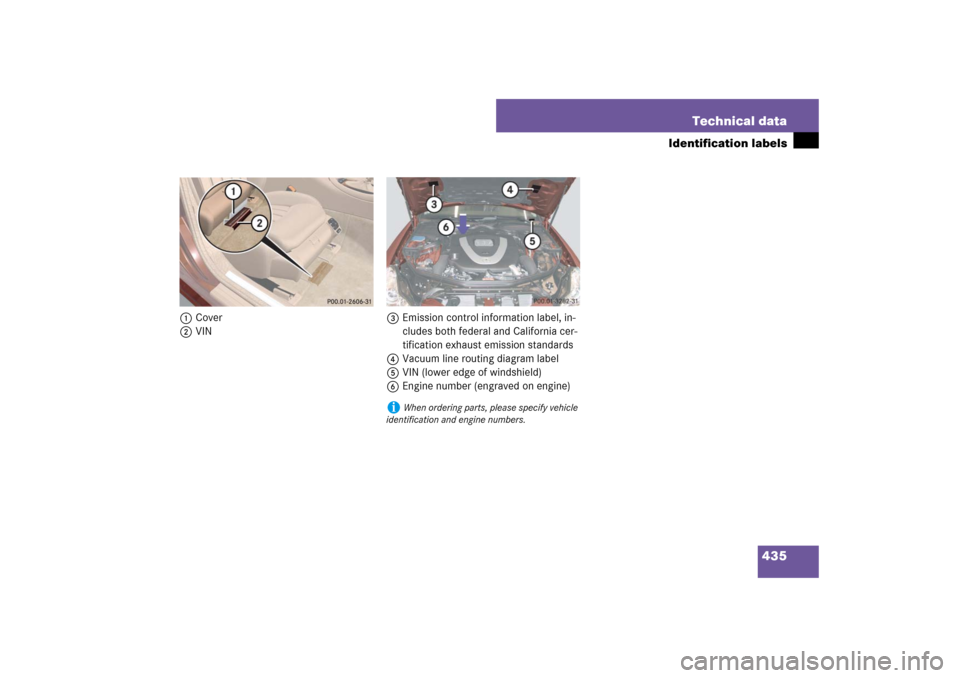

1Cover
2VIN3Emission control information label, in-
cludes both federal and California cer-
tification exhaust emission standards
4Vacuum line routing diagram label
5VIN (lower edge of windshield)
6Engine number (engraved on engine)
i
When ordering parts, please specify vehicle
identification and engine numbers.

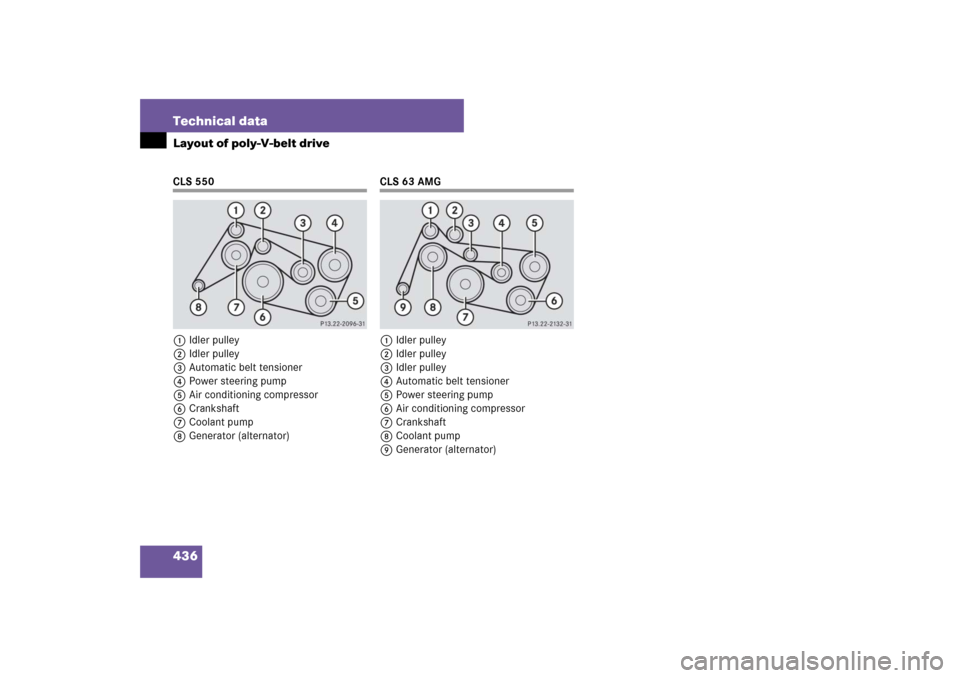

436 Technical dataLayout of poly-V-belt driveCLS 550
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
CLS 63 AMG
1Idler pulley
2Idler pulley
3Idler pulley
4Automatic belt tensioner
5Power steering pump
6Air conditioning compressor
7Crankshaft
8Coolant pump
9Generator (alternator)

437 Technical data

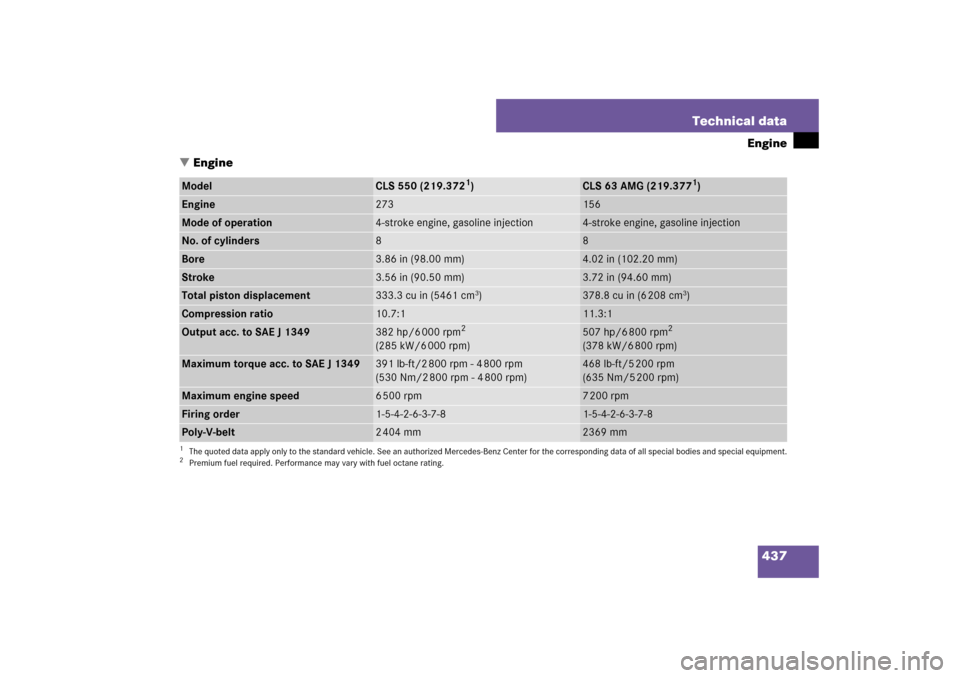

Engine
Engine
Model
CLS 550 (219.372
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
CLS 63 AMG (219.377
1)
Engine
273
156
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
8
8
Bore
3.86 in (98.00 mm)
4.02 in (102.20 mm)
Stroke
3.56 in (90.50 mm)
3.72 in (94.60 mm)
Total piston displacement
333.3 cu in (5461 cm
3)
378.8 cu in (6 208 cm
3)
Compression ratio
10.7:1
11.3:1
Output acc. to SAE J 1349
382 hp/6 000 rpm
2
(285 kW/6 000 rpm)
507 hp/6 800 rpm
2
(378 kW/6 800 rpm)
2Premium fuel required. Performance may vary with fuel octane rating.Maximum torque acc. to SAE J 1349
391lb-ft/2800rpm - 4800rpm
(530 Nm/2 800 rpm - 4 800 rpm)
468 lb-ft/5 200 rpm
(635 Nm/5 200 rpm)
Maximum engine speed
6 500 rpm
7 200 rpm
Firing order
1-5-4-2-6-3-7-8
1-5-4-2-6-3-7-8
Poly-V-belt
2 404 mm
2369 mm

438 Technical dataRims and tires!
Only use tires which have been tested and
approved by Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to provide best
possible performance in conjunction with the
driving safety systems on your vehicle such as
ABS or ESP
®. Tires specially developed for your
vehicle and tested and approved by
Mercedes-Benz can be identified by finding the
following on the tire’s sidewall:


MO = M
ercedes-Benz O
riginal equipment
tires
AMG vehicles:
Does not apply to all approved tires on AMG
vehicles. For information on tested and ap-
proved tires for AMG vehicles, contact an au-
thorized Mercedes-Benz Center.


MOE = M
ercedes-Benz O
riginal E
xtended
(tires with limited run-flat characteristics)
original equipment tires
Using tires other than those approved by
Mercedes-Benz may result in damage that is
not covered by the Mercedes-Benz Limited
Warranty.
i
For information on driving with MOExtended
tires, see “MOExtended system*” (
page 313).
!
Using tires other than those approved by
Mercedes-Benz can have detrimental effects,
such as


poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved by
Mercedes-Benz may, under load, exhibit dimen-
sional variations and different tire deformation
characteristics that could cause them to come
into contact with the vehicle body or axle parts.
Damage to the tires or the vehicle may be the re-
sult.
i
Further information on tires and rims is
available at any authorized Mercedes-Benz
Center. A placard with the recommended tire in-
flation pressures is located on the driver’s door
B-pillar. Some vehicles may have supplemental
tire inflation pressure information for driving at
high speeds (
page 302) or for vehicle loads
less than the maximum loaded vehicle condition
(
page 302). If such information is provided, it
can be found on the placard located on the in-
side of the fuel filler flap. The tire inflation pressure should be checked
regularly and should only be adjusted on cold
tires. Follow tire manufacturer’s maintenance
recommendation included with vehicle.
i
The following pages also list the approved
wheel rim and tire sizes for equipping your vehi-
cles with winter tires. Winter tires are not avail-
able as standard or optional factory equipment,
but can be purchased from an authorized
Mercedes-Benz Center.
Depending on vehicle model and the standard or
optional factory-equipped wheel rim/tire config-
uration on your vehicle (Appearance Package,
AMG Sport Package etc.), equipping your vehicle
with winter tires approved for your vehicle model
may also require the purchase of two or four
wheel rims of the recommended size for use with
these winter tires. See an authorized
Mercedes-Benz Center for more information.

439 Technical data
Rims and tires

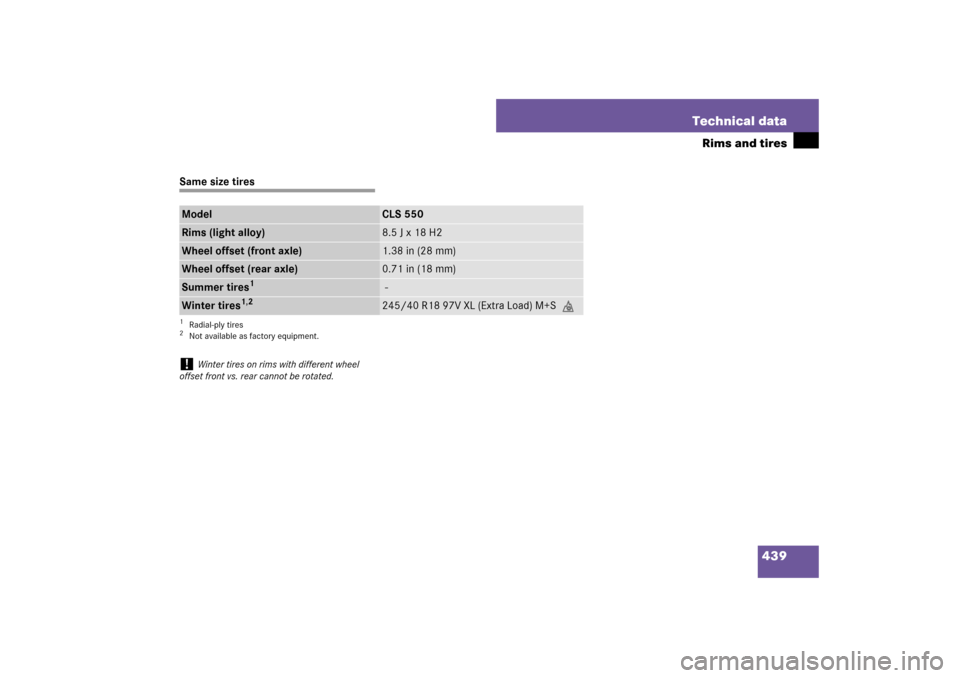

Same size tiresModel
CLS 550
Rims (light alloy)
8.5 J x 18 H2
Wheel offset (front axle)
1.38 in (28 mm)
Wheel offset (rear axle)
0.71 in (18 mm)
Summer tires
1
1Radial-ply tires
-
Winter tires
1,2
2Not available as factory equipment.
245/40 R18 97V XL (Extra Load) M+S.
!
Winter tires on rims with different wheel
offset front vs. rear cannot be rotated.
