Instrument Displayoverview
Mercedes-AMGvehicles:be suretoobservethe information inthe Supplement. Otherwise,you mayfailtorecognize dangers.
\nWARNINGRisk of accident duetoaninstrument display malfunction
Ifthe Instrument Display hasfailed or mal‐functioned,you may notrecognize functionrestrictions applyingtosafetyrelevant sys‐tems.
The operating safety ofyourvehicle may beimpaired.
Drive on carefully.
Havethevehiclechecked immediatelyat aqualified specialistworkshop.
Ifthe operating safety ofyourvehicle isimpaired, parkthevehicle safely as soon as pos‐sible. Contact aqualified specialistworkshop.

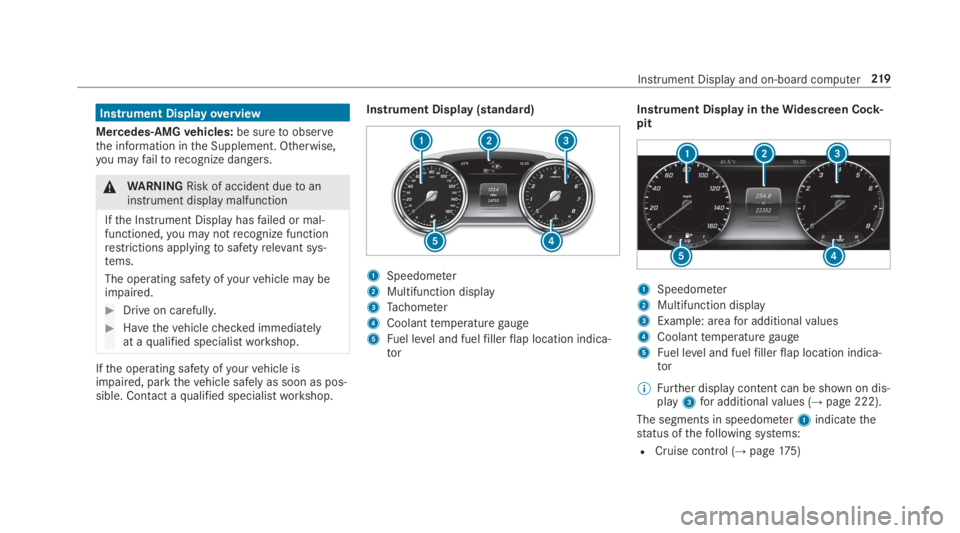

Instrument Display (standard)
1Speedometer
2Multifunction display
3Tachometer
4Coolanttemperaturegauge
5Fuel level and fuelfillerflap location indica‐tor
Instrument Display intheWidescreen Cock‐pit
1Speedometer
2Multifunction display
3Example: areafor additionalvalues
4Coolanttemperaturegauge
5Fuel level and fuelfillerflap location indica‐tor
Further display content can be shown on dis‐play3for additionalvalues (→page 222).
The segments in speedometer1indicatethestatus ofthefollowing systems:
RCruise control (→page175)
Instrument Displayand on-board computer219

RActive Distance AssistDISTRONIC(→page177)
NOTEEngine damageduetoexcessivelyhigh engine speeds
The engine will be damaged ifyou drive withthe engine intheoverrevvingrange.
Do not drive with the engine intheover‐revvingrange.
The fuel supply is interruptedtoprotecttheengine whenthered mark ontachometer3(overrevvingrange) isreached.
During normal operating conditions, coolanttemperature display4mayrisetotheredmark.
\nWARNINGDanger of burns when open‐ingthe hood
Ifyou openthe hood whenthe engine hasoverheated or during afireinthe enginecompartment,you could come into contactwith hotgases orother escaping operatingfluids.
Before openingthe hood, allowtheenginetocool down.
Intheevent of afireinthe engine com‐partment,keepthe hood closed andcallthefireservice.
Vehicles with a 48 V on-board electrical sys‐tem (EQ Boosttechnology)
1POWER showsthe electric drive support
2CHARGE showstherecuperation power ofthe electric motor

vRejects/ends a call
5

Vehicles withoutActive Distance AssistDISTRONIC:pressthe

Thefollowing display content can be selected intheClassicandSportdesigns:
RTachometer
RNavigation
RECO display
RConsumption
RG-Meter
Thefollowing content can be selected inthePro-gressivedesign:
RDate
RNavigation
RECO display
RConsumption
RG-Meter

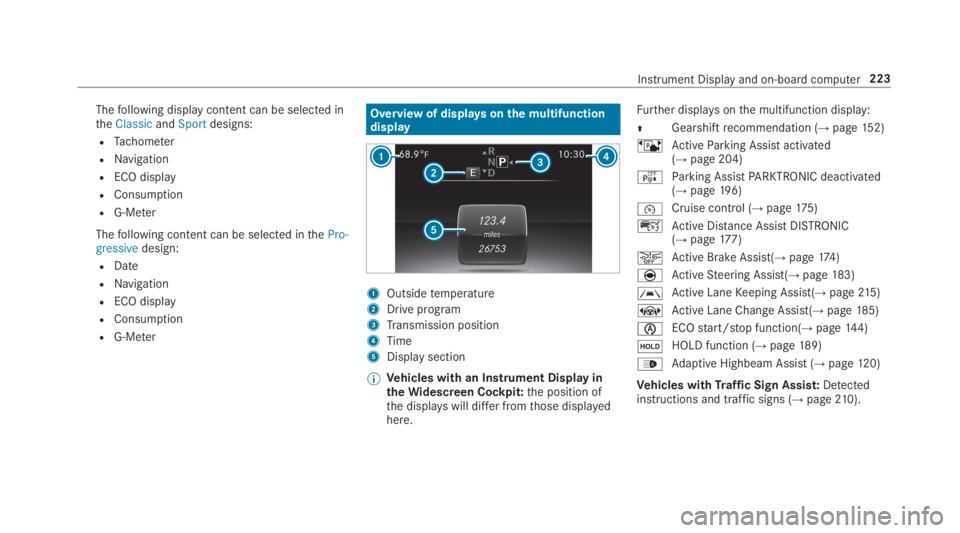

Overview of displaysonthe multifunctiondisplay
1Outsidetemperature
2Drive program
3Transmission position
4Time
5Display section
Vehicles with an Instrument Display intheWidescreen Cockpit:the position ofthe displayswill differ fromthose displayedhere.
Further displaysonthe multifunction display:

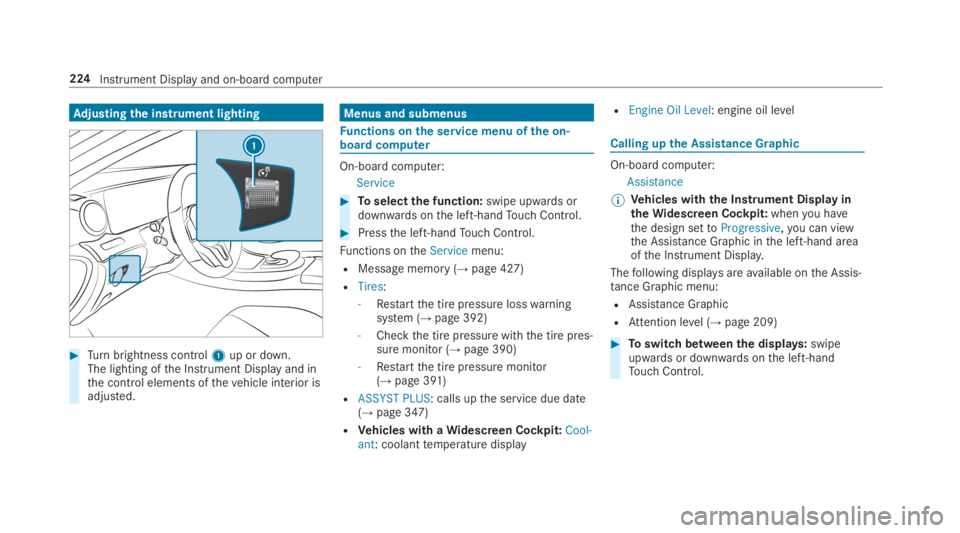

Adjusting the instrument lighting
Turnbrightness control1up or down.The lighting ofthe Instrument Display and inthe control elements ofthevehicle interior isadjusted.
Menus and submenus
Functions onthe service menu ofthe on-board computer
On-board computer:
Service
Toselectthe function:swipe upwards ordownwards onthe left-handTouch Control.
Pressthe left-handTouch Control.
Functions ontheServicemenu:
RMessage memory (→page 427)
RTires:
-Restartthe tire pressure losswarningsystem (→page 392)
-Checkthe tire pressure withthe tire pres‐sure monitor (→page 390)
-Restartthe tire pressure monitor(→page 391)
RASSYST PLUS: calls upthe service due date(→page 347)
RVehicles with aWidescreen Cockpit:Cool-ant: coolanttemperature display
REngine Oil Level: engine oil level
Calling upthe Assistance Graphic
On-board computer:
Assistance
Vehicles withthe Instrument Display intheWidescreen Cockpit:whenyou havethe design settoProgressive,you can viewthe Assistance Graphic inthe left-hand areaofthe Instrument Display.
Thefollowing displaysareavailable onthe Assis‐tance Graphic menu:
RAssistance Graphic
RAttention level (→page 209)
Toswitch betweenthe displays:swipeupwards or downwards onthe left-handTouch Control.
224Instrument Display and on-board computer

Status displaysonthe assistant display:
R

Example:standard display
1Trip distance
2Total distance
Vehicles without a 48 V on-board electricalsystem (EQ Boosttechnology):
Example: trip computer
1Total distance
2Driving time
3Average speed
4Average fuel consumption
Vehicles with a 48 V on-board electrical sys‐tem (EQ Boosttechnology):
Example: trip computer
1Total distance
2Driving time
3Driving time withlow emissions
4Average speed
5Average fuel consumption
6Distance covered with low emissions
226Instrument Display and on-board computer

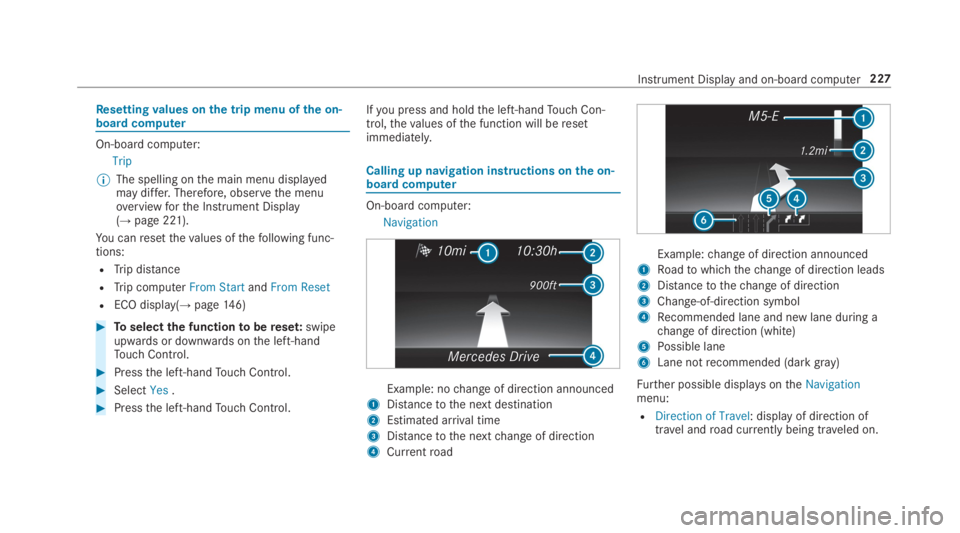

Resettingvalues onthe trip menu ofthe on-board computer
On-board computer:
Trip
The spelling onthe main menu displayedmay differ.Therefore, observethe menuoverviewforthe Instrument Display(→page 221).
You canresetthevalues ofthefollowing func‐tions:
RTrip distance
RTrip computerFrom StartandFrom Reset
RECO display(→page146)
Toselectthe functiontobereset:swipeupwards or downwards onthe left-handTouch Control.
Pressthe left-handTouch Control.
SelectYes.
Pressthe left-handTouch Control.
Ifyou press and holdthe left-handTouch Con‐trol,thevalues ofthe function will beresetimmediately.
Calling up navigation instructions onthe on-board computer
On-board computer:
Navigation
Example: nochange of direction announced
1Distancetothe next destination
2Estimated arrival time
3Distancetothe nextchange of direction
4Currentroad
Example:change of direction announced
1Roadtowhichthechange of direction leads
2Distancetothechange of direction
3Change-of-direction symbol
4Recommended lane and new lane during achange of direction (white)
5Possible lane
6Lane notrecommended (darkgray)
Further possible displaysontheNavigationmenu:
RDirection of Travel: display of direction oftravel androad currently being traveled on.
Instrument Display and on-board computer227

RNew Route...orCalculating Route...: a newroute is calculated.
RRoad Not Mapped:theroad is unknown, e.g.for newly builtroads.
RNo Route: noroute could be calculatedtothe selected destination.
ROff Map:the mapforthe current location isnotavailable.
RArea of Destination Reached:you havereachedthe area of destination.
RK:you havereachedthe destination or anintermediate destination.
Toexitthe menu:pressthe back button onthe left.Vehicles withthe COMAND multimedia sys‐tem:You can alsostart navigationtoone oftherecent destinations ontheNavigationmenu:
Pressthe left-handTouch Control.
Toselect a destination:swipe upwards ordownwards onthe left-handTouch Control.
Pressthe left-handTouch Control.Route guidance isstarted.
Ifroute guidance has already been activated,arequest will appear asking whetheryouwishtoendthe currentroute guidance.
SelectYes.
Pressthe left-handTouch Control.Route guidance isstarted.

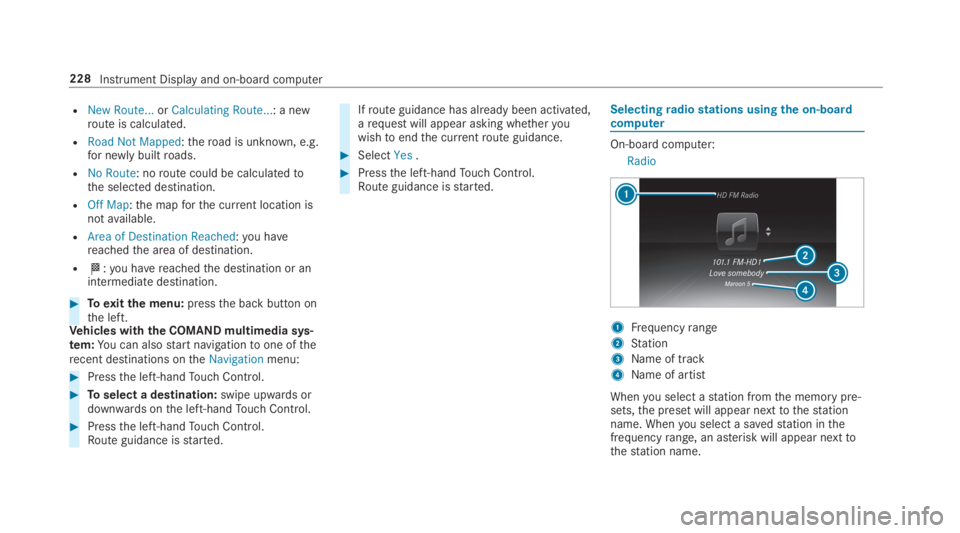

Selectingradiostations usingthe on-boardcomputer
On-board computer:
Radio
1Frequencyrange
2Station
3Name of track
4Name of artist
Whenyou select astation fromthe memory pre‐sets,the preset will appear nexttothestationname. Whenyou select a savedstation inthefrequencyrange, an asterisk will appear nexttothestation name.
