technical data MERCEDES-BENZ E-CLASS CABRIOLET 2012 Owner's Manual

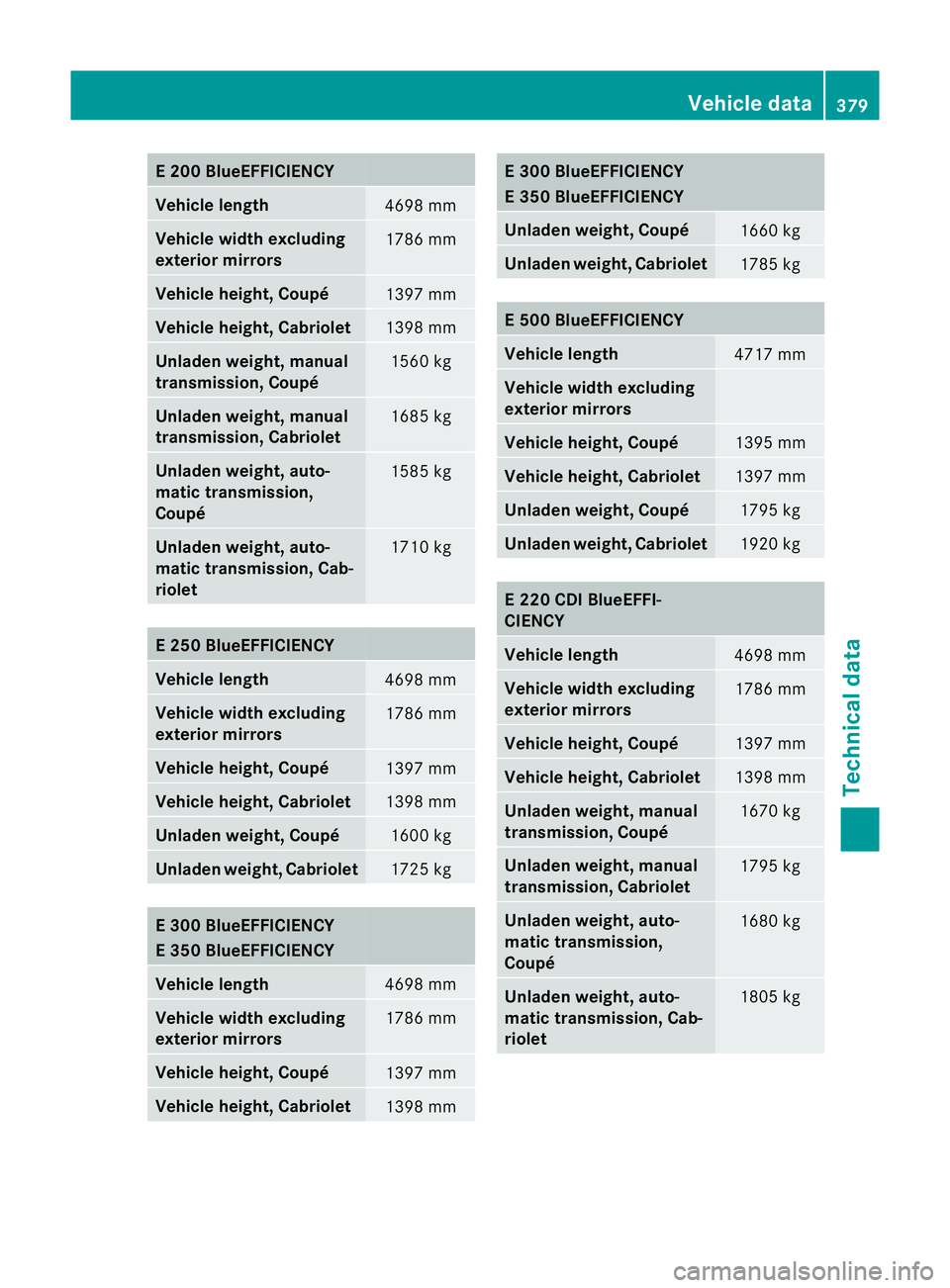

E 200 BlueEFFICIENCY
Vehicle length
4698 mm
Vehicle widt
hexcluding
exterior mirrors 1786 mm
Vehicle height, Coupé
1397 mm
Vehicle height, Cabriolet
1398 mm
Unladen weight, manual
transmission, Coupé
1560 kg
Unladen weight, manual
transmission, Cabriolet
1685 kg
Unladen weight, auto-
matic transmission,
Coupé
1585 kg
Unladen weight, auto-
matic transmission, Cab-
riolet
1710 kg
E 250 BlueEFFICIENCY
Vehicle length
4698 mm
Vehicle width excluding
exterior mirrors
1786 mm
Vehicle height, Coupé
1397 mm
Vehicle height, Cabriolet
1398 mm
Unladen weight, Coupé
1600 kg
Unladen weight, Cabriolet
1725 kg
E 300 BlueEFFICIENCY
E 350 BlueEFFICIENCY
Vehicle length
4698 mm
Vehicle width excluding
exterior mirrors
1786 mm
Vehicle height, Coupé
1397 mm
Vehicle height, Cabriolet
1398 mm E 300 BlueEFFICIENCY
E 350 BlueEFFICIENCY
Unladen weight, Coupé
1660 kg
Unladen weight, Cabriolet
1785 kg
E 500 BlueEFFICIENCY
Vehicle length
4717 mm
Vehicle width excluding
exterior mirrors
Vehicle height, Coupé
1395 mm
Vehicle height, Cabriolet
1397 mm
Unladen weight, Coupé
1795 kg
Unladen weight, Cabriolet
1920 kg
E 220 CDI BlueEFFI-
CIENCY
Vehicle length
4698 mm
Vehicle width excluding
exterior mirrors
1786 mm
Vehicle height, Coupé
1397 mm
Vehicle height, Cabriolet
1398 mm
Unladen weight, manual
transmission, Coupé
1670 kg
Unladen weight, manual
transmission, Cabriolet
1795 kg
Unladen weight, auto-
matic transmission,
Coupé
1680 kg
Unladen weight, auto-
matic transmission, Cab-
riolet
1805 kgVehicle data
379Technical data Z

E 250 CDI BlueEFFI-
CIENCY
Vehicle length
4698 mm
Vehicle widt
hexcluding
exterior mirrors 1786 mm
Vehicle height, Coupé
1397 mm
Vehicle height, Cabriolet
1398 mm
Unladen weight, manual
transmission
1700 kg
Unladen weight, auto-
matic transmission
1825 kg
E 350 CDI BlueEFFI-
CIENCY
Vehicle length
4698 mm
Vehicle width excluding
exterior mirrors
1786 mm
Vehicle height, Coupé
1397 mm
Vehicle height, Cabriolet
1398 mm
Unladen weight, Coupé
1735 kg
Unladen weight, Cabriolet
1865 kg

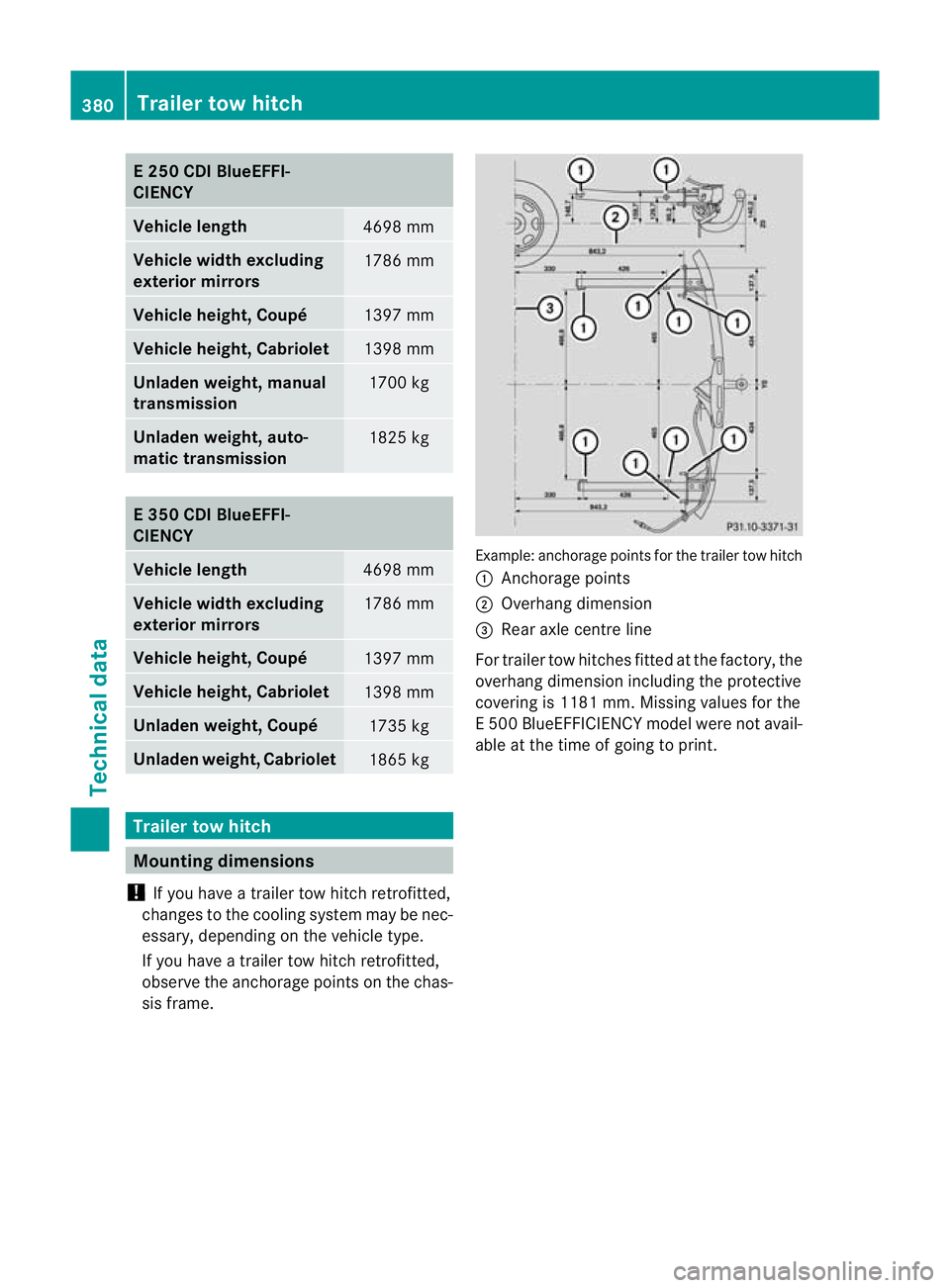

Trailer tow hitch
Mounting dimensions
! If you have a trailer tow hitch retrofitted,
changes to the cooling system may be nec-
essary, depending on the vehicle type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chas-
sis frame. Example: anchorage points for the trailer tow hitch
:
Anchorage points
; Overhang dimension
= Rear axle centre line
For trailer tow hitches fitted at the factory, the
overhang dimension including the protective
covering is 1181 mm. Missing values for the
E5 00 BlueEFFICIENCY model were not avail-
able at the time of going to print. 380
Trailer tow hitchTechnical data

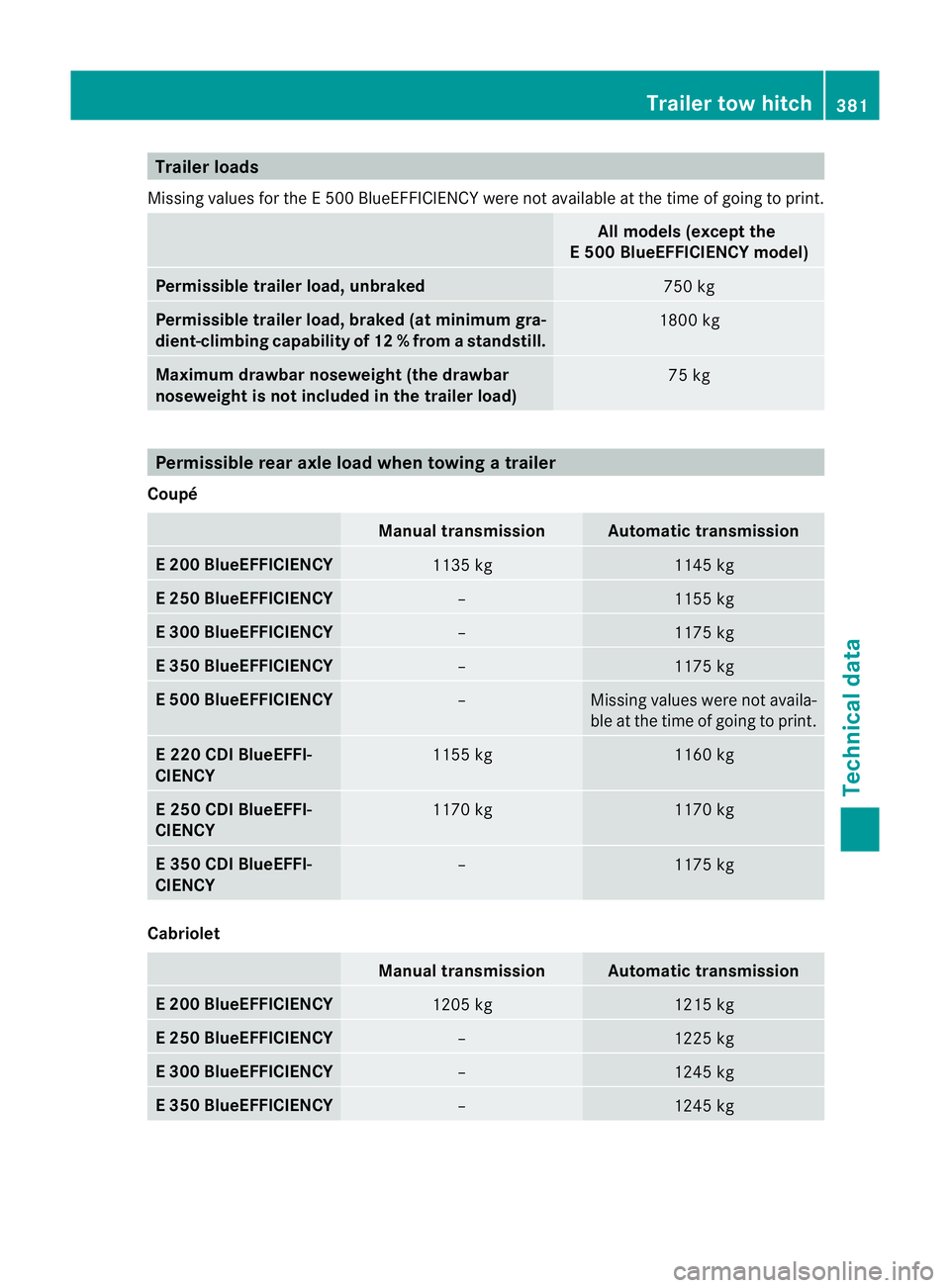

Trailer loads
Missing values for the E500 BlueEFFICIENCY were not available at the time of going to print. All models (except the
E 500 BlueEFFICIENCY model) Permissible trailer load, unbraked
750 kg
Permissible trailer load, braked (at minimum gra-
dient-climbing capability of 12 % from astandstill. 1800 kg
Maximum drawbar noseweight (the drawbar
noseweight is no tincluded in the trailer load) 75 kg
Permissible rear axle load when towing
atrailer
Coupé Manual transmission Automatic transmission
E 200 BlueEFFICIENCY
1135 kg 1145 kg
E 250 BlueEFFICIENCY
– 1155 kg
E 300 BlueEFFICIENCY
– 1175 kg
E 350 BlueEFFICIENCY
– 1175 kg
E 500 BlueEFFICIENCY
– Missing values were not availa-
ble at the time of going to print.
E 220 CDI BlueEFFI-
CIENCY
1155 kg 1160 kg
E 250 CDI BlueEFFI-
CIENCY
1170 kg 1170 kg
E 350 CDI BlueEFFI-
CIENCY
– 1175 kg
Cabriolet
Manual transmission Automatic transmission
E 200 BlueEFFICIENCY
1205 kg 1215 kg
E 250 BlueEFFICIENCY
– 1225 kg
E 300 BlueEFFICIENCY
– 1245 kg
E 350 BlueEFFICIENCY
– 1245 kgTrailer tow hitch
381Technical data Z

Manual transmission Automatic transmission
E 500 BlueEFFICIENCY
– Missing values were not availa-
ble at the time of going to print.
E 220 CDI BlueEFFI-
CIENCY
1225 kg 1230 kg
E 250 CDI BlueEFFI-
CIENCY
1240 kg 1240 kg
E 350 CDI BlueEFFI-
CIENCY
– 1250 kg
24 GHz radar sensor system (country overview)
The 24 GHz rada rsensor system requires separate approval for each country. If you are driving
in a country in which the radar sensor system is not approved, you must deactivate the system
using the on-board computer (Y page 245).
The current country overview can be obtained from a Mercedes-Benz Service Centre or on
the Internet at: http://www.mercedes-benz.de/betriebsanleitung.
Vehicles with anavigation system: the radar sensor system is deactivated automatically
near radio telescope facilities. Adisplay message appears in the multifunction display to tell
you that the radar sensor system is being switched off (Y page 263).
The currently active systems are automatically deactivated:
R DISTRONIC PLUS (Y page 188)
R Blind Spot Assist (Y page 210)
R Active Blind Spot Assist (Y page 214)
R BAS PLUS (Y page 65)
R PRE-SAFE ®
Brake (Y page 69)
If deactivation does not occur automatically, you must deactivate the radar sensor system
using the on-board computer (Y page 245).
Vehicles withou tnavigation and vehicles for Australia: you must deactivate the radar
sensor system using the on-board computer whe nyou are near a radio telescope facility
(Y page 245). 382
24 GHz radar sensor system (country overview)Technical data
