Page 17 of 372
Roadside Assistance (breakdown)
....22
Roll bar Display message
............................ 232
Operation ......................................... 51
Roller sunblind
Panorama roof with power tilt/
sliding panel .................................. 101
Rear window .................................. 275
Roof
Overview .......................................... 89
see Soft top
Roof lining and carpets (cleaning
guidelines) ......................................... 306
Roof load (maximum) ........................367S
Safety Children in the vehicle .....................58
Child restraint systems ....................58
Occupant Classification System
(OCS) ............................................... 46
Safety systems
see Driving safety systems
Seat belts
Adjusting the driver's and front-
passenger seat belt .........................56
Automatic comfort-fit feature .......... 58
Belt force limiters ............................ 57
Cleaning ......................................... 306
Correct usage .................................. 54
Emergency Tensioning Devices ........ 57
Fastening ......................................... 55
Important safety guidelines .............53
Releasing ......................................... 56
Safety guidelines ............................. 40
Switching belt adjustment on/off
(on-board computer) ...................... 227
Warning lamp ................................. 257
Warning lamp (function) ................... 57
Seats

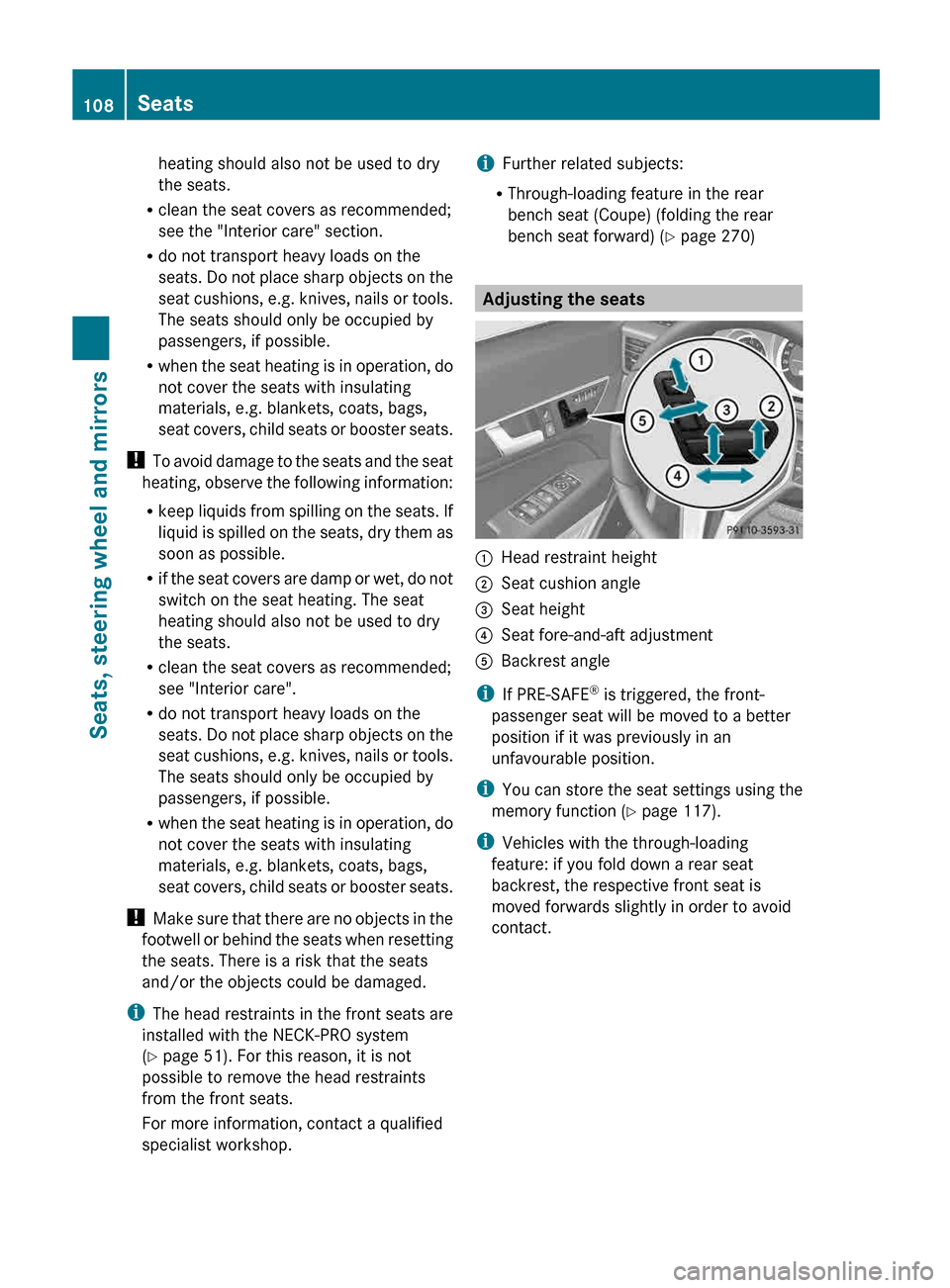

Adjusting (electrically) ...................108

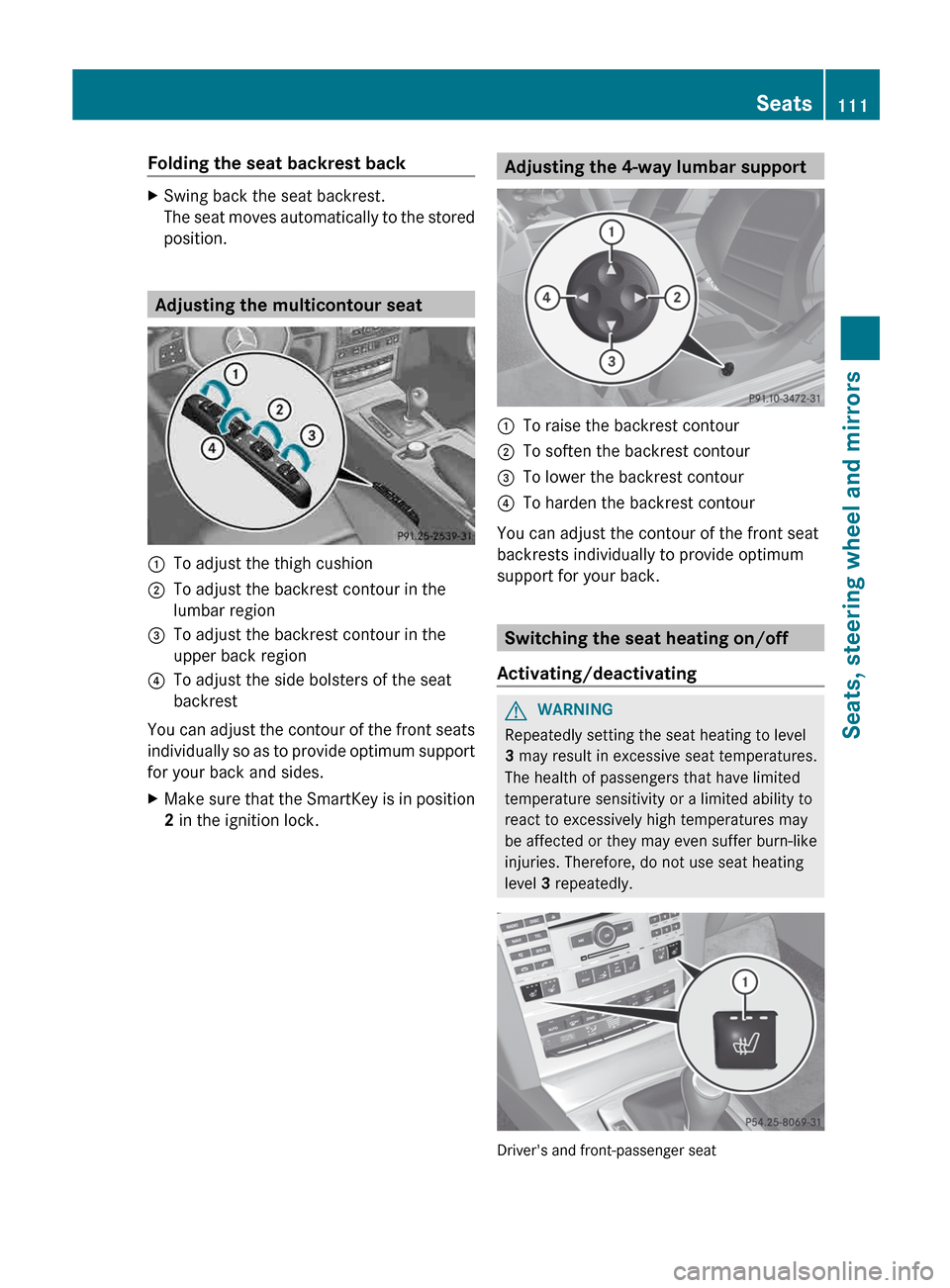

Adjusting the 4-way lumbar
support .......................................... 111

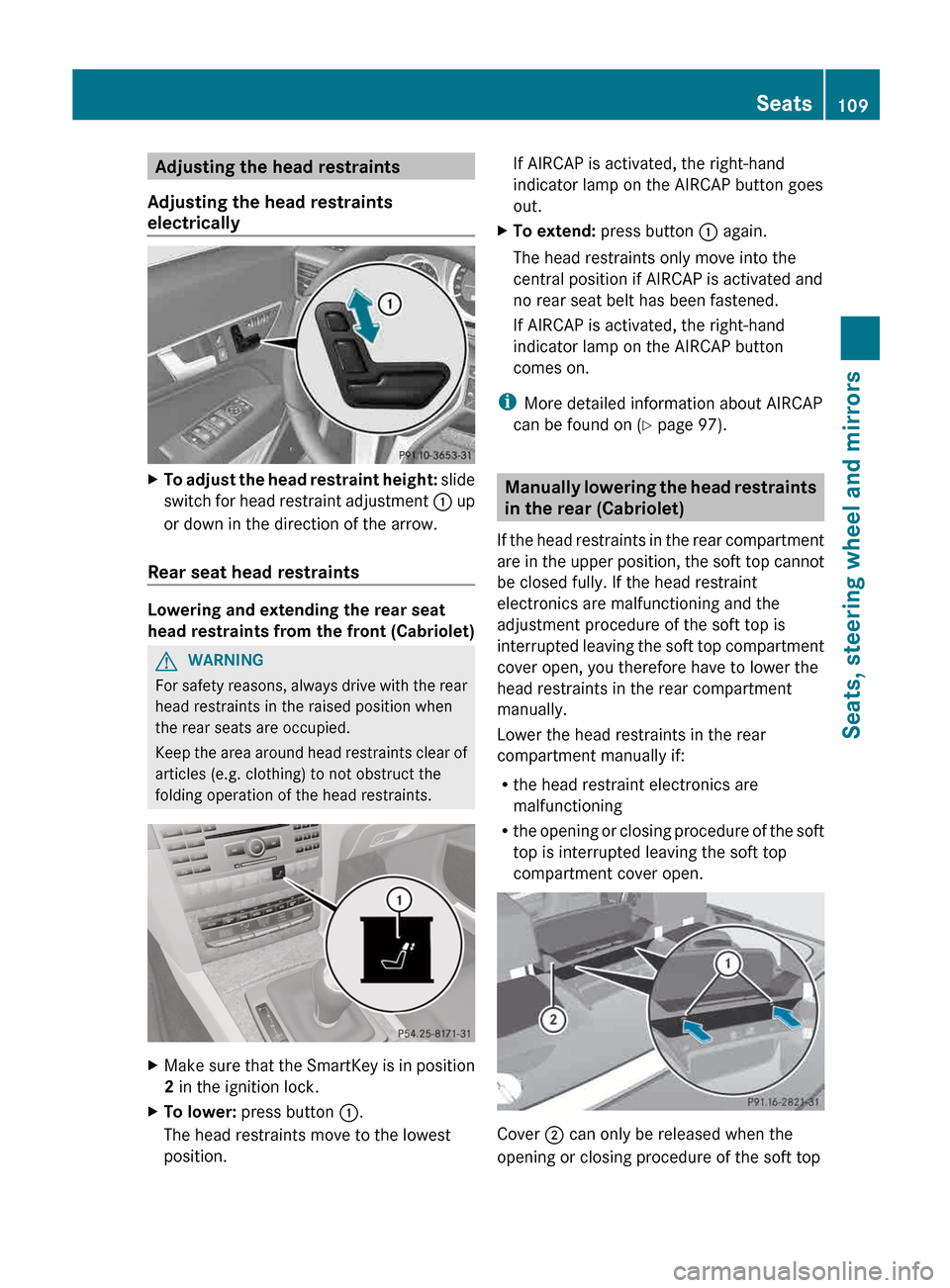

Adjusting the head restraint .......... 109
Cleaning the cover ......................... 306
Correct driver's seat position ........ 106Folding the backrests forward/
back ...............................................
110
Important safety notes .................. 107
Overview ........................................ 107
Seat backrest display message .....253
Seat heating problem .................... 112
Seat ventilation problem ................ 112
Storing settings (memory
function) ........................................ 117
Switching AIRSCARF on/off ..........112
Switching seat heating on/off ....... 111
Switching seat ventilation on/off ..112
Selector lever
Cleaning ......................................... 305
Sensors (cleaning instructions) .......304
Service see ASSYST PLUS
Service menu (on-board computer) . 223
Service products Brake fluid ..................................... 366
Coolant (engine) ............................ 366
Engine oil ....................................... 365
Fuel ................................................ 362
Important safety notes .................. 362
Washer fluid ................................... 367
Service work
see ASSYST PLUS
Settings
Factory (on-board computer) ......... 227
On-board computer ....................... 223
Setting the air distribution ...............142
Setting the airflow ............................ 143
Side impact air bag ............................. 43
Side marker lamp (display
message) ............................................ 238
Side windows Cleaning ......................................... 303
Convenience closing feature ............ 87
Convenience opening feature .......... 86
Important safety information ........... 84
Opening/closing .............................. 85
Opening/closing all (Cabriolet) ........ 85
Problem (malfunction) .....................89
Resetting ......................................... 88
Sliding sunroof
see Panorama roof with power
tilt/sliding panel Index
15
Page 37 of 372
Door control panel
Function Page
:
r45=
Stores
settings for the seat,
exterior mirrors and
steering wheel 117
;
Adjusts the seats
electrically
108
=
%& Unlocks/locks
the vehicle
79
?
Opens the door 79
A
7Zö\
Adjusts and folds the
exterior mirrors in/out
electrically
115 Function Page
B
W Opens/closes the
side windows
85
C
n Activates/
deactivates the override
feature for the side
windows in the rear
compartment
63
D
o Opens the trunk lid
83Door control panel
35
At a glance

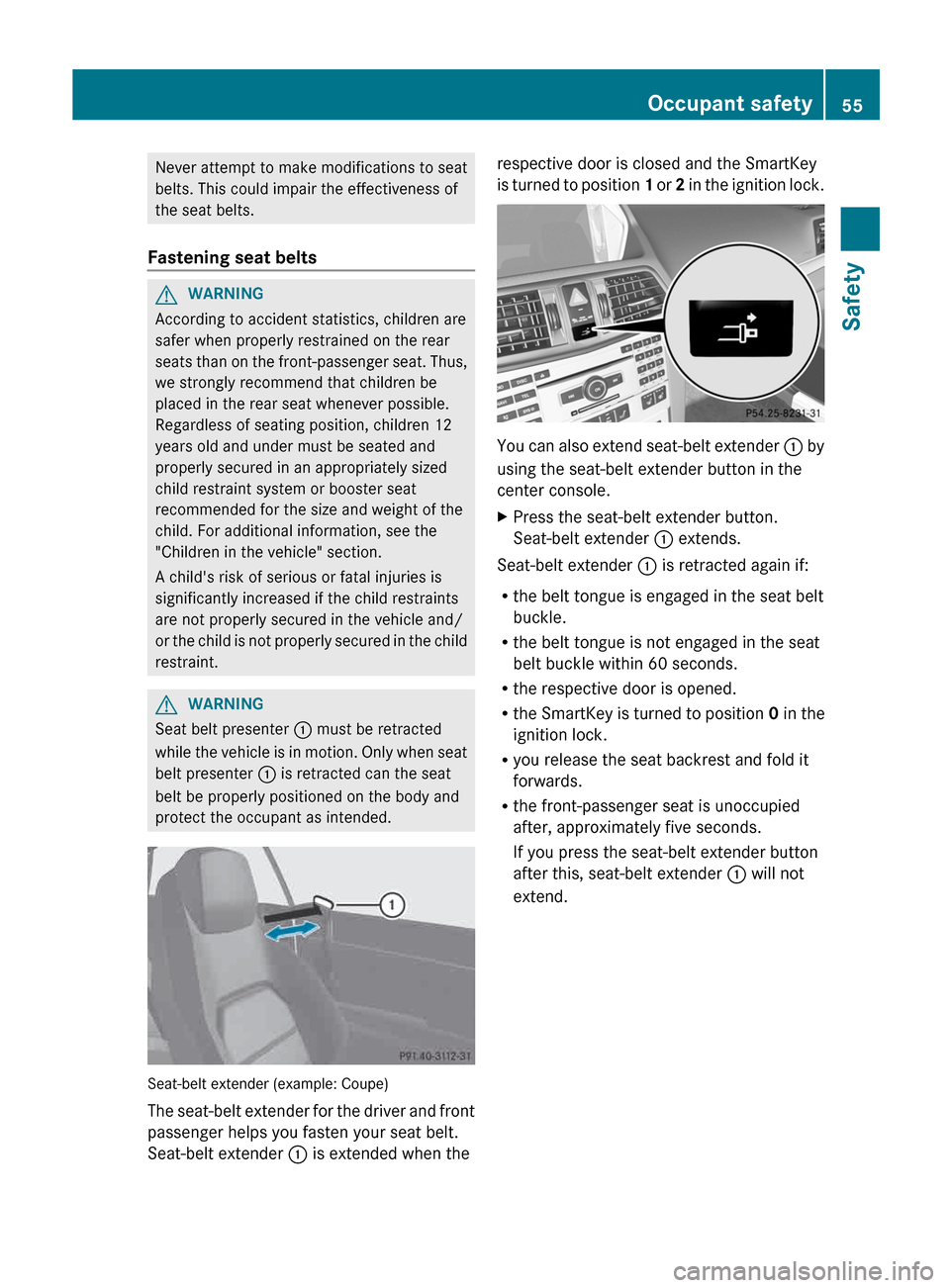

Page 57 of 372
Never attempt to make modifications to seat
belts. This could impair the effectiveness of
the seat belts.
Fastening seat belts G
WARNING
According to accident statistics, children are
safer when properly restrained on the rear
seats
than on the front-passenger seat. Thus,
we strongly recommend that children be
placed in the rear seat whenever possible.
Regardless of seating position, children 12
years old and under must be seated and
properly secured in an appropriately sized
child restraint system or booster seat
recommended for the size and weight of the
child. For additional information, see the
"Children in the vehicle" section.
A child's risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and/
or the child is not properly secured in the child
restraint. G
WARNING
Seat belt presenter : must be retracted
while
the vehicle is in motion. Only when seat
belt presenter : is retracted can the seat
belt be properly positioned on the body and
protect the occupant as intended. Seat-belt extender (example: Coupe)
The
seat-belt extender for the driver and front
passenger helps you fasten your seat belt.
Seat-belt extender : is extended when the respective door is closed and the SmartKey
is
turned to position 1 or 2 in the ignition lock. You can also extend seat-belt extender
:
by
using the seat-belt extender button in the
center console.
X Press the seat-belt extender button.
Seat-belt extender : extends.
Seat-belt extender : is retracted again if:
R the belt tongue is engaged in the seat belt
buckle.
R the belt tongue is not engaged in the seat
belt buckle within 60 seconds.
R the respective door is opened.
R the
SmartKey is turned to position 0 in the
ignition lock.
R you release the seat backrest and fold it
forwards.
R the front-passenger seat is unoccupied
after, approximately five seconds.
If you press the seat-belt extender button
after this, seat-belt extender : will not
extend. Occupant safety
55
Safety Z

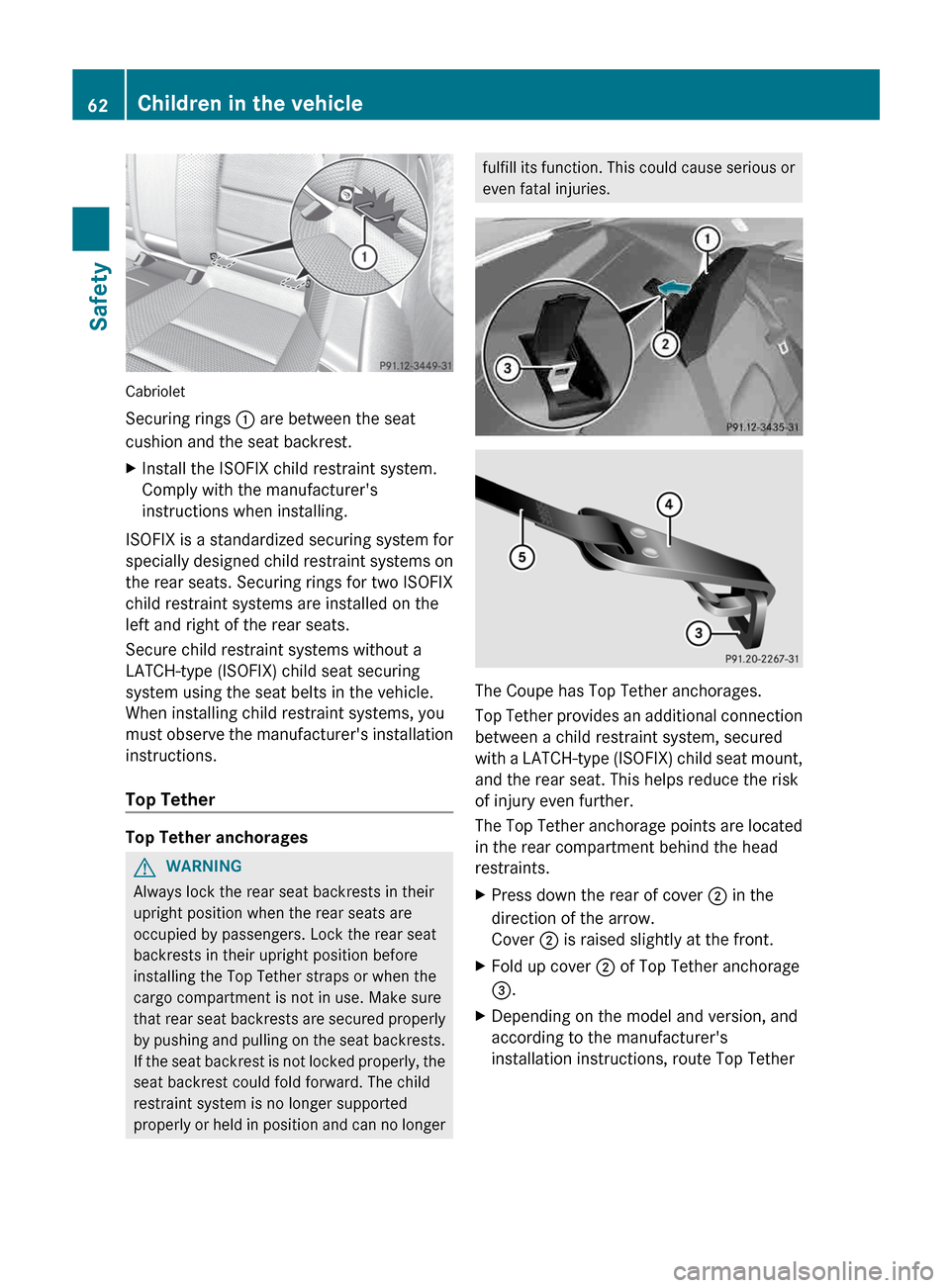

Page 64 of 372
Cabriolet
Securing rings : are between the seat
cushion and the seat backrest.
X
Install the ISOFIX child restraint system.
Comply with the manufacturer's
instructions when installing.
ISOFIX is a standardized securing system for
specially designed child restraint systems on
the rear seats. Securing rings for two ISOFIX
child restraint systems are installed on the
left and right of the rear seats.
Secure child restraint systems without a
LATCH-type (ISOFIX) child seat securing
system using the seat belts in the vehicle.
When installing child restraint systems, you
must observe the manufacturer's installation
instructions.
Top Tether Top Tether anchorages
G
WARNING
Always lock the rear seat backrests in their
upright position when the rear seats are
occupied by passengers. Lock the rear seat
backrests in their upright position before
installing the Top Tether straps or when the
cargo compartment is not in use. Make sure
that
rear seat backrests are secured properly
by pushing and pulling on the seat backrests.
If the seat backrest is not locked properly, the
seat backrest could fold forward. The child
restraint system is no longer supported
properly or held in position and can no longer fulfill its function. This could cause serious or
even fatal injuries.
The Coupe has Top Tether anchorages.
Top
Tether provides an additional connection
between a child restraint system, secured
with a LATCH-type (ISOFIX) child seat mount,
and the rear seat. This helps reduce the risk
of injury even further.
The Top Tether anchorage points are located
in the rear compartment behind the head
restraints.
X Press down the rear of cover ; in the
direction of the arrow.
Cover ; is raised slightly at the front.
X Fold up cover ; of Top Tether anchorage
=.
X Depending on the model and version, and
according to the manufacturer's
installation instructions, route Top Tether62
Children in the vehicle
Safety

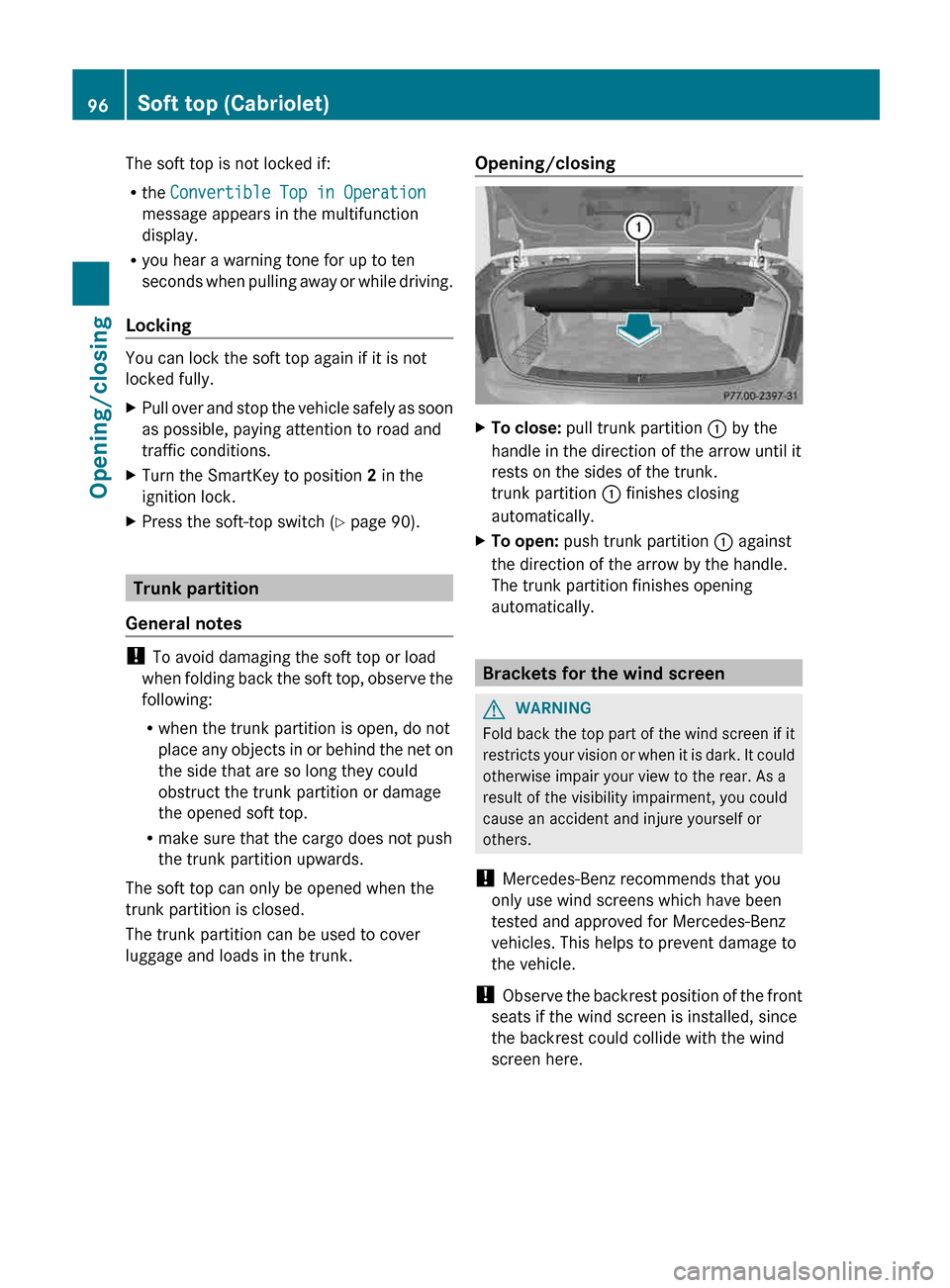

Page 98 of 372
The soft top is not locked if:
R
the Convertible Top in Operation
message appears in the multifunction
display.
R you hear a warning tone for up to ten
seconds
when pulling away or while driving.
Locking You can lock the soft top again if it is not
locked fully.
X
Pull over and stop the vehicle safely as soon
as possible, paying attention to road and
traffic conditions.
X Turn the SmartKey to position 2 in the
ignition lock.
X Press the soft-top switch (Y page 90). Trunk partition
General notes !
To avoid damaging the soft top or load
when
folding back the soft top, observe the
following:
R when the trunk partition is open, do not
place any objects in or behind the net on
the side that are so long they could
obstruct the trunk partition or damage
the opened soft top.
R make sure that the cargo does not push
the trunk partition upwards.
The soft top can only be opened when the
trunk partition is closed.
The trunk partition can be used to cover
luggage and loads in the trunk. Opening/closing
X
To close: pull trunk partition : by the
handle in the direction of the arrow until it
rests on the sides of the trunk.
trunk partition : finishes closing
automatically.
X To open: push trunk partition : against
the direction of the arrow by the handle.
The trunk partition finishes opening
automatically. Brackets for the wind screen
G
WARNING
Fold back the top part of the wind screen if it
restricts
your vision or when it is dark. It could
otherwise impair your view to the rear. As a
result of the visibility impairment, you could
cause an accident and injure yourself or
others.
! Mercedes-Benz recommends that you
only use wind screens which have been
tested and approved for Mercedes-Benz
vehicles. This helps to prevent damage to
the vehicle.
! Observe the backrest position of the front
seats if the wind screen is installed, since
the backrest could collide with the wind
screen here. 96
Soft top (Cabriolet)
Opening/closing

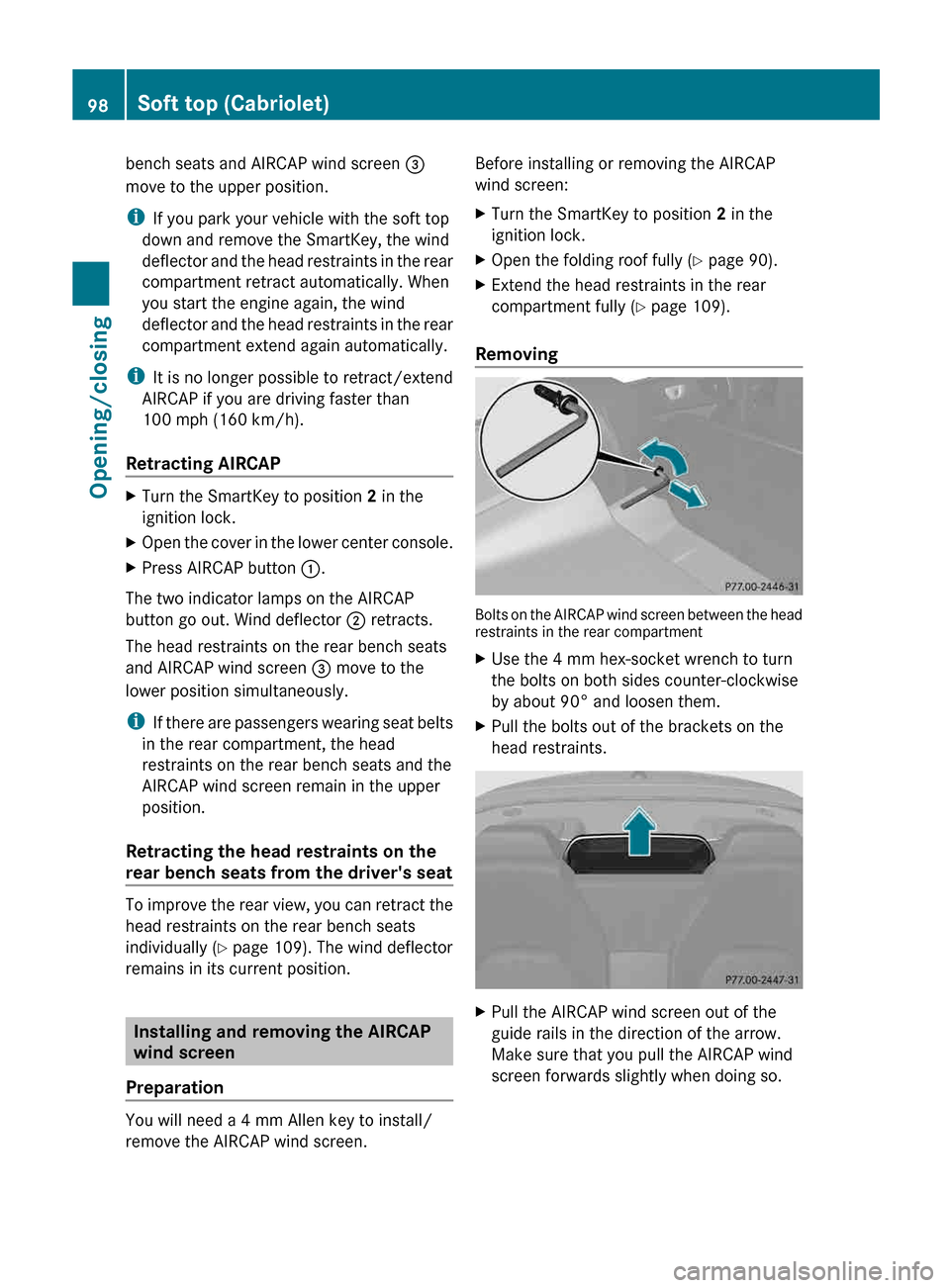

Page 100 of 372
bench seats and AIRCAP wind screen =
move to the upper position.
i
If you park your vehicle with the soft top
down and remove the SmartKey, the wind
deflector
and the head restraints in the rear
compartment retract automatically. When
you start the engine again, the wind
deflector and the head restraints in the rear
compartment extend again automatically.
i It is no longer possible to retract/extend
AIRCAP if you are driving faster than
100 mph (160 km/h).
Retracting AIRCAP X
Turn the SmartKey to position 2 in the
ignition lock.
X Open the cover in the lower center console.
X Press AIRCAP button :.
The two indicator lamps on the AIRCAP
button go out. Wind deflector ; retracts.
The head restraints on the rear bench seats
and AIRCAP wind screen = move to the
lower position simultaneously.
i If
there are passengers wearing seat belts
in the rear compartment, the head
restraints on the rear bench seats and the
AIRCAP wind screen remain in the upper
position.
Retracting the head restraints on the
rear bench seats from the driver's seat To improve the rear view, you can retract the
head restraints on the rear bench seats
individually
(Y page 109). The wind deflector
remains in its current position. Installing and removing the AIRCAP
wind screen
Preparation You will need a 4 mm Allen key to install/
remove the AIRCAP wind screen. Before installing or removing the AIRCAP
wind screen:
X
Turn the SmartKey to position 2 in the
ignition lock.
X Open the folding roof fully ( Y page 90).
X Extend the head restraints in the rear
compartment fully (Y page 109).
Removing Bolts on the AIRCAP wind screen between the head
restraints in the rear compartment
X
Use the 4 mm hex-socket wrench to turn
the bolts on both sides counter-clockwise
by about 90° and loosen them.
X Pull the bolts out of the brackets on the
head restraints. X
Pull the AIRCAP wind screen out of the
guide rails in the direction of the arrow.
Make sure that you pull the AIRCAP wind
screen forwards slightly when doing so.98
Soft top (Cabriolet)
Opening/closing
Page 110 of 372
heating should also not be used to dry
the seats.
R clean the seat covers as recommended;
see the "Interior care" section.
R do not transport heavy loads on the
seats.
Do not place sharp objects on the
seat cushions, e.g. knives, nails or tools.
The seats should only be occupied by
passengers, if possible.
R when the seat heating is in operation, do
not cover the seats with insulating
materials, e.g. blankets, coats, bags,
seat covers, child seats or booster seats.
! To avoid damage to the seats and the seat
heating, observe the following information:
R keep liquids from spilling on the seats. If
liquid is spilled on the seats, dry them as
soon as possible.
R if the seat covers are damp or wet, do not
switch on the seat heating. The seat
heating should also not be used to dry
the seats.
R clean the seat covers as recommended;
see "Interior care".
R do not transport heavy loads on the
seats. Do not place sharp objects on the
seat cushions, e.g. knives, nails or tools.
The seats should only be occupied by
passengers, if possible.
R when the seat heating is in operation, do
not cover the seats with insulating
materials, e.g. blankets, coats, bags,
seat covers, child seats or booster seats.
! Make sure that there are no objects in the
footwell or behind the seats when resetting
the seats. There is a risk that the seats
and/or the objects could be damaged.
i The head restraints in the front seats are
installed with the NECK-PRO system
(Y page 51). For this reason, it is not
possible to remove the head restraints
from the front seats.
For more information, contact a qualified
specialist workshop. i
Further related subjects:
R Through-loading feature in the rear
bench seat (Coupe) (folding the rear
bench seat forward) ( Y page 270) Adjusting the seats
:
Head restraint height
; Seat cushion angle
= Seat height
? Seat fore-and-aft adjustment
A Backrest angle
i If PRE-SAFE ®
is triggered, the front-
passenger seat will be moved to a better
position if it was previously in an
unfavourable position.
i You can store the seat settings using the
memory function ( Y page 117).
i Vehicles with the through-loading
feature: if you fold down a rear seat
backrest, the respective front seat is
moved forwards slightly in order to avoid
contact. 108
Seats
Seats, steering wheel and mirrors
Page 111 of 372
Adjusting the head restraints
Adjusting the head restraints
electrically X
To adjust the head restraint height: slide
switch for head restraint adjustment : up
or down in the direction of the arrow.
Rear seat head restraints Lowering and extending the rear seat
head restraints from the front (Cabriolet)
G
WARNING
For safety reasons, always drive with the rear
head restraints in the raised position when
the rear seats are occupied.
Keep
the area around head restraints clear of
articles (e.g. clothing) to not obstruct the
folding operation of the head restraints. X
Make sure that the SmartKey is in position
2 in the ignition lock.
X To lower: press button :.
The head restraints move to the lowest
position. If AIRCAP is activated, the right-hand
indicator lamp on the AIRCAP button goes
out.
X To extend: press button : again.
The head restraints only move into the
central position if AIRCAP is activated and
no rear seat belt has been fastened.
If AIRCAP is activated, the right-hand
indicator lamp on the AIRCAP button
comes on.
i More detailed information about AIRCAP
can be found on (Y page 97). Manually lowering the head restraints
in the rear (Cabriolet)
If
the head restraints in the rear compartment
are in the upper position, the soft top cannot
be closed fully. If the head restraint
electronics are malfunctioning and the
adjustment procedure of the soft top is
interrupted leaving the soft top compartment
cover open, you therefore have to lower the
head restraints in the rear compartment
manually.
Lower the head restraints in the rear
compartment manually if:
R the head restraint electronics are
malfunctioning
R the opening or closing procedure of the soft
top is interrupted leaving the soft top
compartment cover open. Cover ; can only be released when the
opening or closing procedure of the soft top Seats
109
Seats, steering wheel and mirrors Z
Page 112 of 372
is interrupted leaving the soft top
compartment cover open.
X
Push the mechanical key into two
openings : between the head restraints
until cover ; releases.
X Take off cover ;. X
Turn thumbwheel : in the direction of the
front seat to lower the head restraints. Folding the front-seat backrests
forward/back
Important safety notes G
WARNING
The seat belts can only provide protection if
the seat backrest is locked in the upright
position.
The seat backrest must therefore be
locked in the upright position during the
journey. Do not drive the vehicle if the seat
backrest is not locked in the upright position.
If the
Lock Seat Backrest Front Right
or
Lock Seat Backrest Front Left
warning message is displayed in the
multifunction display, then the corresponding
seat backrest is not locked. Carefully slow
down and drive with caution to an area which
is a safe distance from the road. Always
ensure that there is sufficient space behind
the seat backrest and fold the seat backrest
back fully until it engages in the locking
mechanism. The warning message is no longer displayed
once
the seat backrest engages in the locking
mechanism. If both seat backrests are locked
and the warning message continues to be
displayed, have the system checked by a
Mercedes-Benz Center without delay. G
WARNING
Always ensure that no-one can become
trapped or injured by the movement of the
seat.
In a potentially hazardous situation, the
procedure can be interrupted by moving the
seat adjustment switch in the door control
panel or by operating one of the position
buttons of the Memory function.
Folding the seat backrest forward Example: Coupe
The seat moves forwards if you have folded
the backrest forwards and the seat is in the
rear
half of the range. This makes it easier for
passengers to get into and out of the rear
compartment. The head restraint is lowered
simultaneously.
X Pull seat release handle : forwards and
fold the backrest forwards as far as it will
go.
The seat automatically moves to the
foremost
position and the head restraint is
lowered. 110
Seats
Seats, steering wheel and mirrors
Page 113 of 372
Folding the seat backrest back
X
Swing back the seat backrest.
The
seat moves automatically to the stored
position. Adjusting the multicontour seat
:
To adjust the thigh cushion
; To adjust the backrest contour in the
lumbar region
= To adjust the backrest contour in the
upper back region
? To adjust the side bolsters of the seat
backrest
You can adjust the contour of the front seats
individually
so as to provide optimum support
for your back and sides.
X Make sure that the SmartKey is in position
2 in the ignition lock. Adjusting the 4-way lumbar support
:
To raise the backrest contour
; To soften the backrest contour
= To lower the backrest contour
? To harden the backrest contour
You can adjust the contour of the front seat
backrests individually to provide optimum
support for your back. Switching the seat heating on/off
Activating/deactivating G
WARNING
Repeatedly setting the seat heating to level
3 may result in excessive seat temperatures.
The health of passengers that have limited
temperature sensitivity or a limited ability to
react to excessively high temperatures may
be affected or they may even suffer burn-like
injuries. Therefore, do not use seat heating
level 3 repeatedly. Driver's and front-passenger seat Seats
111Seats, steering wheel and mirrors Z
