12 V socket see Sockets
4ETS
see ETS/4ETS (Electronic
Traction System)
4MATIC (permanent four-wheel
drive) .................................................. 191
4MATIC off-road system ................... 191A
ABS (Anti-lock Braking System) Display message
............................ 229
Function/notes ................................ 64
Important safety notes .................... 64
Warning lamp ................................. 258
Activating/deactivating cooling
with air dehumidification ................. 140
Active Blind Spot Assist Activating/deactivating (on-
board computer) ............................ 223
Display message ............................ 244
Function/information .................... 204
Active Driving Assistance package . 204
Active Lane Keeping Assist Activating/deactivating (on-
board computer) ............................ 223
Display message ............................ 243
Function/information .................... 208
Active light function .........................126
Active Service System see ASSYST PLUS
ADAPTIVE BRAKE ................................. 67
Adaptive Highbeam Assist Display message ............................ 239
Function/notes ............................. 126
Switching on/off (on-board
computer) ...................................... 224
Additives (engine oil) ........................365
Air bags Display message ............................ 235
Front air bag (driver, front
passenger) ....................................... 42
Head bag ......................................... 45
Important safety notes .................... 41
Knee bag .......................................... 43 PASSENGER AIR BAG OFF
indicator lamp
.................................. 46
Pelvis air bag
................................... 45
Safety guidelines ............................. 40
Side impact air bag .......................... 43
Window curtain air bag ....................46
AIRCAP
Cleaning instructions ..................... 302
Extending/retracting .......................97
Important safety notes .................... 97
Installing/removing the wind
screen .............................................. 98
Air-conditioning system
see Climate control
AIRSCARF
Setting the vents ........................... 147
Switching on/off ........................... 112
Air vents
Glove box ....................................... 146
Important safety notes .................. 146
Rear ............................................... 147
Setting ........................................... 146
Setting the AIRSCARF vents ..........147
Setting the center air vents ...........146
Setting the side air vents ............... 146
Switching AIRSCARF on/off ..........112
Alarm system
see ATA (Anti-Theft Alarm system)
Anti-lock braking system
see ABS (Anti-lock Braking System)
Anti-theft alarm system
see ATA (Anti-Theft Alarm system)
Ashtray ............................................... 275
Assistance menu (on-board
computer) .......................................... 221
ASSYST PLUS Displaying a service message ........ 298
Hiding a service message .............. 298
Notes ............................................. 298
Resetting the service interval
display ........................................... 298
Service message ............................ 298
Special service requirements ......... 298
ATA (Anti-Theft Alarm system)
Activating/deactivating ................... 70
Function ........................................... 70
Switching off the alarm .................... 704
Index
Page 10 of 372
Setting the specified minimum
distance .........................................
184
Warning lamp .................................
264
Doors
Automatic locking (on-board
computer) ...................................... 225
Automatic locking (switch) ............... 80
Central locking/unlocking
(SmartKey) ....................................... 73
Control panel ................................... 35
Display message ............................ 252
Emergency locking ........................... 81
Emergency unlocking .......................80
Important safety notes .................... 79
Opening (from inside) ......................79
Draft stop ............................................. 96
Drinking and driving .........................169
Drinks holder see Cup holder
Drive program
Automatic ...................................... 161
Display ........................................... 158
Manual ........................................... 162
Driver's door
see Doors
Driving abroad
Mercedes-Benz Service .................299
Symmetrical low beam .................. 120
Driving on flooded roads ..................173
Driving safety systems ABS (Anti-lock Braking System) ....... 64
ADAPTIVE BRAKE ............................. 67
BAS (Brake Assist System) ..............64
BAS PLUS (Brake Assist System
PLUS) ............................................... 65
Electronic brake force distribution ... 67
ESP ®
(Electronic Stability
Program) .......................................... 66
ETS/4ETS (Electronic Traction
System) ........................................... 66
Important safety information ........... 64
Overview .......................................... 63
PRE-SAFE ®
Brake ............................. 67
Driving systems
Active Blind Spot Assist ................. 204
Active Driving Assistance
package ......................................... 204Active Lane Keeping Assist ............
207
ATTENTION ASSIST ........................199
Blind Spot Assist ............................ 200
Cruise control ................................ 174
Display message ............................ 242
DISTRONIC PLUS ........................... 177
Dynamic handling package with
sports mode .................................. 190
HOLD function ............................... 189
Lane Keeping Assist ...................... 202
Lane Tracking package .................. 200
Parking Guidance ........................... 194
PARKTRONIC ................................. 191
Rear view camera .......................... 197
Driving tips
Automatic transmission ................. 160
Brakes ........................................... 171
Break-in period .............................. 150
Downhill gradient ........................... 171
Drinking and driving .......................169
Driving abroad ............................... 120
Driving in winter ............................. 173
Driving on flooded roads ................173
Driving on wet roads ...................... 173
Exhaust check ............................... 170
Fuel ................................................ 169
General .......................................... 169
Hydroplaning ................................. 173
Icy road surfaces ........................... 174
Limited braking efficiency on
salted roads ................................... 172
Pedals ............................................ 169
Snow chains .................................. 325
Symmetrical low beam .................. 120
Wet road surface ........................... 172
Drowsiness detection assistance
system
see ATTENTION ASSIST
DVD audio
Operating (on-board computer) ..... 219
DVD video
Operating (on-board computer) ..... 220
Dynamic handling package with
sports mode ....................................... 1908
Index
Page 13 of 372
Hood
Closing ........................................... 295
Display message ............................ 252
Opening ......................................... 294
Hydroplaning ..................................... 173I
Ignition lock see Key positions
Immobilizer .......................................... 70
Indicator lamps see Warning and indicator lamps
Instrument cluster
Overview .................................. 29, 213
Settings ......................................... 224
Warning and indicator
lamps ....................................... 30, 256
Instrument cluster lighting .............. 213
Interior lighting ................................. 128
Automatic control .......................... 128
Delayed switch-off (on-board
computer) ...................................... 225
Emergency lighting ........................ 129
Manual control ............................... 129
Overview ........................................ 128
Reading lamp ................................. 128J
Jack Storage location ............................ 308
Using ............................................. 346
Jump starting (engine) ...................... 313K
KEYLESS-GO Convenience closing feature ............ 87
Display message
............................ 254
Locking ............................................ 73
Start/Stop button .......................... 151
Starting the engine ........................ 153
Unlocking ......................................... 73
Key positions
KEYLESS-GO .................................. 151
SmartKey ....................................... 151Kickdown
Driving tips .................................... 160
Manual drive program
.................... 162
Knee bag .............................................. 43 L
Lamps see Warning and indicator lamps
Lane Keeping Assist
Activating/deactivating ................. 223
Display message ............................ 243
Function/information .................... 202
Lane Tracking package .....................200
LATCH-type (ISOFIX) child seat
anchors ................................................ 61
License plate lamp (display
message) ............................................ 237
Light function, active Display message ............................ 238
Lights
Activating/deactivating the
interior lighting delayed switch-off . 225
Active light function .......................126
Automatic headlamp mode ............ 121
Cornering light function .................126
Driving abroad ............................... 120
Fog lamps ...................................... 122
Hazard warning lamps ................... 125
High beam flasher .......................... 125
High-beam headlamps ...................124
Light switch ................................... 120
Low-beam headlamps .................... 122
Parking lamps ................................ 123
Rear fog lamp ................................ 123
Standing lamps .............................. 124
Switching Adaptive Highbeam
Assist on/off ................................. 224
Switching the daytime running
lamps on/off (on-board
computer) ...................................... 224
Switching the exterior lighting
delayed switch-off on/off (on-
board computer) ............................ 225 Index
11

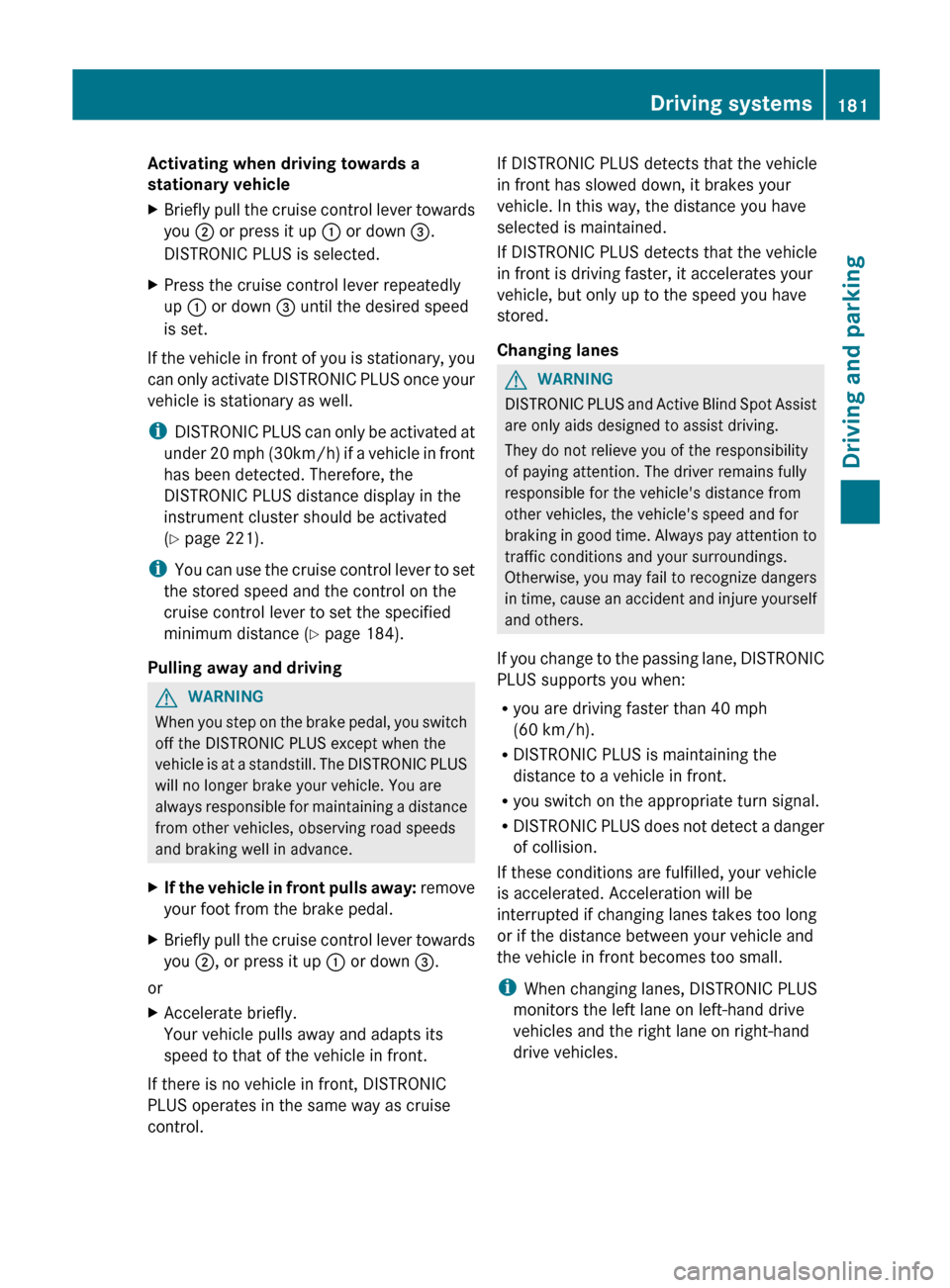

Page 183 of 372
Activating when driving towards a
stationary vehicle
X
Briefly pull the cruise control lever towards
you ; or press it up : or down =.
DISTRONIC PLUS is selected.
X Press the cruise control lever repeatedly
up : or down = until the desired speed
is set.
If the vehicle in front of you is stationary, you
can only activate DISTRONIC PLUS once your
vehicle is stationary as well.
i DISTRONIC PLUS can only be activated at
under 20 mph (30km/h) if a vehicle in front
has been detected. Therefore, the
DISTRONIC PLUS distance display in the
instrument cluster should be activated
(Y page 221).
i You can use the cruise control lever to set
the stored speed and the control on the
cruise control lever to set the specified
minimum distance (Y page 184).
Pulling away and driving G
WARNING
When you step on the brake pedal, you switch
off the DISTRONIC PLUS except when the
vehicle
is at a standstill. The DISTRONIC PLUS
will no longer brake your vehicle. You are
always responsible for maintaining a distance
from other vehicles, observing road speeds
and braking well in advance.
X If the vehicle in front pulls away:
remove
your foot from the brake pedal.
X Briefly pull the cruise control lever towards
you ;, or press it up : or down =.
or
X Accelerate briefly.
Your vehicle pulls away and adapts its
speed to that of the vehicle in front.
If there is no vehicle in front, DISTRONIC
PLUS operates in the same way as cruise
control. If DISTRONIC PLUS detects that the vehicle
in front has slowed down, it brakes your
vehicle. In this way, the distance you have
selected is maintained.
If DISTRONIC PLUS detects that the vehicle
in front is driving faster, it accelerates your
vehicle, but only up to the speed you have
stored.
Changing lanes
G
WARNING
DISTRONIC PLUS and Active Blind Spot Assist
are only aids designed to assist driving.
They do not relieve you of the responsibility
of paying attention. The driver remains fully
responsible for the vehicle's distance from
other vehicles, the vehicle's speed and for
braking
in good time. Always pay attention to
traffic conditions and your surroundings.
Otherwise, you may fail to recognize dangers
in time, cause an accident and injure yourself
and others.
If you change to the passing lane, DISTRONIC
PLUS supports you when:
R you are driving faster than 40 mph
(60 km/h).
R DISTRONIC PLUS is maintaining the
distance to a vehicle in front.
R you switch on the appropriate turn signal.
R DISTRONIC PLUS does not detect a danger
of collision.
If these conditions are fulfilled, your vehicle
is accelerated. Acceleration will be
interrupted if changing lanes takes too long
or if the distance between your vehicle and
the vehicle in front becomes too small.
i When changing lanes, DISTRONIC PLUS
monitors the left lane on left-hand drive
vehicles and the right lane on right-hand
drive vehicles. Driving systems
181
Driving and parking Z
Page 201 of 372
the distance, which increases the risk of
impacting the objects.
Even
if the object you approach is directly on
the ground, do not approach the object any
closer than the red guide line. Example: information in the COMAND display
Guide
lines ; and = show the approximate
distance to the rear area. Yellow guide
line ; indicates a distance of approximately
3 ft (1 m) and red guide line = indicates a
distance of approximately 10 in (0.25 m). The
distances only apply to objects that are at
ground level. Blue guide lines : depict the
width required for the vehicle. They are used
to align the vehicle with the edge of the road,
e.g. the curb. ATTENTION ASSIST
Important safety notes G
WARNING
ATTENTION ASSIST is only an aid and may
detect your tiredness or lapses in
concentration too late or not at all. It is not a
substitute for a well-rested and attentive
driver.
Fatigue may cause you to recognize
hazardous situations too late, misjudge a
situation or react more slowly. For this
reason,
make sure you feel rested before you
begin driving and during your journey. Make
sure that you take regular breaks in time,
particularly on long journeys. Otherwise, you may fail to recognize dangers in time, cause
an accident and injure yourself and others.
General notes ATTENTION ASSIST helps you during long,
monotonous journeys such as on freeways
and interstate highways. It is active in the
range between 50 mph (80 km/h
) and
112 mph (180 km/h).
If ATTENTION ASSIST detects typical
indicators of fatigue or increasing lapses in
concentration on the part of the driver, it
suggests you take a break.
ATTENTION ASSIST assesses your level of
fatigue or lapses in concentration by taking
the following criteria into account:
R your personal driving style, e.g. steering
characteristics
R driving conditions, e.g. time, driving time
The functionality of ATTENTION ASSIST is
restricted and warnings may be delayed or
not occur at all:
R if the road condition is poor, e.g. if the
surface is uneven or if there are potholes
R if there is a strong side wind
R if you have adopted a sporty driving style
with high cornering speeds or high rates of
acceleration
R if you are predominantly driving slower
than 50 mph (80 km/h) or faster than
112 mph (180 km/h)
R if you are currently using COMAND or
making a telephone call with it
R if the time has been set incorrectly
R in active driving situations, such as when
you change lanes or change your speed Driving systems
199
Driving and parking Z
Page 202 of 372

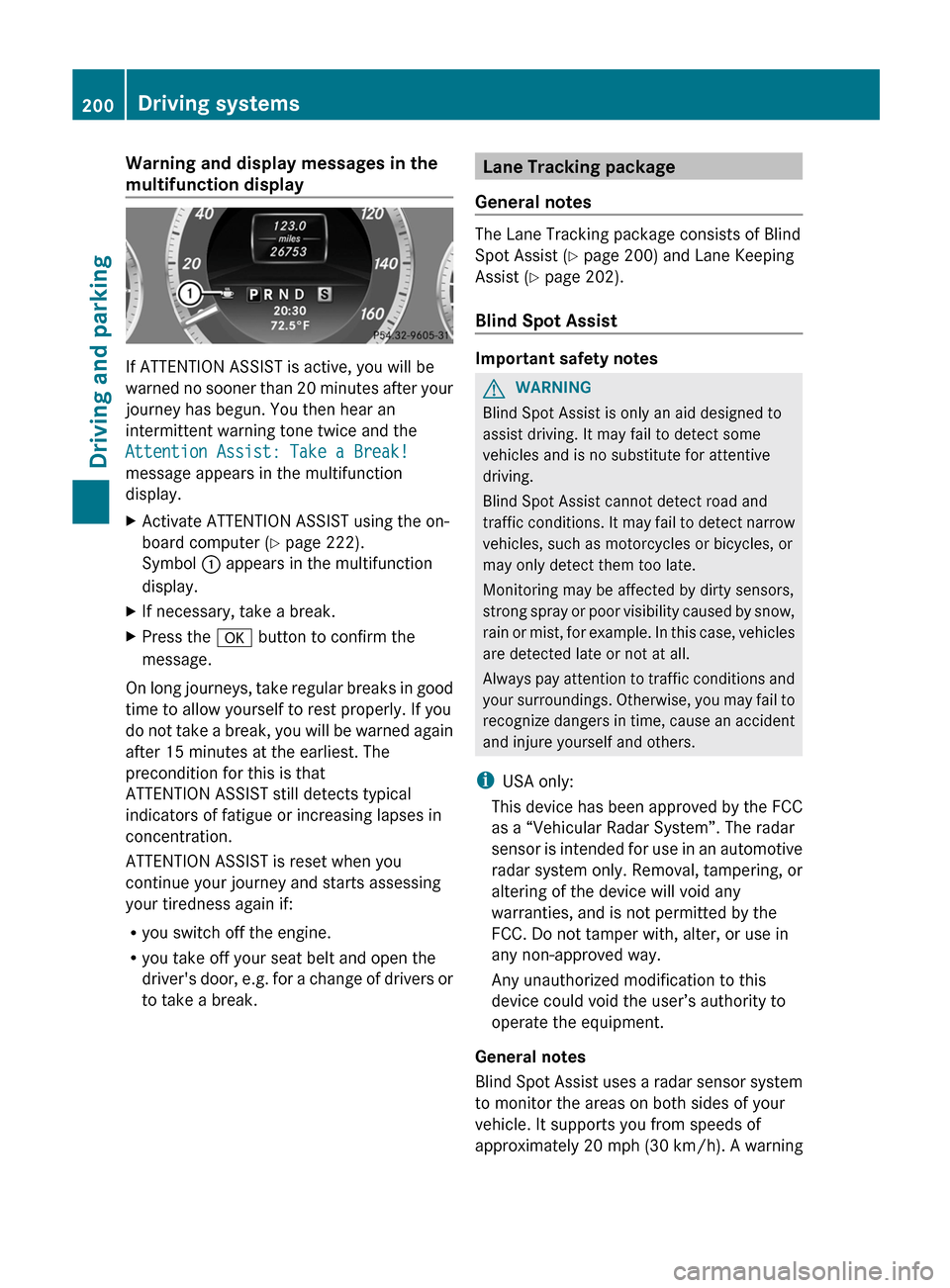

Warning and display messages in the
multifunction display
If ATTENTION ASSIST is active, you will be
warned
no sooner than 20 minutes after your
journey has begun. You then hear an
intermittent warning tone twice and the
Attention Assist: Take a Break!
message appears in the multifunction
display.
X Activate ATTENTION ASSIST using the on-
board computer ( Y page 222).
Symbol : appears in the multifunction
display.
X If necessary, take a break.
X Press the a button to confirm the
message.
On long journeys, take regular breaks in good
time to allow yourself to rest properly. If you
do
not take a break, you will be warned again
after 15 minutes at the earliest. The
precondition for this is that
ATTENTION ASSIST still detects typical
indicators of fatigue or increasing lapses in
concentration.
ATTENTION ASSIST is reset when you
continue your journey and starts assessing
your tiredness again if:
R you switch off the engine.
R you take off your seat belt and open the
driver's door, e.g. for a change of drivers or
to take a break. Lane Tracking package
General notes The Lane Tracking package consists of Blind
Spot Assist
(Y page 200) and Lane Keeping
Assist (Y page 202).
Blind Spot Assist Important safety notes
G
WARNING
Blind Spot Assist is only an aid designed to
assist driving. It may fail to detect some
vehicles and is no substitute for attentive
driving.
Blind Spot Assist cannot detect road and
traffic
conditions. It may fail to detect narrow
vehicles, such as motorcycles or bicycles, or
may only detect them too late.
Monitoring may be affected by dirty sensors,
strong spray or poor visibility caused by snow,
rain or mist, for example. In this case, vehicles
are detected late or not at all.
Always pay attention to traffic conditions and
your surroundings. Otherwise, you may fail to
recognize dangers in time, cause an accident
and injure yourself and others.
i USA only:
This device has been approved by the FCC
as a “Vehicular Radar System”. The radar
sensor is intended for use in an automotive
radar system only. Removal, tampering, or
altering of the device will void any
warranties, and is not permitted by the
FCC. Do not tamper with, alter, or use in
any non-approved way.
Any unauthorized modification to this
device could void the user’s authority to
operate the equipment.
General notes
Blind Spot Assist uses a radar sensor system
to monitor the areas on both sides of your
vehicle. It supports you from speeds of
approximately 20 mph (30 km/h). A warning 200
Driving systems
Driving and parking
Page 203 of 372
display in the exterior mirrors draws your
attention to vehicles detected in the
monitored area. If you then switch on the
corresponding
turn signal to change lane, you
will also receive an optical and audible
collision warning. Blind Spot Assist uses
sensors in the rear bumper for monitoring
purposes.
For Blind Spot Assist to assist you when
driving, the radar sensor system must be
activated (Y page 226) and operational.
Monitoring range of the sensors G
WARNING
Blind Spot Assist monitors certain areas in the
immediate vicinity of your vehicle. Vehicles
that approach and drive past at high speeds
are not detected. There is no display and no
warning.
If the lanes are very wide, it may not be
possible
to monitor the complete width of the
neighboring lane. For this reason, vehicles in
the next lane may not be detected, especially
if they are driving in a staggered formation.
This may be the case if vehicles are driving at
that edge of their lane which is furthest away
from your vehicle.
Always pay attention to traffic conditions and
your surroundings. Otherwise, you may fail to
recognize dangers in time, cause an accident

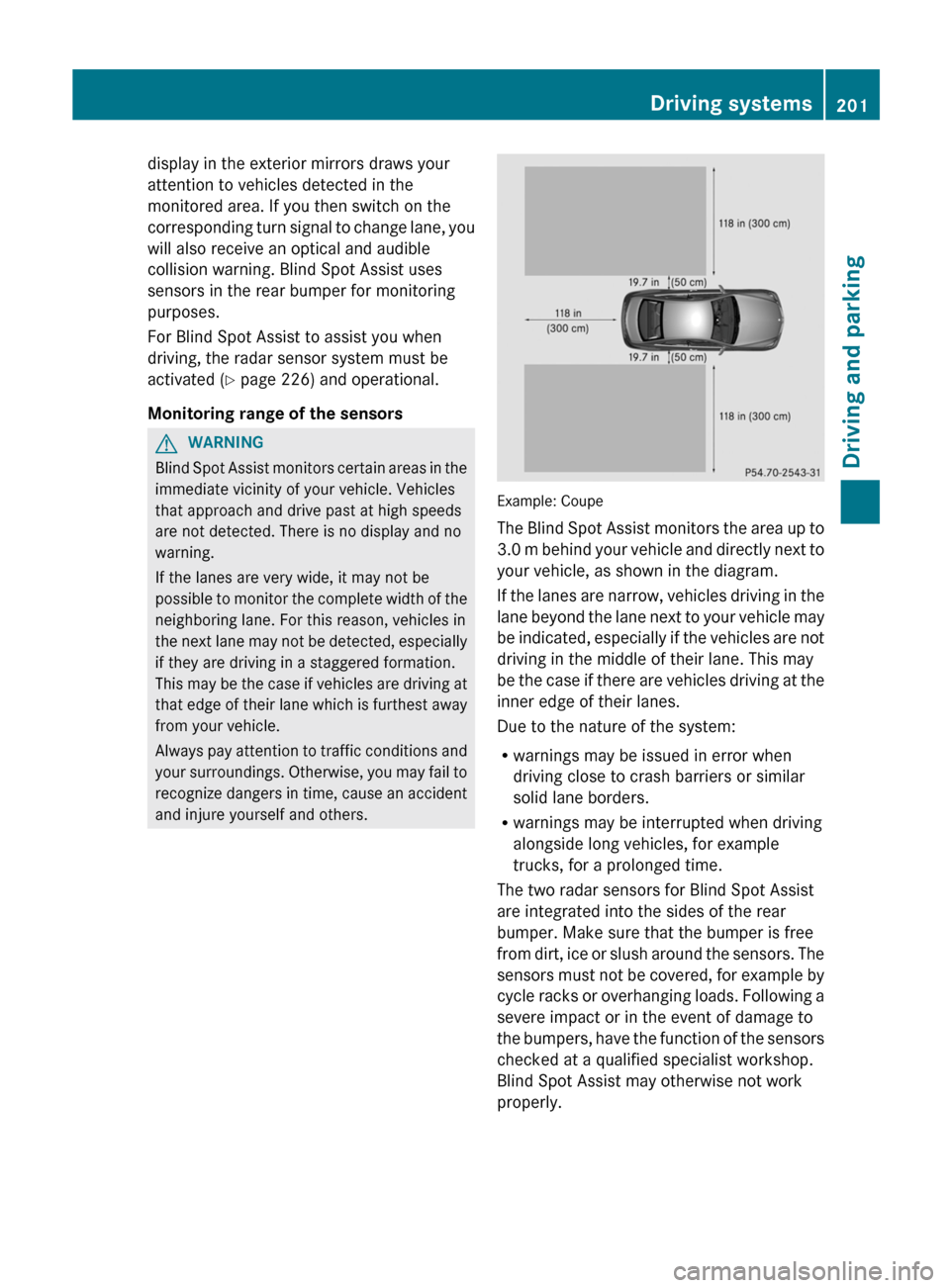

and injure yourself and others. Example: Coupe
The
Blind Spot Assist monitors the area up to
3.0 m behind your vehicle and directly next to
your vehicle, as shown in the diagram.
If the lanes are narrow, vehicles driving in the
lane beyond the lane next to your vehicle may
be indicated, especially if the vehicles are not
driving in the middle of their lane. This may
be the case if there are vehicles driving at the
inner edge of their lanes.
Due to the nature of the system:
R warnings may be issued in error when
driving close to crash barriers or similar
solid lane borders.
R warnings may be interrupted when driving
alongside long vehicles, for example
trucks, for a prolonged time.
The two radar sensors for Blind Spot Assist
are integrated into the sides of the rear
bumper. Make sure that the bumper is free
from dirt, ice or slush around the sensors. The
sensors must not be covered, for example by
cycle racks or overhanging loads. Following a
severe impact or in the event of damage to
the bumpers, have the function of the sensors
checked at a qualified specialist workshop.
Blind Spot Assist may otherwise not work
properly. Driving systems
201
Driving and parking Z
Page 204 of 372

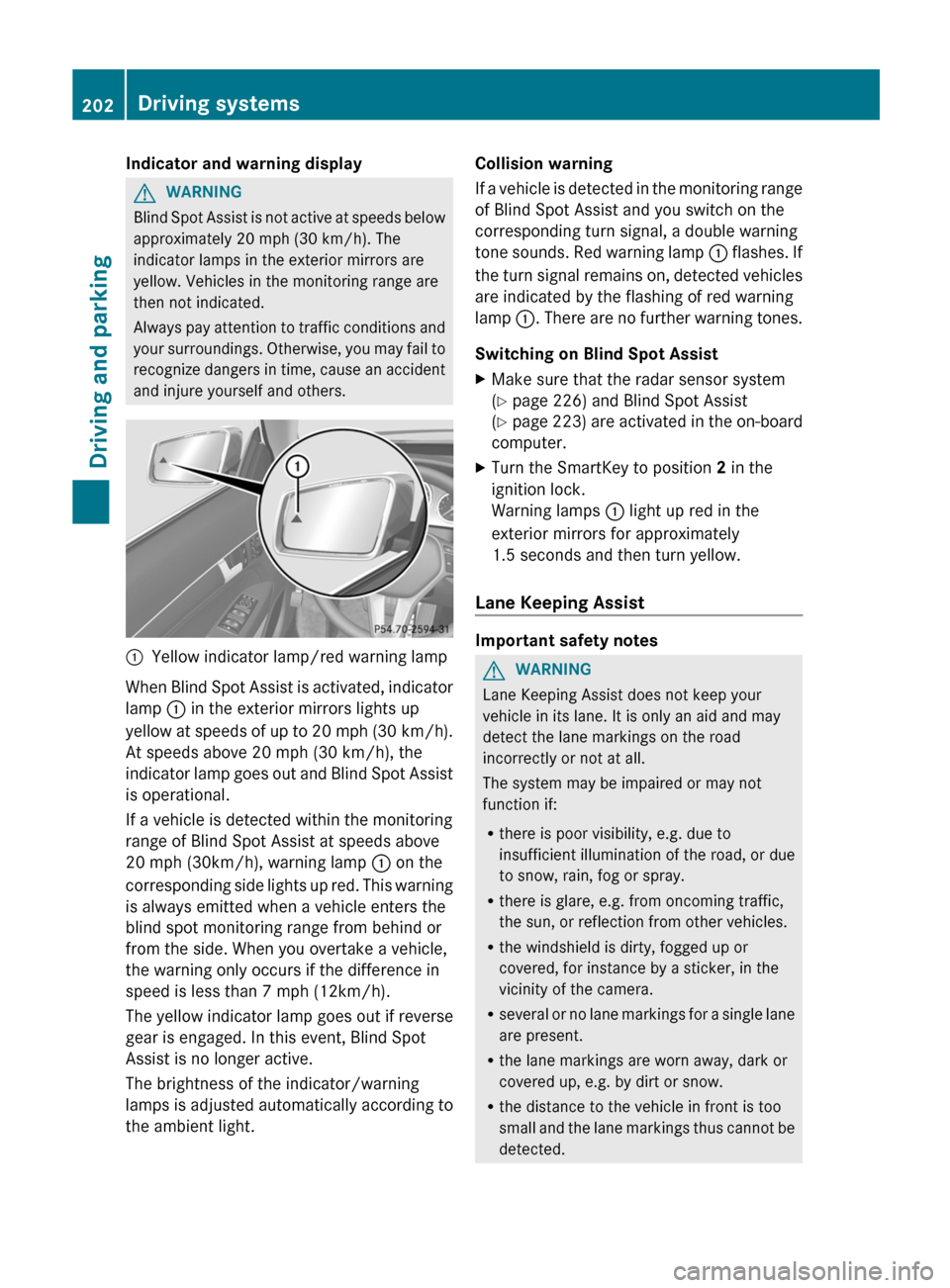

Indicator and warning display
G
WARNING
Blind Spot Assist is not active at speeds below
approximately 20 mph (30 km/h). The
indicator lamps in the exterior mirrors are
yellow. Vehicles in the monitoring range are
then not indicated.
Always pay attention to traffic conditions and
your surroundings. Otherwise, you may fail to
recognize dangers in time, cause an accident
and injure yourself and others. :
Yellow indicator lamp/red warning lamp
When Blind Spot Assist is activated, indicator
lamp : in the exterior mirrors lights up
yellow
at speeds of up to 20 mph (30 km/h).
At speeds above 20 mph (30 km/h), the
indicator lamp goes out and Blind Spot Assist
is operational.
If a vehicle is detected within the monitoring
range of Blind Spot Assist at speeds above
20 mph (30km/h), warning lamp : on the
corresponding side lights up red. This warning
is always emitted when a vehicle enters the
blind spot monitoring range from behind or
from the side. When you overtake a vehicle,
the warning only occurs if the difference in
speed is less than 7 mph (12km/h).
The yellow indicator lamp goes out if reverse
gear is engaged. In this event, Blind Spot
Assist is no longer active.
The brightness of the indicator/warning
lamps is adjusted automatically according to
the ambient light. Collision warning
If
a vehicle is detected in the monitoring range
of Blind Spot Assist and you switch on the
corresponding turn signal, a double warning
tone sounds. Red warning lamp : flashes. If
the turn signal remains on, detected vehicles
are indicated by the flashing of red warning
lamp :. There are no further warning tones.
Switching on Blind Spot Assist
X Make sure that the radar sensor system
(Y page 226) and Blind Spot Assist
(Y page
223) are activated in the on-board
computer.
X Turn the SmartKey to position 2 in the
ignition lock.
Warning lamps : light up red in the
exterior mirrors for approximately
1.5 seconds
and then turn yellow.
Lane Keeping Assist Important safety notes
G
WARNING
Lane Keeping Assist does not keep your
vehicle in its lane. It is only an aid and may
detect the lane markings on the road
incorrectly or not at all.
The system may be impaired or may not
function if:
R there is poor visibility, e.g. due to
insufficient illumination of the road, or due
to snow, rain, fog or spray.
R there is glare, e.g. from oncoming traffic,
the sun, or reflection from other vehicles.
R the windshield is dirty, fogged up or
covered, for instance by a sticker, in the
vicinity of the camera.
R several
or no lane markings for a single lane
are present.
R the lane markings are worn away, dark or
covered up, e.g. by dirt or snow.
R the distance to the vehicle in front is too
small and the lane markings thus cannot be
detected.202
Driving systems
Driving and parking
Page 205 of 372

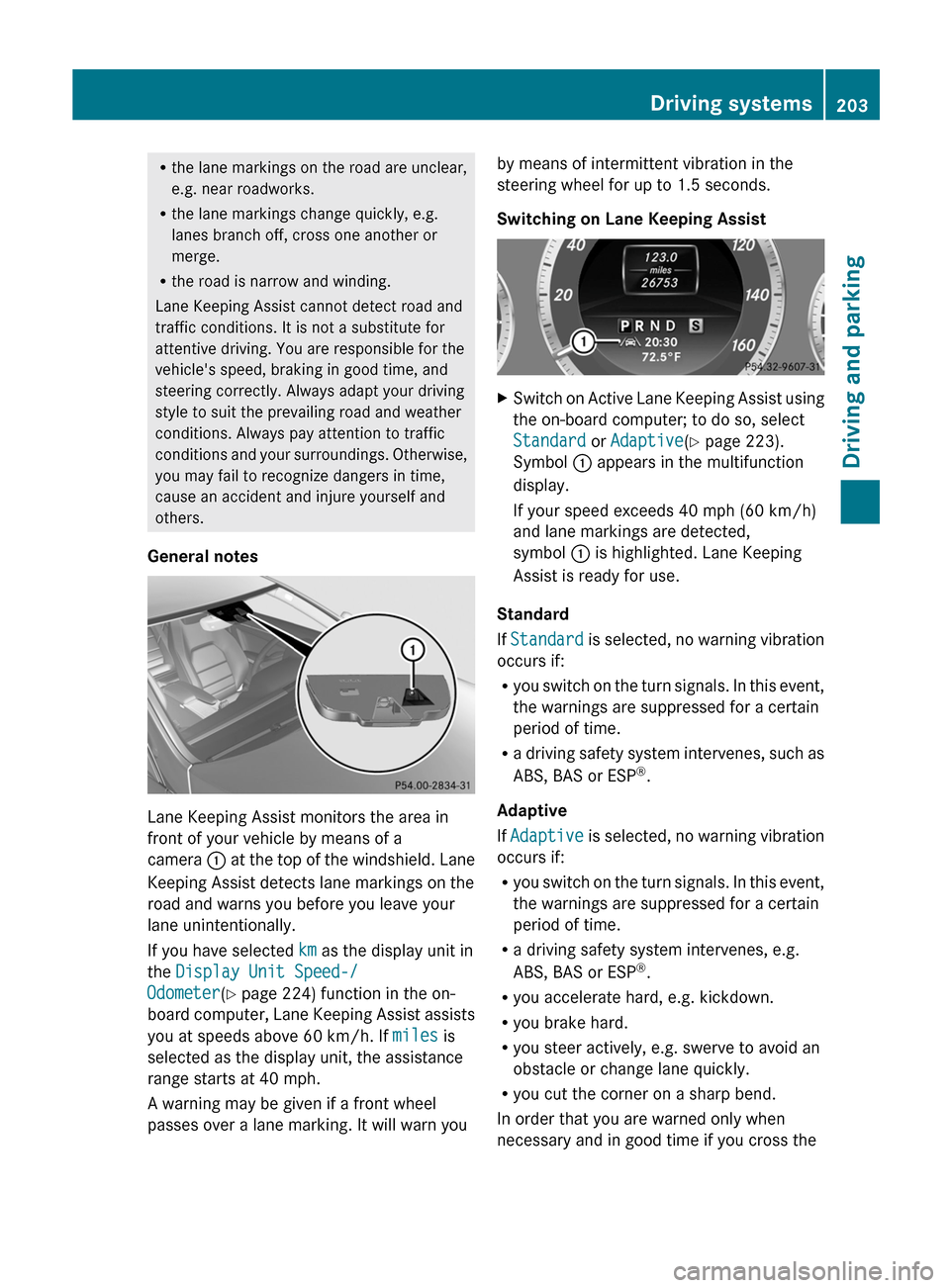

R
the lane markings on the road are unclear,
e.g. near roadworks.
R the lane markings change quickly, e.g.
lanes branch off, cross one another or
merge.
R the road is narrow and winding.
Lane Keeping Assist cannot detect road and
traffic conditions. It is not a substitute for
attentive driving. You are responsible for the
vehicle's speed, braking in good time, and
steering correctly. Always adapt your driving
style to suit the prevailing road and weather
conditions. Always pay attention to traffic
conditions
and your surroundings. Otherwise,
you may fail to recognize dangers in time,
cause an accident and injure yourself and
others.
General notes Lane Keeping Assist monitors the area in
front of your vehicle by means of a
camera
:
at the top of the windshield. Lane
Keeping Assist detects lane markings on the
road and warns you before you leave your
lane unintentionally.
If you have selected km as the display unit in
the Display Unit Speed-/
Odometer(Y page 224) function in the on-
board computer, Lane Keeping Assist assists
you at speeds above 60 km/h. If miles is
selected as the display unit, the assistance
range starts at 40 mph.
A warning may be given if a front wheel
passes over a lane marking. It will warn you by means of intermittent vibration in the
steering wheel for up to 1.5 seconds.
Switching on Lane Keeping Assist
X
Switch on Active Lane Keeping Assist using
the on-board computer; to do so, select
Standard or Adaptive(Y page 223).
Symbol : appears in the multifunction
display.
If your speed exceeds
40 mph (60 km/h)
and lane markings are detected,
symbol : is highlighted. Lane Keeping
Assist is ready for use.
Standard
If Standard
is selected, no warning vibration
occurs if:
R you switch on the turn signals. In this event,
the warnings are suppressed for a certain
period of time.
R a driving safety system intervenes, such as
ABS, BAS or ESP ®
.
Adaptive
If Adaptive is selected, no warning vibration
occurs if:
R you switch on the turn signals. In this event,
the warnings are suppressed for a certain
period of time.
R a driving safety system intervenes, e.g.
ABS, BAS or ESP ®
.
R you accelerate hard, e.g. kickdown.
R you brake hard.
R you steer actively, e.g. swerve to avoid an
obstacle or change lane quickly.
R you cut the corner on a sharp bend.
In order that you are warned only when
necessary and in good time if you cross the Driving systems
203
Driving and parking Z
Page 206 of 372

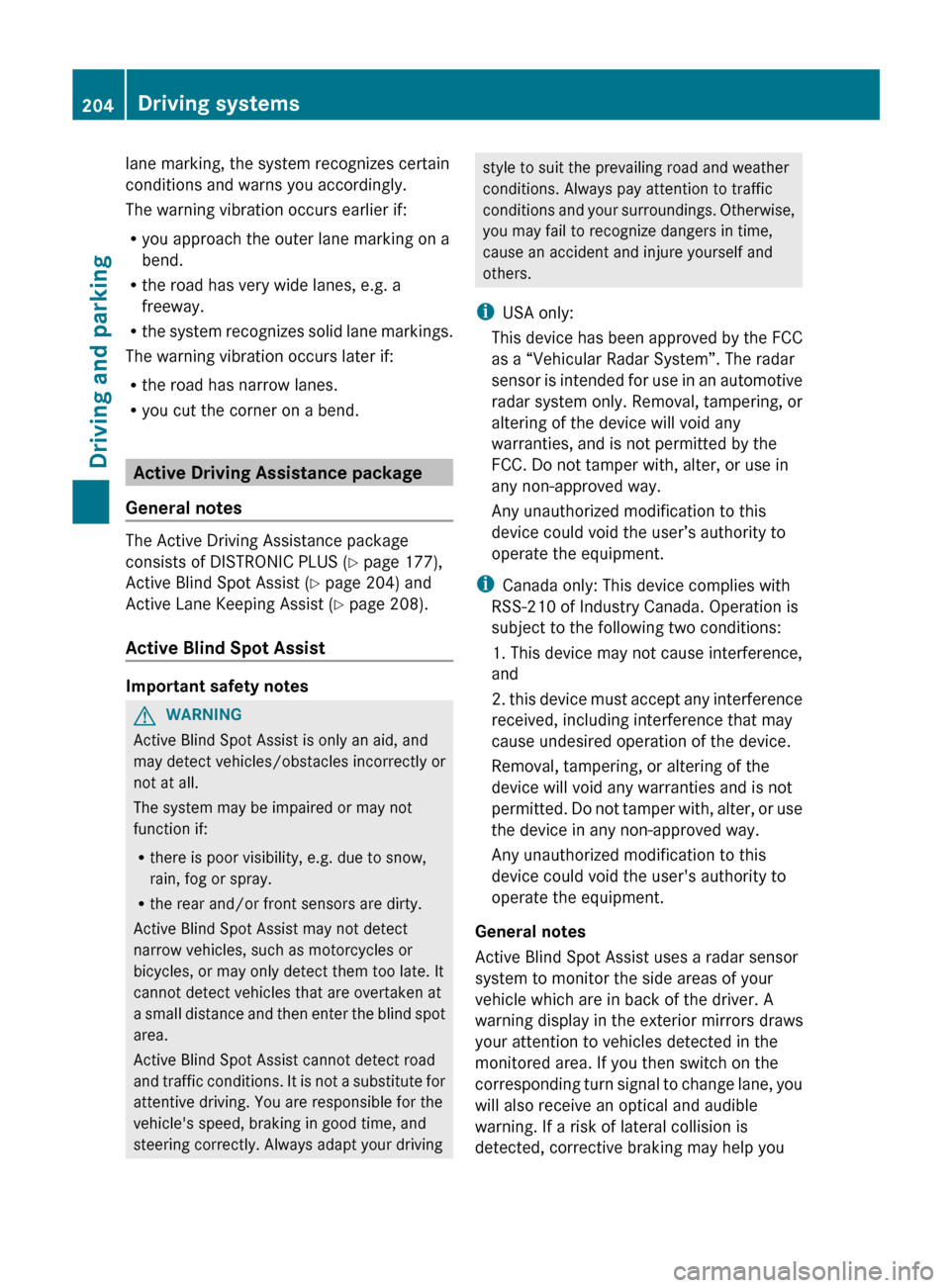

lane marking, the system recognizes certain
conditions and warns you accordingly.
The warning vibration occurs earlier if:
R
you approach the outer lane marking on a
bend.
R the road has very wide lanes, e.g. a
freeway.
R the
system recognizes solid lane markings.
The warning vibration occurs later if:
R the road has narrow lanes.
R you cut the corner on a bend. Active Driving Assistance package
General notes The Active Driving Assistance package
consists of DISTRONIC PLUS
(Y page 177),
Active Blind Spot Assist (Y page 204) and
Active Lane Keeping Assist (Y page 208).
Active Blind Spot Assist Important safety notes
G
WARNING
Active Blind Spot Assist is only an aid, and
may detect vehicles/obstacles incorrectly or
not at all.
The system may be impaired or may not
function if:
R there is poor visibility, e.g. due to snow,
rain, fog or spray.
R the rear and/or front sensors are dirty.
Active Blind Spot Assist may not detect
narrow vehicles, such as motorcycles or
bicycles, or may only detect them too late. It
cannot detect vehicles that are overtaken at
a
small distance and then enter the blind spot
area.
Active Blind Spot Assist cannot detect road
and traffic conditions. It is not a substitute for
attentive driving. You are responsible for the
vehicle's speed, braking in good time, and
steering correctly. Always adapt your driving style to suit the prevailing road and weather
conditions. Always pay attention to traffic
conditions
and your surroundings. Otherwise,
you may fail to recognize dangers in time,
cause an accident and injure yourself and
others.
i USA only:
This device has been approved by the FCC
as a “Vehicular Radar System”. The radar
sensor is intended for use in an automotive
radar system only. Removal, tampering, or
altering of the device will void any
warranties, and is not permitted by the
FCC. Do not tamper with, alter, or use in
any non-approved way.
Any unauthorized modification to this
device could void the user’s authority to
operate the equipment.
i Canada only: This device complies with
RSS-210 of Industry Canada. Operation is
subject to the following two conditions:
1. This device may not cause interference,
and
2. this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Removal, tampering, or altering of the
device will void any warranties and is not
permitted. Do not tamper with, alter, or use
the device in any non-approved way.
Any unauthorized modification to this
device could void the user's authority to
operate the equipment.
General notes
Active Blind Spot Assist uses a radar sensor
system to monitor the side areas of your
vehicle which are in back of the driver. A
warning display in the exterior mirrors draws
your attention to vehicles detected in the
monitored area. If you then switch on the
corresponding turn signal to change lane, you
will also receive an optical and audible
warning. If a risk of lateral collision is
detected, corrective braking may help you 204
Driving systems
Driving and parking
