Page 17 of 372
Roadside Assistance (breakdown)
....22
Roll bar Display message
............................ 232
Operation ......................................... 51
Roller sunblind
Panorama roof with power tilt/
sliding panel .................................. 101
Rear window .................................. 275
Roof
Overview .......................................... 89
see Soft top
Roof lining and carpets (cleaning
guidelines) ......................................... 306
Roof load (maximum) ........................367S
Safety Children in the vehicle .....................58
Child restraint systems ....................58
Occupant Classification System
(OCS) ............................................... 46
Safety systems
see Driving safety systems
Seat belts
Adjusting the driver's and front-
passenger seat belt .........................56
Automatic comfort-fit feature .......... 58
Belt force limiters ............................ 57
Cleaning ......................................... 306
Correct usage .................................. 54
Emergency Tensioning Devices ........ 57
Fastening ......................................... 55
Important safety guidelines .............53
Releasing ......................................... 56
Safety guidelines ............................. 40
Switching belt adjustment on/off
(on-board computer) ...................... 227
Warning lamp ................................. 257
Warning lamp (function) ................... 57
Seats
Adjusting (electrically) ...................108
Adjusting the 4-way lumbar
support .......................................... 111
Adjusting the head restraint .......... 109
Cleaning the cover ......................... 306

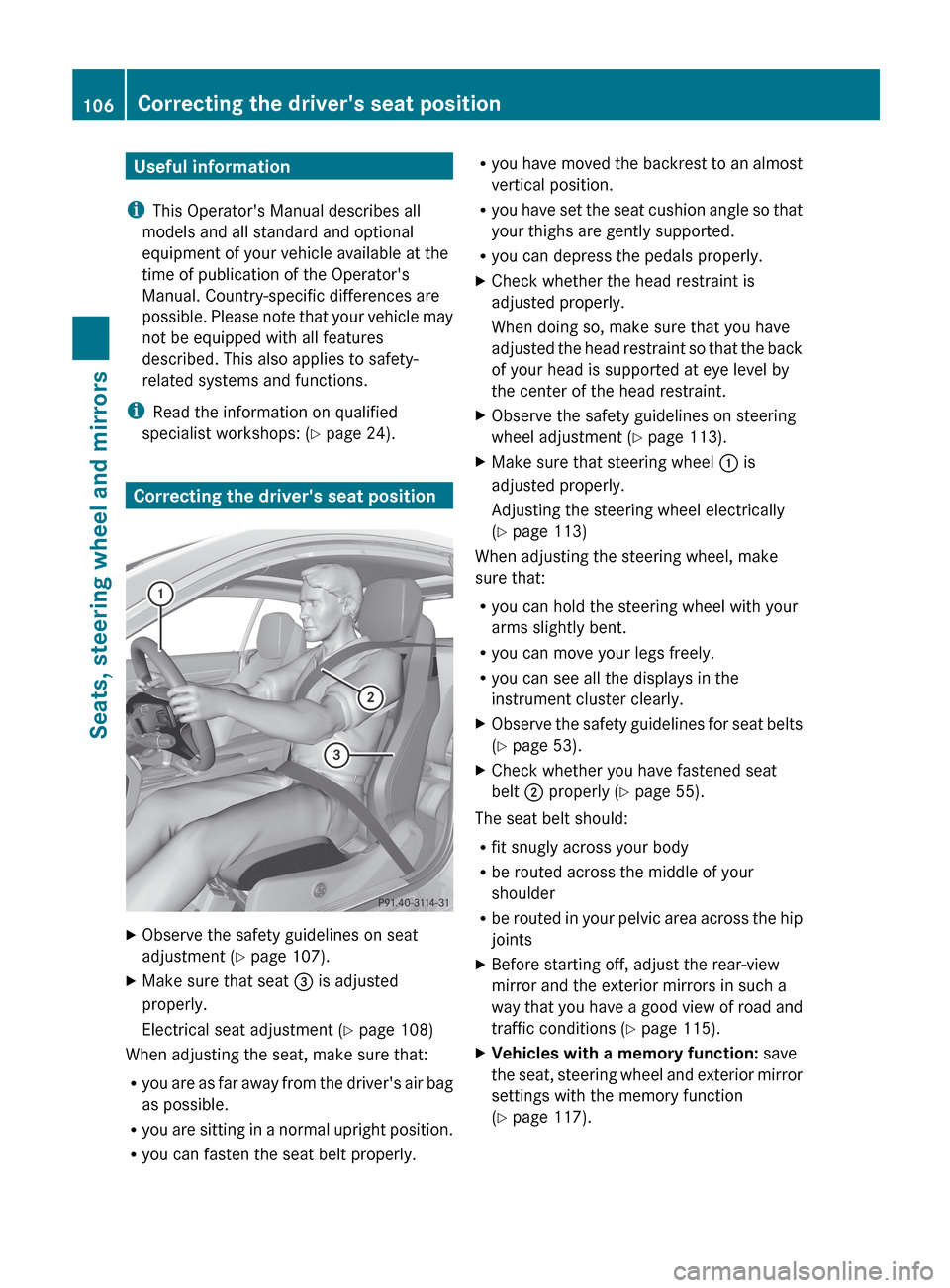

Correct driver's seat position ........ 106Folding the backrests forward/
back ...............................................
110
Important safety notes .................. 107
Overview ........................................ 107
Seat backrest display message .....253
Seat heating problem .................... 112
Seat ventilation problem ................ 112
Storing settings (memory
function) ........................................ 117
Switching AIRSCARF on/off ..........112
Switching seat heating on/off ....... 111
Switching seat ventilation on/off ..112
Selector lever
Cleaning ......................................... 305
Sensors (cleaning instructions) .......304
Service see ASSYST PLUS
Service menu (on-board computer) . 223
Service products Brake fluid ..................................... 366
Coolant (engine) ............................ 366
Engine oil ....................................... 365
Fuel ................................................ 362
Important safety notes .................. 362
Washer fluid ................................... 367
Service work
see ASSYST PLUS
Settings
Factory (on-board computer) ......... 227
On-board computer ....................... 223
Setting the air distribution ...............142
Setting the airflow ............................ 143
Side impact air bag ............................. 43
Side marker lamp (display
message) ............................................ 238
Side windows Cleaning ......................................... 303
Convenience closing feature ............ 87
Convenience opening feature .......... 86
Important safety information ........... 84
Opening/closing .............................. 85
Opening/closing all (Cabriolet) ........ 85
Problem (malfunction) .....................89
Resetting ......................................... 88
Sliding sunroof
see Panorama roof with power
tilt/sliding panel Index
15
Page 18 of 372
SmartKey
Changing the battery ....................... 75
Changing the programming ............. 74
Checking the battery ....................... 75
Convenience closing feature ............ 87
Convenience opening feature .......... 86
Display message
............................ 254
Door central locking/unlocking ....... 73
Important safety notes .................... 72
Loss ................................................. 77
Mechanical key ................................ 74
Opening/closing soft top ................. 91
Positions (ignition lock) ................. 151
Problem (malfunction) .....................77
Starting the engine ........................ 153
Snow chains ...................................... 325
Sockets Center console .............................. 277
General notes ................................ 277
Rear compartment ......................... 277
Soft top
AIRCAP ............................................ 97
Cleaning ......................................... 302
Closing manually in an emergency ... 91
Display message ............................ 253
Important safety notes .................... 89
Installing/removing the AIRCAP
wind screen ..................................... 98
Opening/closing (SmartKey) ........... 91
Opening/closing (with soft-top
switch) ............................................. 90
Problem (malfunction) ...................100
Relocking ......................................... 95
wind screen ..................................... 96
Soft-top switch .................................... 90
Spare wheel Storage location ............................ 356
Specialist workshop ............................ 24
Special seat belt retractor .................. 61
Speed, controlling see Cruise control
Speedometer
Digital ............................................ 217
In the Instrument cluster ......... 29, 213
Segments ...................................... 214
Selecting the unit of
measurement ................................ 224
see Instrument cluster SRS (Supplemental Restraint
System)
Display message
............................ 233
Introduction ..................................... 39
Warning lamp ................................. 261
Warning lamp (function) ................... 39
Standing lamps
Changing bulbs .............................. 131
Display message ............................ 238
Switching on/off ........................... 124
Starting (engine) ................................ 152
Steering (display message) ..............253
Steering wheel Adjusting (electrically) ...................113
Button overview ............................... 31
Buttons (on-board computer) ......... 214
Cleaning ......................................... 305
Important safety notes .................. 113
Paddle shifters ............................... 160
Storing settings (memory
function) ........................................ 117
Steering wheel paddle shifters ........160
Stowage areas ................................... 268
Stowage compartments Armrest (under) ............................. 269
Cup holders ................................... 273
Glove box ....................................... 269
Important safety information ......... 268
Stowage net ................................... 269
Stowage net ....................................... 269
Stowage well beneath the trunk
floor .................................................... 272
Summer tires ..................................... 324
Sun visor ............................................ 274
Supplement Restraint System see SRS (Supplemental Restraint
System)
Surround lighting (on-board
computer) .......................................... 225
Switching air-recirculation mode
on/off ................................................. 144
Switching off the alarm (ATA) ............70 T
Tachometer ........................................ 214
Tail lamps Display message
............................ 23716
Index
Page 62 of 372
G
WARNING

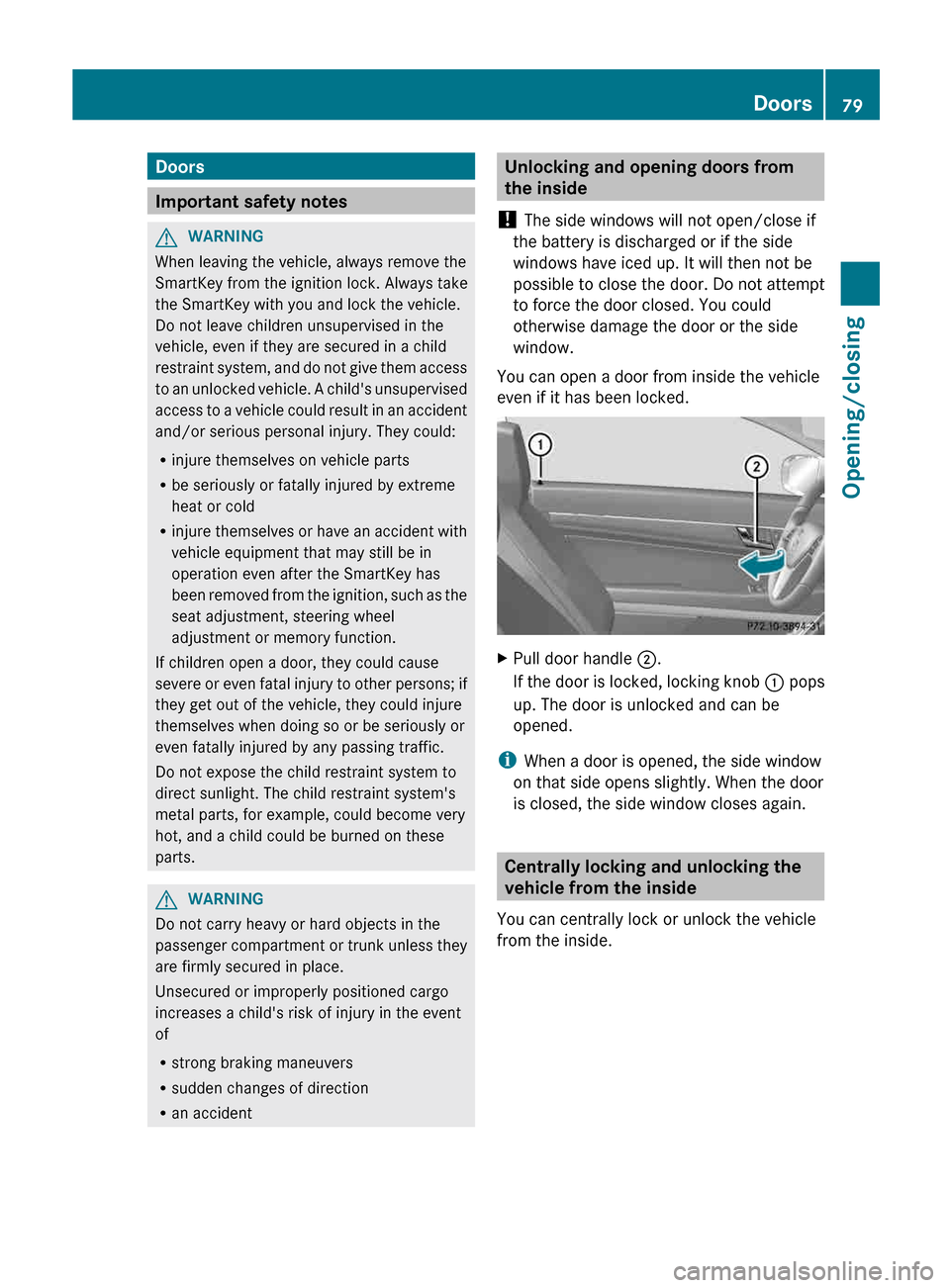

When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system, or with access to an
unlocked vehicle. A child's unsupervised
access
to a vehicle could result in an accident
and/or serious personal injury. The children
could:
R injure themselves on parts of the vehicle
R be seriously or fatally injured through
excessive exposure to extreme heat or cold
R injure themselves or cause an accident with
vehicle equipment that can be operated
even if the SmartKey is removed from the
ignition lock or removed from the vehicle,
such as seat adjustment, steering wheel
adjustment, or the memory function
If children open a door, they could injure other
persons or get out of the vehicle and injure
themselves or be injured by following traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very
hot, and the child could be burned on these
parts. G
WARNING
Do not carry heavy or hard objects in the
passenger
compartment or trunk unless they
are firmly secured in place.
Unsecured or improperly positioned cargo
increases a child's risk of injury in the event
of
R strong braking maneuvers
R sudden changes of direction
R an accident
Further information on secure stowage of
loads can be found under "Loading
guidelines". If an infant or child is traveling in the vehicle:
R
Secure the child with a child or infant seat
restraint
system appropriate to the age and
weight of the child.
R Make sure that the infant or child is
properly secured at all times while the
vehicle is in motion.
Mercedes-Benz recommends that you always
properly secure all infants and children with
a child or infant seat restraint system for the
trip.
The use of seat belts and infant and child
restraint systems is required by law in:
R all 50 states
R U.S. territories
R the District of Columbia
R all Canadian provinces
Infants and children must always be seated in
an appropriate infant or child restraint system
recommended for the size and weight of the
child. The infant or child restraint system
must be properly secured in accordance with
the manufacturer's instructions.
All infant or child restraint systems must meet
the following standards:
R U.S. Federal Motor Vehicle Safety
Standards 213 and 225
R Canadian Motor Vehicle Safety Standards
213 and 210.2
An information label on the child restraint
system indicates whether it meets these
standards. This information is also provided
in the installation instructions supplied with
the child restraint system.
Always read and follow the manufacturer's
instructions when using an infant or child
restraint system or booster seat.
Observe the warning labels in the vehicle
interior or on the infant or child restraint. 60
Children in the vehicle
Safety
Page 65 of 372
belt A on the left and right past head
restraint :.
or
X Route Top Tether belt A over the center of
the head restraint.
X Hook Top Tether hook ? into Top Tether
anchorage =.
X Make sure that Top Tether belt A is not
twisted.
X Install the LATCH-type (ISOFIX) child
restraint system with Top Tether. Comply
with the manufacturer's installation
instructions
when doing so. Make sure that
Top Tether belt A is tight. Child-proof locks
Important safety notes G
WARNING
When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unattended in the
vehicle, even if they are secured in a child
restraint system, or with access to an
unlocked vehicle. A child's unsupervised
access
to a vehicle could result in an accident
and/or serious personal injury. The children
could:
R injure themselves on parts of the vehicle
R be seriously or fatally injured through
excessive exposure to extreme heat or cold
R injure themselves or cause an accident with
vehicle equipment that can be operated
even if the SmartKey is removed from the
ignition lock or removed from the vehicle,
such as seat adjustment, steering wheel
adjustment, or the memory function
If children open a door, they could injure other
persons or get out of the vehicle and injure
themselves or be injured by following traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's metal parts, for example, could become very
hot, and the child could be burned on these
parts.
Override feature for the rear side
windows G
WARNING
When children ride on the vehicle's rear seats,
activate the override switch. Otherwise the
children could be injured, e.g. by trapping
themselves in the rear side window. X
To activate/deactivate: press
button ;.
If indicator lamp : is lit, operation of the
rear side windows is disabled. Operation is
only possible using the switches in the
driver's door. If indicator lamp : is off,
operation is possible using the switches in
the rear compartment. Driving safety systems
Driving safety systems overview
In
this section, you will find information about
the following driving safety systems:
R ABS ( Anti-lock Braking System)
(Y page 64)
R BAS ( Brake Assist System) ( Y page 64)
R BAS PLUS ( Brake Assist System PLUS)
(Y page 65)
R ESP ®
(Electronic Stability Program)
(Y page 66) Driving safety systems
63
Safety Z
Page 74 of 372
Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible.
Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: ( Y page 24).SmartKey
Important safety notes
G
WARNING
When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unsupervised in the
vehicle, even if they are secured in a child
restraint
system, and do not give them access
to an unlocked vehicle. A child's unsupervised
access to a vehicle could result in an accident
and/or serious personal injury. They could:
R injure themselves on vehicle parts
R be seriously or fatally injured by extreme
heat or cold
R injure themselves or have an accident with
vehicle equipment that may still be in
operation even after the SmartKey has
been removed from the ignition, such as the
seat adjustment, steering wheel
adjustment or memory function.
If children open a door, they could cause
severe or even fatal injury to other persons; if
they get out of the vehicle, they could injure
themselves when doing so or be seriously or
even fatally injured by any passing traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very hot, and a child could be burned on these
parts.
G
WARNUNG
If a key ring is too heavy or too large, the
weight
acting on the SmartKey could cause it
to turn in the ignition lock or catch on the
steering wheel. This could cause the engine
to be switched off suddenly. You could lose
control of the vehicle and cause an accident.
Do not attach any heavy or large key rings to
the SmartKey that is inserted in the ignition.
i USA only:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause interference,
and
2. this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this
device could void the user's authority to
operate the equipment.
The Product label with FCC ID and IC
certification number can be found in the
battery case of the SmartKey.
i Canada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
1. This device may not cause interference,
and
2. this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this
device could void the user's authority to
operate the equipment. 72
SmartKey
Opening/closing
Page 81 of 372
Doors
Important safety notes
G
WARNING
When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unsupervised in the
vehicle, even if they are secured in a child
restraint
system, and do not give them access
to an unlocked vehicle. A child's unsupervised
access to a vehicle could result in an accident
and/or serious personal injury. They could:
R injure themselves on vehicle parts
R be seriously or fatally injured by extreme
heat or cold
R injure themselves or have an accident with
vehicle equipment that may still be in
operation even after the SmartKey has
been removed from the ignition, such as the
seat adjustment, steering wheel
adjustment or memory function.
If children open a door, they could cause
severe or even fatal injury to other persons; if
they get out of the vehicle, they could injure
themselves when doing so or be seriously or
even fatally injured by any passing traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very
hot, and a child could be burned on these
parts. G
WARNING
Do not carry heavy or hard objects in the
passenger
compartment or trunk unless they
are firmly secured in place.
Unsecured or improperly positioned cargo
increases a child's risk of injury in the event
of
R strong braking maneuvers
R sudden changes of direction
R an accident Unlocking and opening doors from
the inside
! The side windows will not open/close if
the battery is discharged or if the side
windows have iced up. It will then not be
possible to close the door. Do not attempt
to force the door closed. You could
otherwise damage the door or the side
window.
You can open a door from inside the vehicle
even if it has been locked. X
Pull door handle ;.
If
the door is locked, locking knob : pops
up. The door is unlocked and can be
opened.
i When a door is opened, the side window
on that side opens slightly. When the door
is closed, the side window closes again. Centrally locking and unlocking the
vehicle from the inside
You can centrally lock or unlock the vehicle
from the inside. Doors
79
Opening/closing Z
Page 83 of 372
X
Turn the mechanical key counter-clockwise
to position 1.
The door is unlocked.
X Turn the mechanical key back and remove
it.
X Insert the mechanical key into the
SmartKey.
If you use the mechanical key to unlock and
open the driver's door, the anti-theft alarm
system will be triggered
(Y page 70). Locking the vehicle (mechanical key)
If
the vehicle can no longer be locked with the
SmartKey, use the mechanical key.
X Open the driver's door.
X Close the front-passenger door and the
trunk lid.
X Press the locking button (Y page 79).
X Check whether the locking knob on the
front-passenger door is still visible. If
necessary,
press the locking knob down by
hand ( Y page 79).
X Close the driver's door.
X Take the mechanical key out of the
SmartKey (Y page 74).
X Insert the mechanical key into the lock of
the driver's door as far as it will go. 1
Locking
X Turn the mechanical key clockwise as far
as it will go to position 1.
X Turn the mechanical key back and remove
it. X
Make sure that the doors and the trunk lid
are locked.
X Insert the mechanical key into the
SmartKey. Trunk
Important safety notes
G
WARNING
Make sure the trunk lid is closed when the
engine is running and while driving. Among
other dangers, deadly carbon monoxide (CO)
gases
may enter the vehicle interior resulting
in unconsciousness and death. G
WARNING
When leaving the vehicle, always remove the
SmartKey from the ignition lock. Always take
the SmartKey with you and lock the vehicle.
Do not leave children unsupervised in the
vehicle, even if they are secured in a child
restraint
system, and do not give them access
to an unlocked vehicle. A child's unsupervised
access to a vehicle could result in an accident
and/or serious personal injury. They could:
R injure themselves on vehicle parts
R be seriously or fatally injured by extreme
heat or cold
R injure themselves or have an accident with
vehicle equipment that may still be in
operation even after the SmartKey has
been removed from the ignition, such as the
seat adjustment, steering wheel
adjustment or memory function.
If children open a door, they could cause
severe or even fatal injury to other persons; if
they get out of the vehicle, they could injure
themselves when doing so or be seriously or
even fatally injured by any passing traffic.
Do not expose the child restraint system to
direct sunlight. The child restraint system's
metal parts, for example, could become very
hot, and a child could be burned on these
parts. Trunk
81
Opening/closing Z
Page 107 of 372
Useful information ............................
106
Correcting the driver's seat posi-
tion ..................................................... 106
Seats .................................................. 107
Steering wheel .................................. 113
Mirrors ............................................... 115
Memory function .............................. 117 105Seats, steering wheel and mirrors
Page 108 of 372
Useful information
i This Operator's Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operator's
Manual. Country-specific differences are
possible.
Please note that your vehicle may
not be equipped with all features
described. This also applies to safety-
related systems and functions.
i Read the information on qualified
specialist workshops: ( Y page 24).Correcting the driver's seat position
X
Observe the safety guidelines on seat
adjustment ( Y page 107).
X Make sure that seat = is adjusted
properly.
Electrical seat adjustment ( Y page 108)
When adjusting the seat, make sure that:
R you
are as far away from the driver's air bag
as possible.
R you are sitting in a normal upright position.
R you can fasten the seat belt properly. R
you
have moved the backrest to an almost
vertical position.
R you have set the seat cushion angle so that
your thighs are gently supported.
R you can depress the pedals properly.
X Check whether the head restraint is
adjusted properly.
When doing so, make sure that you have
adjusted
the head restraint so that the back
of your head is supported at eye level by
the center of the head restraint.
X Observe the safety guidelines on steering
wheel adjustment ( Y page 113).
X Make sure that steering wheel : is
adjusted properly.
Adjusting the steering wheel electrically
(Y page 113)
When adjusting the steering wheel, make
sure that:
R you can hold the steering wheel with your
arms slightly bent.
R you can move your legs freely.
R you can see all the displays in the
instrument cluster clearly.
X Observe the safety guidelines for seat belts
(Y page 53).
X Check whether you have fastened seat
belt ; properly
(Y page 55).
The seat belt should:
R fit snugly across your body
R be routed across the middle of your
shoulder
R be
routed in your pelvic area across the hip
joints
X Before starting off, adjust the rear-view
mirror and the exterior mirrors in such a
way
that you have a good view of road and
traffic conditions (Y page 115).
X Vehicles with a memory function: save
the
seat, steering wheel and exterior mirror
settings with the memory function
(Y page 117). 106
Correcting the driver's seat position
Seats, steering wheel and mirrors
Page 110 of 372
heating should also not be used to dry
the seats.
R clean the seat covers as recommended;
see the "Interior care" section.
R do not transport heavy loads on the
seats.
Do not place sharp objects on the
seat cushions, e.g. knives, nails or tools.
The seats should only be occupied by
passengers, if possible.
R when the seat heating is in operation, do
not cover the seats with insulating
materials, e.g. blankets, coats, bags,
seat covers, child seats or booster seats.
! To avoid damage to the seats and the seat
heating, observe the following information:
R keep liquids from spilling on the seats. If
liquid is spilled on the seats, dry them as
soon as possible.
R if the seat covers are damp or wet, do not
switch on the seat heating. The seat
heating should also not be used to dry
the seats.
R clean the seat covers as recommended;
see "Interior care".
R do not transport heavy loads on the
seats. Do not place sharp objects on the
seat cushions, e.g. knives, nails or tools.
The seats should only be occupied by
passengers, if possible.
R when the seat heating is in operation, do
not cover the seats with insulating
materials, e.g. blankets, coats, bags,
seat covers, child seats or booster seats.
! Make sure that there are no objects in the
footwell or behind the seats when resetting
the seats. There is a risk that the seats
and/or the objects could be damaged.
i The head restraints in the front seats are
installed with the NECK-PRO system
(Y page 51). For this reason, it is not
possible to remove the head restraints
from the front seats.
For more information, contact a qualified
specialist workshop. i
Further related subjects:
R Through-loading feature in the rear
bench seat (Coupe) (folding the rear
bench seat forward) ( Y page 270) Adjusting the seats
:
Head restraint height
; Seat cushion angle
= Seat height
? Seat fore-and-aft adjustment
A Backrest angle
i If PRE-SAFE ®
is triggered, the front-
passenger seat will be moved to a better
position if it was previously in an
unfavourable position.
i You can store the seat settings using the
memory function ( Y page 117).
i Vehicles with the through-loading
feature: if you fold down a rear seat
backrest, the respective front seat is
moved forwards slightly in order to avoid
contact. 108
Seats
Seats, steering wheel and mirrors
