Page 7 of 372
ATTENTION ASSIST
Activating/deactivating .................222
Display message ............................ 242
Function/notes ............................. 199
Audio system
see separate operating instructions
Authorized Centers
see Qualified specialist workshop
Authorized Mercedes-Benz Center
see Qualified specialist workshop
Authorized workshops
see Qualified specialist workshop
AUTO lights
Display message ............................ 239
see Lights
Automatic engine start (ECO start/
stop function) .................................... 155

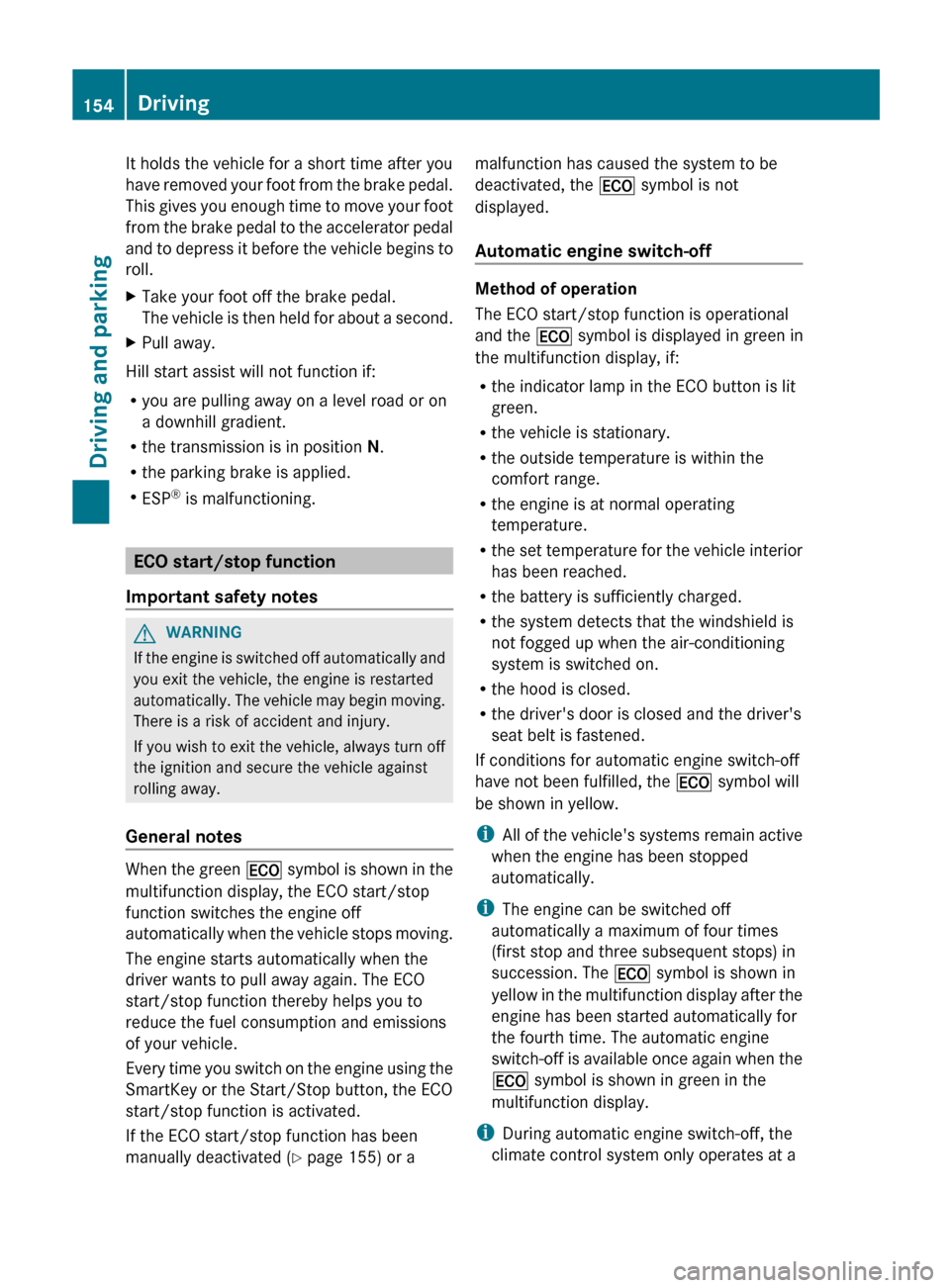

Automatic engine switch-off (ECO
start/stop function) .......................... 154
Automatic headlamp mode ..............121
Automatic transmission Automatic drive program ............... 161
Changing gear ............................... 159
Display message ............................ 251
Driving tips .................................... 160
Emergency running mode ..............164
Kickdown ....................................... 160
Manual drive program ....................162
Overview ........................................ 158
Problem (malfunction) ...................164
Program selector button ................160

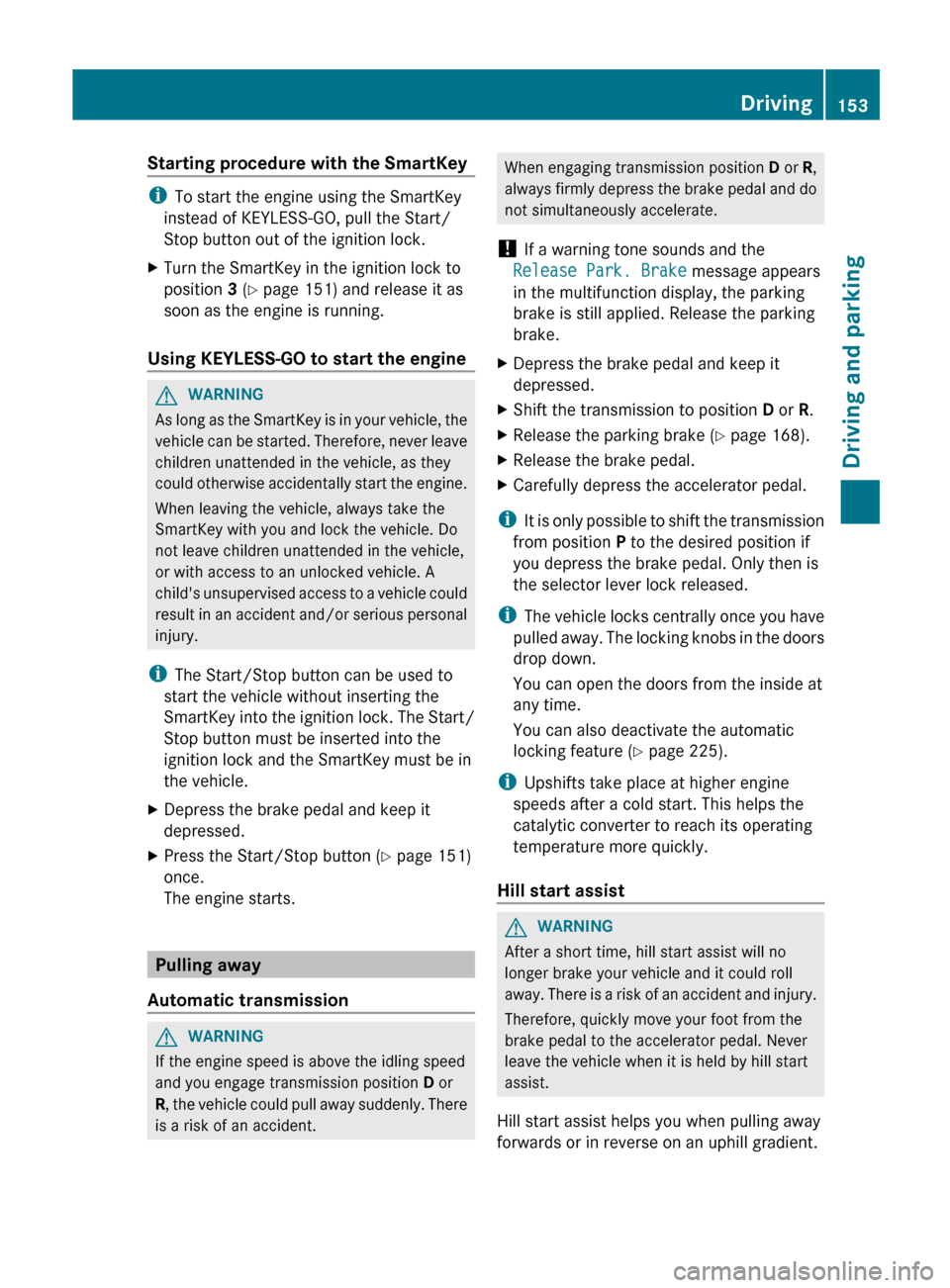

Pulling away ................................... 153
Releasing the parking lock
manually ........................................ 164
Selector lever ................................ 158
Shift ranges ................................... 161

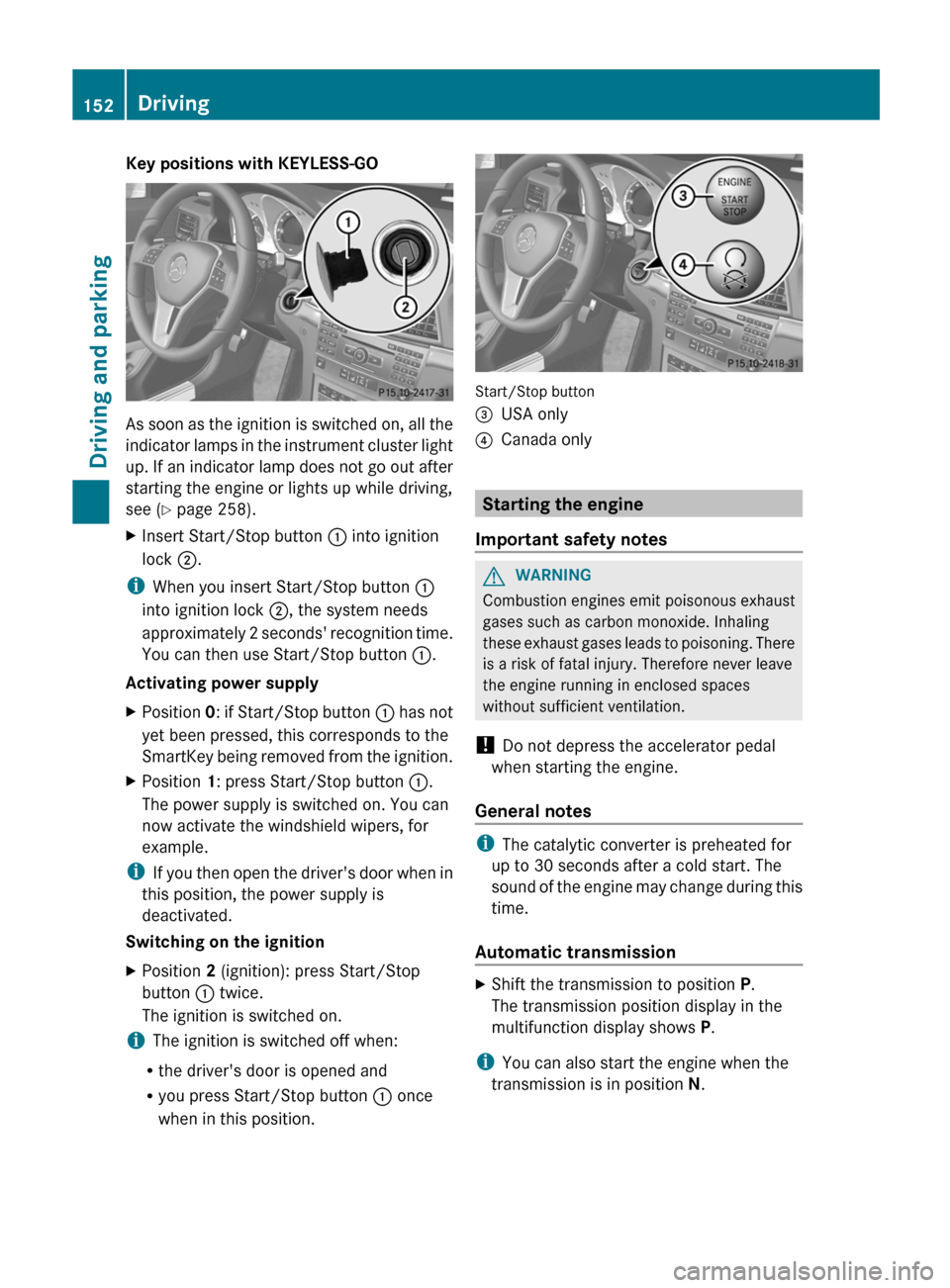

Starting the engine ........................ 152
Steering wheel paddle shifters ...... 160
Transmission position display ........ 158
Transmission positions .................. 159
Automatic transmission
emergency mode ............................... 164B
Bag hook ............................................ 271
BAS (Brake Assist System) ................. 64BAS PLUS (Brake Assist System
PLUS)
.................................................... 65
Battery (SmartKey) Checking ..........................................
75
Important safety notes .................... 75
Replacing ......................................... 75
Battery (vehicle)
Charging ........................................ 312
Display message ............................ 241
Important safety notes .................. 310
Jump starting ................................. 313
Blind Spot Assist
Activating/deactivating ................. 223
Display message ............................ 244
Notes/function .............................. 200
see Active Blind Spot Assist
Brake Assist
see BAS (Brake Assist System)
Brake fluid
Display message ............................ 231
Notes ............................................. 366
Brake lamps
Display message ............................ 237
Brakes
ABS .................................................. 64
BAS .................................................. 64
BAS PLUS ........................................ 65
Brake fluid (notes) .........................366
Display message ............................ 229
Driving tips .................................... 171
Important safety notes .................. 171
Maintenance .................................. 172
Parking brake ................................ 168
Warning lamp ................................. 258
Breakdown
see Flat tire
Bulbs
see Changing bulbs C
California Important notice for retail
customers and lessees ....................22
Calling up a malfunction
see Display messages
Car
see Vehicle Index
5
Page 10 of 372
Setting the specified minimum
distance .........................................
184
Warning lamp .................................
264
Doors
Automatic locking (on-board
computer) ...................................... 225
Automatic locking (switch) ............... 80
Central locking/unlocking
(SmartKey) ....................................... 73
Control panel ................................... 35
Display message ............................ 252
Emergency locking ........................... 81
Emergency unlocking .......................80
Important safety notes .................... 79
Opening (from inside) ......................79
Draft stop ............................................. 96
Drinking and driving .........................169
Drinks holder see Cup holder
Drive program
Automatic ...................................... 161
Display ........................................... 158
Manual ........................................... 162
Driver's door
see Doors
Driving abroad
Mercedes-Benz Service .................299
Symmetrical low beam .................. 120
Driving on flooded roads ..................173
Driving safety systems ABS (Anti-lock Braking System) ....... 64
ADAPTIVE BRAKE ............................. 67
BAS (Brake Assist System) ..............64
BAS PLUS (Brake Assist System
PLUS) ............................................... 65
Electronic brake force distribution ... 67
ESP ®
(Electronic Stability
Program) .......................................... 66
ETS/4ETS (Electronic Traction
System) ........................................... 66
Important safety information ........... 64
Overview .......................................... 63
PRE-SAFE ®
Brake ............................. 67
Driving systems
Active Blind Spot Assist ................. 204
Active Driving Assistance
package ......................................... 204Active Lane Keeping Assist ............
207
ATTENTION ASSIST ........................199
Blind Spot Assist ............................ 200
Cruise control ................................ 174
Display message ............................ 242
DISTRONIC PLUS ........................... 177
Dynamic handling package with
sports mode .................................. 190
HOLD function ............................... 189
Lane Keeping Assist ...................... 202
Lane Tracking package .................. 200
Parking Guidance ........................... 194
PARKTRONIC ................................. 191
Rear view camera .......................... 197
Driving tips
Automatic transmission ................. 160
Brakes ........................................... 171
Break-in period .............................. 150
Downhill gradient ........................... 171
Drinking and driving .......................169
Driving abroad ............................... 120
Driving in winter ............................. 173
Driving on flooded roads ................173
Driving on wet roads ...................... 173
Exhaust check ............................... 170
Fuel ................................................ 169
General .......................................... 169
Hydroplaning ................................. 173
Icy road surfaces ........................... 174
Limited braking efficiency on
salted roads ................................... 172
Pedals ............................................ 169
Snow chains .................................. 325
Symmetrical low beam .................. 120
Wet road surface ........................... 172
Drowsiness detection assistance
system
see ATTENTION ASSIST
DVD audio
Operating (on-board computer) ..... 219
DVD video
Operating (on-board computer) ..... 220
Dynamic handling package with
sports mode ....................................... 1908
Index
Page 16 of 372
PARKTRONIC
Deactivating/activating .................193
Driving system ............................... 191
Function/notes ............................. 191
Important safety notes .................. 191
Problem (malfunction) ...................194
Range of the sensors ..................... 192
Warning display ............................. 193
PASSENGER AIR BAG OFF indicator
lamp ...................................................... 46
Pedals ................................................. 169
Plastic trim (cleaning instructions) . 305
Power washers .................................. 300
Power windows see Side windows
PRE-SAFE ®
(anticipatory occupant
protection) Display message ............................ 232
Operation ......................................... 52
PRE-SAFE ®
Brake
Activating/deactivating ................. 222
Display message ............................ 232
Function/notes ................................ 67
Warning lamp ................................. 264
Preventive occupant safety
system
see PRE-SAFE ®
(anticipatory
occupant protection)
Product information ............................21
Program selector button .................. 160
Pulling away Automatic transmission ................. 153Q
Qualified specialist workshop ...........24R
Radar sensor system Activating/deactivating
.................226
Display message ............................ 242
Radio
Selecting a station .........................219
see separate operating instructions
Reading lamp ..................................... 128Rear compartment
Setting the air vents
...................... 147
Setting the temperature ................ 142
Rear fog lamp
Display message ............................ 238
Switching on/off ........................... 123
Rear seats
Display message ............................ 252
Rear view camera
Cleaning instructions ..................... 304
Function/notes ............................. 197
Switching on/off ........................... 198
Rear-view mirror
Anti-glare (manual) ........................115
Dipping (automatic) .......................116
Rear window blind ............................ 275
Rear window defroster Problem (malfunction) ...................144
Switching on/off ........................... 144
Refueling
Fuel gauge ............................... 29, 213
Important safety notes .................. 165
Refueling process .......................... 165
see Fuel
Releasing the parking lock
manually (automatic
transmission) ..................................... 164
Remote control
Garage door opener .......................286
Programming (garage door
opener) .......................................... 287
Reporting safety defects .................... 25
Reserve (fuel tank) see Fuel
Reserve fuel
Display message ............................ 241
Warning lamp ................................. 262
see Fuel
Residual heat (climate control) ........145
Restraint system see SRS (Supplemental Restraint
System)
Reverse gear
Engaging (automatic
transmission) ................................. 158
Reversing lamps (display
message) ............................................ 23814
Index
Page 20 of 372
Maximum load on a tire
(definition) .....................................
343
Maximum permissible tire
pressure (definition) .......................
343
Maximum tire load ......................... 340
Maximum tire load (definition) .......343
MOExtended tires .......................... 324
Optional equipment weight
(definition) ..................................... 343
PSI (pounds per square inch)
(definition) ..................................... 343
Replacing ....................................... 344
Service life ..................................... 324
Sidewall (definition) .......................343
Speed rating (definition) ................ 342
Storing ........................................... 344
Structure and characteristics
(definition) ..................................... 341
Temperature .................................. 337
TIN (Tire Identification Number)
(definition) ..................................... 343
Tire bead (definition) ......................343
Tire pressure (definition) ................ 343
Tire pressures (recommended) ...... 342
Tire size (data) ............................... 349
Tire size designation, load-bearing
capacity, speed rating .................... 338
Tire tread ....................................... 323
Tire tread (definition) .....................343
Total load limit (definition) ............. 344
Traction ......................................... 337
Traction (definition) ....................... 343
Tread wear ..................................... 337
Uniform Tire Quality Grading
Standards ...................................... 336
Uniform Tire Quality Grading
Standards (definition) .................... 342
Unladen weight (definition) ............ 343
Wear indicator (definition) .............343
Wheel rim (definition) .................... 342
see Flat tire
Top Tether ............................................ 62
Towing Important safety guidelines ...........315
Installing the towing eye ................ 315
Removing the towing eye ...............316
With the rear axle raised ................ 316Towing away
With both axles on the ground ....... 316
Tow-starting
Emergency engine starting
............317
Important safety notes .................. 315
Transfer case ..................................... 164
Transmission see Automatic transmission
Transporting the vehicle .................. 317
Trim pieces (cleaning instructions) . 306
Trip computer (on-board
computer) .......................................... 216
Trip odometer Calling up ....................................... 216
Resetting (on-board computer) ...... 217
Trunk
Emergency release .......................... 83
Important safety notes .................... 81
Locking separately ...........................83
Opening/closing (manually from
outside) ............................................ 82
Opening (automatically from
inside) .............................................. 83
Opening (automatically from
outside) ............................................ 82
Trunk lid
Display message ............................ 252
Opening/closing .............................. 81
Opening dimensions ...................... 367
Trunk load (maximum) ...................... 367
Trunk partition Display message ............................ 253
General notes .................................. 96
Opening/closing .............................. 96
Turn signals
Changing bulbs (front) ................... 132
Display message ............................ 236
Switching on/off ........................... 124
Type identification plate
see Vehicle identification plate U
Unlocking Emergency unlocking .......................80
From inside the vehicle (central
unlocking button) ............................. 7918
Index
Page 119 of 372
You can position the front-passenger side
exterior
mirror in such a way that you can see
the rear wheel on that side as soon as you
engage reverse gear. You can store this
position.
X Make sure that the vehicle is stationary and
that the SmartKey is in position 2 in the
ignition lock.
X Press button ; for the exterior mirror on
the front-passenger side.
X Engage reverse gear.
The exterior mirror on the front-passenger
side moves to the preset parking position.
X Use adjustment button = to adjust the
exterior
mirror to a position that allows you
to see the rear wheel and the curb.
The parking position is stored.
i If you shift the transmission to another
position, the exterior mirror on the front-
passenger side returns to the driving
position.
Using the memory button
You can position the front-passenger side
exterior
mirror in such a way that you can see
the rear wheel on that side as soon as you
engage reverse gear. This setting can be
stored using memory button M ?.
X Make sure that the SmartKey is in
position 2 in the ignition lock.
X With the exterior mirror on the front-
passenger side activated, use adjustment
button = to adjust the exterior mirror. In
the exterior mirror, the rear wheel and the
curb should be visible.
X Press memory button M ?
and one of the
arrows on adjustment button = within
three seconds.
The parking position is stored if the exterior
mirror does not move.
X If the mirror moves out of position, repeat
the steps. Calling up a stored parking position
setting X
Turn the SmartKey to position 2 in the
ignition lock.
X Adjust the exterior mirror on the front-
passenger side using button ;.
X Engage reverse gear.
The exterior mirror on the front-passenger
side moves to the stored parking position.
The exterior mirror on the front-passenger
side moves back to its original position:
R as soon as you exceed a speed of
9 mph
(15 km/h)
R if you press button : for the exterior
mirror on the driver's side Memory function
Storing settings
G
WARNING
Only use the memory function on the driver's
side
when the vehicle is stationary. You could
otherwise be distracted from the traffic
conditions by the seat moving of its own
accord, and as a result cause an accident.
With the memory function, you can store up
to three different settings, e.g. for three
different people.
The following settings are stored as a single
memory preset:
R position of the seat, backrest and head
restraint
R driver's side: steering wheel position
R driver's side: position of the exterior
mirrors on the driver's and front-passenger
sides Memory function
117
Seats, steering wheel and mirrors Z
Page 151 of 372
Useful information ............................
150
Breaking-in notes .............................. 150
Driving ............................................... 150
Automatic transmission ................... 158
Refueling ............................................ 165
Parking ............................................... 167
Driving tips ........................................ 169
Driving systems ................................ 174 149Driving and parking
Page 153 of 372
G
WARNING
If the parking brake has not been fully
released when driving, the parking brake can:
R overheat and cause a fire
R lose its hold function.
There is a risk of fire and an accident. Release
the parking brake fully before driving off.
! Warm up the engine quickly. Do not use
the engine's full performance until it has
reached operating temperature.
Only shift the automatic transmission to
the desired drive position when the vehicle
is stationary.
Where possible, avoid spinning the drive
wheels when pulling away on slippery
roads. You could otherwise damage the
drive train. SmartKey positions
SmartKey g
To remove the SmartKey
(shift the transmission to position P)
1 Power supply for some consumers, such
as the windshield wipers
2 Ignition (power supply for all consumers)
and drive position
3 To start the engine
i The SmartKey can be turned in the
ignition lock even if it is not the correct
SmartKey
for the vehicle. The ignition is not
switched on. The engine cannot be started. KEYLESS-GO General notes
R
Do
not keep the KEYLESS-GO key together
with:
- electronic devices, e.g. a mobile phone
or another key
- metallic objects, e.g. coins or metal film
R Do not keep the KEYLESS-GO key in metal
objects, e.g. metal cases.
This can affect the functionality of
KEYLESS-GO.
Vehicles with KEYLESS-GO are equipped with
a SmartKey featuring an integrated KEYLESS-
GO start function and a detachable Start/
Stop button.
The Start/Stop button must be inserted into
the ignition lock and the SmartKey must be in
the vehicle.
Pressing the Start/Stop button several times
in succession corresponds to the different
SmartKey positions in the ignition lock. This
is only the case if you are not depressing the
brake pedal.
If you depress the brake pedal and press the
Start/Stop button, the engine starts
immediately.
The Start/Stop button can be removed from
the ignition lock. Then, you can insert the
SmartKey into the ignition lock.
i You do not have to remove the Start/Stop
button from the ignition lock when you
leave the vehicle. You should, however,
always take the SmartKey with you when
leaving the vehicle. As long as the
SmartKey is in the vehicle:
R the vehicle can be started using the
Start/Stop button and
R electrically powered equipment can be
operated. Driving
151
Driving and parking Z
Page 154 of 372
Key positions with KEYLESS-GO
As soon as the ignition is switched on, all the
indicator
lamps in the instrument cluster light
up. If an indicator lamp does not go out after
starting the engine or lights up while driving,
see ( Y page 258).
X Insert Start/Stop button : into ignition
lock ;.
i When you insert Start/Stop button :
into ignition lock ;, the system needs
approximately
2 seconds' recognition time.
You can then use Start/Stop button :.
Activating power supply
X Position 0:
if Start/Stop button : has not
yet been pressed, this corresponds to the
SmartKey being removed from the ignition.
X Position 1: press Start/Stop button :.
The power supply is switched on. You can
now activate the windshield wipers, for
example.
i If
you then open the driver's door when in
this position, the power supply is
deactivated.
Switching on the ignition
X Position 2 (ignition): press Start/Stop
button : twice.
The ignition is switched on.
i The ignition is switched off when:
R the driver's door is opened and
R you press Start/Stop button : once
when in this position. Start/Stop button
=
USA only
? Canada only Starting the engine
Important safety notes G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Inhaling
these
exhaust gases leads to poisoning. There
is a risk of fatal injury. Therefore never leave
the engine running in enclosed spaces
without sufficient ventilation.
! Do not depress the accelerator pedal
when starting the engine.
General notes i
The catalytic converter is preheated for
up to 30 seconds after a cold start. The
sound
of the engine may change during this
time.
Automatic transmission X
Shift the transmission to position P.
The transmission position display in the
multifunction display shows P.
i You can also start the engine when the
transmission is in position N. 152
Driving
Driving and parking
Page 155 of 372
Starting procedure with the SmartKey
i
To start the engine using the SmartKey
instead of KEYLESS-GO, pull the Start/
Stop button out of the ignition lock.
X Turn the SmartKey in the ignition lock to
position 3 (Y page 151) and release it as
soon as the engine is running.
Using KEYLESS-GO to start the engine G
WARNING
As long as the SmartKey is in your vehicle, the
vehicle can be started. Therefore, never leave
children unattended in the vehicle, as they
could otherwise accidentally start the engine.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Do
not leave children unattended in the vehicle,
or with access to an unlocked vehicle. A
child's unsupervised access to a vehicle could
result in an accident and/or serious personal
injury.
i The Start/Stop button can be used to
start the vehicle without inserting the
SmartKey into the ignition lock. The Start/
Stop button must be inserted into the
ignition lock and the SmartKey must be in
the vehicle.
X Depress the brake pedal and keep it
depressed.
X Press the Start/Stop button ( Y page 151)
once.
The engine starts. Pulling away
Automatic transmission G
WARNING
If the engine speed is above the idling speed
and you engage transmission position D or
R,
the vehicle could pull away suddenly. There
is a risk of an accident. When engaging transmission position
D or R,
always
firmly depress the brake pedal and do
not simultaneously accelerate.
! If a warning tone sounds and the
Release Park. Brake message appears
in the multifunction display, the parking
brake is still applied. Release the parking
brake.
X Depress the brake pedal and keep it
depressed.
X Shift the transmission to position D or R.
X Release the parking brake ( Y page 168).
X Release the brake pedal.
X Carefully depress the accelerator pedal.
i It
is only possible to shift the transmission
from position P to the desired position if
you depress the brake pedal. Only then is
the selector lever lock released.
i The vehicle locks centrally once you have
pulled away. The locking knobs in the doors
drop down.
You can open the doors from the inside at
any time.
You can also deactivate the automatic
locking feature (Y page 225).
i Upshifts take place at higher engine
speeds after a cold start. This helps the
catalytic converter to reach its operating
temperature more quickly.
Hill start assist G
WARNING
After a short time, hill start assist will no
longer brake your vehicle and it could roll
away.
There is a risk of an accident and injury.
Therefore, quickly move your foot from the
brake pedal to the accelerator pedal. Never
leave the vehicle when it is held by hill start
assist.
Hill start assist helps you when pulling away
forwards or in reverse on an uphill gradient. Driving
153
Driving and parking Z
Page 156 of 372
It holds the vehicle for a short time after you
have
removed your foot from the brake pedal.
This gives you enough time to move your foot
from the brake pedal to the accelerator pedal
and to depress it before the vehicle begins to
roll.
X Take your foot off the brake pedal.
The
vehicle is then held for about a second.
X Pull away.
Hill start assist will not function if:
R you are pulling away on a level road or on
a downhill gradient.
R the transmission is in position N.
R the parking brake is applied.
R ESP ®
is malfunctioning. ECO start/stop function
Important safety notes G
WARNING
If the engine is switched off automatically and
you exit the vehicle, the engine is restarted
automatically.
The vehicle may begin moving.
There is a risk of accident and injury.
If you wish to exit the vehicle, always turn off
the ignition and secure the vehicle against
rolling away.
General notes When the green
¤
symbol is shown in the
multifunction display, the ECO start/stop
function switches the engine off
automatically when the vehicle stops moving.
The engine starts automatically when the
driver wants to pull away again. The ECO
start/stop function thereby helps you to
reduce the fuel consumption and emissions
of your vehicle.
Every time you switch on the engine using the
SmartKey or the Start/Stop button, the ECO
start/stop function is activated.
If the ECO start/stop function has been
manually deactivated ( Y page 155) or a malfunction has caused the system to be
deactivated, the ¤ symbol is not
displayed.
Automatic engine switch-off
Method of operation
The ECO start/stop function is operational
and the
¤ symbol is displayed in green in
the multifunction display, if:
R the indicator lamp in the ECO button is lit
green.
R the vehicle is stationary.
R the outside temperature is within the
comfort range.
R the engine is at normal operating
temperature.
R the
set temperature for the vehicle interior
has been reached.
R the battery is sufficiently charged.
R the system detects that the windshield is
not fogged up when the air-conditioning
system is switched on.
R the hood is closed.
R the driver's door is closed and the driver's
seat belt is fastened.
If conditions for automatic engine switch-off
have not been fulfilled, the ¤ symbol will
be shown in yellow.
i All of the vehicle's systems remain active
when the engine has been stopped
automatically.
i The engine can be switched off
automatically a maximum of four times
(first stop and three subsequent stops) in
succession. The ¤ symbol is shown in
yellow in the multifunction display after the
engine has been started automatically for
the fourth time. The automatic engine
switch-off is available once again when the
¤ symbol is shown in green in the
multifunction display.
i During automatic engine switch-off, the
climate control system only operates at a 154
Driving
Driving and parking
