Page 131 of 352

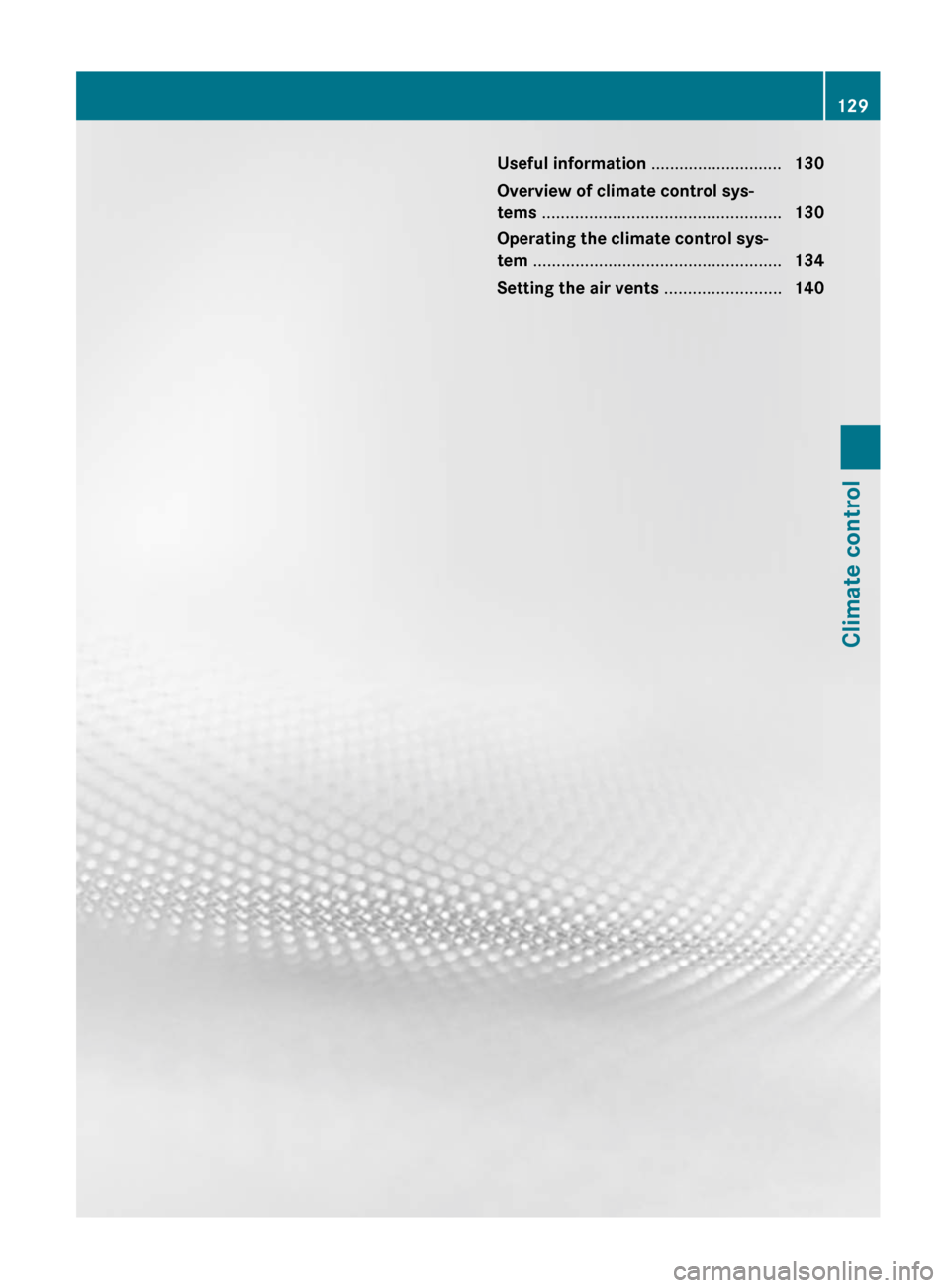

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual Useful information ............................130
Overview of climate control sys-
tems  ................................................... 130
Operating the climate control sys-
tem  ..............

Page 132 of 352

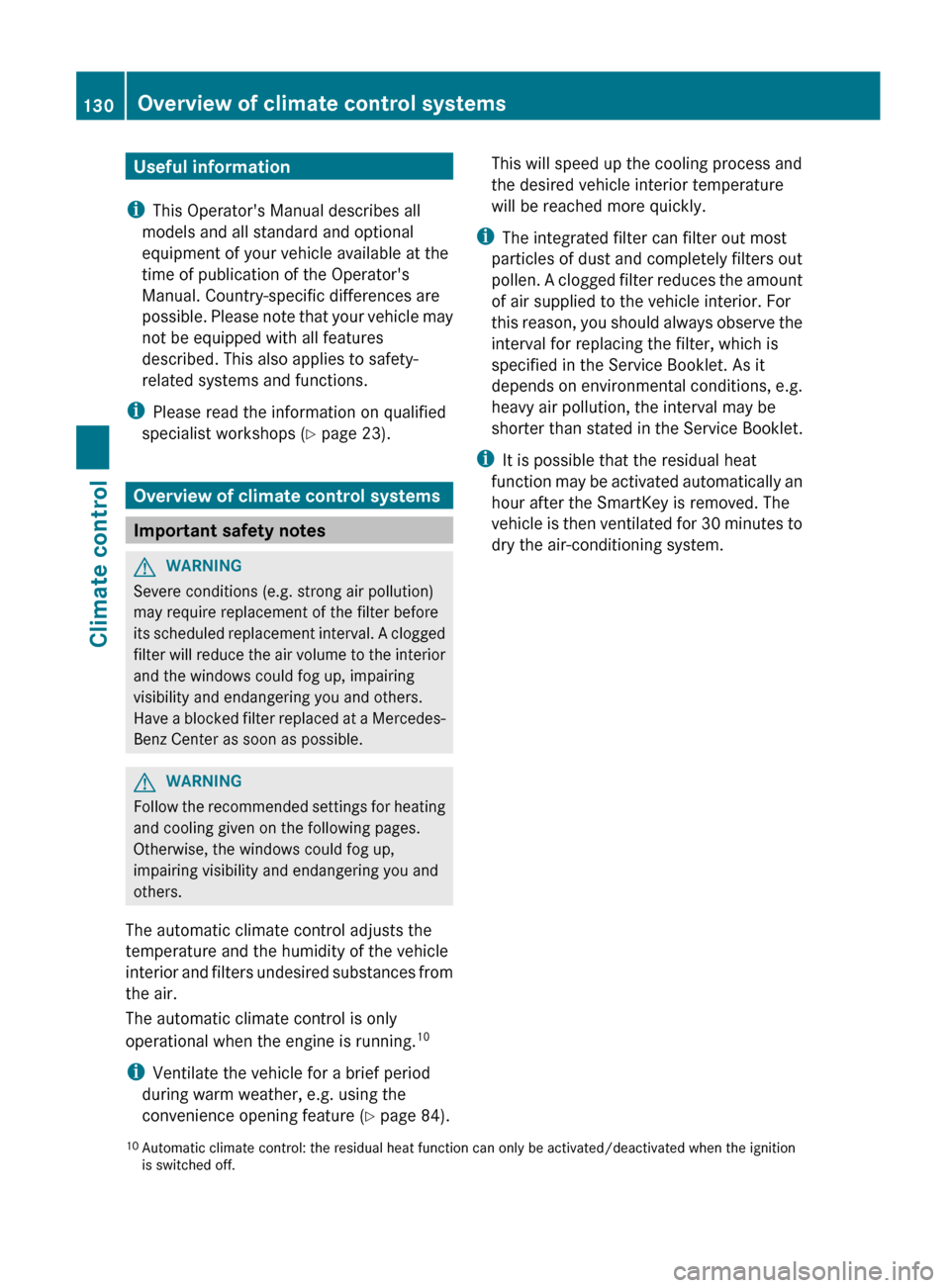

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual Useful information
i This Operators Manual describes all
models and all standard and optional
equipment of your vehicle available at the
time of publication of the Operators
Manual. Country-specific

Page 133 of 352

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual Control panel for dual-zone automatic climate control
Canada only
:To activate/deactivate air-recirculation mode (Y page 139);To defrost the windshield ( Y page 137)=To switch the ZONE function on/off

Page 134 of 352

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual CTo switch the rear window defroster on/off (Y page 138)DTo switch climate control on/off ( Y page 134)ETo set the temperature, right ( Y page 136)FTo set the air distribution ( Y page 136)GTo set the

Page 135 of 352

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual Control panel for 3-zone automatic climate control
Canada only
Front control panel:To set climate control to automatic (Y page 135);To defrost the windshield ( Y page 137)=To switch the ZONE function

Page 136 of 352

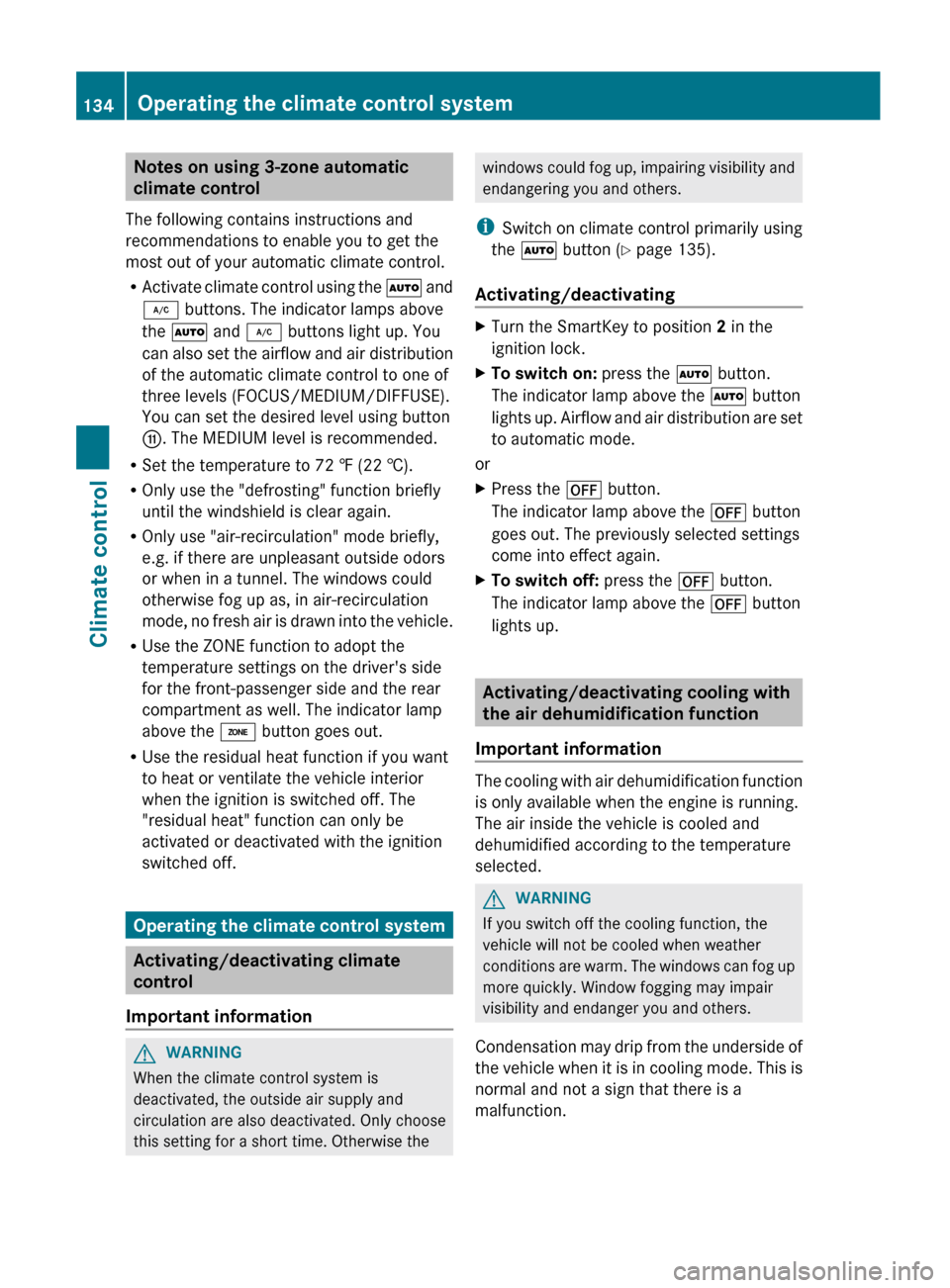

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual Notes on using 3-zone automatic
climate control
The following contains instructions and
recommendations to enable you to get the
most out of your automatic climate control.
R Activate climate control

Page 137 of 352

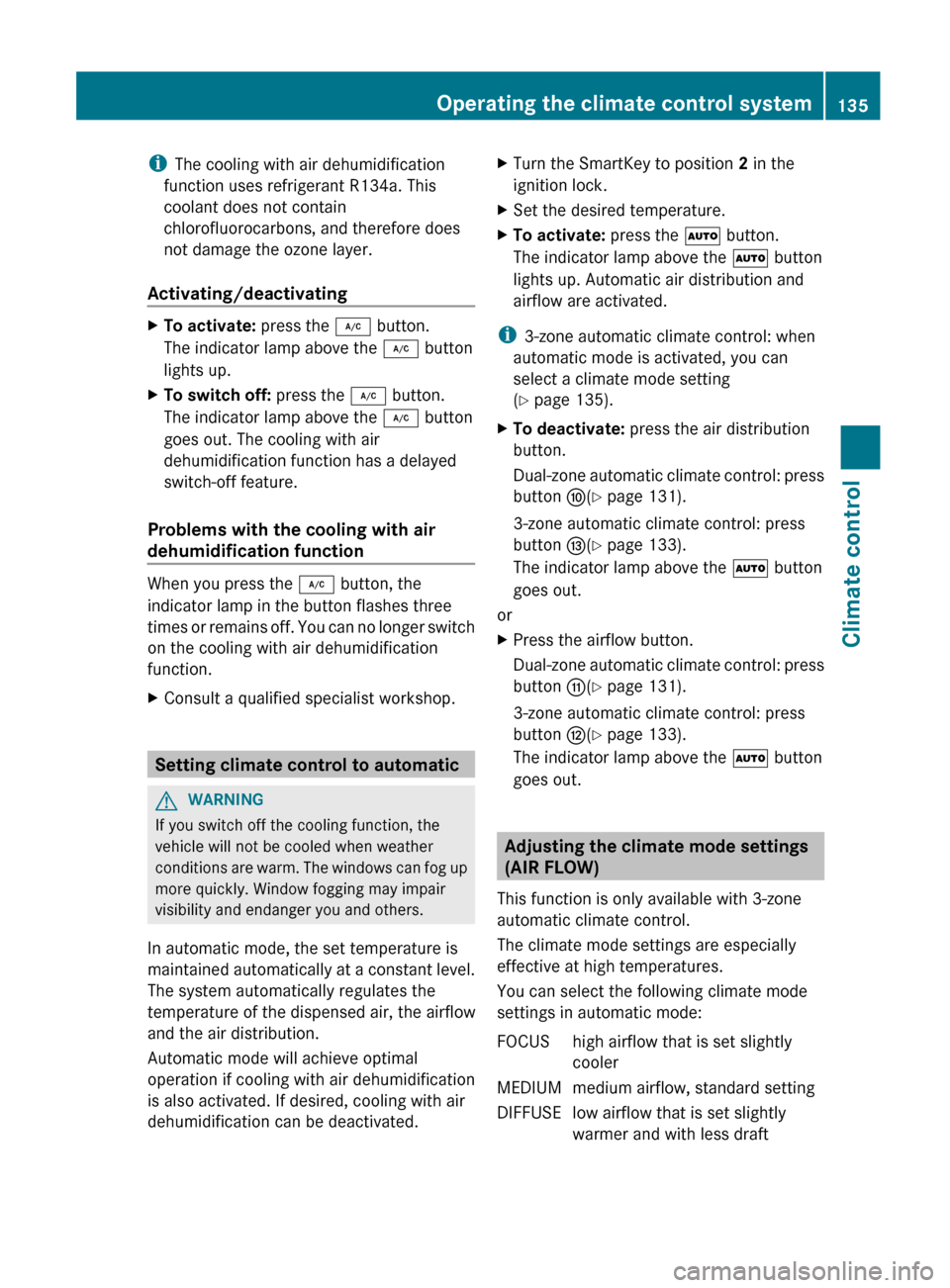

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual iThe cooling with air dehumidification
function uses refrigerant R134a. This
coolant does not contain
chlorofluorocarbons, and therefore does
not damage the ozone layer.
Activating/deactivatingXTo act

Page 138 of 352

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual XTurn the SmartKey to position 2 in the
ignition lock.XPress the  Ã button.XPress button  G up or down and select the
desired level ( Y page 133)

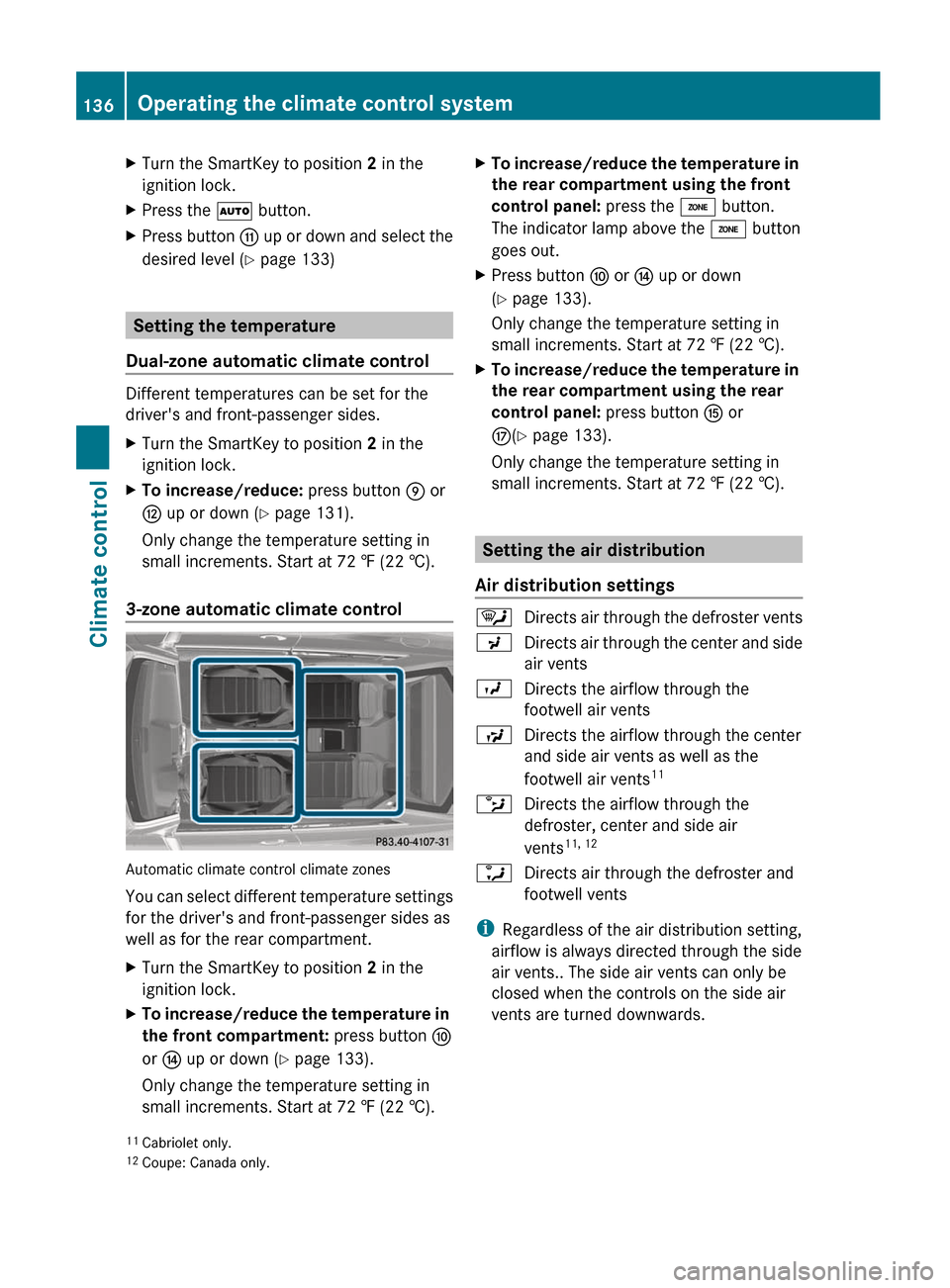

Setting the temperature
Dual-zone automatic climate c

Page 139 of 352

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual Dual-zone automatic climate controlXTurn the SmartKey to position 2 in the
ignition lock.XPress switch  F up or down repeatedly until
the desired symbol appears in the display
( Y  page 131).
3-zone a

Page 140 of 352

MERCEDES-BENZ E-Class COUPE 2012 C207 Owners Manual XPress the à button.
The indicator lamp above the  ¬ button
goes out. Airflow and air distribution are set
to automatic mode.
or
XAutomatic climate control:  press
temperature button  E or  H up or
