Page 7 of 352
Audio systemsee separate operating instructions
Authorized Mercedes-Benz Center
see Qualified specialist workshop
AUTO lights
Display message ............................ 225
see Lights
Automatic headlamp mode .............. 118
Automatic transmission Automatic drive program ...............152
Changing gear ............................... 151
Display message ............................ 236
Driving tips .................................... 151
Emergency running mode ..............155
Kickdown ....................................... 151
Manual drive program ....................154
Problem (malfunction) ...................155
Program selector button ................151
Pulling away ................................... 147
Releasing the parking lock
manually ........................................ 155
Selector lever ................................ 149
Shift ranges ................................... 153
Starting the engine ........................146
Steering wheel paddle shifters ......152
Transmission position display ........150
Transmission positions ..................150
Automatic transmission
emergency mode ............................... 155
B
Back support see Lumbar support
Bag hook ............................................ 255
BAS (Brake Assist System) ................. 62
Basic settings see Settings
BAS PLUS (Brake Assist System
PLUS) .................................................... 62
Battery (SmartKey) Checking .......................................... 74
Important safety notes ....................74
Replacing ......................................... 74
Battery (vehicle)
Charging ........................................ 298
Display message ............................ 227

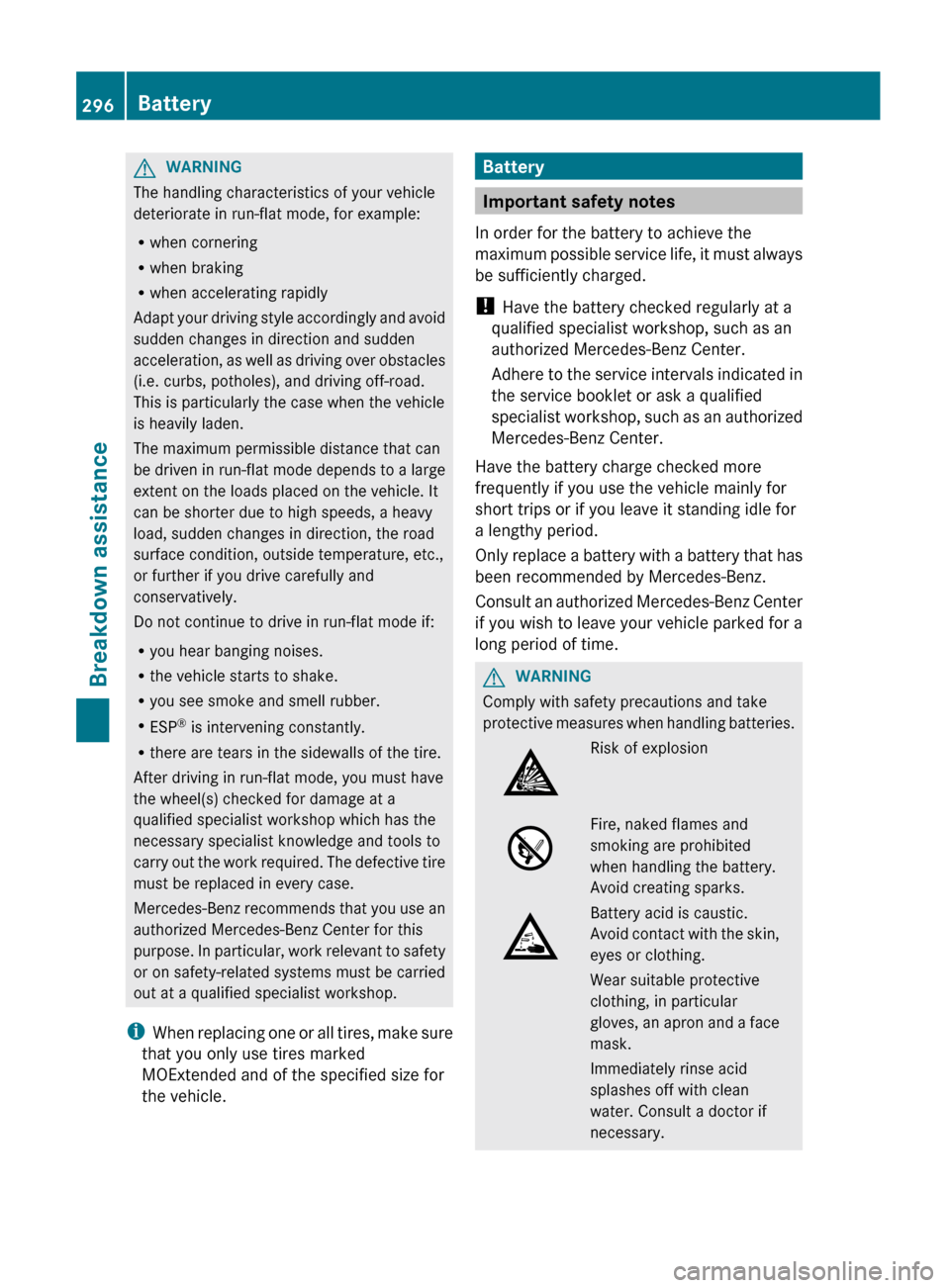

Important safety notes ..................296
Jump starting ................................. 299
Belt
see Seat belts
Blind Spot Assist
Activating/deactivating .................207
Notes/function .............................. 186
see Active Blind Spot Assist
Brake Assist System
see BAS (Brake Assist System)
Brake fluid
Display message ............................ 216
Notes ............................................. 344
Brake fluid level ................................ 278
Brake lamps Display message ............................ 223
Brakes
ABS .................................................. 61
BAS .................................................. 62
BAS PLUS ........................................ 62
Brake fluid (notes) .........................344
Display message ............................ 214
Driving tips .................................... 161
Important safety notes ..................161
Maintenance .................................. 162
Parking brake ................................ 159
Warning lamp ................................. 241
Breakdown
see Flat tire
see Towing away/tow-starting
Bulbs
see Changing bulbs
C
California Important notice for retail
customers and lessees ....................21
Calling up a malfunction
see Display messages
Capacities
see Technical data
Car
see Vehicle
Care
AIRCAP .......................................... 283
Carpets .......................................... 287
Car wash ........................................ 280
Index5
Page 11 of 352
Electronic brake force distributionsee EBD (Electronic Brake force
Distribution)
Electronic Stability Program
see ESP ®
(Electronic Stability Program)
Electronic Traction System
see ETS (Electronic Traction System)

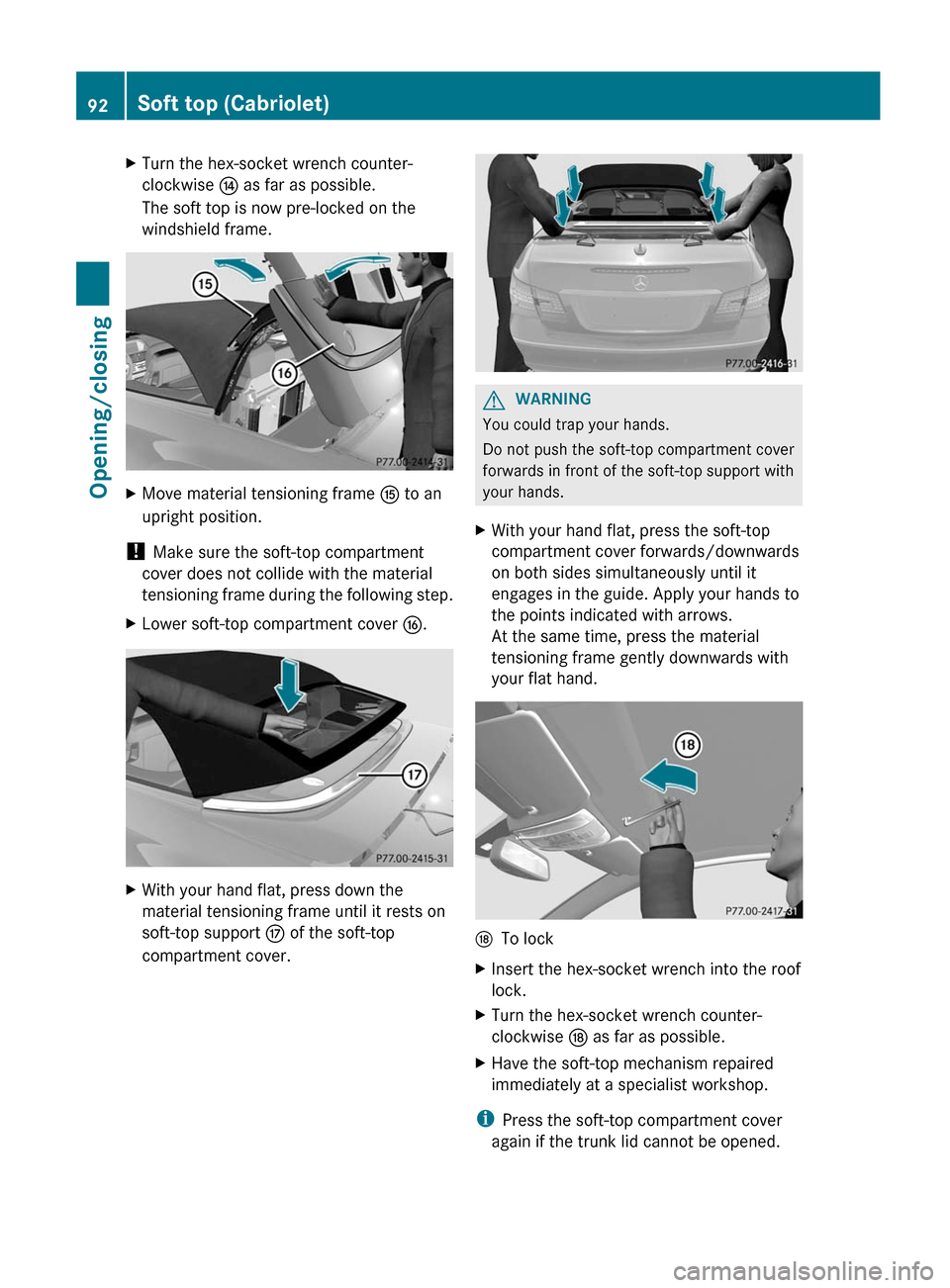

Emergency closing (soft top) ............. 88
Emergency release Driver's door .................................... 79
Trunk ............................................... 82
Vehicle ............................................. 79
Emergency spare wheel
Storage location ............................ 290
Emergency Tensioning Devices
Function ........................................... 54
Safety guidelines ............................. 37
Emissions purification
Service and warranty information ....20
Engine
Check Engine warning lamp ........... 245
Display message ............................ 225
Emergency starting ........................303
Engine number ............................... 340
Irregular running ............................ 148
Starting problems ..........................148
Starting the engine with the
SmartKey ....................................... 146
Starting with KEYLESS-GO .............146
Switching off .................................. 158
Engine electronics
Problem (malfunction) ...................148
Engine oil
Adding ........................................... 275
Additives ........................................ 344
Checking the oil level ..................... 275
Checking the oil level using the
dipstick .......................................... 275
Display message ............................ 227
Filling capacity ............................... 342
Notes about oil grades ................... 343
Notes on oil level/consumption ....275
Viscosity ........................................ 344
ESP ®
(Electronic Stability
Program) Deactivating/activating .................206
Deactivating/activating (notes) .......64Display message ............................ 214
ETS .................................................. 63
Function/notes ................................ 63
Important safety information ...........63
Warning lamp ................................. 242
ETS (Electronic Traction System) ....... 63
Exhaust check ................................... 161
Exhaust tail pipe (cleaning
instructions) ...................................... 285
Exterior lighting see Lights
Exterior mirrors
Adjusting ....................................... 110
Dipping (automatic) .......................112
Folding in/out (automatically) .......111
Folding in/out (electrically) ...........111
Folding in when locking (on-board
computer) ...................................... 212
Out of position (troubleshooting) ...112
Setting ........................................... 111
Storing settings (memory
function) ........................................ 113
Storing the parking position ..........112
F
Filler cap see Fuel filler flap
First-aid kit ......................................... 290
Flat tire Changing a wheel/mounting the
spare wheel ................................... 291
MOExtended run-flat system .........295
Preparing the vehicle .....................291
Raising the vehicle .........................292
Floormat ............................................. 272
Front fog lamps ................................. 118
Display message ............................ 223
Switching on/off ........................... 118
Front windshield
see Windshield
Fuel
Additives ........................................ 343
Consumption statistics ..................201
Displaying the current
consumption .................................. 201
Displaying the range ......................201
Driving tips .................................... 160
Index9
Page 14 of 352
Locking centrallysee Central locking
Locking verification signal (on-
board computer) ............................... 210
Low-beam headlamps Changing bulbs .............................. 124
Display message ............................ 222
Setting for driving abroad
(symmetrical) ................................. 116
Switching on/off ........................... 117
Luggage cover
see Trunk partition
Lumbar support
Adjusting the 4-way lumbar
support .......................................... 107
M
M+S tires ............................................ 310
Maintenance see ASSYST PLUS service interval
display
Malfunction message
see Display messages
Malfunctions relevant to safety
Reporting ......................................... 23
Matte finish (cleaning
instructions) ...................................... 282
mbrace Call priority .................................... 265
Display message ............................ 217
Downloading destinations
(COMAND) ..................................... 265
Emergency call .............................. 262
Important safety notes ..................261
Locating a stolen vehicle ...............267
MB info call button ........................264
Remote vehicle locking ..................267
Roadside Assistance button ..........264
Search & Send ............................... 266
Self-test ......................................... 262
System .......................................... 262
Vehicle remote unlocking ..............266
Mechanical key
Function/notes ................................ 73
Locking vehicle ................................ 79
Unlocking the driver's door ..............79
Memory card (audio) ......................... 204
Memory function ............................... 113
Message memory (on-board
computer) .......................................... 213
Messages see Display messages
Mirrors
see Exterior mirrors
see Rear-view mirror
see Vanity mirror
Mobile phone
Menu (on-board computer) ............204
Modifying the programming
(SmartKey) ........................................... 73
MOExtended run-flat system ........... 295
MP3 Operating ....................................... 204
see separate operating instructions
Multicontour seat .............................. 107
Multifunction display Function/notes ............................. 198
Permanent display .........................208
Multifunction steering wheel
Operating the on-board computer . 197
Overview .......................................... 29
N
Navigation Menu (on-board computer) ............202
On-board computer .......................202
see separate operating instructions
Neck level heating
see AIRSCARF
NECK-PRO head restraints
Operation ......................................... 49
Resetting after being triggered ........49
Notes on breaking-in a new
vehicle ................................................ 144
12Index
Page 20 of 352
Structure and characteristics
(definition) ..................................... 329
Temperature .................................. 325
TIN (Tire Identification Number)
(definition) ..................................... 331
Tire bead (definition) ......................331
Tire pressure (definition) ................331
Tire pressures (recommended) ......329
Tire size (data) ............................... 333
Tire size designation, load-bearing
capacity, speed rating .................... 326

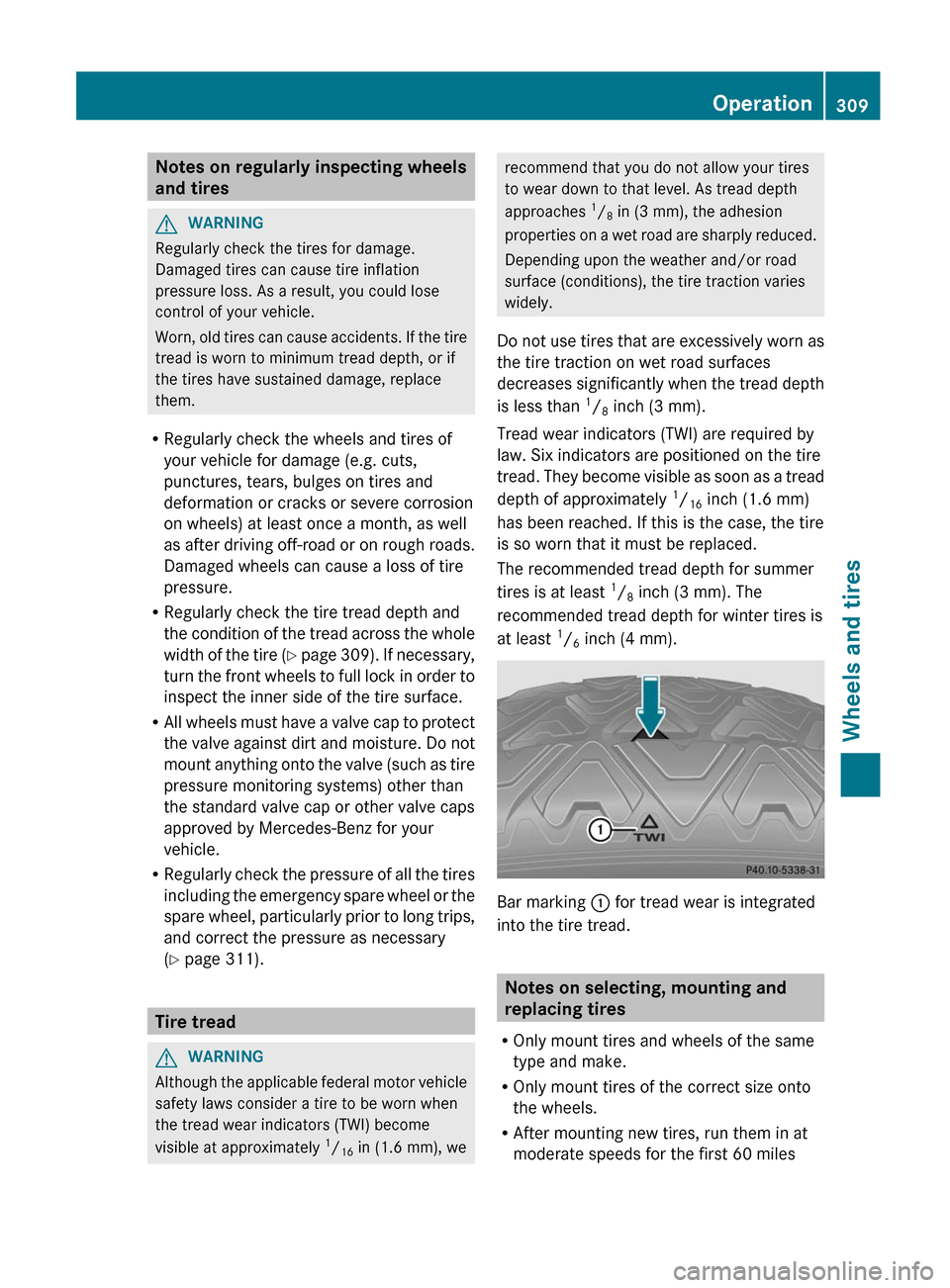

Tire tread ....................................... 309
Tire tread (definition) .....................331
Total load limit (definition) .............332
Traction ......................................... 324
Traction (definition) .......................332
Tread wear ..................................... 324
Uniform Tire Quality Grading
Standards ...................................... 324
Uniform Tire Quality Grading
Standards (definition) ....................329
Unladen weight (definition) ............330
Wear indicator (definition) .............332
Wheel rim (definition) ....................330
see Flat tire
Top Tether ............................................ 58
Towing Important safety guidelines ...........301
Installing the towing eye ................301
Removing the towing eye ...............302
With the rear axle raised ................302
Towing away
With both axles on the ground .......302
Tow-starting
Emergency engine starting ............303
Important safety notes ..................301
Transmission
see Automatic transmission
Transporting the vehicle .................. 302
Trim pieces (cleaning instructions) . 286
Trip computer (on-board
computer) .......................................... 201
Trip meter see Trip odometer
Trip odometer
Calling up ....................................... 201
Resetting (on-board computer) ......202Trunk
Emergency release ..........................82
Important safety guidelines .............80
Locking separately ...........................82
Opening (automatically from
inside) .............................................. 81
Opening (automatically from
outside) ............................................ 81
Trunk lid
Display message ............................ 236
Opening/closing .............................. 80
Trunk partition
Display message ............................ 237
General notes .................................. 93
Opening/closing .............................. 93
Turn signals
Changing bulbs (front) ...................125
Display message ............................ 222
Switching on/off ........................... 119
Type identification plate
see Vehicle identification plate
U
Unlocking Emergency unlocking .......................79
From inside the vehicle (central
unlocking button) ............................. 78
V
Vanity mirror (in sun visor) .............. 258
Vehicle Correct use ...................................... 23
Data acquisition ............................... 24
Display message ............................ 236
Equipment ....................................... 20
Individual settings ..........................208
Limited Warranty ............................. 24
Loading .......................................... 319
Locking (in an emergency) ...............79
Locking (SmartKey) .......................... 71
Lowering ........................................ 295
Maintenance .................................... 21
Parking for a long period ................ 159
Pulling away ................................... 147
Raising ........................................... 292
Reporting problems .........................23
18Index
Page 94 of 352
XTurn the hex-socket wrench counter-
clockwise J as far as possible.
The soft top is now pre-locked on the
windshield frame.XMove material tensioning frame K to an
upright position.
! Make sure the soft-top compartment
cover does not collide with the material
tensioning frame during the following step.
XLower soft-top compartment cover L.XWith your hand flat, press down the
material tensioning frame until it rests on
soft-top support M of the soft-top
compartment cover.GWARNING
You could trap your hands.
Do not push the soft-top compartment cover
forwards in front of the soft-top support with
your hands.
XWith your hand flat, press the soft-top
compartment cover forwards/downwards
on both sides simultaneously until it
engages in the guide. Apply your hands to
the points indicated with arrows.
At the same time, press the material
tensioning frame gently downwards with
your flat hand.NTo lockXInsert the hex-socket wrench into the roof
lock.XTurn the hex-socket wrench counter-
clockwise N as far as possible.XHave the soft-top mechanism repaired
immediately at a specialist workshop.
i Press the soft-top compartment cover
again if the trunk lid cannot be opened.
92Soft top (Cabriolet)Opening/closing
Page 236 of 352
Display messagesPossible causes/consequences and M SolutionsCheck Tire
Pressure SoonGRisk of accident
The tire pressure loss warning system has detected a significant
loss in pressure.
A warning tone also sounds.
XStop the vehicle without making any sudden steering or braking
maneuvers. Pay attention to the traffic conditions as you do so.XCheck the tires and, if necessary, change the wheel
( Y page 332).XCheck the tire pressures and, if necessary, set to the correct
tire pressure.XRestart the tire pressure loss warning system when the tire
pressure is correct ( Y page 315).Check Tire Pressure
Then Restart Run
Flat IndicatorThe tire pressure loss warning system generated a display
message and has not been restarted since.XSet the correct tire pressure in all four tires.XRestart the tire pressure loss warning system ( Y page 315).Run Flat Indicator
InoperativeThe tire pressure loss warning system is defective.XVisit a qualified specialist workshop.Tire pressures
will be displayed
after driving a
few minutesThe tire pressure monitor is measuring the tire pressure.XDrive on.
The tire pressures appear in the multifunction display after you
have been driving for a few minutes.Tire Press. Monitor
InoperativeThe tire pressure monitor is defective.XVisit a qualified specialist workshop.Tire Press. Monitor
Inoperative No
Wheel SensorsThe wheels mounted do not have a suitable tire pressure sensor.
The tire pressure monitor is deactivated.XMount wheels with suitable tire pressure sensors.
The tire pressure monitor is activated automatically after driving
for a few minutes.234Display messagesOn-board computer and displays
Page 294 of 352
XPrepare the vehicle as described
( Y page 291).XRemove the following items (depending on
the vehicle's equipment) from the stowage
well under the trunk floor:
R the emergency spare wheel
R the vehicle tool kit
R the folding wheel chock
R the jackXSecure the vehicle to prevent it from rolling
away.
Securing the vehicle to prevent it from
rolling away
GWARNING
Only jack up the vehicle on level ground or on
slight inclines/declines. The vehicle could
otherwise fall off the jack and injure you or
others.
If your vehicle is equipped with a wheel chock,
it can be found in the vehicle tool kit
( Y page 290).
The folding wheel chock is an additional
securing measure to prevent the vehicle from
rolling away, for example when changing a
wheel.
XFold both plates upwards :.XFold out lower plate ;.XGuide the lugs on the lower plate fully into
the openings in base plate =.
Securing the vehicle on level ground (example:
Coupe)
XOn level ground: place chocks or other
suitable items under the front and rear of
the wheel that is diagonally opposite the
wheel you wish to change.
Securing the vehicle on slight downhill gradients
(example: Coupe)
XOn downhill gradients: place chocks or
other suitable items in front of the wheels
of the front and rear axle.
Raising the vehicle
GWARNING
When jacking up the vehicle, only use the jack
which has been specifically approved by
Mercedes-Benz for your vehicle.
The jack is designed exclusively for jacking up
the vehicle at the jacking points built into both
sides of the vehicle. The jack saddle must be
placed centrally under the jacking point. The
jack must always be vertical when in use,
especially on inclines or declines.
292Flat tireBreakdown assistance
Page 297 of 352
XSlide the emergency spare wheel onto the
alignment bolt and push it on.XTighten the wheel bolts until they are
finger-tight.XUnscrew the alignment bolt.XTighten the last wheel bolt until it is finger-
tight.
Lowering the vehicle
XTurn the crank of the jack counter-
clockwise until the vehicle is once again
standing firmly on the ground.XPlace the jack to one side.XTighten the wheel bolts evenly in a
crosswise pattern in the sequence
indicated ( : to A). The tightening torque
must be 96 lb-ft (130 Nm) .GWARNING
Have the tightening torque checked
immediately after a wheel is changed. The
wheels could come loose if they are not
tightened to a torque of 96 lb/ft (130 Nm).
XTurn the jack back to its initial position and
store it together with the rest of the tire-
change tool kit in the stowage well under
the trunk floor.XVehicles with AMG equipment: if a front
wheel has been changed, insert the cover
into the outer sill.XTransport the defective wheel in the trunk.
i When you are driving with the collapsible
spare wheel mounted, the tire pressure
loss warning system or the tire pressure
monitoring system cannot function
reliably. Only restart the tire pressure loss
warning system/tire pressure monitoring
system when the defective wheel has been
replaced with a new wheel.
Vehicles with tire pressure monitoring
system: all mounted wheels must be
equipped with functioning sensors and the
defective wheel should no longer be in the
vehicle.
MOExtended tires (tires with run-flat
properties)
MOExtended tires (tires with run-flat
properties) allow you to continue driving your
vehicle even if one or more tires are entirely
deflated.
MOExtended tires may only be used in
conjunction with the activated tire pressure
loss warning system or with the activated tire
pressure monitoring system.
The maximum permissible distance which
can be driven in run-flat mode depends on the
load in the vehicle. You can drive 50 miles
(80 km) if the vehicle is partially laden and
18 miles (30 km) if it is fully laden.
The maximum permissible distance which
can be driven in run-flat mode is counted from
the moment the tire pressure loss warning
appears in the multifunction display.
You must not exceed a maximum speed of
50 mph (80 km/h).
Flat tire295Breakdown assistanceZ
Page 298 of 352
GWARNING
The handling characteristics of your vehicle
deteriorate in run-flat mode, for example:
R when cornering
R when braking
R when accelerating rapidly
Adapt your driving style accordingly and avoid
sudden changes in direction and sudden
acceleration, as well as driving over obstacles
(i.e. curbs, potholes), and driving off-road.
This is particularly the case when the vehicle
is heavily laden.
The maximum permissible distance that can
be driven in run-flat mode depends to a large
extent on the loads placed on the vehicle. It
can be shorter due to high speeds, a heavy
load, sudden changes in direction, the road
surface condition, outside temperature, etc.,
or further if you drive carefully and
conservatively.
Do not continue to drive in run-flat mode if:
R you hear banging noises.
R the vehicle starts to shake.
R you see smoke and smell rubber.
R ESP ®
is intervening constantly.
R there are tears in the sidewalls of the tire.
After driving in run-flat mode, you must have
the wheel(s) checked for damage at a
qualified specialist workshop which has the
necessary specialist knowledge and tools to
carry out the work required. The defective tire
must be replaced in every case.
Mercedes-Benz recommends that you use an
authorized Mercedes-Benz Center for this
purpose. In particular, work relevant to safety
or on safety-related systems must be carried
out at a qualified specialist workshop.
i When replacing one or all tires, make sure
that you only use tires marked
MOExtended and of the specified size for
the vehicle.
Battery
Important safety notes
In order for the battery to achieve the
maximum possible service life, it must always
be sufficiently charged.
! Have the battery checked regularly at a
qualified specialist workshop, such as an
authorized Mercedes-Benz Center.
Adhere to the service intervals indicated in
the service booklet or ask a qualified
specialist workshop, such as an authorized
Mercedes-Benz Center.
Have the battery charge checked more
frequently if you use the vehicle mainly for
short trips or if you leave it standing idle for
a lengthy period.
Only replace a battery with a battery that has
been recommended by Mercedes-Benz.
Consult an authorized Mercedes-Benz Center
if you wish to leave your vehicle parked for a
long period of time.
GWARNING
Comply with safety precautions and take
protective measures when handling batteries.
Risk of explosionFire, naked flames and
smoking are prohibited
when handling the battery.
Avoid creating sparks.Battery acid is caustic.
Avoid contact with the skin,
eyes or clothing.
Wear suitable protective
clothing, in particular
gloves, an apron and a face
mask.
Immediately rinse acid
splashes off with clean
water. Consult a doctor if
necessary.296BatteryBreakdown assistance
Page 311 of 352
Notes on regularly inspecting wheels
and tiresGWARNING
Regularly check the tires for damage.
Damaged tires can cause tire inflation
pressure loss. As a result, you could lose
control of your vehicle.
Worn, old tires can cause accidents. If the tire
tread is worn to minimum tread depth, or if
the tires have sustained damage, replace
them.
R Regularly check the wheels and tires of
your vehicle for damage (e.g. cuts,
punctures, tears, bulges on tires and
deformation or cracks or severe corrosion
on wheels) at least once a month, as well
as after driving off-road or on rough roads.
Damaged wheels can cause a loss of tire
pressure.
R Regularly check the tire tread depth and
the condition of the tread across the whole
width of the tire (Y page 309). If necessary,
turn the front wheels to full lock in order to
inspect the inner side of the tire surface.
R All wheels must have a valve cap to protect
the valve against dirt and moisture. Do not
mount anything onto the valve (such as tire
pressure monitoring systems) other than
the standard valve cap or other valve caps
approved by Mercedes-Benz for your
vehicle.
R Regularly check the pressure of all the tires
including the emergency spare wheel or the
spare wheel, particularly prior to long trips,
and correct the pressure as necessary
( Y page 311).
Tire tread
GWARNING
Although the applicable federal motor vehicle
safety laws consider a tire to be worn when
the tread wear indicators (TWI) become
visible at approximately 1
/ 16 in (1.6 mm), we
recommend that you do not allow your tires
to wear down to that level. As tread depth
approaches 1
/ 8 in (3 mm), the adhesion
properties on a wet road are sharply reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.
Do not use tires that are excessively worn as
the tire traction on wet road surfaces
decreases significantly when the tread depth
is less than 1
/ 8 inch (3 mm).
Tread wear indicators (TWI) are required by
law. Six indicators are positioned on the tire
tread. They become visible as soon as a tread
depth of approximately 1
/ 16 inch (1.6 mm)
has been reached. If this is the case, the tire
is so worn that it must be replaced.
The recommended tread depth for summer
tires is at least 1
/ 8 inch (3 mm). The
recommended tread depth for winter tires is
at least 1
/ 6 inch (4 mm).
Bar marking
: for tread wear is integrated
into the tire tread.
Notes on selecting, mounting and
replacing tires
R Only mount tires and wheels of the same
type and make.
R Only mount tires of the correct size onto
the wheels.
R After mounting new tires, run them in at
moderate speeds for the first 60 miles
Operation309Wheels and tiresZ
