Page 12 of 394
Engine oil
Adding ........................................... 314
Additives ........................................ 387
Checking the oil level ..................... 313
Checking the oil level using the
dipstick .......................................... 313
Display message ............................ 262
Filling capacity ............................... 387
Notes about oil grades ................... 386
Notes on oil level/consumption ....313
Viscosity ........................................ 387
ESP ®
(Electronic Stability
Program) Deactivating/activating .................241
Deactivating/activating (notes) .......75
Display message ............................ 249
ETS/4ETS ........................................ 74
Function/notes ................................ 74
General notes .................................. 74
Important safety information ...........74
Warning lamp ................................. 279
ETS/4ETS (Electronic Traction
System) ................................................ 74
Exhaus tcheck ................................... 185
Exhaus tpipe (cleaning instructions) 324
Exterior lighting Settin goption s.............................. 134
see Lights
Exterior mirrors
Adjusting ....................................... 127
Dipping (automatic) .......................129
Folding in/ou t(automatically) .......128
Folding in/ou t(electrically) ...........128
Folding in whe nlocking (on-board
computer) ...................................... 246
Out of position (troubleshooting) ...129
Setting ........................................... 128
Storing settings (memory function) 130
Storing the parking position ..........129 F
Fille rcap
see Fuel filler flap
First-aid kit ......................................... 328
Flat tire MOExtended tires ..........................329
Preparing the vehicle .....................328Floormats
........................................... 308
Fuel Additives ........................................ 385
Consumption statistics ..................235
Displaying the current
consumption .................................. 236
Displaying the range ......................236
Driving tips .................................... 184
Flexible fuel vehicles ......................386
Fuel gauge ....................................... 31
Grade (gasoline) ............................ 385
Important safety notes ..................384
Premium-grade unleaded gasoline .385
Problem (malfunction) ...................182
Refueling ........................................ 179
Tank content/reserve fuel .............384
Fuel filler flap
Opening/closing ............................ 180
Fuel level
Calling up the range (on-board
computer) ...................................... 236
Fuel tank
Capacity ........................................ 384
Problem (malfunction) ...................182
Fuse allocation chart (vehicle tool
kit) ...................................................... 328
Fuses Allocation chart ............................. 339
Before changing ............................. 339
Dashboard fuse box .......................339
Fuse box in the engine
compartment ................................. 340
Fuse box in the trunk .....................340
Important safety notes ..................339 G
Garage door opener Clearing the memory .....................308
Important safety notes ..................305
Opening/closing the garage door ..308
Programming (button in the rear-
view mirror) ................................... 306
Genuine parts ...................................... 21
Glove box ........................................... 28910
Index

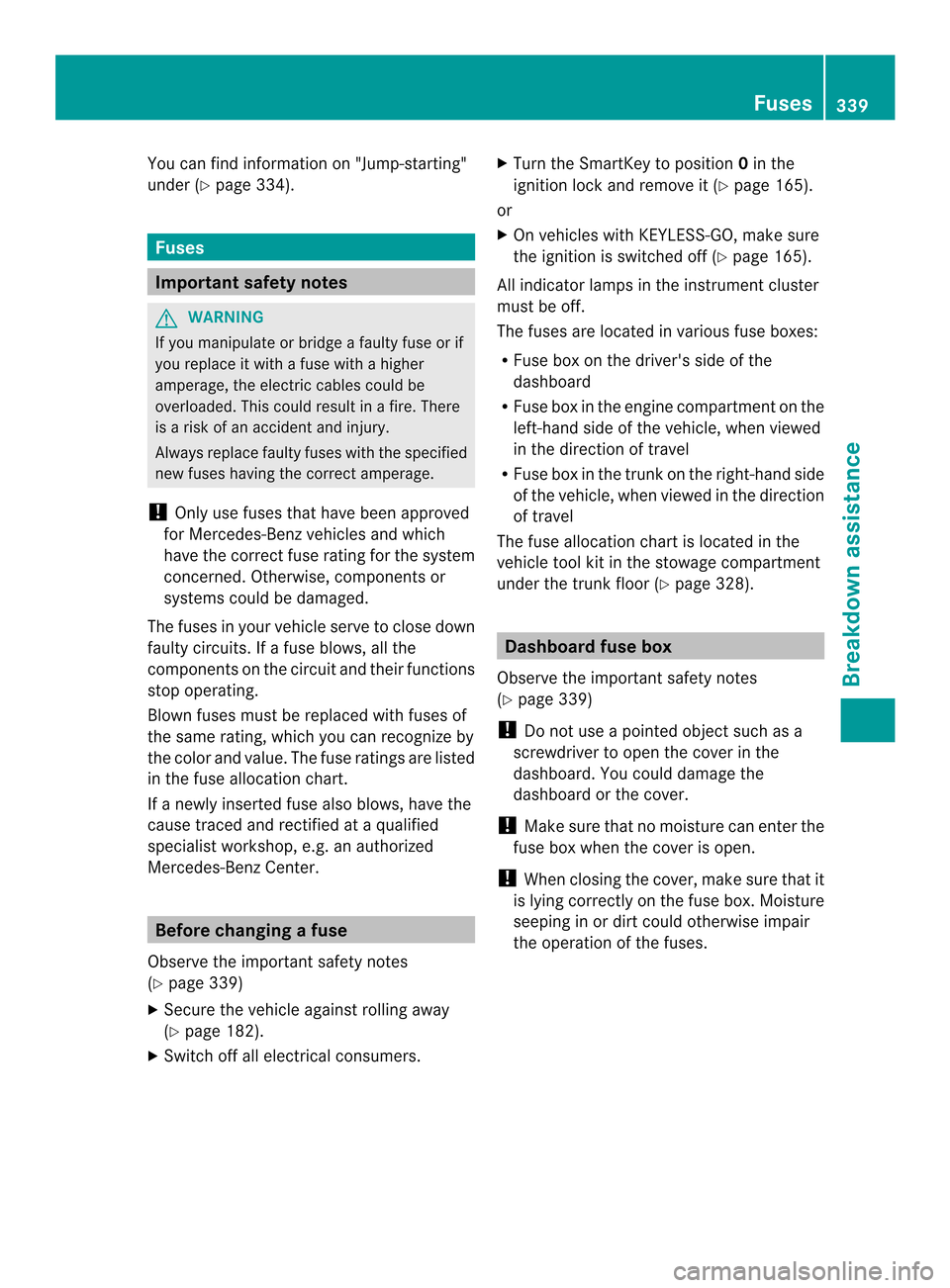

Page 341 of 394
You can find information on "Jump-starting"
under (Y page 334). Fuses
Important safety notes
G
WARNING
If you manipulate or bridge a faulty fuse or if
you replace it with a fuse with a higher
amperage, the electric cables could be
overloaded. This could result in a fire. There
is a risk of an accident and injury.
Always replace faulty fuses with the specified
new fuses having the correc tamperage.
! Only use fuses that have been approved
for Mercedes-Benz vehicles and which
have the correct fuse rating for the system
concerned. Otherwise, components or
systems could be damaged.
The fuses in yourv ehicle serve to close down
faulty circuits. If afuse blows, all the
components on the circuit and their functions
stop operating.
Blown fuses must be replace dwith fuses of
the same rating, which you can recognize by
the color and value. The fuse ratings are listed
in the fuse allocation chart.
If a newly inserted fuse also blows, have the
cause traced and rectified at a qualified
specialist workshop, e.g. an authorized
Mercedes-Ben zCenter. Before changing a fuse
Observe the important safety notes
(Y page 339)
X Secure the vehicle against rolling away
(Y page 182).
X Switch off all electrical consumers. X
Turn the SmartKey to position 0in the
ignition lock and remove it (Y page 165).
or
X On vehicles with KEYLESS-GO, make sure
the ignition is switched off (Y page 165).
All indicator lamps in the instrument cluster
must be off.
The fuses are located in various fuse boxes:
R Fuse box on the driver's side of the
dashboard
R Fuse box in the engine compartment on the
left-hand side of the vehicle, when viewed
in the direction of travel
R Fuse box in the trun konthe right-hand side
of the vehicle, when viewed in the direction
of travel
The fuse allocation chart is located in the
vehicle tool kit in the stowage compartment
under the trunk floor (Y page 328). Dashboard fuse box
Observe the important safety notes
(Y page 339)
! Do not use a pointed object such as a
screwdriver to open the cover in the
dashboard. You could damage the
dashboard or the cover.
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses. Fuses
339Breakdown assistance Z
Page 342 of 394
X
To open: pull outcover 0002slightly at the
bottom in the direction of arrow 0023.
X Pull cover 0002outwards in the direction of
arrow 0003and remove it.
X To close: clip in cover 0002on the front of
the dashboard.
X Fold cover 0002inwards until it engages. Fuse box in the engine compartment
Observe the important safety notes
(Y page 339) G
WARNING
When the hood is open and the windshield
wipers are set in motion ,you can be injured
by the wiper linkage. There is a risk of injury.
Always switch off the windshield wipers and
the ignition before opening the hood.
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.
X Make sure that the windshield wipers are
turned off.
X Open the hood. X
Use a dry cloth to remove any moisture
from the fuse box.
X To open: remove lines 0003from the guides.
X Move lines 0003aside. Route the lines behind
connection 0023to do this.
X Open clamp 0002.
X Remove the fuse box cover forwards.
X To close: check whether the rubber seal is
lying correctly in the cover.
X Insert the cover at the rear of the fuse box
into the retainer.
X Fold down cover and close clamps 0002.
X Secure lines 0003in the guides.
X Close the hood. Fuse box in the trunk
Observe the important safety notes
(Y page 339)
! Make sure that no moisture can enter the
fuse box when the cover is open.
! When closing the cover, make sure that it
is lying correctly on the fuse box. Moisture
seeping in or dirt could otherwise impair
the operation of the fuses.
X Open the trunk lid. 340
FusesBreakdown assistance
