MERCEDES-BENZ E-CLASS SALOON 2011 Owners Manual

Deviations fro
mthese values may occur

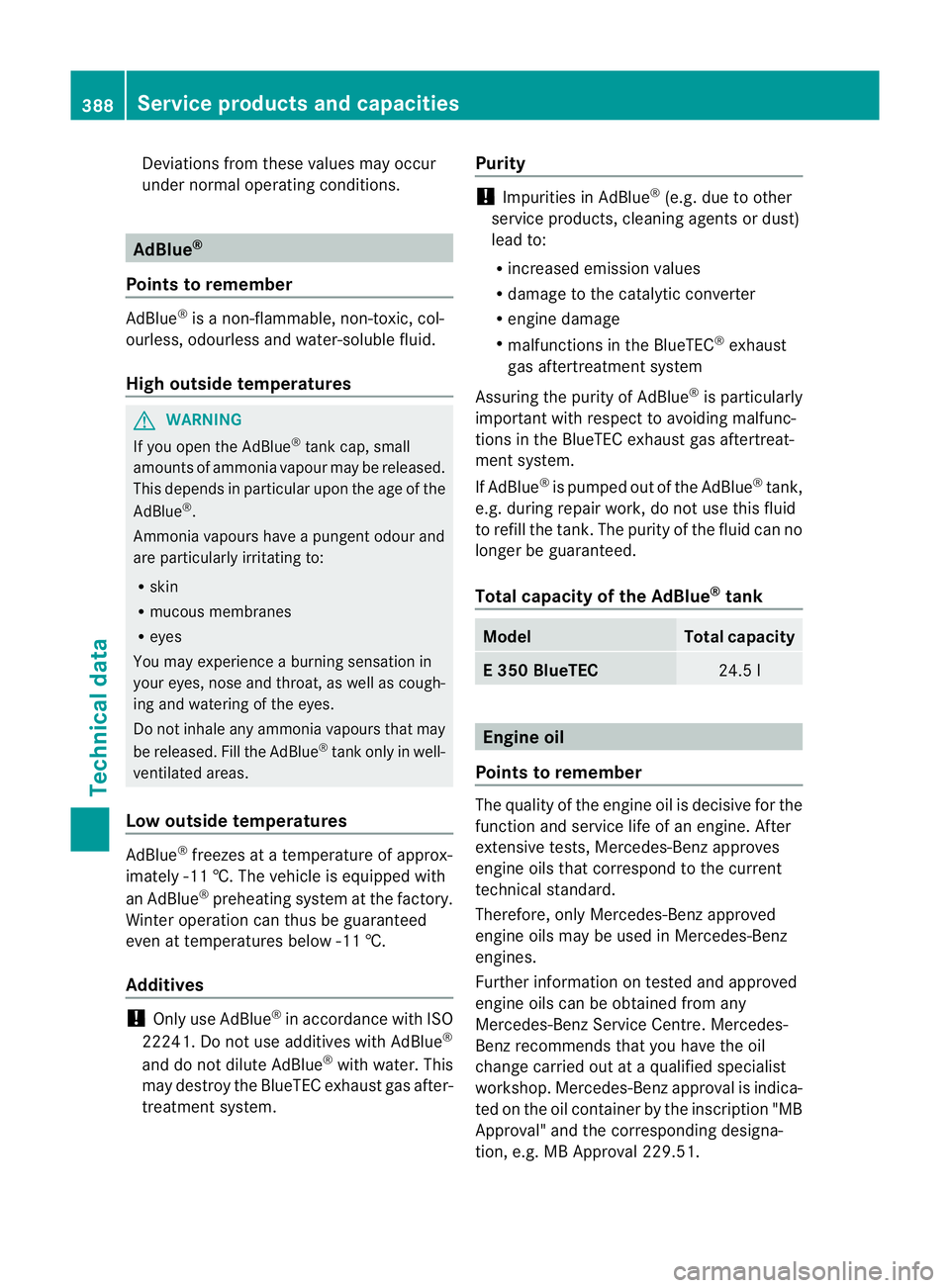

under normal operating conditions. AdBlue
®
Points to remember AdBlue
®
is a non-flammable, non-toxic, col-
ourless, odourless and water-soluble fluid.
High outside temperatures G
WARNING
If you open the AdBlue ®
tank cap, small
amounts of ammonia vapour may be released.
This depends in particular upon the age of the
AdBlue ®
.
Ammonia vapours have a pungent odour and
are particularly irritating to:
R skin
R mucous membranes
R eyes
You may experience a burning sensation in
your eyes, nose and throat, as well as cough-
ing and watering of the eyes.
Do not inhale any ammonia vapours that may
be released. Fill the AdBlue ®
tank only in well-
ventilated areas.
Low outside temperatures AdBlue
®
freezes at a temperature of approx-
imately -11 †. The vehicle is equipped with
an AdBlue ®
preheating system at the factory.
Winter operation can thus be guaranteed
even at temperatures below -11 †.
Additives !
Only use AdBlue ®
in accordance with ISO
22241. Do not use additives with AdBlue ®
and do not dilute AdBlue ®
with water. This
may destroy the BlueTEC exhaust gas after-
treatment system. Purity !
Impurities in AdBlue ®
(e.g. due to other
service products, cleaning agents or dust)
lead to:
R increased emission values
R damage to the catalytic converter
R engine damage
R malfunctions in the BlueTEC ®
exhaust
gas aftertreatment system
Assuring the purity of AdBlue ®
is particularly
important with respect to avoiding malfunc-
tions in the BlueTEC exhaust gas aftertreat-
ment system.
If AdBlue ®
is pumped out of the AdBlue ®
tank,
e.g. during repair work, do not use this fluid
to refill the tank.T he purity of the fluid can no
longer be guaranteed.
Total capacity of the AdBlue ®
tank Model Total capacity
E 350 BlueTEC
24.5 l
Engine oil
Points to remember The quality of the engine oil is decisive for the
function and service life of an engine. After
extensive tests, Mercedes-Ben
zapproves
engine oils that correspond to the current
technical standard.
Therefore, only Mercedes-Benz approved
engine oils may be used in Mercedes-Benz
engines.
Further information on tested and approved
engine oils can be obtained from any
Mercedes-Benz Service Centre. Mercedes-
Ben zrecommends that you have the oil
change carried out at a qualified specialist
workshop. Mercedes-Benza pproval is indica-
ted on the oil container by the inscription "MB
Approval" and the corresponding designa-
tion, e.g. MB Approval 229.51. 388
Service products and capacitiesTechnical data

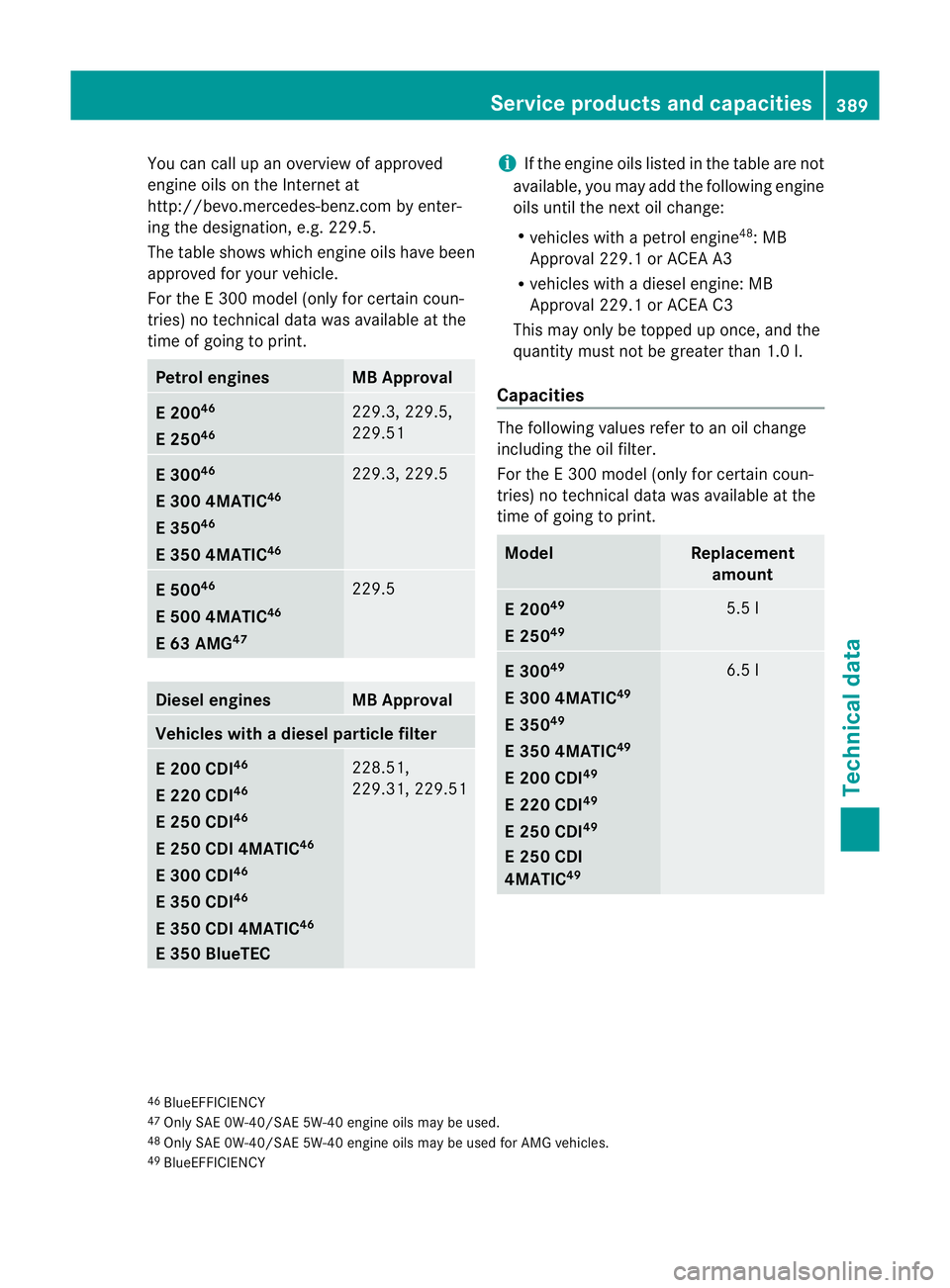

You can call up an overview of approved
engine oils on the Internet at
http://bevo.mercedes-benz.com by enter-
ing the designation, e.g. 229.5.
The table shows which engine oils have been
approved for your vehicle.
For the E 300 model (only for certain coun-
tries) no technical data was available at the
time of going to print. Petrol engines MB Approval
E 200
46
E 250 46 229.3, 229.5,
229.51
E 300
46
E 300 4MATIC 46
E 350 46
E 350 4MATIC 46 229.3, 229.5
E 500
46
E 500 4MATIC 46
E 63 AMG 47 229.5
Diesel engines MB Approval
Vehicles with
adiesel particle filter E 200 CDI
46
E 220 CDI 46
E 250 CDI 46
E 250 CDI 4MATIC 46
E 300 CDI 46
E 350 CDI 46
E 350 CDI 4MATIC 46
E 350 BlueTEC 228.51,
229.31, 229.51 i
If the engine oils listed in the table are not
available, you may add the following engine
oils until the nex toil change:
R vehicles with a petrol engine 48
: MB
Approval 229.1 or ACEA A3
R vehicles with a diesel engine: MB
Approval 229.1 or ACEA C3
This may only be topped up once, and the
quantity must not be greater than 1.0 l.
Capacities The following values refer to an oil change
including the oil filter.
For the E 300 model (only for certain coun-
tries) no technical data was available at the
time of going to print.
Model Replacement
amount E 200
49
E 250 49 5.5 l
E 300
49
E 300 4MATIC 49
E 350 49
E 350 4MATIC 49
E 200 CDI 49
E 220 CDI 49
E 250 CDI 49
E 250 CDI
4MATIC 49 6.5 l
46
BlueEFFICIENCY
47 Only SAE 0W-40/SAE 5W-40 engine oils may be used.
48 Only SAE 0W-40/SAE 5W-40 engine oils may be used for AMG vehicles.
49 BlueEFFICIENCY Service products and capacities
389Technical data Z

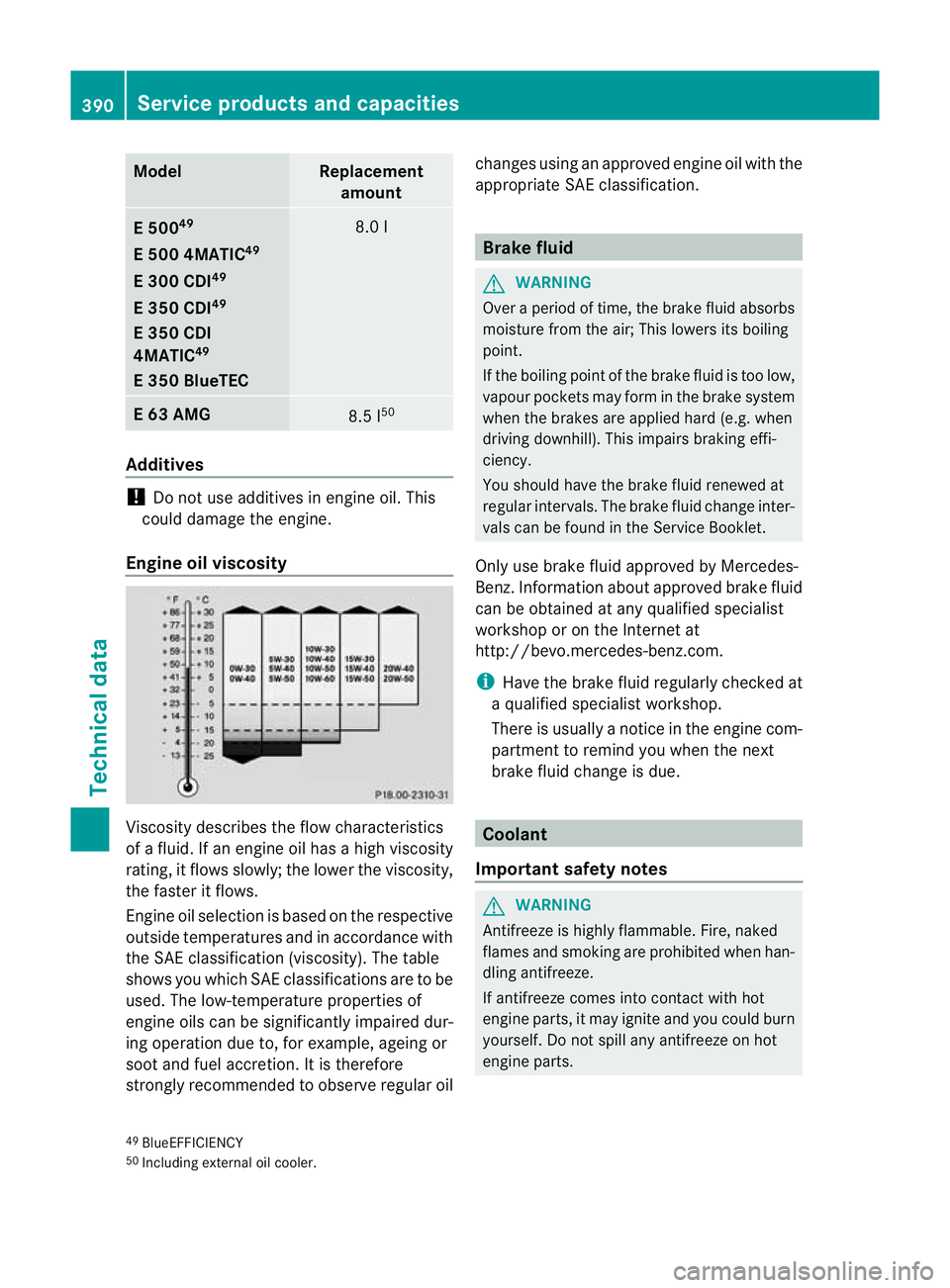

Model Replacement
amount E 500
49
E 500 4MATIC 49
E 300 CDI 49
E 350 CDI 49
E 350 CDI
4MATIC 49
E 350 BlueTEC 8.0 l
E 63 AMG
8.5 l
50 Additives
!
Do not use additives in engine oil.T his
could damage the engine.
Engine oil viscosity Viscosity describes the flow characteristics
of a fluid. If an engine oil has a high viscosity
rating, it flows slowly; the lower the viscosity,
the faster it flows.
Engine oil selection is based on the respective
outside temperatures and in accordance with
the SAE classification (viscosity). The table
shows you which SAE classifications are to be
used. The low-temperature properties of
engine oils can be significantly impaired dur-
ing operation due to, for example, ageing or
soot and fuel accretion. It is therefore
strongly recommended to observe regular oil changes using an approved engine oil with the
appropriate SAE classification. Brake fluid
G
WARNING
Over a period of time, the brake fluid absorbs
moisture from the air; This lowers its boiling
point.
If the boiling point of the brake fluid is too low,
vapour pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). This impairs braking effi-
ciency.
You should have the brake fluid renewed at
regular intervals. The brake fluid change inter-
vals can be found in the Service Booklet.
Only use brake fluid approved by Mercedes-
Benz.I nformation abou tapproved brake fluid
can be obtained at any qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.com.
i Have the brake fluid regularly checked at
a qualified specialist workshop.
There is usually a notice in the engine com-
partment to remind you when the next
brake fluid change is due. Coolant
Important safety notes G
WARNING
Antifreeze is highly flammable. Fire, naked
flames and smoking are prohibited when han-
dling antifreeze.
If antifreeze comes into contact with hot
engine parts, it may ignite and you could burn
yourself. Do not spill any antifreeze on hot
engine parts.
49 BlueEFFICIENCY
50 Including external oil cooler. 390
Service products and capacitiesTechnical data

!

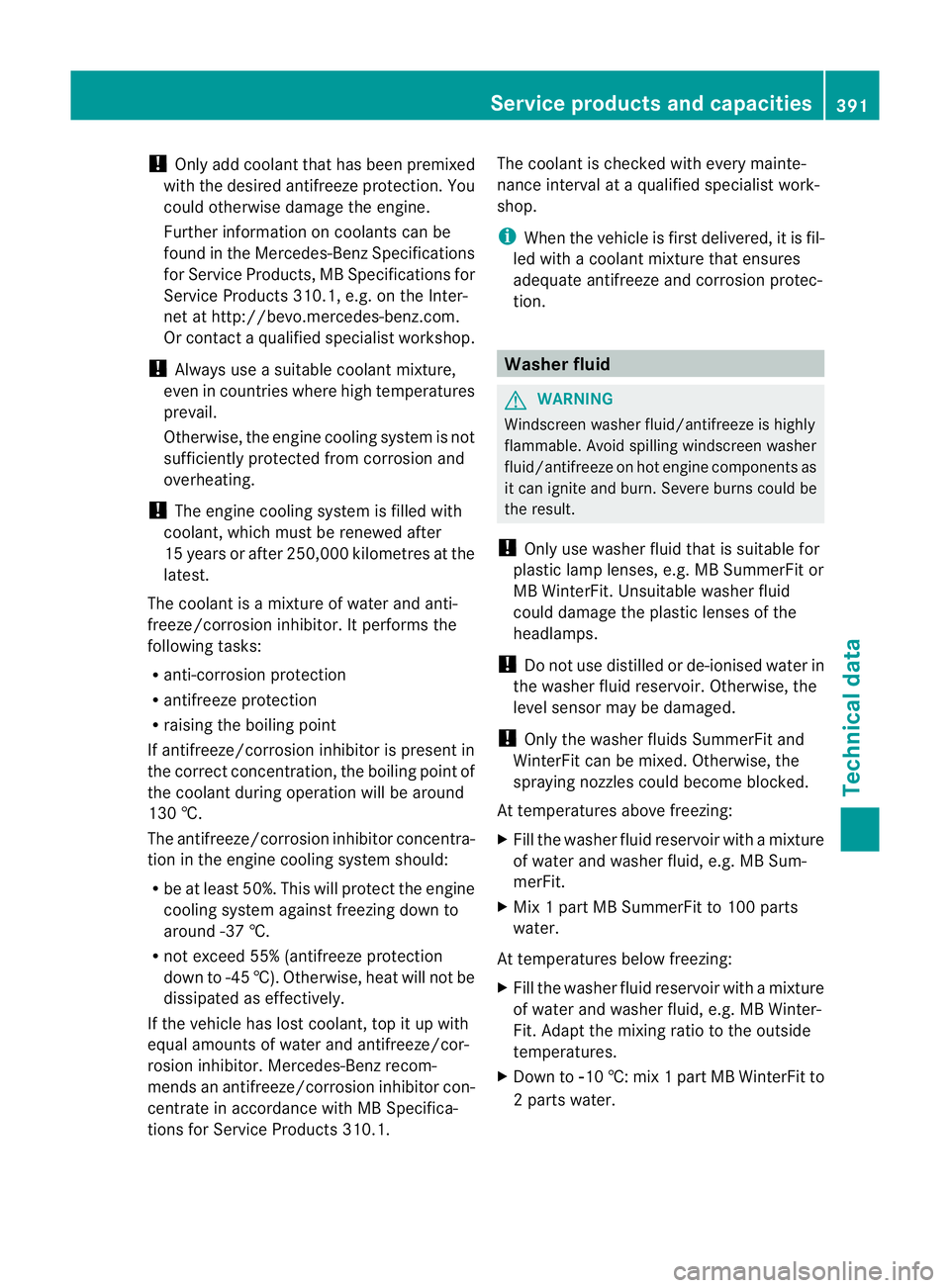

Only add coolant that has been premixed
with the desired antifreeze protection. You
could otherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the Inter-
net at http://bevo.mercedes-benz.com.
Or contact a qualified specialist workshop.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
! The engine cooling system is filled with
coolant, which must be renewed after
15 years or after 250,000 kilometres at the
latest.
The coolant is a mixture of water and anti-
freeze/corrosion inhibitor. It performs the
following tasks:
R anti-corrosion protection
R antifreeze protection
R raising the boiling point
If antifreeze/corrosion inhibitor is present in
the correct concentration, the boiling point of
the coolant during operation will be around
130 †.
The antifreeze/corrosion inhibitor concentra-
tion in the engine cooling system should:
R be at least 50%. This will protect the engine
cooling system against freezing down to
around -37 †.
R not exceed 55% (antifreeze protection
down to -45 †). Otherwise, heat will not be
dissipated as effectively.
If the vehicle has lost coolant, top it up with
equal amounts of water and antifreeze/cor-
rosion inhibitor. Mercedes-Benz recom-
mends an antifreeze/corrosion inhibitor con-
centrate in accordance with MB Specifica-
tions for Service Products 310.1. The coolant is checked with every mainte-
nance interval at a qualified specialist work-
shop.
i
When the vehicle is first delivered, it is fil-
led with a coolant mixture that ensures
adequate antifreeze and corrosion protec-
tion. Washer fluid
G
WARNING
Windscreen washer fluid/antifreeze is highly
flammable. Avoid spilling windscreen washer
fluid/antifreeze on hot engine components as
it can ignite and burn. Severe burns could be
the result.
! Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid
could damage the plastic lenses of the
headlamps.
! Do not use distilled or de-ionised water in
the washer fluid reservoir. Otherwise, the
level sensor may be damaged.
! Only the washer fluids SummerFit and
WinterFit can be mixed. Otherwise, the
spraying nozzles could become blocked.
At temperatures above freezing:
X Fill the washer fluid reservoir with a mixture
of water and washer fluid, e.g. MB Sum-
merFit.
X Mix 1 part MB SummerFit to 100 parts
water.
At temperatures below freezing:
X Fill the washer fluid reservoir with a mixture
of water and washer fluid, e.g. MB Winter-
Fit. Adapt the mixing ratio to the outside
temperatures.
X Down to Ò10 †: mix 1 part MB WinterFit to
2 parts water. Service products and capacities
391Technical data Z

X
Dow ntoÒ20 †: mix 1 part MB WinterFit to
1 part water.
X Down to Ò29 †: mix 2 parts MB WinterFit
to 1 part water.
i Add washer fluid concentrate, e.g. MB
SummerFit or MB WinterFit, to the washer

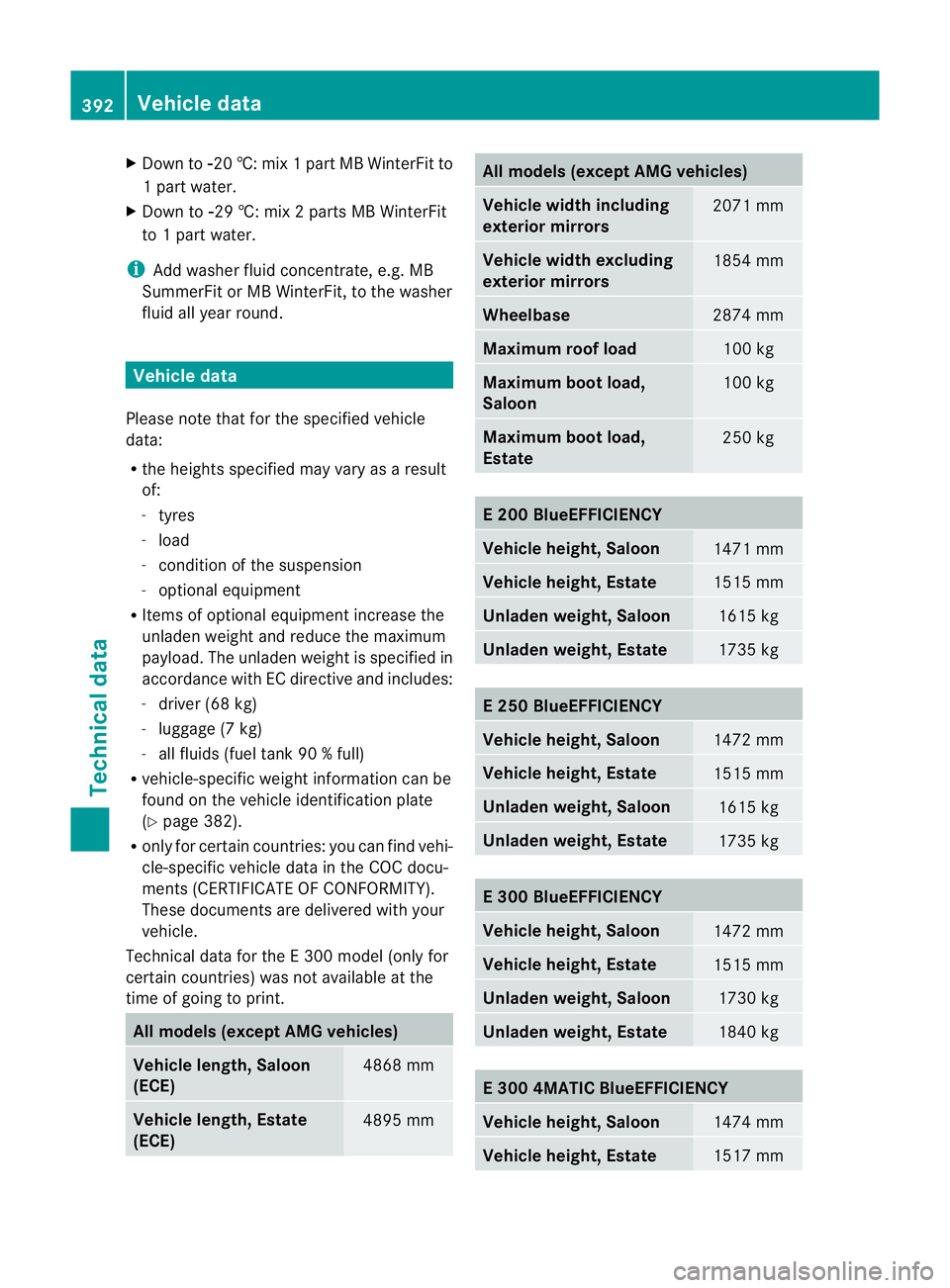

fluid all year round. Vehicle data
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
-tyres
- load
- condition of the suspension
- optional equipment
R Items of optional equipment increase the
unladen weight and reduce the maximum
payload. The unladen weight is specified in
accordance with EC directive and includes:
-driver (68 kg)
- luggage (7 kg)
- all fluids (fuel tank 90 % full)
R vehicle-specific weight information can be
found on the vehicle identification plate
(Y page 382).
R only for certain countries: you can find vehi-
cle-specific vehicle data in the COC docu-
ments (CERTIFICATE OF CONFORMITY).
These documents are delivered with your
vehicle.
Technical data for the E 300 model (only for
certain countries) was not available at the
time of going to print. All models (except AMG vehicles)
Vehicle length, Saloon
(ECE)
4868 mm
Vehicle length, Estate
(ECE)
4895 mm All models (except AMG vehicles)
Vehicle width including
exterior mirrors
2071 mm
Vehicle width excluding
exterior mirrors
1854 mm
Wheelbase
2874 mm
Maximum roof load
100 kg
Maximum boot load,
Saloon
100 kg
Maximum boot load,
Estate
250 kg
E 200 BlueEFFICIENCY
Vehicle height, Saloon
1471 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1615 kg
Unladen weight, Estate
1735 kg
E 250 BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1615 kg
Unladen weight, Estate
1735 kg
E 300 BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1730 kg
Unladen weight, Estate
1840 kg
E 300 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm392

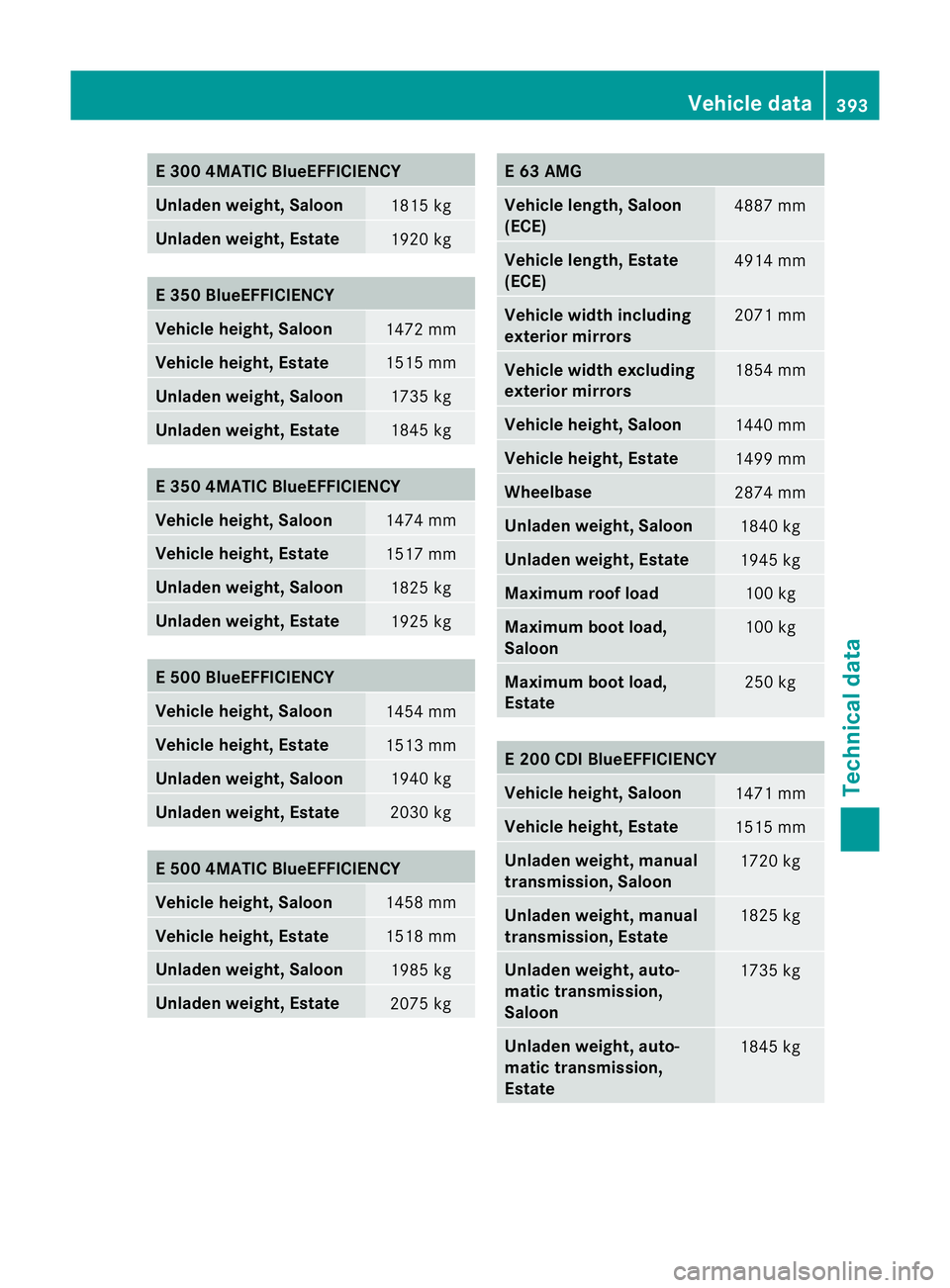

Vehicle dataTechnical data

E 300 4MATIC BlueEFFICIENCY
Unladen weight
,Saloon 1815 kg
Unladen weight, Estate
1920 kg
E 350 BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1735 kg
Unladen weight, Estate
1845 kg
E 350 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm
Unladen weight, Saloon
1825 kg
Unladen weight, Estate
1925 kg
E 500 BlueEFFICIENCY
Vehicle height, Saloon
1454 mm
Vehicle height, Estate
1513 mm
Unladen weight, Saloon
1940 kg
Unladen weight, Estate
2030 kg
E 500 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1458 mm
Vehicle height, Estate
1518 mm
Unladen weight, Saloon
1985 kg
Unladen weight, Estate
2075 kg E 63 AMG
Vehicle length, Saloon
(ECE)
4887 mm
Vehicle length, Estate
(ECE)
4914 mm
Vehicle width including
exterior mirrors
2071 mm
Vehicle width excluding
exterior mirrors
1854 mm
Vehicle height, Saloon
1440 mm
Vehicle height, Estate
1499 mm
Wheelbase
2874 mm
Unladen weight, Saloon
1840 kg
Unladen weight, Estate
1945 kg
Maximum roof load
100 kg
Maximum boot load,
Saloon
100 kg
Maximum boot load,
Estate
250 kg
E 200 CDI BlueEFFICIENCY
Vehicle height, Saloon
1471 mm
Vehicle height, Estate
1515 mm
Unladen weight, manual
transmission
,Saloon 1720 kg
Unladen weight, manual
transmission
,Estate 1825 kg
Unladen weight, auto-
matic transmission,
Saloon
1735 kg
Unladen weight, auto-
matic transmission,
Estate
1845 kgVehicle data
393Technical data Z

E 220 CDI BlueEFFICIENCY
E 250 CDI BlueEFFICIENCY
Vehicle height, Saloon
1471 mm
Vehicle height, Estate
1515 mm
Unladen weight
,Saloon 1735 kg
Unladen weight, Estate
1845 kg
E 250 CDI 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm
Unladen weight, Saloon
1830 kg
Unladen weight, Estate
1940 kg
E 300 CDI BlueEFFICIENCY
Vehicle height, Saloon
1465 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1835 kg
Unladen weight, Estate
1935 kg
E 350 CDI BlueEFFICIENCY
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1845 kg
Unladen weight, Estate
1955 kg
E 350 CDI 4MATIC BlueEFFICIENCY
Vehicle height, Saloon
1474 mm
Vehicle height, Estate
1517 mm
Unladen weight, Saloon
1900 kg
Unladen weight, Estate
2010 kg E 350 BlueTEC
Vehicle height, Saloon
1472 mm
Vehicle height, Estate
1515 mm
Unladen weight, Saloon
1845 kg
Unladen weight, Estate
1955 kg

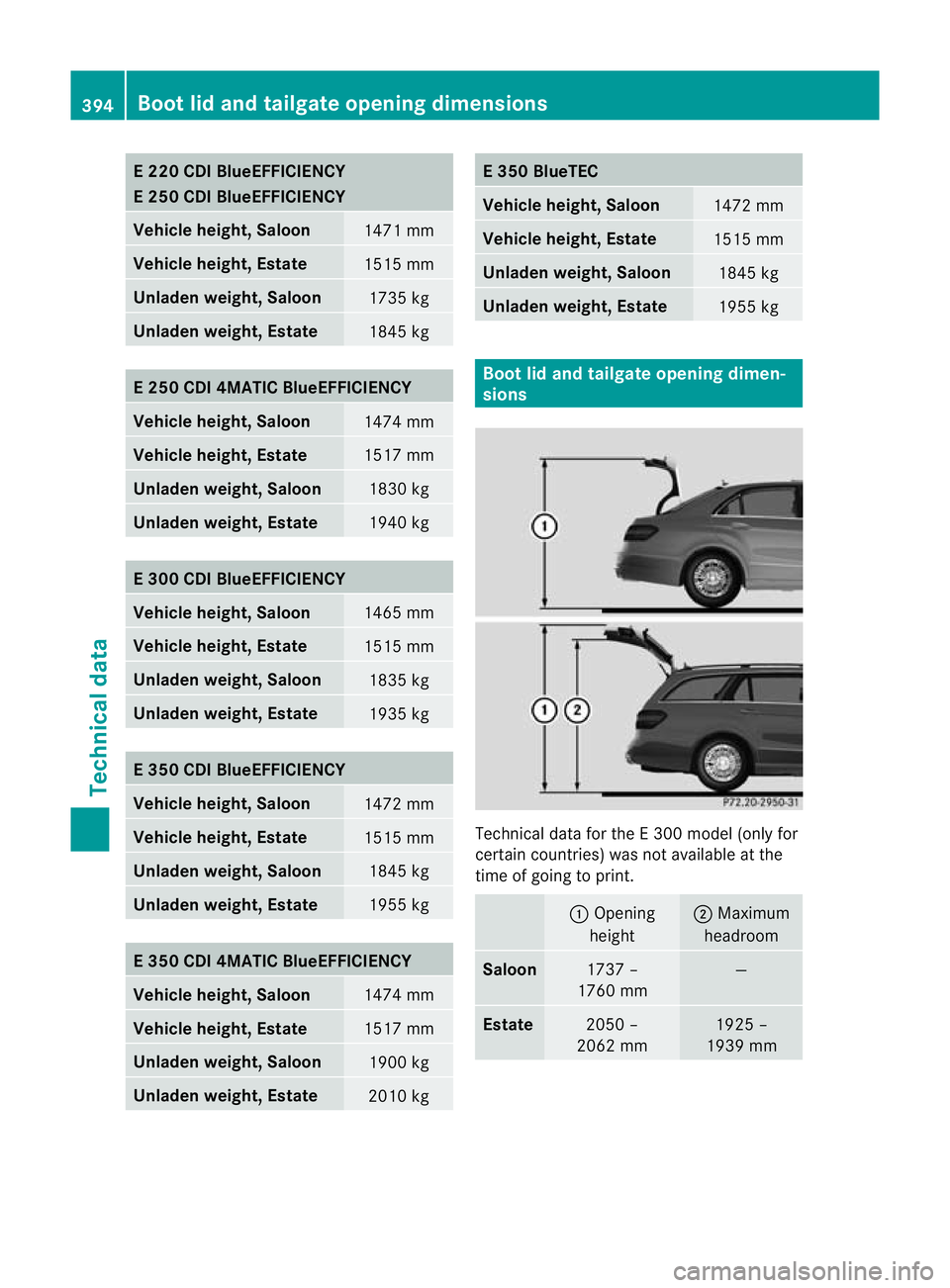

Boot lid and tailgate opening dimen-
sions
Technical data for the E 300 model (only for
certai
ncountries) was not available at the
time of going to print. :
Opening
height ;
Maximum
headroom Saloon
1737 –
1760 mm —
Estate
2050 –
2062 mm 1925 –
1939 mm 394
Boot lid and tailgate opening dimensionsTechnical data

Trailer tow hitch
Mounting dimensions
G
WARNING
Only have a trailer tow hitch retrofitted at a
qualified specialis tworkshop which has the
necessary specialist knowledge and tools to
carry out the work required. Mercedes-Benz
recommends that you use aMercedes-Benz
Service Centre for this purpose. In particular,
work relevant to safety or on safety-related
systems must be carried out at a qualified
specialist workshop.
! If you have a trailer tow hitch retrofitted,
changes to the cooling system may be nec-
essary, depending on the vehicle type.
If you have a trailer tow hitch retrofitted,
observe the anchorage point sonthe chas-
sis frame. Example: anchorage points for the trailer tow hitch
: Anchorage points
; Overhang dimension
= Rear axle centre line
For trailer tow hitches fitted at the factory, the
overhang dimension including the protective covering is 1,253 mm
51
(Saloon) or
1,278 mm 51
(Estate).
51 Missing values for the E300 model were not available at the time of going to print. Trailer tow hitch
395Technical data Z

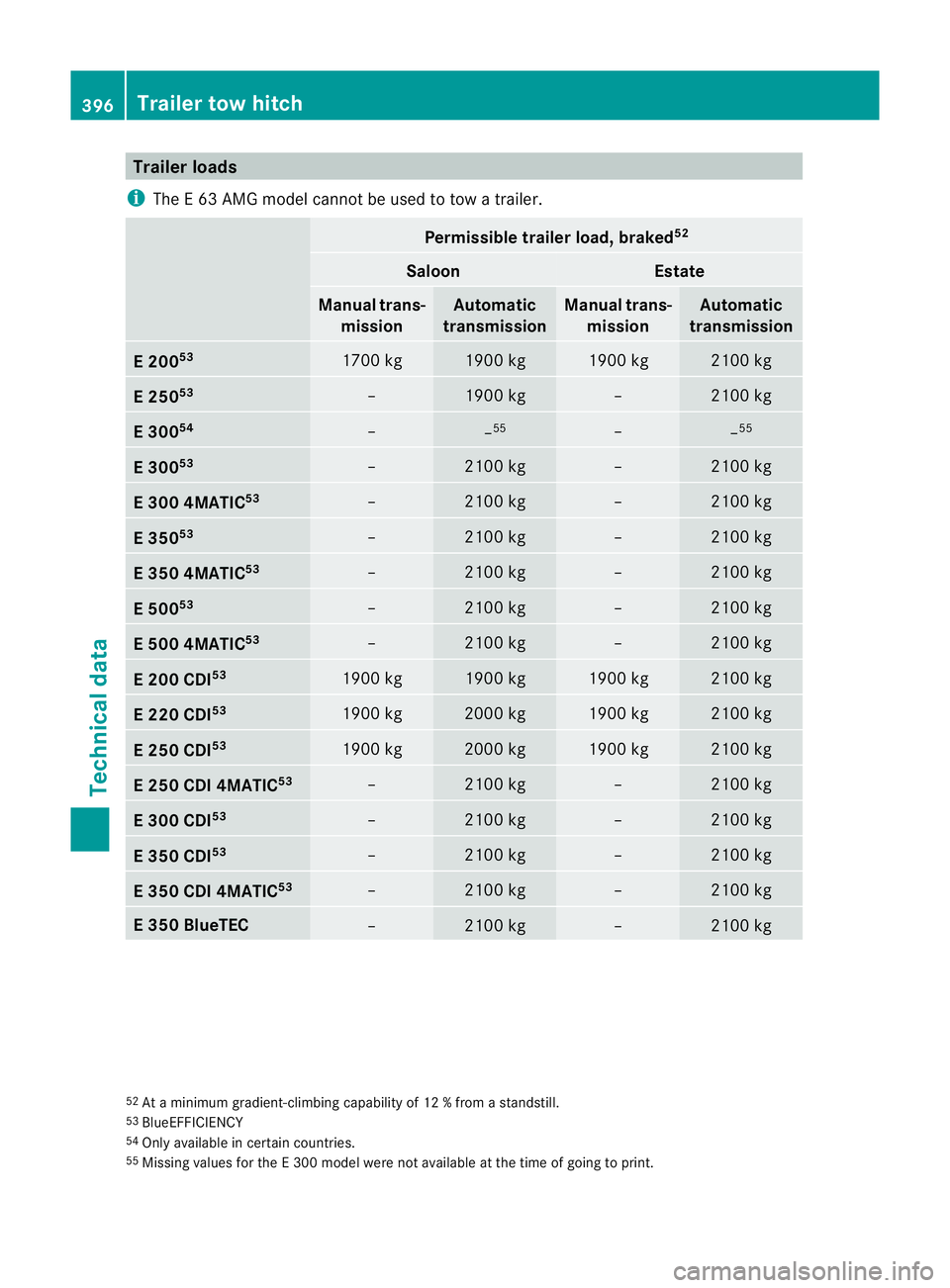

Trailer loads
i The E63A MG model cannot be used to tow a trailer. Permissible trailer load, braked
52 Saloon Estate
Manual trans-
mission Automatic
transmission Manual trans-
mission Automatic
transmission E 200
53 1700 kg 1900 kg 1900 kg 2100 kg
E 250
53 – 1900 kg – 2100 kg
E 300
54 –
–
55 –
–
55 E 300
53 – 2100 kg – 2100 kg
E 300 4MATIC
53 – 2100 kg – 2100 kg
E 350
53 – 2100 kg – 2100 kg
E 350 4MATIC
53 – 2100 kg – 2100 kg
E 500
53 – 2100 kg – 2100 kg
E 500 4MATIC
53 – 2100 kg – 2100 kg
E 200 CDI
53 1900 kg 1900 kg 1900 kg 2100 kg
E 220 CDI
53 1900 kg 2000 kg 1900 kg 2100 kg
E 250 CDI
53 1900 kg 2000 kg 1900 kg 2100 kg
E 250 CDI 4MATIC
53 – 2100 kg – 2100 kg
E 300 CDI
53 – 2100 kg – 2100 kg
E 350 CDI
53 – 2100 kg – 2100 kg
E 350 CDI 4MATIC
53 – 2100 kg – 2100 kg
E 350 BlueTEC
– 2100 kg – 2100 kg
52
At a minimum gradient-climbing capability of 12 % from a standstill.
53 BlueEFFICIENCY
54 Only available in certain countries.
55 Missing values for the E300 model were not available at the time of going to print. 396
Trailer tow hitchTechnical data

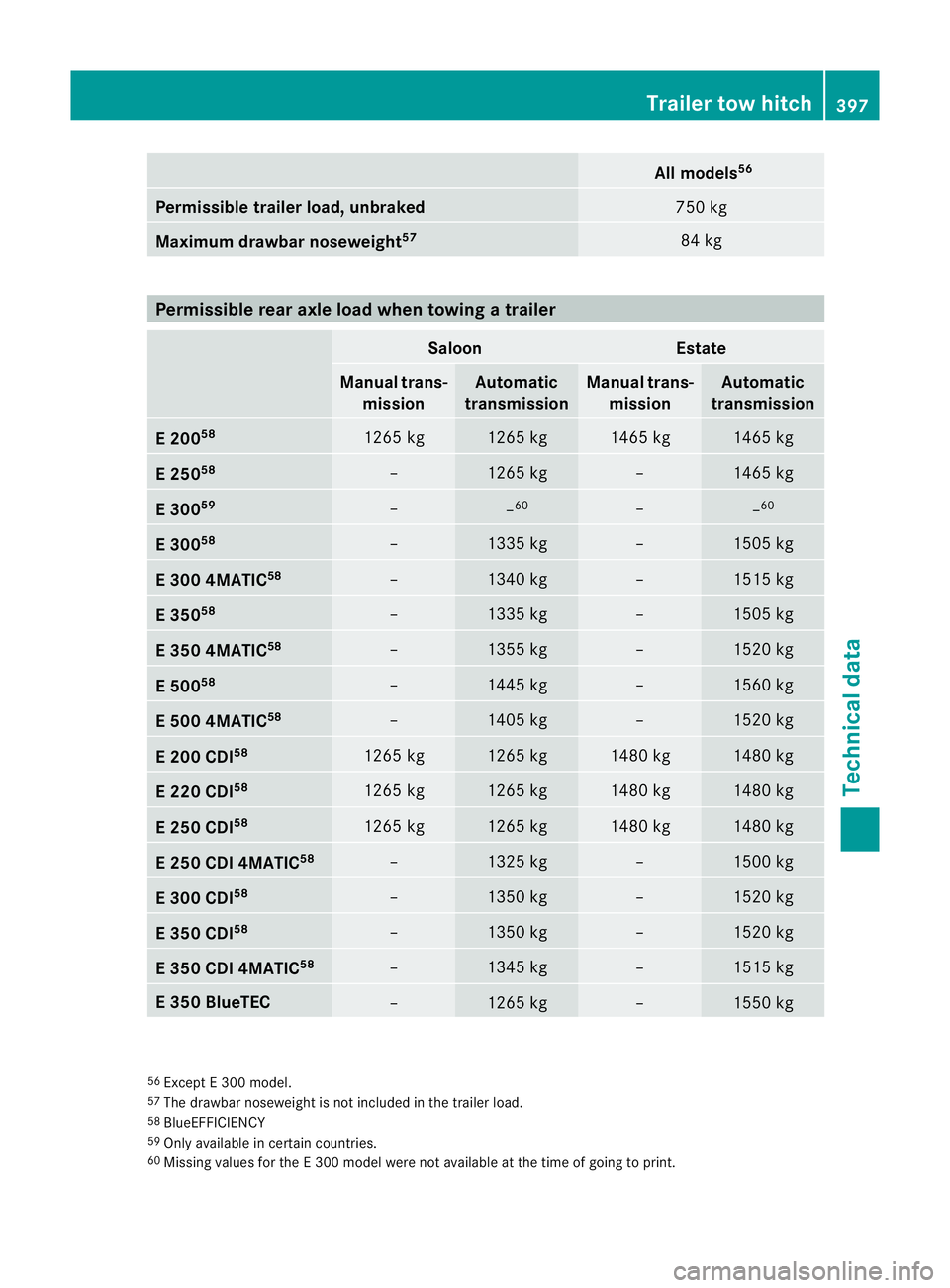

All models
56 Permissible traile
rload ,unbraked 750 kg
Maximum drawbar noseweight
57 84 kg
Permissible rear axle load when towing
atrailer Saloon Estate
Manual trans-
mission Automatic
transmission Manual trans-
mission Automatic
transmission E 200
58 1265 kg 1265 kg 1465 kg 1465 kg
E 250
58 – 1265 kg – 1465 kg
E 300
59 –
–
60 –
–
60 E 300
58 – 1335 kg – 1505 kg
E 300 4MATIC
58 – 1340 kg – 1515 kg
E 350
58 – 1335 kg – 1505 kg
E 350 4MATIC
58 – 1355 kg – 1520 kg
E 500
58 – 1445 kg – 1560 kg
E 500 4MATIC
58 – 1405 kg – 1520 kg
E 200 CDI
58 1265 kg 1265 kg 1480 kg 1480 kg
E 220 CDI
58 1265 kg 1265 kg 1480 kg 1480 kg
E 250 CDI
58 1265 kg 1265 kg 1480 kg 1480 kg
E 250 CDI 4MATIC
58 – 1325 kg – 1500 kg
E 300 CDI
58 – 1350 kg – 1520 kg
E 350 CDI
58 – 1350 kg – 1520 kg
E 350 CDI 4MATIC
58 – 1345 kg – 1515 kg
E 350 BlueTEC
– 1265 kg – 1550 kg
56
Except E 300 model.
57 The drawbar noseweigh tis not included in the trailer load.
58 BlueEFFICIENCY
59 Only available in certain countries.
60 Missing values for the E300 model were not available at the time of going to print. Trailer tow hitch
397Technical data Z
