MERCEDES-BENZ E-CLASS SALOON 2011 Owners Manual

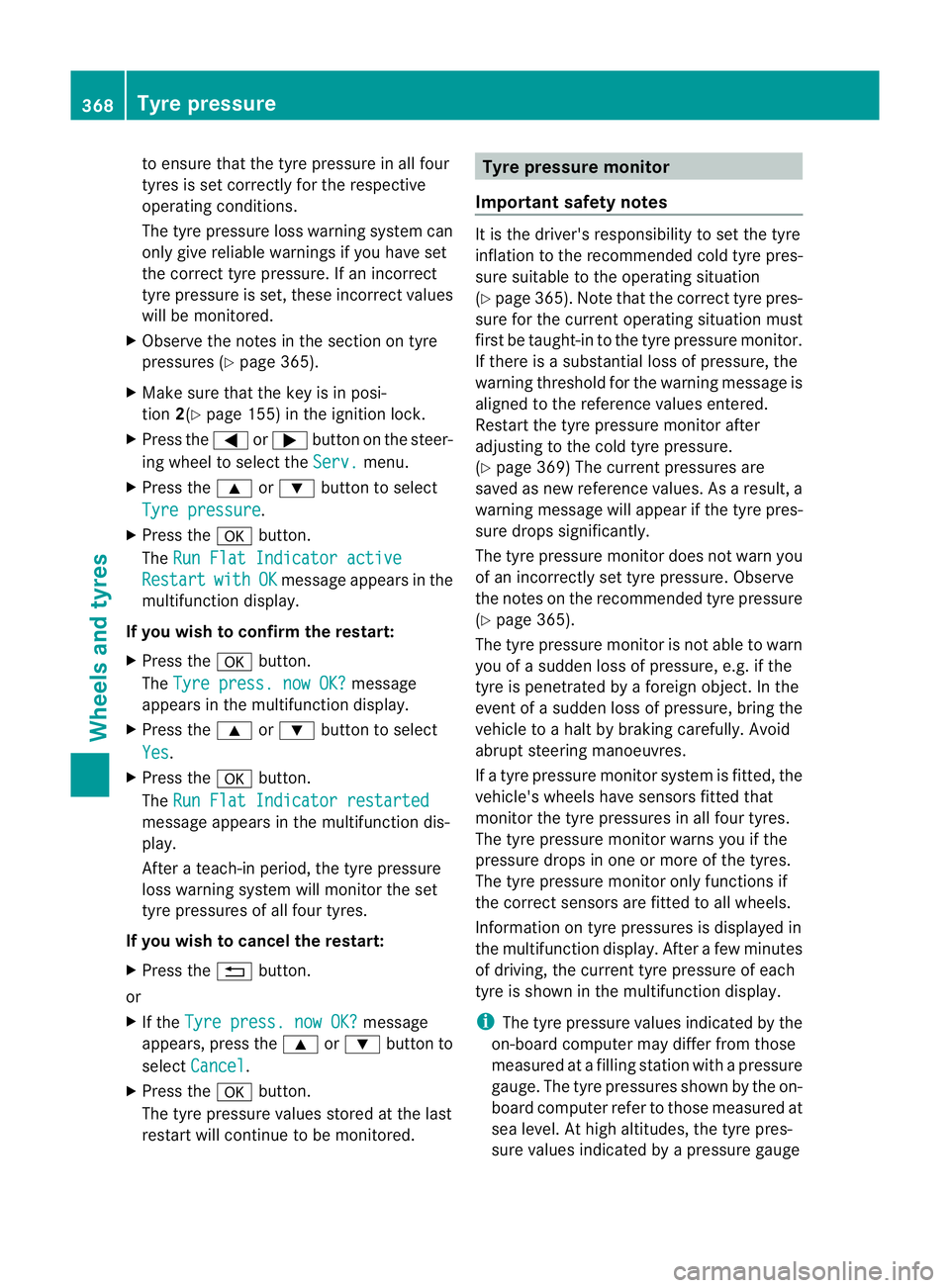

to ensure tha
tthe tyre pressure in all four
tyres is set correctly for the respective
operating conditions.
The tyre pressure loss warning system can
only give reliable warnings if you have set
the correct tyre pressure. If an incorrect
tyre pressure is set, these incorrectv alues
will be monitored.
X Observe the notes in the section on tyre
pressures ( Ypage 365).
X Make sure that the key is in posi-
tion 2(Ypage 155) in the ignition lock.
X Press the =or; buttononthe steer-
ing wheel to select the Serv. menu.
X Press the 9or: button to select
Tyre pressure .
X Press the abutton.
The Run Flat Indicator active Restart with OK message appears in the
multifunction display.
If you wish to confirm the restart:
X Press the abutton.
The Tyre press. now OK? message
appears in the multifunction display.
X Press the 9or: button to select
Yes .
X Press the abutton.
The Run Flat Indicator restarted message appears in the multifunction dis-
play.
After a teach-in period, the tyre pressure
loss warning system will monitor the set
tyre pressures of all four tyres.
If you wish to cancel the restart:
X Press the %button.
or
X If the Tyre press. now OK? message
appears, press the 9or: button to
select Cancel .
X Press the abutton.
The tyre pressure values stored at the last
restart will continue to be monitored. Tyre pressure monitor
Important safety notes It is the driver's responsibility to set the tyre
inflation to the recommended cold tyre pres-
sure suitable to the operating situation
(Y
page 365). Note that the correct tyre pres-
sure for the current operating situation must
first be taught-in to the tyre pressure monitor.
If there is a substantial loss of pressure, the
warning threshold for the warning message is
aligned to the reference values entered.
Restart the tyre pressure monitor after
adjusting to the cold tyre pressure.
(Y page 369) The current pressures are
saved as new reference values. As a result, a
warning message will appearift he tyre pres-
sure drops significantly.
The tyre pressure monitor does not warn you
of an incorrectly set tyre pressure. Observe
the notes on the recommended tyre pressure
(Y page 365).
The tyre pressure monitor is not able to warn
you of a sudden loss of pressure, e.g. if the
tyre is penetrated by a foreign object. In the
event of a sudden loss of pressure, bring the
vehicle to a halt by braking carefully. Avoid
abrupt steering manoeuvres.
If a tyre pressure monitor system is fitted, the
vehicle's wheels have sensors fitted that
monitor the tyre pressures in all four tyres.
The tyre pressure monitor warns you if the
pressure drops in one or more of the tyres.
The tyre pressure monitor only functions if
the correct sensors are fitted to all wheels.
Information on tyre pressures is displayed in
the multifunction display. After a few minutes
of driving, the current tyre pressure of each
tyre is shown in the multifunction display.
i The tyre pressure values indicated by the
on-board computer may differ from those
measured at a filling station with a pressure
gauge. The tyre pressures shown by the on-
board computer refer to those measured at
sea level. At high altitudes, the tyre pres-
sure values indicated by a pressure gauge 368
Tyre pressureWheels and tyres

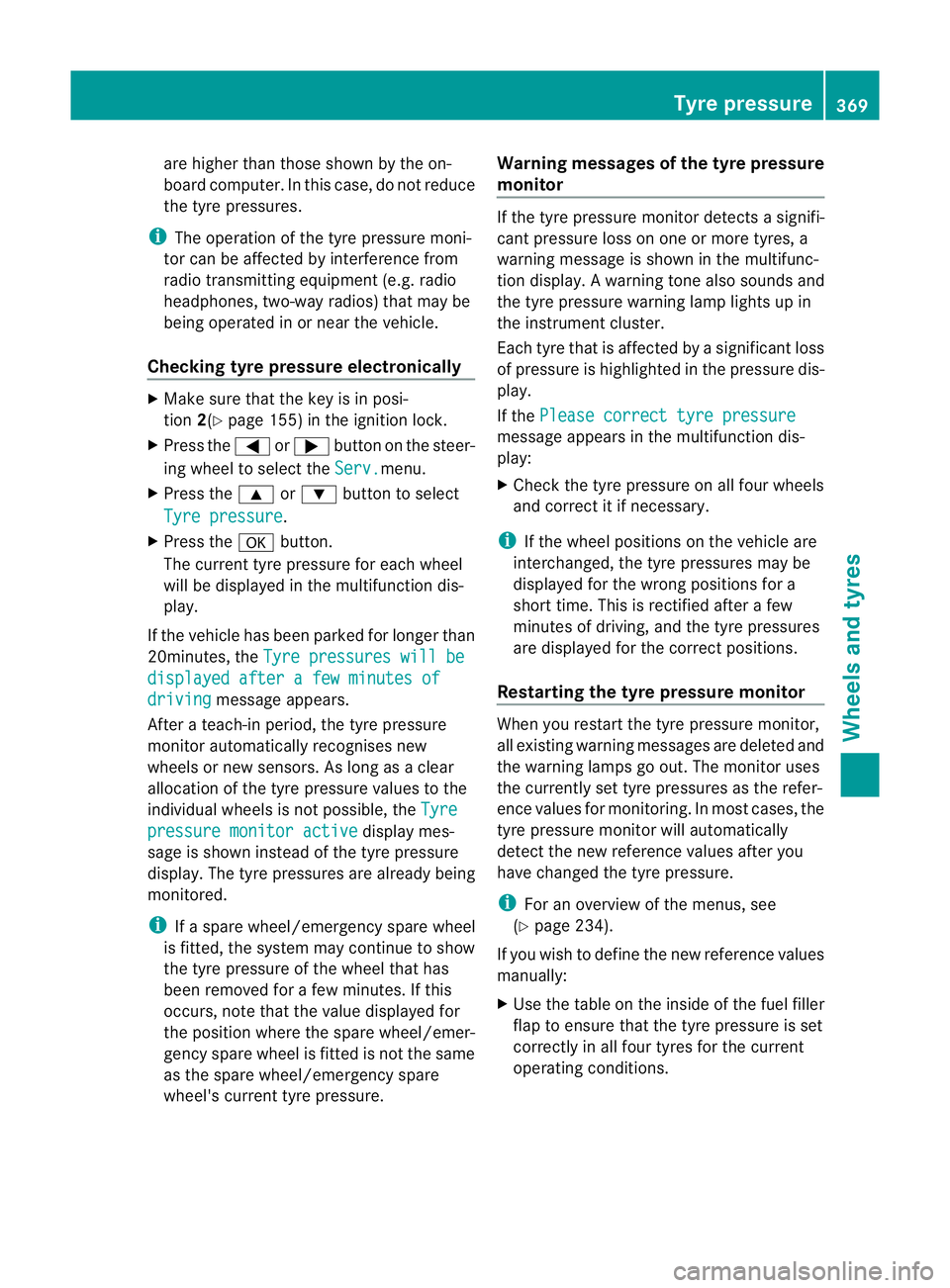

are higher than those shown by the on-
board computer. In this case, do no treduce
the tyre pressures.
i The operation of the tyre pressure moni-
tor can be affected by interference from
radio transmitting equipment (e.g. radio
headphones, two-way radios) that may be
being operated in or near the vehicle.
Checking tyre pressure electronically X
Make sure that the key is in posi-
tion 2(Ypage 155) in the ignition lock.
X Press the =or; button on the steer-
ing wheel to select the Serv. menu.
X Press the 9or: button to select
Tyre pressure .
X Press the abutton.
The curren ttyre pressur efor each wheel
will be displayed in the multifunction dis-
play.
If the vehicle has been parked for longer than
20minutes, the Tyre pressures will be displayed after a few minutes of
driving message appears.
After a teach-in period, the tyre pressure
monitor automatically recognises new
wheels or new sensors. As long as a clear
allocation of the tyre pressure values to the
individual wheels is not possible, the Tyrepressure monitor active display mes-
sage is shown instead of the tyre pressure
display .The tyre pressures are already being
monitored.
i If a spare wheel/emergency spare wheel
is fitted, the system may continue to show
the tyre pressure of the wheel that has
been removed for a few minutes. If this
occurs, note that the value displayed for
the position where the spare wheel/emer-
gency spare wheel is fitted is not the same
as the spare wheel/emergency spare
wheel's current tyre pressure. Warning messages of the tyre pressure
monitor If the tyre pressure monitor detects a signifi-
cant pressure loss on one or more tyres, a
warning message is shown in the multifunc-
tion display.
Awarning tone also sounds and
the tyre pressure warning lamp lights up in
the instrument cluster.
Each tyre that is affected by a significant loss
of pressure is highlighted in the pressure dis-
play.
If the Please correct tyre pressure message appears in the multifunction dis-
play:
X
Chec kthe tyre pressure on all four wheels
and correct it if necessary.
i If the wheel positions on the vehicle are
interchanged, the tyre pressures may be
displayed for the wrong positions for a
short time. This is rectified after a few
minutes of driving, and the tyre pressures
are displayed for the correct positions.
Restarting the tyre pressure monitor When you restart the tyre pressure monitor,
all existing warning messages are deleted and
the warning lamps go out. The monitor uses
the currently set tyre pressures as the refer-
ence values for monitoring. In most cases, the
tyre pressure monitor will automatically
detect the new referencev
alues after you
have changed the tyre pressure.
i For an overview of th emenus, see
(Y page 234).
If you wish to define the new reference values
manually:
X Use the table on the inside of the fuel filler
flap to ensure that the tyre pressure is set
correctly in all four tyres for the current
operating conditions. Tyre pressure
369Wheels and tyres Z

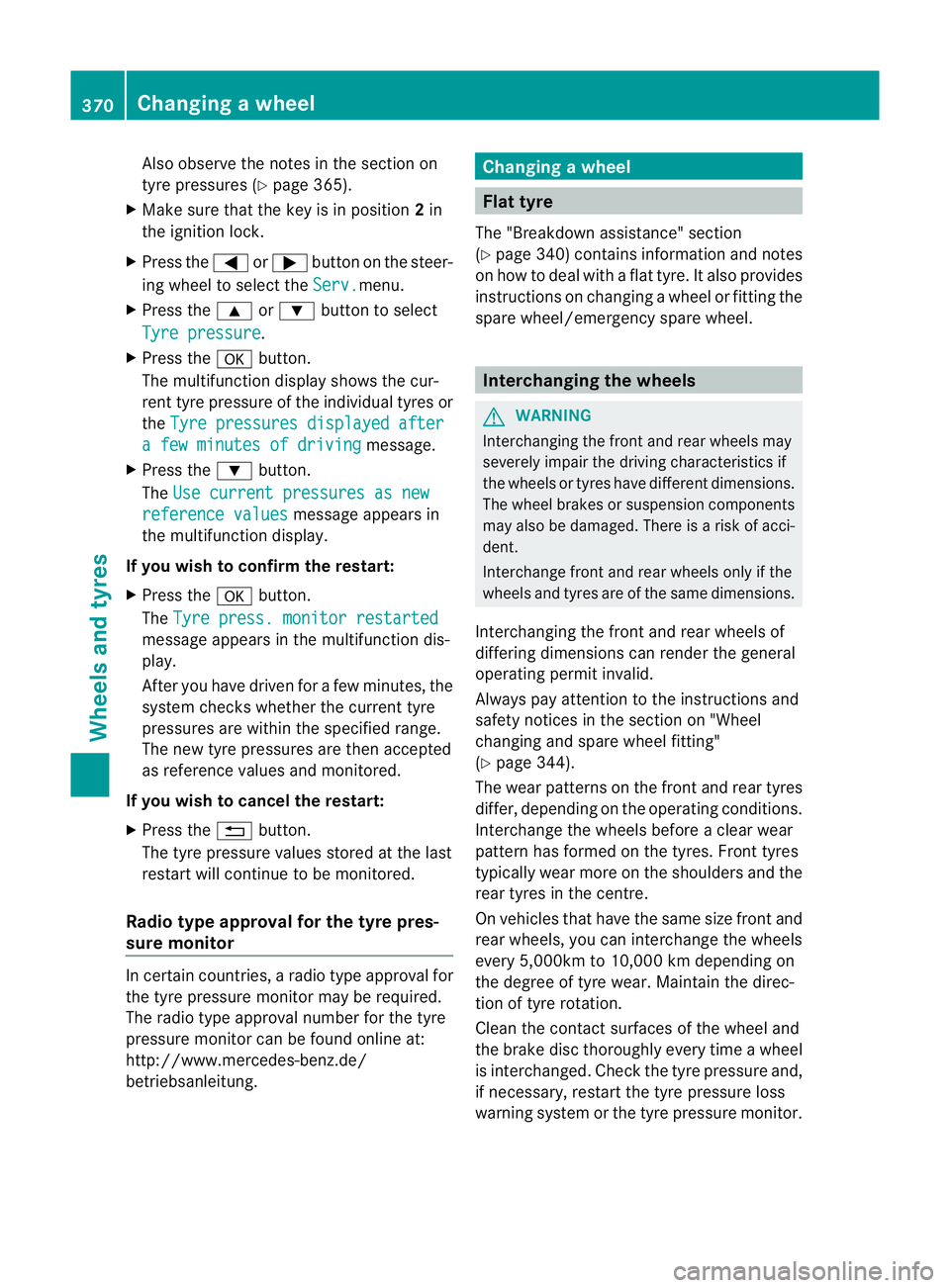

Also observe the notes in the sectio
non
tyre pressures (Y page 365).
X Make sure tha tthe key is in position 2in
the ignition lock.
X Press the =or; button on the steer-
ing wheel to select the Serv. menu.
X Press the 9or: button to select
Tyre pressure .
X Press the abutton.
The multifunction display shows the cur-
rent tyre pressure of the individual tyres or
the Tyre pressures displayed after
a few minutes of driving message.
X Press the :button.
The Use current pressures as new reference values message appears in
the multifunction display.
If you wish to confirm the restart:
X Press the abutton.
The Tyre press. monitor restarted message appears in the multifunction dis-
play.
After you have driven for a few minutes, the
system checks whether the current tyre
pressures are within the specified range.
The new tyre pressures are then accepted
as reference values and monitored.
If you wish to cancel the restart:
X Press the %button.
The tyre pressure values stored at the last
restart will continue to be monitored.
Radio type approval for the tyre pres-
sure monitor In certain countries, a radio type approval for
the tyre pressure monitor may be required.
The radio type approval number for the tyre
pressure monitor can be found online at:
http://www.mercedes-benz.de/
betriebsanleitung. Changing
awheel Flat tyre
The "Breakdown assistance" section
(Y page 340) contains information and notes
on how to deal with a fla ttyre. It also provides
instructions on changing a wheel or fitting the
spare wheel/emergency spare wheel. Interchanging the wheels
G
WARNING
Interchanging the front and rear wheels may
severely impair the drivin gcharacteristics if
the wheels or tyres have different dimensions.
The wheel brakes or suspension components
may also be damaged. There is a risk of acci-
dent.
Interchange front and rear wheels only if the
wheels and tyres are of the same dimensions.
Interchanging the front and rear wheels of
differing dimensions can render the general
operating permit invalid.
Always pay attention to the instructions and
safety notices in the section on "Wheel
changing and spare wheel fitting"
(Y page 344).
The wear patterns on the front and rear tyres
differ, depending on the operating conditions.
Interchange the wheels before a clear wear
pattern has formed on the tyres. Front tyres
typically wear more on the shoulders and the
rear tyres in the centre.
On vehicles that have the same size front and
rear wheels, you can interchange the wheels
every 5,000km to 10,000 km depending on
the degree of tyre wear. Maintain the direc-
tion of tyre rotation.
Cleant he contact surfaces of the wheel and
the brake disc thoroughly every time a wheel
is interchanged. Check the tyre pressure and,
if necessary, restart the tyre pressure loss
warning system or the tyre pressure monitor. 370
Changing
awheelWheels and tyres

!

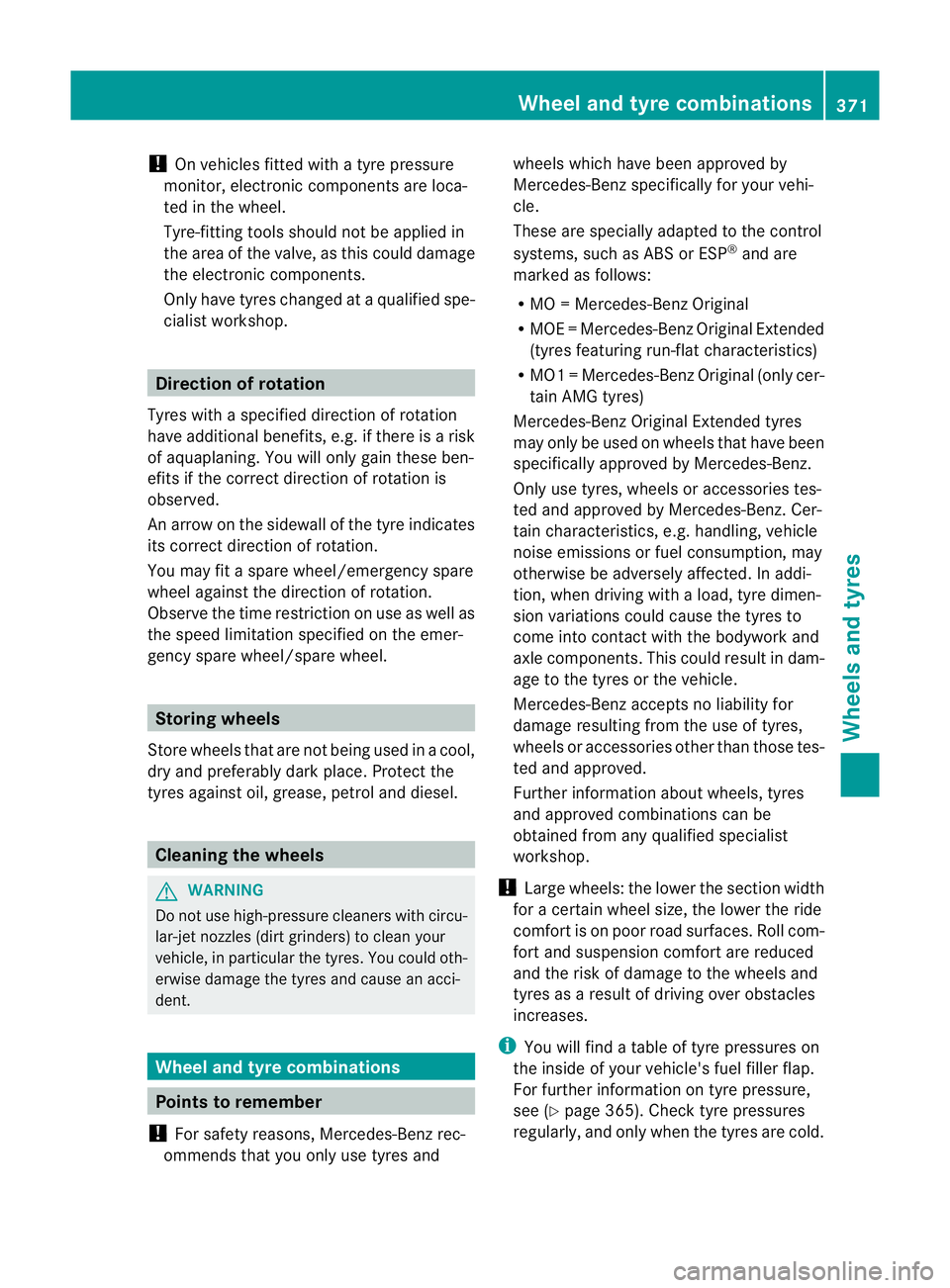

On vehicles fitted with a tyre pressure
monitor, electronic components are loca-
ted in the wheel.
Tyre-fitting tools should not be applied in
the area of the valve, as this could damage
the electronic components.
Only have tyres changed at a qualified spe-
cialist workshop. Direction of rotation
Tyres with a specified direction of rotation
have additional benefits, e.g. if there is a risk
of aquaplaning. You will only gain these ben-
efits if the correct direction of rotation is
observed.
An arrow on the sidewall of the tyre indicates
its correct direction of rotation.
You may fit a spare wheel/emergency spare
wheel against the direction of rotation.
Observe the time restriction on use as well as
the speed limitation specified on the emer-
gency spare wheel/spare wheel. Storing wheels
Store wheels that are not being used in a cool,
dry and preferably dark place. Protect the
tyres against oil, grease, petrol and diesel. Cleaning the wheels
G
WARNING
Do not use high-pressure cleaners with circu-
lar-jet nozzles (dirt grinders) to clean your
vehicle, in particular the tyres. You could oth-
erwise damage the tyres and cause an acci-
dent. Wheel and tyre combinations
Points to remember
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tyres and wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle.
These are specially adapted to the control
systems, such as ABS or ESP
®
and are
marked as follows:
R MO =Mercedes-BenzO riginal
R MOE =Mercedes-BenzO riginal Extended
(tyres featuring run-flat characteristics)
R MO1 =Mercedes-BenzO riginal (only cer-
tain AMG tyres)
Mercedes-Benz Original Extended tyres
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tyres, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with aload, tyre dimen-
sion variations could cause the tyres to
come into contact with the bodywork and
axle components.T his could result in dam-
age to the tyres or the vehicle.
Mercedes-Ben zaccepts no liability for
damage resulting from the use of tyres,
wheels or accessories othe rthan those tes-
ted and approved.
Further information about wheels, tyres
and approved combinations can be
obtained from any qualified specialist
workshop.
! Large wheels: the lower the section width
for a certain wheel size, the lower the ride
comfort is on poor road surfaces. Roll com-
fort and suspension comfort are reduced
and the risk of damage to the wheels and
tyres as a result of driving over obstacles
increases.
i You will find a table of tyre pressures on
the inside of your vehicle's fuel filler flap.
For further information on tyre pressure,
see (Y page 365). Check tyre pressures
regularly, and only when the tyres are cold. Wheel and tyre combinations
371Wheels and tyres Z

i

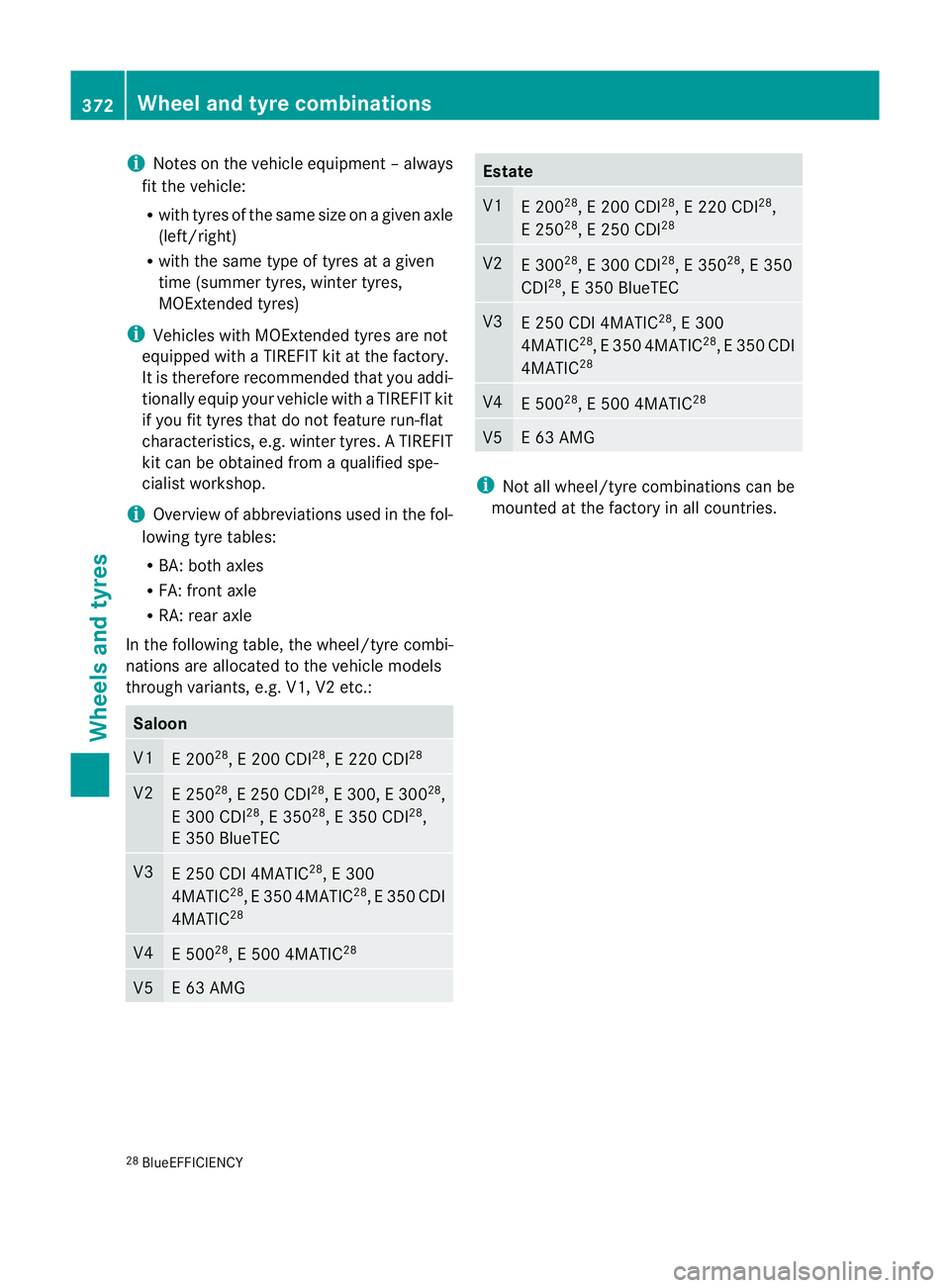

Notes on the vehicle equipment –always
fit the vehicle:
R with tyres of the same size on a given axle
(left/right)
R with the same type of tyres at a given
time (summer tyres, winter tyres,
MOExtended tyres)
i Vehicles with MOExtended tyres are not
equipped with a TIREFIT kit at the factory.
It is therefore recommended that you addi-
tionally equip your vehicle with a TIREFIT kit
if you fit tyres that do not feature run-flat
characteristics, e.g. winter tyres. A TIREFIT
kit can be obtained fro maqualified spe-
cialist workshop.
i Overview of abbreviations used in the fol-
lowing tyre tables:
R BA: both axles
R FA: front axle
R RA: rear axle
In the following table, the wheel/tyre combi-
nations are allocated to the vehicle models
through variants, e.g. V1, V2 etc.: Saloon
V1
E 200
28
, E 200 CDI 28
, E 220 CDI 28 V2
E 250
28
,E250 CDI 28
,E300, E 300 28
,
E 300 CDI 28
, E 350 28
, E 350 CDI 28
,
E 350 BlueTEC V3
E 250 CDI 4MATIC
28
, E 300
4MATIC 28
,E350 4MATIC 28
,E350 CDI
4MATIC 28 V4
E 500
28
, E 500 4MATIC 28 V5 E 63 AMG Estate
V1
E 200
28
, E 200 CDI 28
, E 220 CDI 28
,
E 250 28
, E 250 CDI 28 V2
E 300
28
, E 300 CDI 28
, E 350 28
, E 350
CDI 28
, E 350 BlueTEC V3
E 250 CDI 4MATIC
28
, E 300
4MATIC 28
,E350 4MATIC 28
,E350 CDI
4MATIC 28 V4
E 500
28
, E 500 4MATIC 28 V5 E 63 AMG
i
Not all wheel/tyre combinations can be
mounted at the factory in all countries.
28 BlueEFFICIENCY 372
Wheel and tyre combinationsWheels and tyres

Tyres
Saloon Summer tyres Light-alloy wheels V1 V2 V3 V4 V5
BA 205/6
0 R16 92 W 7.0 J
x 16 H2 ET 38 #
— — — —
BA
225/55 R16 95 W
29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 95 W
29 8.0 J x 16 H2 ET 46 # #
— — —
BA 245/45 R17 95 W 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 95 W 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL
MOExtended
30 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL
MOExtended
30 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/40 R18 97 Y XL 8.5 J x 18 H2 ET 48 — — # #
—
FA
RA
245/40 R18 97 Y XL
31
265/35 R18 97 Y XL 31, 32 8.5 J x 18 H2 ET 48
9.0 J x 18 H2 ET 54 # #
— #
—
FA
RA
255/40 ZR 18 (99 Y) XL MO1
33
285/35 ZR18 (101 Y) XL MO1 32,
33 9.0 J x 18 H2 ET 37
9.5 J x 18 H2 ET 52 — — — — #
FA
RA
245/35 R19 93 Y XL
34, 35, 36, 37
275/30 R19 96 Y XL 32, 34, 35, 36, 37 8.5 J x 19 H2 ET 48
9.5 J x 19 H2 ET 48 # # # #
—
FA
RA
255/35 ZR 19 (96 Y) XL
36
285/30 ZR 19 (98 Y) XL 32, 36 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
29
E 350 BlueEFFICIENCY and E 350 CDI BlueEFFICIENCY: not in combination with Sports package code
950/952.
30 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
31 Not for vehicles with 4MATIC.
32 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
33 Not in connection with a ceramic brake system.
34 Only in combination with AIRMATIC (code 489), DIRECT CONTROL suspension (code 677) or Sports package
(code 950).
35 Not in combination with trailer tow hitch (code 550).
36 Observe notes on "Large wheels" in the "Wheel and tyre combination" section.
37 Not for the E 250 BlueEFFICIENCY. Wheel and tyre combinations
373Wheels and tyres Z

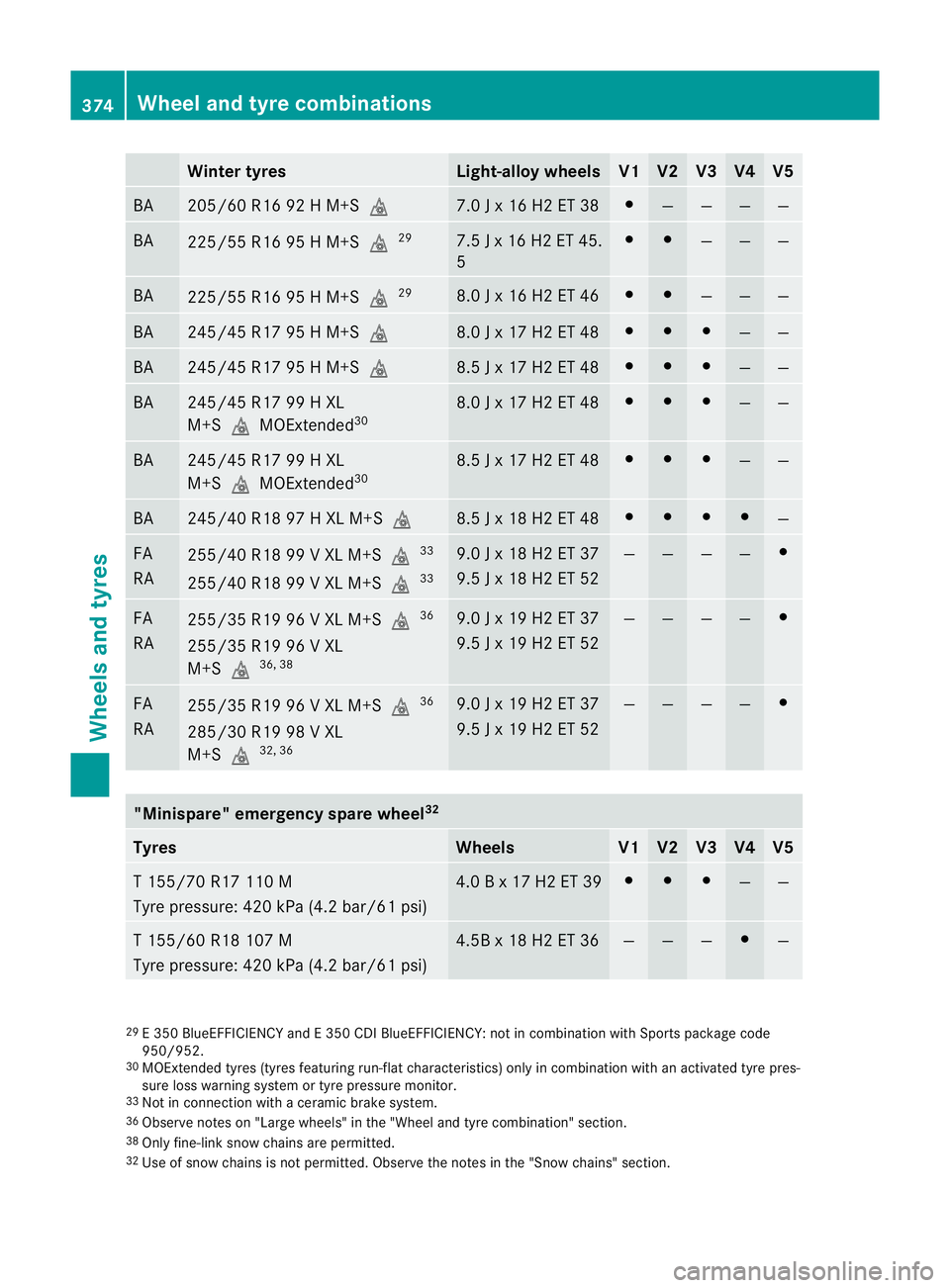

Winter tyres Light-alloy wheels V1 V2 V3 V4 V5
BA 205/60 R16 92 H M+S
i 7.0 J x 16 H2 ET 38 #
— — — —
BA
225/55 R16 95 H M+S
i29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 95 H M+S
i29 8.0 J x 16 H2 ET 46 # #
— — —
BA 245/45 R17 95 H M+S
i 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 95 H M+S
i 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/40 R18 97 H XL M+S
i 8.5 J x 18 H2 ET 48 # # # #
—
FA
RA
255/40 R18 99 V XL M+S
i33
255/40 R18 99 V XL M+S i33 9.0 J x 18 H2 ET 37
9.5 J x 18 H2 ET 52 — — — — #
FA
RA
255/35 R19 96 V XL M+S
i36
255/35 R19 96 V XL
M+Si 36, 38 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
FA
RA
255/35 R19 96 V XL M+S
i36
285/30 R19 98 V XL
M+Si 32, 36 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
"Minispare" emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
T 155/70 R17 110 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 17 H2 ET 39 # # #
— —
T 155/60 R18 107 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.5B x 18 H2 ET 36 — — — #
—
29
E 350 BlueEFFICIENCY and E 350 CDI BlueEFFICIENCY: not in combination with Sports package code
950/952.
30 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
33 Not in connection with a ceramic brake system.
36 Observe notes on "Large wheels" in the "Wheel and tyre combination" section.
38 Only fine-link snow chains are permitted.
32 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. 374
Wheel and tyre combinationsWheels and tyres

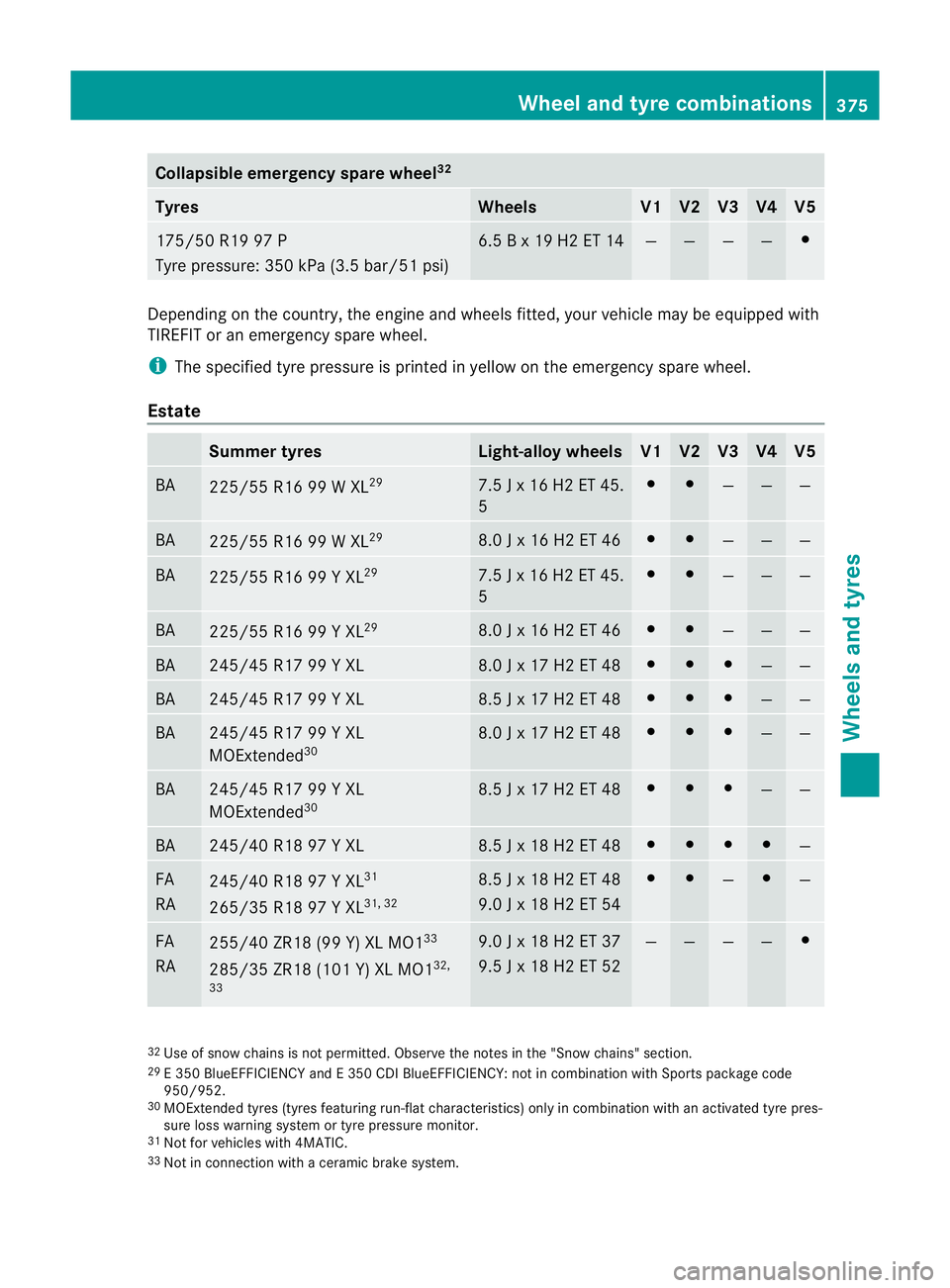

Collapsible emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
175/50 R19 97 P
Tyre pressure: 350 kPa (3.5 bar/51 psi) 6.5 B x 19 H2 ET 14 — — — — #
Depending on the country, the engine and wheels fitted, your vehicle may be equipped with
TIREFIT or an emergency spare wheel.
i The specified tyre pressure is printed in yellow on th eemergency spare wheel.
Estate Summer tyres Light-alloy wheels V1 V2 V3 V4 V5
BA
225/55 R16 99 W XL
29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 99 W XL
29 8.0 J x 16 H2 ET 46 # #
— — —
BA
225/55 R16 99 Y XL
29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 99 Y XL
29 8.0 J x 16 H2 ET 46 # #
— — —
BA 245/45 R17 99 Y XL 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL
MOExtended
30 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 Y XL
MOExtended
30 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/40 R18 97 Y XL 8.5 J x 18 H2 ET 48 # # # #
—
FA
RA
245/40 R18 97 Y XL
31
265/35 R18 97 Y XL 31, 32 8.5 J x 18 H2 ET 48
9.0 J x 18 H2 ET 54 # #
— #
—
FA
RA
255/40 ZR18 (99 Y) XL MO1
33
285/35 ZR18 (101 Y) XL MO1 32,
33 9.0 J x 18 H2 ET 37
9.5 J x 18 H2 ET 52 — — — — #
32
Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
29 E 350 BlueEFFICIENCY and E 350 CDI BlueEFFICIENCY: not in combination with Sports package code
950/952.
30 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
31 Not for vehicles with 4MATIC.
33 Not in connection with a ceramic brake system. Wheel and tyre combinations
375Wheels and tyres Z

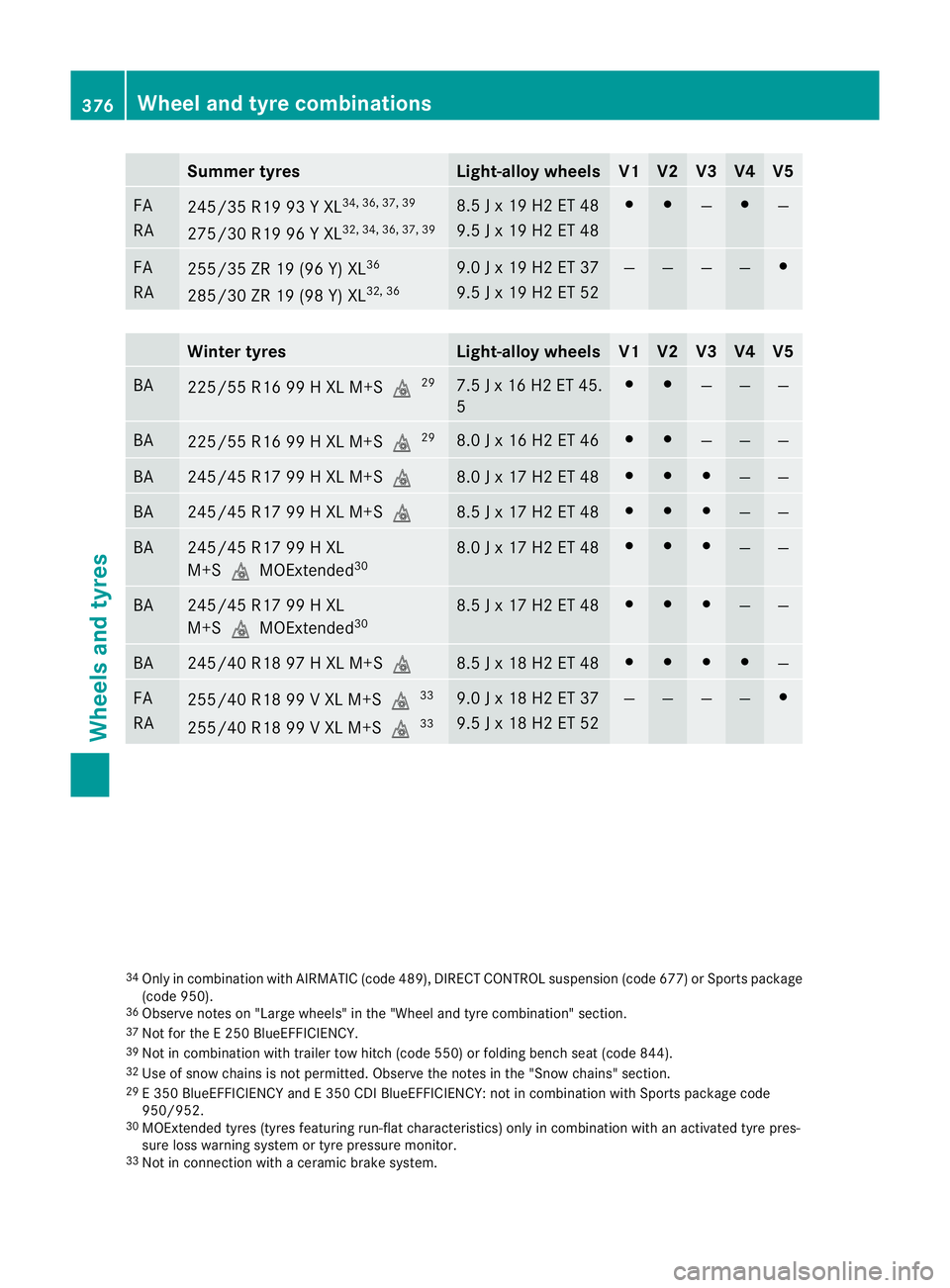

Summer tyres Light-alloy wheels V1 V2 V3 V4 V5
FA
RA
245/35 R19 93 Y XL
34, 36, 37, 39
275/30 R19 96 Y XL 32, 34, 36, 37, 39 8.5 J x 19 H2 ET 48
9.5 J x 19 H2 ET 48 # #
— #
—
FA
RA
255/35 ZR 19 (96 Y) XL
36
285/30 ZR 19 (98 Y) XL 32, 36 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
Winter tyres Light-alloy wheels V1 V2 V3 V4 V5
BA
225/55 R16 99 H XL M+Si
29 7.5
Jx16 H2 ET 45.
5 # #
— — —
BA
225/55 R16 99 H XL M+S
i29 8.0 J x 16 H2 ET 46 # #
— — —
BA 245/45 R17 99 H XL M+S
i 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL M+S
i 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.0 J x 17 H2 ET 48 # # #
— —
BA 245/45 R17 99 H XL
M+SiMOExtended
30 8.5 J x 17 H2 ET 48 # # #
— —
BA 245/40 R18 97 H XL M+S
i 8.5 J x 18 H2 ET 48 # # # #
—
FA
RA
255/40 R18 99 V XL M+S
i33
255/40 R18 99 V XL M+S i33 9.0 J x 18 H2 ET 37
9.5 J x 18 H2 ET 52 — — — — #
34
Only in combination with AIRMATIC (code 489), DIRECT CONTROL suspensio n(code 677) or Sports package
(code 950).
36 Observe notes on "Large wheels" in the "Wheel and tyre combination" section.
37 Not for the E 250 BlueEFFICIENCY.
39 Not in combination with trailer tow hitch (code 550) or folding bench seat (cod e844).
32 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section.
29 E 350 BlueEFFICIENCY and E 350 CDI BlueEFFICIENCY: not in combination with Sports package code
950/952.
30 MOExtended tyres (tyres featuring run-fla tcharacteristics) only in combination with an activated tyre pres-
sure loss warning system or tyre pressure monitor.
33 Not in connection with a ceramic brake system. 376
Wheel and tyre combinationsWheels and tyres

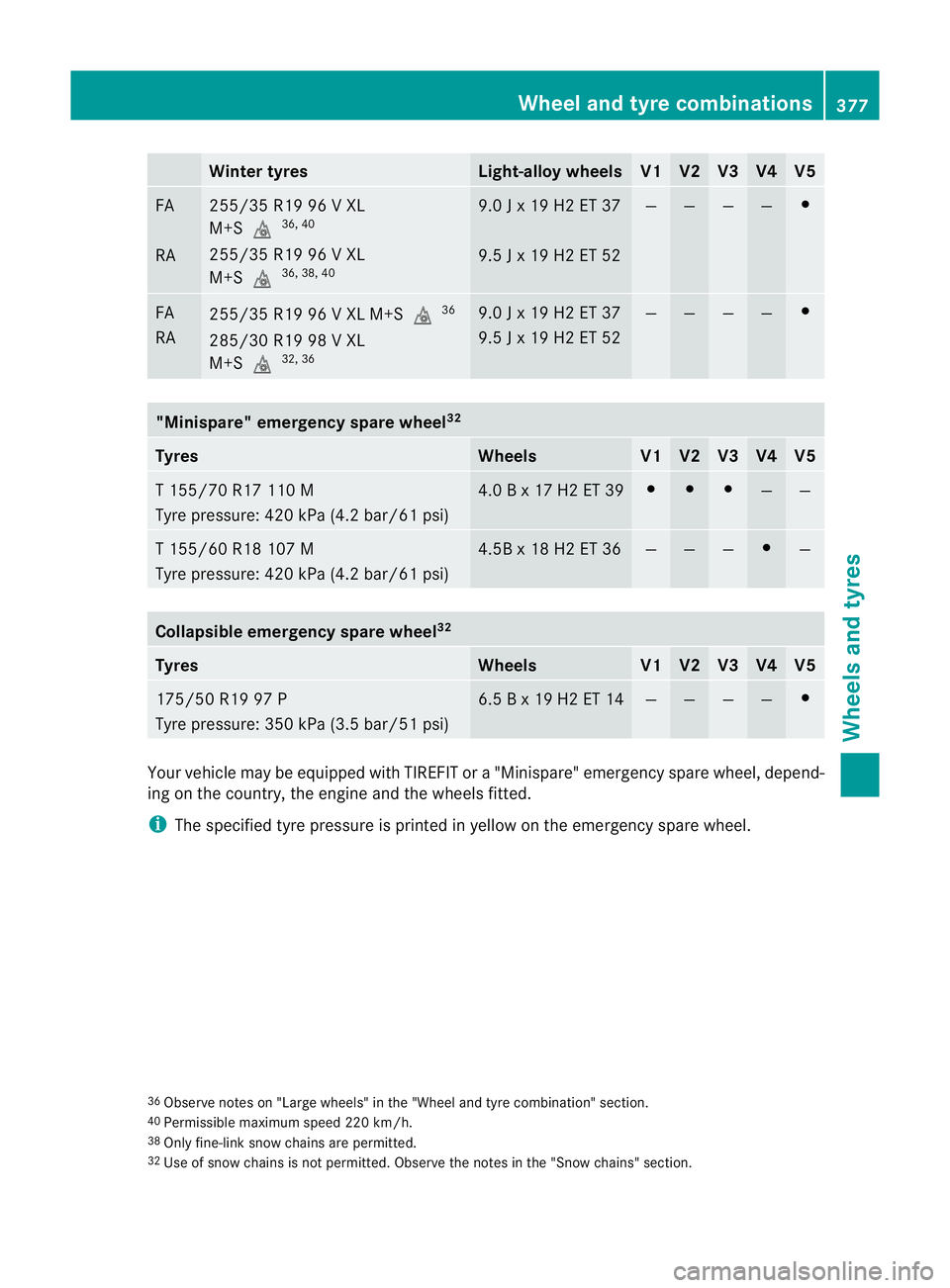

Winter tyres Light-alloy wheels V1 V2 V3 V4 V5
FA
RA 255/35 R19 96 V XL
M+Si
36, 40
255/35 R19 96 V XL
M+Si 36, 38, 40 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
FA
RA
255/35 R19 96 V XL M+S
i36
285/30 R19 98 V XL
M+Si 32, 36 9.0 J x 19 H2 ET 37
9.5 J x 19 H2 ET 52 — — — — #
"Minispare" emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
T 155/70 R17 110 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.0 B x 17 H2 ET 39 # # #
— —
T 155/60 R18 107 M
Tyre pressure: 420 kPa (4.2 bar/61 psi) 4.5B x 18 H2 ET 36 — — — #
—
Collapsible emergency spare wheel
32Tyres Wheels V1 V2 V3 V4 V5
175/50 R19 97 P
Tyre pressure: 350 kPa (3.5 bar/51 psi) 6.5 B x 19 H2 ET 14 — — — — #
Yourv
ehicle may be equipped with TIREFIT or a "Minispare" emergency spare wheel, depend-
ing on the country, the engine and the wheels fitted.
i The specified tyre pressure is printed in yellow on the emergency spare wheel.
36 Observe notes on "Large wheels" in the "Wheel and tyre combination" section.
40 Permissible maximum speed 220 km/h.
38 Only fine-link snow chains are permitted.
32 Use of snow chains is not permitted. Observe the notes in the "Snow chains" section. Wheel and tyre combinations
377Wheels and tyres Z
