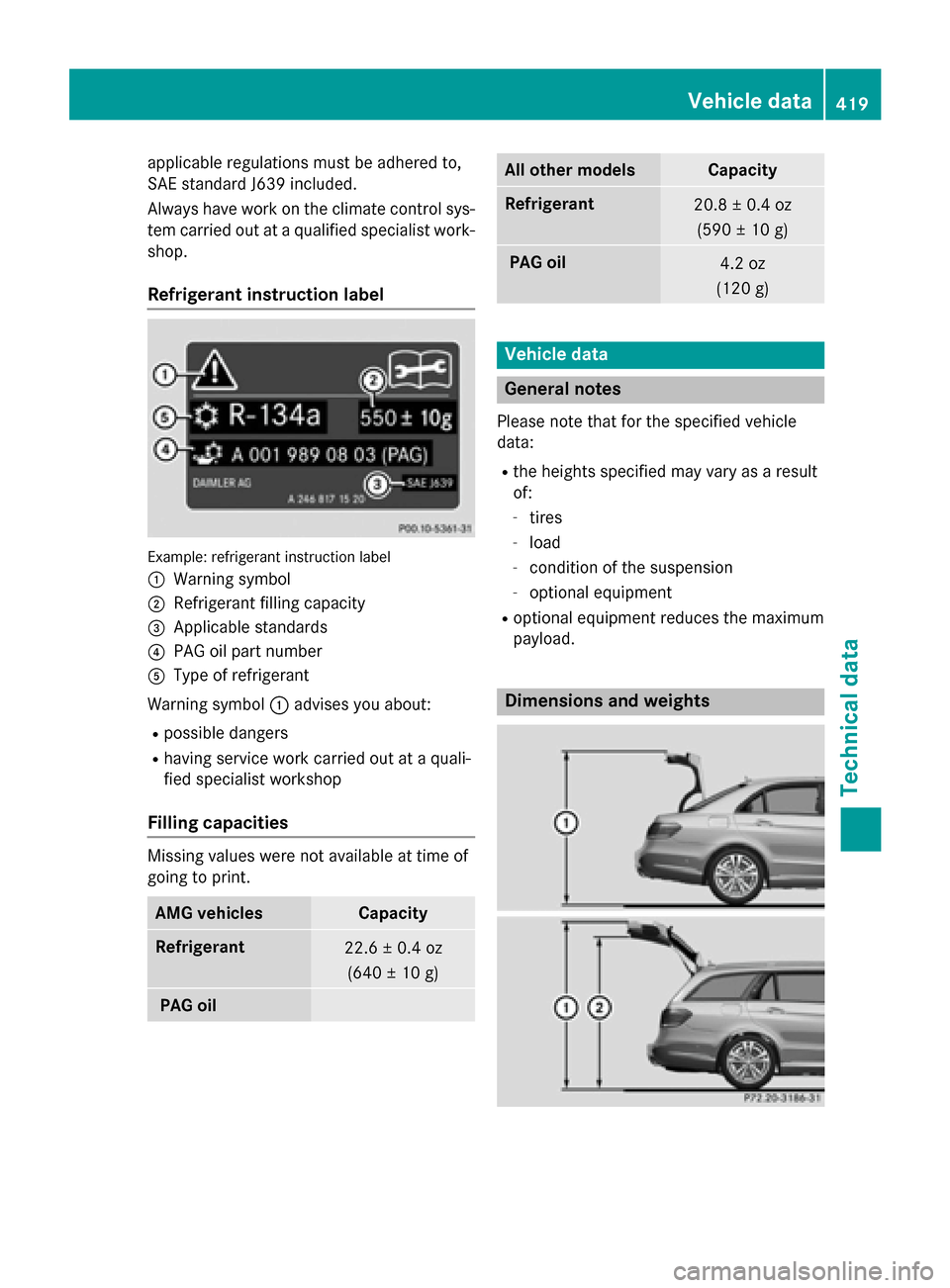

applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control sys- tem carried out at a qualified specialist work-
shop.
Refrigerant instruction label Example: refrigerant instruction label
0043 Warning symbol
0044 Refrigerant filling capacity
0087 Applicable standards
0085 PAG oil part number
0083 Type of refrigerant
Warning symbol 0043advises you about:
R possible dangers
R having service work carried out at a quali-
fied specialist workshop
Filling capacities Missing values were not available at time of
going to print.
AMG vehicles Capacity
Refrigerant
22.6 ± 0.4 oz
(640 ± 10 g) PAG oil All other models Capacity
Refrigerant
20.8 ± 0.4 oz
(590 ± 10 g) PAG oil
4.2 oz
(120 g) Vehicle data
General notes
Please note that for the specified vehicle
data: R the heights specified may vary as a result
of:
- tires
- load
- condition of the suspension
- optional equipment
R optional equipment reduces the maximum
payload. Dimensions and weights Vehicle data
419Technical data Z

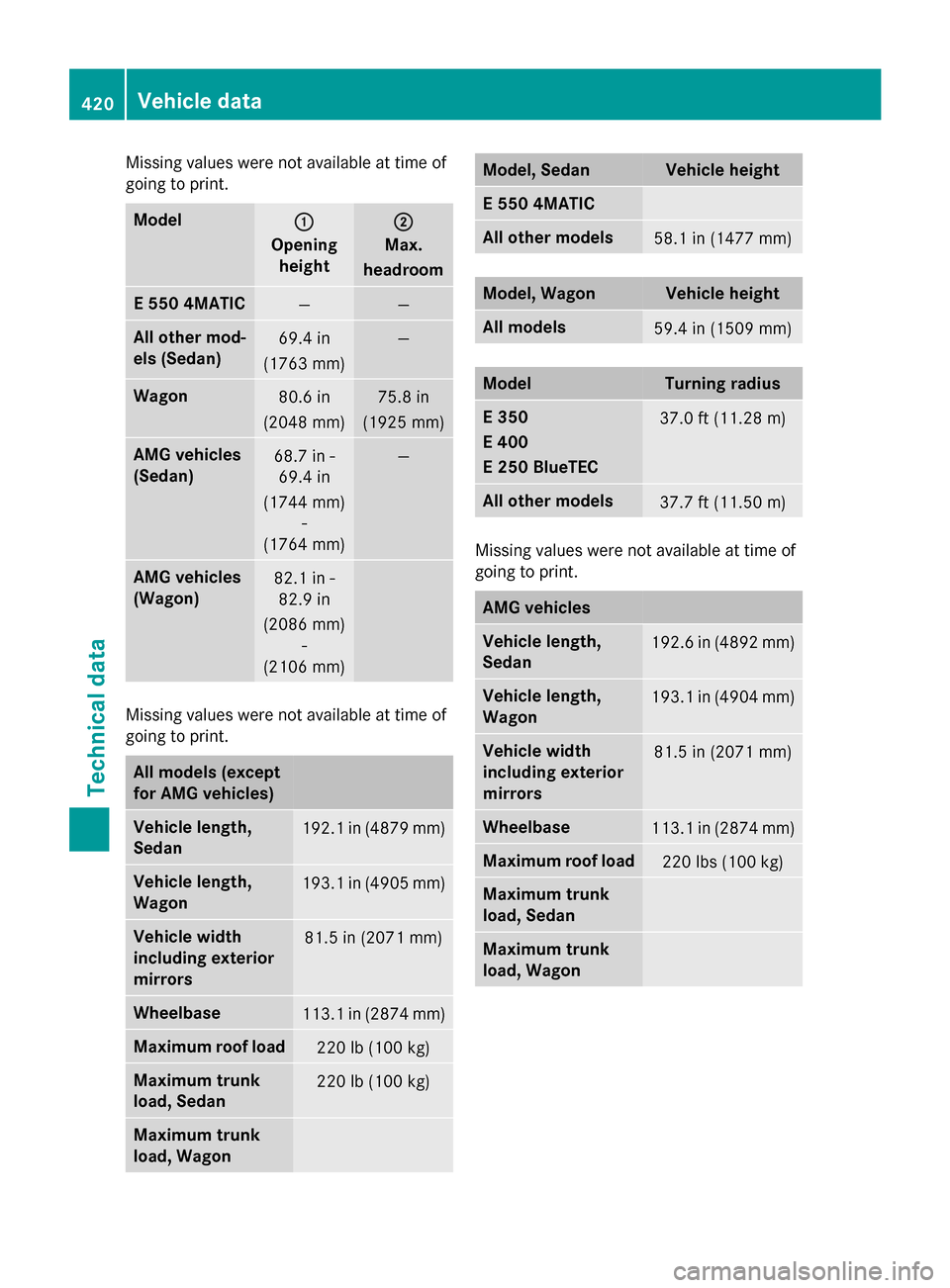

Missing values were not available at time of
going to print. Model
0043
0043
Opening height 0044
0044
Max.
headroom E 550 4MATIC
— —
All other mod-
els (Sedan)
69.4 in
(1763 mm) —
Wagon
80.6 in
(2048 mm) 75.8 in
(1925 mm) AMG vehicles
(Sedan)
68.7 in -
69.4 in
(1744 mm) -
(1764 mm) —
AMG vehicles
(Wagon)
82.1 in -
82.9 in
(2086 mm) -
(2106 mm) Missing values were not available at time of
going to print.
All models (except
for AMG vehicles)
Vehicle length,
Sedan
192.1 in (4879 mm)
Vehicle length,
Wagon
193.1 in (4905 mm)
Vehicle width
including exterior
mirrors
81.5 in (2071 mm)
Wheelbase
113.1 in (2874 mm)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load, Sedan
220 lb (100 kg)
Maximum trunk
load, Wagon Model, Sedan Vehicle height
E 550 4MATIC
All other models
58.1 in (1477 mm)
Model, Wagon Vehicle height
All models
59.4 in (1509 mm)
Model Turning radius
E 350
E 400
E 250 BlueTEC
37.0 ft (11.28
m) All other models
37.7 ft (11.50
m) Missing values were not available at time of
going to print.
AMG vehicles
Vehicle length,
Sedan
192.6 in (4892 mm)
Vehicle length,
Wagon
193.1 in (4904 mm)
Vehicle width
including exterior
mirrors
81.5 in (2071 mm)
Wheelbase
113.1 in (2874 mm)
Maximum roof load
220 lbs (100 kg)
Maximum trunk
load, Sedan
Maximum trunk
load, Wagon420
Vehicle dataTechnical data

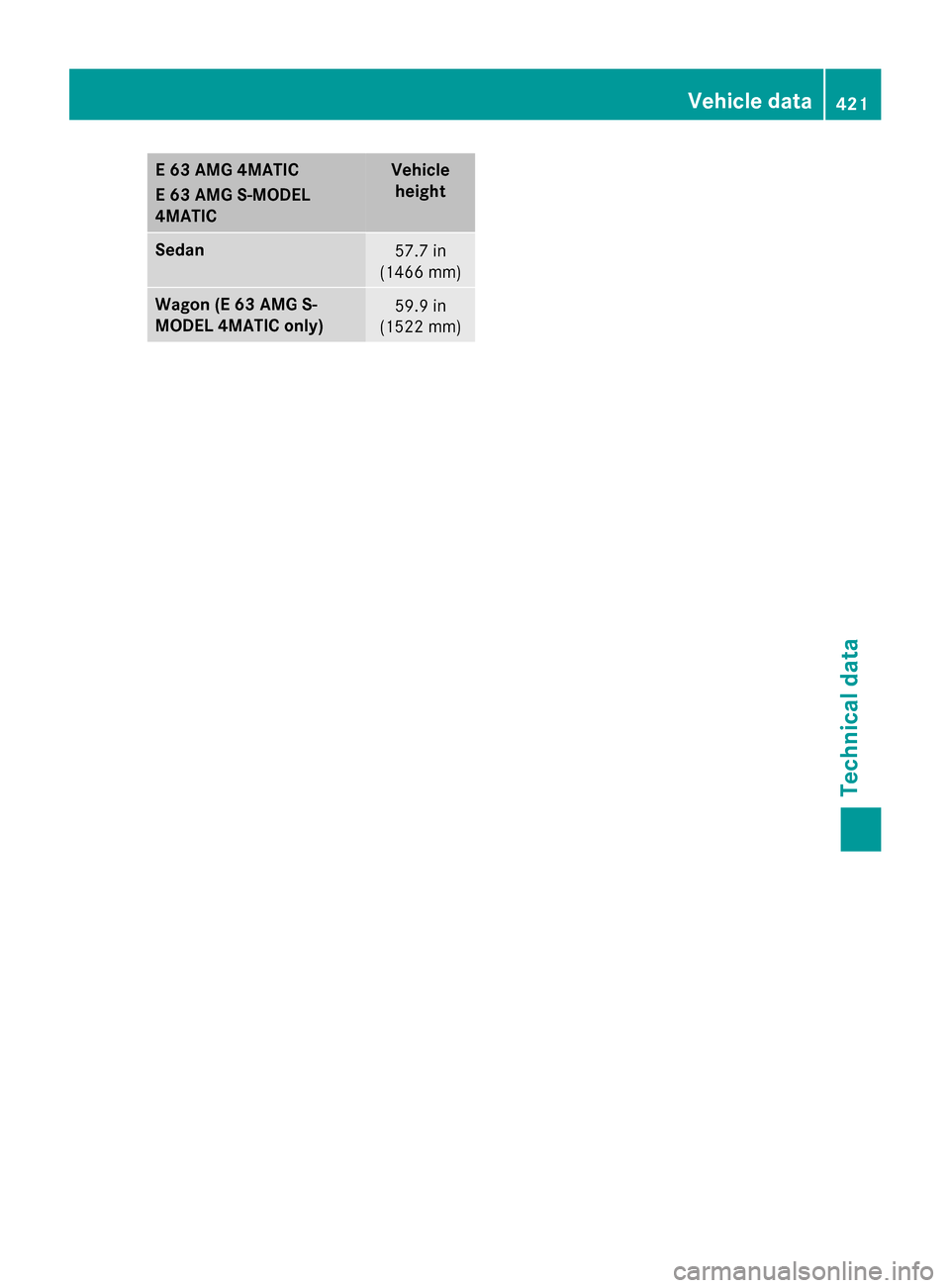

E 63 AMG 4MATIC
E 63 AMG S-MODEL
4MATIC Vehicle
height Sedan
57.7 in
(1466 mm) Wagon (E 63 AMG S-
MODEL 4MATIC only)
59.9 in
(1522 mm) Vehicle data
421Technical data Z
