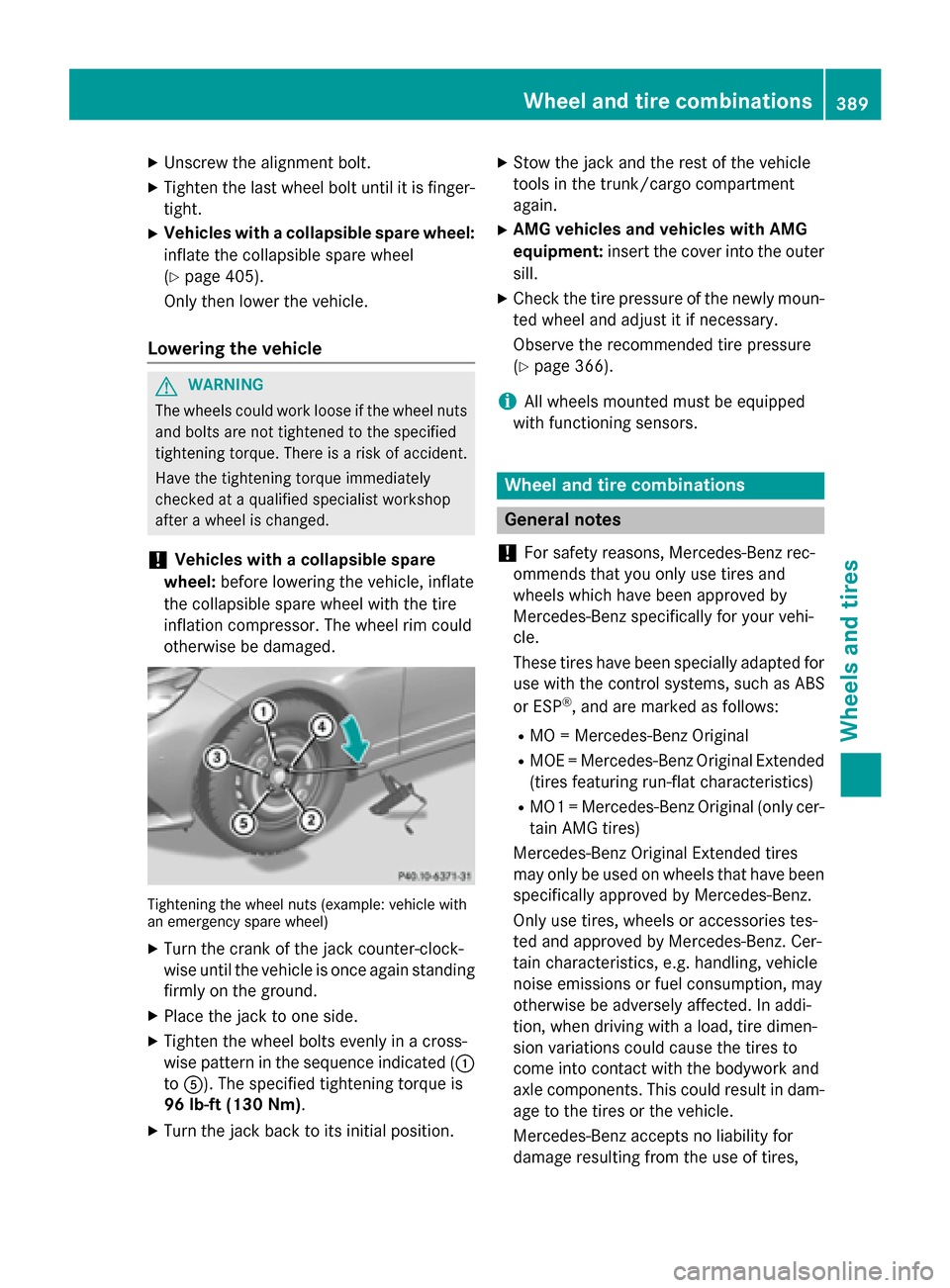

MERCEDES-BENZ E-Class SEDAN 2015 W212 Owner's Manual

X
Unscrew the alignment bolt.
X Tighten the last wheel bolt until it is finger-
tight.
X Vehicles with a collapsible spare wheel:
inflate the collapsible spare wheel
(Y page 405).
Only then lower the vehicle.
Lowering the vehicle G
WARNING
The wheels could work loose if the wheel nuts and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed.
! Vehicles with a collapsible spare
wheel: before lowering the vehicle, inflate
the collapsible spare wheel with the tire
inflation compressor. The wheel rim could
otherwise be damaged. Tightening the wheel nuts (example: vehicle with
an emergency spare wheel)
X Turn the crank of the jack counter-clock-
wise until the vehicle is once again standing
firmly on the ground.
X Place the jack to one side.
X Tighten the wheel bolts evenly in a cross-
wise pattern in the sequence indicated ( 0043
to 0083). The specified tightening torque is
96 lb-ft (130 Nm).
X Turn the jack back to its initial position. X
Stow the jack and the rest of the vehicle
tools in the trunk/cargo compartment
again.
X AMG vehicles and vehicles with AMG
equipment: insert the cover into the outer
sill.
X Check the tire pressure of the newly moun-
ted wheel and adjust it if necessary.
Observe the recommended tire pressure
(Y page 366).
i All wheels mounted must be equipped
with functioning sensors. Wheel and tire combinations
General notes
! For safety reasons, Mercedes-Benz rec-
ommends that you only use tires and
wheels which have been approved by
Mercedes-Benz specifically for your vehi-
cle.
These tires have been specially adapted for use with the control systems, such as ABS
or ESP ®
, and are marked as follows:
R MO = Mercedes-Benz Original
R MOE = Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only cer-
tain AMG tires)
Mercedes-Benz Original Extended tires
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tires, wheels or accessories tes-
ted and approved by Mercedes-Benz. Cer-
tain characteristics, e.g. handling, vehicle
noise emissions or fuel consumption, may
otherwise be adversely affected. In addi-
tion, when driving with a load, tire dimen-
sion variations could cause the tires to
come into contact with the bodywork and
axle components. This could result in dam- age to the tires or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tires, Wheel and tire combinations
389Wheels and tires Z

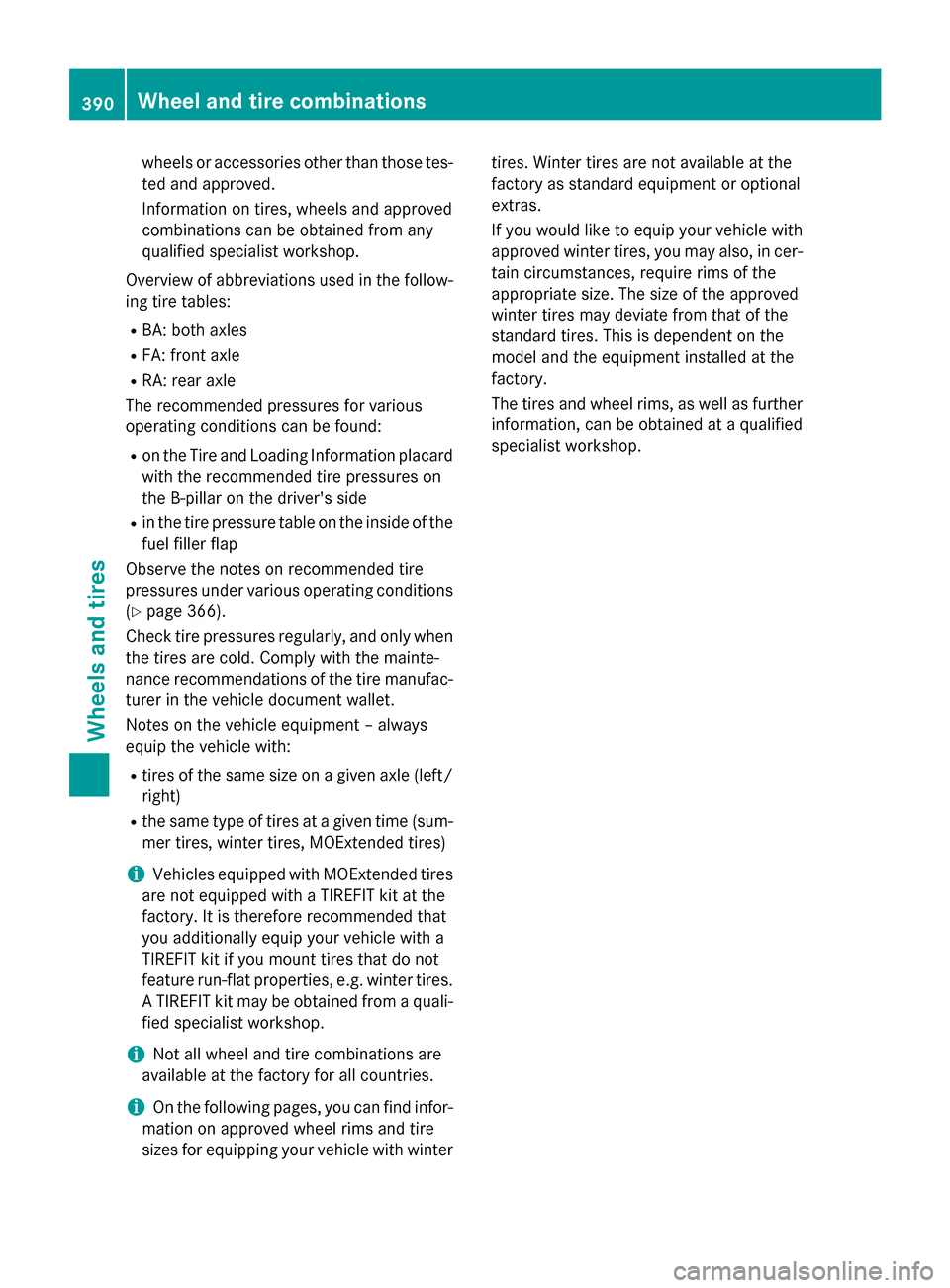

wheels or accessories other than those tes-
ted and approved.
Information on tires, wheels and approved
combinations can be obtained from any
qualified specialist workshop.
Overview of abbreviations used in the follow- ing tire tables:
R BA: both axles
R FA: front axle
R RA: rear axle
The recommended pressures for various
operating conditions can be found:
R on the Tire and Loading Information placard
with the recommended tire pressures on
the B-pillar on the driver's side
R in the tire pressure table on the inside of the
fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions (Y page 366).
Check tire pressures regularly, and only when the tires are cold. Comply with the mainte-
nance recommendations of the tire manufac-
turer in the vehicle document wallet.
Notes on the vehicle equipment – always
equip the vehicle with:
R tires of the same size on a given axle (left/
right)
R the same type of tires at a given time (sum-
mer tires, winter tires, MOExtended tires)
i Vehicles equipped with MOExtended tires
are not equipped with a TIREFIT kit at the
factory. It is therefore recommended that
you additionally equip your vehicle with a
TIREFIT kit if you mount tires that do not
feature run-flat properties, e.g. winter tires. A TIREFIT kit may be obtained from a quali- fied specialist workshop.
i Not all wheel and tire combinations are
available at the factory for all countries.
i On the following pages, you can find infor-
mation on approved wheel rims and tire
sizes for equipping your vehicle with winter tires. Winter tires are not available at the
factory as standard equipment or optional
extras.
If you would like to equip your vehicle with
approved winter tires, you may also, in cer-
tain circumstances, require rims of the
appropriate size. The size of the approved
winter tires may deviate from that of the
standard tires. This is dependent on the
model and the equipment installed at the
factory.
The tires and wheel rims, as well as further information, can be obtained at a qualified
specialist workshop. 390
Wheel and tire combinationsWheels and tires

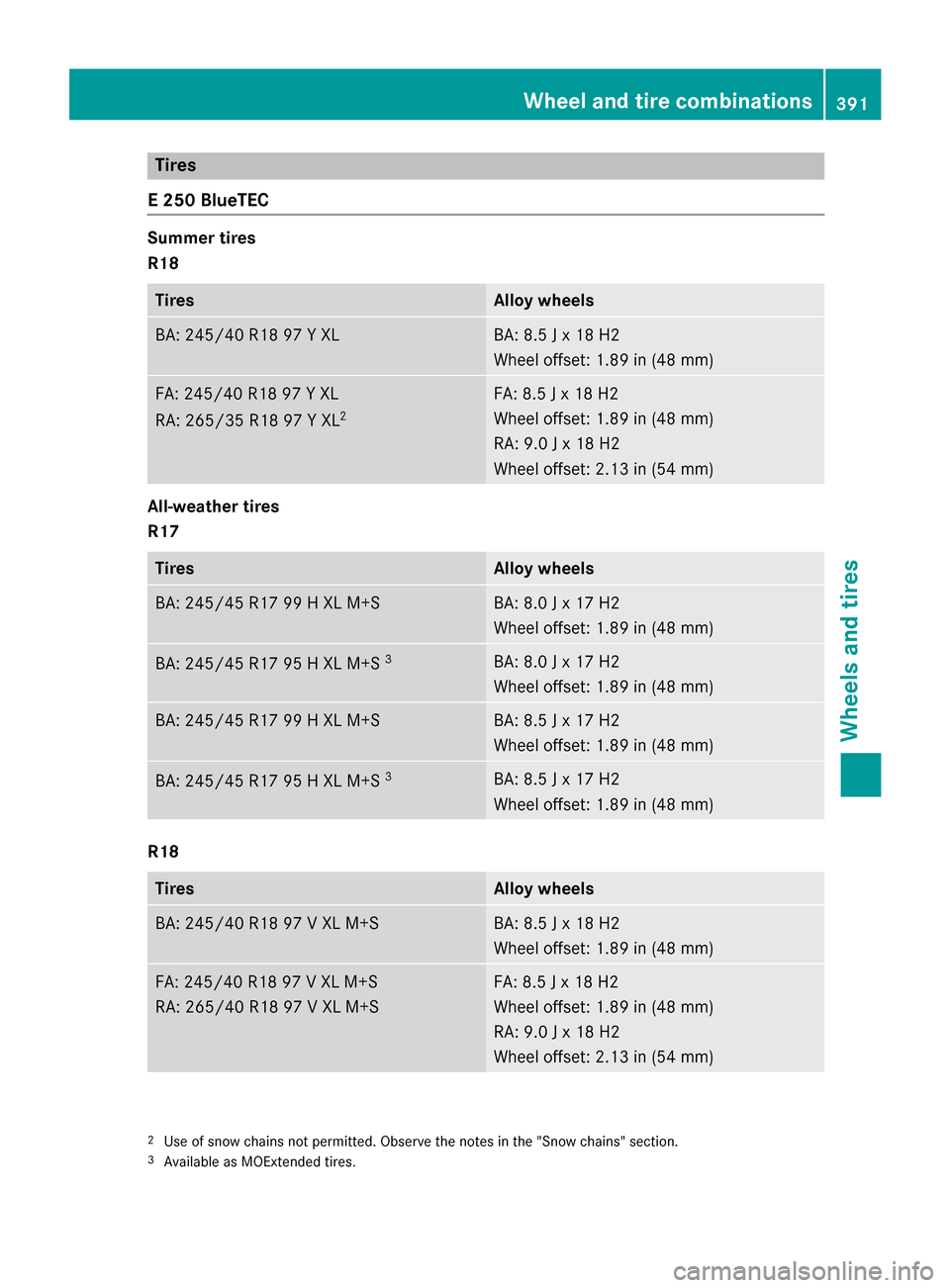

Tires
E 250 BlueTEC Summer tires
R18
Tires Alloy wheels
BA: 245/4
0 R18 97 Y XL BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL 2 FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm)
All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S
3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S
3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
FA: 245/40 R18 97 V XL M+S
RA: 265/40 R18 97 V XL M+S FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm)
2
Use of snow chains not permitted. Observe the notes in the "Snow chains" section.
3 Available as MOExtended tires. Wheel and tire combinations
391Wheels and tires Z

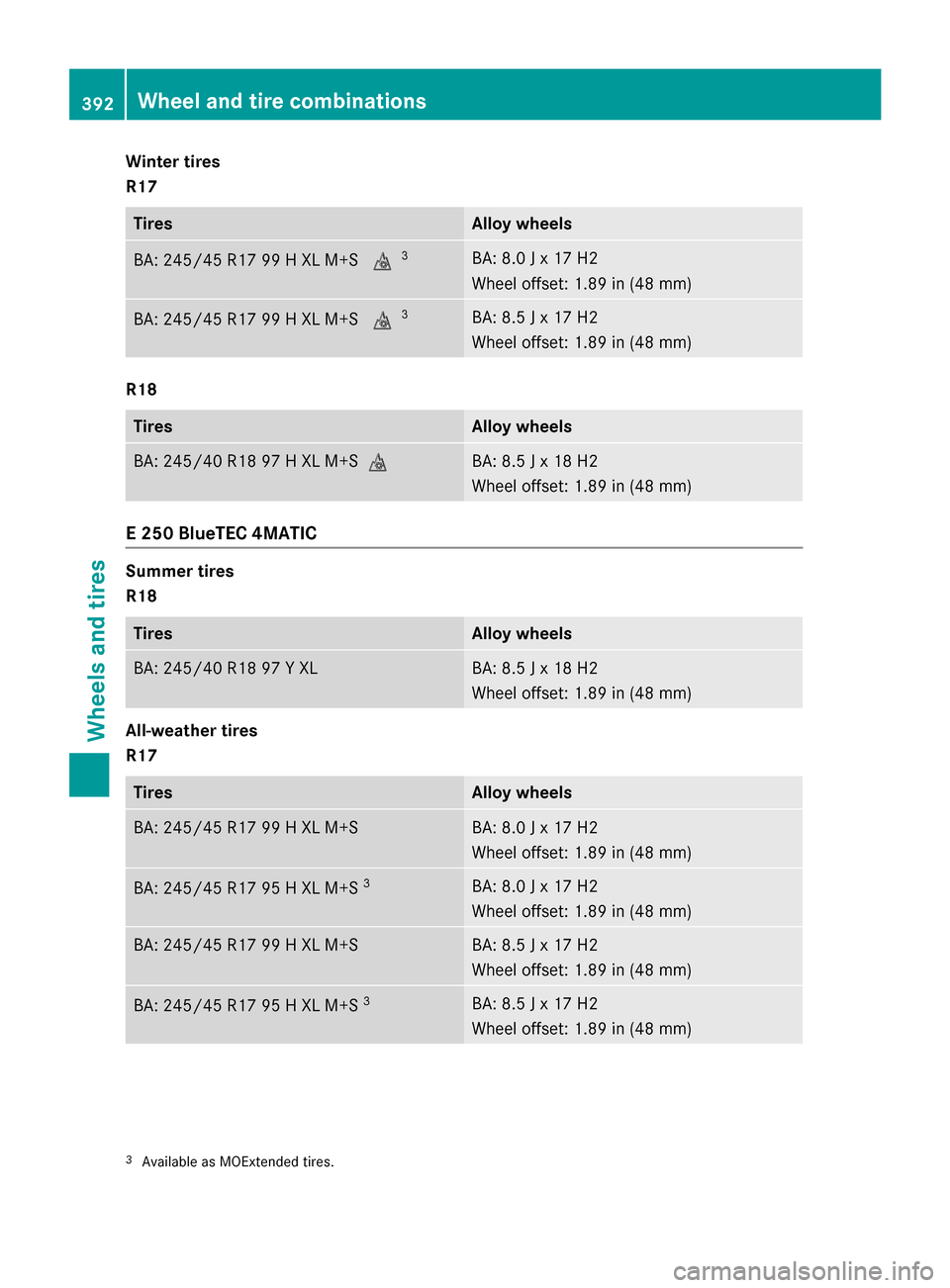

Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S004D BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) E 250 BlueTEC 4MATIC
Summer tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H XL M+S
3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H XL M+S
3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) 3
Available as MOExtended tires. 392
Wheel and tire combinationsWheels and tires

R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S
004D BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
E 300 4MATIC
Summer tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S
3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
3
Available as MOExtended tires. Wheel and tire combinations
393Wheels and tires Z

Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H XL M+S
3 BA: 8.5 J x 17 H2

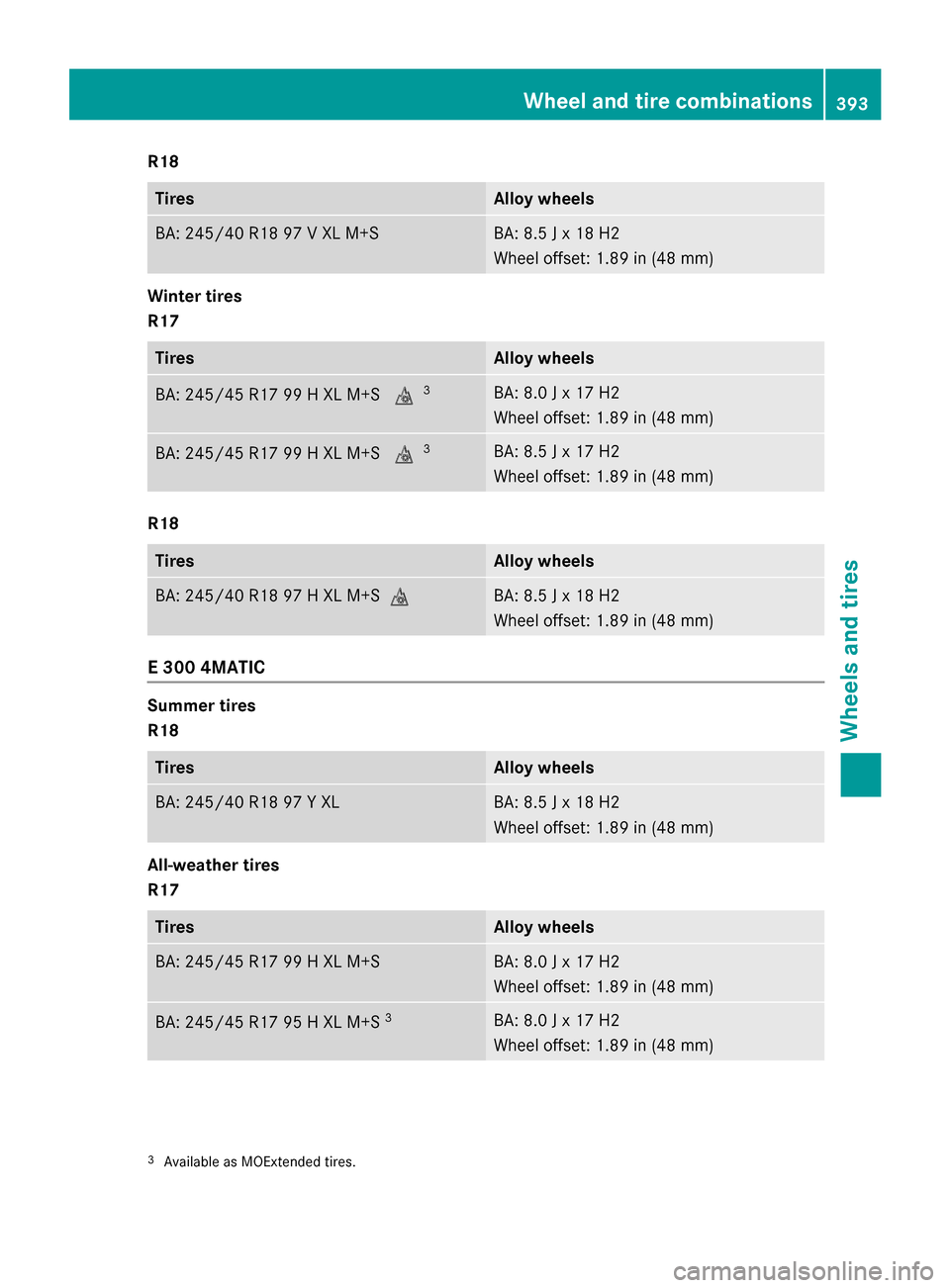

Wheel offset: 1.89 in (48 mm) R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S
004D BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) E 350
Summer tires
R18 Tires Alloy wheels
BA: 245/40 R18 97 Y XL BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) 3
Available as MOExtended tires. 394
Wheel and tire combinationsWheels and tires

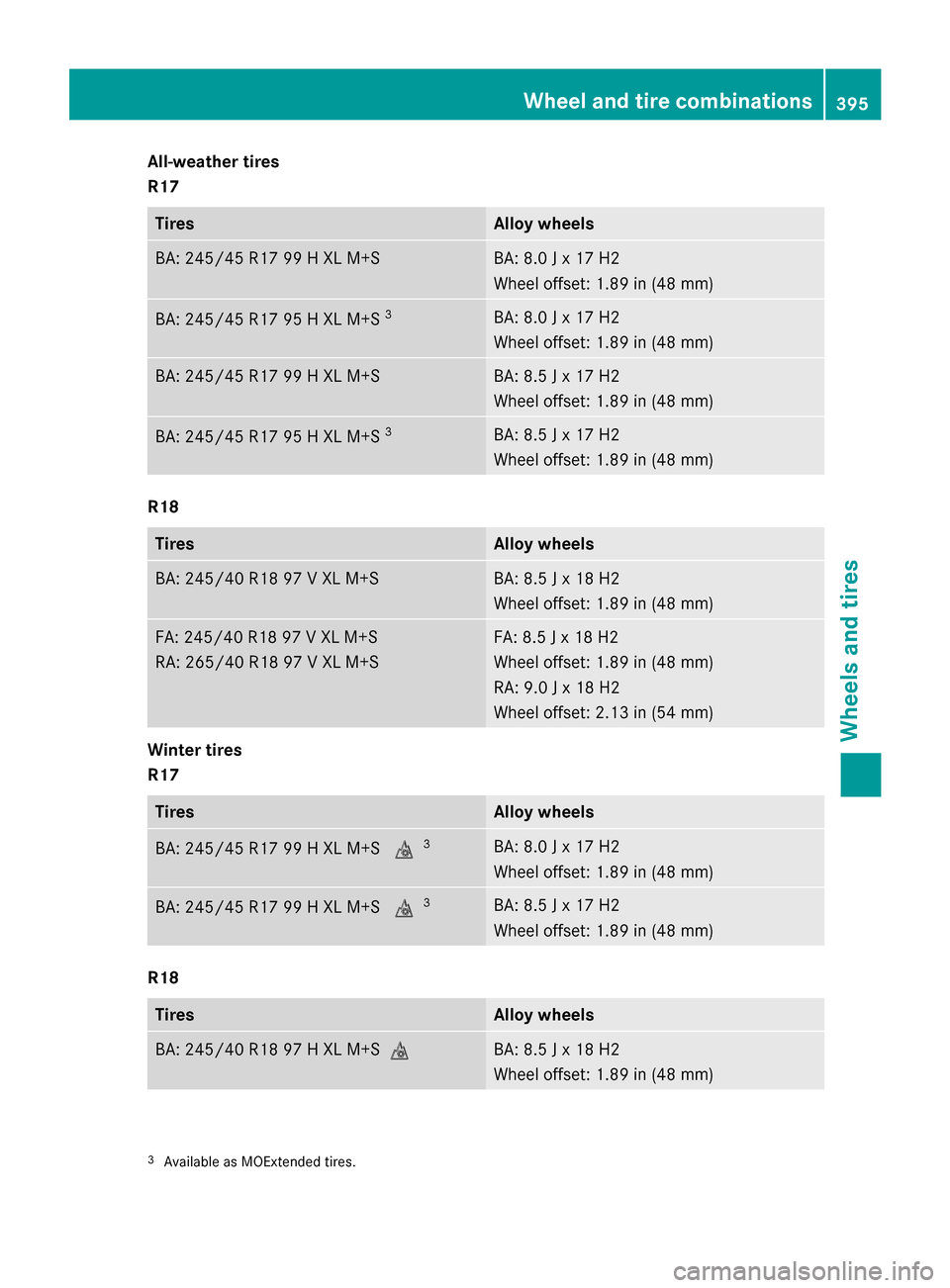

All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S
3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 H XL M+S
3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
FA: 245/40 R18 97 V XL M+S
RA: 265/40 R18 97 V XL M+S FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S004D BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
3
Available as MOExtended tires. Wheel and tire combinations
395Wheels and tires Z

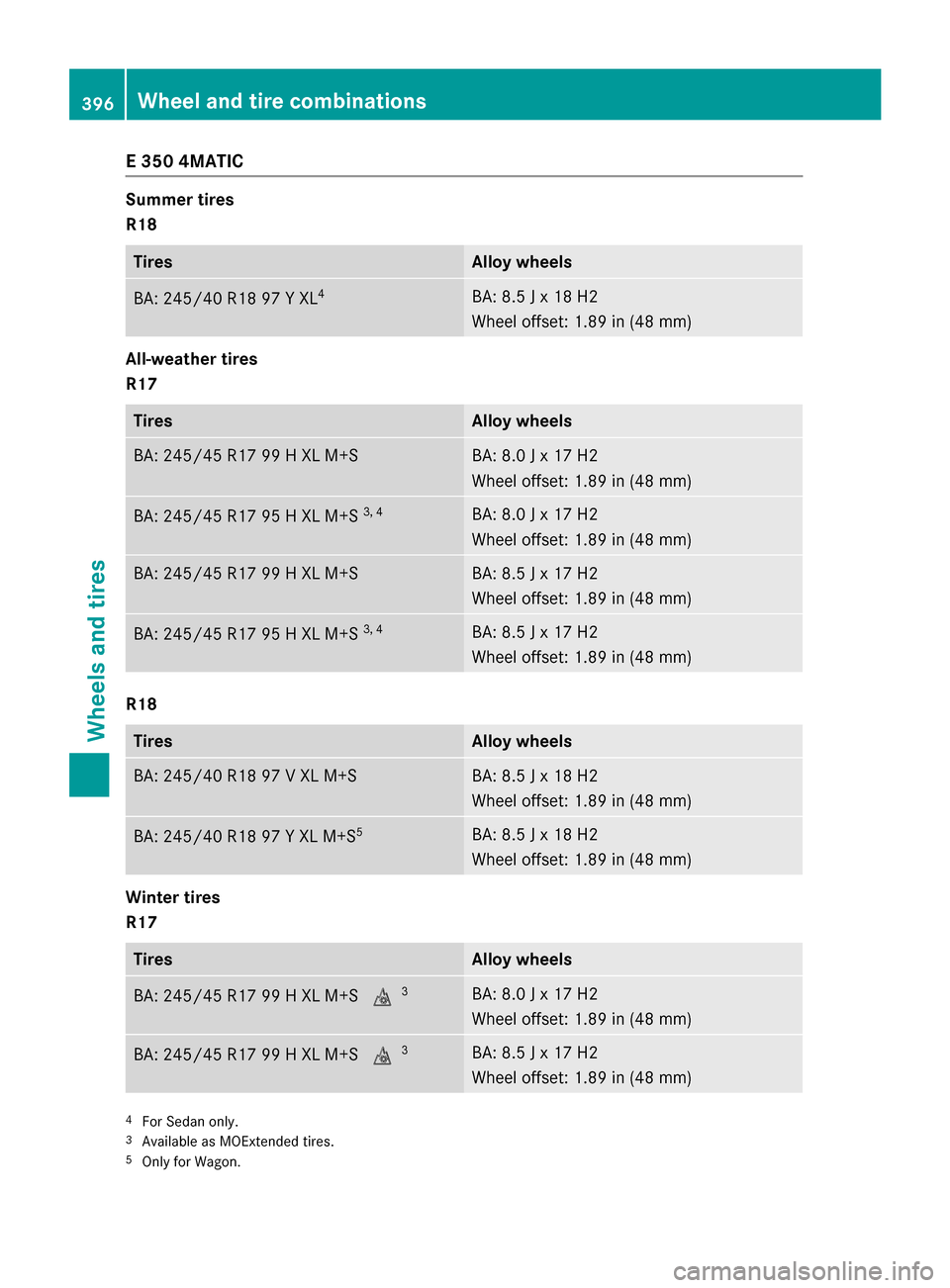

E 350 4MATIC
Summer tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL
4 BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H XL M+S
3, 4 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H XL M+S
3, 4 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) BA: 245/40 R18 97 Y XL M+S
5 BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S
004D3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) 4
For Sedan only.
3 Available as MOExtended tires.
5 Only for Wagon. 396
Wheel and tire combinationsWheels and tires

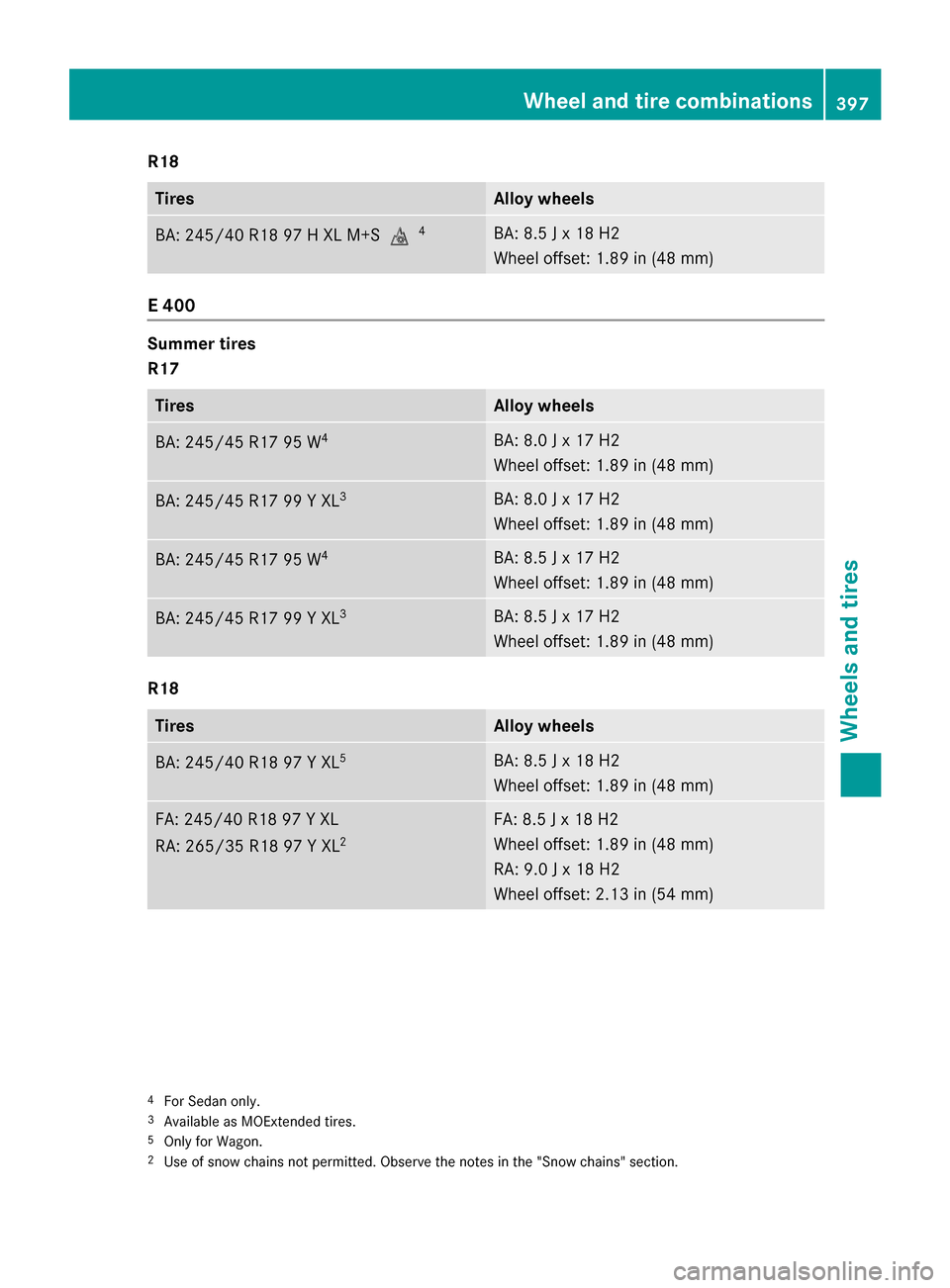

R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S
004D4 BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
E 400
Summer tires
R17
Tires Alloy wheels
BA: 245/45 R17 95 W
4 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 Y XL
3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 95 W
4 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
BA: 245/45 R17 99 Y XL
3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm)
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL
5 BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
FA: 245/40 R18 97 Y XL
RA: 265/35 R18 97 Y XL 2 FA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm)
4
For Sedan only.
3 Available as MOExtended tires.
5 Only for Wagon.
2 Use of snow chains not permitted. Observe the notes in the "Snow chains" section. Wheel and tire combinations
397Wheels and tires Z

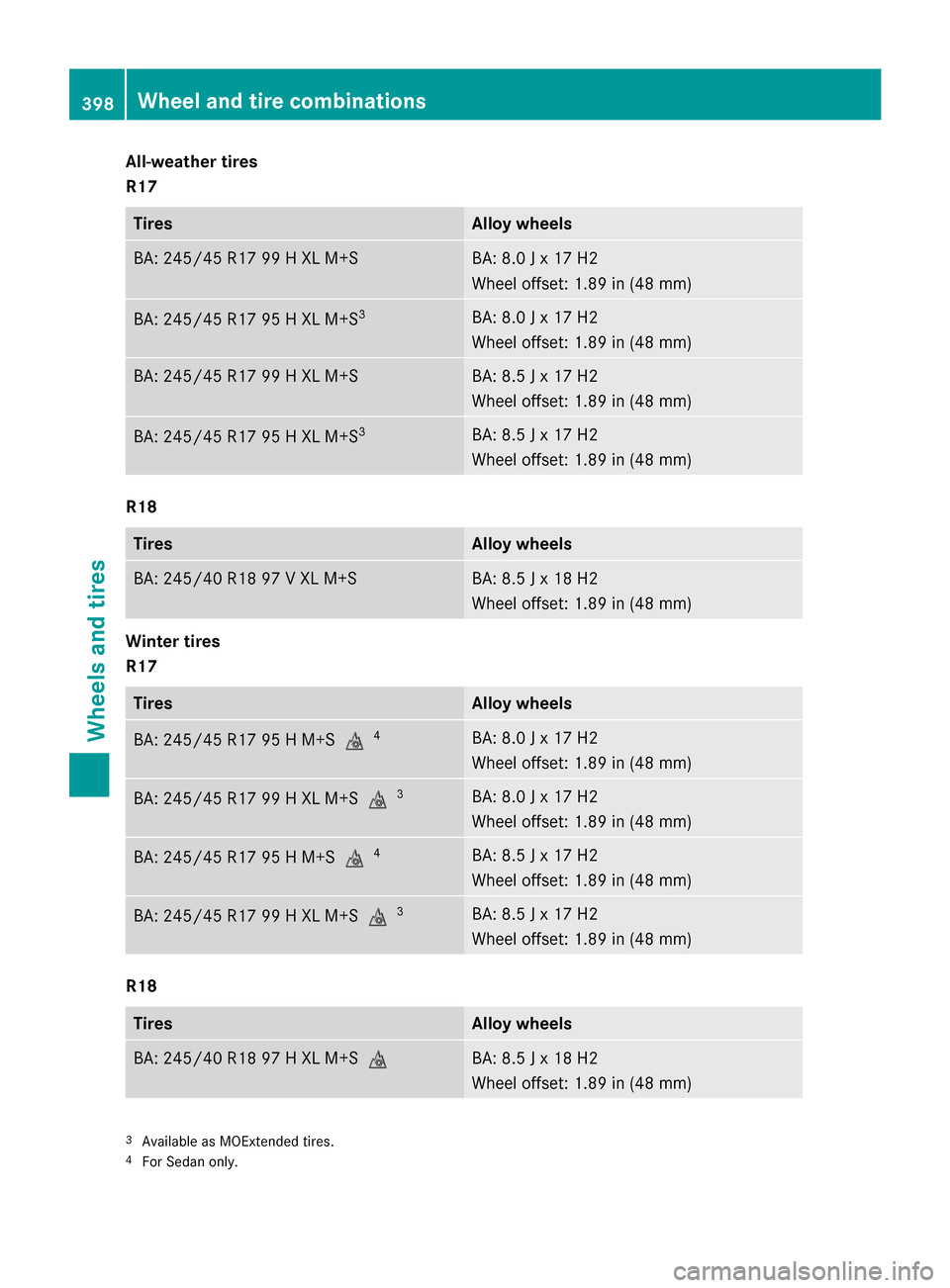

All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H XL M+S
3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H XL M+S
3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 95 H M+S004D
4 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S004D
3 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 95 H M+S004D
4 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) BA: 245/45 R17 99 H XL M+S004D
3 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in (48 mm) R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S004D BA: 8.5 J x 18 H2
Wheel offset: 1.89 in (48 mm) 3
Available as MOExtended tires.
4 For Sedan only. 398
Wheel and tire combinationsWheels and ti
res
