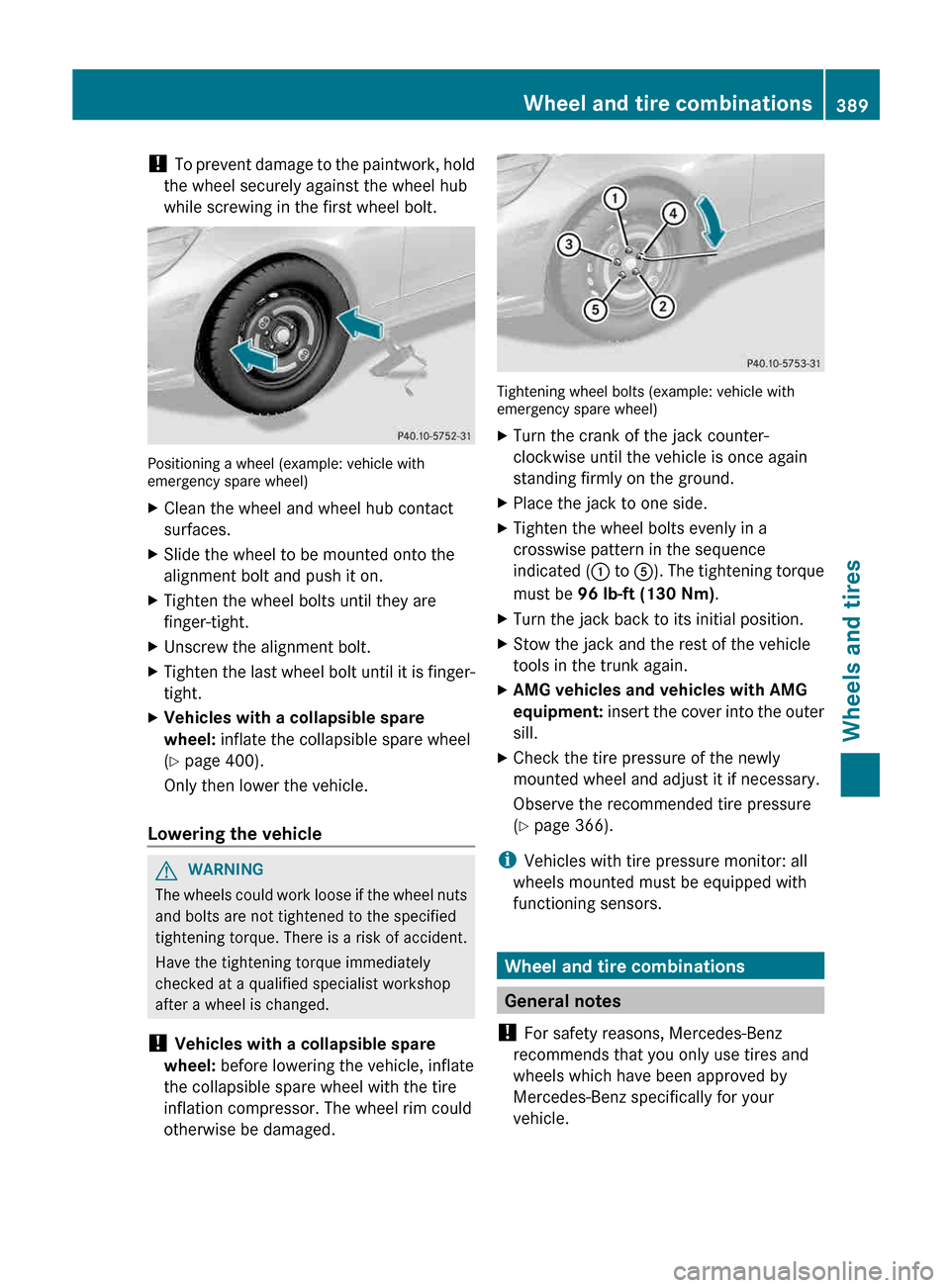

To prevent damage to the paintwork, hold
the wheel securely against the wheel hub
while screwing in the first wheel bolt. Positioning a wheel (example: vehicle with
emergency spare wheel)
X
Clean the wheel and wheel hub contact
surfaces.
X Slide the wheel to be mounted onto the
alignment bolt and push it on.
X Tighten the wheel bolts until they are
finger-tight.
X Unscrew the alignment bolt.
X Tighten the last wheel bolt until it is finger-
tight.
X Vehicles with a collapsible spare
wheel: inflate the collapsible spare wheel
(Y page 400).
Only then lower the vehicle.
Lowering the vehicle G
WARNING
The wheels could work loose if the wheel nuts
and bolts are not tightened to the specified
tightening torque. There is a risk of accident.
Have the tightening torque immediately
checked at a qualified specialist workshop
after a wheel is changed.
! Vehicles with a collapsible spare
wheel: before lowering the vehicle, inflate
the collapsible spare wheel with the tire
inflation compressor. The wheel rim could
otherwise be damaged. Tightening wheel bolts (example: vehicle with
emergency spare wheel)
X
Turn the crank of the jack counter-
clockwise until the vehicle is once again
standing firmly on the ground.
X Place the jack to one side.
X Tighten the wheel bolts evenly in a
crosswise pattern in the sequence
indicated ( :
to A). The tightening torque
must be 96 lb-ft (130 Nm).
X Turn the jack back to its initial position.
X Stow the jack and the rest of the vehicle
tools in the trunk again.
X AMG vehicles and vehicles with AMG
equipment:
insert the cover into the outer
sill.
X Check the tire pressure of the newly
mounted wheel and adjust it if necessary.
Observe the recommended tire pressure
(Y page 366).
i Vehicles with tire pressure monitor: all
wheels mounted must be equipped with
functioning sensors. Wheel and tire combinations
General notes
! For safety reasons, Mercedes-Benz
recommends that you only use tires and
wheels which have been approved by
Mercedes-Benz specifically for your
vehicle. Wheel and tire combinations
389
Wheels and tires Z
Page 392 of 420

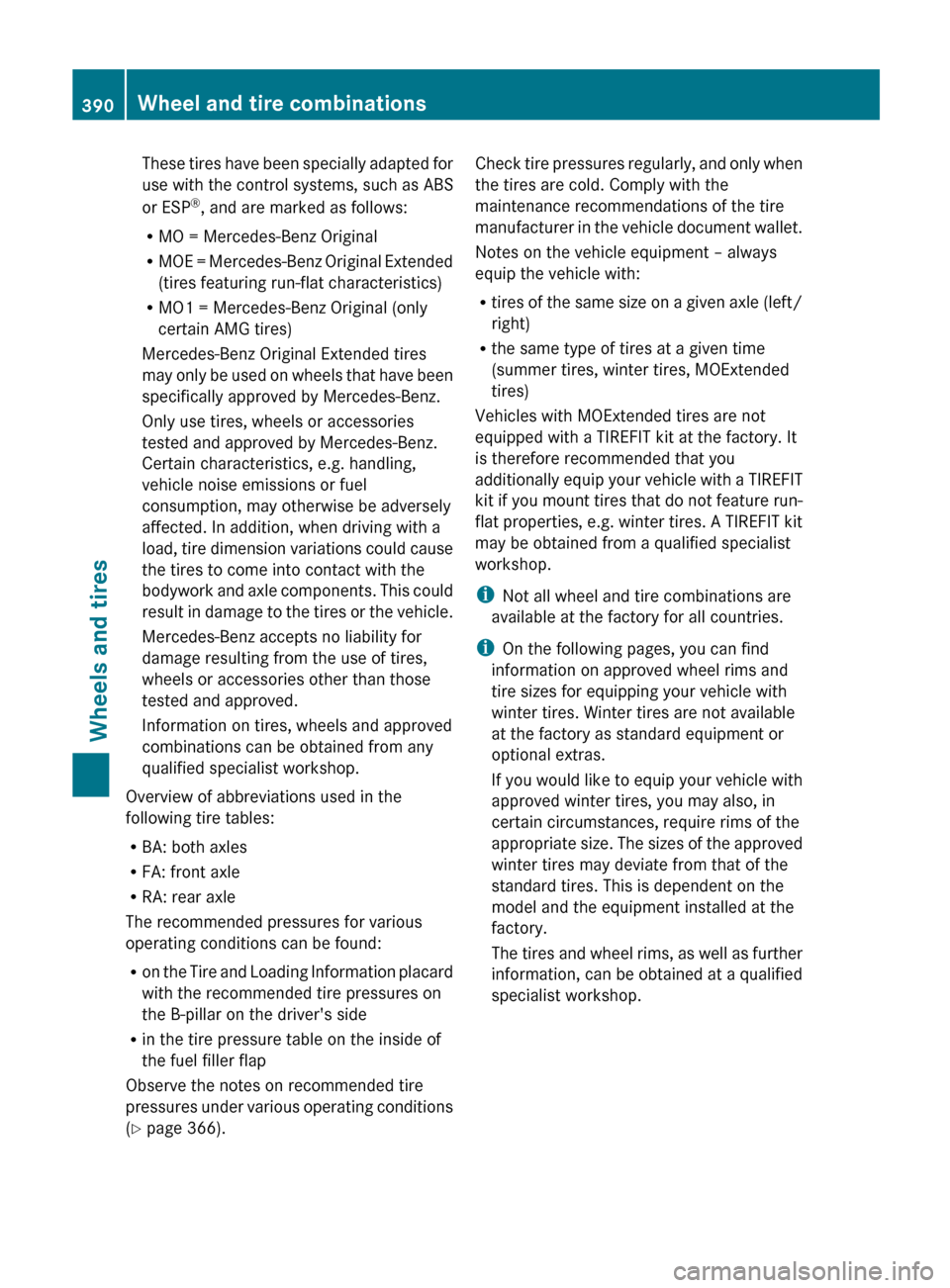

These tires have been specially adapted for
use with the control systems, such as ABS
or ESP
®
, and are marked as follows:
R MO = Mercedes-Benz Original
R MOE
= Mercedes-Benz Original Extended
(tires featuring run-flat characteristics)
R MO1 = Mercedes-Benz Original (only
certain AMG tires)
Mercedes-Benz Original Extended tires
may only be used on wheels that have been
specifically approved by Mercedes-Benz.
Only use tires, wheels or accessories
tested and approved by Mercedes-Benz.
Certain characteristics, e.g. handling,
vehicle noise emissions or fuel
consumption, may otherwise be adversely
affected. In addition, when driving with a
load, tire dimension variations could cause
the tires to come into contact with the
bodywork and axle components. This could
result in damage to the tires or the vehicle.
Mercedes-Benz accepts no liability for
damage resulting from the use of tires,
wheels or accessories other than those
tested and approved.
Information on tires, wheels and approved
combinations can be obtained from any
qualified specialist workshop.
Overview of abbreviations used in the
following tire tables:
R BA: both axles
R FA: front axle
R RA: rear axle
The recommended pressures for various
operating conditions can be found:
R on the Tire and Loading Information placard
with the recommended tire pressures on
the B-pillar on the driver's side
R in the tire pressure table on the inside of
the fuel filler flap
Observe the notes on recommended tire
pressures under various operating conditions
(Y page 366). Check tire pressures regularly, and only when
the tires are cold. Comply with the
maintenance recommendations of the tire
manufacturer
in the vehicle document wallet.
Notes on the vehicle equipment – always
equip the vehicle with:
R tires of the same size on a given axle (left/
right)
R the same type of tires at a given time
(summer tires, winter tires, MOExtended
tires)
Vehicles with MOExtended tires are not
equipped with a TIREFIT kit at the factory. It
is therefore recommended that you
additionally equip your vehicle with a TIREFIT
kit if you mount tires that do not feature run-
flat properties, e.g. winter tires. A TIREFIT kit
may be obtained from a qualified specialist
workshop.
i Not all wheel and tire combinations are
available at the factory for all countries.
i On the following pages, you can find
information on approved wheel rims and
tire sizes for equipping your vehicle with
winter tires. Winter tires are not available
at the factory as standard equipment or
optional extras.
If you would like to equip your vehicle with
approved winter tires, you may also, in
certain circumstances, require rims of the
appropriate size. The sizes of the approved
winter tires may deviate from that of the
standard tires. This is dependent on the
model and the equipment installed at the
factory.
The tires and wheel rims, as well as further
information, can be obtained at a qualified
specialist workshop. 390
Wheel and tire combinations
Wheels and tires
Page 393 of 420

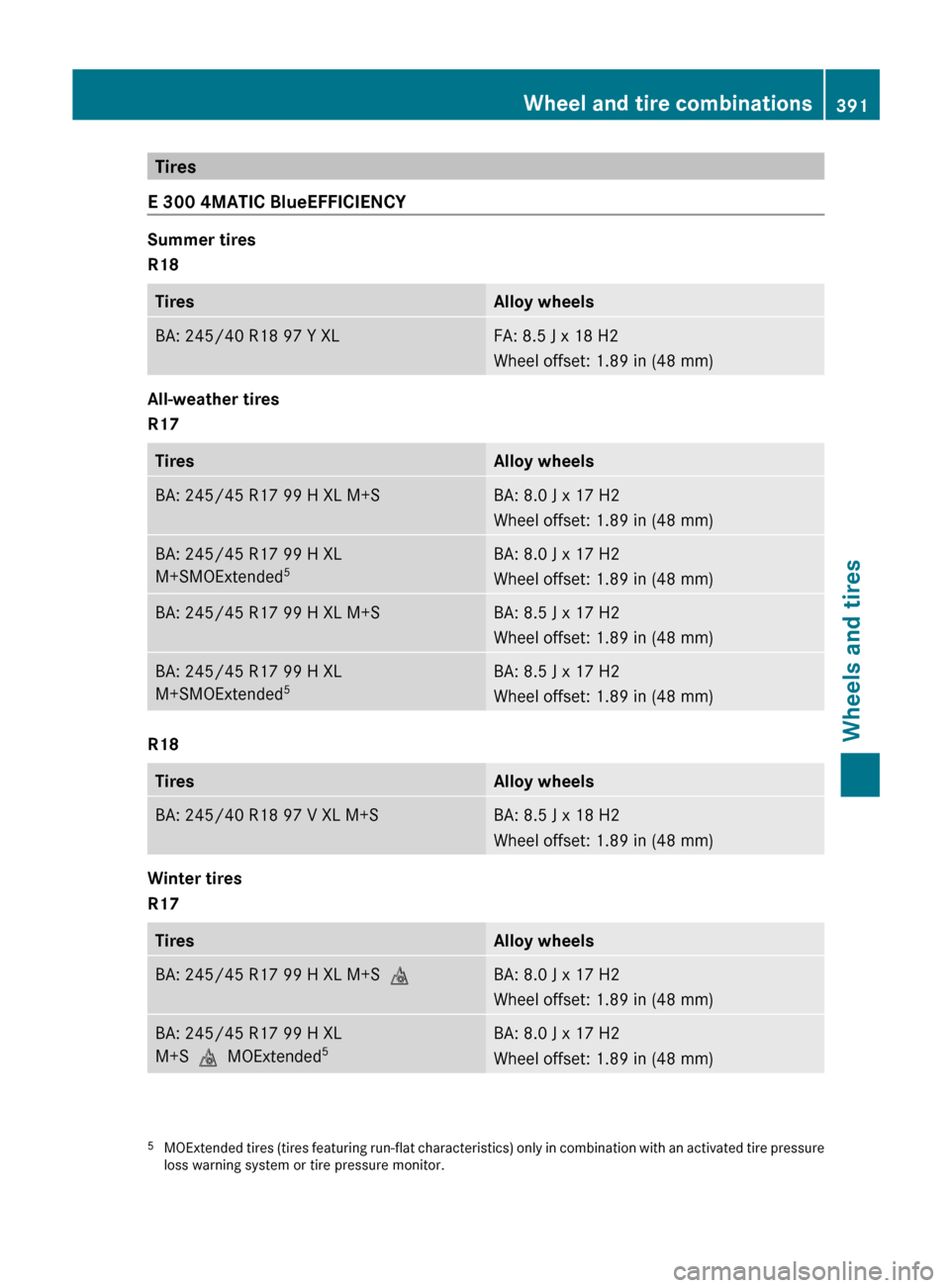

Tires
E 300 4MATIC BlueEFFICIENCY Summer tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL FA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+SMOExtended
5 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+SMOExtended
5 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
i BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)5
MOExtended
tires (tires featuring run-flat characteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor. Wheel and tire combinations
391
Wheels and tires Z
Page 394 of 420

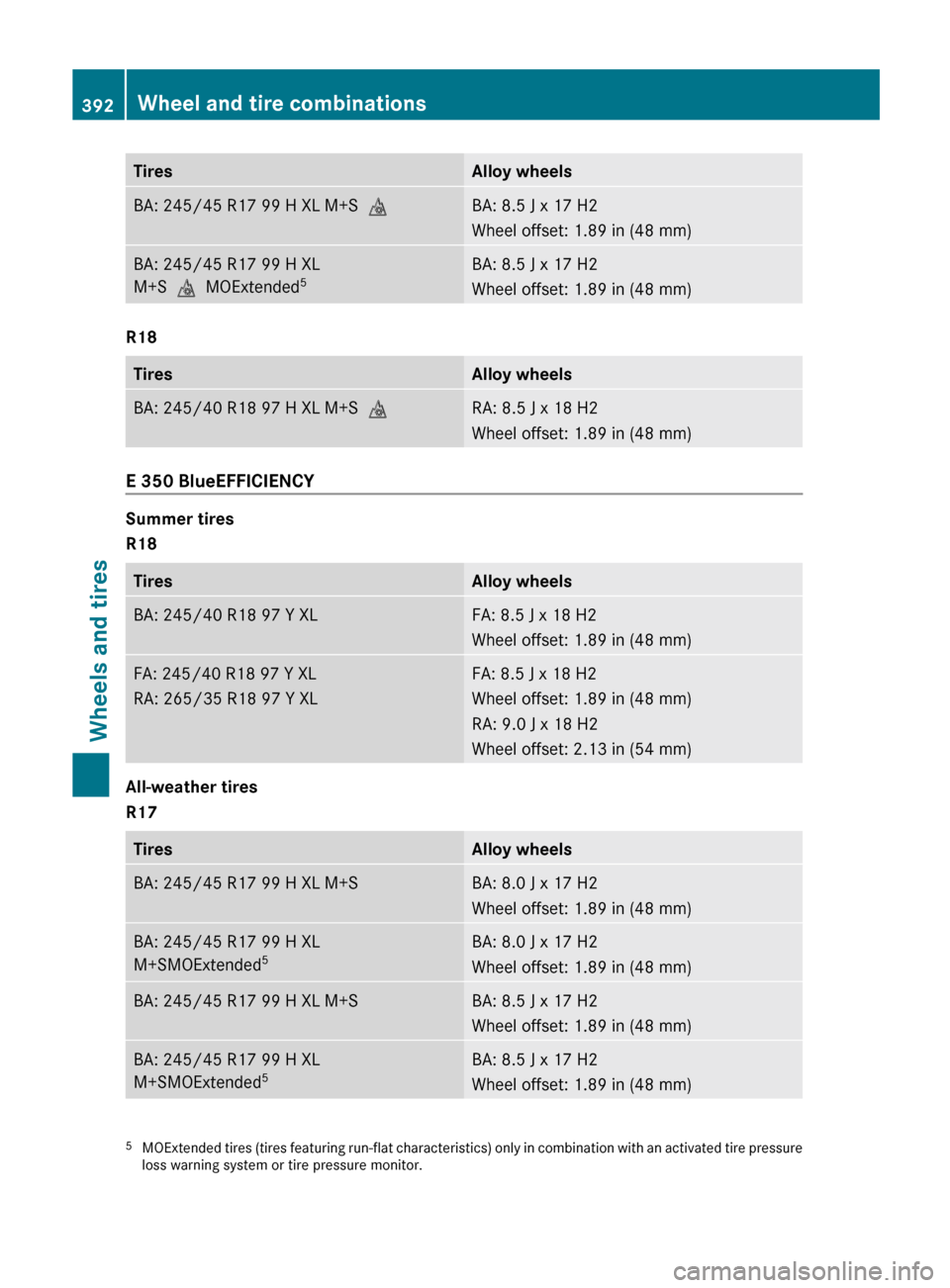

Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
i BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)R18
Tires Alloy wheels
BA: 245/40 R18 97 H XL M+S
i RA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)E 350 BlueEFFICIENCY
Summer tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL FA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)FA: 245/40 R18 97 Y XL
RA: 265/35
R18 97 Y XL FA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+SMOExtended
5 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+SMOExtended
5 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)5
MOExtended
tires (tires featuring run-flat characteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor. 392
Wheel and tire combinations
Wheels and tires
Page 395 of 420

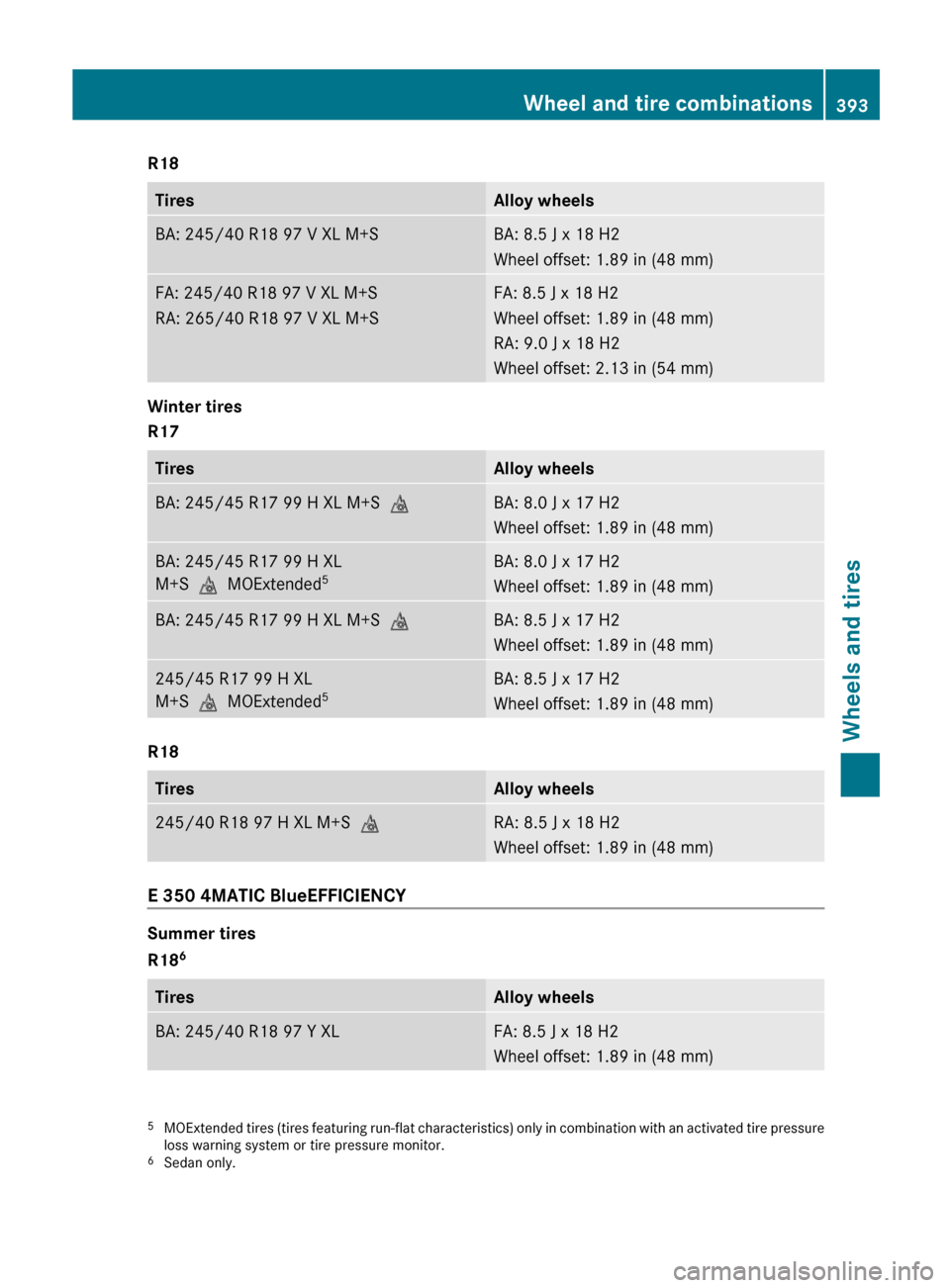

R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)FA: 245/40 R18 97 V XL M+S
RA: 265/40
R18 97 V XL M+S FA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)
RA: 9.0 J x 18 H2
Wheel offset: 2.13 in (54 mm) Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
i BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL M+S
i BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)R18
Tires Alloy wheels
245/40 R18 97 H XL M+S
i RA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)E 350 4MATIC BlueEFFICIENCY
Summer tires
R18
6 Tires Alloy wheels
BA: 245/40 R18 97 Y XL FA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)5
MOExtended
tires (tires featuring run-flat characteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor.
6 Sedan only. Wheel and tire combinations
393
Wheels and tires Z
Page 396 of 420
All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA:
245/45
R17 99 H XL M+SMOExtended 5, 6 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA:
245/45
R17 99 H XL M+SMOExtended 5, 6 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)R18
6 Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
i BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL M+S
i BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)R18
6 Tires Alloy wheels
245/40 R18 97 H XL M+S
i RA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)5
MOExtended
tires (tires featuring run-flat characteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor.
6 Sedan only.394
Wheel and tire combinations
Wheels and tires
Page 397 of 420

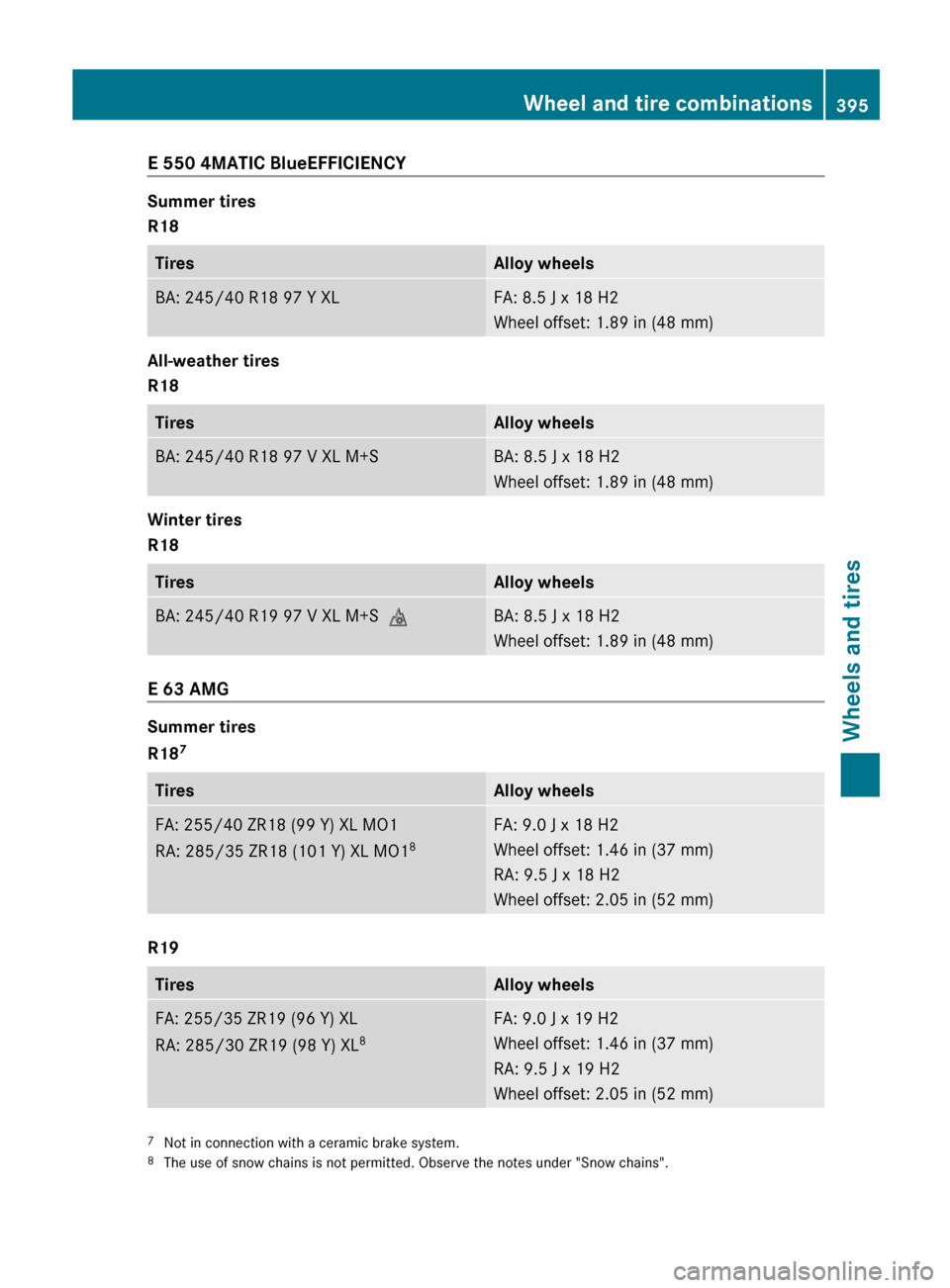

E 550 4MATIC BlueEFFICIENCY
Summer tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL FA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)All-weather tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)Winter tires
R18
Tires Alloy wheels
BA: 245/40 R19 97 V XL M+S
i BA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)E 63 AMG
Summer tires
R18
7 Tires Alloy wheels
FA: 255/40 ZR18 (99 Y) XL MO1
RA: 285/35
ZR18 (101 Y) XL MO1 8 FA: 9.0 J x 18 H2
Wheel offset: 1.46 in
(37 mm)
RA: 9.5 J x 18 H2
Wheel offset: 2.05 in (52 mm) R19
Tires Alloy wheels
FA: 255/35 ZR19 (96 Y) XL
RA: 285/30
ZR19 (98 Y) XL 8 FA: 9.0 J x 19 H2
Wheel offset: 1.46 in
(37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm) 7
Not in connection with a ceramic brake system.
8 The use of snow chains is not permitted. Observe the notes under "Snow chains". Wheel and tire combinations
395
Wheels and tires Z
Page 398 of 420

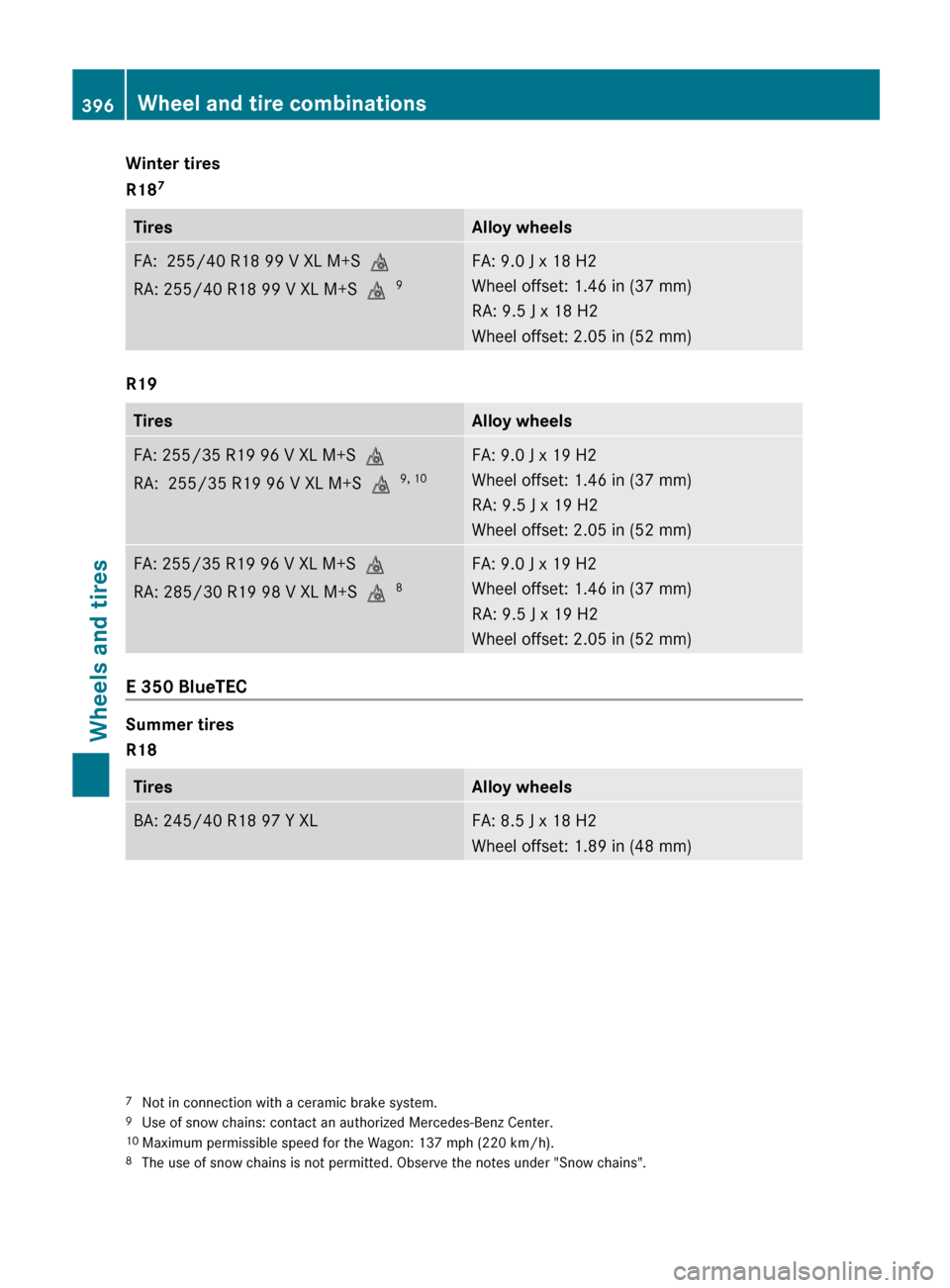

Winter tires
R18
7 Tires Alloy wheels
FA: 255/40 R18 99 V XL M+S
i
RA: 255/40 R18 99 V XL M+S i9 FA: 9.0 J x 18 H2
Wheel offset: 1.46 in
(37 mm)
RA: 9.5 J x 18 H2
Wheel offset: 2.05 in (52 mm) R19
Tires Alloy wheels
FA: 255/35 R19 96 V XL M+S
i
RA: 255/35
R19 96 V XL M+S i9, 10 FA: 9.0 J x 19 H2
Wheel offset: 1.46 in
(37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm) FA: 255/35 R19 96 V XL M+S
i
RA: 285/30
R19 98 V XL M+S i8 FA: 9.0 J x 19 H2
Wheel offset: 1.46 in
(37 mm)
RA: 9.5 J x 19 H2
Wheel offset: 2.05 in (52 mm) E 350 BlueTEC
Summer tires
R18
Tires Alloy wheels
BA: 245/40 R18 97 Y XL FA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)7
Not in connection with a ceramic brake system.
9 Use of snow chains: contact an authorized Mercedes-Benz Center.
10 Maximum permissible speed for the Wagon:
137 mph (220 km/h).
8 The use of snow chains is not permitted. Observe the notes under "Snow chains".396
Wheel and tire combinations
Wheels and tires
Page 399 of 420

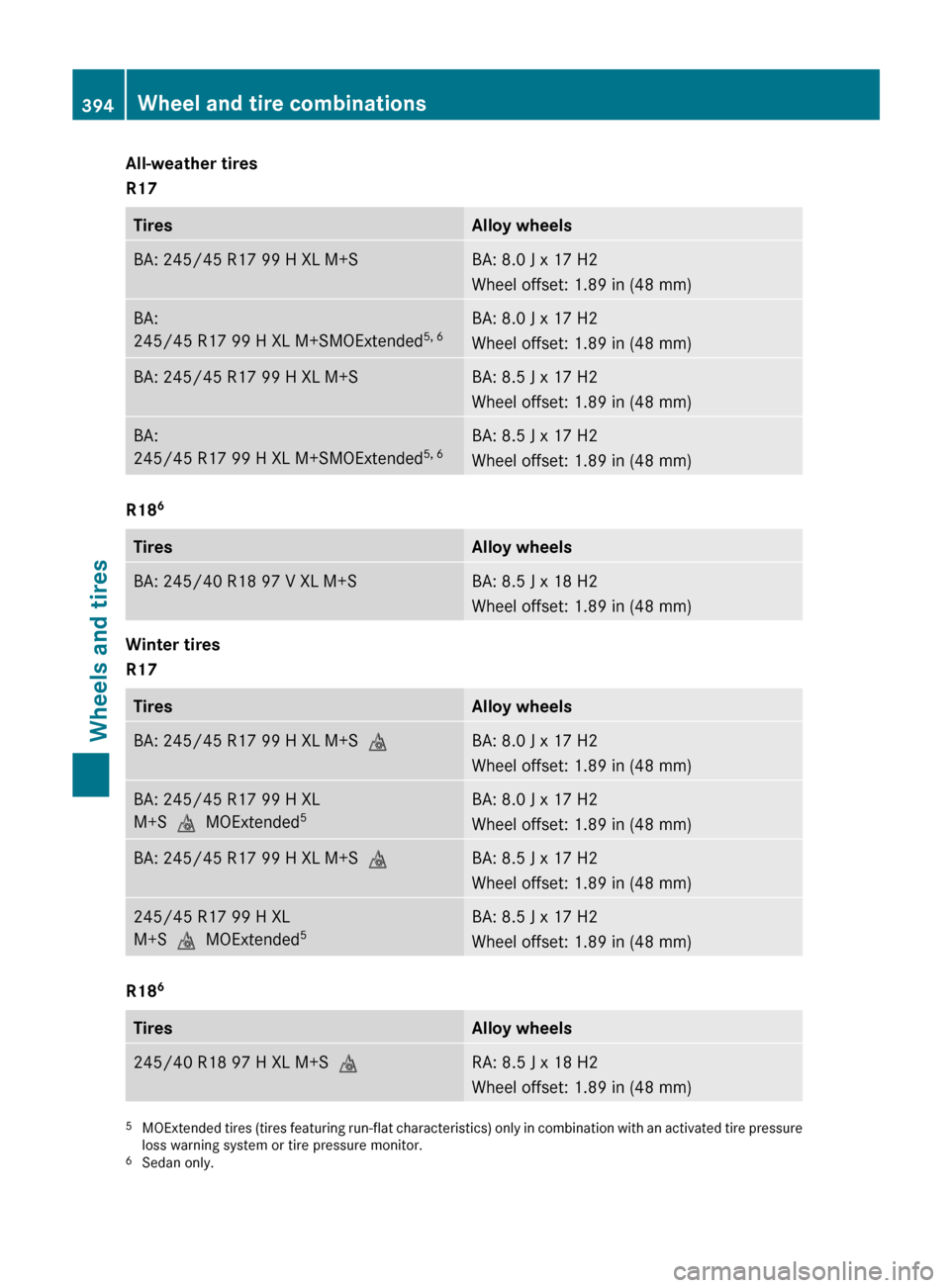

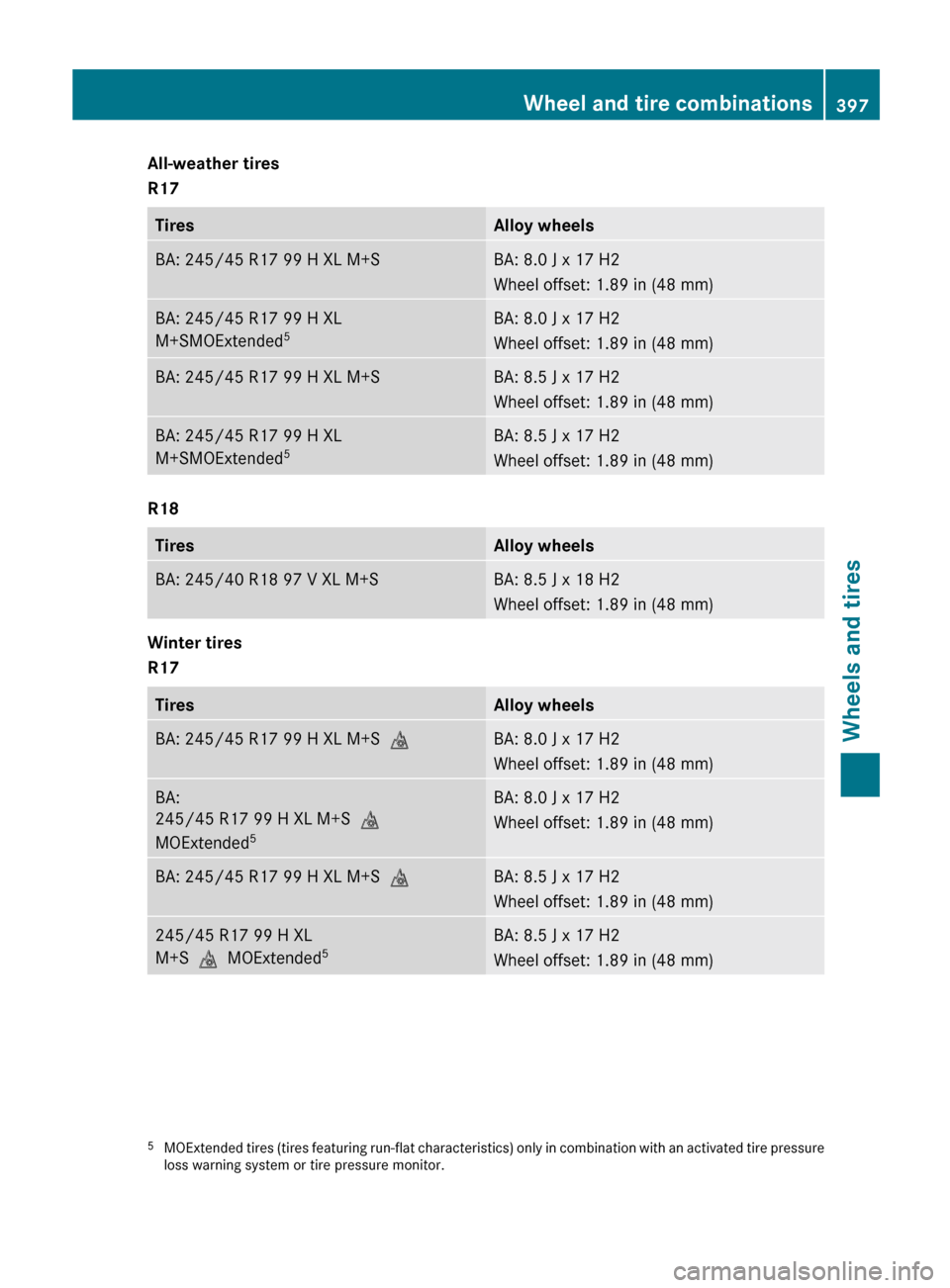

All-weather tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+SMOExtended
5 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL M+S BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL
M+SMOExtended
5 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)R18
Tires Alloy wheels
BA: 245/40 R18 97 V XL M+S BA: 8.5 J x 18 H2
Wheel offset: 1.89 in
(48 mm)Winter tires
R17
Tires Alloy wheels
BA: 245/45 R17 99 H XL M+S
i BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA:
245/45
R17 99 H XL M+S i
MOExtended 5 BA: 8.0 J x 17 H2
Wheel offset: 1.89 in
(48 mm)BA: 245/45 R17 99 H XL M+S
i BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)245/45 R17 99 H XL
M+S
iMOExtended 5 BA: 8.5 J x 17 H2
Wheel offset: 1.89 in
(48 mm)5
MOExtended
tires (tires featuring run-flat characteristics) only in combination with an activated tire pressure
loss warning system or tire pressure monitor. Wheel and tire combinations
397
Wheels and tires Z
Page 400 of 420
R18
Tires Alloy wheels
245/40 R18 97 H XL M+S
i RA: 8.5 J x 18 H2
Wheel offset: 1.89 in

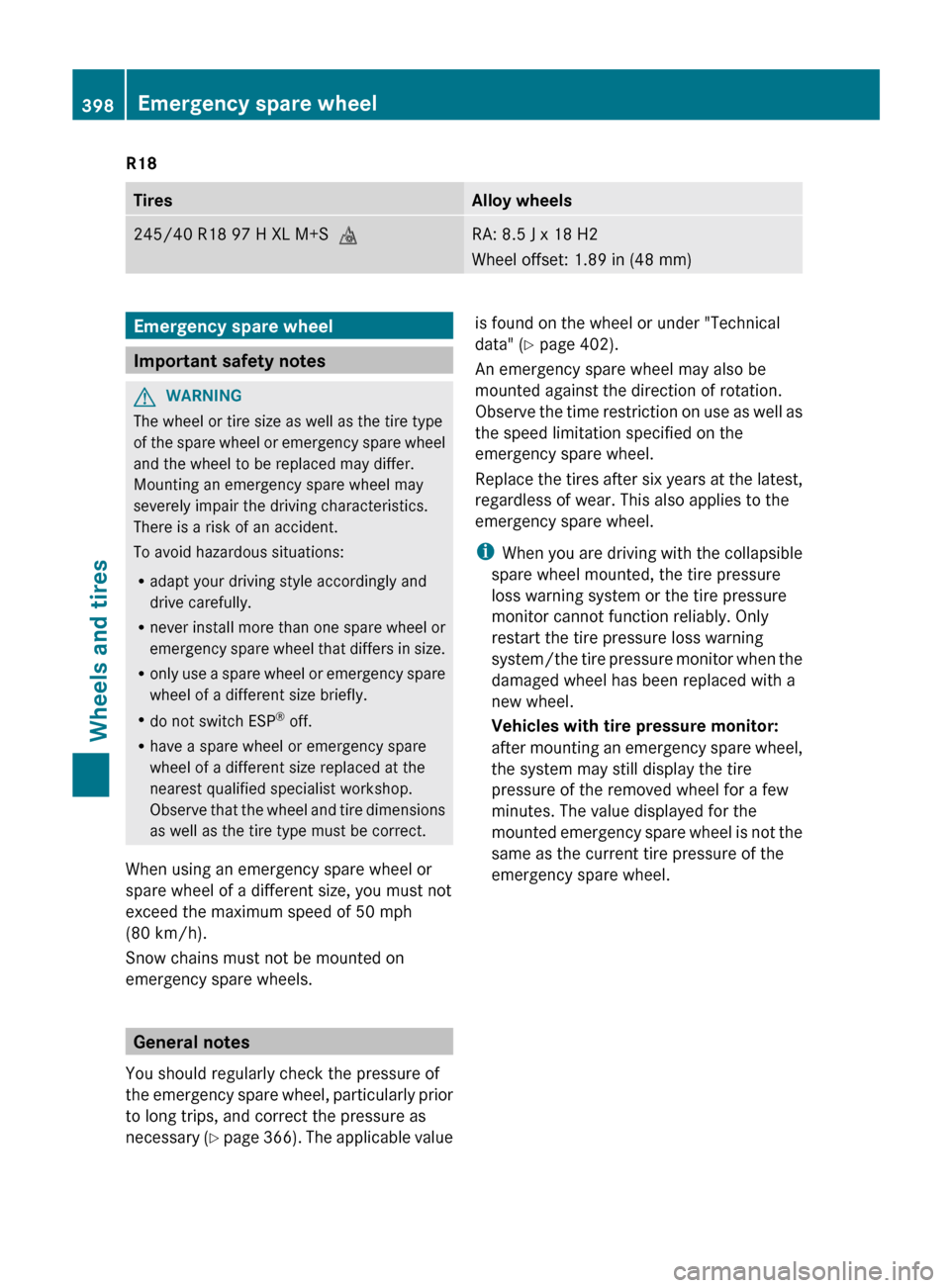

(48 mm)Emergency spare wheel
Important safety notes
G
WARNING
The wheel or tire size as well as the tire type
of
the spare wheel or emergency spare wheel
and the wheel to be replaced may differ.
Mounting an emergency spare wheel may
severely impair the driving characteristics.
There is a risk of an accident.
To avoid hazardous situations:
R adapt your driving style accordingly and
drive carefully.
R never install more than one spare wheel or
emergency spare wheel that differs in size.
R only use a spare wheel or emergency spare
wheel of a different size briefly.
R do not switch ESP ®
off.
R have a spare wheel or emergency spare
wheel of a different size replaced at the
nearest qualified specialist workshop.
Observe that the wheel and tire dimensions
as well as the tire type must be correct.
When using an emergency spare wheel or
spare wheel of a different size, you must not
exceed the maximum speed of 50 mph
(80 km/h).
Snow chains must not be mounted on
emergency spare wheels. General notes
You should regularly check the pressure of
the
emergency spare wheel, particularly prior
to long trips, and correct the pressure as
necessary (Y page 366). The applicable value is found on the wheel or under "Technical
data" (
Y page 402).
An emergency spare wheel may also be
mounted against the direction of rotation.
Observe
the time restriction on use as well as
the speed limitation specified on the
emergency spare wheel.
Replace the tires after six years at the latest,
regardless of wear. This also applies to the
emergency spare wheel.
i When you are driving with the collapsible
spare wheel mounted, the tire pressure
loss warning system or the tire pressure
monitor cannot function reliably. Only
restart the tire pressure loss warning
system/the tire pressure monitor when the
damaged wheel has been replaced with a
new wheel.
Vehicles with tire pressure monitor:
after mounting an emergency spare wheel,
the system may still display the tire
pressure of the removed wheel for a few
minutes. The value displayed for the
mounted emergency spare wheel is not the
same as the current tire pressure of the
emergency spare wheel. 398
Emergency spare wheel
Wheels and tires
