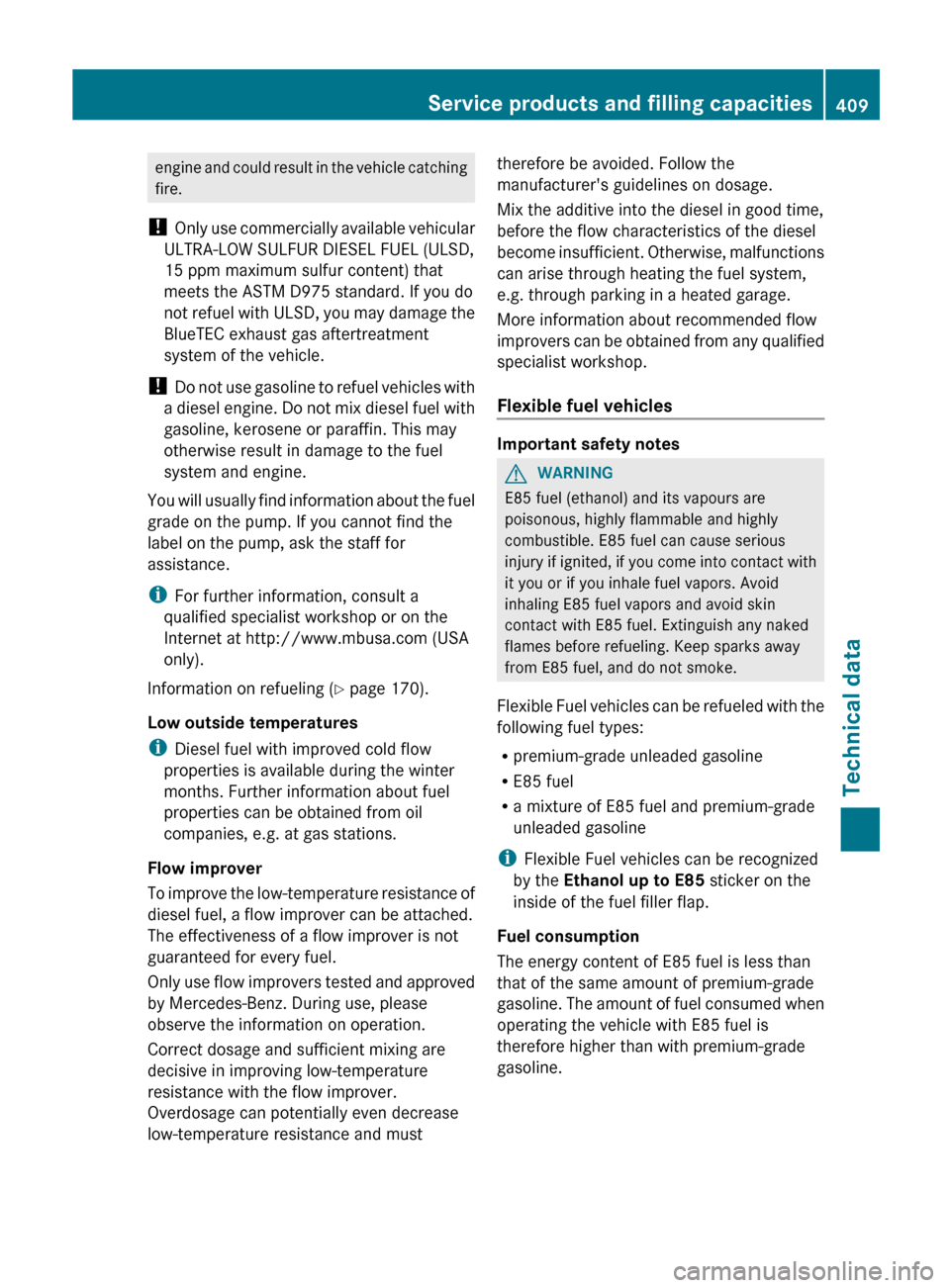

Page 411 of 420
engine and could result in the vehicle catching
fire.
! Only
use commercially available vehicular
ULTRA-LOW SULFUR DIESEL FUEL (ULSD,
15 ppm maximum sulfur content) that
meets the ASTM D975 standard. If you do
not refuel with ULSD, you may damage the
BlueTEC exhaust gas aftertreatment
system of the vehicle.
! Do not use gasoline to refuel vehicles with
a diesel engine. Do not mix diesel fuel with
gasoline, kerosene or paraffin. This may
otherwise result in damage to the fuel
system and engine.
You will usually find information about the fuel
grade on the pump. If you cannot find the
label on the pump, ask the staff for
assistance.
i For further information, consult a
qualified specialist workshop or on the
Internet at http://www.mbusa.com (USA
only).
Information on refueling (Y page 170).
Low outside temperatures
i Diesel fuel with improved cold flow
properties is available during the winter
months. Further information about fuel
properties can be obtained from oil
companies, e.g. at gas stations.
Flow improver
To improve the low-temperature resistance of
diesel fuel, a flow improver can be attached.
The effectiveness of a flow improver is not
guaranteed for every fuel.
Only use flow improvers tested and approved
by Mercedes-Benz. During use, please
observe the information on operation.
Correct dosage and sufficient mixing are
decisive in improving low-temperature
resistance with the flow improver.
Overdosage can potentially even decrease
low-temperature resistance and must therefore be avoided. Follow the
manufacturer's guidelines on dosage.
Mix the additive into the diesel in good time,
before the flow characteristics of the diesel
become
insufficient. Otherwise, malfunctions
can arise through heating the fuel system,
e.g. through parking in a heated garage.
More information about recommended flow
improvers can be obtained from any qualified
specialist workshop.
Flexible fuel vehicles Important safety notes
G
WARNING
E85 fuel (ethanol) and its vapours are
poisonous, highly flammable and highly
combustible. E85 fuel can cause serious
injury
if ignited, if you come into contact with
it you or if you inhale fuel vapors. Avoid
inhaling E85 fuel vapors and avoid skin
contact with E85 fuel. Extinguish any naked
flames before refueling. Keep sparks away
from E85 fuel, and do not smoke.
Flexible Fuel vehicles can be refueled with the
following fuel types:
R premium-grade unleaded gasoline
R E85 fuel
R a mixture of E85 fuel and premium-grade
unleaded gasoline
i Flexible Fuel vehicles can be recognized
by the Ethanol up to E85 sticker on the
inside of the fuel filler flap.
Fuel consumption
The energy content of E85 fuel is less than
that of the same amount of premium-grade
gasoline. The amount of fuel consumed when
operating the vehicle with E85 fuel is
therefore higher than with premium-grade
gasoline. Service products and filling capacities
409
Technical data Z

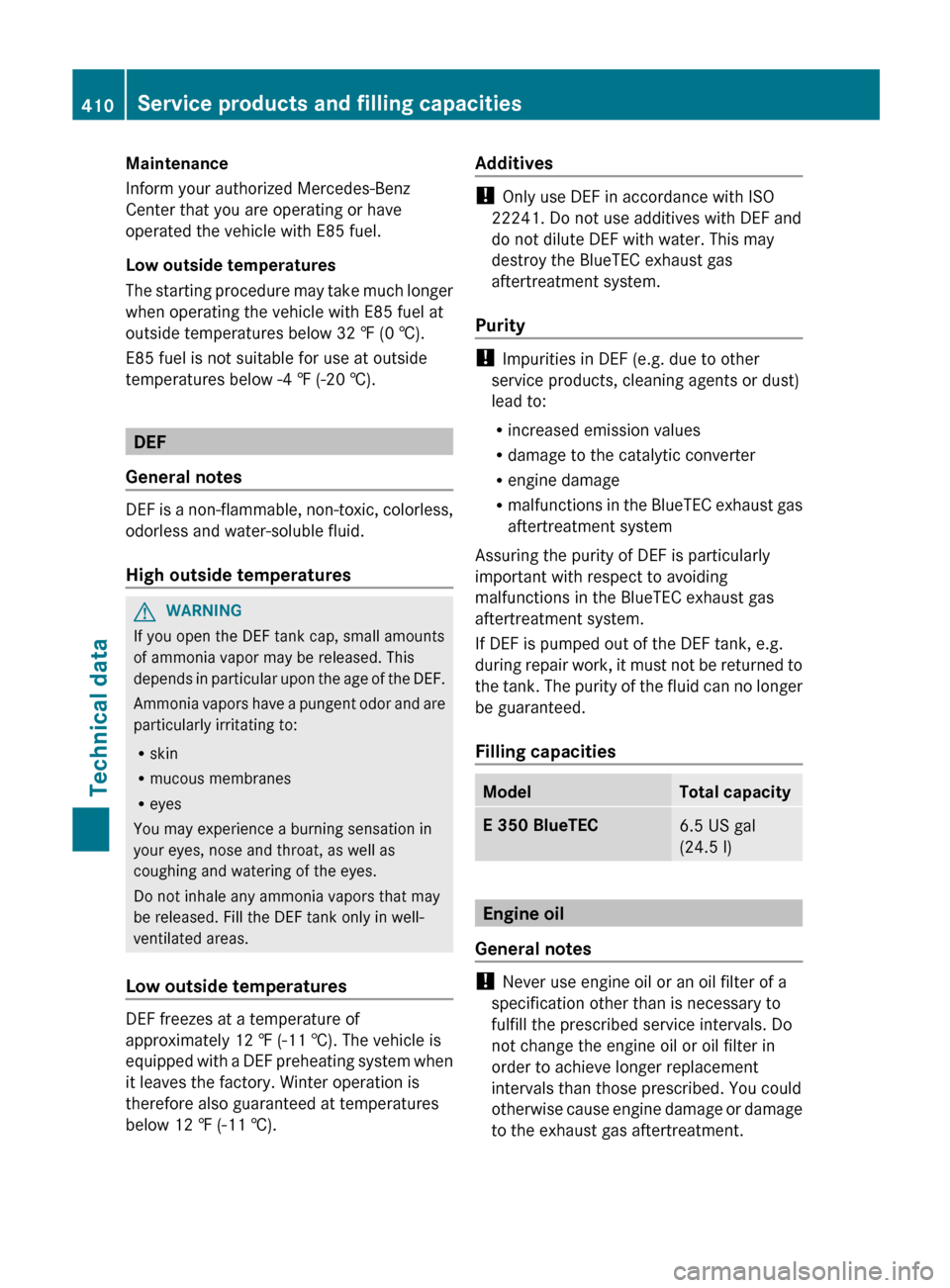

Page 412 of 420
Maintenance
Inform your authorized Mercedes-Benz
Center that you are operating or have
operated the vehicle with E85 fuel.
Low outside temperatures
The
starting procedure may take much longer
when operating the vehicle with E85 fuel at
outside temperatures below 32 ‡ (0 †).
E85 fuel is not suitable for use at outside
temperatures below -4 ‡ (-20 †). DEF
General notes DEF is a non-flammable, non-toxic, colorless,
odorless and water-soluble fluid.
High outside temperatures
G
WARNING
If you open the DEF tank cap, small amounts
of ammonia vapor may be released. This
depends
in particular upon the age of the DEF.
Ammonia vapors have a pungent odor and are
particularly irritating to:
R skin
R mucous membranes
R eyes
You may experience a burning sensation in
your eyes, nose and throat, as well as
coughing and watering of the eyes.
Do not inhale any ammonia vapors that may
be released. Fill the DEF tank only in well-
ventilated areas.
Low outside temperatures DEF freezes at a temperature of
approximately
12 ‡ (-11 †). The vehicle is
equipped with a DEF preheating system when
it leaves the factory. Winter operation is
therefore also guaranteed at temperatures
below 12 ‡ (-11 †). Additives !
Only use DEF in accordance with ISO
22241. Do not use additives with DEF and
do not dilute DEF with water. This may
destroy the BlueTEC exhaust gas
aftertreatment system.
Purity !
Impurities in DEF (e.g. due to other
service products, cleaning agents or dust)
lead to:
R increased emission values
R damage to the catalytic converter
R engine damage
R malfunctions
in the BlueTEC exhaust gas
aftertreatment system
Assuring the purity of DEF is particularly
important with respect to avoiding
malfunctions in the BlueTEC exhaust gas
aftertreatment system.
If DEF is pumped out of the DEF tank, e.g.
during repair work, it must not be returned to
the tank. The purity of the fluid can no longer
be guaranteed.
Filling capacities Model Total capacity
E 350 BlueTEC
6.5 US gal
(24.5 l)
Engine oil
General notes !
Never use engine oil or an oil filter of a
specification other than is necessary to
fulfill the prescribed service intervals. Do
not change the engine oil or oil filter in
order to achieve longer replacement
intervals than those prescribed. You could
otherwise
cause engine damage or damage
to the exhaust gas aftertreatment. 410
Service products and filling capacities
Technical data

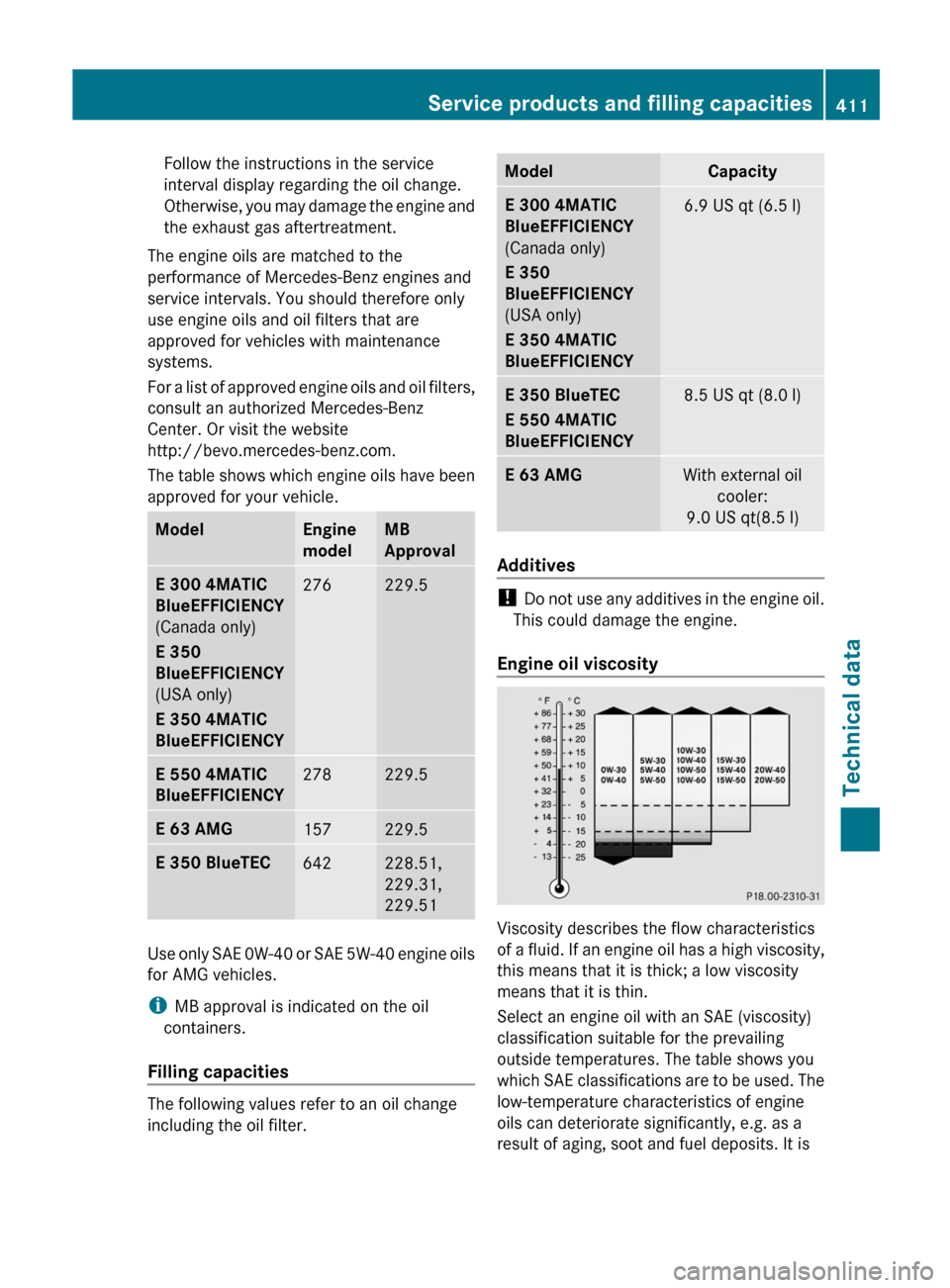

Page 413 of 420
Follow the instructions in the service
interval display regarding the oil change.
Otherwise,
you may damage the engine and
the exhaust gas aftertreatment.
The engine oils are matched to the
performance of Mercedes-Benz engines and
service intervals. You should therefore only
use engine oils and oil filters that are
approved for vehicles with maintenance
systems.
For a list of approved engine oils and oil filters,
consult an authorized Mercedes-Benz
Center. Or visit the website
http://bevo.mercedes-benz.com.
The table shows which engine oils have been
approved for your vehicle. Model Engine
model MB
Approval
E 300 4MATIC
BlueEFFICIENCY
(Canada only)
E 350
BlueEFFICIENCY
(USA only)
E 350 4MATIC
BlueEFFICIENCY
276 229.5
E 550 4MATIC
BlueEFFICIENCY
278 229.5
E 63 AMG
157 229.5
E 350 BlueTEC
642 228.51,
229.31,
229.51
Use only SAE 0W-40 or SAE 5W-40 engine oils
for AMG vehicles.
i
MB approval is indicated on the oil
containers.
Filling capacities The following values refer to an oil change
including the oil filter. Model Capacity
E 300 4MATIC
BlueEFFICIENCY
(Canada only)
E 350
BlueEFFICIENCY
(USA only)
E 350 4MATIC
BlueEFFICIENCY
6.9 US qt (6.5 l)
E 350 BlueTEC
E 550 4MATIC
BlueEFFICIENCY
8.5 US qt (8.0 l)
E 63 AMG
With external oil
cooler:
9.0 US qt
(8.5 l) Additives
!
Do
not use any additives in the engine oil.
This could damage the engine.
Engine oil viscosity Viscosity describes the flow characteristics
of
a fluid. If an engine oil has a high viscosity,
this means that it is thick; a low viscosity
means that it is thin.
Select an engine oil with an SAE (viscosity)
classification suitable for the prevailing
outside temperatures. The table shows you
which SAE classifications are to be used. The
low-temperature characteristics of engine
oils can deteriorate significantly, e.g. as a
result of aging, soot and fuel deposits. It is Service products and filling capacities
411
Technical data Z

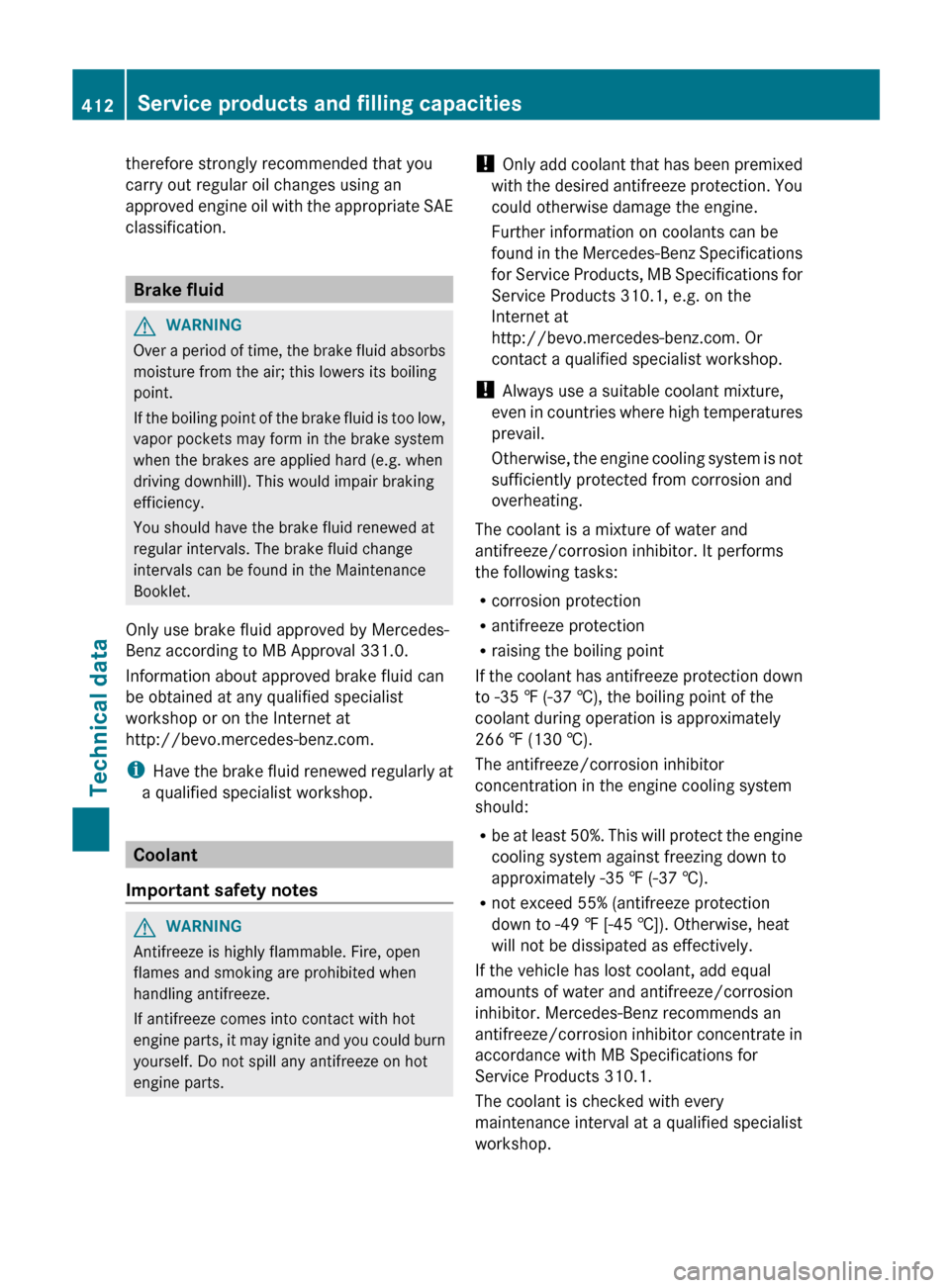

Page 414 of 420
therefore strongly recommended that you
carry out regular oil changes using an
approved
engine oil with the appropriate SAE
classification. Brake fluid
G
WARNING
Over a period of time, the brake fluid absorbs
moisture from the air; this lowers its boiling
point.
If
the boiling point of the brake fluid is too low,
vapor pockets may form in the brake system
when the brakes are applied hard (e.g. when
driving downhill). This would impair braking
efficiency.
You should have the brake fluid renewed at
regular intervals. The brake fluid change
intervals can be found in the Maintenance
Booklet.
Only use brake fluid approved by Mercedes-
Benz according to MB Approval 331.0.
Information about approved brake fluid can
be obtained at any qualified specialist
workshop or on the Internet at
http://bevo.mercedes-benz.com.
i Have the brake fluid renewed regularly at
a qualified specialist workshop. Coolant
Important safety notes G
WARNING
Antifreeze is highly flammable. Fire, open
flames and smoking are prohibited when
handling antifreeze.
If antifreeze comes into contact with hot
engine
parts, it may ignite and you could burn
yourself. Do not spill any antifreeze on hot
engine parts. !
Only
add coolant that has been premixed
with the desired antifreeze protection. You
could otherwise damage the engine.
Further information on coolants can be
found in the Mercedes-Benz Specifications
for Service Products, MB Specifications for
Service Products 310.1, e.g. on the
Internet at
http://bevo.mercedes-benz.com. Or
contact a qualified specialist workshop.
! Always use a suitable coolant mixture,
even in countries where high temperatures
prevail.
Otherwise, the engine cooling system is not
sufficiently protected from corrosion and
overheating.
The coolant is a mixture of water and
antifreeze/corrosion inhibitor. It performs
the following tasks:
R corrosion protection
R antifreeze protection
R raising the boiling point
If the coolant has antifreeze protection down
to -35 ‡ (-37 †), the boiling point of the
coolant during operation is approximately
266 ‡ (130 †).
The antifreeze/corrosion inhibitor
concentration in the engine cooling system
should:
R be at least 50%. This will protect the engine
cooling system against freezing down to
approximately -35 ‡ (-37 †).
R not exceed 55% (antifreeze protection
down to -49 ‡ [-45 †]). Otherwise, heat
will not be dissipated as effectively.
If the vehicle has lost coolant, add equal
amounts of water and antifreeze/corrosion
inhibitor. Mercedes-Benz recommends an
antifreeze/corrosion inhibitor concentrate in
accordance with MB Specifications for
Service Products 310.1.
The coolant is checked with every
maintenance interval at a qualified specialist
workshop. 412
Service products and filling capacities
Technical data

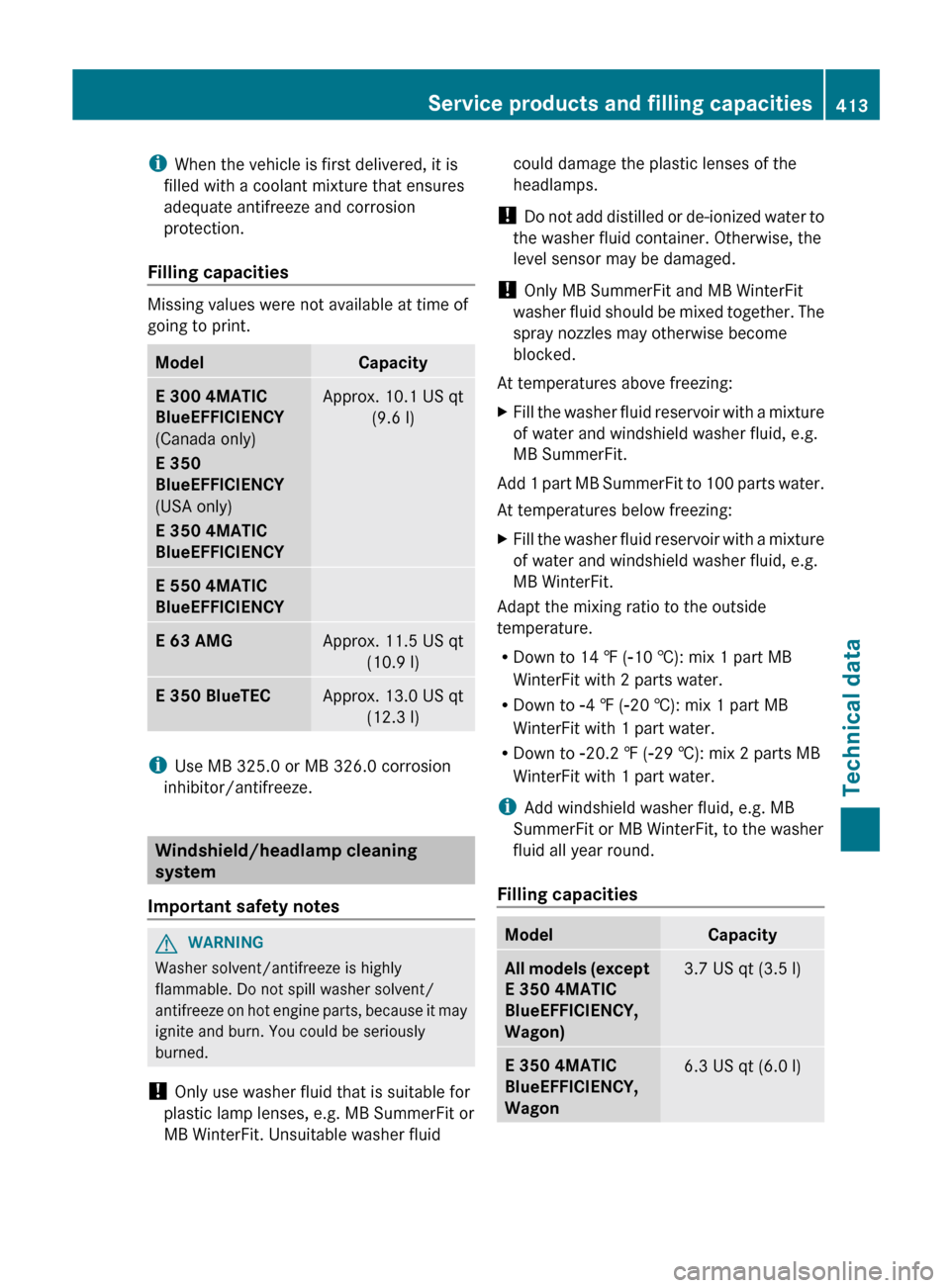

Page 415 of 420
i
When the vehicle is first delivered, it is
filled with a coolant mixture that ensures
adequate antifreeze and corrosion
protection.
Filling capacities Missing values were not available at time of
going to print.
Model Capacity
E 300 4MATIC
BlueEFFICIENCY
(Canada only)
E 350
BlueEFFICIENCY
(USA only)
E 350 4MATIC
BlueEFFICIENCY
Approx. 10.1 US qt
(9.6 l) E 550 4MATIC
BlueEFFICIENCY
E 63 AMG
Approx. 11.5 US qt
(10.9 l) E 350 BlueTEC
Approx. 13.0 US qt
(12.3 l) i
Use MB 325.0 or MB 326.0 corrosion
inhibitor/antifreeze. Windshield/headlamp cleaning
system
Important safety notes G
WARNING
Washer solvent/antifreeze is highly
flammable. Do not spill washer solvent/
antifreeze
on hot engine parts, because it may
ignite and burn. You could be seriously
burned.
! Only use washer fluid that is suitable for
plastic lamp lenses, e.g. MB SummerFit or
MB WinterFit. Unsuitable washer fluid could damage the plastic lenses of the
headlamps.
! Do
not add distilled or de-ionized water to
the washer fluid container. Otherwise, the
level sensor may be damaged.
! Only MB SummerFit and MB WinterFit
washer fluid should be mixed together. The
spray nozzles may otherwise become
blocked.
At temperatures above freezing:
X Fill the washer fluid reservoir with a mixture
of water and windshield washer fluid, e.g.
MB SummerFit.
Add 1 part MB SummerFit to 100 parts water.
At temperatures below freezing:
X Fill the washer fluid reservoir with a mixture
of water and windshield washer fluid, e.g.
MB WinterFit.
Adapt the mixing ratio to the outside
temperature.
R Down to 14
‡ (Ò10 †): mix 1 part MB
WinterFit with 2 parts water.
R Down to Ò4 ‡ (Ò20 †): mix 1 part MB
WinterFit with 1 part water.
R Down to Ò20.2 ‡ (Ò29 †): mix 2 parts MB
WinterFit with 1 part water.
i Add windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Filling capacities Model Capacity
All models (except
E 350 4MATIC
BlueEFFICIENCY,
Wagon)
3.7 US qt (3.5 l)
E 350 4MATIC
BlueEFFICIENCY,
Wagon
6.3 US qt (6.0 l)Service products and filling capacities
413
Technical data Z
Page 416 of 420

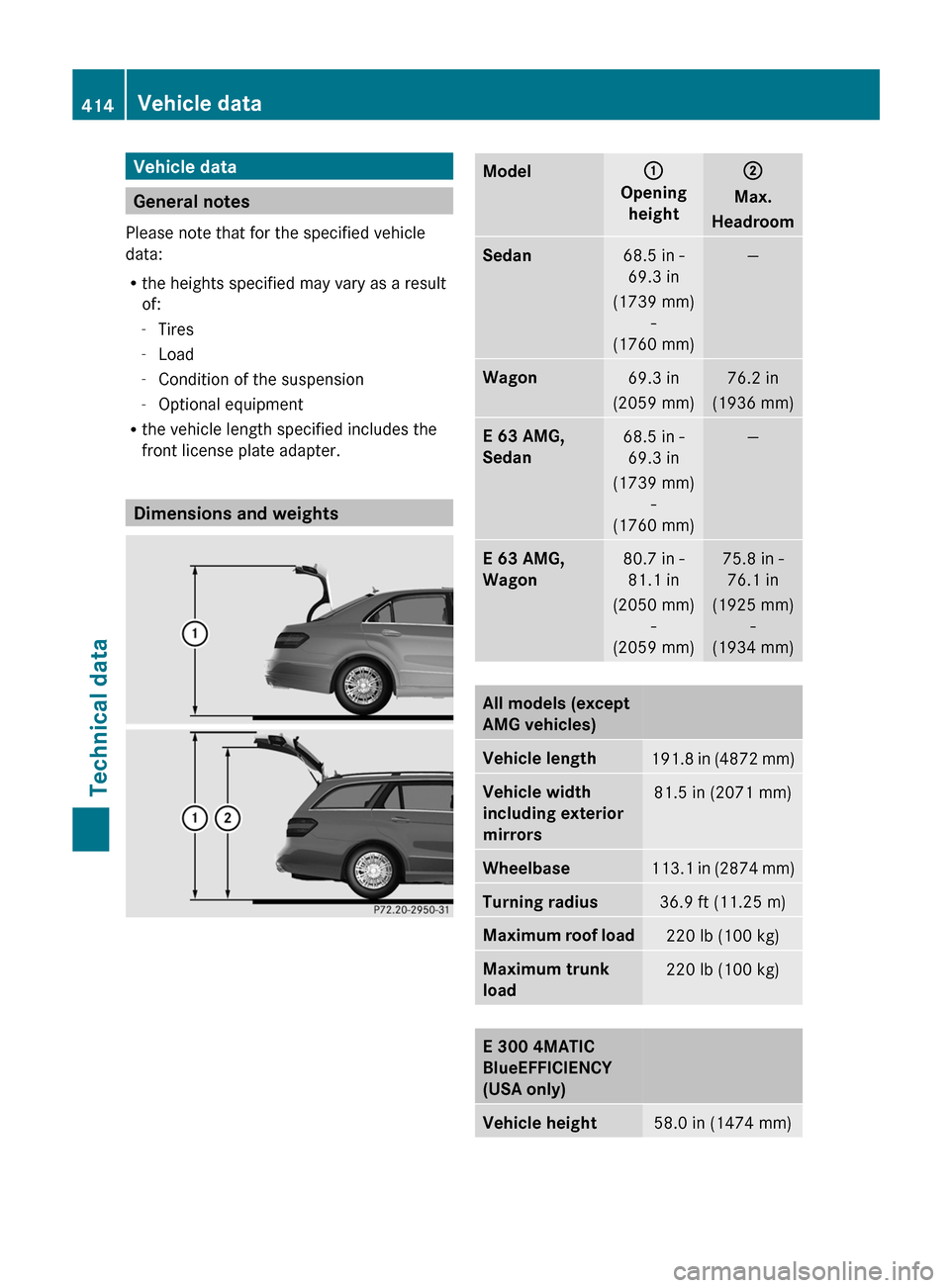

Vehicle data
General notes
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
-Tires
- Load
- Condition of the suspension
- Optional equipment
R the vehicle length specified includes the
front license plate adapter. Dimensions and weights Model :
Opening height ;
Max.
Headroom Sedan
68.5 in -
69.3 in
(1739 mm) -
(1760 mm) —
Wagon
69.3 in
(2059 mm) 76.2 in
(1936 mm) E 63 AMG,
Sedan
68.5 in -
69.3 in
(1739 mm) -
(1760 mm) —
E 63 AMG,
Wagon
80.7 in -
81.1 in
(2050 mm) -
(2059 mm) 75.8 in -
76.1 in
(1925 mm) -
(1934 mm) All models (except
AMG vehicles)
Vehicle length
191.8 in (4872 mm)
Vehicle width
including exterior
mirrors
81.5 in (2071 mm)
Wheelbase
113.1 in (2874 mm)
Turning radius
36.9 ft (11.25 m)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load
220 lb (100 kg)
E 300 4MATIC
BlueEFFICIENCY
(USA only)
Vehicle height
58.0 in (1474 mm)414
Vehicle dataTechnical data
Page 417 of 420

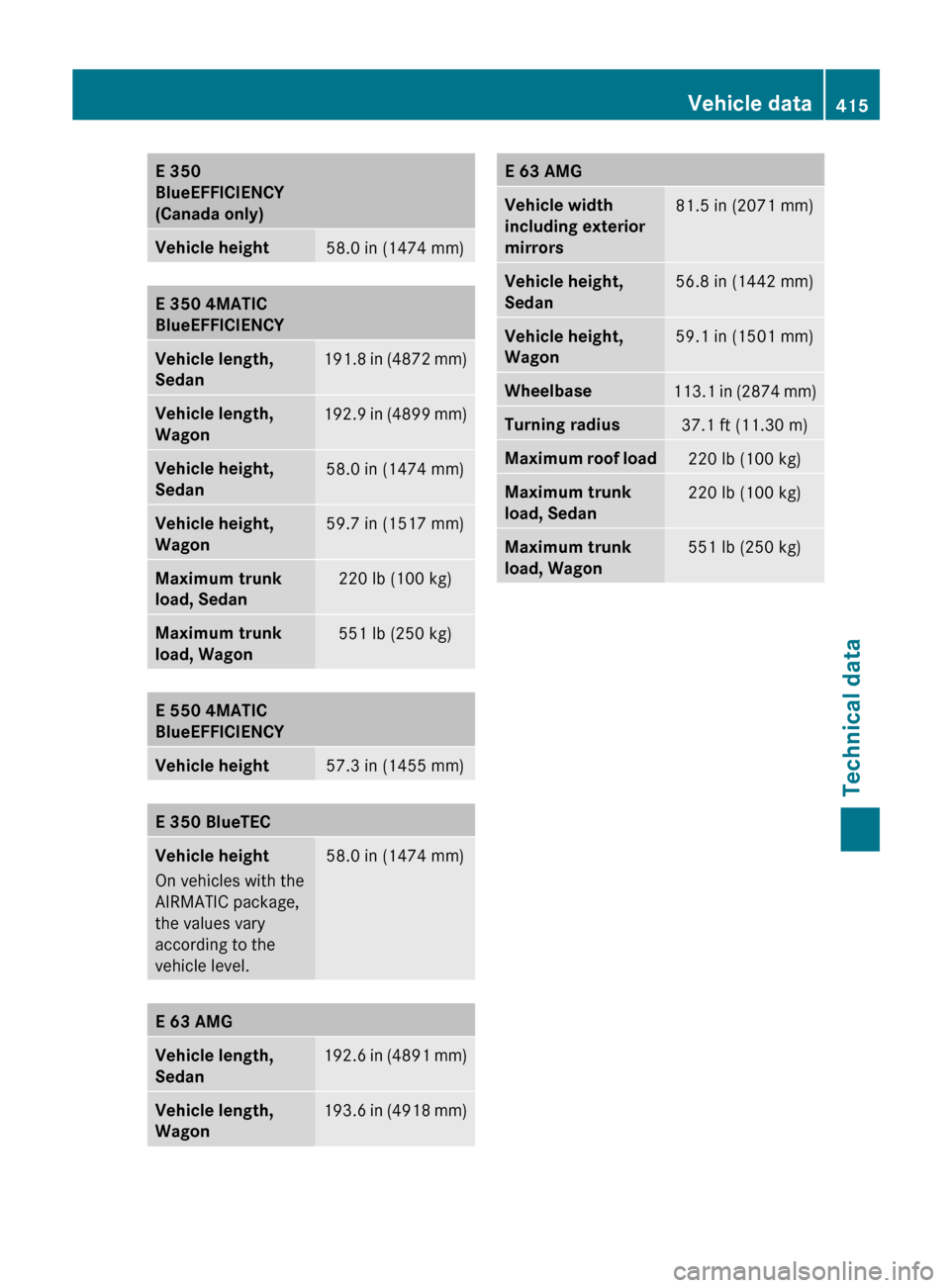

E 350
BlueEFFICIENCY
(Canada only)
Vehicle height
58.0 in (1474 mm)
E 350 4MATIC
BlueEFFICIENCY
Vehicle length,
Sedan
191.8 in (4872 mm)
Vehicle length,
Wagon
192.9 in (4899 mm)
Vehicle height,
Sedan
58.0 in (1474 mm)
Vehicle height,
Wagon
59.7 in (1517 mm)
Maximum trunk
load, Sedan
220 lb (100 kg)
Maximum trunk
load, Wagon
551 lb (250 kg)
E 550 4MATIC
BlueEFFICIENCY
Vehicle height
57.3 in (1455 mm)
E 350 BlueTEC
Vehicle height
On vehicles with the
AIRMATIC package,
the values vary
according to the
vehicle level.
58.0 in (1474 mm)
E 63 AMG
Vehicle length,
Sedan
192.6 in (4891 mm)
Vehicle length,
Wagon
193.6 in (4918 mm) E 63 AMG
Vehicle width
including exterior
mirrors
81.5 in (2071 mm)
Vehicle height,
Sedan
56.8 in (1442 mm)
Vehicle height,
Wagon
59.1 in (1501 mm)
Wheelbase
113.1 in (2874 mm)
Turning radius
37.1 ft (11.30 m)
Maximum roof load
220 lb (100 kg)
Maximum trunk
load, Sedan
220 lb (100 kg)
Maximum trunk
load, Wagon
551 lb (250 kg) Vehicle data
415Technical data Z
Page 418 of 420
416
Page 419 of 420

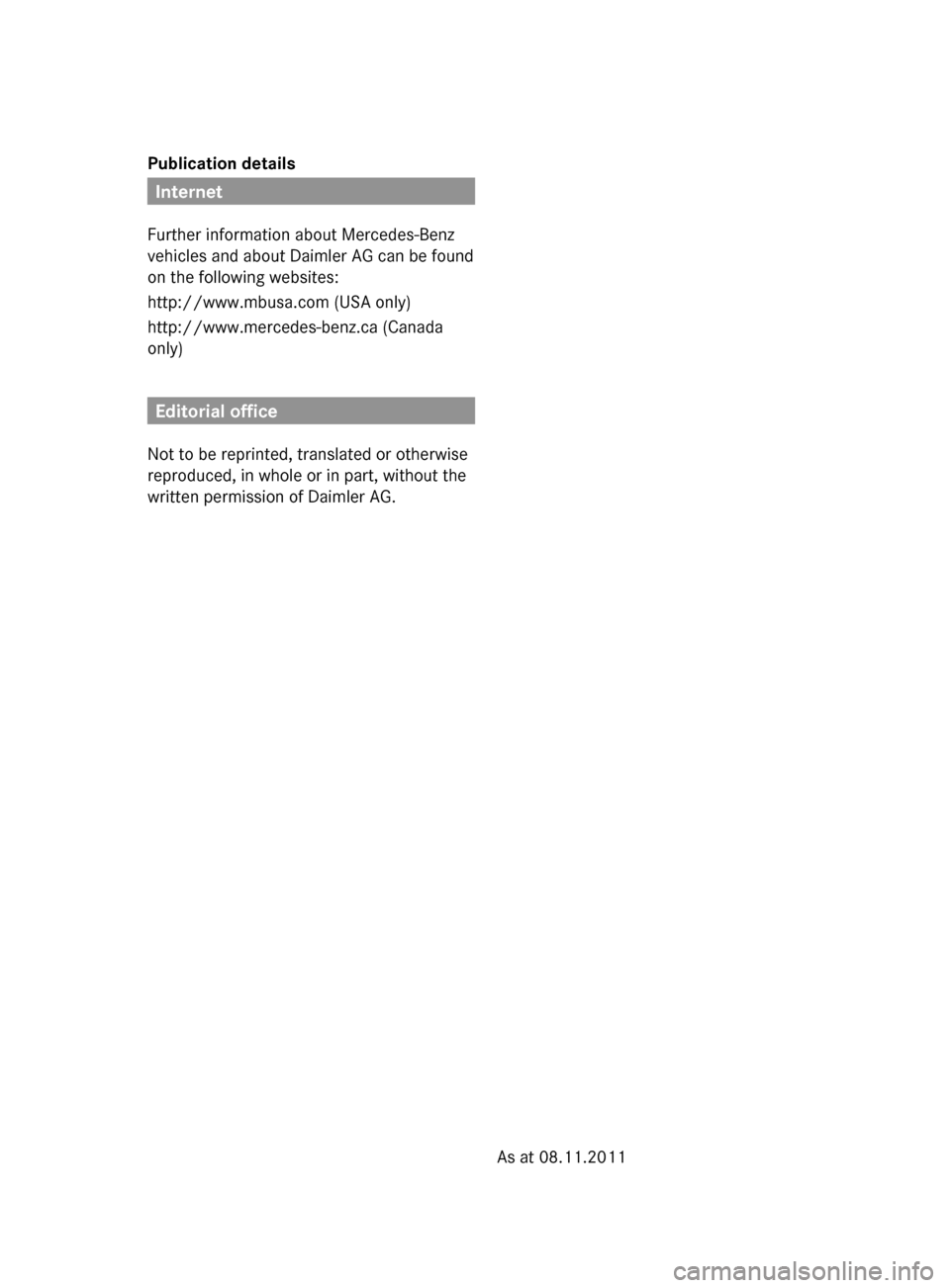

Publication details
Internet
Further information about Mercedes-Benz
vehicles and about Daimler AG can be found
on the following websites:
http://www.mbusa.com (USA only)
http://www.mercedes-benz.ca
(Canada
only) Editorial office
Not to be reprinted, translated or otherwise
reproduced, in whole or in part, without the
written permission of Daimler AG.
As at 08.11.2011
Page 420 of 420
Order no. 6515 3520 13Part no. 212 584 78 81Edition A 2013
É2125847881EËÍ
2125847881
