*NO
TEDama getotheex terior lighting
due tounsuit able wind shieldwasher fluid
Uns uitable wind shieldwasher fluid may dam‐
age the plastic sur face of theex terior light‐
ing.
#Only use windshield washer fluid whic h
is also suitable for use on plast ic surfa‐
ces, e.g. MB SummerFit or MB Winter‐
Fit.
* NO
TEBlocked spr aynozzles caused by
mixing windshield washer fluids
#Do not mix MB SummerFit and MB Win‐
te rFit with other windshield washer flu‐
ids.
Do not use distilled or de-ionized water asthefill
le ve l sensor may be triggered er roneously.
Re commended windshield washer fluid:
RAbo vefreezing point: e.g. MB SummerFit
RBelow freezing point: e.g. MB WinterFit Fo
rth e cor rect mixing ratio referto the informa‐
tion on the antif reeze reser voir.
Ad d windshield washer fluid tothewa sher water
all year round.
Re frigerant
Note s onrefrigerants
Obser vethe no tes on operating fluids
(
→page 394).
* NO
TEDama gedue toincor rect refriger‐
ant
If a non-appr ovedre frigerant is used, the cli‐
mate control sy stem may be damaged.
#Only use there frigerant R‑134a
* NO
TEDama getothe climate control
sy stem due toincor rect refrigerant com‐
pressor oil
#Only use refrigerant compressor oil that
has been appr ovedby Mercedes-Benz.
#Do not mix the appr ovedre frigerant
compressor oil with a dif fere nt refriger‐
ant compressor oil.
Wo rkon the climate control sy stem may only be
car ried out byaqu alified specialist workshop. All
applicable regulations, as well as SAEstandard
J639, must be adhered to.
1Wa rning symbols
2Re frigerant filling capacity
3Applicable standards
4PA G oil part number
5Re frigerant type
Tech nical da ta399
Page 402 of 506

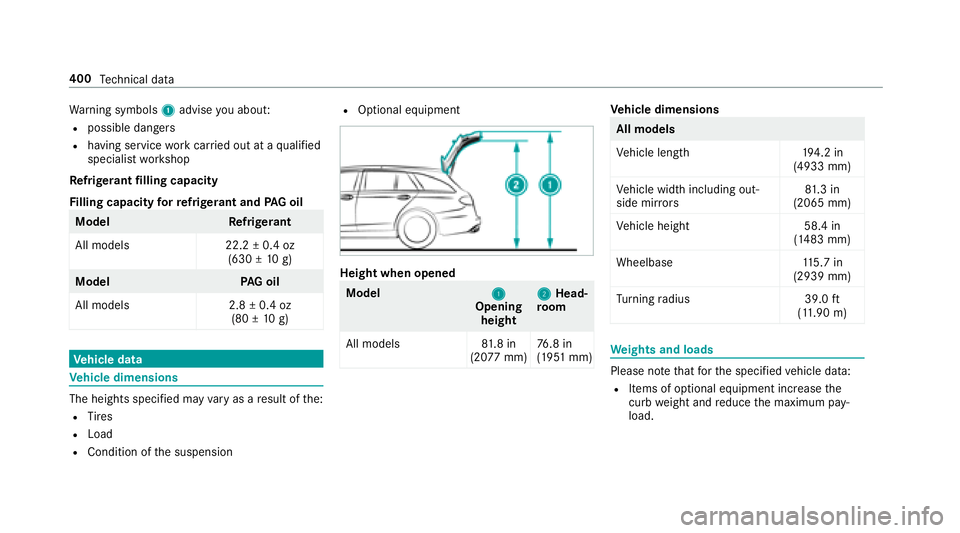

Warning symbols 1advise you about:
Rpossible dangers
Rhaving service workcar ried out at a qualified
specialist workshop
Re frigerant filling capacity
Fi lling capacity forre frigerant and PAG oil
Model Refrigerant
All models2 2.2 ± 0.4 oz
(630 ± 10g)
Model PAG oil
All models2 .8 ± 0.4 oz
(80 ± 10g)
Vehicle data
Vehicle dimensions
The heights specifi ed mayvary as a result of the:
RTire s
RLoad
RCondition of the suspension
ROptional equipment
Height when opened
Model
1Opening
height 2Head‐
ro om
All models 81.8 in
(20 77mm) 76
.8 in
(1951 mm)
Ve hicle dimensions
All models
Vehicle lengt h1 94.2 in
(4933 mm)
Ve hicle width including out‐
side mir rors 81
.3 in
(2065 mm)
Ve hicle height 58.4 in
(1483 mm)
Wheelbase 115.7 in
(2939 mm)
Tu rning radius 39.0ft
(1 1. 90 m)
We ights and loads
Please no tethat forth e specified vehicle data:
RItems of optional equipment increase the
curb weight and reduce the maximum pay‐
load.
400 Tech nical da ta
Page 403 of 506

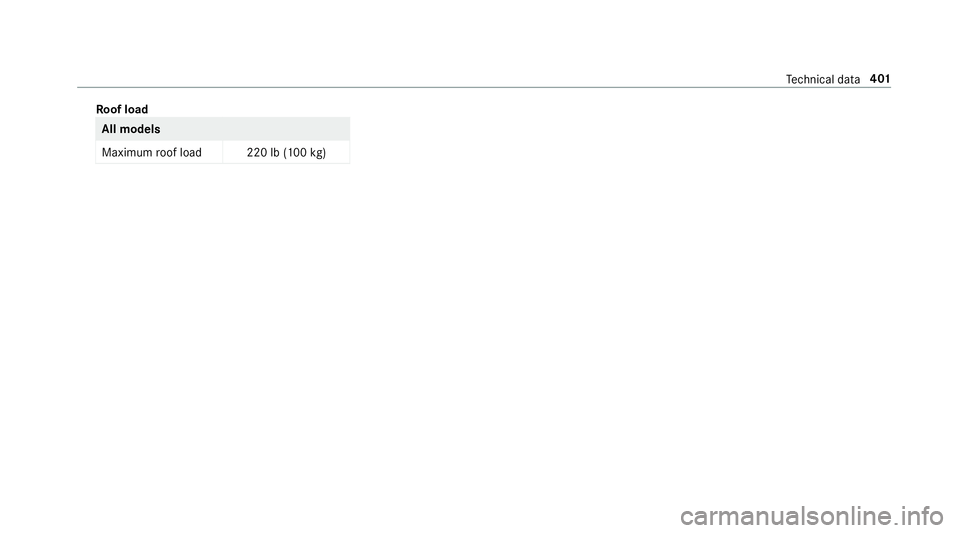

Roof load
All models
Maximum roof load 220 lb (100 kg)
Tech nical da ta401
Page 404 of 506

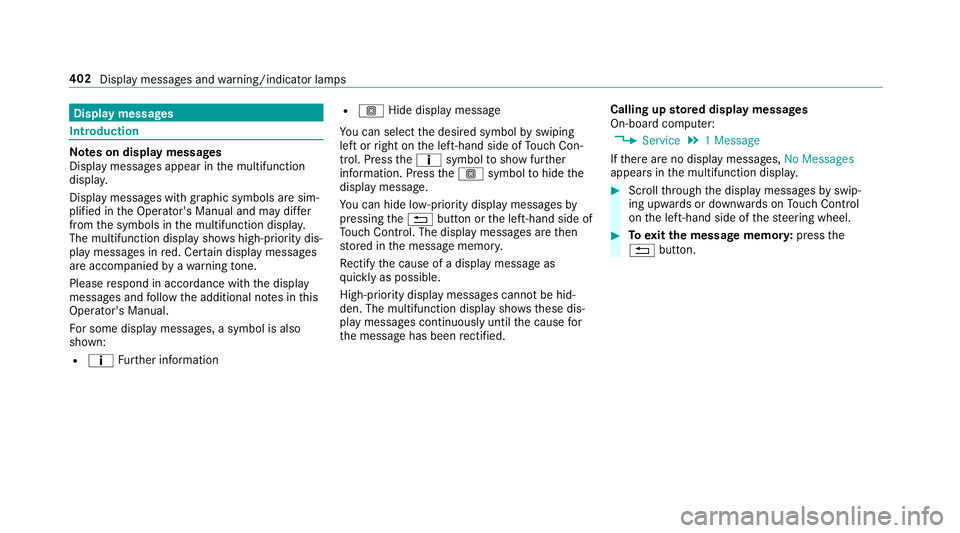

Displaymessages
Int roduction
Note s on display messages
Display messages appear in the multifunction
displa y.
Displ aymessage s with graphic symbols are sim‐
plified in the Operator's Manual and may dif fer
from the symbols in the multifunction displa y.
The multifunction display sho wshigh-priority dis‐
play messages in red. Cer tain display messages
are accompanied byawa rning tone.
Please respond in accordance with the display
messages and follow the additional no tes in this
Opera tor's Manual.
Fo r some display message s, a symbol is also
shown:
R¤ Further information
RO Hide display message
Yo u can select the desired symbol byswiping
left or right on the left-hand side of Touch Con‐
trol. Press the¤ symbol toshow fur ther
information. Press theO symbol tohide the
display message.
Yo u can hidelow- priority display messages by
pressing the% button or the left-hand side of
To uch Control. The display messages arethen
st ored in the message memor y.
Re ctify the cause of a display message as
qu ickly as possible.
High-priority display messages cannot be hid‐
den. The multifunction display sho ws these dis‐
play messages continuously until the cause for
th e message has been rectified. Calling up
stored displ aymessages
On-boa rdcompute r:
, 6 H U Y L F H. 0 H V V D J H
If th ere are no display messages, 1 R 0 H V V D J H V
appears in the multifunction displa y.
#Scrollthro ugh the display messages byswip‐
ing upwards or down wards on Touch Control
on the left-hand side of thesteering wheel.
#To exitth e message memor y:press the
% button.
402
Display messages and warning/indicator lamps
Page 405 of 506

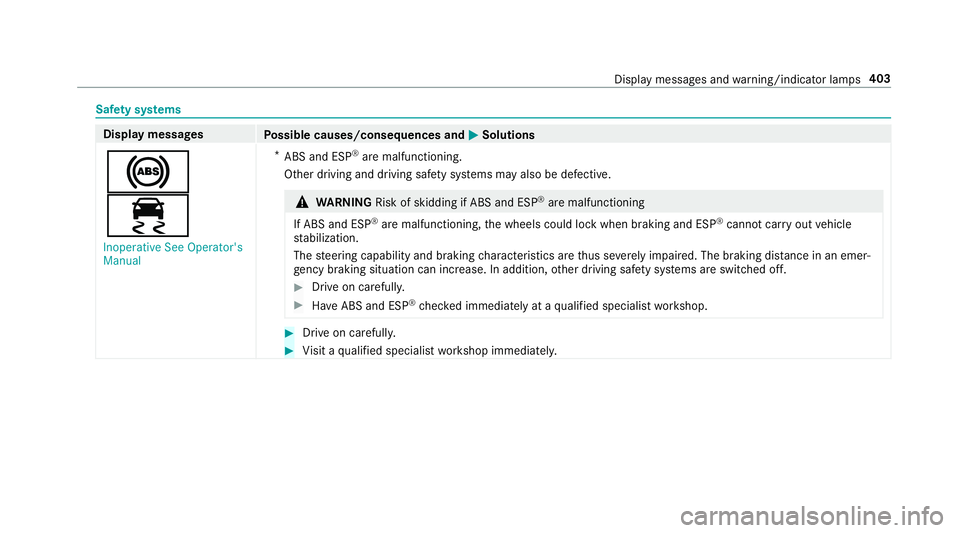

Safety sy stems
Display messages
Possible causes/consequences and MSolutions
!
÷
, Q R S H U D W L Y H 6 H H 2 S H U D W R U
V
0 D Q X D O*
ABS and ESP
®are malfunctioning.
Other driving and driving saf etysy stems may also be defective.
&
WARNING Risk of skidding if ABS and ESP®are malfunctioning
If ABS and ESP
®are malfunctioning, the wheels could lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have ABS and ESP®checked immediately at a qualified specialist workshop.
#Drive on carefully.
#Visit a qualified specialist workshop immediatel y.
Displaymessage s andwarning/indicator lamps 403
Page 406 of 506

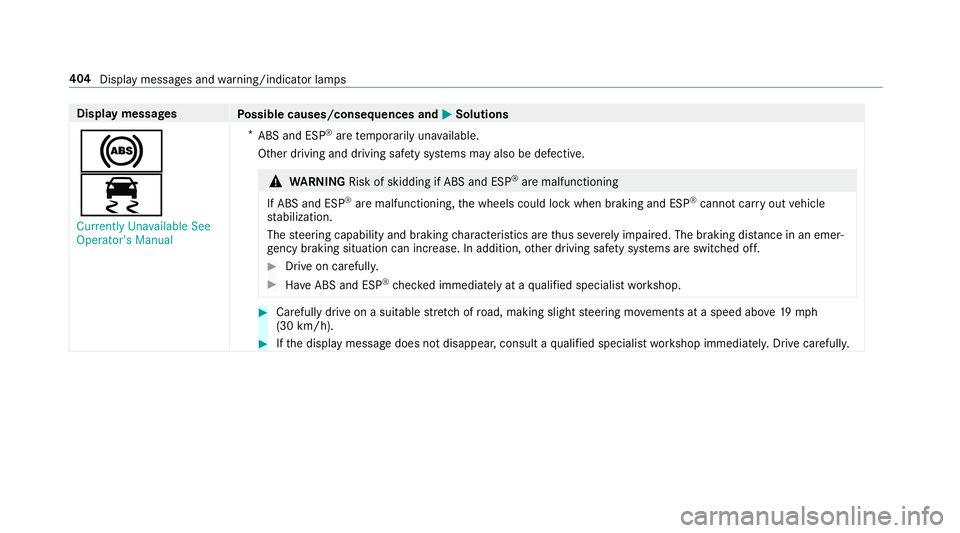

Displaymessages
Possible causes/consequences and MSolutions
!
÷
& X U U H Q W O \ 8 Q D Y D L O D E O H 6 H H
2 S H U D W R U
V 0 D Q X D O*
ABS and ESP
®are temp orarily una vailable.
Other driving and driving saf etysy stems may also be defective.
&
WARNING Risk of skidding if ABS and ESP®are malfunctioning
If ABS and ESP
®are malfunctioning, the wheels could lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have ABS and ESP®checked immediately at a qualified specialist workshop.
#Carefully drive on a suitable stre tch of road, making slight steering mo vements at a speed abo ve19 mp h
(30 km/h).
#If th e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully.
404
Display messages and warning/indicator lamps
Page 407 of 506

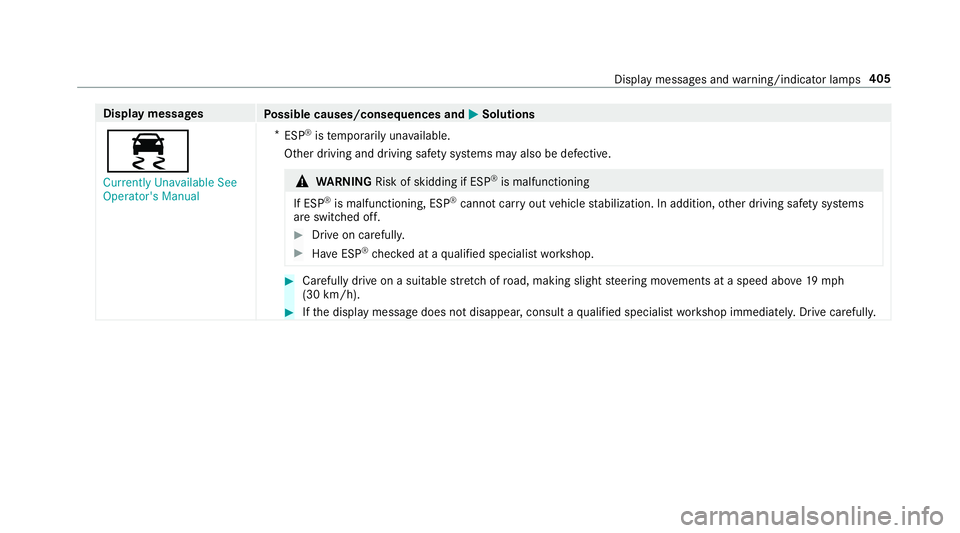

Displaymessages
Possible causes/consequences and MSolutions
÷
& X U U H Q W O \ 8 Q D Y D L O D E O H 6 H H
2 S H U D W R U
V 0 D Q X D O*
ESP
®is temp orarily una vailable.
Other driving and driving saf etysy stems may also be defective.
&
WARNING Risk of skidding if ESP®is malfunctioning
If ESP
®is malfunctioning, ESP®cannot car ryout vehicle stabilization. In addition, other driving saf etysy stems
are switched off.
#Drive on carefull y.
#Have ESP®checked at a qualified specialist workshop.
#Carefully drive on a suitable stre tch of road, making slight steering mo vements at a speed abo ve19 mp h
(30 km/h).
#If th e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully.
Display messages and warning/indicator lamps 405
Page 408 of 506

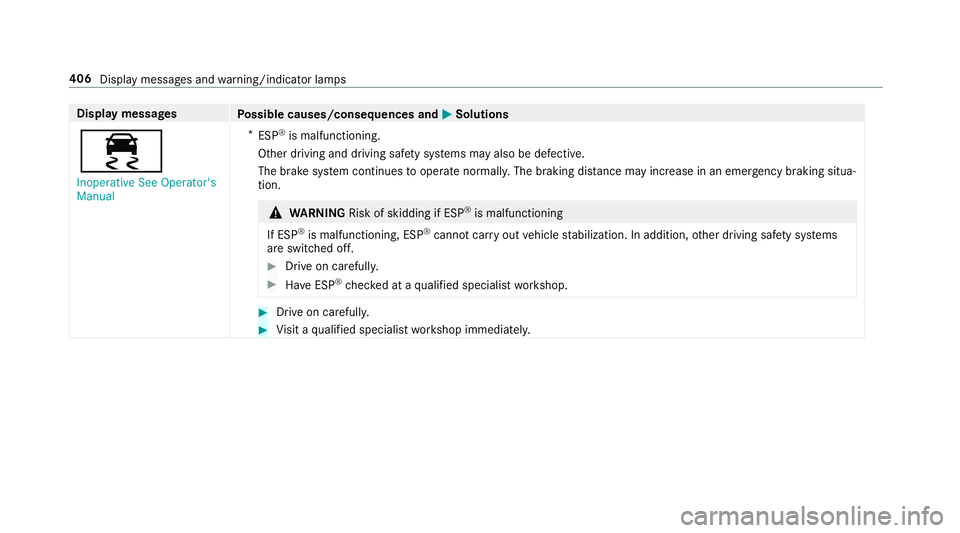

Displaymessages
Possible causes/consequences and MSolutions
÷
, Q R S H U D W L Y H 6 H H 2 S H U D W R U
V
0 D Q X D O*
ESP
®is malfunctioning.
Other driving and driving saf etysy stems may also be defective.
The brake sy stem continues tooperate normally. The braking dis tance may increase in an eme rgency braking situa‐
tion.
& WARNING Risk of skidding if ESP®is malfunctioning
If ESP
®is malfunctioning, ESP®cannot car ryout vehicle stabilization. In addition, other driving saf etysy stems
are switched off.
#Drive on carefull y.
#Have ESP®checked at a qualified specialist workshop.
#Drive on carefully.
#Vi sit a qualified specialist workshop immediatel y.
406
Display messages and warning/indicator lamps
Page 409 of 506

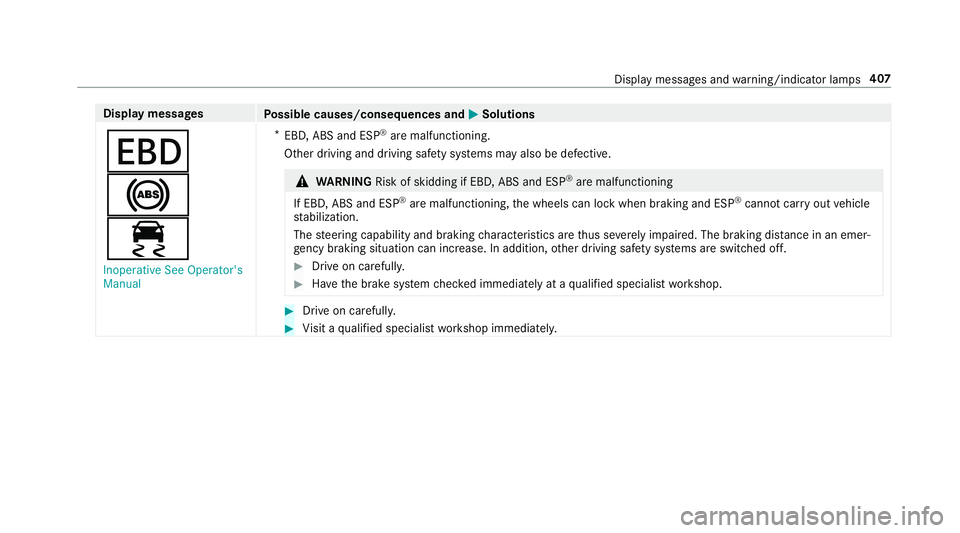

Displaymessages
Possible causes/consequences and MSolutions
T
!
÷
, Q R S H U D W L Y H 6 H H 2 S H U D W R U
V
0 D Q X D O*
EBD, ABS and ESP
®are malfunctioning.
Other driving and driving saf etysy stems may also be defective.
&
WARNING Risk of skidding if EBD, ABS and ESP®are malfunctioning
If EBD, ABS and ESP
®are malfunctioning, the wheels can lock when braking and ESP®cannot carryout vehicle
st abilization.
The steering capability and braking characteristics are thus se verely impaired .Th ebr aking dis tance in an emer‐
ge ncy braking situation can increase. In addition, other driving saf etysy stems are switched off.
#Drive on carefull y.
#Have the brake sy stem checked immediately at a qualified specialist workshop.
#Drive on carefully.
#Vi sit a qualified specialist workshop immediatel y.
Displaymessage s andwarning/indicator lamps 407
Page 410 of 506

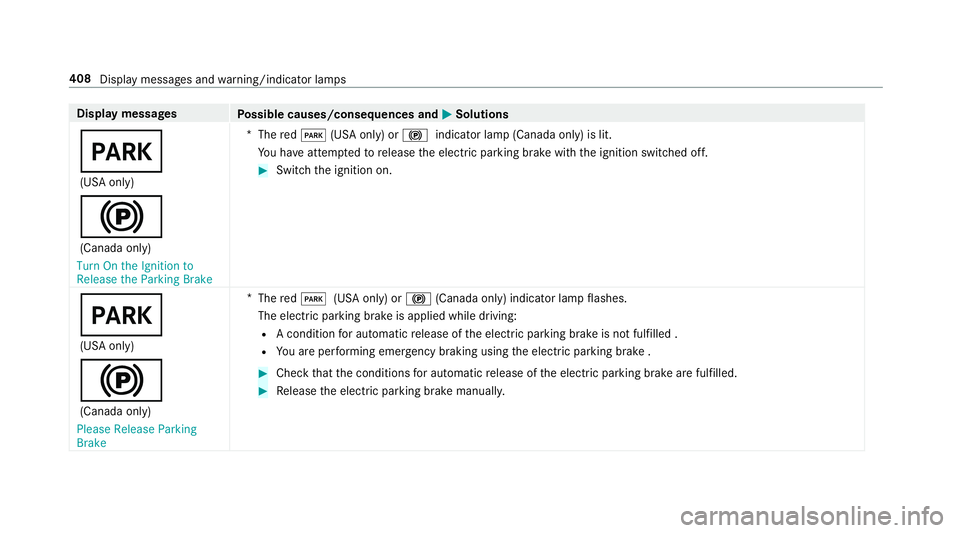

Displaymessages
Possible causes/consequences and MSolutions
F
(USA only)
!
(Canada only)
7 X U Q 2 Q W K H , J Q L W L R Q W R
5 H O H D V H W K H 3 D U N L Q J % U D N H *
The redF (USA only) or !indicator lamp (Canada only) is lit.
Yo u ha veattem ptedto release the electric parking brake with the ignition switched off.
#Switch the ignition on.
F
(USA only)
!
(Canada only)
3 O H D V H 5 H O H D V H 3 D U N L Q J
% U D N H *
The redF (USA only) or !(Canada only) indicator lamp flashes.
The electric parking brake is applied while driving:
RA condition for au tomatic release of the electric parking brake is not fulfilled .
RYo u are per form ing emer gency braking using the electric parking brake .
#Check that the conditions for au tomatic release of the electric parking brake are fulfilled.
#Re lease the electric parking brake manually.
