Instruments and controls
P68.10-2410-29
4
5
2
36
7
98
14
13
14
16
17
18
20
1519
23
2425
26
21
22
10
12
11

19 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

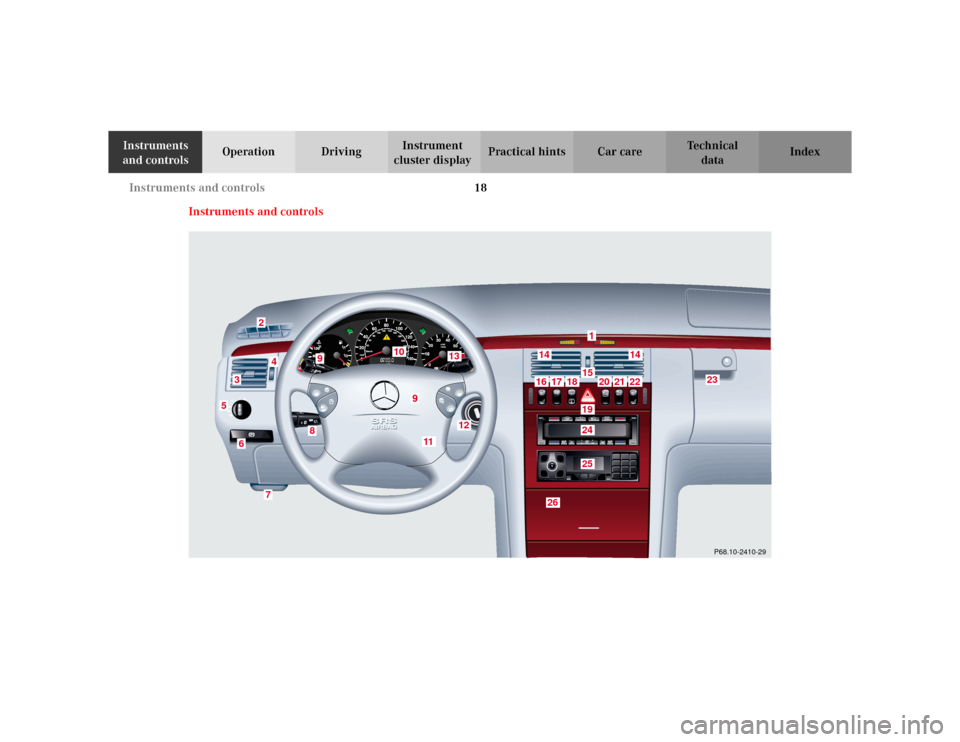

cluster displayPractical hints Car care Index 1Parking assist warning indicators, see page 236
2Side defroster outlet
3Side air outlet, adjustable
4Air volume control for side air outlet
5Exterior lamp switch, see page 119
6Parking brake release, see page 212
7Hood lock release, see page 270
8Combination switch, see page 122
9Cruise control switch, see page 222
10Instrument cluster, see page 86
11Multifunction steering wheel, see page 92
Horn (with electronic key in steering lock
position 1 or 2)
Airbag, see page 68
12Steering lock with ignition / starter switch,
seepage200
13Voice recognition system switch, see separate
operating instructions
14Center air outlets, adjustable15Air volume control for center air outlets
16Left front seat heater switch, see page 52
Left front seat ventilation switch, see page 55
17Headlamp washer switch, see page 121
18Rear window wiper and washer switch, see page 124
19Hazard warning flasher switch, see page 125
20Central locking switch, see page 34
21Tow- away alarm s witch, s ee page 41
Indicator lamp for antitheft alarm system,
seepage39
22Right front seat heater switch, see page 52
Right front seat ventilation switch, see page 55
23Glove box (illuminated with electronic key in
steering lock position 1 or 2)
24Automatic climate control, see page 126
Rear window defroster switch
Activated charcoal filter switch
25Audio system, see page 135
26Storage / eyeglasses compartment, see page 164

20 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

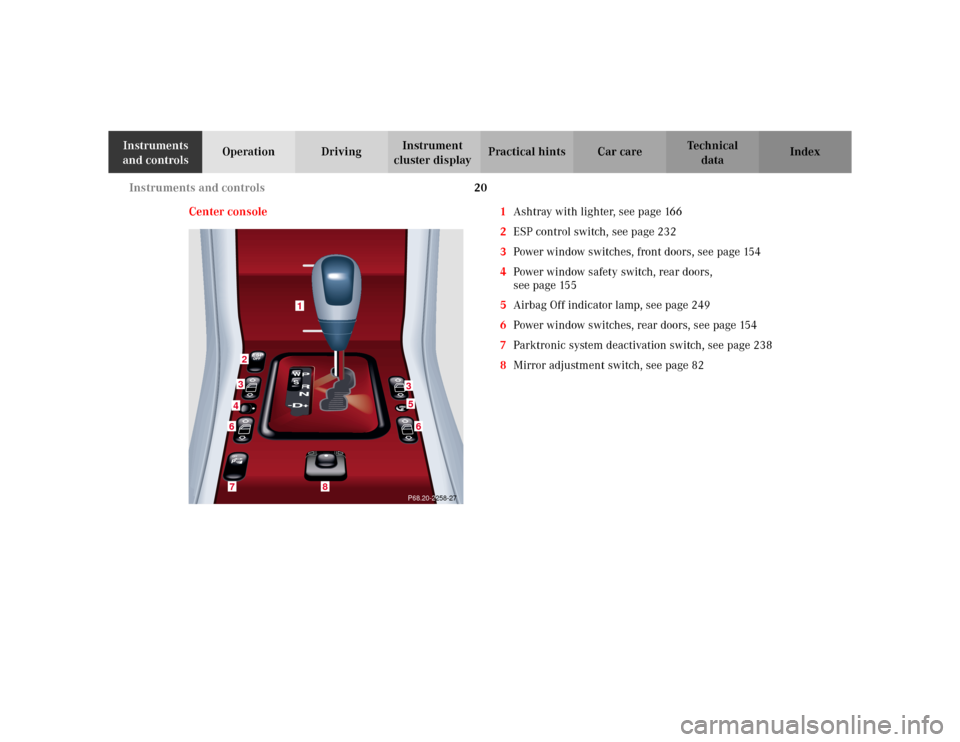

Center console 1Ashtray with lighter, see page 166
2ESP control switch, see page 232
3Power window switches, front doors, see page 154
4Power window safety switch, rear doors,
seepage155
5Airbag Off indicator lamp, see page 249
6Power window switches, rear doors, see page 154
7Parktronic system deactivation switch, see page 238
8Mirror adjustment switch, see page 82
356
6432
1
7
8
P68.20-2258-27

21 Instruments and controls
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

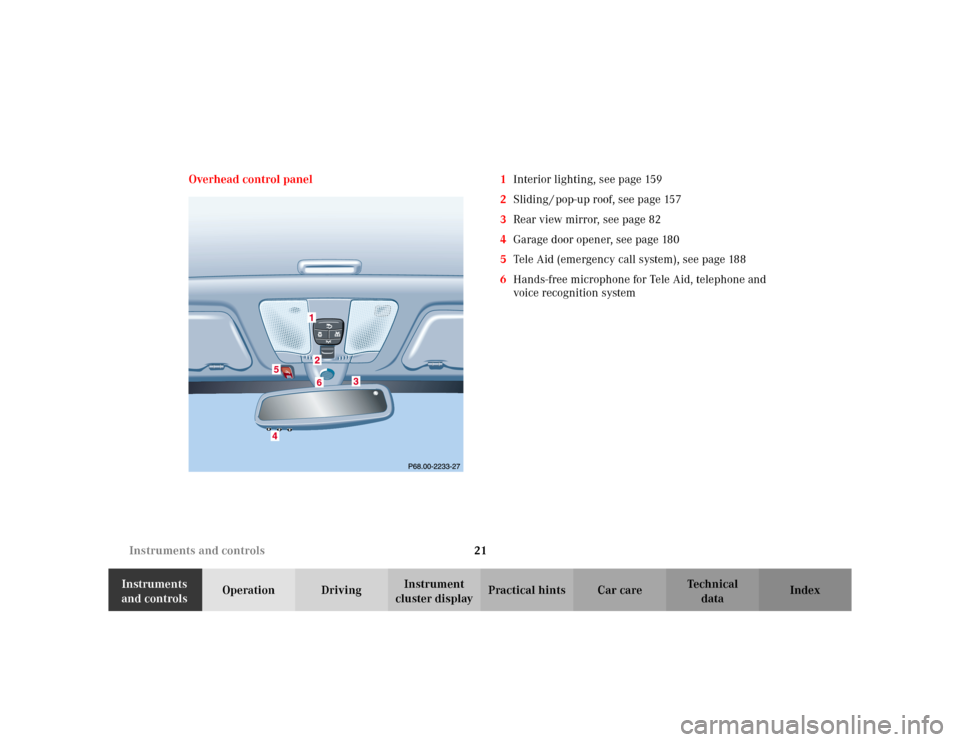

cluster displayPractical hints Car care Index Overhead control panel 1Interior lighting, see page 159
2Sliding / pop-up roof, see page 157
3Rear view mirror, see page 82
4Garage door opener, see page 180
5Tele Aid (emergency call system), see page 188
6Hands-free microphone for Tele Aid, telephone and
voice recognition system
5
6

22 Contents – Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
OperationVehicle keys ...................................... 24
Start lock-out .................................... 26
General notes on the
central locking system ............... 26
Central locking system ................... 27
Radio frequency and
infrared remote control ............... 27
Opening and closing windows
and sliding/pop-up roof
from outside .................................. 30
Panic button .................................. 31
Mechanical keys ........................... 31
Doors .................................................. 32
Central locking switch .................... 34
Automatic central locking .............. 35
Emergency unlocking
in case of accident ...................... 35
Tailgate .............................................. 36
Antitheft alarm system ................... 39
Tow-away alarm ................................ 41
Power seats front ............................. 42
Front seat head restraints .............. 48Rear seat head restraints ............... 49
Multicontour seat .............................51
Seat heater ........................................ 52
Seat ventilation ................................ 55
Seat belts and
integrated restraint system ....... 57
Seat belts .......................................... 57
Seat belt nonusage
warning system .......................... 58
BabySmart
TM airbag
deactivation system ................... 65
Self-test BabySmart
TM without
special child seat installed ......... 65
Supplemental restraint system
(SRS) ............................................. 66
Emergency tensioning retractor
(ETR) ............................................. 67
Airbags .............................................. 68
Safety guidelines for the seat belt,
emergency tensioning retractor
and airbag .................................... 75
Infant and child
restraint systems ........................ 77
Steering wheel adjustment .............81
Rear view mirrors ........................... 82Instrument cluster ........................... 86
Multifunction steering wheel,
multifunction display ................. 92
Trip and main odometer, FSS
and engine oil level display ....... 96
Audio systems .................................. 97
Radio .............................................. 97
CD player ....................................... 98
Cassette player ............................. 99
Telephone ........................................ 100
Telephone book .......................... 100
Redialing ..................................... 102
Incoming call .............................. 104
Navigation system .......................... 105
Trip computer ................................. 106
Malfunction message memory .... 108
Individual settings ..........................110
Setting the audio volume ..............113
Flexible service system (FSS) .......114
Engine oil level indicator ...............117
Engine oil consumption .................118
Exterior lamp switch ......................119
Night security Illumination ......... 120
Headlamp cleaning system .......... 121

23 Contents – Operation
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Combination switch ...................... 122
Rear window wiper / washer ....... 124
Hazard warning
flasher switch ............................ 125
Automatic climate control ............ 126
Display and controls .................. 128
Basic setting ................................ 129
Special settings .......................... 129
Defogging windows .................... 129
Defrosting .................................... 129
Rear window defroster .............. 130
Air distribution ........................... 130
Air volume ................................... 130
Air recirculation ......................... 131
Dust filter .................................... 131
Activated charcoal filter ............ 132
Residual engine
heat utilization ........................... 132Front center console
compartment ventilation ...........133
Rear passenger compartment
adjustable air outlet ...................134
Audio and telephone,
operation .....................................135
Power windows ...............................154
Sliding / pop-up roof ......................157
Interior lighting ..............................159
Entrance lamps,
exit lamps in doors ....................159
Reading lamps
rear compartment ......................160
Sun visors ........................................ 161
Illuminated vanity mirrors ........... 161
Interior .............................................162
Armrest, rear bench .......................162
Cup holder
in rear bench armrest ...............162Glove box ......................................... 163
Cup holder and coin holder
in glove box lid ........................... 163
Storage compartment above
ashtray in center console ........ 164
Storage compartments
in center console ....................... 164
Cup holder in center console ....... 165
Ashtrays .......................................... 166
Lighter ............................................. 168
Split rear bench seat ..................... 169
Rear-facing bench seat .................. 175
Loading instructions ..................... 177
Cargo tie-down rings ..................... 178
Parcel net
in front passenger footwell ..... 179
Cellular telephone ......................... 179
Garage door opener ....................... 180

24 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Ve h i c l e k e y s
Included with your vehicle are 2 electronic keys with
integrated radio frequency and infrared remote controls
plus removable mechanical key.
The locking tabs for the mechanical key portion of the
two electronic keys are a different color to help
distinguish it.
Wa r n i n g !
When leaving the vehicle always remove the
electronic key from the steering lock, and lock your
vehicle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may cause
serious personal injury.

25 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Electronic key
The electronic key has an integrated radio frequency
and infrared remote control, plus removable mechanical
key.
The remote control (1) operates all locks on the vehicle.
The mechanical key (2) works only in the driver’s door,
tailgate, and storage compartment locks.When using the mechanical key (2) for lock operations,
it can be removed by sliding it out of the remote control.
To do so, move locking tab (3) to the right and slide the
mechanical key (2) in direction of arrow (4).
The remote control transmitter is located in the
electronic key.
The infrared receivers are located in the front door
handles.
Notes:
Remove the mechanical key from the electronic key
when using valet parking service. To prevent access to
storage compartments lock them separately and retain
the mechanical key.
See page 36 for separate locking of tailgate and
page 163 for locking of glove box.
Obtaining replacement keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys can only be
obtained from your authorized Mercedes-Benz Center.
P80.35-2030-26
1
3
4
2

26 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Start lock-out
Important!
Removing the electronic key from the steering lock
activates the start lock-out. The engine cannot be
started.
Inserting the electronic key in the steering lock
deactivates the start lock-out.
Note:
In case the engine cannot be started (vehicle’s battery is
in order), the system is not operational. Contact an
authorized Mercedes-Benz Center or call 1-800-FOR-
MERCedes (in the USA), or 1-800-387-0100 (in Canada).General notes on the central locking system
If the electronic key is inserted in the steering lock, the
vehicle cannot be locked or unlocked with the remote
control.
If the vehicle cannot be locked or unlocked:
•Aim transmitter eye at a receiver of either front door
handle. Check the batteries of the electronic key, see
page 304, or synchronize the remote control, see
page 306.
•Use the mechanical key to unlock the vehicle. To
start engine, insert the electronic key in the steering
lock. There could be a slight delay until the
electronic key can be turned in the steering lock.
Important!
When unlocking the driver’s door with the mechanical
key, the exterior lamps will flash and the alarm will
sound.
To cancel the alarm, insert the electronic key in the
steering lock or press buttonŒ or‹ on the
electronic key.

27 Central locking system
Te ch n i c a l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Central locking system
Radio frequency and infrared remote control
The electronic key has an integrated radio frequency
and infrared remote control.
Due to the extended operational range of the remote
control, it could be possible to unintentionally lock or
unlock the vehicle by pressing the transmit button. If
one of the transmit buttons is pressed, the battery check
lamp lights up briefly – indicating that the batteries are
in order. See page 304 for checking batteries.
The vehicle doors, tailgate and fuel filler flap can be
centrally locked and unlocked via remote control.
Opening and closing the windows and sliding / pop-up
roof remotely can only be done with the infrared portion
of the remote control. Aim transmitter eye at a
receiver (6 or 7), press and hold transmit button Œ
or ‹.
If the electronic key is inserted in steering lock, the
vehicle cannot be locked or unlocked with the remote
control.1Transmit button
‹ Locking
ΠUnlocking
2Lamp for battery check (see page 304 for changing
batteries if it does not light up briefly)
3PA N I C b u t t o n
4Transmitter eye
5Locking tab for mechanical key
P80.35-2033-26
2
1
4
3
5
