100 Safety and SecurityAnti-theft systemsDisarming the tow-away alarm
To prevent triggering the tow-away alarm
feature, switch off the tow-away alarm be-
fore towing the vehicle, or when parking on
a surface subject to movement, such as a
ferry or auto train.
The button is located on the overhead con-
trol panel.
1Tow-away alarm off button
Switch off the ignition and remove the
SmartKey from the starter switch.

Press button1.
The indicator lamp in the button comes
on briefly.

Exit and lock your vehicle with the
SmartKey or (vehicles with
KEYLESS-GO*) the lock button at each
door handle.
The tow-away alarm remains disarmed un-
til you lock your vehicle again.Canceling tow-away alarm
To cancel the alarm:
With the SmartKey

Insert the SmartKey in the starter
switch.
or

Press the Œ or ‹ button on the
SmartKey.
With KEYLESS-GO*

Pull the outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
The alarm is canceled.
iYou cannot disarm the tow-away alarm
when the ignition is switched on.

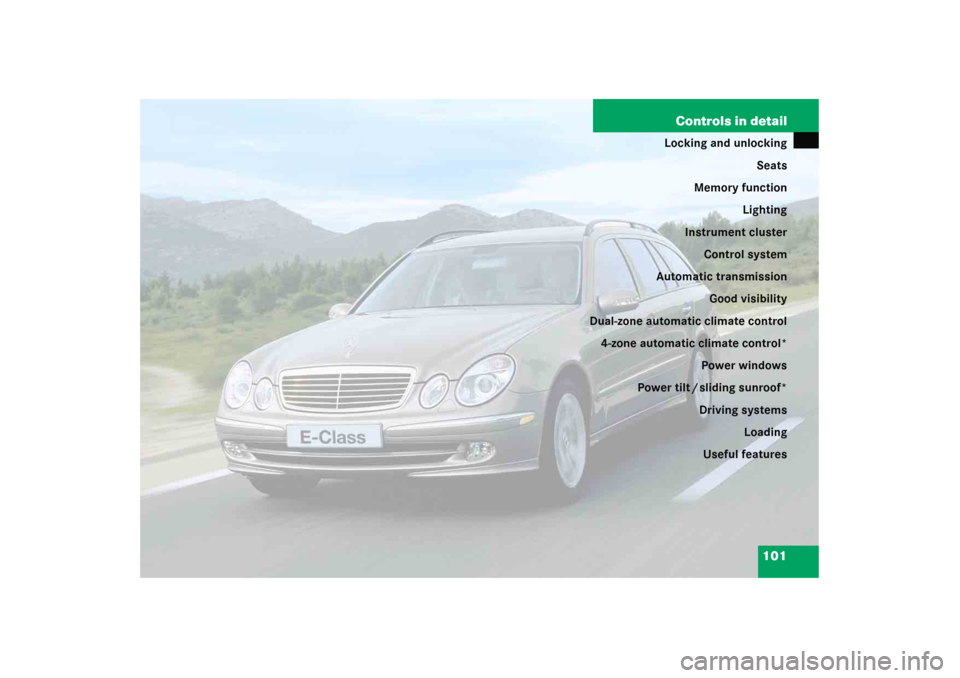

101 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Good visibility
Dual-zone automatic climate control
4-zone automatic climate control*
Power windows
Power tilt / sliding sunroof*
Driving systems
Loading
Useful features

102 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.Locking and unlocking
For more information on locking and un-
locking, see “Getting started” (
page 32)
and (
page 56).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key. The locking
tabs for the mechanical key portion of the
two SmartKeys are a different color to help
distinguish each key unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks

the doors


the tailgate


the fuel filler flap
SmartKey with remote control1‹ Lock button
2Š Unlock button* for the tailgate
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 86)

103 Controls in detail
Locking and unlocking
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. It is possible
for children to open a looked door from the
inside, which could result in an accident
and/or serious injury.!To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.iThe SBC brake system is activated
(page 92).
iYou can also open and close the power
windows and tilt/sliding sunroof* us-
ing the SmartKey (
page 223).

104 Controls in detailLocking and unlockingFactory settingGlobal unlocking

Press buttonŒ.

All turn signal lamps flash once.


An acoustic signal sounds once (if
equipped and feature activated).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.
The vehicle will lock again automatically
and reactivate the anti-theft alarm system
within approximately 40 seconds of un-
locking if:


neither door nor trunk is opened


the SmartKey is not inserted in the
starter switch


the central locking switch is not acti-
vatedGlobal locking

Press button‹.

All turn signal lamps flash three
times.


An acoustic signal sounds three
times if equipped and feature acti-
vated).


The locking knobs in the doors
move down.


The anti-theft alarm system is
armed.
Selective setting
If you frequently travel alone, you may wish
to reprogram the SmartKey so that
pressingŒ only unlocks the driver’s
door and the fuel filler flap.

Press and hold buttonsŒ and‹
simultaneously for about five seconds
until battery check lamp5 flashes
twice.
The SmartKey will then function as fol-
lows:
iDepending on production date, your
vehicle may be equipped with an
acoustic lock and unlock confirmation
signal feature. If your vehicle is
equipped with this feature and the fea-
ture is activated, an acoustic signal will
sound when the vehicle is locked or un-
locked using the SmartKey.
To determine whether or not your vehi-
cle is equipped with this feature, con-
tact an authorized Mercedes-Benz
Center. If equipped and you wish to ac-
tivate or deactivate the feature, or ad-
just its signal volume, also contact an
authorized Mercedes-Benz Center.

105 Controls in detail
Locking and unlocking
Unlocking driver’s door and fuel filler
flap
Press buttonΠonce.

All turn signal lamps flash once.


An acoustic signal sounds once (if
equipped and feature activated).
For more information, see “Factory
setting” (
page 104).


The locking knob in the driver’s
door moves up.


The anti-theft alarm system is dis-
armed.
Global unlocking

Press buttonΠtwice.

All turn signal lamps flash once or
twice.


An acoustic signal sounds once (if
equipped and feature activated).


The locking knobs in the doors
move up.


The anti-theft alarm system is dis-
armed.
Global locking

Press button‹.

All turn signal lamps flash three
times.


An acoustic signal sounds three
times (if equipped and feature acti-
vated).


The locking knobs in the doors
move down.


The anti-theft alarm system is
armed.
Restoring to factory setting

Press and hold buttonsŒ and‹
simultaneously for about six seconds
until battery check lamp5 flashes
twice.
!If you cannot lock or unlock the vehicle
with the SmartKey, then the batteries
of the SmartKey are discharged, or the
SmartKey is malfunctioning or the vehi-
cle battery is drained.

Check the batteries of the
SmartKey (
page 112) and re-
place them if necessary
(
page 408).


Use the mechanical key to unlock
the driver’s door (
page 404) as
required.


Have the vehicle batteries and their
connections checked.


Use the mechanical key to lock the
doors (
page 405).
If the SmartKey is malfunctioning, con-
tact an authorized Mercedes-Benz
Center.

106 Controls in detailLocking and unlockingChecking the batteries
Press button‹ orŒ.
Battery check lamp5 comes on brief-
ly to indicate that the SmartKey batter-
ies are in order.Unlocking and opening the tailgate
You can unlock and open the tailgate sep-
arately.
A minimum height clearance of 6.76 ft
(2.06 m) is required to open the tailgate.

Press and hold button Š until tail-
gate unlocks and begins to open.Loss of SmartKey or mechanical key
If you lose a SmartKey or mechanical key,
you should do the following:

Have the SmartKey deactivated by an
authorized Mercedes-Benz Center.

Report the loss of the SmartKey or the
mechanical key immediately to your
car insurance company.

If necessary, have the mechanical lock
replaced.
Your authorized Mercedes-Benz Center
will be glad to supply you with a replace-
ment.
!If battery check lamp5 does not
come on briefly during check, then the
SmartKey batteries are discharged.
Replace the batteries (
page 408).
You can obtain the required batteries
at any authorized Mercedes-Benz
Center.
iIf the batteries are checked within sig-
nal range of the vehicle, pressing the
button‹ orŒ will lock or unlock
the vehicle accordingly.
!The tailgate swings open upwards auto-
matically. Always make sure there is
sufficient overhead clearance.
Vehicles with tailgate opening/closing
system: To stop the opening proce-
dure, press buttonŠ. The tailgate
stops moving.iIf the vehicle was previously centrally
locked, the tailgate will lock automati-
cally when closed.
To confirm locking all turn signal lamps
flash three times.

107 Controls in detail
Locking and unlocking
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key. The locking tabs for the
mechanical key portion of the two Smart-
Keys with KEYLESS-GO are a different col-
or to help distinguish each SmartKey with
KEYLESS-GO unit.
The function of the SmartKey overrules the
KEYLESS-GO function.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you pull a door
handle.
If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks

the doors


the tailgate


the fuel filler flap
SmartKey 1‹ Lock button
2Š Unlock button* for the tailgate
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 86)
iWhen any outside door handle other
than the driver’s outside door handle is
pulled, the vehicle is centrally un-
locked.
Warning!
G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. It is possible for children
to open a locked door from the inside, which
could result in an accident and/or serious
personal injury.!To prevent possible malfunction, avoid
exposing the SmartKey with
KEYLESS-GO to high levels of electro-
magnetic radiation.

108 Controls in detailLocking and unlocking
Important notes on using KEYLESS-GO

You can also use the SmartKey with
KEYLESS-GO like a normal SmartKey
(page 102).


You can combine KEYLESS-GO func-
tions with normal SmartKey functions
(e.g. unlocking with KEYLESS-GO and
locking with the ‹button).


Always carry the SmartKey with
KEYLESS-GO with you.
iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
iYou can also open and close the power
windows and tilt/sliding sunroof* us-
ing the SmartKey (
page 223).
iWhen you unlock the vehicle, the SBC
brake system is activated (
page 92).

109 Controls in detail
Locking and unlocking


Never store the SmartKey with
KEYLESS-GO together with:

Electronic items such as a cellular
phone or another SmartKey with
KEYLESS-GO


Metallic objects such as coins or
metal foil
Doing so could impair the function of
the KEYLESS-GO system.


To lock or unlock the vehicle, the
SmartKey with KEYLESS-GO must be
located outside the vehicle within ap-
proximately 3 ft (1 m) of a door or the
tailgate.


In order to start the engine with the
SmartKey with KEYLESS-GO:

The SmartKey with KEYLESS-GO
must be located in the vehicle.


All the doors must be closed.


The brake pedal must be firmly de-
pressed. Do not depress the accel-
erator.


If you have started the engine with the
KEYLESS-GO start / stop button
(page 36), you can only turn it off
again with this button, even if you have
put the SmartKey in the starter switch
in the meantime.


This does not apply if, after starting, the
selector lever is still in positionP and
then the SmartKey is inserted in the
starter switch. The SmartKey will then
have priority over the KEYLESS-GO
function and the vehicle’s electrical
system will operate according to the
position of the SmartKey in the starter
switch, even stopping the engine.


If the SmartKey with KEYLESS-GO is
positioned farther away from the vehi-
cle and can no longer be recognized by
the system, the vehicle cannot be
locked or the engine started via the
KEYLESS-GO system.


If the SmartKey with KEYLESS-GO is re-
moved from the vehicle while the igni-
tion is switched on (e.g. if passenger
exits the vehicle with the SmartKey),
the message
Key not recognized
will
appear in the multifunction display.
Find the SmartKey or change its
present location immediately (e.g.
place it on the front passenger seat or
insert it in shirt pocket).


Remember that the engine can be
started by anyone with a SmartKey
with KEYLESS-GO that is left inside the
vehicle. If you leave the SmartKey with
KEYLESS-GO behind when exiting and
locking the vehicle, the message
Key
still in vehicle
will appear in the
multifunction display.
