MERCEDES-BENZ E WAGON 2005 S211 Owners Manual

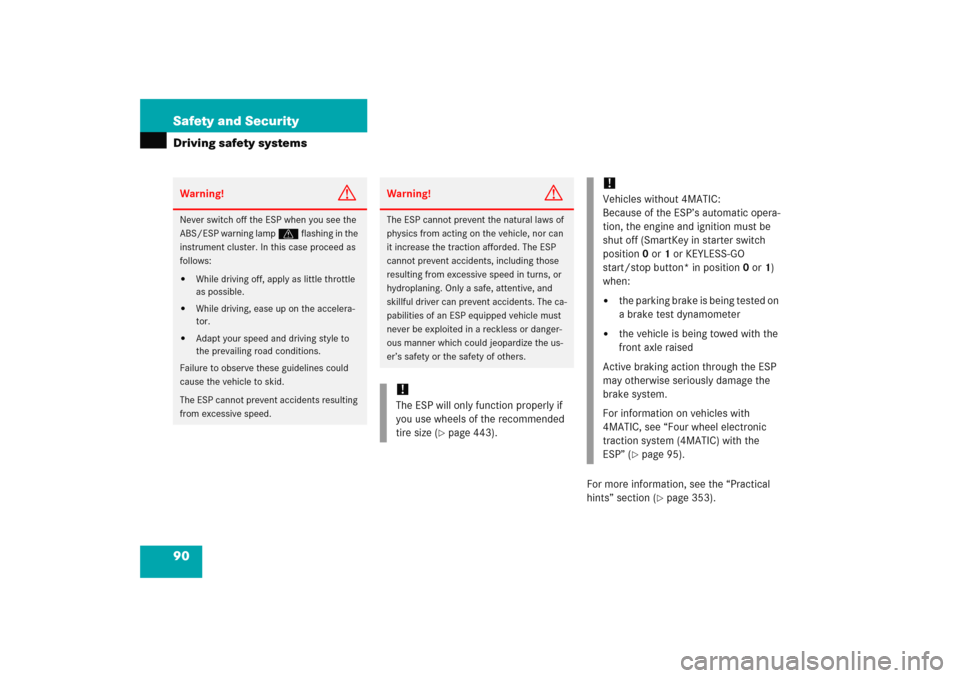

90 Safety and SecurityDriving safety systems
For more information, see the “Practical
hints” section (
page 353).
Warning!
G
Never switch off the ESP when you see the
ABS/ESP warning lamp v fla s hi n g in th e
instrument cluster. In this case proceed as
follows:

While driving off, apply as little throttle
as possible.


While driving, ease up on the accelera-
tor.


Adapt your speed and driving style to
the prevailing road conditions.
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.
Warning!
G
The ESP cannot prevent the natural laws of
physics from acting on the vehicle, nor can
it increase the traction afforded. The ESP
cannot prevent accidents, including those
resulting from excessive speed in turns, or
hydroplaning. Only a safe, attentive, and
skillful driver can prevent accidents. The ca-
pabilities of an ESP equipped vehicle must
never be exploited in a reckless or danger-
ous manner which could jeopardize the us-
er’s safety or the safety of others.!The ESP will only function properly if
you use wheels of the recommended
tire size (
page 443).
!Vehicles without 4MATIC:
Because of the ESP’s automatic opera-
tion, the engine and ignition must be
shut off (SmartKey in starter switch
position0 or1 or KEYLESS-GO
start/stop button* in position0 or1)
when:

the parking brake is being tested on
a brake test dynamometer


the vehicle is being towed with the
front axle raised
Active braking action through the ESP
may otherwise seriously damage the
brake system.
For information on vehicles with
4MATIC, see “Four wheel electronic
traction system (4MATIC) with the
ESP” (
page 95).

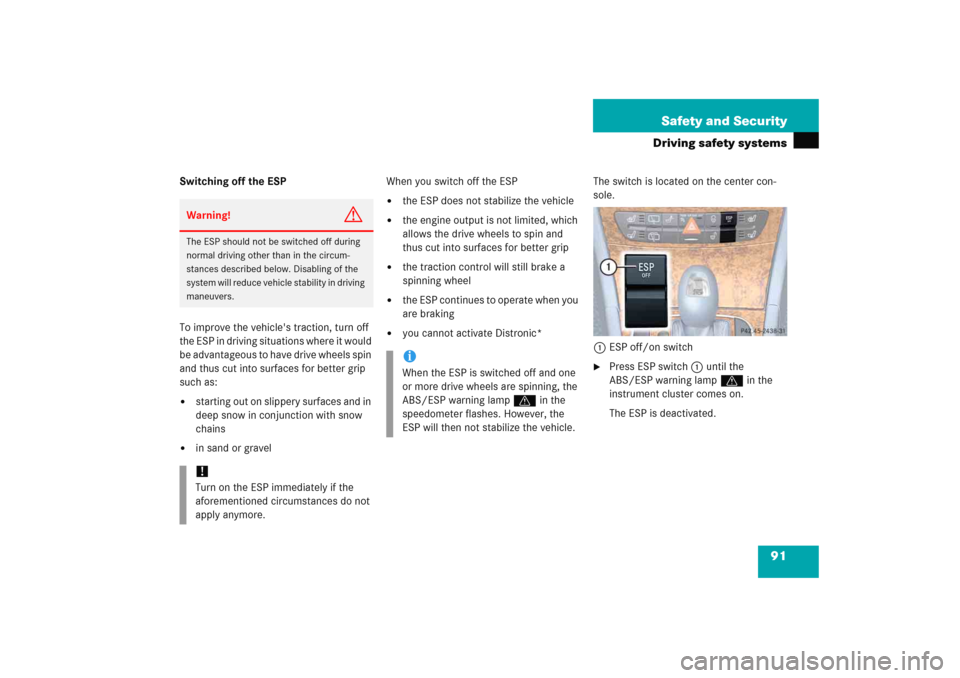

91 Safety and Security
Driving safety systems
Switching off the ESP
To improve the vehicle's traction, turn off
the ESP in driving situations where it would
be advantageous to have drive wheels spin
and thus cut into surfaces for better grip
such as:

starting out on slippery surfaces and in
deep snow in conjunction with snow
chains


in sand or gravelWhen you switch off the ESP


the ESP does not stabilize the vehicle


the engine output is not limited, which
allows the drive wheels to spin and
thus cut into surfaces for better grip


the traction control will still brake a
spinning wheel


the ESP continues to operate when you
are braking


you cannot activate Distronic*The switch is located on the center con-
sole.
1ESP off/on switch

Press ESP switch 1 until the
ABS/ESP warning lamp v in the
instrument cluster comes on.
The ESP is deactivated.
Warning!
G
The ESP should not be switched off during
normal driving other than in the circum-
stances described below. Disabling of the
system will reduce vehicle stability in driving
maneuvers.!Turn on the ESP immediately if the
aforementioned circumstances do not
apply anymore.
iWhen the ESP is switched off and one
or more drive wheels are spinning, the
ABS/ESP warning lamp v in the
speedometer flashes. However, the
ESP will then not stabilize the vehicle.

92 Safety and SecurityDriving safety systems
Switching on the ESP
Press ESP switch1.
The ABS/ESP warning lamp v in
the instrument cluster goes out.
You are now again in normal driving
mode with the ESP switched on.
SBC brake system
The SBC brake system combines a hydrau-
lic brake circuit with electronically con-
trolled brake servo assistance. You have
increased braking safety and improved
braking comfort.
Warning!
G
When the ABS/ESP warning lamp v is
illuminated continuously, the ESP is
switched off.
Adapt your speed and driving to the prevail-
ing road conditions and to the non-operating
status of the ESP.!Avoid spinning of a drive wheel for an
extended period with the ESP switched
off. This may cause serious damage to
the drivetrain which is not covered by
the Mercedes-Benz Limited Warranty.
!Turn on the ESP immediately if the
aforementioned circumstances do not
apply anymore.
Warning!
G
Never ignore a brake malfunction indicated
in the speedometer display, for example by
the ; (USA only) or 3 (Canada only)
warning lamp. Refer to the “Practical hints”
section (
page 354). Also read and ob-
serve the messages in the instrument clus-
ter display (page 362).

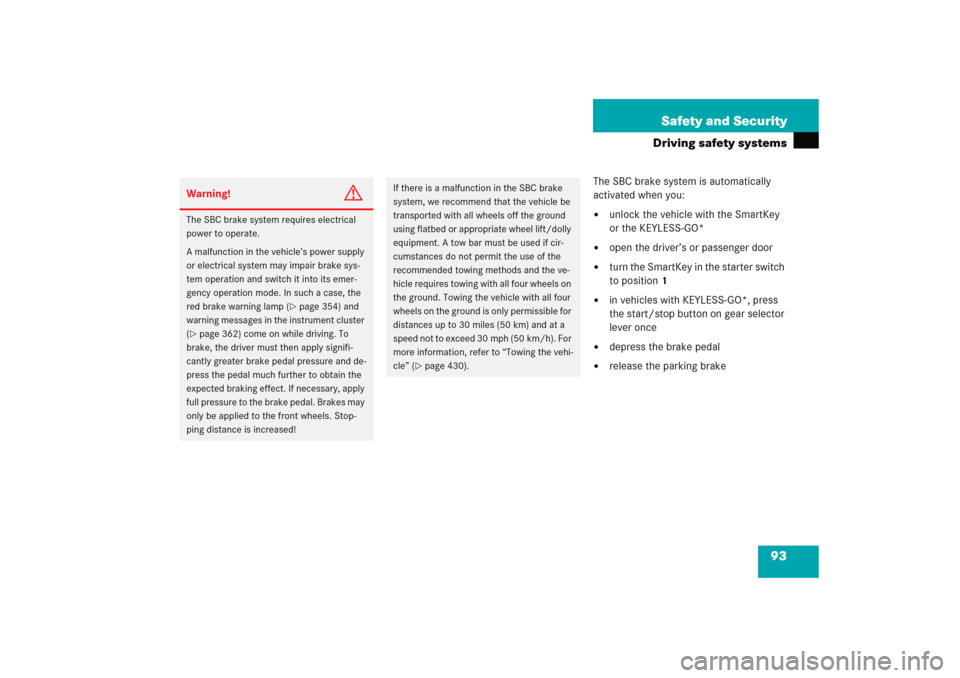

93 Safety and Security
Driving safety systems
The SBC brake system is automatically
activated when you:

unlock the vehicle with the SmartKey
or the KEYLESS-GO*


open the driver’s or passenger door


turn the SmartKey in the starter switch
to position1


in vehicles with KEYLESS-GO*, press
the start/stop button on gear selector
lever once


depress the brake pedal


release the parking brake
Warning!
G
The SBC brake system requires electrical
power to operate.
A malfunction in the vehicle’s power supply
or electrical system may impair brake sys-
tem operation and switch it into its emer-
gency operation mode. In such a case, the
red brake warning lamp (
page 354) and
warning messages in the instrument cluster
(
page 362) come on while driving. To
brake, the driver must then apply signifi-
cantly greater brake pedal pressure and de-
press the pedal much further to obtain the
expected braking effect. If necessary, apply
full pressure to the brake pedal. Brakes may
only be applied to the front wheels. Stop-
ping distance is increased!
If there is a malfunction in the SBC brake
system, we recommend that the vehicle be
transported with all wheels off the ground
using flatbed or appropriate wheel lift/dolly
equipment. A tow bar must be used if cir-
cumstances do not permit the use of the
recommended towing methods and the ve-
hicle requires towing with all four wheels on
the ground. Towing the vehicle with all four
wheels on the ground is only permissible for
distances up to 30 miles (50 km) and at a
speed not to exceed 30 mph (50 km/h). For
more information, refer to “Towing the vehi-
cle” (
page 430).

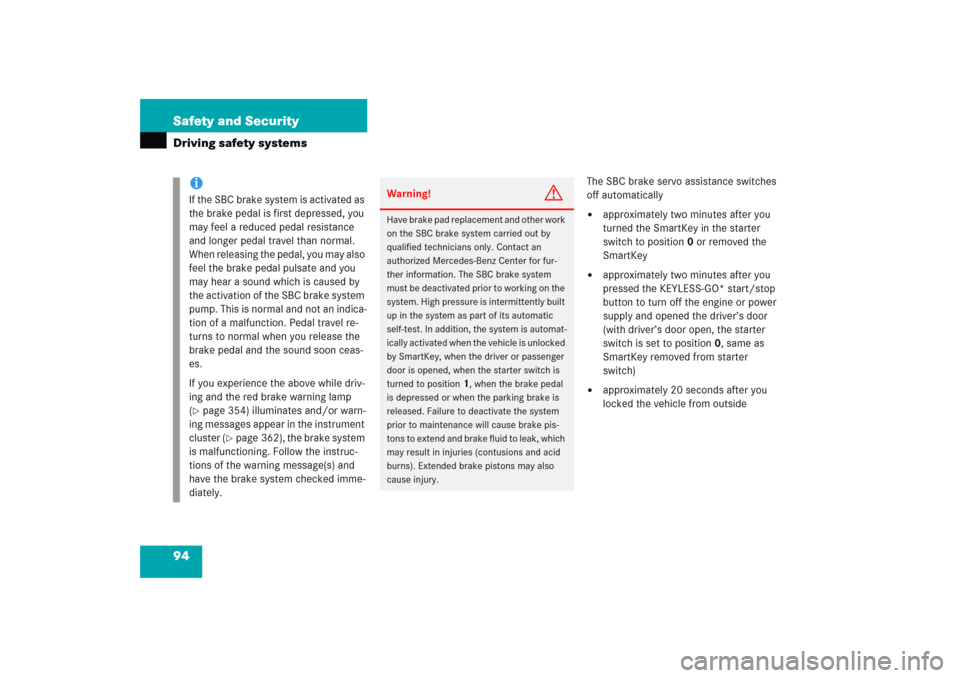

94 Safety and SecurityDriving safety systems
The SBC brake servo assistance switches
off automatically

approximately two minutes after you
turned the SmartKey in the starter
switch to position0 or removed the
SmartKey


approximately two minutes after you
pressed the KEYLESS-GO* start/stop
button to turn off the engine or power
supply and opened the driver’s door
(with driver’s door open, the starter
switch is set to position 0, same as
SmartKey removed from starter
switch)


approximately 20 seconds after you
locked the vehicle from outside
iIf the SBC brake system is activated as
the brake pedal is first depressed, you
may feel a reduced pedal resistance
and longer pedal travel than normal.
When releasing the pedal, you may also
feel the brake pedal pulsate and you
may hear a sound which is caused by
the activation of the SBC brake system
pump. This is normal and not an indica-
tion of a malfunction. Pedal travel re-
turns to normal when you release the
brake pedal and the sound soon ceas-
es.
If you experience the above while driv-
ing and the red brake warning lamp
(page 354) illuminates and/or warn-
ing messages appear in the instrument
cluster (
page 362), the brake system
is malfunctioning. Follow the instruc-
tions of the warning message(s) and
have the brake system checked imme-
diately.
Warning!
G
Have brake pad replacement and other work
on the SBC brake system carried out by
qualified technicians only. Contact an
authorized Mercedes-Benz Center for fur-
ther information. The SBC brake system
must be deactivated prior to working on the
system. High pressure is intermittently built
up in the system as part of its automatic
self-test. In addition, the system is automat-
ically activated when the vehicle is unlocked
by SmartKey, when the driver or passenger
door is opened, when the starter switch is
turned to position
1, when the brake pedal
is depressed or when the parking brake is
released. Failure to deactivate the system
prior to maintenance will cause brake pis-
tons to extend and brake fluid to leak, which
may result in injuries (contusions and acid
burns). Extended brake pistons may also
cause injury.

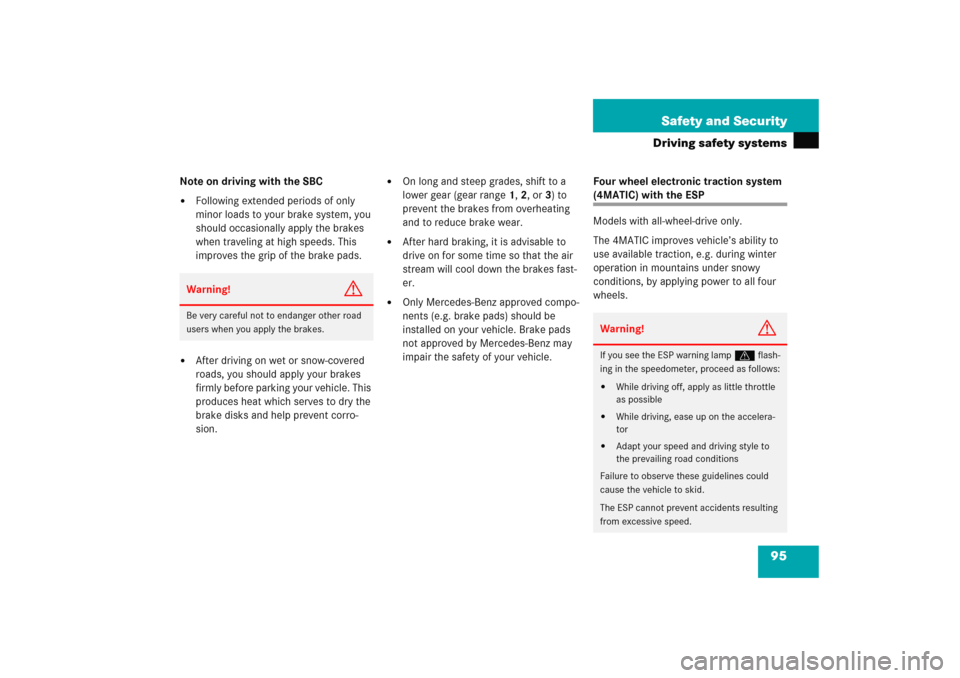

95 Safety and Security
Driving safety systems
Note on driving with the SBC

Following extended periods of only
minor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This
improves the grip of the brake pads.


After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks and help prevent corro-
sion.


On long and steep grades, shift to a
lower gear (gear range1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes fast-
er.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be
installed on your vehicle. Brake pads
not approved by Mercedes-Benz may
impair the safety of your vehicle.Four wheel electronic traction system
(4MATIC) with the ESP
Models with all-wheel-drive only.
The 4MATIC improves vehicle’s ability to
use available traction, e.g. during winter
operation in mountains under snowy
conditions, by applying power to all four
wheels.
Warning!
G
Be very careful not to endanger other road
users when you apply the brakes.
Warning!
G
If you see the ESP warning lampv flash-
ing in the speedometer, proceed as follows:

While driving off, apply as little throttle
as possible


While driving, ease up on the accelera-
tor


Adapt your speed and driving style to
the prevailing road conditions
Failure to observe these guidelines could
cause the vehicle to skid.
The ESP cannot prevent accidents resulting
from excessive speed.

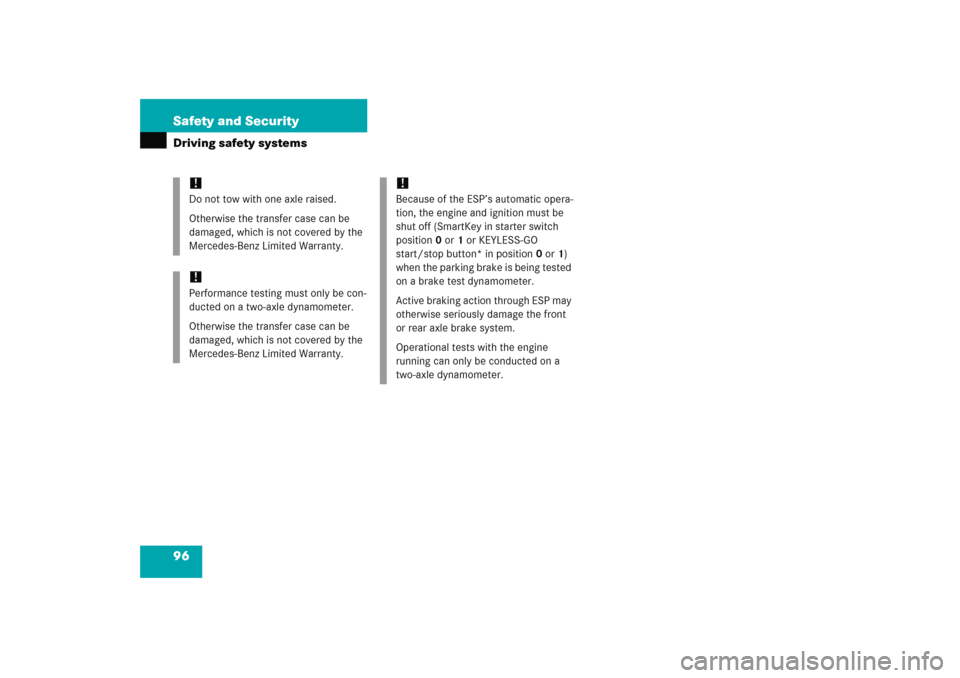

96 Safety and SecurityDriving safety systems
!
Do not tow with one axle raised.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.!Performance testing must only be con-
ducted on a two-axle dynamometer.
Otherwise the transfer case can be
damaged, which is not covered by the
Mercedes-Benz Limited Warranty.
!Because of the ESP’s automatic opera-
tion, the engine and ignition must be
shut off (SmartKey in starter switch
position0 or1 or KEYLESS-GO
start/stop button* in position0 or1)
when the parking brake is being tested
on a brake test dynamometer.
Active braking action through ESP may
otherwise seriously damage the front
or rear axle brake system.
Operational tests with the engine
running can only be conducted on a
two-axle dynamometer.

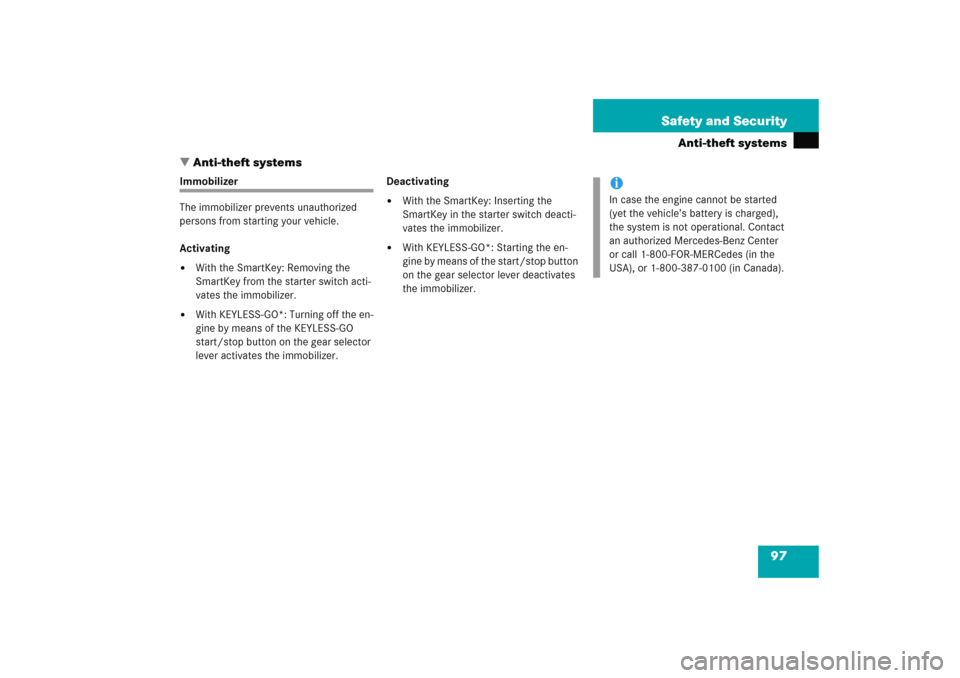

97 Safety and Security
Anti-theft systems
Anti-theft systems
Immobilizer
The immobilizer prevents unauthorized
persons from starting your vehicle.
Activating

With the SmartKey: Removing the
SmartKey from the starter switch acti-
vates the immobilizer.


With KEYLESS-GO*: Turning off the en-
gine by means of the KEYLESS-GO
start/stop button on the gear selector
lever activates the immobilizer.Deactivating


With the SmartKey: Inserting the
SmartKey in the starter switch deacti-
vates the immobilizer.


With KEYLESS-GO*: Starting the en-
gine by means of the start/stop button
on the gear selector lever deactivates
the immobilizer.
iIn case the engine cannot be started
(yet the vehicle’s battery is charged),
the system is not operational. Contact
an authorized Mercedes-Benz Center
or call 1-800-FOR-MERCedes (in the
USA), or 1-800-387-0100 (in Canada).

98 Safety and SecurityAnti-theft systemsAnti-theft alarm system
Once the alarm system has been armed, a
visual and audible alarm is triggered when
someone opens

a door


the tailgate


the hood.
The alarm will stay on, even if the activat-
ing element (a door, for example) is imme-
diately closed.
The alarm system will also be triggered
when


someone attempts to raise the vehicle.


opening the vehicle with the mechani-
cal key.


someone opens a door from the inside
if the vehicle was locked from the out-
side with the SmartKey or
KEYLESS-GO.Arming the alarm system
The alarm system is armed within approxi-
mately ten seconds after locking the vehi-
cle with the SmartKey or KEYLESS-GO*.
The turn signal lamps flash three times to
indicate that the alarm system is activated.
The indicator lamp in the central locking
switch (
page 27) begins to flash after
arming the alarm system.Disarming the alarm system
The alarm system is disarmed when you
unlock your vehicle with the SmartKey or
KEYLESS-GO*. The turn signal lamps flash
once to indicate that the alarm system is
deactivated.
iIf the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system* (
page 269) provid-
ed Tele Aid service was subscribed to
and properly activated, and that neces-
sary cellular service and GPS coverage
are available.
iIf the turn signal lamps do not flash
three times, one of the following ele-
ments may not be properly closed:

a door


the tailgate
Close the respective element and lock
the vehicle again.

99 Safety and Security
Anti-theft systems
Canceling the alarm
With the SmartKey
Insert the SmartKey in the starter
switch.
or

Press the Œ or ‹ button on the
SmartKey.
The alarm is canceled.
With KEYLESS-GO*

Pull the outside door handle.
The SmartKey with KEYLESS-GO must
be within 3 ft (1 m) of the vehicle.
or

Press the KEYLESS-GO* start/stop
button (
page 35).
The SmartKey with KEYLESS-GO must
be inside the vehicle.
The alarm is canceled.
Tow-away alarm
Once the tow-away alarm is armed, a visual
and audible alarm will be triggered when
someone attempts to raise the vehicle.Arming the tow-away alarm
When you lock your vehicle, the tow-away
alarm is automatically armed after about
30 seconds.
When you unlock your vehicle, the
tow-away protection disarms automatical-
ly.
iThe tow-away protection alarm is trig-
gered, for example, if the vehicle is lift-
ed on one side.
If the alarm stays on for more than
30 seconds, a call to the Response
Center is initiated automatically by the
Tele Aid system* (
page 269), provid-
ed that the Tele Aid service was sub-
scribed to and properly activated, and
that necessary cellular service and GPS
coverage are available.
