MERCEDES-BENZ E WAGON 2005 S211 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2005, Model line: E WAGON, Model: MERCEDES-BENZ E WAGON 2005 S211Pages: 491, PDF Size: 4.37 MB

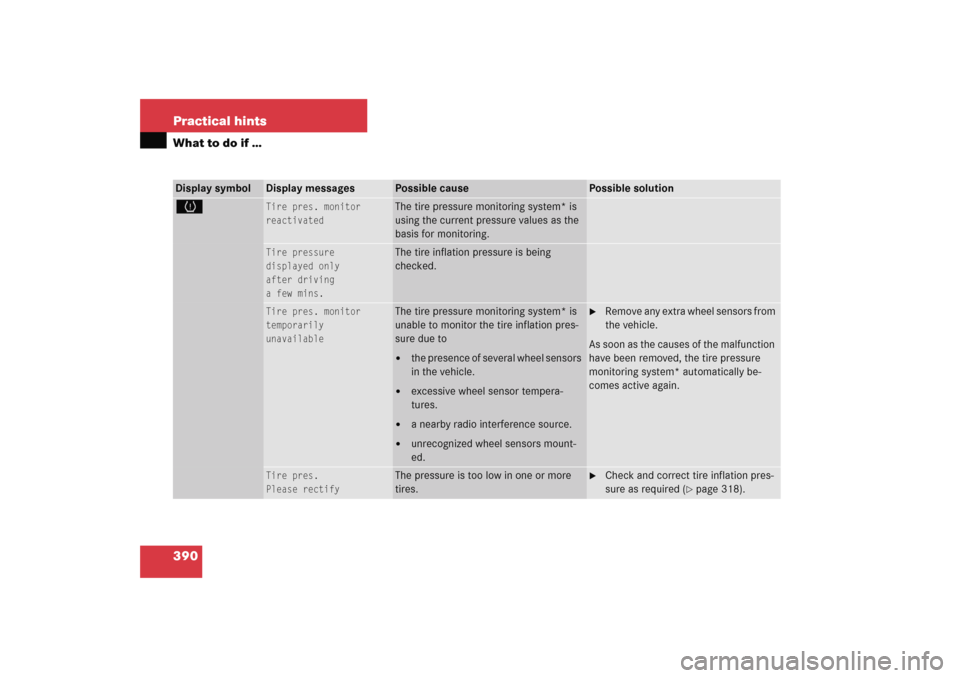

Page 391 of 491
390 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
H
Tire pres. monitor
reactivated
The tire pressure monitoring system* is
using the current pressure values as the
basis for monitoring.
Tire pressure
displayed only
after driving
a few mins.
The tire inflation pressure is being
checked.
Tire pres. monitor
temporarily
unavailable
The tire pressure monitoring system* is
unable to monitor the tire inflation pres-
sure due to
the presence of several wheel sensors
in the vehicle.
excessive wheel sensor tempera-
tures.
a nearby radio interference source.
unrecognized wheel sensors mount-
ed.
Remove any extra wheel sensors from
the vehicle.
As soon as the causes of the malfunction
have been removed, the tire pressure
monitoring system* automatically be-
comes active again.
Tire pres.
Please rectify
The pressure is too low in one or more
tires.
Check and correct tire inflation pres-
sure as required (
page 318).

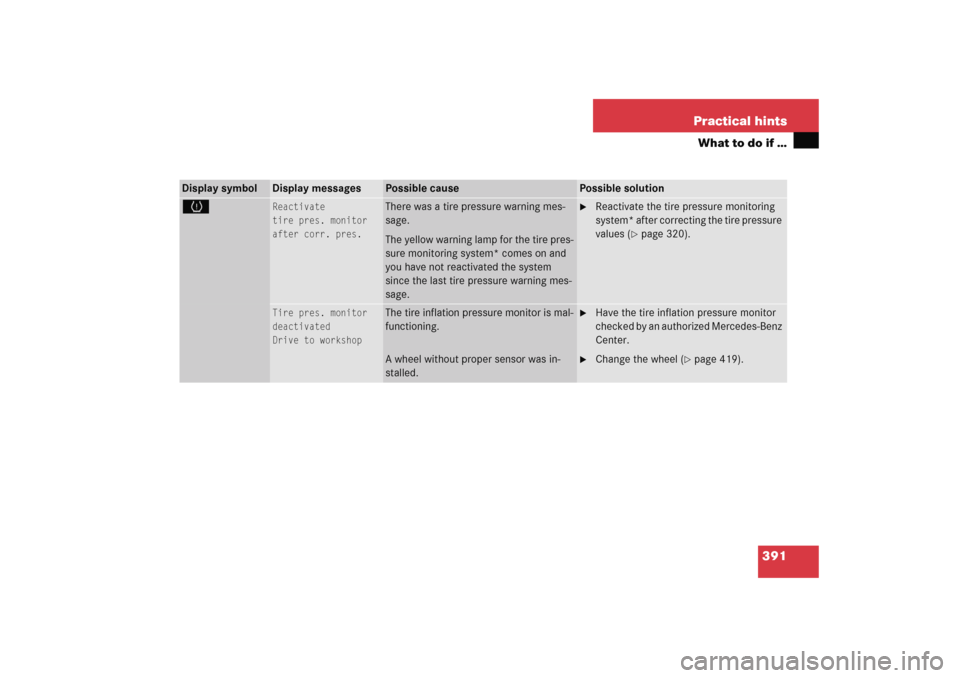

Page 392 of 491
391 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
H
Reactivate
tire pres. monitor
after corr. pres.
There was a tire pressure warning mes-
sage.
The yellow warning lamp for the tire pres-
sure monitoring system* comes on and
you have not reactivated the system
since the last tire pressure warning mes-
sage.
Reactivate the tire pressure monitoring
system* after correcting the tire pressure
values (
page 320).
Tire pres. monitor
deactivated
Drive to workshop
The tire inflation pressure monitor is mal-
functioning.
A wheel without proper sensor was in-
stalled.
Have the tire inflation pressure monitor
checked by an authorized Mercedes-Benz
Center.
Change the wheel (
page 419).

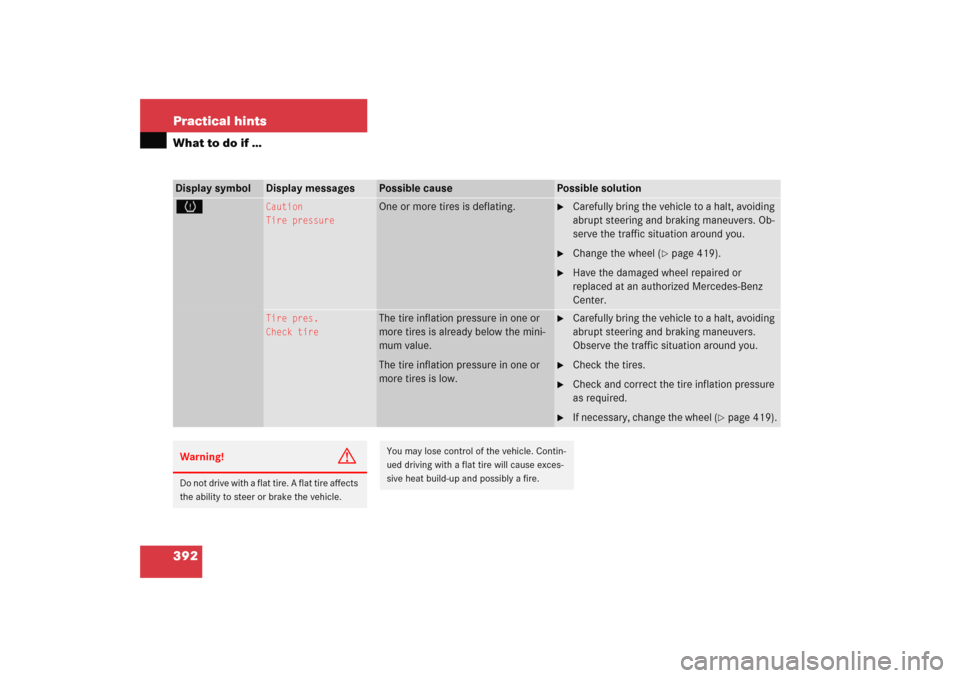

Page 393 of 491
392 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
H
Caution
Tire pressure
One or more tires is deflating.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Ob-
serve the traffic situation around you.
Change the wheel (
page 419).
Have the damaged wheel repaired or
replaced at an authorized Mercedes-Benz
Center.
Tire pres.
Check tire
The tire inflation pressure in one or
more tires is already below the mini-
mum value.
The tire inflation pressure in one or
more tires is low.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Observe the traffic situation around you.
Check the tires.
Check and correct the tire inflation pressure
as required.
If necessary, change the wheel (
page 419).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 394 of 491
393 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
H
Caution
Tire pres., RL
The left rear tire is deflating.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Observe the traffic situation around you.
Change the wheel (
page 419).
Have the damaged wheel repaired or
replaced at an authorized Mercedes-Benz
Center.
Tire pressure, RL
Check tire
The left rear tire inflation pressure is
low.
Carefully bring the vehicle to a halt.
Check the tire.
Check and correct the tire inflation pressure
as required.
If necessary, change the wheel (
page 419).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

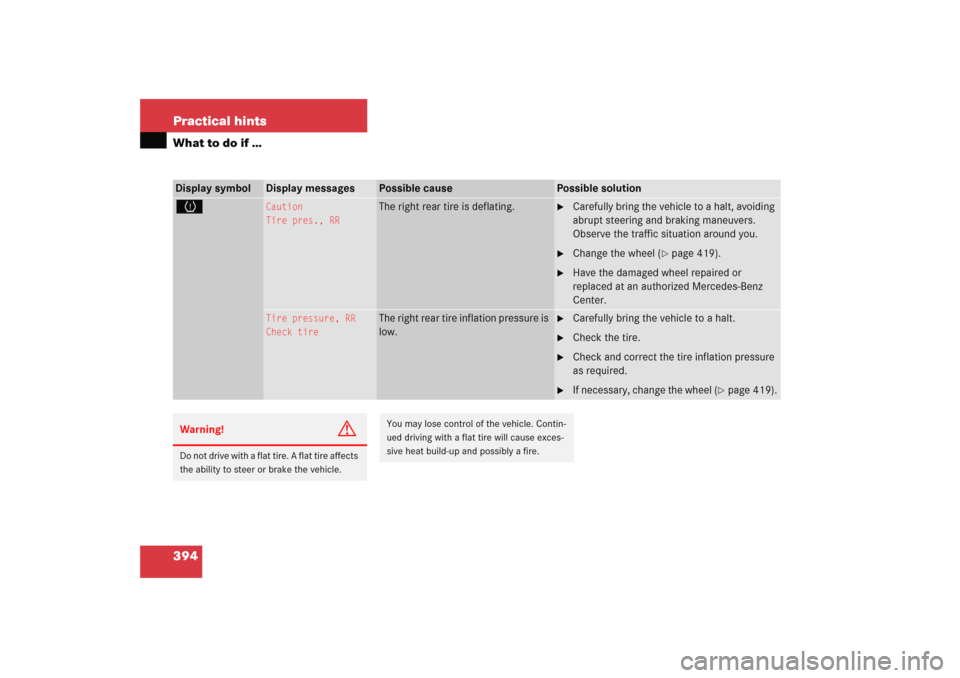

Page 395 of 491
394 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
H
Caution
Tire pres., RR
The right rear tire is deflating.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Observe the traffic situation around you.
Change the wheel (
page 419).
Have the damaged wheel repaired or
replaced at an authorized Mercedes-Benz
Center.
Tire pressure, RR
Check tire
The right rear tire inflation pressure is
low.
Carefully bring the vehicle to a halt.
Check the tire.
Check and correct the tire inflation pressure
as required.
If necessary, change the wheel (
page 419).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

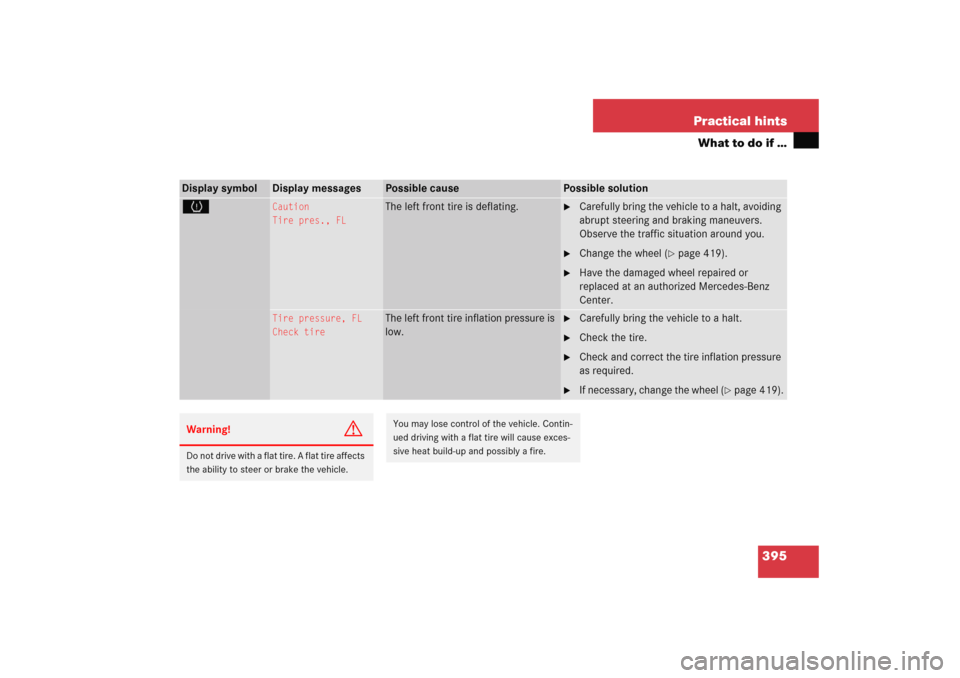

Page 396 of 491
395 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
H
Caution
Tire pres., FL
The left front tire is deflating.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Observe the traffic situation around you.
Change the wheel (
page 419).
Have the damaged wheel repaired or
replaced at an authorized Mercedes-Benz
Center.
Tire pressure, FL
Check tire
The left front tire inflation pressure is
low.
Carefully bring the vehicle to a halt.
Check the tire.
Check and correct the tire inflation pressure
as required.
If necessary, change the wheel (
page 419).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.
Page 397 of 491
396 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
H
Caution
Tire pres., FR
The right front tire is deflating.
Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.
Observe the traffic situation around you.
Change the wheel (
page 419).
Have the damaged wheel repaired or
replaced at an authorized Mercedes-Benz
Center.
Tire pressure, FR
Check tire
The right front tire inflation pressure
is low.
Carefully bring the vehicle to a halt.
Check the tire.
Check and correct the tire inflation pressure
as required.
If necessary, change the wheel (
page 419).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

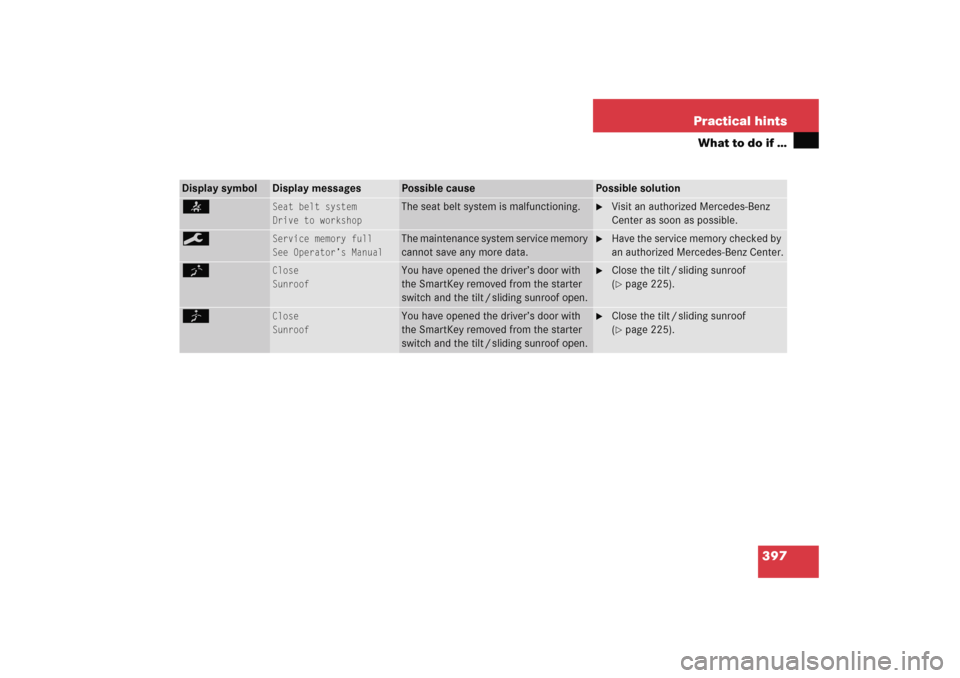

Page 398 of 491
397 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
<
Seat belt system
Drive to workshop
The seat belt system is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
9
Service memory full
See Operator’s Manual
The maintenance system service memory
cannot save any more data.
Have the service memory checked by
an authorized Mercedes-Benz Center.
K
Close
Sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt / sliding sunroof open.
Close the tilt / sliding sunroof
(page 225).
J
Close
Sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt / sliding sunroof open.
Close the tilt / sliding sunroof
(page 225).

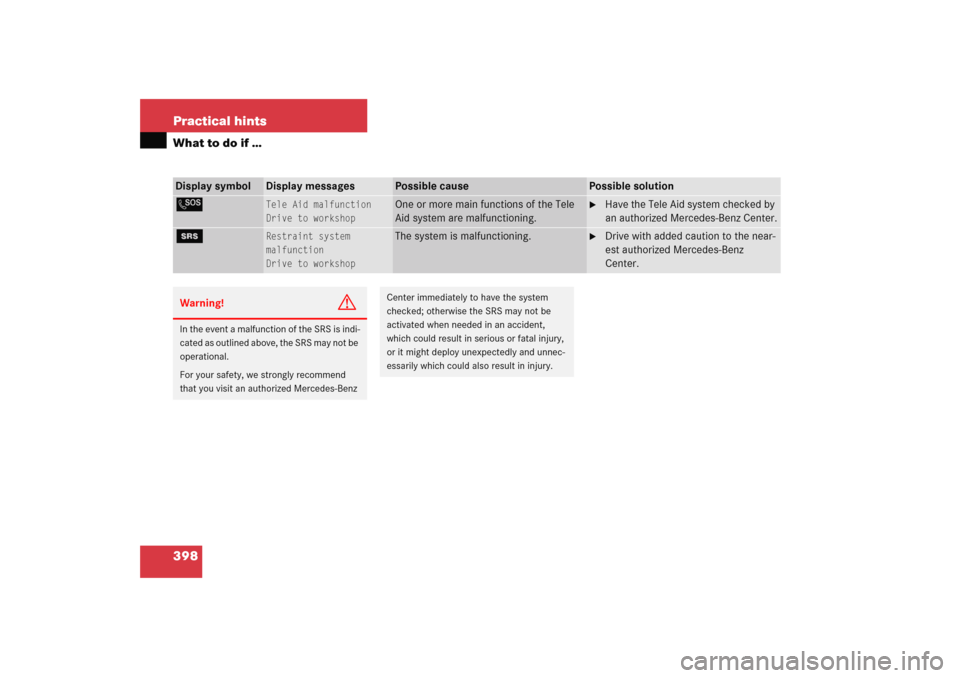

Page 399 of 491
398 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
L
Tele Aid malfunction
Drive to workshop
One or more main functions of the Tele
Aid system are malfunctioning.
Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
malfunction
Drive to workshop
The system is malfunctioning.
Drive with added caution to the near-
est authorized Mercedes-Benz
Center.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked; otherwise the SRS may not be
activated when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.

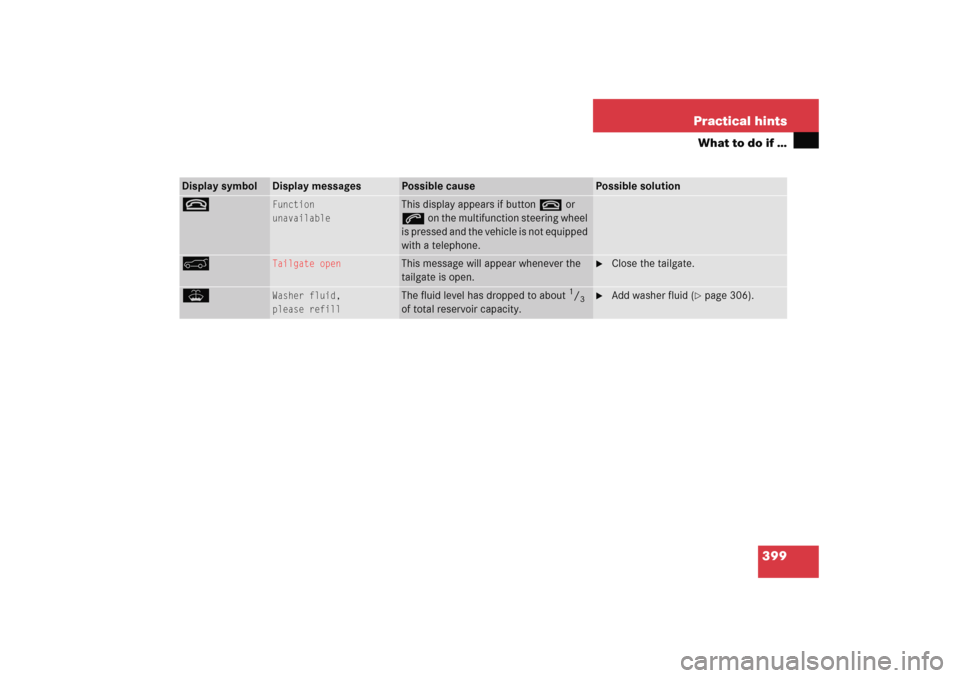

Page 400 of 491
399 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
t
Function
unavailable
This display appears if button t or
s on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
&
Tailgate open
This message will appear whenever the
tailgate is open.
Close the tailgate.
W
Washer fluid,
please refill
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 306).
