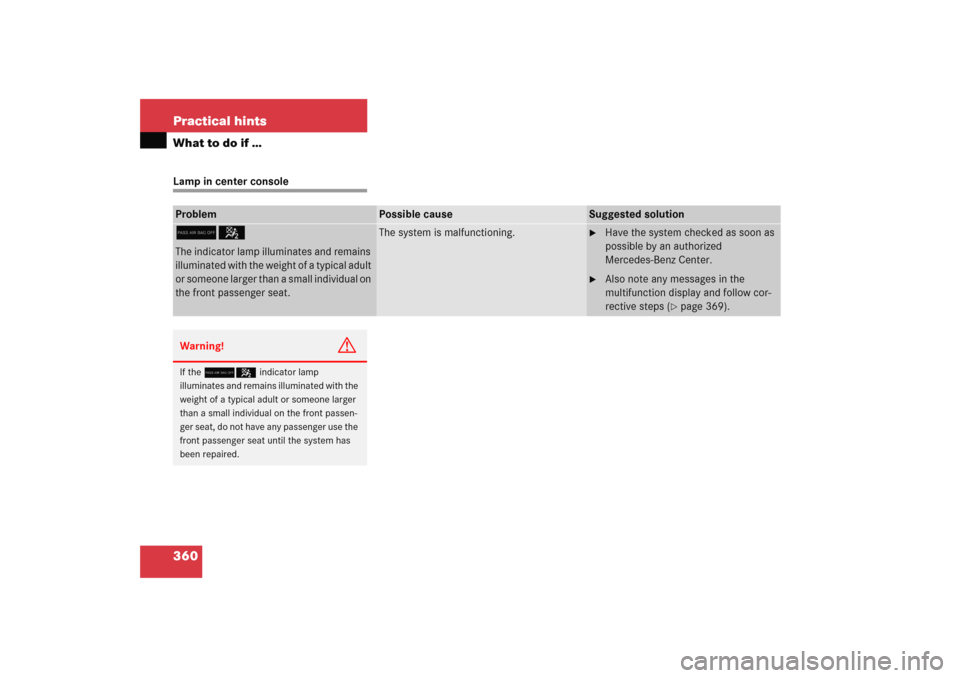

360 Practical hintsWhat to do if …Lamp in center consoleProblem
Possible cause
Suggested solution
75The indicator lamp illuminates and remains
illuminated with the weight of a typical adult
or someone larger than a small individual on
the front passenger seat.
The system is malfunctioning.

Have the system checked as soon as
possible by an authorized
Mercedes-Benz Center.

Also note any messages in the
multifunction display and follow cor-
rective steps (
page 369).
Warning!
G
If the 75indicator lamp
illuminates and remains illuminated with the
weight of a typical adult or someone larger
than a small individual on the front passen-
ger seat, do not have any passenger use the
front passenger seat until the system has
been repaired.

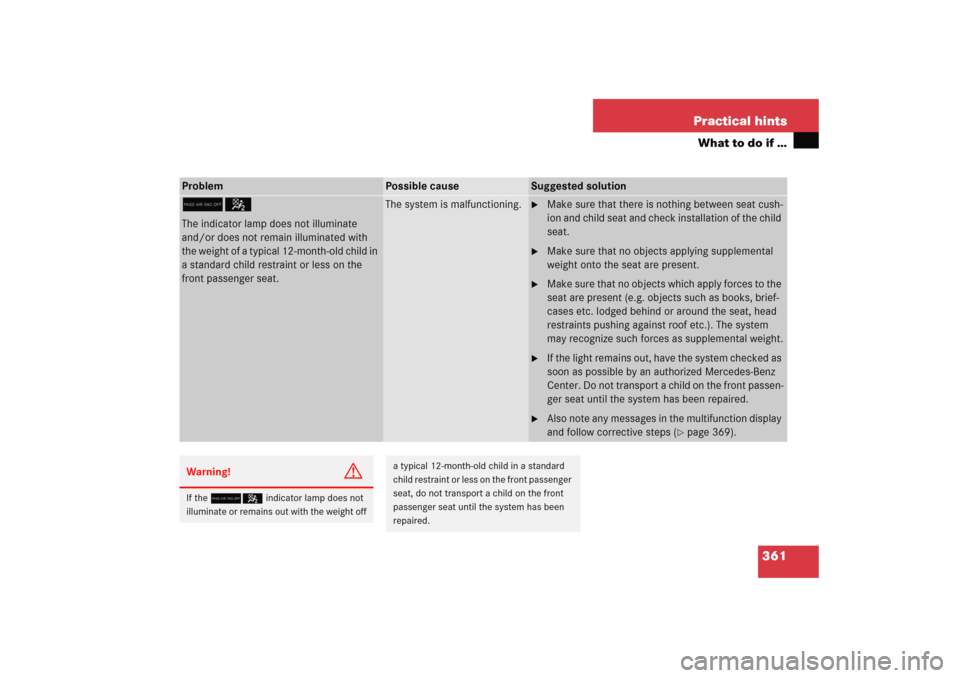

361 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
75The indicator lamp does not illuminate
and/or does not remain illuminated with
the weight of a typical 12-month-old child in
a standard child restraint or less on the
front passenger seat.
The system is malfunctioning.

Make sure that there is nothing between seat cush-
ion and child seat and check installation of the child
seat.

Make sure that no objects applying supplemental
weight onto the seat are present.

Make sure that no objects which apply forces to the
seat are present (e.g. objects such as books, brief-
cases etc. lodged behind or around the seat, head
restraints pushing against roof etc.). The system
may recognize such forces as supplemental weight.

If the light remains out, have the system checked as
soon as possible by an authorized Mercedes-Benz
Center. Do not transport a child on the front passen-
ger seat until the system has been repaired.

Also note any messages in the multifunction display
and follow corrective steps (
page 369).
Warning!
G
If the 75indicator lamp does not
illuminate or remains out with the weight off
a typical 12-month-old child in a standard
child restraint or less on the front passenger
seat, do not transport a child on the front
passenger seat until the system has been
repaired.

362 Practical hintsWhat to do if …Vehicle status messages in the multi-function display
Warning and malfunction messages ap-
pear in the multifunction display located in
the instrument cluster.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the vehicle status message
memory menu in the control system
(page 161) displays both cleared and
uncleared messages.
High-priority messages appear in the
multifunction display in red color.Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button (
page 24) or but-
ton j, k, ÿ, or è on the
steering wheel.
Other messages of high priority and mes-
sages of less immediate priority can be
cleared from the multifunction display
using the reset button (page 24) or but-
ton j, k, ÿ, or è on the
steering wheel. They are then stored in the
vehicle status message memory
(
page 161). Remember that clearing a
message will only make the message dis-
appear. Clearing a message will not cor-
rect the condition that caused the
message to appear.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact the nearest authorized
Mercedes-Benz Center.

363 Practical hints
What to do if …
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may
appear in the multifunction display.
For your convenience the messages are
devided into two sections:

Text messages (
page 364)


Symbol messages (
page 373)
iSwitching on the ignition causes all in-
strument cluster lamps (expect low
beam headlamp indicator lamp, high
beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) as well as the multifunction dis-
play to come on. Make sure the lamps
and multifunction display are in work-
ing order before starting your journey.

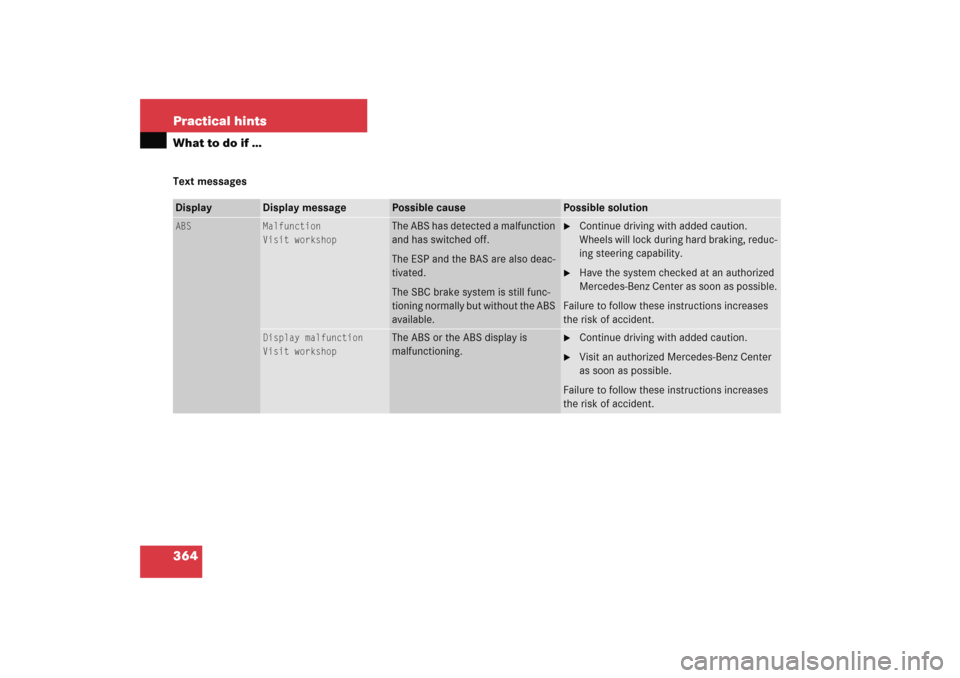

364 Practical hintsWhat to do if …Text messagesDisplay
Display message
Possible cause
Possible solution
ABS
Malfunction
Visit workshop
The ABS has detected a malfunction
and has switched off.
The ESP and the BAS are also deac-
tivated.
The SBC brake system is still func-
tioning normally but without the ABS
available.

Continue driving with added caution.
Wheels will lock during hard braking, reduc-
ing steering capability.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of accident.
Display malfunction
Visit workshop
The ABS or the ABS display is
malfunctioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Failure to follow these instructions increases
the risk of accident.

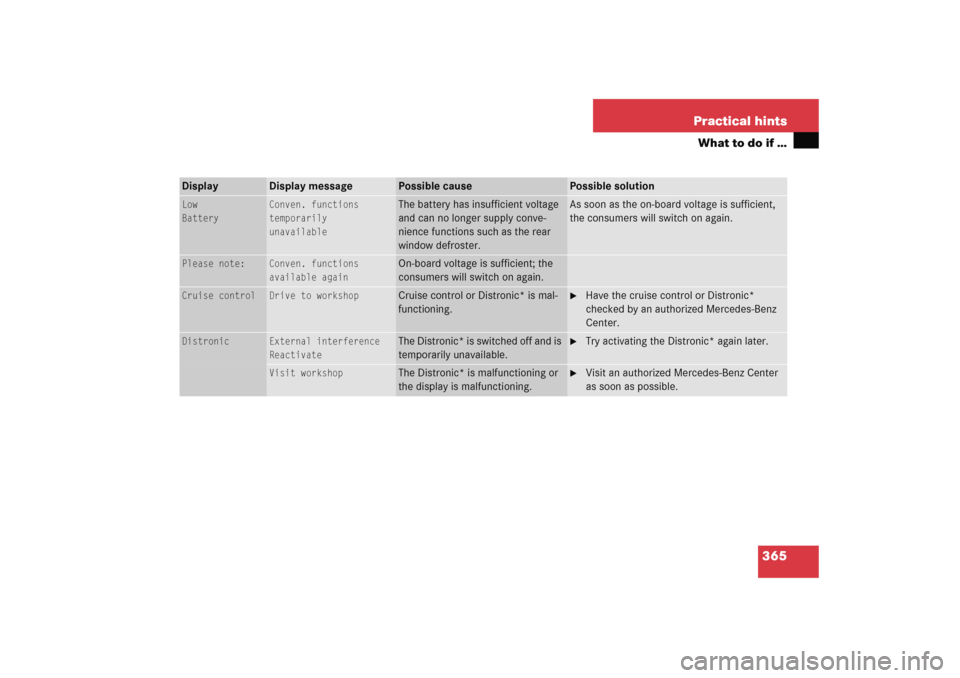

365 Practical hints
What to do if …
Display
Display message
Possible cause
Possible solution
Low
Battery
Conven. functions
temporarily
unavailable
The battery has insufficient voltage
and can no longer supply conve-
nience functions such as the rear
window defroster.
As soon as the on-board voltage is sufficient,
the consumers will switch on again.
Please note:
Conven. functions
available again

On-board voltage is sufficient; the
consumers will switch on again.
Cruise control
Drive to workshop
Cruise control or Distronic* is mal-
functioning.

Have the cruise control or Distronic*
checked by an authorized Mercedes-Benz
Center.
Distronic
External interference
Reactivate
The Distronic* is switched off and is
temporarily unavailable.

Try activating the Distronic* again later.
Visit workshop
The Distronic* is malfunctioning or
the display is malfunctioning.

Visit an authorized Mercedes-Benz Center
as soon as possible.

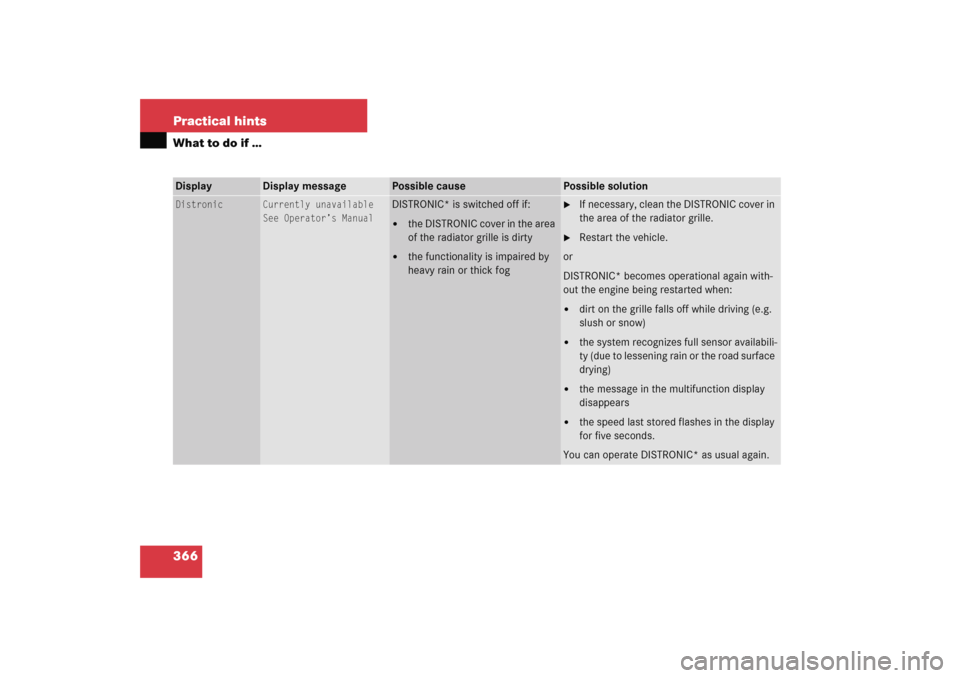

366 Practical hintsWhat to do if …Display
Display message
Possible cause
Possible solution
Distronic
Currently unavailable
See Operator’s Manual
DISTRONIC* is switched off if:

the DISTRONIC cover in the area
of the radiator grille is dirty


the functionality is impaired by
heavy rain or thick fog

If necessary, clean the DISTRONIC cover in
the area of the radiator grille.

Restart the vehicle.
or
DISTRONIC* becomes operational again with-
out the engine being restarted when:


dirt on the grille falls off while driving (e.g.
slush or snow)


the system recognizes full sensor availabili-
ty (due to lessening rain or the road surface
drying)


the message in the multifunction display
disappears


the speed last stored flashes in the display
for five seconds.
You can operate DISTRONIC* as usual again.

367 Practical hints
What to do if …
Display
Display message
Possible cause
Possible solution
ESP
Malfunction
Visit workshop
The ESP has detected a malfunction
and switched off.
The ABS may not be operational.
The SBC brake system is still func-
tioning normally but without the ESP
available.

Continue driving with added caution.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
unavailable
See Operator’s Manual
The ESP is deactivated because the
power supply was interrupted.
The SBC brake system is still func-
tioning normally but without the ESP
available.

Synchronize the ESP. With the vehicle sta-
tionary, turn the steering wheel completely
to the left and then to the right to synchro-
nize the ESP.
If the ESP message does not go out:

Continue driving with added caution.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Failure to follow these instructions increases
the risk of accident.
!When synchronizing the ESP, make
sure you can turn the steering wheel in
both directions as far as it will go with-
out the wheels hitting any objects, e.g.
a road curb.

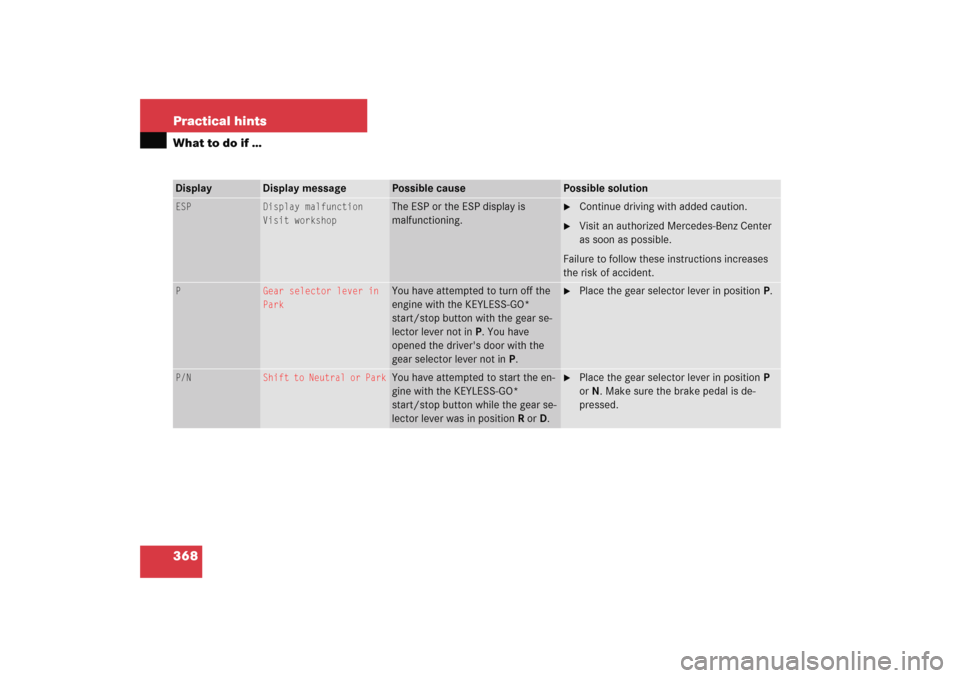

368 Practical hintsWhat to do if …Display
Display message
Possible cause
Possible solution
ESP
Display malfunction
Visit workshop
The ESP or the ESP display is
malfunctioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Failure to follow these instructions increases
the risk of accident.
P
Gear selector lever in
Park
You have attempted to turn off the
engine with the KEYLESS-GO*
start/stop button with the gear se-
lector lever not inP. You have
opened the driver's door with the
gear selector lever not inP.

Place the gear selector lever in positionP.
P/N
Shift to Neutral or Park
You have attempted to start the en-
gine with the KEYLESS-GO*
start/stop button while the gear se-
lector lever was in positionR orD.

Place the gear selector lever in positionP
orN. Make sure the brake pedal is de-
pressed.

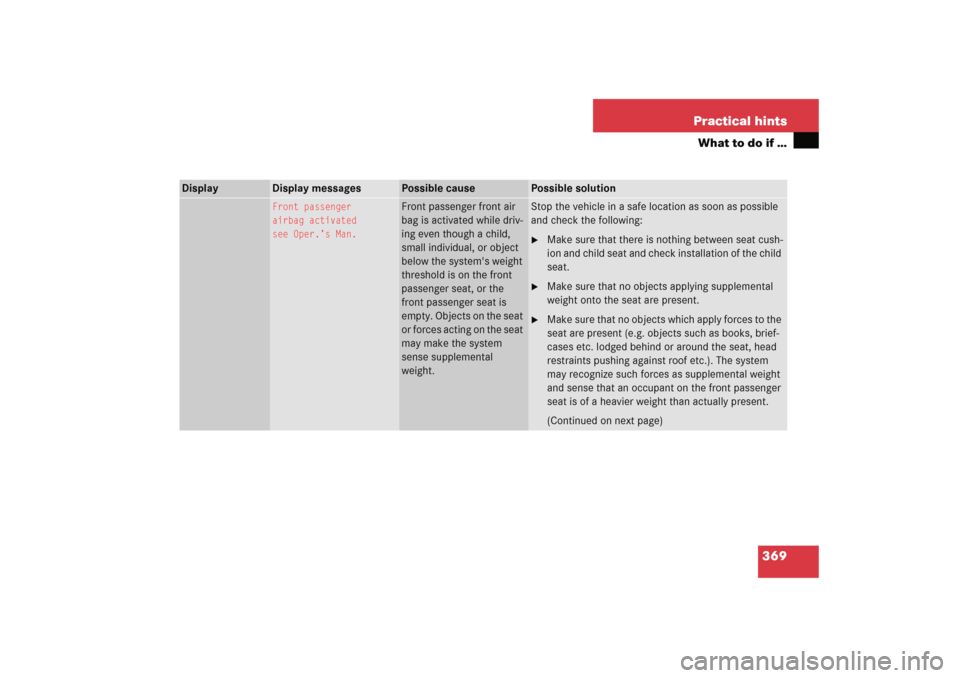

369 Practical hints
What to do if …
Display
Display messages
Possible cause
Possible solution
Front passenger
airbag activated
see Oper.’s Man.
Front passenger front air
bag is activated while driv-
ing even though a child,
small individual, or object
below the system's weight
threshold is on the front
passenger seat, or the
front passenger seat is
empty. Objects on the seat
or forces acting on the seat
may make the system
sense supplemental
weight.
Stop the vehicle in a safe location as soon as possible
and check the following:
Make sure that there is nothing between seat cush-
ion and child seat and check installation of the child
seat.

Make sure that no objects applying supplemental
weight onto the seat are present.

Make sure that no objects which apply forces to the
seat are present (e.g. objects such as books, brief-
cases etc. lodged behind or around the seat, head
restraints pushing against roof etc.). The system
may recognize such forces as supplemental weight
and sense that an occupant on the front passenger
seat is of a heavier weight than actually present.
(Continued on next page)
