440 Technical dataIdentification labels1Driver’s door B-pillar with Certification
labels (includes Paintwork code)2Vehicle Identification Number (VIN)3Vacuum line routing diagram label
4Engine number (engraved on engine)
5Vehicle Identification Number (VIN)
(lower edge of windshield)
6Emission control information label, in-
cludes both federal and California cer-
tification exhaust emission standards
iWhen ordering parts, please specify ve-
hicle identification and engine num-
bers.

441 Technical data

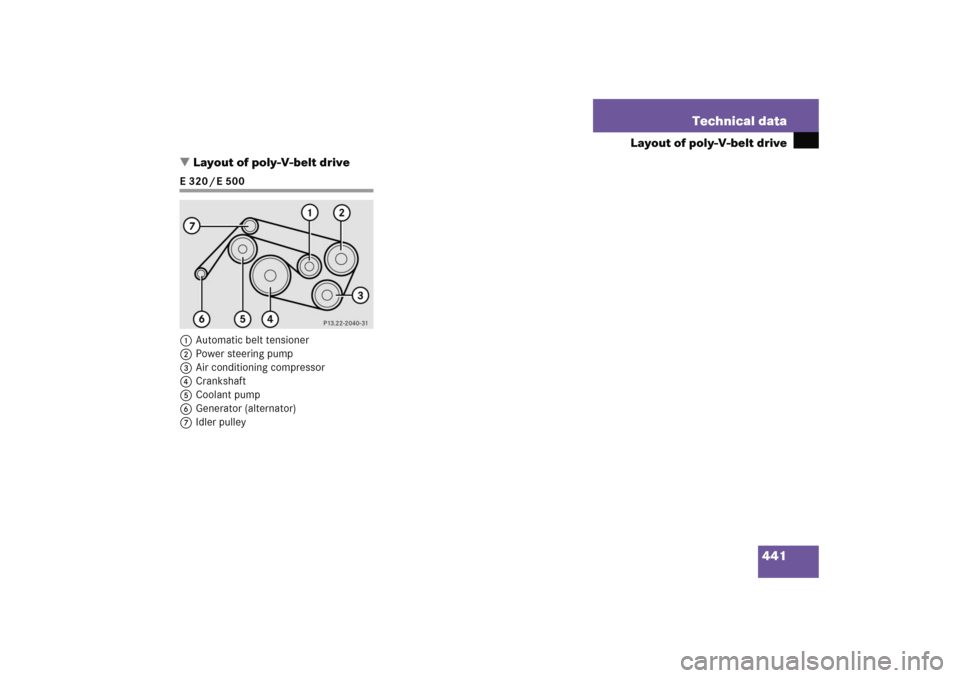

Layout of poly-V-belt drive
Layout of poly-V-belt drive
E320/E500
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley

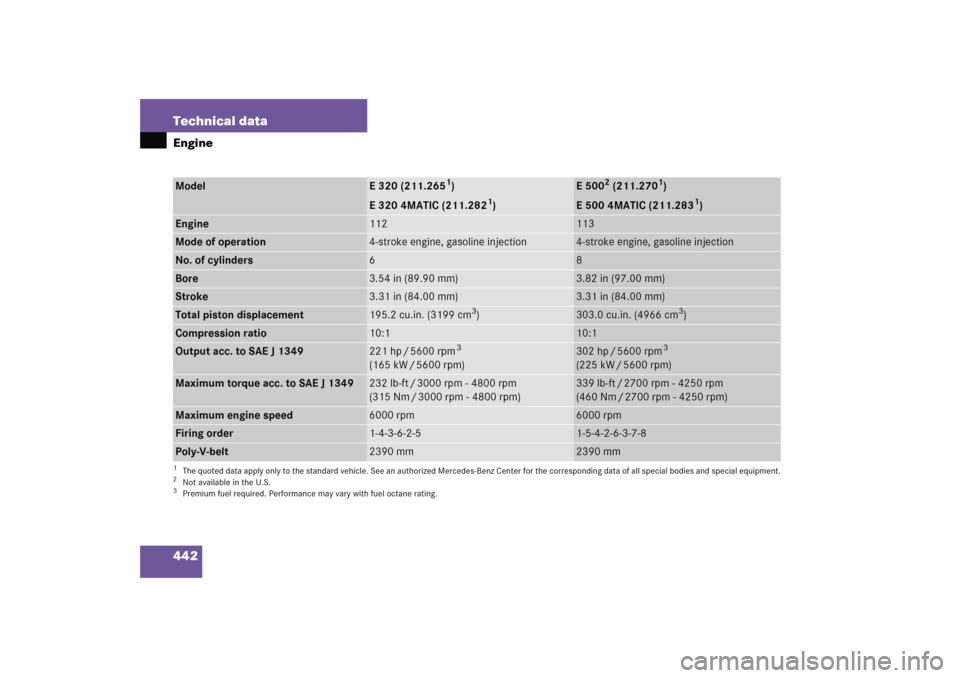

442 Technical dataEngineModel
E 320 (211.265
1)
E 320 4MATIC (211.282
1)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and special equipment.
E 500
2 (211.270
1)
E 500 4MATIC (211.283
1)
2Not available in the U.S.Engine
112
113
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
8
Bore
3.54 in (89.90 mm)
3.82 in (97.00 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
Total piston displacement
195.2 cu.in. (3199 cm
3)
303.0 cu.in. (4966 cm
3)
Compression ratio
10:1
10:1
Output acc. to SAE J 1349
221 hp / 5600 rpm
3
(165 kW / 5600 rpm)
3Premium fuel required. Performance may vary with fuel octane rating.
302 hp / 5600 rpm
3
(225 kW / 5600 rpm)
Maximum torque acc. to SAE J 1349
232 lb-ft / 3000 rpm - 4800 rpm
(315 Nm / 3000 rpm - 4800 rpm)
339 lb-ft / 2700 rpm - 4250 rpm
(460 Nm / 2700 rpm - 4250 rpm)
Maximum engine speed
6000 rpm
6000 rpm
Firing order
1-4-3-6-2-5
1-5-4-2-6-3-7-8
Poly-V-belt
2390 mm
2390 mm

443 Technical data
Rims and tires
Rims and tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as:

Poor handling characteristics


Increased noise


Increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. This may result in damage to the
tires or the vehicle.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the on the driver’s
door B-pillar. Some vehicles may have
supplemental tire pressure information
for driving at high speeds (
page 317)
or for vehicle loads less than the maxi-
mum loaded vehicle condition. If such
information is provided, it can be found
on the placard located on the fuel filler
flap. The tire pressure should be
checked regularly and should only be
adjusted on cold tires. Follow the tire
manufacturer’s maintenance recom-
mendation included with the vehicle.

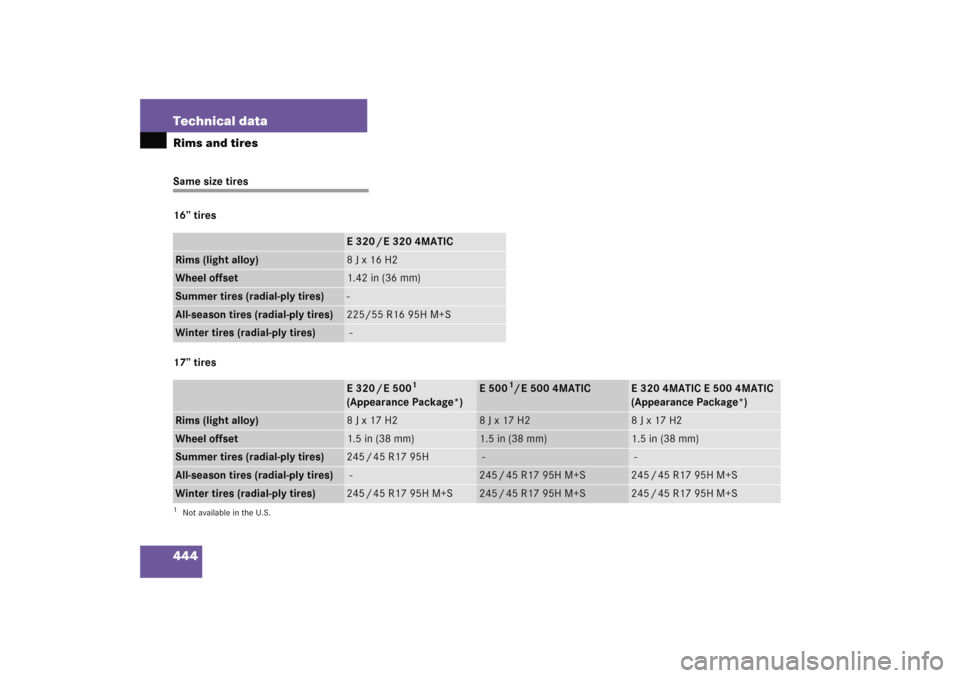

444 Technical dataRims and tiresSame size tires
16’’ tires
17’’ tires
E 320 / E 320 4MATIC
Rims (light alloy)
8 J x 16 H2
Wheel offset
1.42 in (36 mm)
Summer tires (radial-ply tires)
-
All-season tires (radial-ply tires)
225/55 R16 95H M+S
Winter tires (radial-ply tires)
-E320/E500
1
(Appearance Package*)
1Not available in the U.S.
E500
1/E 500 4MATIC
E 320 4MATIC E 500 4MATIC
(Appearance Package*)
Rims (light alloy)
8 J x 17 H2
8 J x 17 H2
8 J x 17 H2
Wheel offset
1.5 in (38 mm)
1.5 in (38 mm)
1.5 in (38 mm)
Summer tires (radial-ply tires)
245 / 45 R17 95H
-
-
All-season tires (radial-ply tires)
-
245 / 45 R17 95H M+S
245 / 45 R17 95H M+S
Winter tires (radial-ply tires)
245 / 45 R17 95H M+S
245 / 45 R17 95H M+S
245 / 45 R17 95H M+S

445 Technical data
Rims and tires

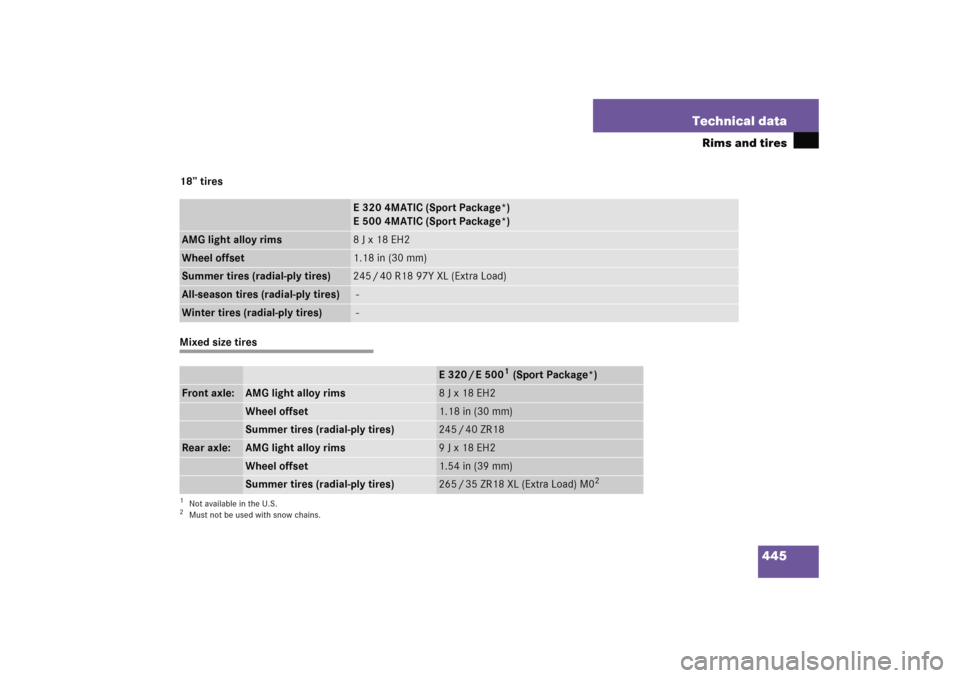

18’’ tiresMixed size tires
E3204MATIC (Sport Package*)
E5004MATIC (Sport Package*)
AMG light alloy rims
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
Summer tires (radial-ply tires)
245 / 40 R18 97Y XL (Extra Load)
All-season tires (radial-ply tires)
-
Winter tires (radial-ply tires)
-
E 320 / E 500
1 (Sport Package*)
1Not available in the U.S.Front axle:
AMG light alloy rims
8 J x 18 EH2
Wheel offset
1.18 in (30 mm)
Summer tires (radial-ply tires)
245 / 40 ZR18
Rear axle:
AMG light alloy rims
9 J x 18 EH2
Wheel offset
1.54 in (39 mm)
Summer tires (radial-ply tires)
265 / 35 ZR18 XL (Extra Load) M0
2
2Must not be used with snow chains.

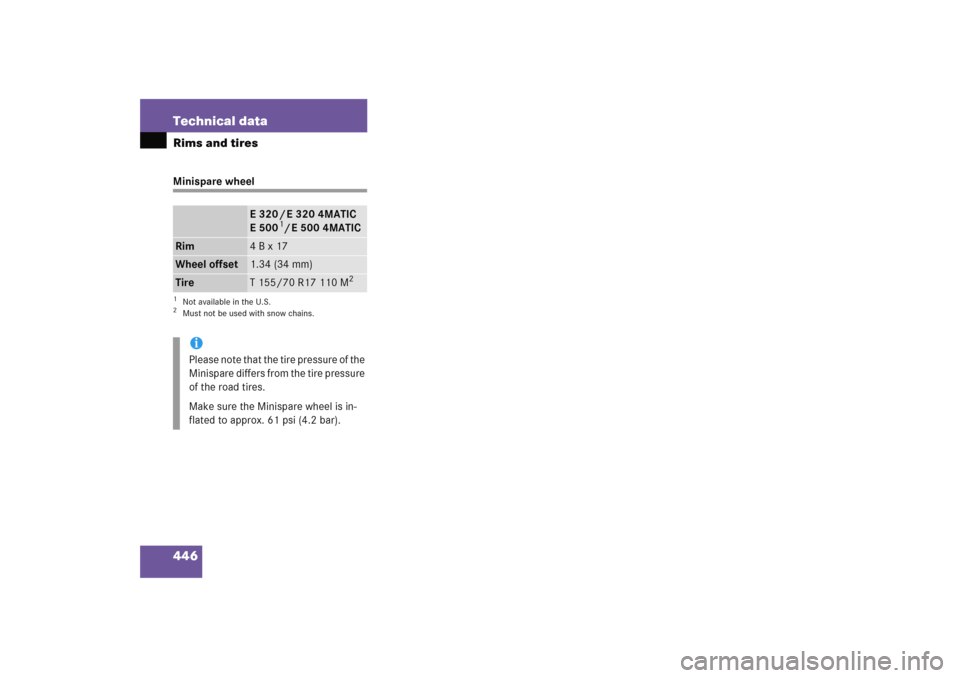

446 Technical dataRims and tiresMinispare wheel
E320/E3204MATIC
E500
1/ E 500 4MATIC
1Not available in the U.S.Rim
4 B x 17
Wheel offset
1.34 (34 mm)
Tire
T 155/70 R17 110 M
2
2Must not be used with snow chains.iPlease note that the tire pressure of the
Minispare differs from the tire pressure
of the road tires.
Make sure the Minispare wheel is in-
flated to approx. 61 psi (4.2 bar).

447 Technical data

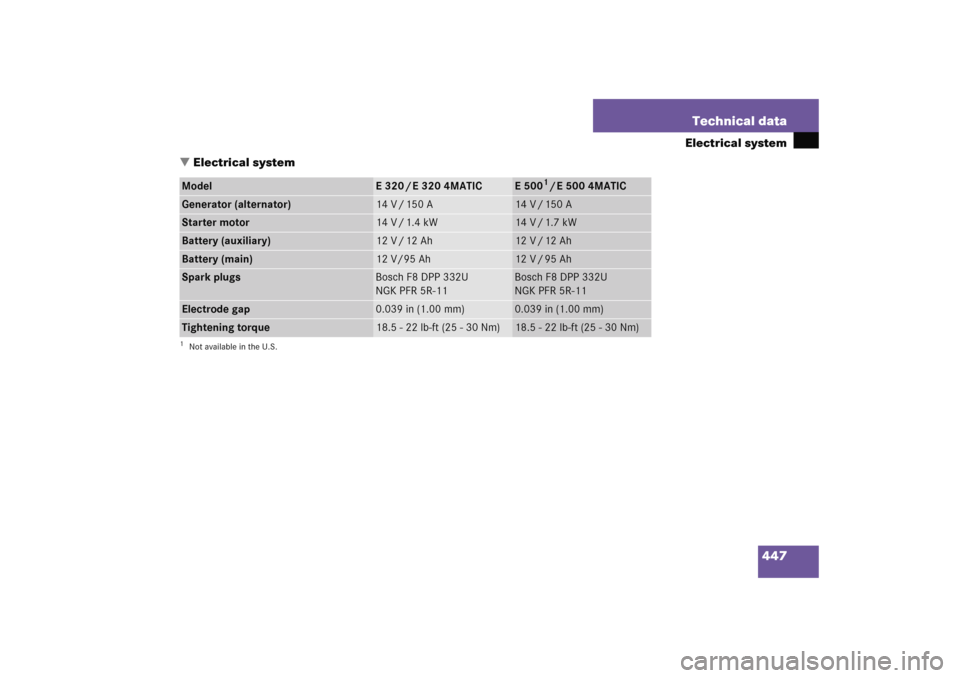

Electrical system
Electrical system
Model
E320/E3204MATIC
E 500
1/E 500 4MATIC
1Not available in the U.S.Generator (alternator)
14 V / 150 A
14 V / 150 A
Starter motor
14 V / 1.4 kW
14 V / 1.7 kW
Battery (auxiliary)
12 V / 12 Ah
12 V / 12 Ah
Battery (main)
12 V/95 Ah
12 V / 95 Ah
Spark plugs
Bosch F8 DPP 332U
NGK PFR 5R-11
Bosch F8 DPP 332U
NGK PFR 5R-11
Electrode gap
0.039 in (1.00 mm)
0.039 in (1.00 mm)
Tightening torque
18.5 - 22 lb-ft (25 - 30 Nm)
18.5 - 22 lb-ft (25 - 30 Nm)

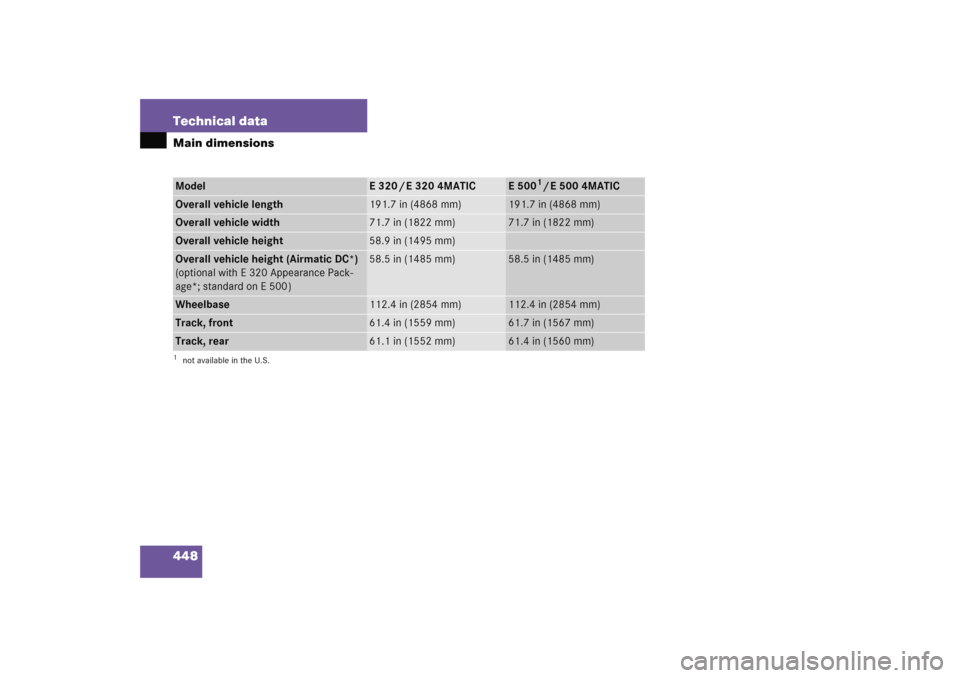

448 Technical dataMain dimensionsModel
E 320 / E 320 4MATIC
E500
1/E 500 4MATIC
1not available in the U.S.Overall vehicle length
191.7 in (4868 mm)
191.7 in (4868 mm)
Overall vehicle width
71.7 in (1822 mm)
71.7 in (1822 mm)
Overall vehicle height
58.9 in (1495 mm)
Overall vehicle height (Airmatic DC*)
(optional with E 320 Appearance Pack-
age*; standard on E 500 )
58.5 in (1485 mm)
58.5 in (1485 mm)
Wheelbase
112.4 in (2854 mm)
112.4 in (2854 mm)
Track, front
61.4 in (1559 mm)
61.7 in (1567 mm)
Track, rear
61.1 in (1552 mm)
61.4 in (1560 mm)

449 Technical data
Weights
Weights

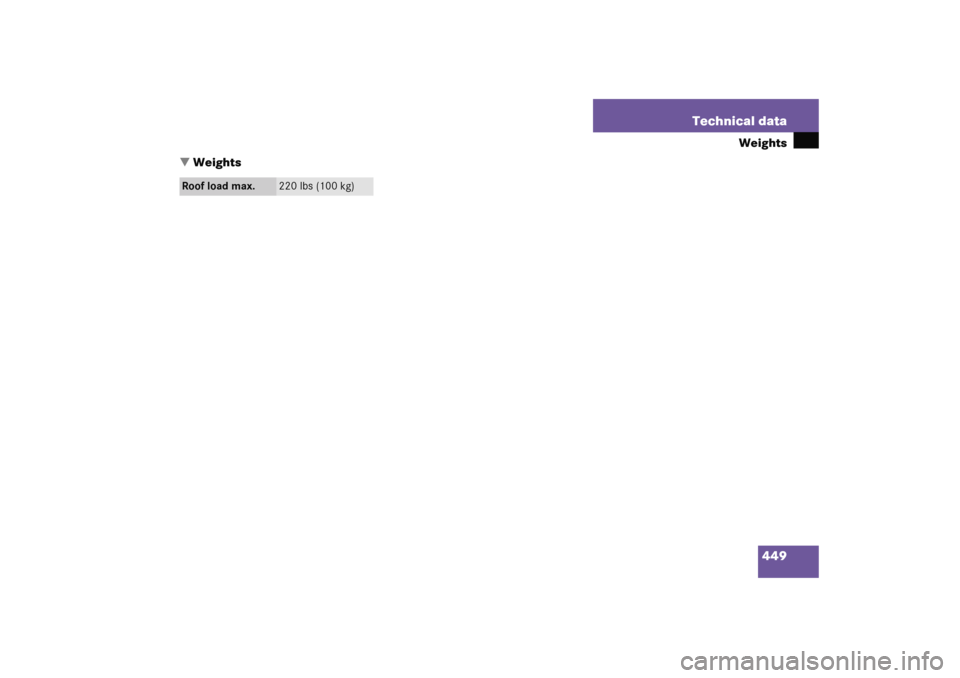

Roof load max.
220 lbs (100 kg)
