Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle
outside the USA or Canada ............ 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
Vehicle data recording......................... 19
Information regarding electronic
recording devices........................... 19
At a glance.......................................... 21
Cockpit ................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 26
Center console ..................................... 27
Upper part ...................................... 27
Lower part ...................................... 28
Overhead control panel ........................ 29
Door control panel................................ 30
Getting started................................... 31
Unlocking ............................................. 32
Unlocking with the SmartKey ......... 32
Unlocking with KEYLESS-GO*......... 33
Starter switch positions .................. 34
Adjusting .............................................. 38
Seats .............................................. 38
Steering wheel ................................ 40
Mirrors ............................................ 41
Driving .................................................. 44
Fastening the seat belts ................. 44
Starting the engine ......................... 47
Switching on headlamps ................. 51
Turn signals .................................... 51
Windshield wipers ........................... 52
Rear window wiper / washer ........... 54
Problems while driving.................... 55
Parking and locking .............................. 56
Parking brake ................................. 56
Switching off headlamps................. 57
Turning off engine ........................... 57
Page 5 of 491
ContentsSafety and Security........................... 61
Occupant safety................................... 62
Air bags .......................................... 63
Seat belts ....................................... 69
Children in the vehicle .................... 73
Blocking of rear door
window operation ........................... 84
Panic alarm .......................................... 86
Activating ....................................... 86
Deactivating ................................... 86
Driving safety systems ......................... 87
ABS ................................................ 87
BAS ................................................ 89
ESP ................................................. 89
SBC brake system .......................... 92
Four wheel electronic traction
system (4MATIC) with the ESP ....... 95
Anti-theft systems................................ 97
Immobilizer..................................... 97
Anti-theft alarm system .................. 98
Tow-away alarm ............................. 99
Controls in detail............................. 101
Locking and unlocking ....................... 102
SmartKey ..................................... 102
SmartKey with KEYLESS-GO* ...... 107
Opening the doors from the inside 114
Opening the tailgate ..................... 115
Closing the tailgate ...................... 117
Automatic central locking ............ 122
Locking and unlocking from the
inside ........................................... 122
Seats ................................................. 124
Easy-entry / exit feature ............... 124
Removing and installing front
seat head restraints ..................... 126
Rear seat head restraints ............. 127
Drive - Dynamic seat* with
multicontour features................... 130
Seat heating* ............................... 132
Seat ventilation* .......................... 133
Folding bench seat in cargo
compartment ............................... 134Memory function ............................... 138
Storing positions in memory ........ 139
Recalling positions from memory . 139
Storing exterior rear view mirror
parking position ........................... 140
Lighting ............................................. 141
Exterior lamp switch .................... 141
Combination switch ..................... 145
Hazard warning flasher ................ 146
Interior lighting ............................ 147
Door entry lamps ......................... 149
Interior lighting in the rear ........... 149
Instrument cluster ............................. 150
Instrument cluster illumination .... 150
Coolant temperature indicator ..... 151
Trip odometer .............................. 151
Tachometer .................................. 152
Outside temperature indicator ..... 152
Page 9 of 491
ContentsTechnical data.................................. 437
Parts service ...................................... 438
Warranty coverage ............................. 439
Loss of Service and Warranty
Information Booklet...................... 439
Identification labels............................ 440
Layout of poly-V-belt drive ................. 441
E 320 / E 500 ............................... 441
Engine ................................................ 442
Rims and tires .................................... 443
Same size tires ............................. 444
Mixed size tires ............................ 445
Minispare wheel ........................... 446
Electrical system................................ 447
Main dimensions................................ 448
Weights .............................................. 449Fuels, coolants, lubricants etc. .......... 450
Capacities .................................... 450
Engine oils.................................... 453
Engine oil additives ...................... 453
Air conditioning refrigerant .......... 453
Brake fluid .................................... 453
Premium unleaded gasoline ......... 454
Gasoline additives ........................ 454
Fuel requirements ........................ 455
Coolants....................................... 455
Windshield and headlamp washer
system ......................................... 458
Technical terms............................... 459Index................................................. 465
Page 26 of 491
25 At a glance

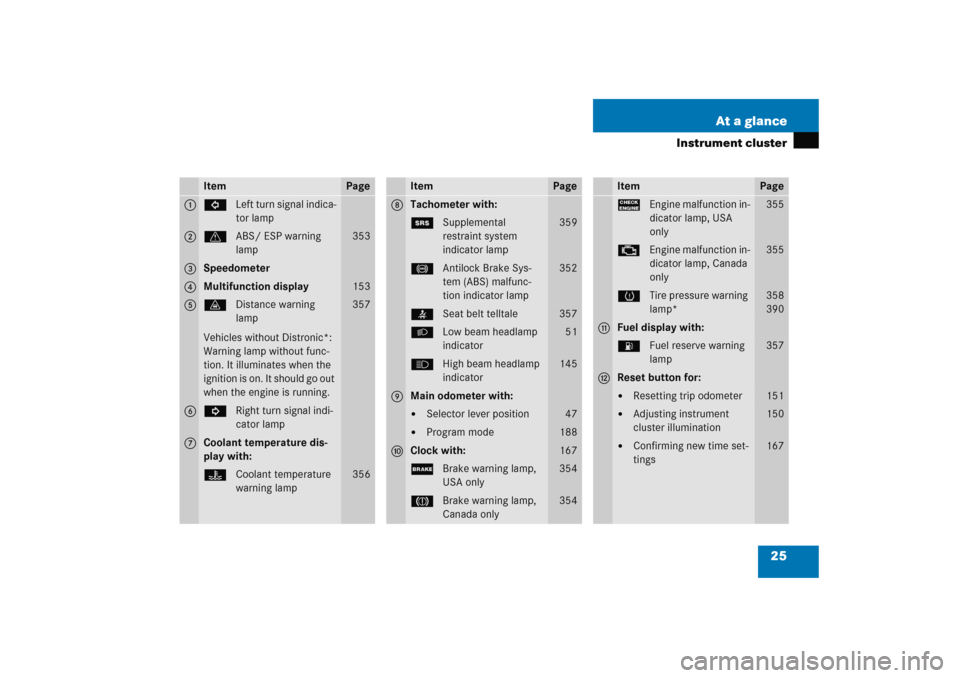

Instrument cluster
Item
Page
1
LLeft turn signal indica-
tor lamp
2
vABS/ ESP warning
lamp
353
3
Speedometer
4
Multifunction display
153
5
lDistance warning
lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates when the
ignition is on. It should go out
when the engine is running.
357
6
KRight turn signal indi-
cator lamp
7
Coolant temperature dis-
play with:•Coolant temperature
warning lamp
356
Item
Page
8
Tachometer with:1Supplemental
restraint system
indicator lamp
359
-Antilock Brake Sys-
tem (ABS) malfunc-
tion indicator lamp
352
BLow beam headlamp
indicator
51
AHigh beam headlamp
indicator
145
9
Main odometer with:
Selector lever position
47
Program mode
188
a
Clock with:
167
;Brake warning lamp,
USA only
354
3Brake warning lamp,
Canada only
354
Item
Page
?Engine malfunction in-
dicator lamp, USA
only
355
±Engine malfunction in-
dicator lamp, Canada
only
355
HTire pressure warning
lamp*
358
390
b
Fuel display with:AFuel reserve warning
lamp
357
c
Reset button for:
Resetting trip odometer
151
Adjusting instrument
cluster illumination
150
Confirming new time set-
tings
167
Page 39 of 491

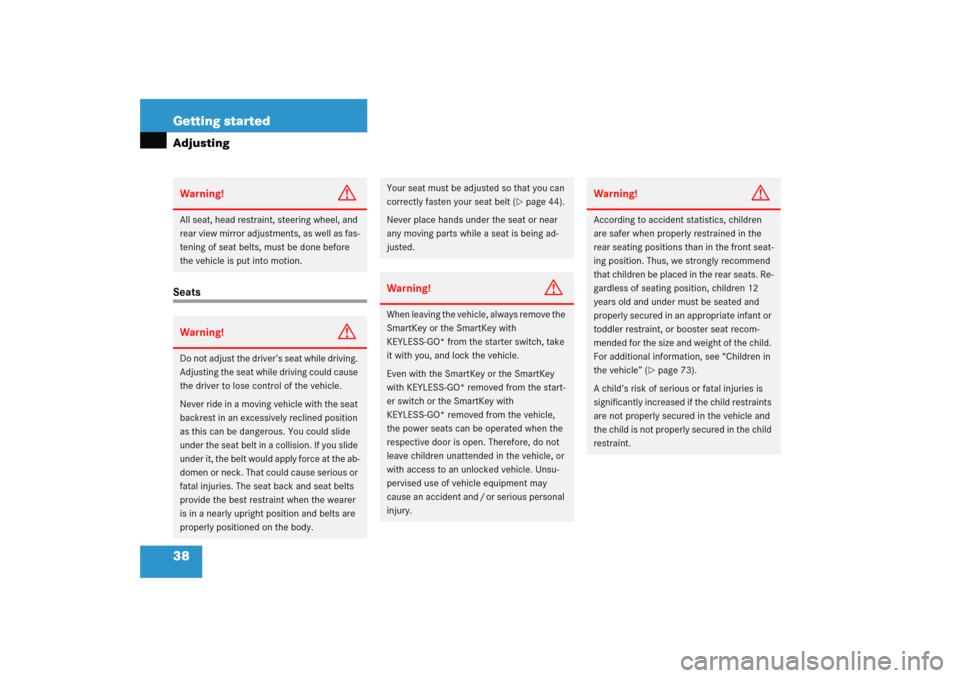

38 Getting startedAdjustingSeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat back and seat belts
provide the best restraint when the wearer
is in a nearly upright position and belts are
properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 44).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle.
Even with the SmartKey or the SmartKey
with KEYLESS-GO* removed from the start-
er switch or the SmartKey with
KEYLESS-GO* removed from the vehicle,
the power seats can be operated when the
respective door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and / or serious personal
injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats. Re-
gardless of seating position, children 12
years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 73).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Page 45 of 491

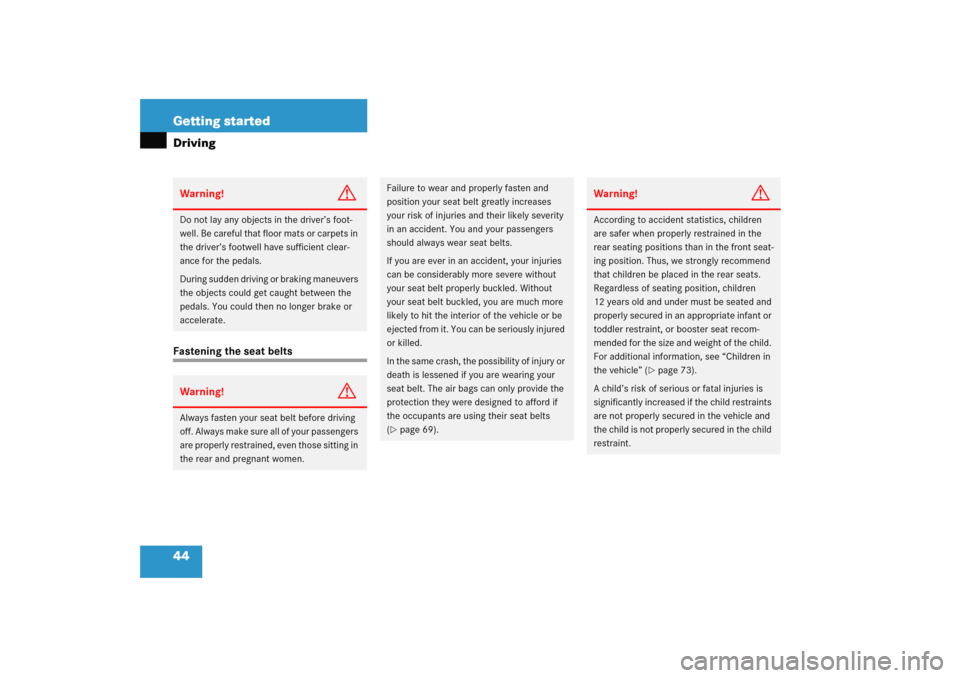

44 Getting startedDrivingFastening the seat beltsWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, even those sitting in
the rear and pregnant women.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely severity
in an accident. You and your passengers
should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 69).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 73).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Page 46 of 491
45 Getting started
Driving

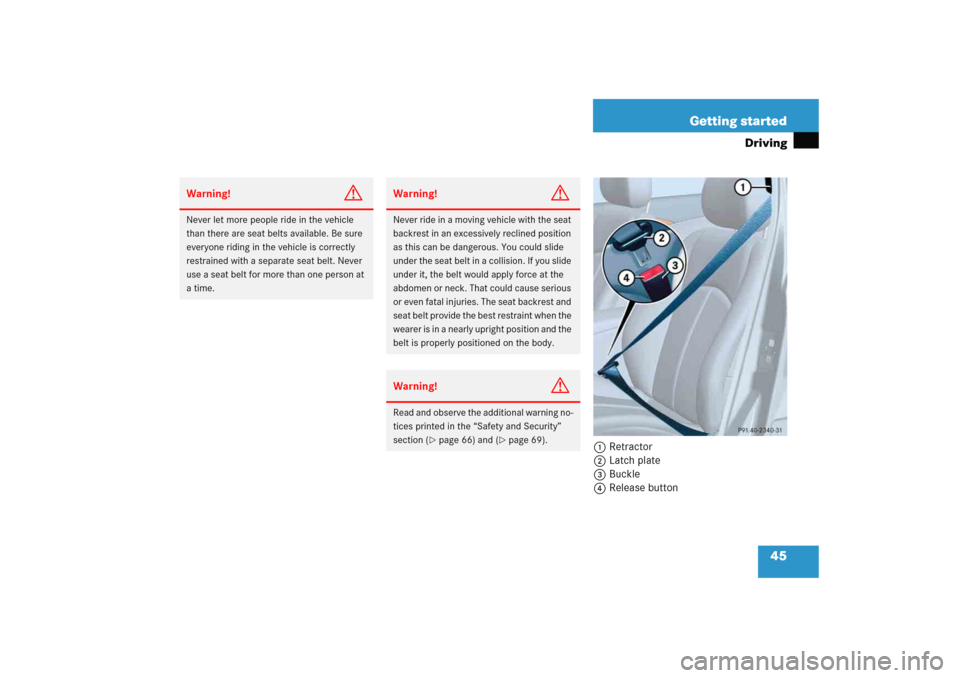

1Retractor
2Latch plate
3Buckle
4Release button
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 66) and (
page 69).
Page 47 of 491
46 Getting startedDriving
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate2 into buckle3 until
it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.
Belt outlet height adjustment
1Release button
Press release button1 and move the
seat belt height adjuster upward or
downward.Proper use of seat belts
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly
upright position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer's instructions.
Check your seat belt periodically
during travel to make sure that it is
properly positioned.
Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing. Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Page 58 of 491
57 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch toM
(page 51).
For more information, see the “Controls in
detail” section (
page 141).
Turning off engine
Place the gear selector lever in
positionP.Turning off with the SmartKey
Turn the SmartKey in the starter switch
(page 34) to position0 and remove
it.
The immobilizer is activated.
Press the seat belt release button
(page 45).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP.
When parked on an incline, turn front wheels
towards the road curb.
iAlways set the parking brake in addi-
tion to shifting to positionP.
On slopes, turn the front wheels to-
wards the road curb.
iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in positionP.
Page 60 of 491
59 Getting started
Parking and locking
Turning off with KEYLESS-GO*
Place the gear selector lever inP.
Press the KEYLESS-GO start/stop but-
ton to shut off the engine.
With the driver's door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(page 34).
Press the seat belt release button
(page 45).
Allow the retractor to completely re-
wind the seat belt by guiding the latch
plate.
!If you hear a warning signal, you have
either
forgotten to switch off the vehicle’s
exterior lamps before opening the
driver’s door,
or
tried to turn off the engine while the
gear selector lever is not inP.
Turn off the lights or place the gear se-
lector lever inP.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the door
openings when closing the doors. Be espe-
cially careful when small children are
around.
Before closing doors, make sure that there
is no possibility of someone getting caught
in a door during closing.
