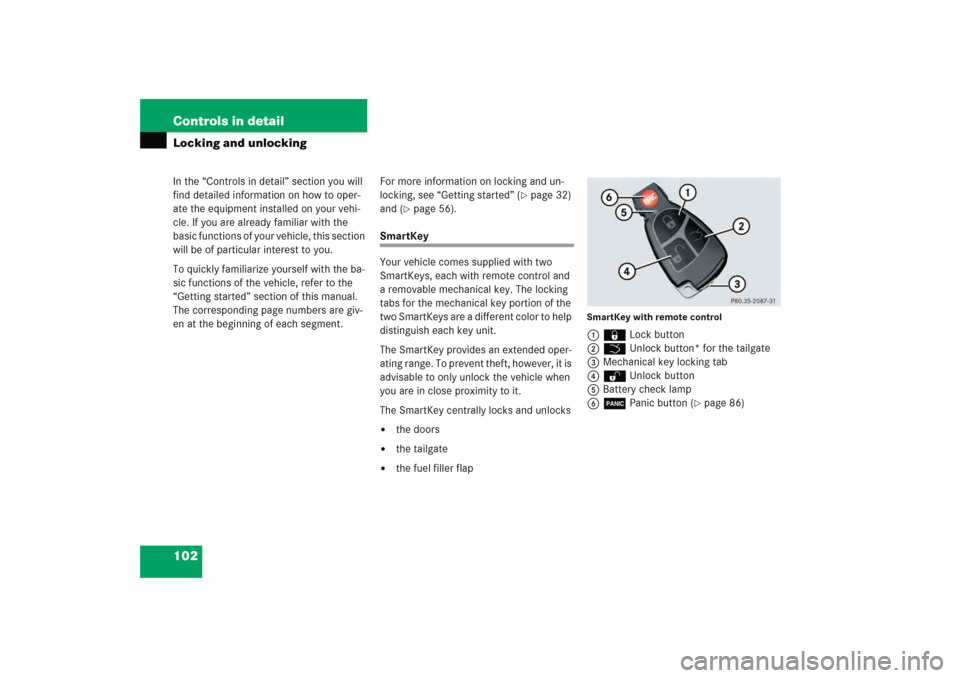

102 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are giv-
en at the beginning of each segment.Locking and unlocking
For more information on locking and un-
locking, see “Getting started” (
page 32)
and (
page 56).
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key. The locking
tabs for the mechanical key portion of the
two SmartKeys are a different color to help
distinguish each key unit.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks

the doors


the tailgate


the fuel filler flap
SmartKey with remote control1‹ Lock button
2Š Unlock button* for the tailgate
3Mechanical key locking tab
4ΠUnlock button
5Battery check lamp
6Â Panic button (
page 86)

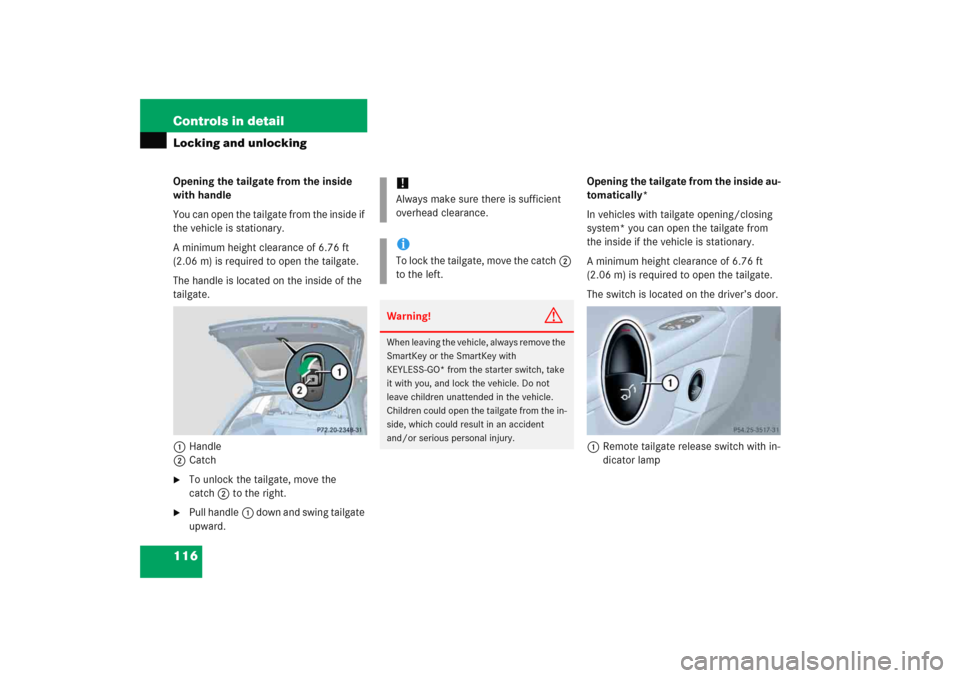

116 Controls in detailLocking and unlockingOpening the tailgate from the inside
with handle
You can open the tailgate from the inside if
the vehicle is stationary.
A minimum height clearance of 6.76 ft
(2.06 m) is required to open the tailgate.
The handle is located on the inside of the
tailgate.
1Handle
2Catch
To unlock the tailgate, move the
catch2 to the right.

Pull handle1 down and swing tailgate
upward.Opening the tailgate from the inside au-
tomatically*
In vehicles with tailgate opening/closing
system* you can open the tailgate from
the inside if the vehicle is stationary.
A minimum height clearance of 6.76 ft
(2.06 m) is required to open the tailgate.
The switch is located on the driver’s door.
1Remote tailgate release switch with in-
dicator lamp
!Always make sure there is sufficient
overhead clearance.iTo lock the tailgate, move the catch2
to the left.Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle.
Children could open the tailgate from the in-
side, which could result in an accident
and/or serious personal injury.

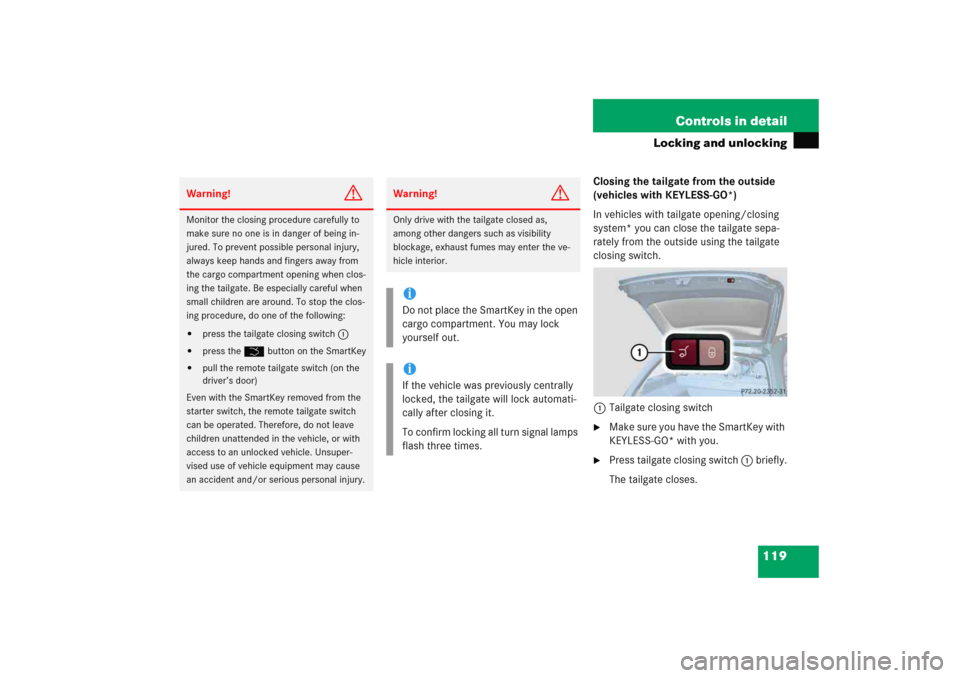

119 Controls in detail
Locking and unlocking
Closing the tailgate from the outside
(vehicles with KEYLESS-GO*)
In vehicles with tailgate opening/closing
system* you can close the tailgate sepa-
rately from the outside using the tailgate
closing switch.
1Tailgate closing switch
Make sure you have the SmartKey with
KEYLESS-GO* with you.

Press tailgate closing switch 1 briefly.
The tailgate closes.
Warning!
G
Monitor the closing procedure carefully to
make sure no one is in danger of being in-
jured. To prevent possible personal injury,
always keep hands and fingers away from
the cargo compartment opening when clos-
ing the tailgate. Be especially careful when
small children are around. To stop the clos-
ing procedure, do one of the following:

press the tailgate closing switch1


press the Š button on the SmartKey


pull the remote tailgate switch (on the
driver’s door)
Even with the SmartKey removed from the
starter switch, the remote tailgate switch
can be operated. Therefore, do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
Warning!
G
Only drive with the tailgate closed as,
among other dangers such as visibility
blockage, exhaust fumes may enter the ve-
hicle interior.iDo not place the SmartKey in the open
cargo compartment. You may lock
yourself out.iIf the vehicle was previously centrally
locked, the tailgate will lock automati-
cally after closing it.
To confirm locking all turn signal lamps
flash three times.

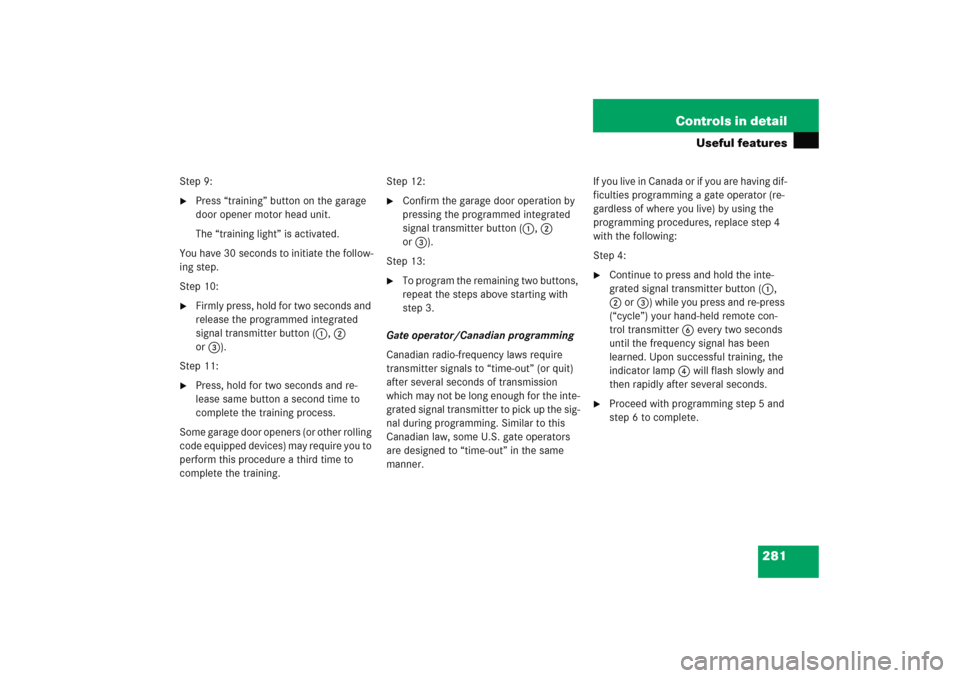

281 Controls in detail
Useful features
Step 9:
Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.
You have 30 seconds to initiate the follow-
ing step.
Step 10:

Firmly press, hold for two seconds and
release the programmed integrated
signal transmitter button (1, 2
or3).
Step 11:

Press, hold for two seconds and re-
lease same button a second time to
complete the training process.
Some garage door openers (or other rolling
code equipped devices) may require you to
perform this procedure a third time to
complete the training.Step 12:

Confirm the garage door operation by
pressing the programmed integrated
signal transmitter button (1, 2
or3).
Step 13:

To program the remaining two buttons,
repeat the steps above starting with
step 3.
Gate operator/Canadian programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
which may not be long enough for the inte-
grated signal transmitter to pick up the sig-
nal during programming. Similar to this
Canadian law, some U.S. gate operators
are designed to “time-out” in the same
manner. If you live in Canada or if you are having dif-
ficulties programming a gate operator (re-
gardless of where you live) by using the
programming procedures, replace step 4
with the following:
Step 4:

Continue to press and hold the inte-
grated signal transmitter button (1,
2 or3) while you press and re-press
(“cycle”) your hand-held remote con-
trol transmitter6 every two seconds
until the frequency signal has been
learned. Upon successful training, the
indicator lamp4 will flash slowly and
then rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.

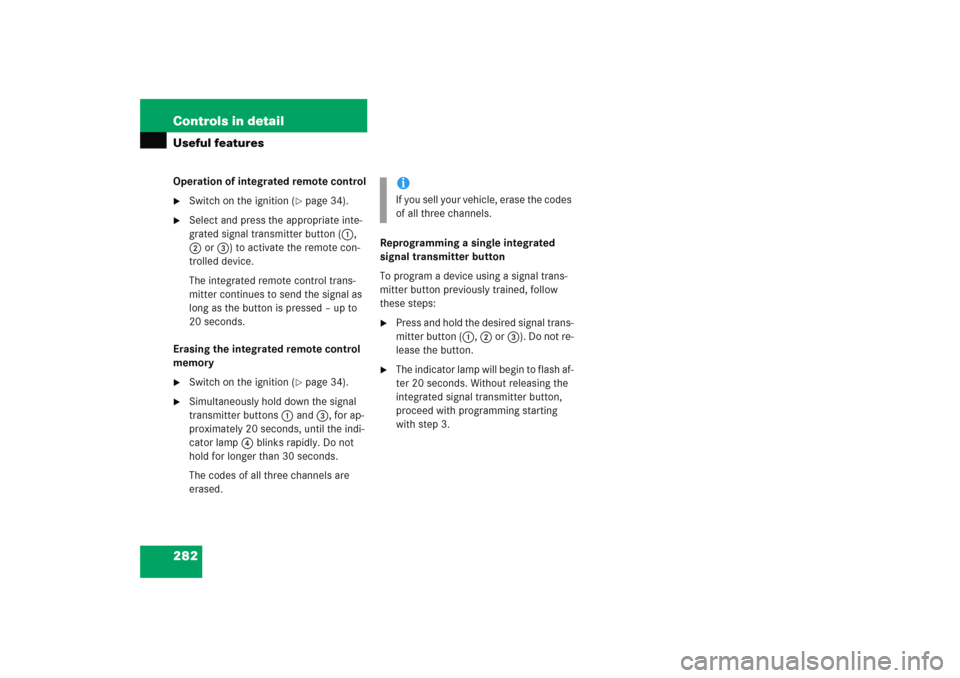

282 Controls in detailUseful featuresOperation of integrated remote control
Switch on the ignition (
page 34).

Select and press the appropriate inte-
grated signal transmitter button (1,
2 or3) to activate the remote con-
trolled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the integrated remote control
memory

Switch on the ignition (
page 34).

Simultaneously hold down the signal
transmitter buttons1 and 3, for ap-
proximately 20 seconds, until the indi-
cator lamp4 blinks rapidly. Do not
hold for longer than 30 seconds.
The codes of all three channels are
erased.Reprogramming a single integrated
signal transmitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:

Press and hold the desired signal trans-
mitter button (1, 2 or3). Do not re-
lease the button.

The indicator lamp will begin to flash af-
ter 20 seconds. Without releasing the
integrated signal transmitter button,
proceed with programming starting
with step 3.iIf you sell your vehicle, erase the codes
of all three channels.

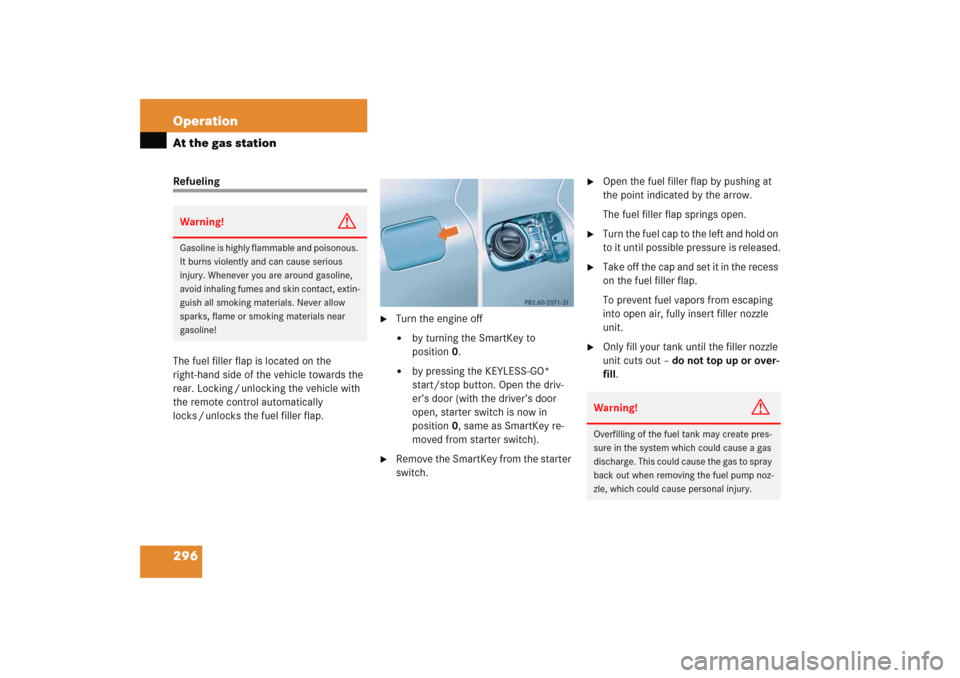

296 OperationAt the gas stationRefueling
The fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking / unlocking the vehicle with
the remote control automatically
locks / unlocks the fuel filler flap.

Turn the engine off

by turning the SmartKey to
position0.


by pressing the KEYLESS-GO*
start/stop button. Open the driv-
er’s door (with the driver’s door
open, starter switch is now in
position0, same as SmartKey re-
moved from starter switch).

Remove the SmartKey from the starter
switch.

Open the fuel filler flap by pushing at
the point indicated by the arrow.
The fuel filler flap springs open.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in the recess
on the fuel filler flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or over-
fill.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Whenever you are around gasoline,
avoid inhaling fumes and skin contact, extin-
guish all smoking materials. Never allow
sparks, flame or smoking materials near
gasoline!
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.

471 Index
Doors
Message in display 381
Opening from inside vehicle 114
Opening from outside 110
DOT 333, 460
Downhill driving
Cruise control 229
Downshifting 185
Drive-dynamic seat* with multicontour
features 130
Driving
General instructions 44
Hydroplaning 289
In winter 291
Problems 55
Safety systems 87
With Distronic* 241
Driving hints
SBC brake system 95
Driving instructions 285
Driving off 288
Driving safety systems
4MATIC 95
ABS 87
BAS 89
ESP 89, 460SBC brake system 92
Driving systems 228
Airmatic DC* 244
Cruise control 228
Distronic* 232
Driving safety systems 87
Vehicle level control 245
DTR see Distronic* 460
Dual control*
Airmatic DC* 244
Dual-zone automatic climate control 196
E
Easy-entry/exit
Message in display 376
Easy-entry/exit feature* 124
Activating 175
Interrupting movement 124, 175
Electrical fuses 434
Electrical system 447
Electronic Stability Program see ESP 89,
460
Emergency call system* 270
Emergency calls
Initiating an emergency call 272
With Tele Aid* 271Emergency operation (Limp Home
Mode) 190
Emergency operations
Opening/closing Sliding/pop-up
roof* 407
Remote door unlock 276
Unlocking the vehicle 404
Emergency tensioning device see
ETD 72, 460
Emission control 294
Ending
A call (telephone) 181
Engine 442
Compartment 299
Message in the display 355, 378
Starting 47
Starting with KEYLESS-GO* 48, 54
Starting with the SmartKey 47
Turning off the engine with the
SmartKey 57
Engine compartment
Hood 299
Engine malfunction indicator lamp 355,
378
Engine number 460

474 IndexI
Identification labels 440
Ignition 34, 36
Switching on 47, 48, 54
Immobilizer 97
Activating 97
Deactivating 97
Indicator lamps see Lamps, indicator and
warning
Infant and child restraint systems 73
Installing 82
LATCH child seat anchors 83
Information
About service and warranty 10
Button for Tele Aid* 274
Inserting the cargo tie-down ring in the
mounting element 253
Inserting the mounting elements into the
cargo rails 252
Inside rear view mirror
Antiglare 191
Installing
Infant and child restraint systems 82
Towing eye bolt 433
Wiper blades 417
Installing the storage box 256Instrument cluster 24, 150, 349, 461
Coolant
Temperature indicator 151
Illumination 150
Multifunction display 153
Outside temperature indicator 152
Selecting language 166
Integrated remote control
Canadian programming 281
Erasing memory 282
Gate operator 281
Hand-held transmitter 279
Operation 282
Rolling code programming 280
Interior lighting 147
Activating automatic control 147
Deactivating automatic control 147
Delayed switch-off 173
Manual operation 148
Interior lighting in the rear 149
Interior rear view mirror
Adjusting 42
Interior storage spaces
Glove box 259J
Jack 402
Jump starting 428
K
Key, Mechanical 404
Key, SmartKey
Changing the batteries 408, 409
Key, SmartKey with KEYLESS-GO*
Changing the batteries 408, 409
KEYLESS-GO* 461
Activating ignition with 36
Closing
Tailgate 119, 121
Factory setting 110
Global locking 110
Global unlocking 110
Important notes 108
Locking the vehicle 113
Opening the tailgate 112
Remote control 107
Starting the engine 48, 54
Turning off engine 59
Unlocking the tailgate 112
Unlocking with 33
Kickdown 189, 461
Kilometers/miles in speedometer 165

482 IndexSettings
Calling up Distronic* 160, 235
Convenience functions 175
Factory, KEYLESS-GO* 110
Factory, SmartKey 104
Individual 176
Lighting (control system) 170
Menus and submenus 155
Resetting all (control system) 162
Resetting in the submenu 163
Selective 104, 111
Settings menu
Functions in 162
Individual vehicle settings 162
Submenus 163
Shift lock 463
Shifting
Gear selector lever positions 187
Into optimal gear range (automatic
transmission) 185
Side impact airbags 68
Side marker lamps 411, 415
Side windows
Automatic opening 222
Cleaning 348
Closing 221, 222Opening 221
Opening fully (Express-open) 222
Stopping 223
Synchronizing power windows 223
Sidewall 334
Simultaneous wiping and washing
Windshield wipers 53
Single wipe 53
Sliding/pop-up roof*
Emergency operations 407
SmartKey 102
Battery check lamp 104, 111
Checking the batteries 106
Factory setting 104
Global locking 104
Global unlocking 104
Locking and unlocking 102
Loss of 106
positions in starter switch 34
Remote controls 102, 107
Restoring to factory setting 105
Selective setting 104, 111
Starting the engine 47
Turning off the engine 57
Unlocking with 32SmartKey with KEYLESS-GO* 107
Checking the batteries 112
Global locking and unlocking 110
Loss of 114
Messages in display 384
Remote control 107
Restoring to factory setting 111
Turning off the engine 59
Unlocking with 33
SmartKey-dependency memory
Settings 176
Snow chains 338
Spare fuses 434
Spare wheel 402
Speed
Saving current 229
Speed settings
Cruise control 231
Distronic* 237, 238
Speedometer
Displays 234
Settings units 165
Speedometer display mode
Selecting 165
Split rear bench seat* 247
Sporty driving style 244
