MERCEDES-BENZ E WAGON 2006 S211 Owner's Guide

20

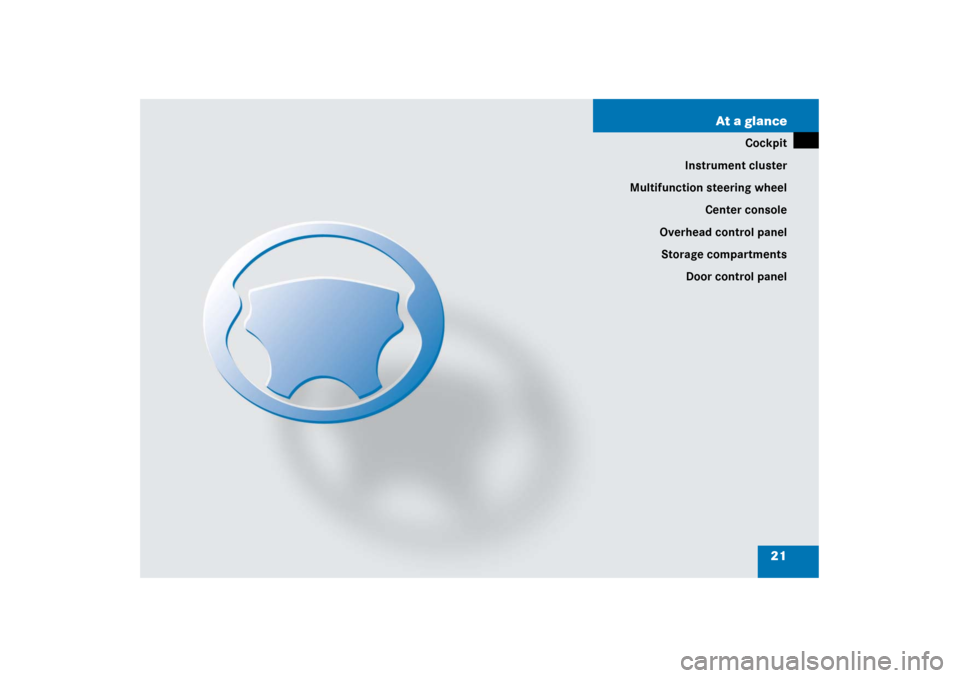

21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Storage compartments
Door control panel

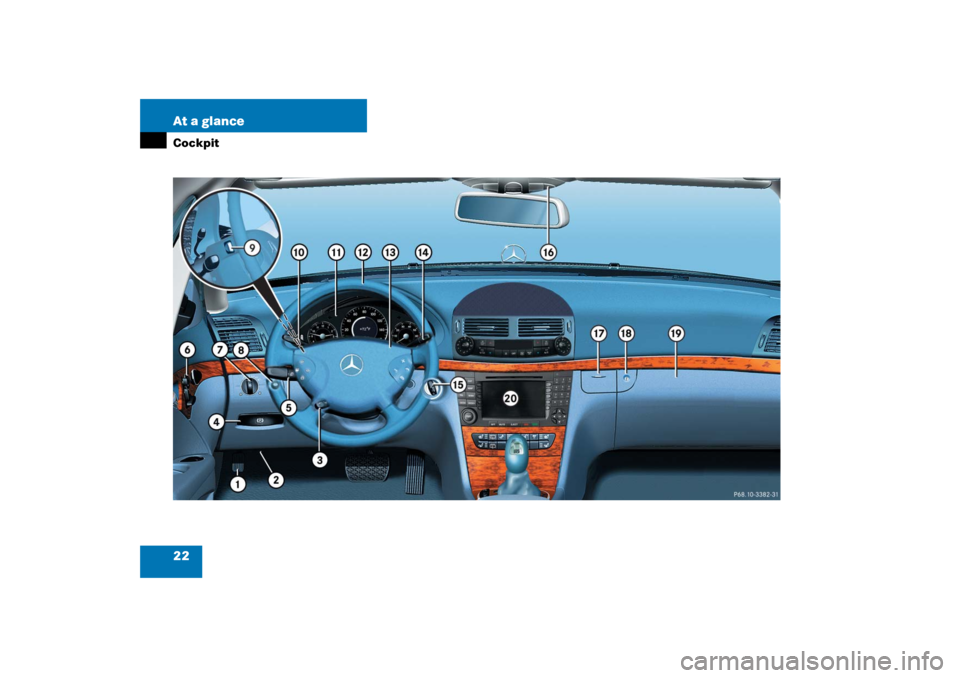

22 At a glanceCockpit

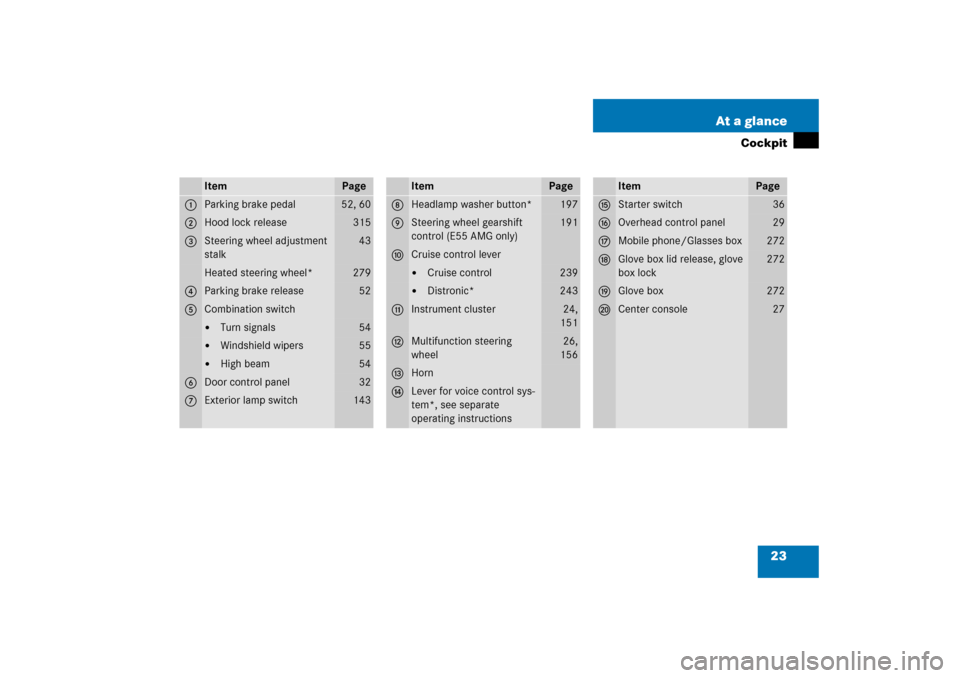

23 At a glance
Cockpit
Item
Page
1
Parking brake pedal
52, 60
2
Hood lock release
315
3
Steering wheel adjustment
stalk
43
Heated steering wheel*
279
4
Parking brake release
52
5
Combination switch

Turn signals
54


Windshield wipers
55


High beam
54
6
Door control panel
32
7
Exterior lamp switch
143
Item
Page
8
Headlamp washer button*
197
9
Steering wheel gearshift
control (E55 AMG only)
191
a
Cruise control lever

Cruise control
239


Distronic*
243
b
Instrument cluster
24,
151
c
Multifunction steering
wheel
26,
156
d
Horn
e
Lever for voice control sys-
tem*, see separate
operating instructions
Item
Page
f
Starter switch
36
g
Overhead control panel
29
h
Mobile phone/Glasses box
272
j
Glove box lid release, glove
box lock
272
k
Glove box
272
l
Center console
27

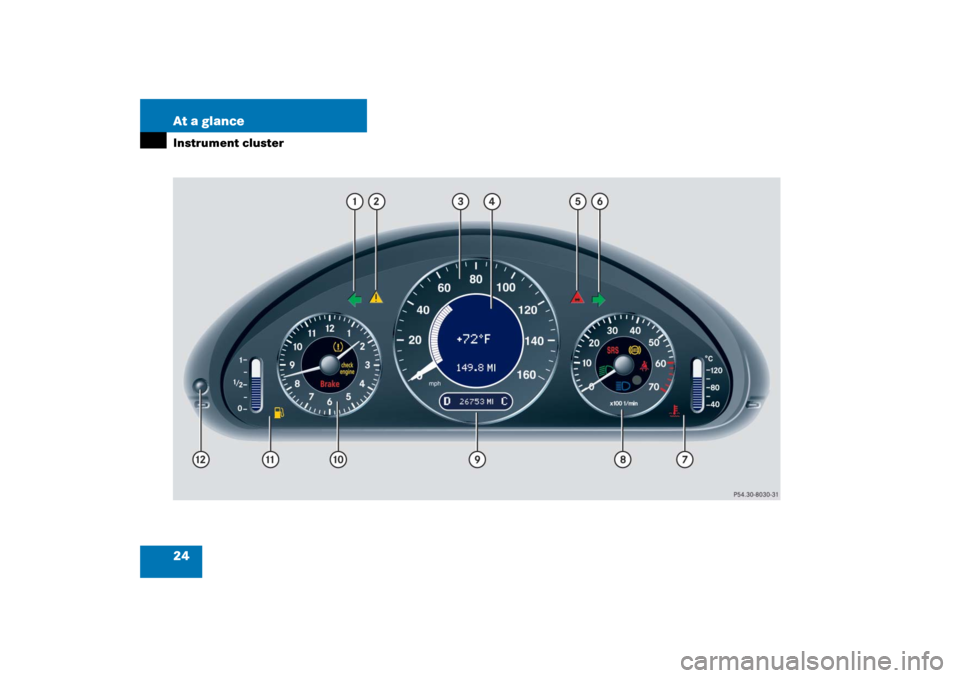

24 At a glanceInstrument cluster

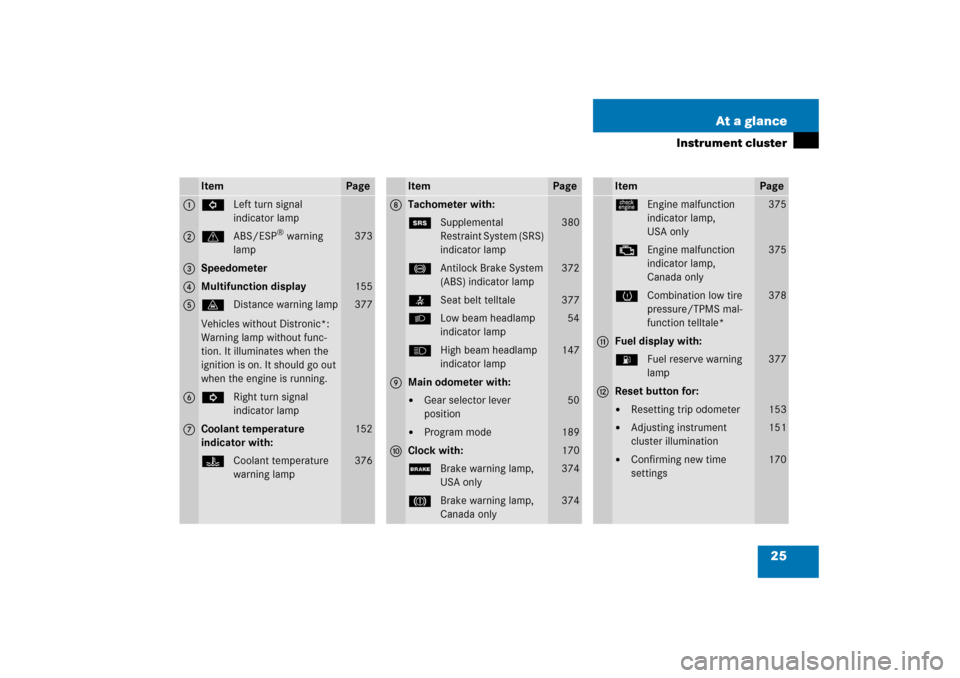

25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal
indicator lamp
2
vABS/ESP
® warning
lamp
373
3
Speedometer
4
Multifunction display
155
5
lDistance warning lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates when the
ignition is on. It should go out
when the engine is running.
377
6
KRight turn signal
indicator lamp
7
Coolant temperature
indicator with:
152
•Coolant temperature
warning lamp
376
Item
Page
8
Tachometer with:1Supplemental
Restraint System (SRS)
indicator lamp
380
-Antilock Brake System
(ABS) indicator lamp
372
377
BLow beam headlamp
indicator lamp
54
AHigh beam headlamp
indicator lamp
147
9
Main odometer with:

Gear selector lever
position
50


Program mode
189
a
Clock with:
170
;Brake warning lamp,
USA only
374
3Brake warning lamp,
Canada only
374
Item
Page
úEngine malfunction
indicator lamp,
USA only
375
±Engine malfunction
indicator lamp,
Canada only
375
HCombination low tire
pressure/TPMS mal-
function telltale*
378
b
Fuel display with:AFuel reserve warning
lamp
377
c
Reset button for:

Resetting trip odometer
153


Adjusting instrument
cluster illumination
151


Confirming new time
settings
170

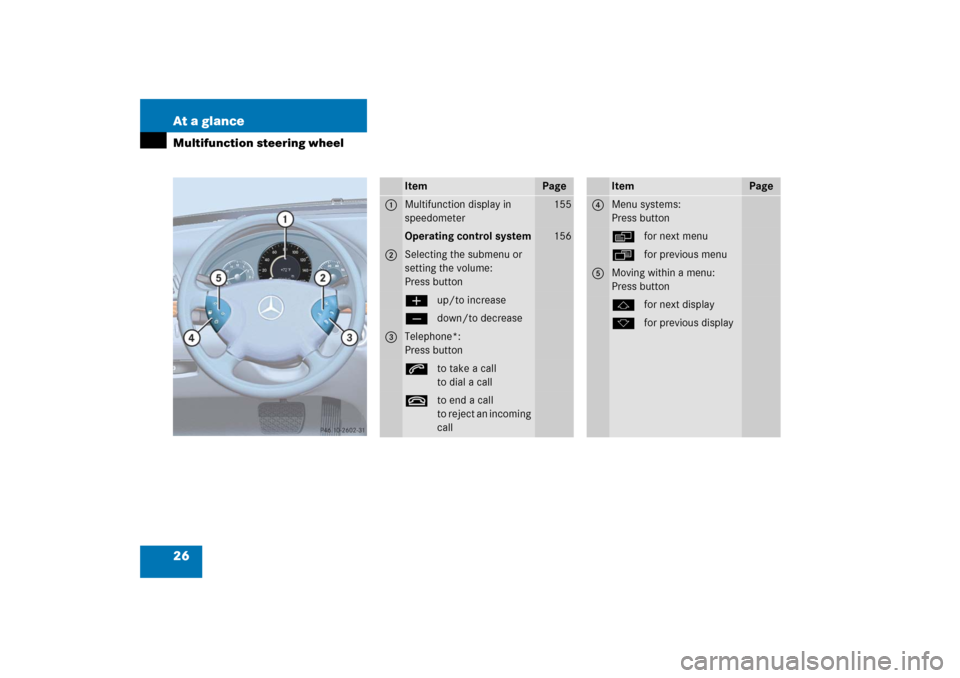

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display in
speedometer
155
Operating control system
156
2
Selecting the submenu or
setting the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a call
to dial a calltto end a call
to reject an incoming
call
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

27 At a glance
Center console
Center console
Upper part
Item
Page
1
Dual-zone automatic
climate control, USA only
202
4-zone automatic climate
control*
214
2
COMAND system, see sepa-
rate operating instructions
3
Seat heating*, front passen-
ger side
135
Seat ventilation*, front pas-
senger side
136
4
Electronic Stability Program
(ESP
®) control switch
95
5
Central locking switch
128
Item
Page
6
Opening/closing button for
storage tray or CD chang-
er*, see separate operating
instructions
272
7
Rear seat head restraints
switch, folding down
129
8
Rear window wiper
57
9
Seat heating*, driver’s side
135
Seat ventilation*, driver’s
side
136
a
Hazard warning flasher
switch
147
b
Front passenger front air
bag off indicator lamp
84

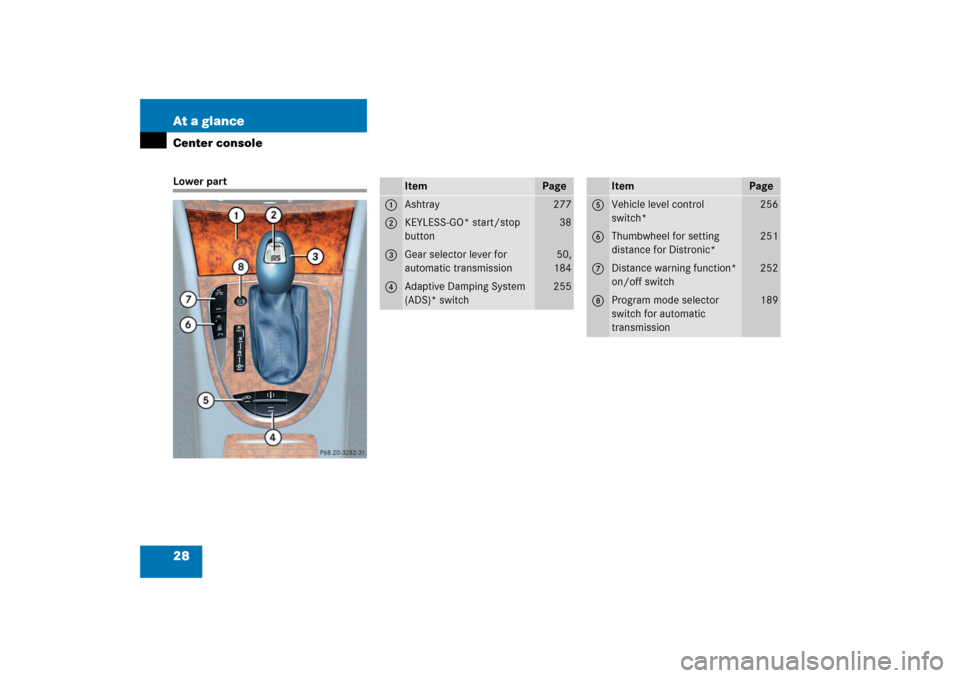

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
277
2
KEYLESS-GO* start/stop
button
38
3
Gear selector lever for
automatic transmission
50,
184
4
Adaptive Damping System
(ADS)* switch
255
Item
Page
5
Vehicle level control
switch*
256
6
Thumbwheel for setting
distance for Distronic*
251
7
Distance warning function*
on/off switch
252
8
Program mode selector
switch for automatic
transmission
189

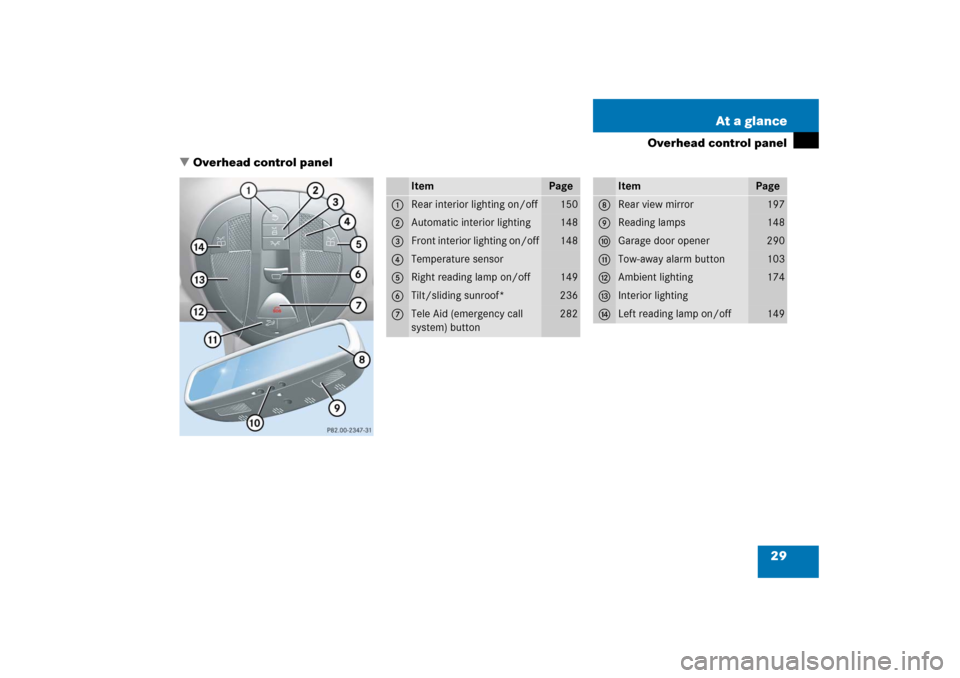

29 At a glance
Overhead control panel
Overhead control panel
Item
Page
1
Rear interior lighting on/off
150
2
Automatic interior lighting
148
3
Front interior lighting on/off
148
4
Temperature sensor
5
Right reading lamp on/off
149
6
Tilt/sliding sunroof*
236
7
Tele Aid (emergency call
system) button
282
Item
Page
8
Rear view mirror
197
9
Reading lamps
148
a
Garage door opener
290
b
Tow-away alarm button
103
c
Ambient lighting
174
d
Interior lighting
e
Left reading lamp on/off
149
