MERCEDES-BENZ E WAGON 2006 S211 Workshop Manual

50 Getting startedDrivingStarting the engine Automatic transmission
Gearshift pattern for automatic
transmissionPPark position with gear selector lever
lock
RReverse gear
NNeutral
DDrive position
For more information, see the “Controls in
detail” section (
page 184). Starting with the SmartKey
For information on turning off the engine
with the SmartKey, see “Turning off en-
gine” (
page 61).

Make sure the gear selector lever is set
to P.

Do not depress the accelerator.

Turn the SmartKey in the starter switch
to position3 and hold until the engine
starts (
page 36).
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and possible death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive only with at least one win-
dow fully open.
iYou can also use the “touch-start”
function. Turn the SmartKey to
position3 and release it again immedi-
ately. The engine then starts automati-
cally.

51 Getting started
Driving
Starting with KEYLESS-GO*
You can start your vehicle without the
SmartKey in the starter switch using the
KEYLESS-GO start/stop button on the
gear selector lever.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 61).
The SmartKey with KEYLESS-GO must be
located in the vehicle.
KEYLESS-GO start/stop button1USA only
2Canada only
Make sure the gear selector lever is set
toP.

Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
The gear selector lever lock is released.

Press KEYLESS-GO start/stop button
once.
The engine starts if the SmartKey with
KEYLESS-GO is in the vehicle.Starting difficulties
If the engine does not start as described,
carry out the following steps:

If you are starting the engine with the
SmartKey, turn SmartKey in starter
switch to position0 and repeat starting
procedure.

If you are starting the engine with
KEYLESS-GO: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO.
Or:
Start the engine with the SmartKey as
radio signals from another source may
be interfering with the SmartKey with
KEYLESS-GO.

Repeat the starting procedure
(page 50). Remember that extended
starting attempts can drain the battery.

Get a jump start (
page 456).
Warning!
G
As long as the SmartKey with KEYLESS-GO
i s i n y o u r v e h i c l e , t h e v e h i c l e c a n b e s t a r t e d .
Therefore, never leave children unattended
in the vehicle, as they could otherwise acci-
dentally start the engine.
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle.

52 Getting startedDrivingIf the engine does not start after several
starting attempts, there could be a mal-
function in the engine electronics or in the
fuel supply system.
Notify an authorized Mercedes-Benz
Center.
Parking brake
1Parking brake pedal
2Release handle

Release the parking brake by pulling on
release handle2.
The warning lamp ; (USA only) or
3 (Canada only) in the instrument
cluster goes out.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
w i t h a c c e s s t o a n u n l o c k e d v e h i c l e . C h i l d r e n
could release the parking brake, which
could result in an accident and/or serious
injury.

53 Getting started
Driving
Driving
Depress the brake pedal.

Move the gear selector lever to
positionDorR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the automat-
ic central locking system engages and the
locking knobs drop down.After a cold start, the automatic transmis-
sion engages at a higher revolution. This al-
lows the catalytic converter to heat up
more quickly to operating temperature.
For more information on driving, see “Driv-
ing instructions” (
page 301).
iWait for the gear selection process to
complete before setting the vehicle in
motion.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
!If you hear a warning signal and the
message
Release parking brake
ap-
pears in the multifunction display when
driving off, you have forgotten to re-
lease the parking brake.
Release the parking brake.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.

54 Getting startedDrivingSwitching on headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Off
2Low beam headlamps on
Turn the exterior lamp switch to
positionB.
The low beam headlamp indicator
lampB in the instrument cluster
comes on (
page 143).High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Push the combination switch in direc-
tion of arrow1.
The high beam headlamp indicator
lampA in the instrument cluster
comes on (
page 24).
For more information on headlamps, see
“Lighting” (
page 143).
Turn signals
The combination switch is located on the
left of the steering column.Combination switch1Turn signals, right
2Turn signals, left
Press the combination switch in direc-
tion of arrow1 or2.
The corresponding turn signal indicator
lamp L or K in the instrument
cluster flashes.

55 Getting started
Driving
The combination switch resets automati-
cally after major steering wheel move-
ments.
Windshield wipers
The combination switch is located on the
left of the steering column.Combination switch1Single wipe
Wiping with windshield washer fluid
2Switching on windshield wipers
Switch on the ignition (
page 36).Switching on windshield wipers

Turn the combination switch to the de-
sired position depending on the inten-
sity of the rain.
0Windshield wipers off
IIntermittent wiping
IINormal wiper speed
IIIFast wiper speed
iTo signal minor directional changes
such as changing lanes, press the com-
bination switch only to point of resis-
tance and release. The corresponding
turn signals will flash three times.
!Do not operate the windshield wipers
when the windshield is dry. Dust that
accumulates on a windshield might
scratch the glass and/or damage the
wiper blades when wiping occurs on a
dry windshield. If it is necessary to op-
erate the windshield wipers in dry
weather conditions, always operate the
windshield wipers with windshield
washer fluid (
page 56).

56 Getting startedDrivingIntermittent wiping
Intermittent wiping interval is dependent
on wetness of windshield.
Turn the combination switch to
positionI.
After the initial wipe, pauses between
wipes are automatically controlled by the
rain sensor.
Single wipe

Press the combination switch briefly in
direction of arrow1 to the resistance
point.
The windshield wipers wipe one time
without washer fluid.Wiping with windshield washer fluid

Push the combination switch in direc-
tion of arrow1 past the resistance
point.
The windshield wipers operate with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system*”
(
page 323).
!Do not leave windshield wipers in
intermittent setting when the vehicle is
taken to an automatic car wash or
during windshield cleaning. Windshield
wipers will operate in the presence of
water sprayed on the windshield, and
windshield wipers may be damaged as
a result.
iIntermittent wiping is interrupted when
the vehicle is at a standstill and a front
door is opened. This protects persons
getting into or out of the vehicle from
being sprayed.
Intermittent wiping will be continued
when

all doors are closed
and


the gear selector lever is in
positionD or R
or


the wiper setting is changed using
the combination switch
iTo prevent smears on the windshield,
wipe with windshield washer fluid every
now and then even when it is raining.

57 Getting started
Driving
Rear window wiper/washer
The button is located on the center con-
sole.
1Intermittent wipe
2Indicator lamp
3Rear window washer system
Switch on the ignition (
page 36)
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.

For safety reasons, stop the vehicle
in a safe location

remove SmartKey from starter
switch
or


turn off the engine by pressing
the KEYLESS-GO* start/stop
button and open the driver’s
door (with the driver’s door
open, starter switch is in
position0, same as with
SmartKey removed from starter
switch)
before attempting to remove any
blockage.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center
iThe rear window wiper engages
automatically if the gear selector lever
is moved to positionR with the
windshield wipers switched on.

58 Getting startedDrivingActivating intermittent wipe
Press upper section1 of the button.
Indicator lamp2 comes on.
Deactivating intermittent wipe

Press upper section1 of the button
again.
Indicator lamp2 goes out.
Wiping with window washer fluid

Press and hold lower half3 of the but-
ton.
The rear window is wiped for a further
5 seconds after the button is released.
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be
operating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an
authorized Mercedes-Benz Center as
soon as possible.
The coolant temperature is above
248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.

Stop the vehicle as soon as possible in
a safe location and turn off the engine.
Allow engine and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 321).In case of accident
If the vehicle is leaking fuel:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

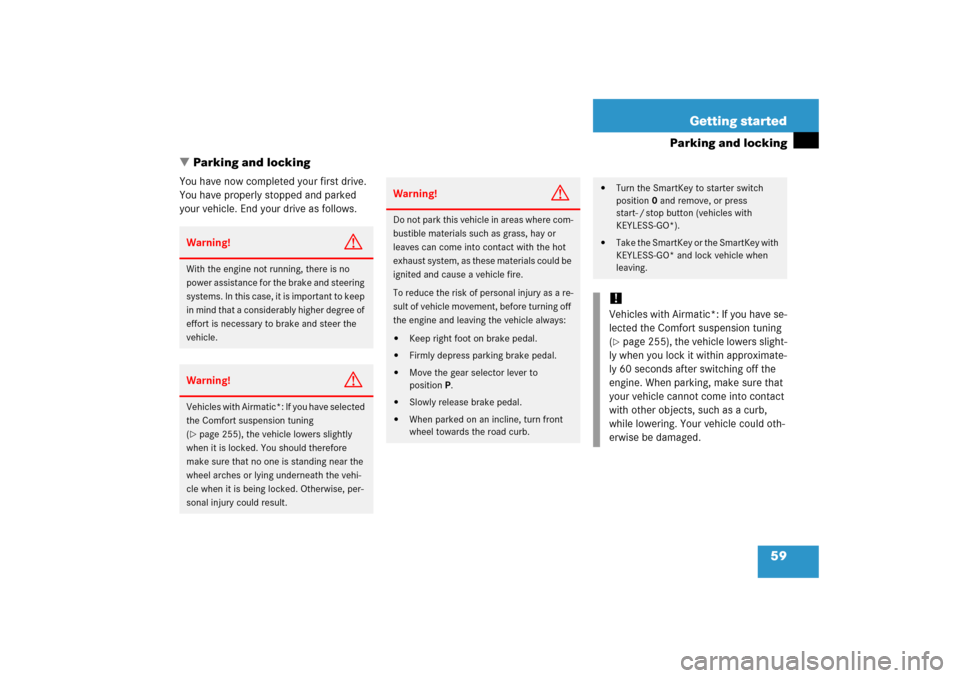

59 Getting started
Parking and locking
Parking and locking
You have now completed your first drive.
You have properly stopped and parked
your vehicle. End your drive as follows.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the
vehicle.Warning!
G
Vehicles with Airmatic*: If you have selected
the Comfort suspension tuning
(page 255), the vehicle lowers slightly
when it is locked. You should therefore
make sure that no one is standing near the
wheel arches or lying underneath the vehi-
cle when it is being locked. Otherwise, per-
sonal injury could result.
Warning!
G
Do not park this vehicle in areas where com-
bustible materials such as grass, hay or
leaves can come into contact with the hot
exhaust system, as these materials could be
ignited and cause a vehicle fire.
To reduce the risk of personal injury as a re-
sult of vehicle movement, before turning off
the engine and leaving the vehicle always:

Keep right foot on brake pedal.


Firmly depress parking brake pedal.


Move the gear selector lever to
positionP.


Slowly release brake pedal.


When parked on an incline, turn front
wheel towards the road curb.


Turn the SmartKey to starter switch
position0 and remove, or press
start- / stop button (vehicles with
KEYLESS-GO*).


Take the SmartKey or the SmartKey with
KEYLESS-GO* and lock vehicle when
leaving.!Vehicles with Airmatic*: If you have se-
lected the Comfort suspension tuning
(page 255), the vehicle lowers slight-
ly when you lock it within approximate-
ly 60 seconds after switching off the
engine. When parking, make sure that
your vehicle cannot come into contact
with other objects, such as a curb,
while lowering. Your vehicle could oth-
erwise be damaged.
