460 Practical hintsTowing the vehicle
iTo signal turns while being towed with
the hazard warning flasher in use, turn
SmartKey in starter switch to
position2 and activate the combina-
tion switch for the left or right turn sig-
nal in the usual manner – only the
selected turn signal will operate.
Upon canceling the turn signal, the haz-
ard warning flasher will operate again.
!When towing the vehicle with all wheels
on the ground, please note the follow-
ing:
With the automatic central locking acti-
vated and the SmartKey in starter
switch position2, or KEYLESS-GO*
start/stop button in position2, the ve-
hicle doors lock if the left front wheel
as well as the right rear wheel are turn-
ing at vehicle speeds of approximately
9mph (15km/h) or more.
Switch off the tow-away alarm
(page 103).
To prevent the vehicle door locks from
locking, deactivate the automatic cen-
tral locking (
page 127).
Towing of the vehicle should only be
done using the properly installed tow-
ing eye bolt. Never attach tow cable,
tow rope or tow rod to the vehicle chas-
sis, frame or suspension parts.
iThe gear selector lever will remain
locked in positionP and the SmartKey
will not turn in the starter switch if the
battery is disconnected or discharged.
For more information, see “Battery”
(page 452) and “Jump starting”
(page 456).
For information on manual unlocking of
the gear selector lever, see
(page 426).

461 Practical hints
Towing the vehicle

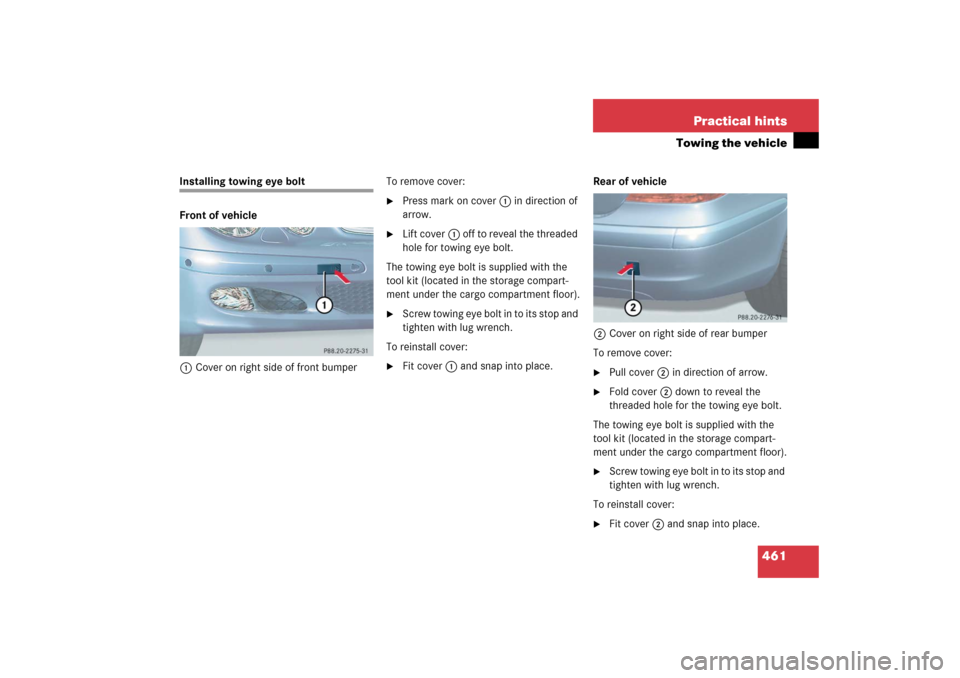

Installing towing eye bolt
Front of vehicle
1Cover on right side of front bumperTo remove cover:

Press mark on cover1 in direction of
arrow.

Lift cover1 off to reveal the threaded
hole for towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the storage compart-
ment under the cargo compartment floor).

Screw towing eye bolt in to its stop and
tighten with lug wrench.
To reinstall cover:

Fit cover1 and snap into place.Rear of vehicle
2Cover on right side of rear bumper
To remove cover:

Pull cover2 in direction of arrow.

Fold cover2 down to reveal the
threaded hole for the towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the storage compart-
ment under the cargo compartment floor).

Screw towing eye bolt in to its stop and
tighten with lug wrench.
To reinstall cover:

Fit cover2 and snap into place.

462 Practical hintsFusesFuses are designed to protect the electri-
cal circuits in your vehicle from a short cir-
cuit. If a fuse is blown, the component(s)
and systems secured by that fuse will stop
operating.
The following aids are available to help you
replace fuses (
page 462):


Fuse chart


Spare fuses


Fuse extractor
The electrical fuses are located in different
fuse boxes:


Main fuse box in passenger
compartment (
page 463)


Fuse box in cargo compartment
(page 463)
Aids for replacing fuses
Fuse chart
The fuse chart is located in the fuse box in
the passenger compartment (
page 463).
The amperages of the fuses are also given
there.
Spare fuses
Spare fuses are located in the vehicle tool
kit in the cargo compartment
(
page 419).
Fuse extractor
The fuse extractor is located in the vehicle
tool kit in the cargo compartment
(page 419).
Warning!
G
Only use fuses approved by Mercedes-Benz
with the specified amperage for the system
in question. Using other fuses may cause an
overload leading to a fire, and/or cause
damage to electrical components and/or
systems.
!Never attempt to repair or bridge a
blown fuse. Have the cause determined
and remedied by an authorized
Mercedes-Benz Center.!Keep the fuse boxes free by contamina-
tion and wetness. Otherwise, electrical
parts or systems could be damaged.

463 Practical hintsFuses

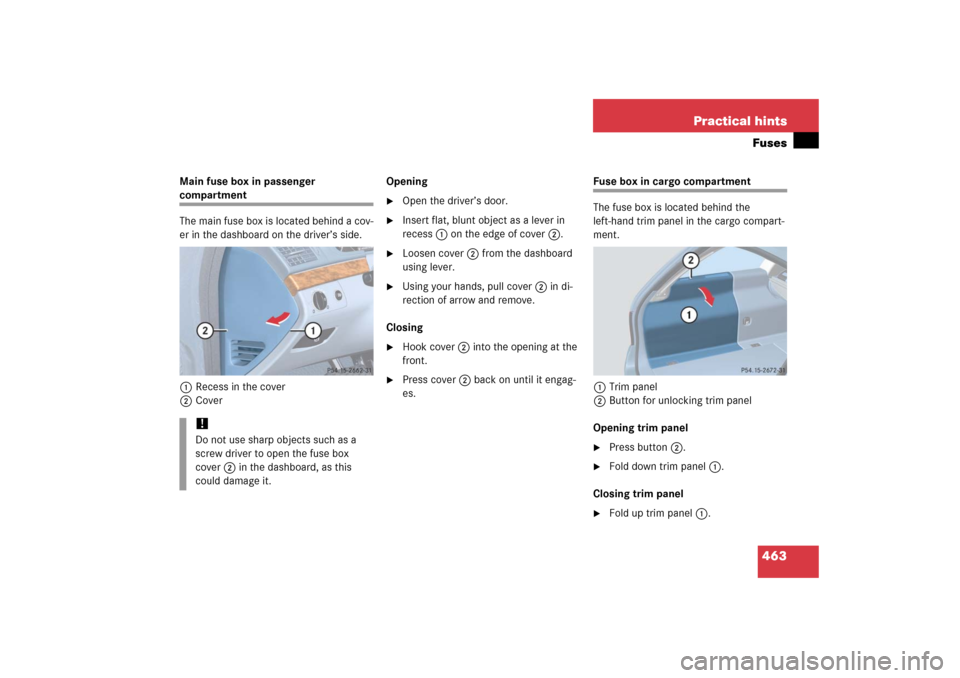

Main fuse box in passenger compartment
The main fuse box is located behind a cov-
er in the dashboard on the driver’s side.
1Recess in the cover
2CoverOpening

Open the driver’s door.

Insert flat, blunt object as a lever in
recess1 on the edge of cover2.

Loosen cover2 from the dashboard
using lever.

Using your hands, pull cover2 in di-
rection of arrow and remove.
Closing

Hook cover2 into the opening at the
front.

Press cover2 back on until it engag-
es.
Fuse box in cargo compartment
The fuse box is located behind the
left-hand trim panel in the cargo compart-
ment.
1Trim panel
2Button for unlocking trim panel
Opening trim panel
Press button2.

Fold down trim panel1.
Closing trim panel

Fold up trim panel1.
!Do not use sharp objects such as a
screw driver to open the fuse box
cover2 in the dashboard, as this
could damage it.

464

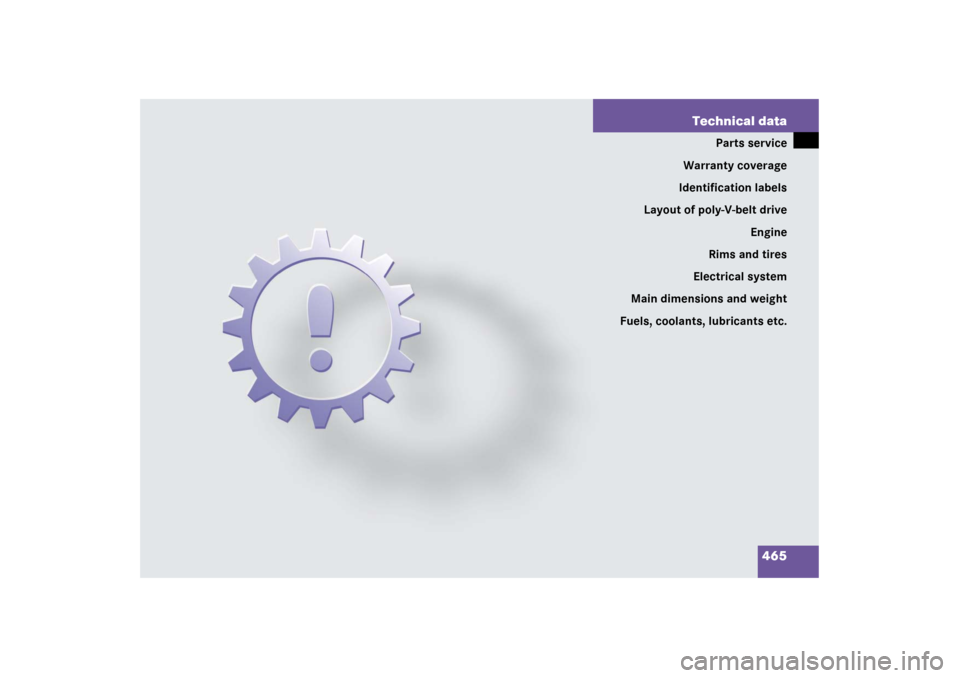

465 Technical data
Parts service
Warranty coverage
Identification labels
Layout of poly-V-belt drive
Engine
Rims and tires
Electrical system
Main dimensions and weight
Fuels, coolants, lubricants etc.

466 Technical dataThe “Technical data” section provides the
necessary technical data for your vehicle.Parts service
All authorized Mercedes-Benz Centers
maintain a stock of Genuine
Mercedes-Benz parts required for mainte-
nance and repair work. In addition, strate-
gically located parts distribution centers
provide quick and reliable parts service.
More than 300 000 different parts for
Mercedes-Benz models are available.
Genuine Mercedes-Benz parts are subject-
ed to stringent quality inspections. Each
part has been specifically developed, man-
ufactured or selected for and adapted to
Mercedes-Benz vehicles.
Therefore, Genuine Mercedes-Benz parts
should be installed.
!The use of non-genuine Mercedes-Benz
parts and accessories not authorized
by Mercedes-Benz could damage the
vehicle, which is not covered by the
Mercedes-Benz Limited Warranty, or
could compromise the vehicle’s dura-
bility or safety.

467 Technical data
Warranty coverage
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information Booklet. Your
authorized Mercedes-Benz Center will ex-
change or repair any defective parts origi-
nally installed in the vehicle in accordance
with the terms of the following warranties:

New Car Limited Warranty


Emission System Warranty


Emission Performance Warranty


California, Maine, Massachusetts, and
Vermont Emission Control System
WarrantyReplacement parts and accessories are
covered by the Mercedes-Benz Parts and
Accessories Warranties, copies of which
are available at any authorized
Mercedes-Benz Center.Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information Booklet, have your authorized
Mercedes-Benz Center arrange for a re-
placement. It will be mailed to you.

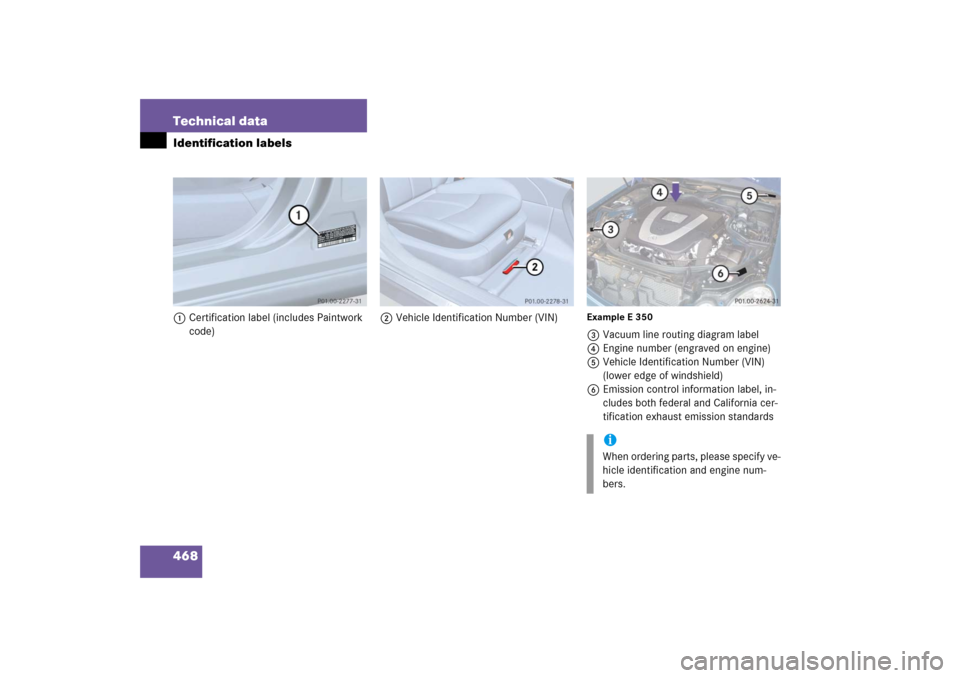

468 Technical dataIdentification labels1Certification label (includes Paintwork
code)2Vehicle Identification Number (VIN)
Example E 3503Vacuum line routing diagram label
4Engine number (engraved on engine)
5Vehicle Identification Number (VIN)
(lower edge of windshield)
6Emission control information label, in-
cludes both federal and California cer-
tification exhaust emission standards
iWhen ordering parts, please specify ve-
hicle identification and engine num-
bers.

469 Technical data

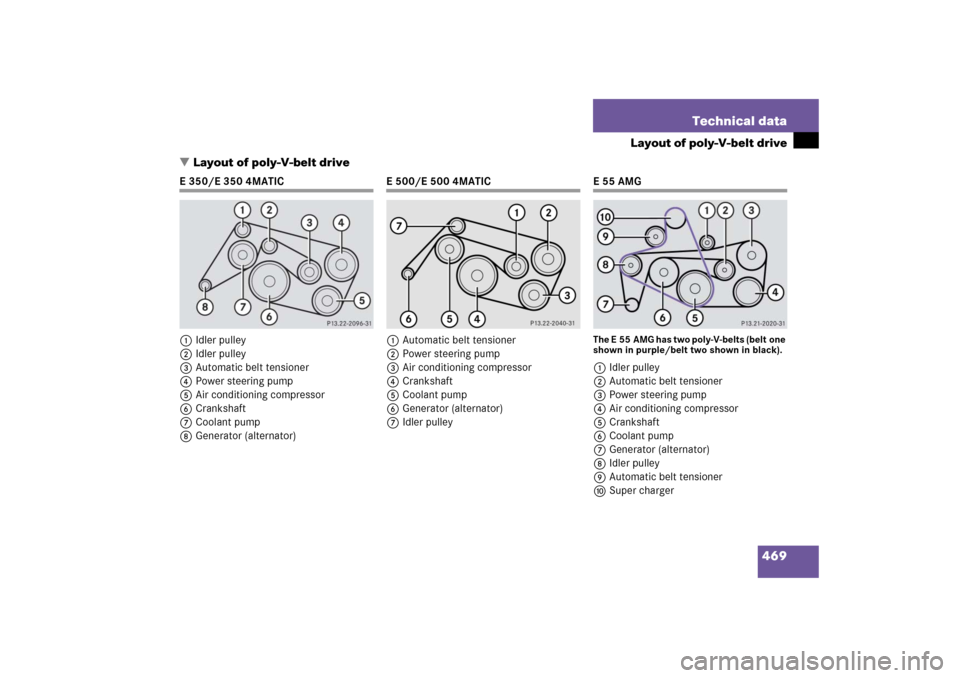

Layout of poly-V-belt drive
Layout of poly-V-belt drive
E 350/E 350 4MATIC
1Idler pulley
2Idler pulley
3Automatic belt tensioner
4Power steering pump
5Air conditioning compressor
6Crankshaft
7Coolant pump
8Generator (alternator)
E500/E5004MATIC
1Automatic belt tensioner
2Power steering pump
3Air conditioning compressor
4Crankshaft
5Coolant pump
6Generator (alternator)
7Idler pulley
E55AMGThe E 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black).1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Crankshaft
6Coolant pump
7Generator (alternator)
8Idler pulley
9Automatic belt tensioner
aSuper charger
