MERCEDES-BENZ E WAGON 2006 S211 Owner's Manual

420 Practical hintsWhere will I find ...?Vehicles with foldable third row seat -
Vehicle tool kit, jack and spare wheel
(except E 55 AMG) or
TIREFIT (E 55 AMG only)
The vehicle tool kit is located in the cargo
compartment underneath the third row
seat cushions and footwell.
1Release handle for seat backrest
2Release handle for seat cushion
Pull release handle 1 and fold seat
backrest for the folding bench seat up-
ward.

Pull release handle 2, fold seat cush-
ion upward and remove it
(page 138).1Release handle
2Footwell

Pull release handle 1 and fold
footwell2 up.

To lock, fold footwell 2 back into its
original position and press it down until
it engages.Vehicle tool kit (vehicles with spare
wheel)
1Handle
2Cover

Turn handle 1 to the right as far as it
will go and remove cover 2.iIn order to access the vehicle tool kit,
you must first detach the side cover.

421 Practical hints
Where will I find ...?

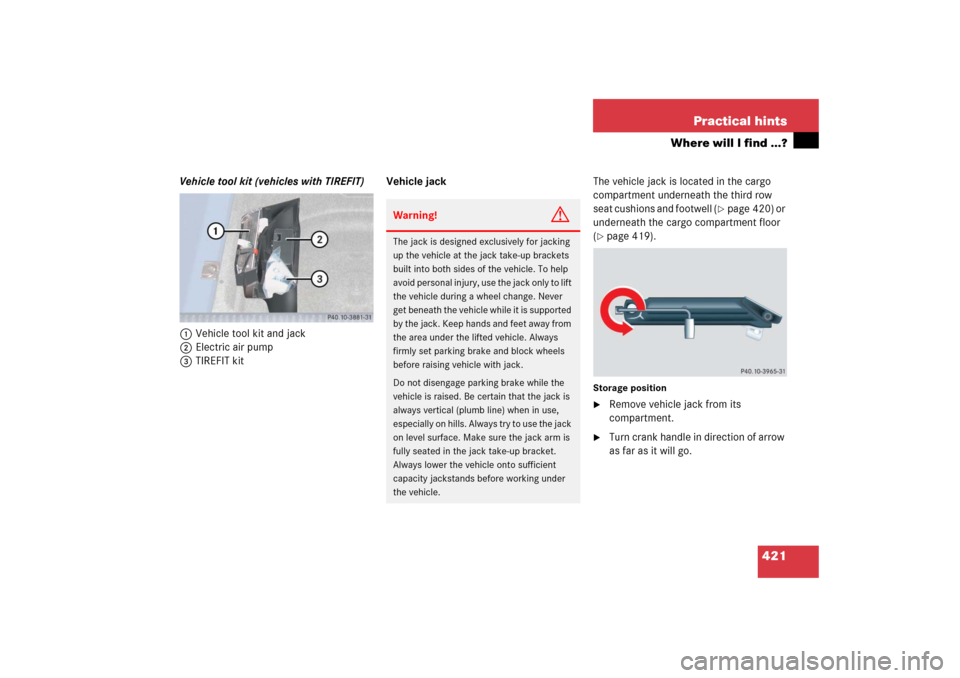

Vehicle tool kit (vehicles with TIREFIT)
1Vehicle tool kit and jack
2Electric air pump
3TIREFIT kitVehicle jackThe vehicle jack is located in the cargo
compartment underneath the third row
seat cushions and footwell (
page 420) or
underneath the cargo compartment floor
(
page 419).
Storage position
Remove vehicle jack from its
compartment.

Turn crank handle in direction of arrow
as far as it will go.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use,
especially on hills. Always try to use the jack
on level surface. Make sure the jack arm is
fully seated in the jack take-up bracket.
Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.

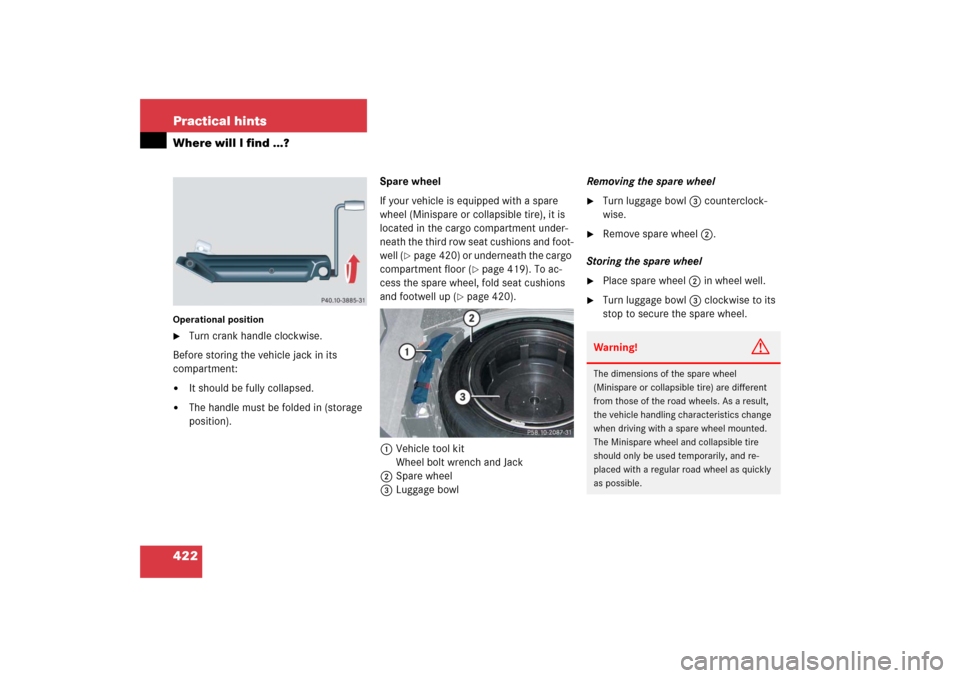

422 Practical hintsWhere will I find ...?Operational position
Turn crank handle clockwise.
Before storing the vehicle jack in its
compartment:


It should be fully collapsed.


The handle must be folded in (storage
position).Spare wheel
If your vehicle is equipped with a spare
wheel (Minispare or collapsible tire), it is
located in the cargo compartment under-
neath the third row seat cushions and foot-
well (
page 420) or underneath the cargo
compartment floor (
page 419). To ac-
cess the spare wheel, fold seat cushions
and footwell up (
page 420).
1Vehicle tool kit
Wheel bolt wrench and Jack
2Spare wheel
3Luggage bowlRemoving the spare wheel

Turn luggage bowl3 counterclock-
wise.

Remove spare wheel2.
Storing the spare wheel

Place spare wheel2 in wheel well.

Turn luggage bowl3 clockwise to its
stop to secure the spare wheel.Warning!
G
The dimensions of the spare wheel
(Minispare or collapsible tire) are different
from those of the road wheels. As a result,
the vehicle handling characteristics change
when driving with a spare wheel mounted.
The Minispare wheel and collapsible tire
should only be used temporarily, and re-
placed with a regular road wheel as quickly
as possible.

423 Practical hints
Where will I find ...?
In the case of a flat tire, you may tempo-
rarily use the spare wheel when observing
the following restrictions:

Do not exceed a vehicle speed of
50 mph (80 km/h).


Drive to the nearest tire repair facility
to have the flat tire repaired or re-
placed as appropriate.


Do not operate vehicle with more than
one spare wheel mounted.
For more information see the “Technical
data” section (

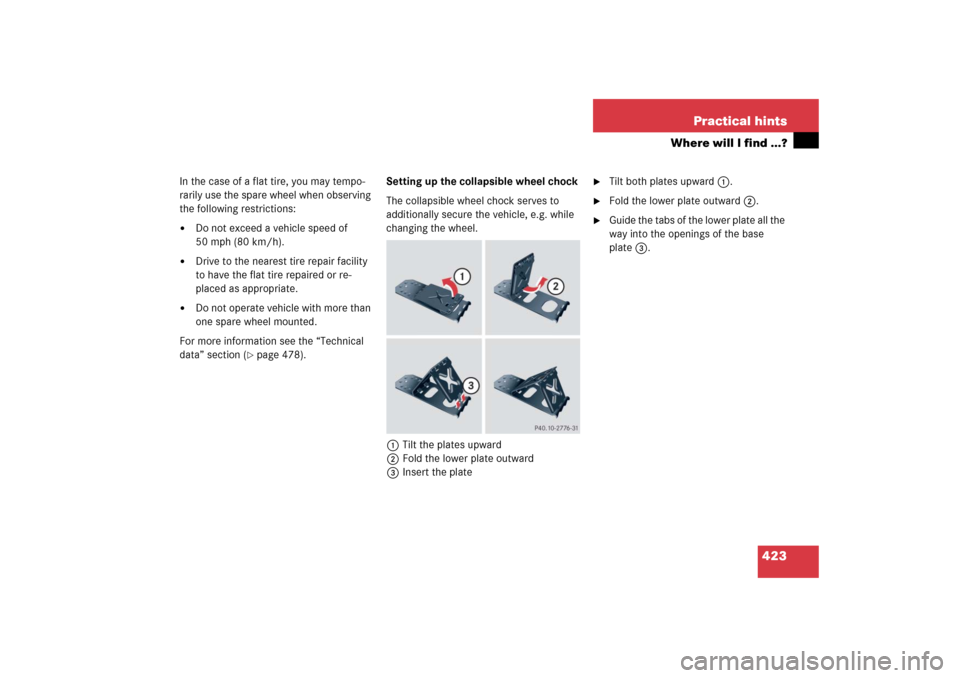

page 478).Setting up the collapsible wheel chock
The collapsible wheel chock serves to
additionally secure the vehicle, e.g. while
changing the wheel.
1Tilt the plates upward
2Fold the lower plate outward
3Insert the plate

Tilt both plates upward1.

Fold the lower plate outward2.

Guide the tabs of the lower plate all the
way into the openings of the base
plate3.

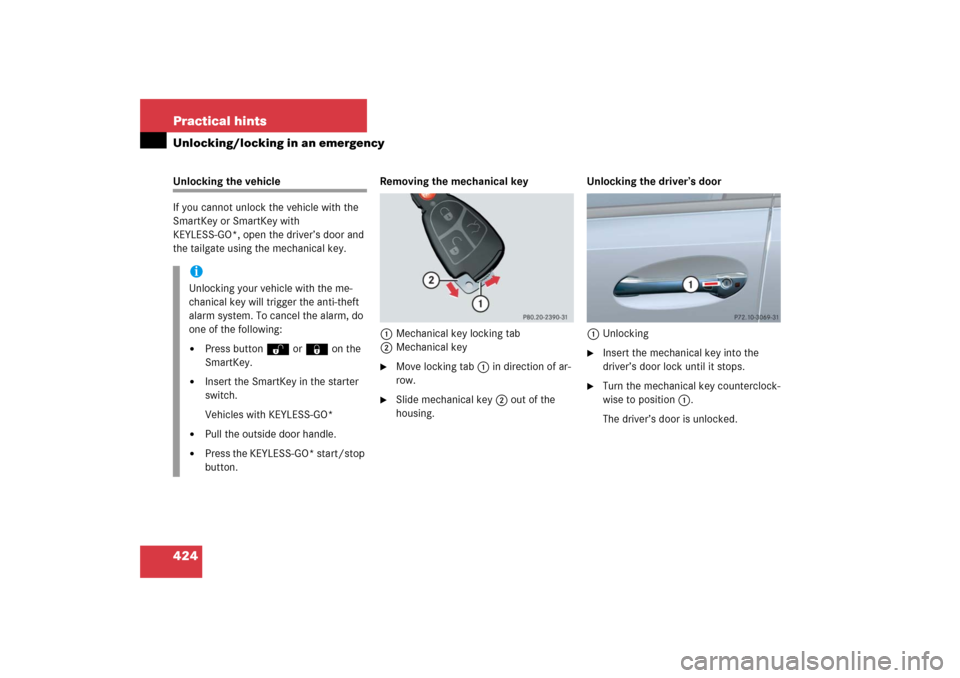

424 Practical hintsUnlocking/locking in an emergencyUnlocking the vehicle
If you cannot unlock the vehicle with the
SmartKey or SmartKey with
KEYLESS-GO*, open the driver’s door and
the tailgate using the mechanical key. Removing the mechanical key
1Mechanical key locking tab
2Mechanical key

Move locking tab1 in direction of ar-
row.

Slide mechanical key2 out of the
housing.Unlocking the driver’s door
1Unlocking

Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position1.
The driver’s door is unlocked.
iUnlocking your vehicle with the me-
chanical key will trigger the anti-theft
alarm system. To cancel the alarm, do
one of the following:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.
Vehicles with KEYLESS-GO*


Pull the outside door handle.


Press the KEYLESS-GO* start/stop
button.

425 Practical hints
Unlocking/locking in an emergency
Locking the vehicle
If you are unable to lock the vehicle with
the SmartKey or SmartKey with
KEYLESS-GO*, do the following:
Close the passenger door, the rear
doors and the tailgate.

Press the central locking switch in the
center console (
page 128).

Check to see whether the locking
knobs on the doors have moved down.

If necessary, push them down
manually.
Except for the driver’s door, the vehicle
should now be locked.1Locking

Remove the mechanical key out of the
SmartKey (
page 424).

Insert the mechanical key into the
driver’s door lock until it stops.

Turn the mechanical key clockwise to
position1.
The driver’s door is locked.
Fuel filler flap emergency release
1Release knob
Remove right-side tail trim.

Turn release knob1 clockwise (ar-
row).
The fuel filler flap can know be opened.

426 Practical hintsUnlocking/locking in an emergencyManually unlocking the gear selector lever
In case of power failure, the gear selector
lever can be manually unlocked, e.g. to tow
the vehicle.
1Pin
Open the storage compartment in the
center armrest (
page 275).

Take out the cup holder (
page 276).

Insert a suitable object1 (e.g. a pin)
through the hole and press the pin
downward.

Remove pin1.
iThe gear selector lever is locked again
when moving it to positionP.

427 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency

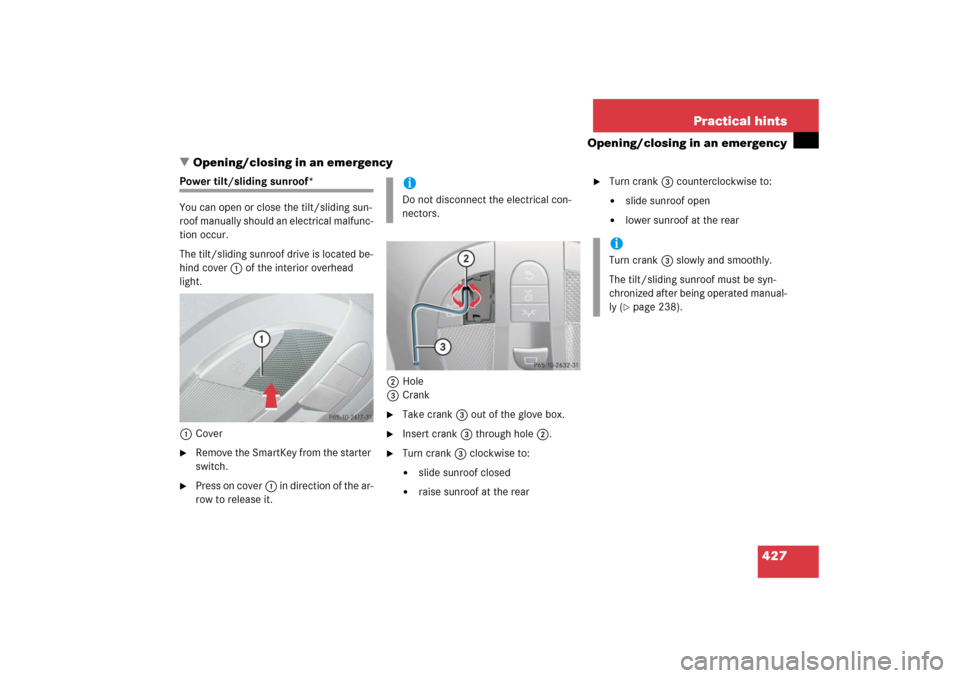

Power tilt/sliding sunroof*
You can open or close the tilt/sliding sun-
roof manually should an electrical malfunc-
tion occur.
The tilt/sliding sunroof drive is located be-
hind cover1 of the interior overhead
light.
1Cover
Remove the SmartKey from the starter
switch.

Press on cover1 in direction of the ar-
row to release it.2Hole
3Crank

Take crank3 out of the glove box.

Insert crank3 through hole2.

Turn crank3 clockwise to:

slide sunroof closed


raise sunroof at the rear

Turn crank3 counterclockwise to:

slide sunroof open


lower sunroof at the rear
iDo not disconnect the electrical con-
nectors.
iTurn crank3 slowly and smoothly.
The tilt/sliding sunroof must be syn-
chronized after being operated manual-
ly (
page 238).

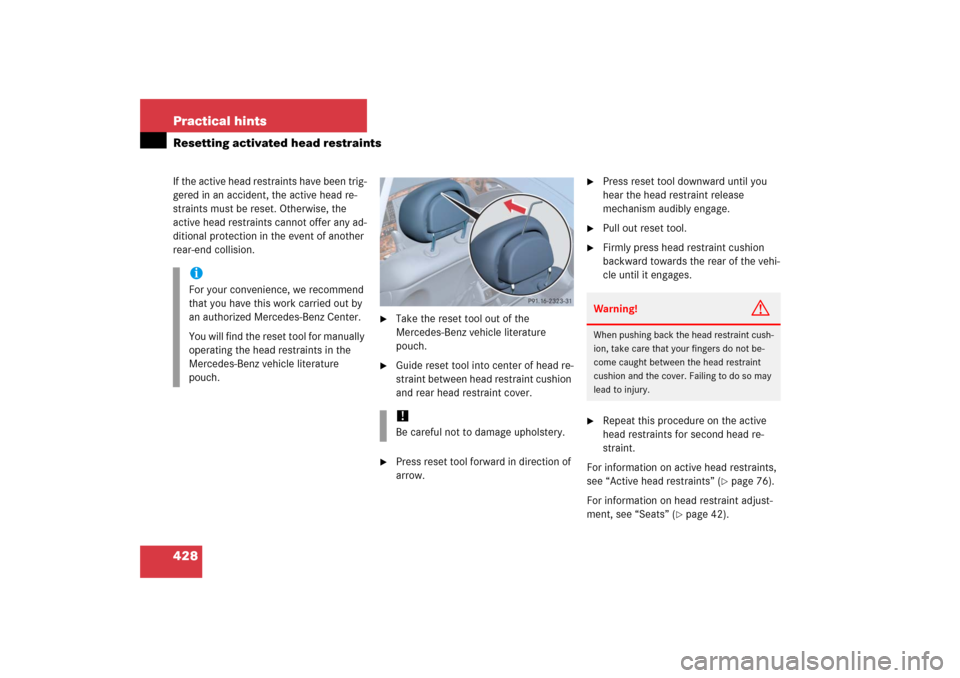

428 Practical hintsResetting activated head restraintsIf the active head restraints have been trig-
gered in an accident, the active head re-
straints must be reset. Otherwise, the
active head restraints cannot offer any ad-
ditional protection in the event of another
rear-end collision.

Take the reset tool out of the
Mercedes-Benz vehicle literature
pouch.

Guide reset tool into center of head re-
straint between head restraint cushion
and rear head restraint cover.

Press reset tool forward in direction of
arrow.

Press reset tool downward until you
hear the head restraint release
mechanism audibly engage.

Pull out reset tool.

Firmly press head restraint cushion
backward towards the rear of the vehi-
cle until it engages.

Repeat this procedure on the active
head restraints for second head re-
straint.
For information on active head restraints,
see “Active head restraints” (
page 76).
For information on head restraint adjust-
ment, see “Seats” (
page 42).
iFor your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.
You will find the reset tool for manually
operating the head restraints in the
Mercedes-Benz vehicle literature
pouch.
!Be careful not to damage upholstery.
Warning!
G
When pushing back the head restraint cush-
ion, take care that your fingers do not be-
come caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.

429 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey are dis-
charged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an
authorized Mercedes-Benz Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.

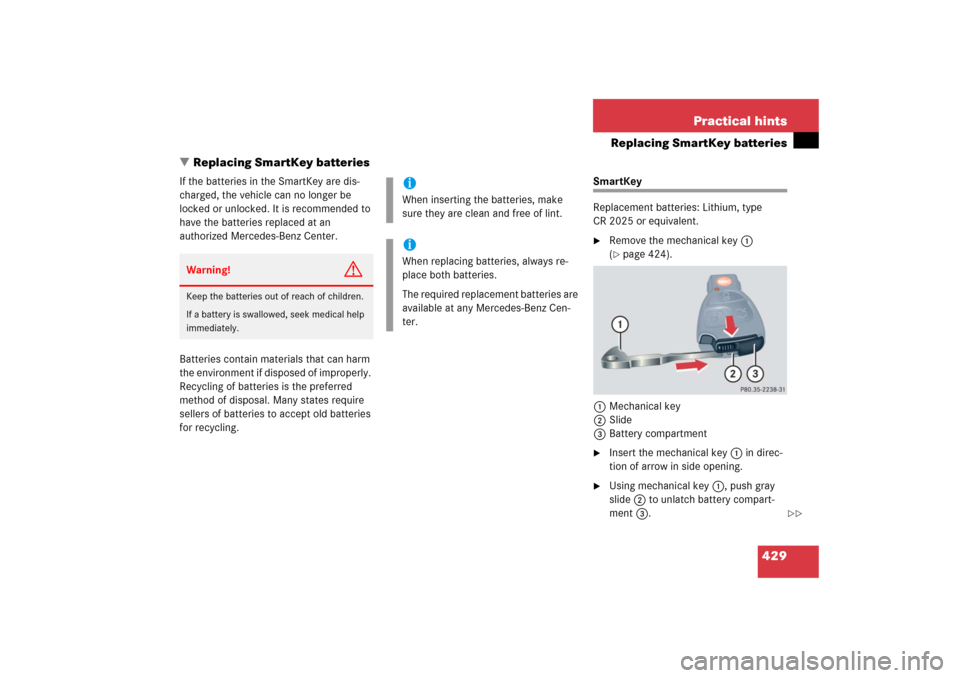

SmartKey
Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key1
(page 424).
1Mechanical key
2Slide
3Battery compartment

Insert the mechanical key1 in direc-
tion of arrow in side opening.

Using mechanical key1, push gray
slide 2 to unlatch battery compart-
ment 3.
Warning!
G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen inserting the batteries, make
sure they are clean and free of lint.iWhen replacing batteries, always re-
place both batteries.
The required replacement batteries are
available at any Mercedes-Benz Cen-
ter.
