Page 36 of 399
36 Getting startedAdjustingSeat cushion tilt
Press the switch up or down in the di-
rection of arrow3 until your upper legs
are lightly supported.
Backrest tilt
Press the switch forward or backward
in the direction of arrow4 until your
arms are slightly angled when holding
the steering wheel.
Front head restraint height
Press the switch up or down in the di-
rection of arrow 5.
Front head restraint tilt
Manually adjust the angle of the head
restraint. Push or pull on the lower
edge of the head restraint cushion.
More information can be found in the
"Controls in detail" section (
page 102).
Rear seat head restraints
The rear seat head restraints can be folded
backward for increased visibility.
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint to support the back of
the head approximately at ear level.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.
Warning!
G
For safety reasons, always drive with the
rear head restraints in the upright position
when the rear seats are occupied.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.!The rear seat head restraints cannot be
adjusted.
Page 44 of 399
44 Getting startedDrivingStarting with the key
Turn the key in the starter switch to
position3 and hold until the engine
starts (
page 31).
Depress the brake pedal.
The selector lever lock is released.
For information on turning off the engine
with the key, see “Turning off the engine”
(
page 51).
Starting with KEYLESS-GO*
You can start your vehicle without a key
using the KEYLESS-GO start/stop button
on the gear selector lever.1KEYLESS-GO start/stop button
Depress the brake pedal during the
starting procedure. Do not depress ac-
celerator.
The selector lever lock is released.
Press KEYLESS-GO start/stop
button1 once.
The engine starts automatically.
For information on turning off the engine
with KEYLESS-GO, see “Turning off with
KEYLESS-GO*” (
page 53).Starting difficulties
If the engine does not start as described,
carry out the following steps:
If you are starting the engine with the
key, turn key in starter switch to
position0 and repeat starting proce-
dure.
If you are starting the engine with
KEYLESS-GO*: Close any doors that
may be open to allow for better detec-
tion of the SmartKey with
KEYLESS-GO*.
Or:
Start the engine with the key as radio
signals from another source may be in-
terfering with the SmartKey with
KEYLESS-GO*.
Repeat the starting procedure
(page 43). Remember that extended
starting attempts can drain the battery.
iYou can also use the "touch-start" func-
tion. Turn the key to position3 and re-
lease it again immediately. The engine
then starts automatically.
!Ensure that the brake pedal is de-
pressed when starting the engine.
Page 59 of 399
59 Safety and Security
Occupant safety
Safety guidelines for the seat belt,
emergency tensioning device and
airbag
iAirbags are designed to activate only in
certain frontal impacts (front air bags),
side impacts (side impact and head
protection window curtain airbags)
which exceed preset thresholds and in
rollovers (head protection window cur-
tain airbags). Only during these events
will they provide their supplemental
protection.
The driver and passengers should al-
ways wear their seat belts. Otherwise it
is not possible for airbags to provide
their supplemental protection.
In case of other types of impacts and
impacts below air bag deployment
thresholds, airbags will not be activat-
ed. The driver and passenger will then
be protected to the extent possible by
a properly fastened seat belt. A proper-
ly fastened seat belt is also needed to
provide the best possible protection in
a rollover.
We caution you not to rely on the pres-
ence of the airbags in order to avoid
wearing your seat belt.
Your vehicle was originally equipped
with airbags that are designed to acti-
vate in certain impacts exceeding a
preset threshold to reduce the poten-
tial and severity of injury. It is important
to your safety and that of your passen-
gers that you replace deployed airbags
and repair any malfunctioning airbags
to ensure that the vehicle will continue
to provide supplemental crash protec-
tion for occupants.
Warning!
G
Damaged seat belts or belts that were
highly stressed in an accident must be
replaced and their anchoring points
must also be checked. Use only belts in-
stalled or supplied by an authorized
Mercedes-Benz Center.
Airbags and ETDs are designed to func-
tion on a one-time-only basis. An airbag
Page 60 of 399
60 Safety and SecurityOccupant safety
When you sell your vehicle we strongly
urge you to give notice to the subsequent
owner that it is equipped with an SRS by
alerting them to the applicable section in
the Operator’s Manual.

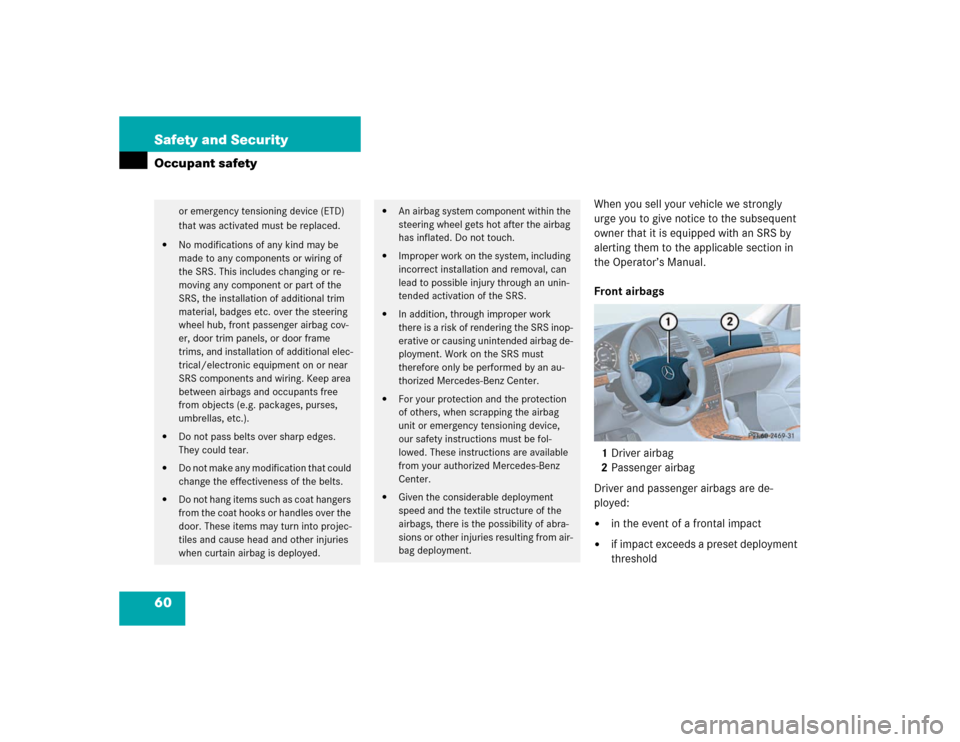

Front airbags
1Driver airbag
2Passenger airbag
Driver and passenger airbags are de-
ployed:
in the event of a frontal impact
if impact exceeds a preset deployment
threshold
or emergency tensioning device (ETD)
that was activated must be replaced.
No modifications of any kind may be
made to any components or wiring of
the SRS. This includes changing or re-
moving any component or part of the
SRS, the installation of additional trim
material, badges etc. over the steering
wheel hub, front passenger airbag cov-
er, door trim panels, or door frame
trims, and installation of additional elec-
trical/electronic equipment on or near
SRS components and wiring. Keep area
between airbags and occupants free
from objects (e.g. packages, purses,
umbrellas, etc.).
Do not pass belts over sharp edges.
They could tear.
Do not make any modification that could
change the effectiveness of the belts.
Do not hang items such as coat hangers
from the coat hooks or handles over the
door. These items may turn into projec-
tiles and cause head and other injuries
when curtain airbag is deployed.
An airbag system component within the
steering wheel gets hot after the airbag
has inflated. Do not touch.
Improper work on the system, including
incorrect installation and removal, can
lead to possible injury through an unin-
tended activation of the SRS.
In addition, through improper work
there is a risk of rendering the SRS inop-
erative or causing unintended airbag de-
ployment. Work on the SRS must
therefore only be performed by an au-
thorized Mercedes-Benz Center.
For your protection and the protection
of others, when scrapping the airbag
unit or emergency tensioning device,
our safety instructions must be fol-
lowed. These instructions are available
from your authorized Mercedes-Benz
Center.
Given the considerable deployment
speed and the textile structure of the
airbags, there is the possibility of abra-
sions or other injuries resulting from air-
bag deployment.
Page 61 of 399
61 Safety and Security
Occupant safety
independently of the side impact air-
bags
The airbags will not deploy in impacts
which do not exceed the system’s deploy-
ment thresholds. You will then be protect-
ed by the fastened seat belts.
The front passenger airbag will only be de-
ployed if:
the front passenger seat is occupied
the PASSENGER AIRBAG OFF indicator
lamp in the center console is not lit
(page 67)Side impact airbags, window curtain
airbags
1Side impact airbags
2Window curtain airbag
The side impact airbags and window cur-
tain airbags are deployed:
on the impacted side of the vehicle
in impacts exceeding a preset deploy-
ment threshold
independently of the front airbags
The front passenger side airbag will only
deploy if the system senses that the front
passenger seat is occupied.The side impact airbags are not deployed
in impacts which do not exceed the sys-
tem’s deployment threshold.
Seat belts
The seat belt nonusage warning lamp <
in the instrument cluster lights up and a
warning sounds for a short time when you
turn the key in the starter switch to
position2 or press the KEYLESS-GO* (if so
equipped) start/stop button twice and the
drivers seat belt is not fastened.
After starting the engine the seat belt non-
usage warning lamp blinks for a brief peri-
od to remind the driver and passengers to
fasten the seat belts.
The use of seat belts and infant and child
restraint systems is required by law in
most states and all Canadian provinces.
Even where this is not the case, all vehicle
occupants should have their seat belts fas-
tened whenever the vehicle is in motion.
!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.
Page 63 of 399
63 Safety and Security
Occupant safety

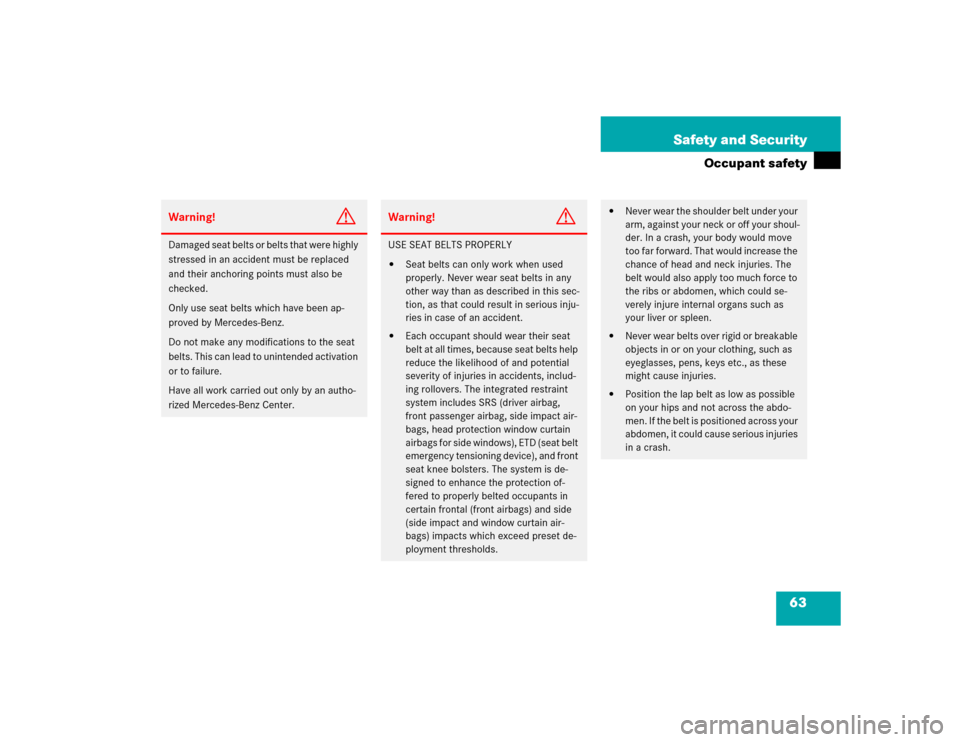

Warning!
G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been ap-
proved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
or to failure.
Have all work carried out only by an autho-
rized Mercedes-Benz Center.
Warning!
G
USE SEAT BELTS PROPERLY
Seat belts can only work when used
properly. Never wear seat belts in any
other way than as described in this sec-
tion, as that could result in serious inju-
ries in case of an accident.
Each occupant should wear their seat
belt at all times, because seat belts help
reduce the likelihood of and potential
severity of injuries in accidents, includ-
ing rollovers. The integrated restraint
system includes SRS (driver airbag,
front passenger airbag, side impact air-
bags, head protection window curtain
airbags for side windows), ETD (seat belt
emergency tensioning device), and front
seat knee bolsters. The system is de-
signed to enhance the protection of-
fered to properly belted occupants in
certain frontal (front airbags) and side
(side impact and window curtain air-
bags) impacts which exceed preset de-
ployment thresholds.
Never wear the shoulder belt under your
arm, against your neck or off your shoul-
der. In a crash, your body would move
too far forward. That would increase the
chance of head and neck injuries. The
belt would also apply too much force to
the ribs or abdomen, which could se-
verely injure internal organs such as
your liver or spleen.
Never wear belts over rigid or breakable
objects in or on your clothing, such as
eyeglasses, pens, keys etc., as these
might cause injuries.
Position the lap belt as low as possible
on your hips and not across the abdo-
men. If the belt is positioned across your
abdomen, it could cause serious injuries
in a crash.
Page 65 of 399
65 Safety and Security
Occupant safety
Automatic comfort-fit feature seat belt
An automatic comfort-fit feature for front
seats reduces the retracting force of the
seat belts when they are in normal use.
Children in the vehicle
If an infant or child is traveling with you in
the vehicle:
Secure the child using an infant or child
restraint appropriate to the age and
size of the child and recommended for
use by Mercedes-Benz.
Ensure that the infant or child is prop-
erly secured by a belt at all times while
the vehicle is in motion.
Infant and child restraint seats and infor-
mation on choosing an appropriate re-
straint system can be obtained from any
Mercedes-Benz Center.
Infant and child restraint systems
Use only a BabySmart
TM compatible child
restraint for the front passenger seat in
this vehicle.
We recommend all infants and children be
properly restrained at all times while the
vehicle is in motion.All lap-shoulder belts except the driver’s
seat belt have special seat belt retractors
for secure fastening of child restraints.
To fasten a child restraint, follow child re-
straint instructions for mounting. Then pull
the shoulder belt out completely and let it
retract. During seat belt retraction, a ratch-
eting sound can be heard to indicate that
the special seat belt retractor is activated.
The belt is now locked. Push down on child
restraint to take up any slack.
To deactivate, release seat belt buckle and
let seat belt retract completely. The seat
belt can again be used in the usual man-
ner.
BabySmart
TM is a trademark of Siemens
Automotive Corp.
!Do not place objects heavier than 20
lbs (9 kg) on the front passenger seat.
This could cause the front or side im-
pact airbag on the front passenger side
to deploy in a crash which exceeds the
system's deployment threshold.
iInformation on child seats with mount-
ing fittings for tether anchorages
(page 69).
For information on LATCH-type child
seat mounts (
page 70).
Page 72 of 399
72 Safety and SecurityPanic alarm
Panic alarmAn audible alarm and blinking exterior
lamps will operate for approximately
2½ minutes.
1Â button
Activating
Press and hold button1 for at least one
second.
Deactivating
Press button1 again.
or
Insert key in starter switch.
iFor operation in the USA only: This de-
vice complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.
Page 87 of 399
87 Controls in detail
Locking and unlocking
Factory setting
Global unlocking
Press buttonŒ.
All turn signal lamps blink once. The
locking knobs in the doors move up.
The vehicle will lock again automatically
within approximately 40 seconds of un-
locking if neither door nor trunk is opened,
the SmartKey is not inserted in the starter
switch, or the central locking switch is not
activated.
Global locking
Press button‹.
All turn signal lamps blink three times.
The locking knobs in the doors move
down.Selective setting
If you frequently travel alone, you may wish
to reprogram the key so that
pressingŒ only unlocks the driver’s
door and the fuel filler flap.
Press and hold buttonsŒ and‹
simultaneously for about five seconds
until battery check lamp5 blinks twice.
The key will then function as follows:
Unlocking driver’s door and fuel filler
flap
Press buttonŒ once.
Global unlocking
Press buttonŒ twice.
Global locking
Press button‹.Restoring to factory setting
Press and hold buttonsŒ and‹
simultaneously for about six seconds
until battery check lamp5 blinks twice.Warning!
G
When leaving the vehicle always remove the
key from the starter switch, take the Smart-
Key with KEYLESS-GO (if so equipped) with
you and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. It is possible for
children to open a looked door from the in-
side, which could result in an accident or se-
rious injury.
Page 88 of 399
88 Controls in detailLocking and unlocking
Checking the batteries
Press button‹ orŒ.
Battery check lamp5 lights up briefly
to indicate that the key batteries are in
order.Unlocking the trunk lid
You can unlock the trunk separately.
A minimum height clearance of 5.75 ft.
(1.75 m) is required to open the trunk lid.
Press and hold button Š until trunk
opens.
The trunk can also be opened from its in-
side in an emergency, see "Trunk lid emer-
gency release" (
page 97).
!If you can no longer lock or unlock the
vehicle with the key, then either the
batteries in the SmartKey are dis-
charged or the key is malfunctioning.
Check the batteries in the key
(page 88) and replace them if
necessary (
page 328).
or
Use the mechanical key to lock and
unlock the doors (
page 327) and
the trunk lid (
page 98) as re-
quired.
If the key is malfunctioning, contact an
authorized Mercedes-Benz Center.
!If battery check lamp5 does not light
up briefly during check, then the key
batteries are discharged.
Replace the batteries (
page 329).
You can obtain the required batteries
at any authorized Mercedes-Benz Cen-
ter.
!The trunk lid swings upwards automat-
ically. Always make sure that there is
sufficient overhead clearance.
