MERCEDES-BENZ E320 2004 W211 Owner's Manual

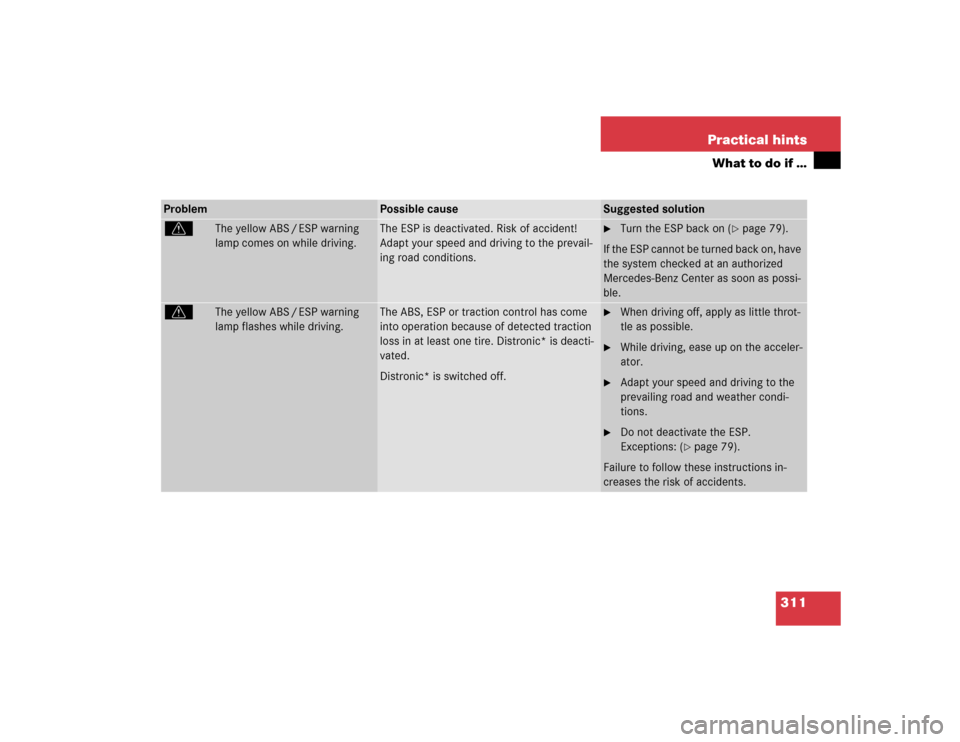

311 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
v
The yellow ABS / ESP warning
lamp comes on while driving.
The ESP is deactivated. Risk of accident!
Adapt your speed and driving to the prevail-
ing road conditions.

Turn the ESP back on (
page 79).
If the ESP cannot be turned back on, have
the system checked at an authorized
Mercedes-Benz Center as soon as possi-
ble.
v
The yellow ABS / ESP warning
lamp flashes while driving.
The ABS, ESP or traction control has come
into operation because of detected traction
loss in at least one tire. Distronic* is deacti-
vated.
Distronic* is switched off.

When driving off, apply as little throt-
tle as possible.

While driving, ease up on the acceler-
ator.

Adapt your speed and driving to the
prevailing road and weather condi-
tions.

Do not deactivate the ESP.
Exceptions: (
page 79).
Failure to follow these instructions in-
creases the risk of accidents.

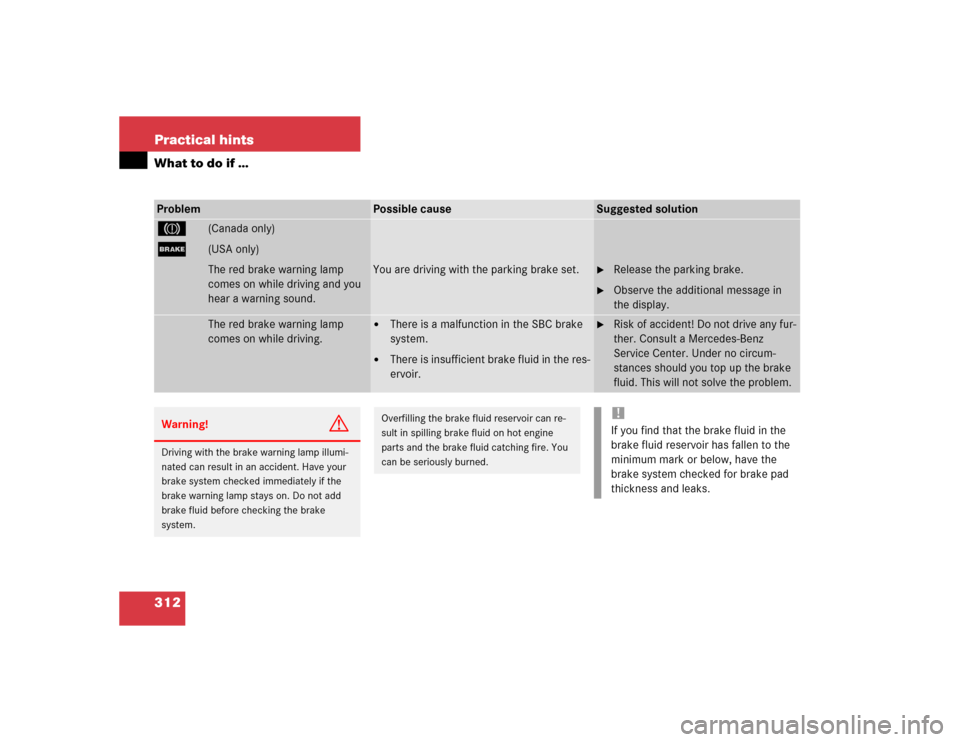

312 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
3
(Canada only)
;
(USA only)
The red brake warning lamp
comes on while driving and you
hear a warning sound.
You are driving with the parking brake set.

Release the parking brake.

Observe the additional message in
the display.
The red brake warning lamp
comes on while driving.


There is a malfunction in the SBC brake
system.


There is insufficient brake fluid in the res-
ervoir.

Risk of accident! Do not drive any fur-
ther. Consult a Mercedes-Benz
Service Center. Under no circum-
stances should you top up the brake
fluid. This will not solve the problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake
system.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

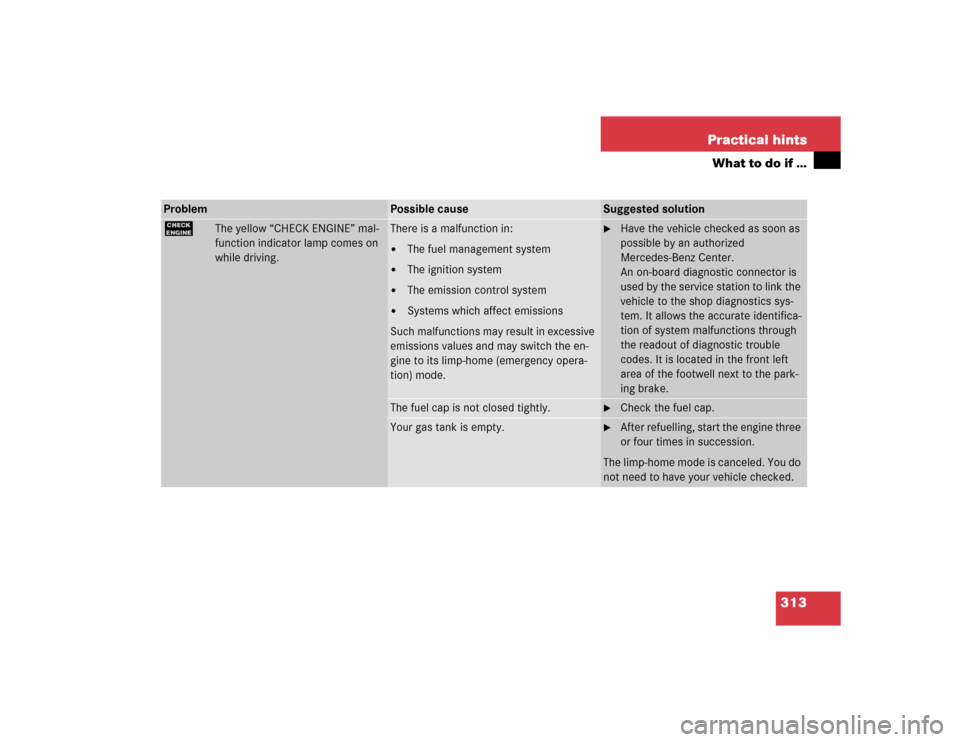

313 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
?
The yellow “CHECK ENGINE” mal-
function indicator lamp comes on
while driving.
There is a malfunction in:

The fuel management system


The ignition system


The emission control system


Systems which affect emissions
Such malfunctions may result in excessive
emissions values and may switch the en-
gine to its limp-home (emergency opera-
tion) mode.

Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
codes. It is located in the front left
area of the footwell next to the park-
ing brake.
The fuel cap is not closed tightly.

Check the fuel cap.
Your gas tank is empty.

After refuelling, start the engine three
or four times in succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.

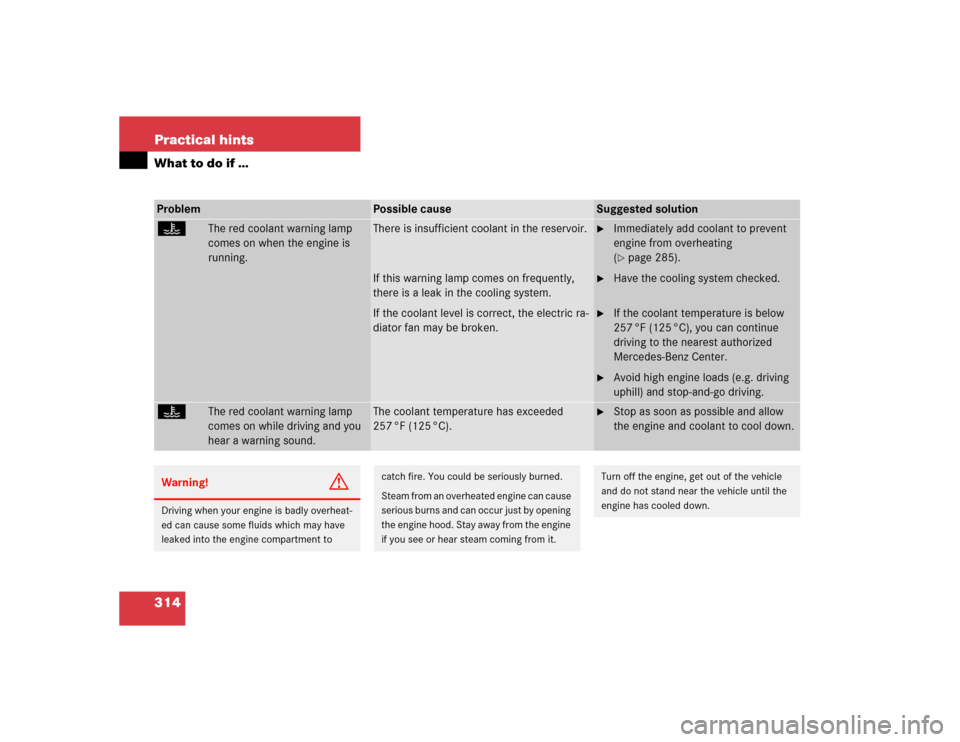

314 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
D
The red coolant warning lamp
comes on when the engine is
running.
There is insufficient coolant in the reservoir.
If this warning lamp comes on frequently,
there is a leak in the cooling system.
If the coolant level is correct, the electric ra-
diator fan may be broken.

Immediately add coolant to prevent
engine from overheating
(page 285).

Have the cooling system checked.

If the coolant temperature is below
257 °F (125 °C), you can continue
driving to the nearest authorized
Mercedes-Benz Center.

Avoid high engine loads (e.g. driving
uphill) and stop-and-go driving.
D
The red coolant warning lamp
comes on while driving and you
hear a warning sound.
The coolant temperature has exceeded
257 °F (125 °C).

Stop as soon as possible and allow
the engine and coolant to cool down.
Warning!
G
Driving when your engine is badly overheat-
ed can cause some fluids which may have
leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the engine hood. Stay away from the engine
if you see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.

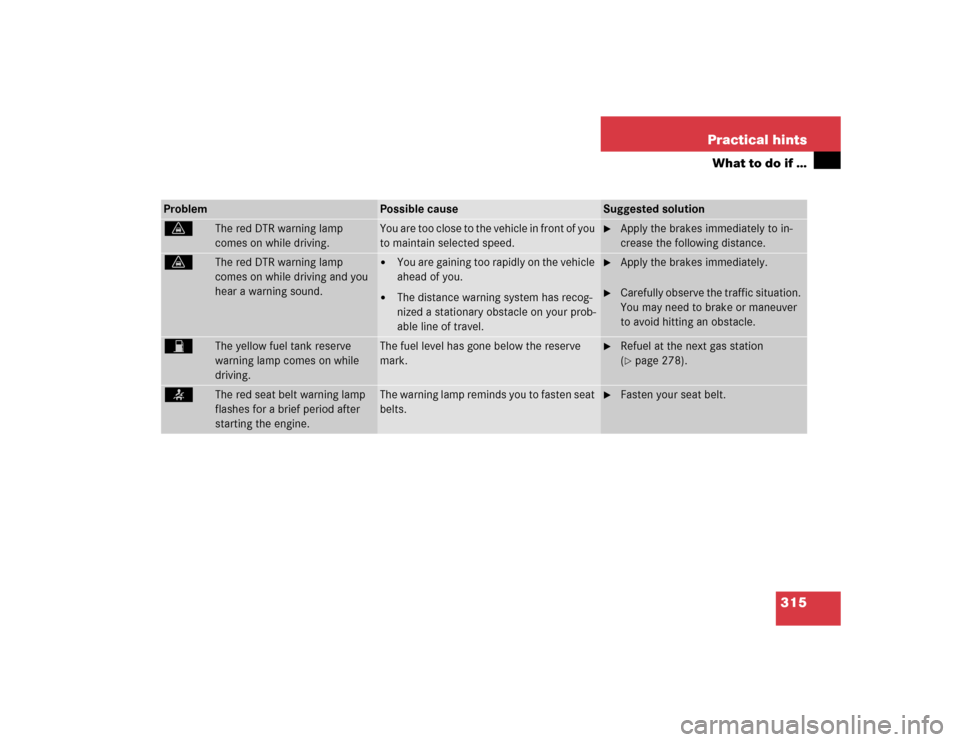

315 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
l
The red DTR warning lamp
comes on while driving.
You are too close to the vehicle in front of you
to maintain selected speed.

Apply the brakes immediately to in-
crease the following distance.
l
The red DTR warning lamp
comes on while driving and you
hear a warning sound.


You are gaining too rapidly on the vehicle
ahead of you.


The distance warning system has recog-
nized a stationary obstacle on your prob-
able line of travel.

Apply the brakes immediately.

Carefully observe the traffic situation.
You may need to brake or maneuver
to avoid hitting an obstacle.
W
The yellow fuel tank reserve
warning lamp comes on while
driving.
The fuel level has gone below the reserve
mark.

Refuel at the next gas station
(page 278).
<
The red seat belt warning lamp
flashes for a brief period after
starting the engine.
The warning lamp reminds you to fasten seat
belts.

Fasten your seat belt.

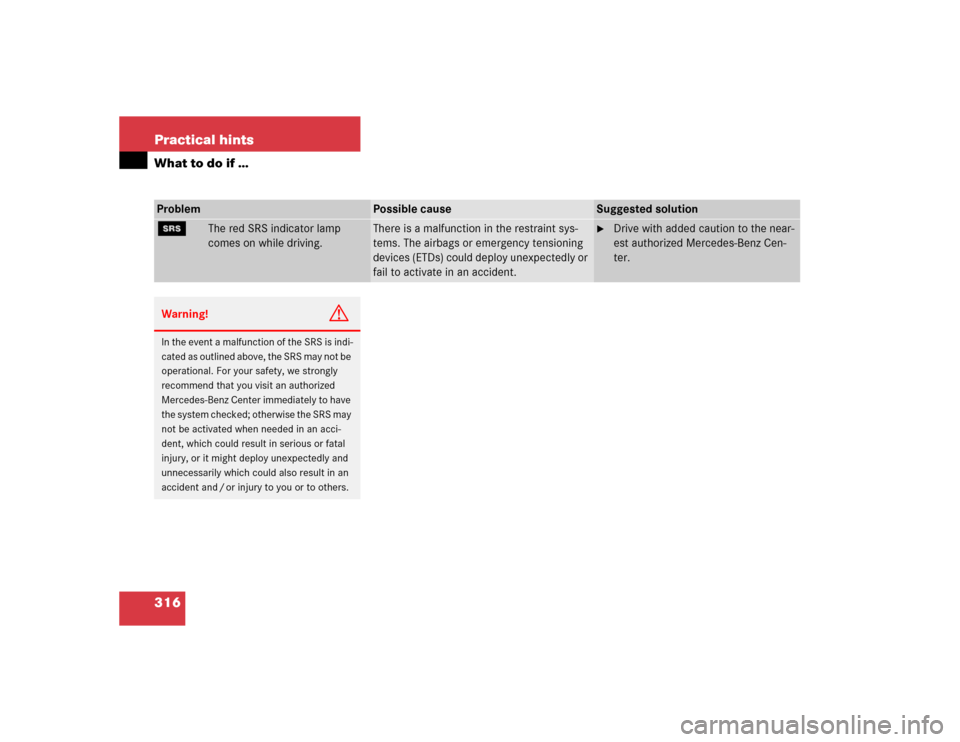

316 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
1
The red SRS indicator lamp
comes on while driving.
There is a malfunction in the restraint sys-
tems. The airbags or emergency tensioning
devices (ETDs) could deploy unexpectedly or
fail to activate in an accident.

Drive with added caution to the near-
est authorized Mercedes-Benz Cen-
ter.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational. For your safety, we strongly
recommend that you visit an authorized
Mercedes-Benz Center immediately to have
the system checked; otherwise the SRS may
not be activated when needed in an acci-
dent, which could result in serious or fatal
injury, or it might deploy unexpectedly and
unnecessarily which could also result in an
accident and / or injury to you or to others.

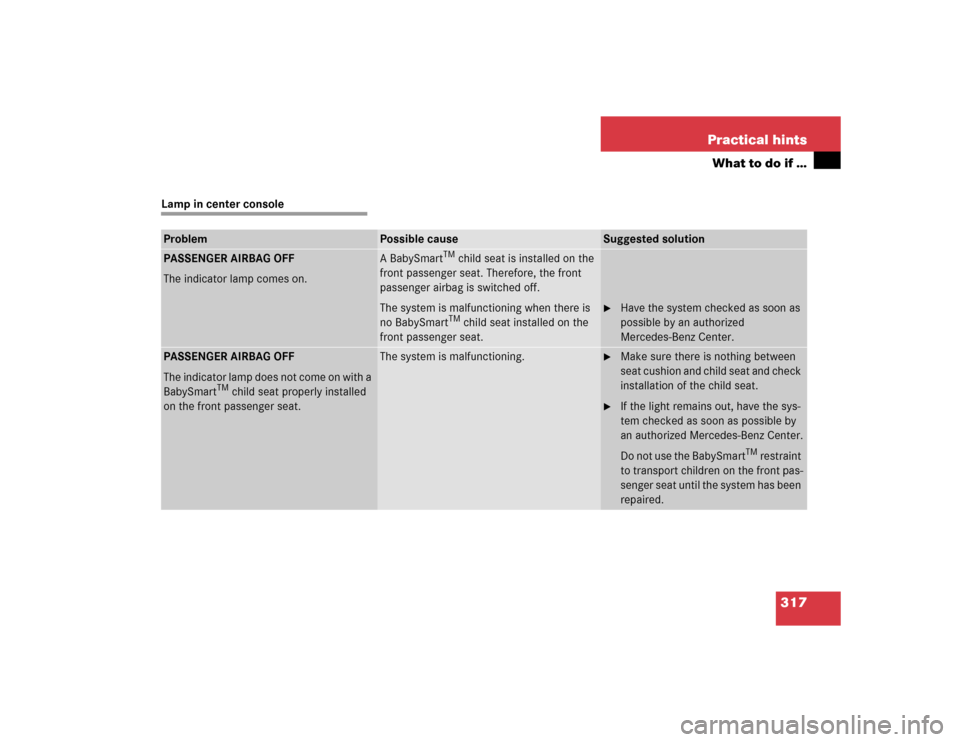

317 Practical hints
What to do if …
Lamp in center consoleProblem
Possible cause
Suggested solution
PASSENGER AIRBAG OFF
The indicator lamp comes on.
A BabySmart
TM child seat is installed on the
front passenger seat. Therefore, the front
passenger airbag is switched off.
The system is malfunctioning when there is
no BabySmartTM child seat installed on the
front passenger seat.

Have the system checked as soon as
possible by an authorized
Mercedes-Benz Center.
PASSENGER AIRBAG OFF
The indicator lamp does not come on with a
BabySmart
TM child seat properly installed
on the front passenger seat.
The system is malfunctioning.

Make sure there is nothing between
seat cushion and child seat and check
installation of the child seat.

If the light remains out, have the sys-
tem checked as soon as possible by
an authorized Mercedes-Benz Center.
Do not use the BabySmart
TM restraint
to transport children on the front pas-
senger seat until the system has been
repaired.

318 Practical hintsWhat to do if …Messages in the display
The control system shows warning and
malfunction messages in the multifunction
display.
Certain warning and malfunction messag-
es are accompanied by an audible signal.
Address these messages accordingly and
follow the additional instructions given in
this Operator’s Manual.
Selecting the malfunction memory menu in
the control system (
page 129) displays
both cleared and uncleared messages.
High-priority messages appear in the mul-
tifunction display in red color.
Certain messages of high priority cannot
be cleared from the multifunction display
using the reset button.Other messages of high priority and mes-
sages of less immediate priority can be
cleared from the multifunction display us-
ing the reset button (
page 22) and are
then stored in the malfunction message
memory (
page 137).
On the pages that follow, you will find a
compilation of the most important warning
and malfunction messages that may ap-
pe ar i n the di spl ay . High pr iori ty m es sa ge s
appear on a red background.
Warning!
G
All categories of messages contain impor-
tant information which should be taken note
of and, where a malfunction is indicated, ad-
dressed as soon as possible at an autho-
rized Mercedes-Benz Center.
Failure to repair condition noted may cause
damage not covered by the Mercedes-Benz
Limited Warranty, or result in property dam-
age or personal injury.
Warning!
G
No messages will be displayed if either the
instrument cluster or the multifunction dis-
play is inoperative.
Contact your nearest authorized
Mercedes-Benz Center.iTurning the SmartKey in the starter
switch to position2, or pressing the
KEYLESS-GO* start / stop button twice
to position2 causes all lamps as well
as the multifunction display to come
on. Ensure that they are all in working
order before starting your journey.

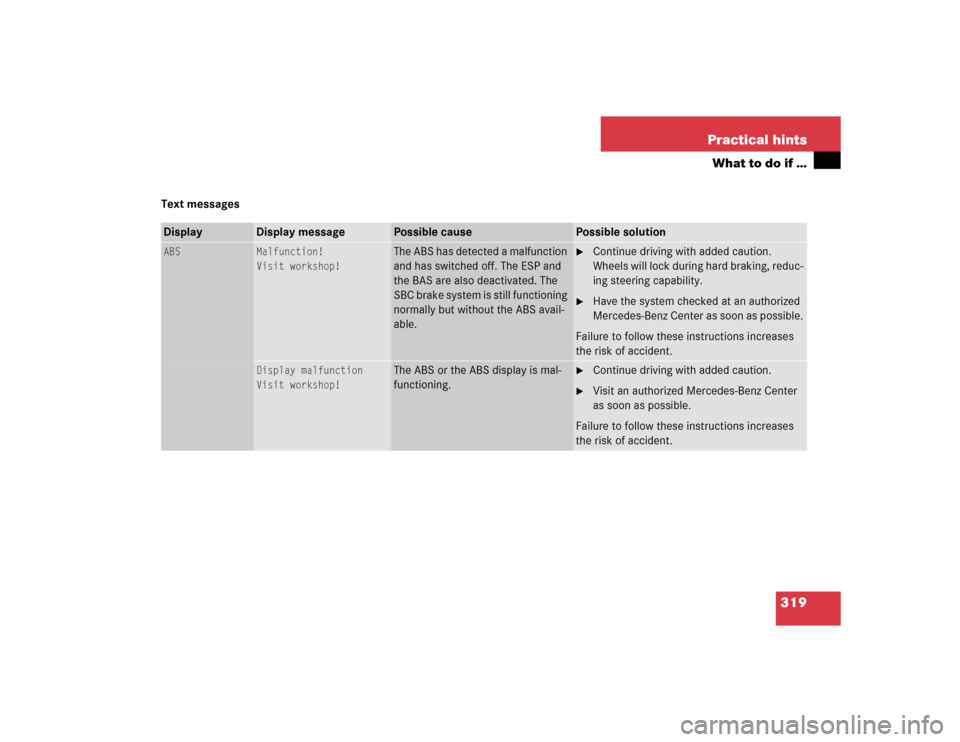

319 Practical hints
What to do if …
Text messagesDisplay
Display message
Possible cause
Possible solution
ABS
Malfunction!
Visit workshop!
The ABS has detected a malfunction
and has switched off. The ESP and
the BAS are also deactivated. The
SBC brake system is still functioning
normally but without the ABS avail-
able.

Continue driving with added caution.
Wheels will lock during hard braking, reduc-
ing steering capability.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of accident.
Display malfunction
Visit workshop!
The ABS or the ABS display is mal-
functioning.

Continue driving with added caution.

Visit an authorized Mercedes-Benz Center
as soon as possible.
Failure to follow these instructions increases
the risk of accident.

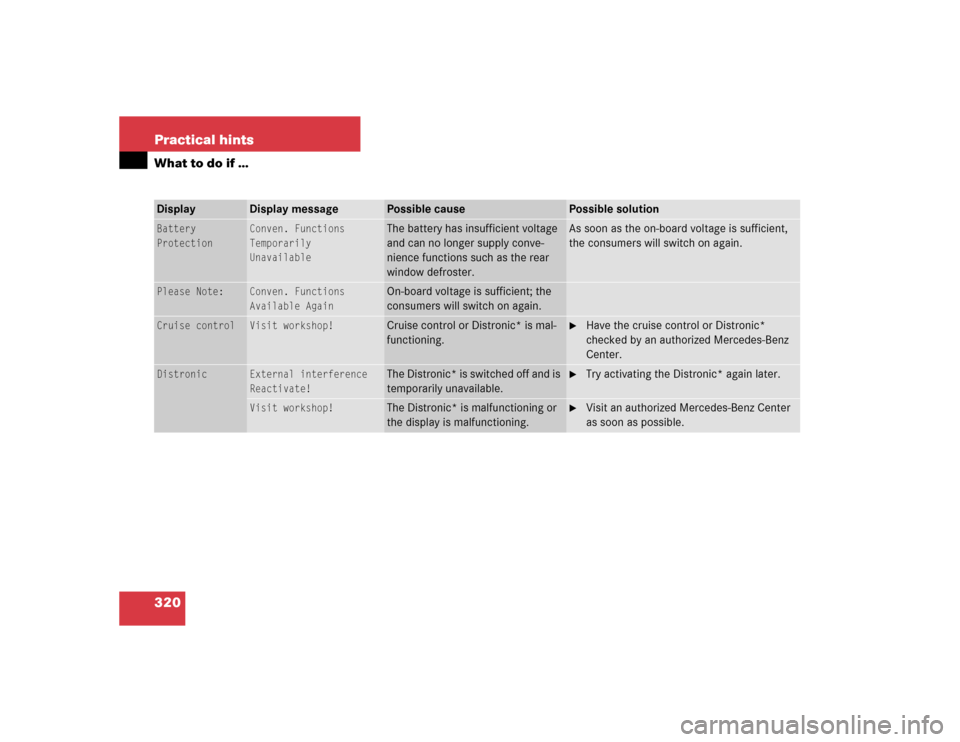

320 Practical hintsWhat to do if …Display
Display message
Possible cause
Possible solution
Battery
Protection
Conven. Functions
Temporarily
Unavailable
The battery has insufficient voltage
and can no longer supply conve-
nience functions such as the rear
window defroster.
As soon as the on-board voltage is sufficient,
the consumers will switch on again.
Please Note:
Conven. Functions
Available Again

On-board voltage is sufficient; the
consumers will switch on again.
Cruise control
Visit workshop!
Cruise control or Distronic* is mal-
functioning.

Have the cruise control or Distronic*
checked by an authorized Mercedes-Benz
Center.
Distronic
External interference
Reactivate!
The Distronic* is switched off and is
temporarily unavailable.

Try activating the Distronic* again later.
Visit workshop!
The Distronic* is malfunctioning or
the display is malfunctioning.

Visit an authorized Mercedes-Benz Center
as soon as possible.
