Page 147 of 506
145 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1 or as soon as the
KEYLESS-GO start/stop button* is in
position1. The control system enables you
to:
call up information about your vehicle
change vehicle settings.
For example, you can use the control sys-
tem to find out when your vehicle is next
due for service, to set the language for
messages in the instrument cluster dis-
play, and much more.
The control system relays information to
the multifunction display.

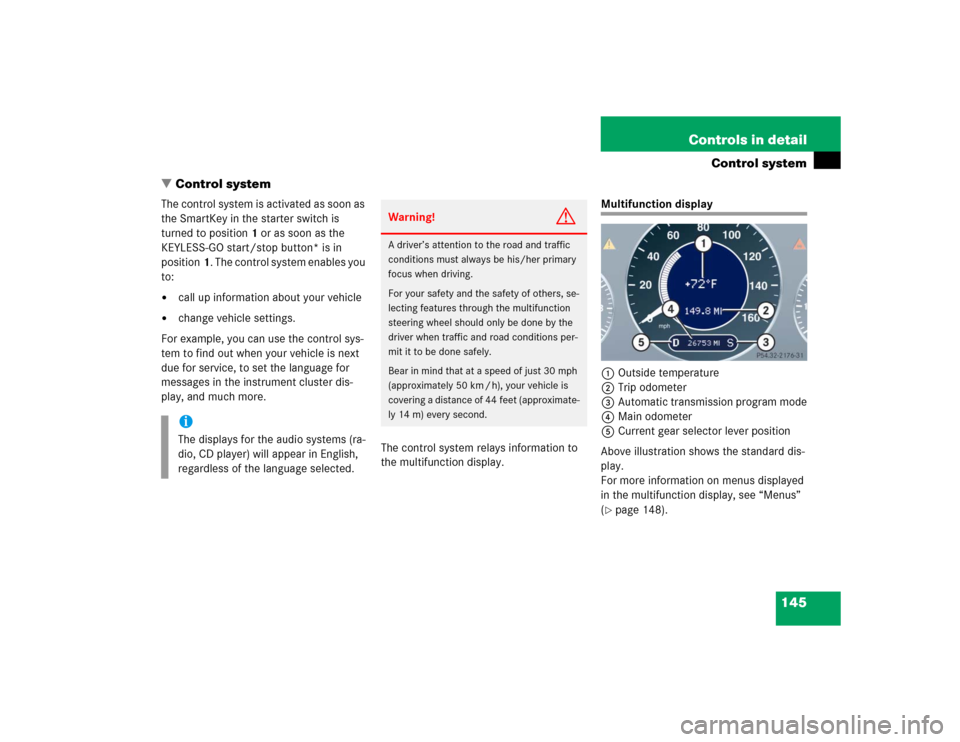

Multifunction display
1Outside temperature
2Trip odometer
3Automatic transmission program mode
4Main odometer
5Current gear selector lever position
Above illustration shows the standard dis-
play.
For more information on menus displayed
in the multifunction display, see “Menus”
(page 148).
iThe displays for the audio systems (ra-
dio, CD player) will appear in English,
regardless of the language selected.
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others, se-
lecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions per-
mit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km / h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
Page 148 of 506

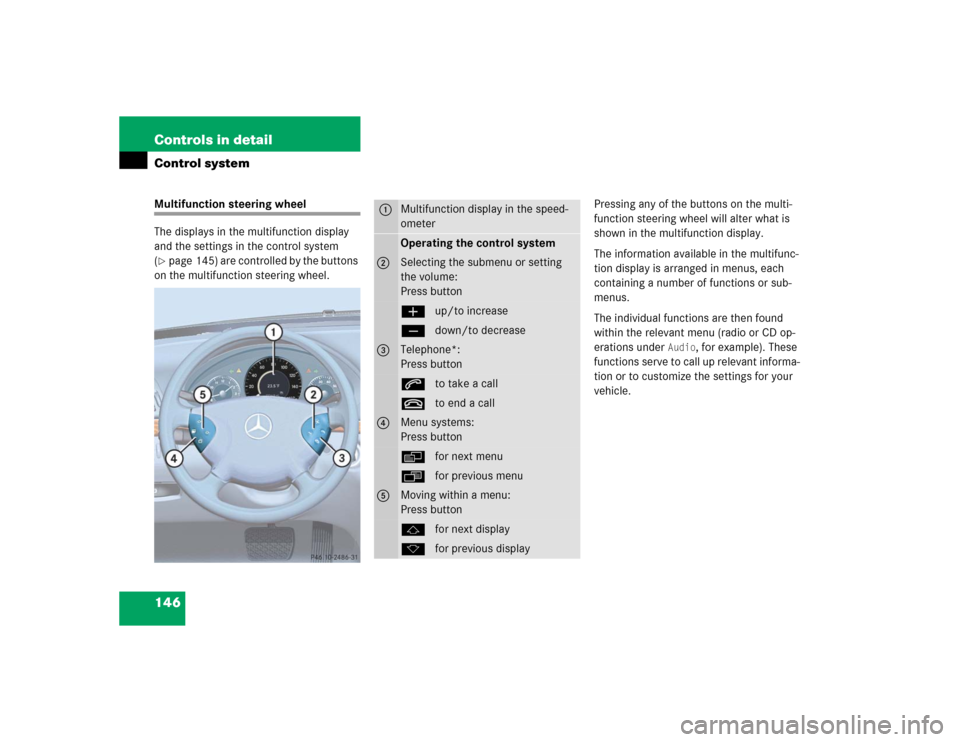

146 Controls in detailControl systemMultifunction steering wheel
The displays in the multifunction display
and the settings in the control system
(page 145) are controlled by the buttons
on the multifunction steering wheel.Pressing any of the buttons on the multi-
function steering wheel will alter what is
shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
Audio
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.
1
Multifunction display in the speed-
ometerOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display
Page 152 of 506

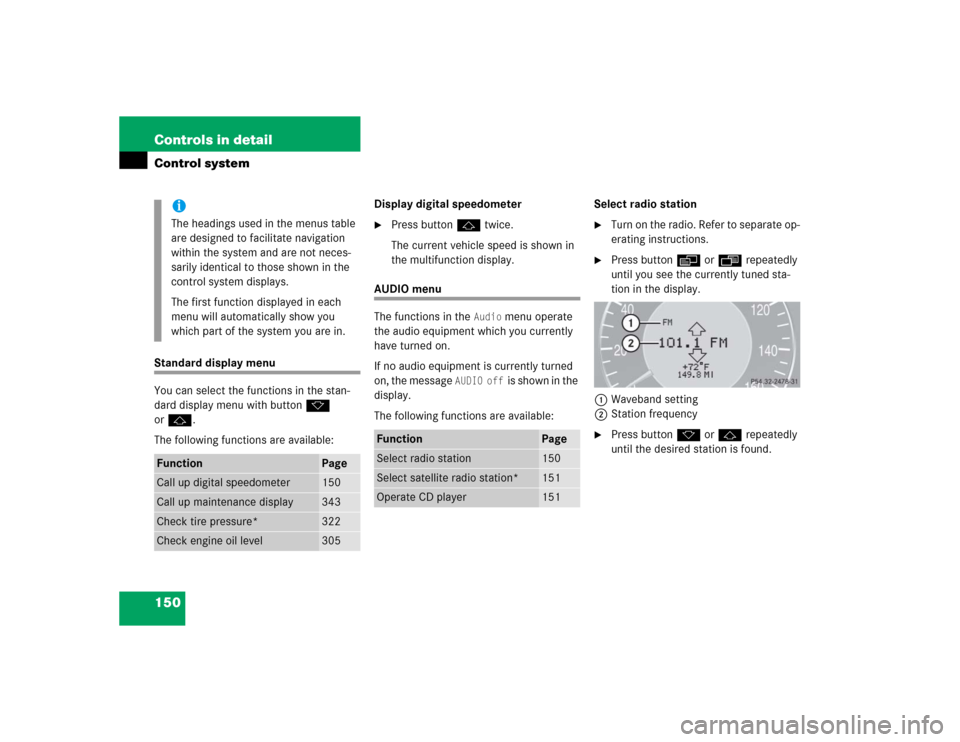

150 Controls in detailControl systemStandard display menu
You can select the functions in the stan-
dard display menu with buttonk
orj.
The following functions are available:Display digital speedometer
Press buttonj twice.
The current vehicle speed is shown in
the multifunction display.
AUDIO menu
The functions in the
Audio
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO off
is shown in the
display.
The following functions are available:Select radio station
Turn on the radio. Refer to separate op-
erating instructions.
Press buttonè orÿ repeatedly
until you see the currently tuned sta-
tion in the display.
1Waveband setting
2Station frequency
Press buttonk orj repeatedly
until the desired station is found.
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Call up digital speedometer
150
Call up maintenance display
343
Check tire pressure*
322
Check engine oil level
305
Function
Page
Select radio station
150
Select satellite radio station*
151
Operate CD player
151
Page 155 of 506
153 Controls in detail
Control system

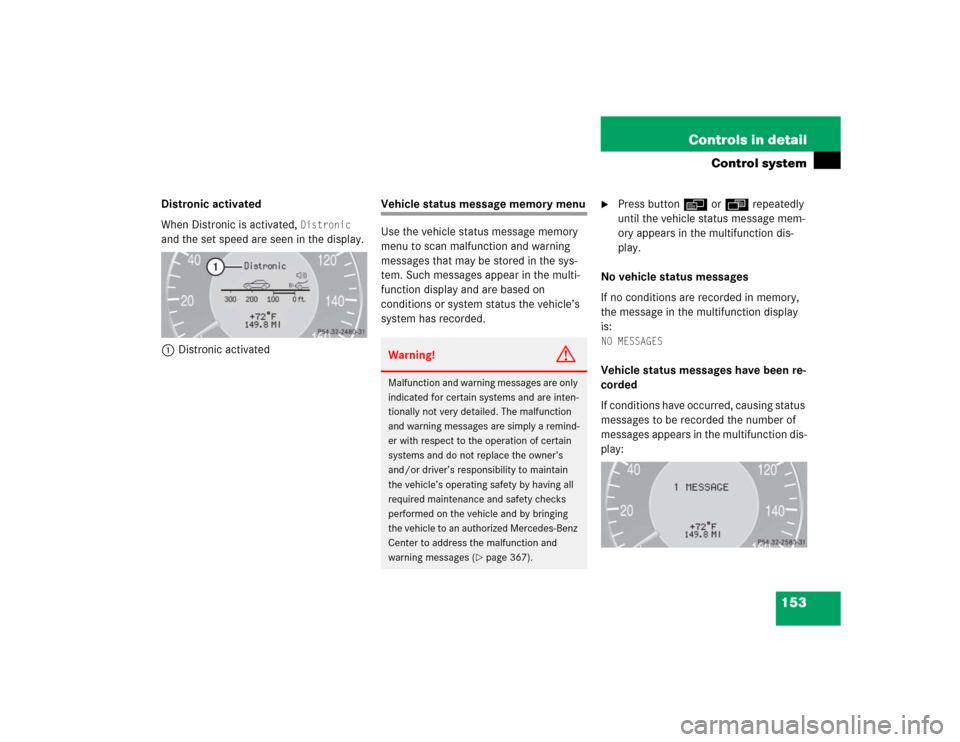

Distronic activated
When Distronic is activated,
Distronic
and the set speed are seen in the display.
1Distronic activated
Vehicle status message memory menu
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the sys-
tem. Such messages appear in the multi-
function display and are based on
conditions or system status the vehicle’s
system has recorded.
Press buttonè orÿ repeatedly
until the vehicle status message mem-
ory appears in the multifunction dis-
play.
No vehicle status messages
If no conditions are recorded in memory,
the message in the multifunction display
is:
NO MESSAGESVehicle status messages have been re-
corded
If conditions have occurred, causing status
messages to be recorded the number of
messages appears in the multifunction dis-
play:
Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 367).
Page 156 of 506
154 Controls in detailControl system
Press buttonk orj.
The stored messages will now be dis-
played in the order in which they have
occurred. For malfunction and warning
messages, see “Vehicle status messag-
es in the multifunction display”
(page 367).
Should the vehicle’s system record any
conditions while driving, the number of
messages will reappear in the multifunc-
tion display when the SmartKey in the
starter switch is turned to position0 or re-
moved from the starter switch.

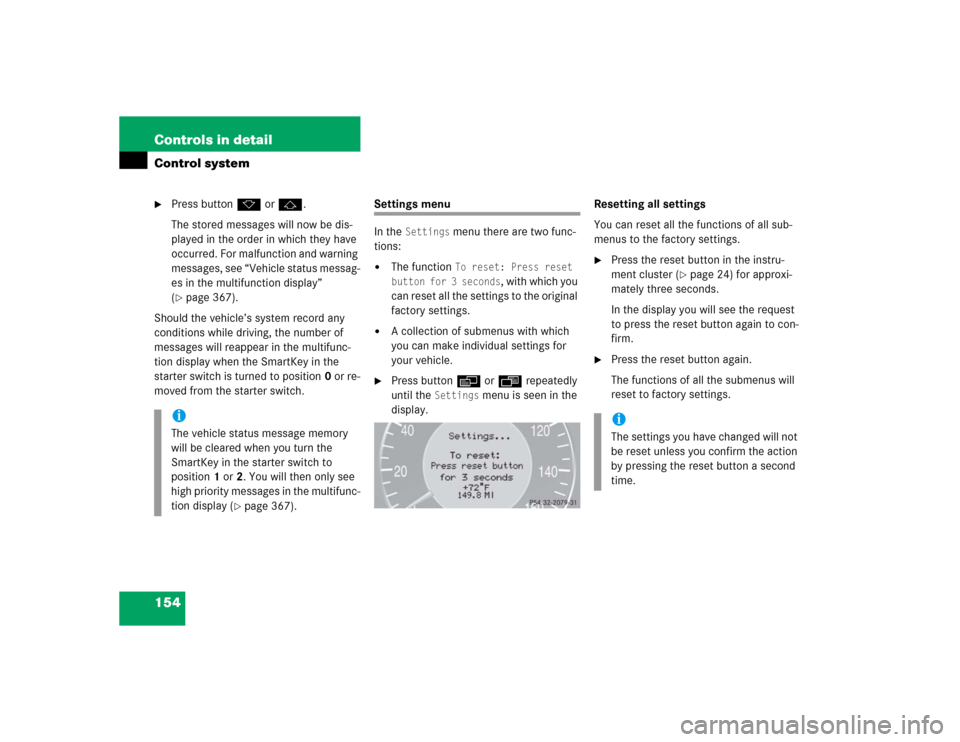

Settings menu
In the
Settings
menu there are two func-
tions:
The function
To reset: Press reset
button for 3 seconds
, with which you
can reset all the settings to the original
factory settings.
A collection of submenus with which
you can make individual settings for
your vehicle.
Press buttonè orÿ repeatedly
until the
Settings
menu is seen in the
display.Resetting all settings
You can reset all the functions of all sub-
menus to the factory settings.
Press the reset button in the instru-
ment cluster (
page 24) for approxi-
mately three seconds.
In the display you will see the request
to press the reset button again to con-
firm.
Press the reset button again.
The functions of all the submenus will
reset to factory settings.
iThe vehicle status message memory
will be cleared when you turn the
SmartKey in the starter switch to
position1 or2. You will then only see
high priority messages in the multifunc-
tion display (
page 367).
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time.
Page 160 of 506

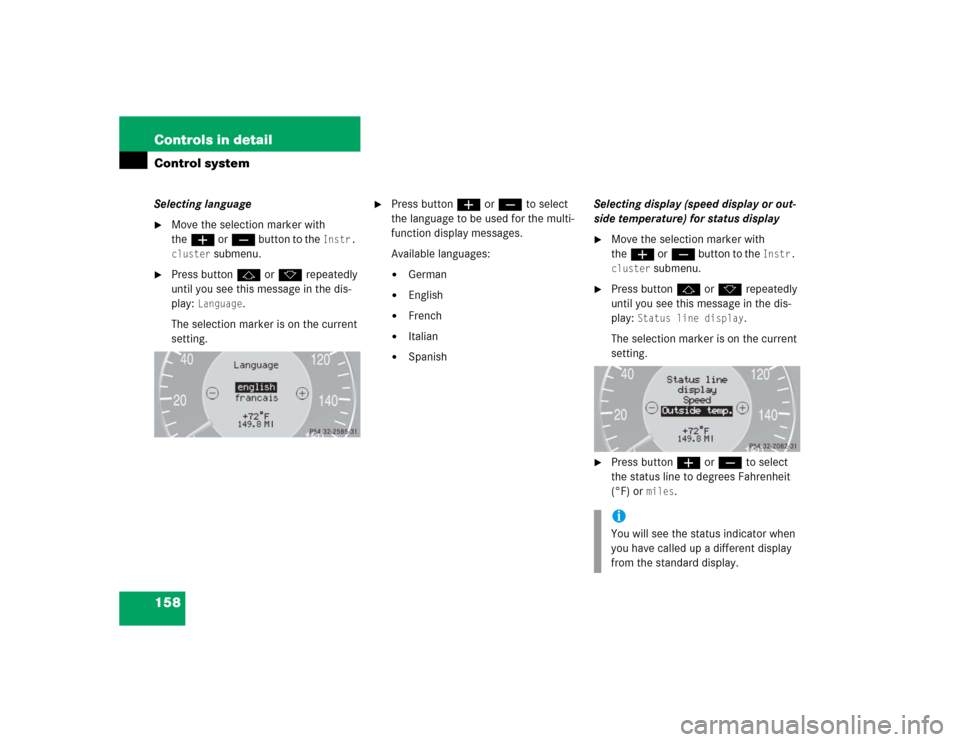

158 Controls in detailControl systemSelecting language
Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.
Press buttonj ork repeatedly
until you see this message in the dis-
play:
Language
.
The selection marker is on the current
setting.
Press buttonæ orç to select
the language to be used for the multi-
function display messages.
Available languages:
German
English
French
Italian
SpanishSelecting display (speed display or out-
side temperature) for status display
Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.
Press buttonj ork repeatedly
until you see this message in the dis-
play:
Status line display
.
The selection marker is on the current
setting.
Press buttonæ orç to select
the status line to degrees Fahrenheit
(°F) or
miles
.
iYou will see the status indicator when
you have called up a different display
from the standard display.
Page 161 of 506
159 Controls in detail
Control system

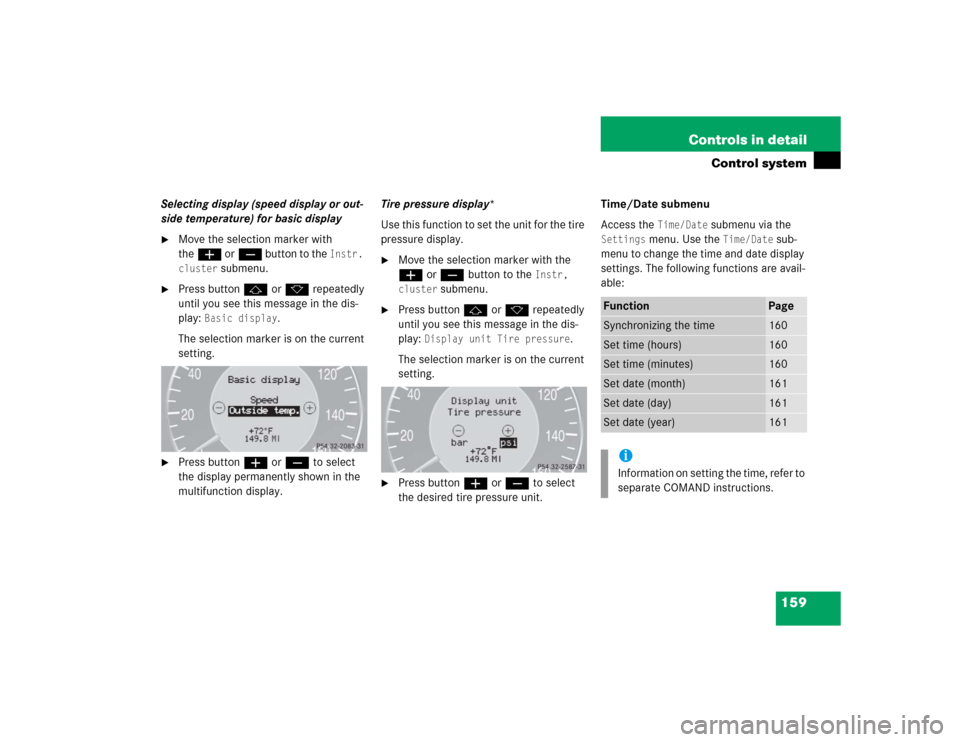

Selecting display (speed display or out-
side temperature) for basic display
Move the selection marker with
theæ orç button to the
Instr.
cluster
submenu.
Press buttonj ork repeatedly
until you see this message in the dis-
play:
Basic display
.
The selection marker is on the current
setting.
Press buttonæ orç to select
the display permanently shown in the
multifunction display.Tire pressure display*
Use this function to set the unit for the tire
pressure display.
Move the selection marker with the
æ or ç button to the
Instr,
cluster
submenu.
Press button j or k repeatedly
until you see this message in the dis-
play:
Display unit Tire pressure
.
The selection marker is on the current
setting.
Press buttonæ or ç to select
the desired tire pressure unit.Time/Date submenu
Access the
Time/Date
submenu via the
Settings
menu. Use the
Time/Date
sub-
menu to change the time and date display
settings. The following functions are avail-
able:
Function
Page
Synchronizing the time
160
Set time (hours)
160
Set time (minutes)
160
Set date (month)
161
Set date (day)
161
Set date (year)
161
iInformation on setting the time, refer to
separate COMAND instructions.
Page 164 of 506

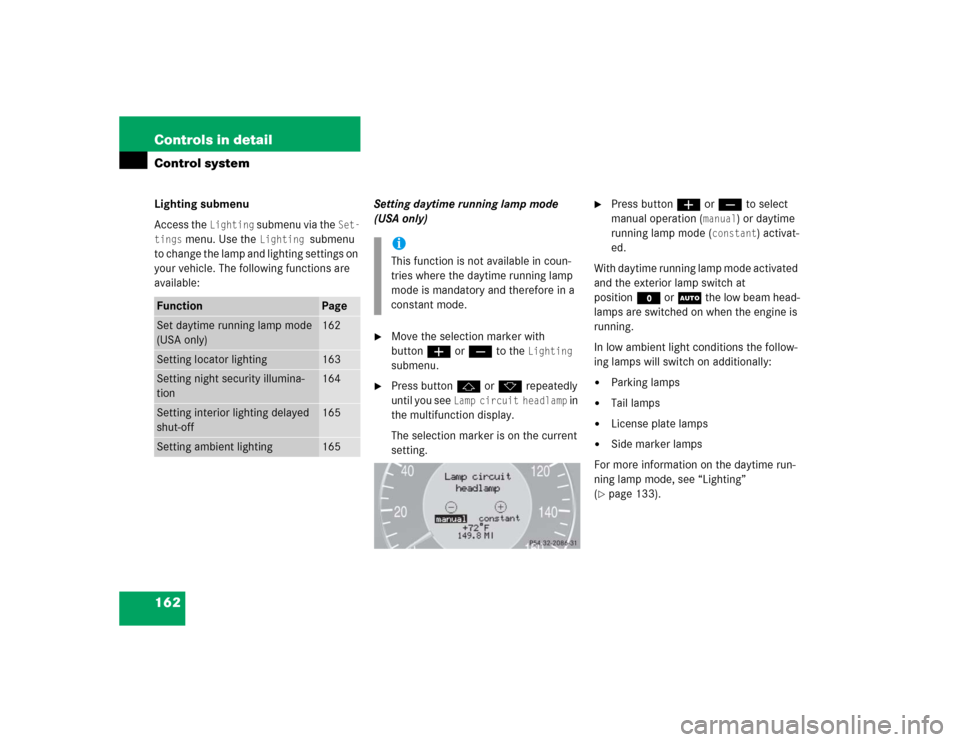

162 Controls in detailControl systemLighting submenu
Access the
Lighting
submenu via the
Set-
tings
menu. Use the
Lighting
submenu
to change the lamp and lighting settings on
your vehicle. The following functions are
available:Setting daytime running lamp mode
(USA only)
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until you see
Lamp circuit headlamp
in
the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to select
manual operation (
manual
) or daytime
running lamp mode (
constant
) activat-
ed.
With daytime running lamp mode activated
and the exterior lamp switch at
positionM orU the low beam head-
lamps are switched on when the engine is
running.
In low ambient light conditions the follow-
ing lamps will switch on additionally:
Parking lamps
Tail lamps
License plate lamps
Side marker lamps
For more information on the daytime run-
ning lamp mode, see “Lighting”
(
page 133).
Function
Page
Set daytime running lamp mode
(USA only)
162
Setting locator lighting
163
Setting night security illumina-
tion
164
Setting interior lighting delayed
shut-off
165
Setting ambient lighting
165
iThis function is not available in coun-
tries where the daytime running lamp
mode is mandatory and therefore in a
constant mode.
Page 165 of 506
163 Controls in detail
Control system
Setting locator lighting
With the locator lighting feature activated
and the exterior lamp switch in
positionU, the following lamps will
switch on when the vehicle is unlocked
with the SmartKey or KEYLESS-GO* during
darkness:
Parking lamps
Tail lamps
License plate lamps
Side marker lamps
Front fog lamps
The locator lighting switches off when the
driver’s door is opened.
If you do not open a door after unlocking
with the SmartKey the lamps will switch off
automatically after approximately 40 sec-
onds.
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until you see

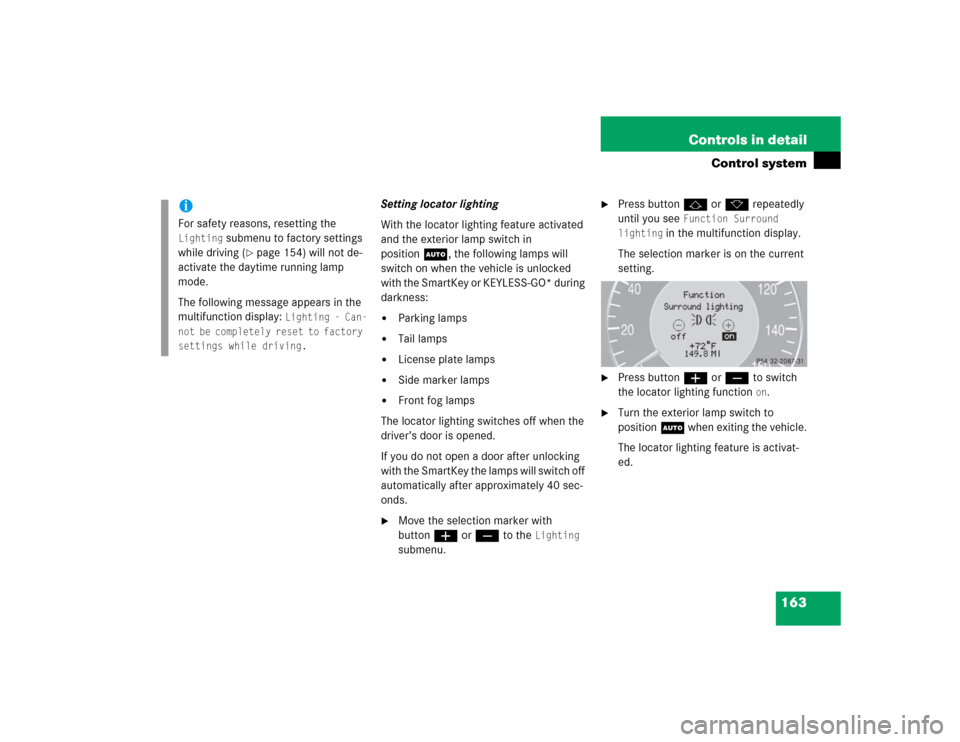

Function Surround
lighting
in the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to switch
the locator lighting function
on.
Turn the exterior lamp switch to
positionU when exiting the vehicle.
The locator lighting feature is activat-
ed.
iFor safety reasons, resetting the Lighting
submenu to factory settings
while driving (
page 154) will not de-
activate the daytime running lamp
mode.
The following message appears in the
multifunction display:
Lighting - Can-
not be completely reset to factory
settings while driving.
Page 166 of 506
164 Controls in detailControl systemSetting night security illumination
(Headlamps delayed shut-off)
Use this function to set whether and how
long you would like the exterior lamps to il-
luminate during darkness after exiting the
vehicle and all doors closed.
With the delayed shut-off feature activated
and the exterior lamp switch in
positionU before the engine is turned
off, the following lamps will switch on after
you have removed the SmartKey from the
starter switch or, when using
KEYLESS-GO*, open the driver's door:
Parking lamps
Tail lamps
License plate lamps
Side marker lamps
Front fog lamps
If you do not open a door after removing
the SmartKey from the starter switch, the
lamps will switch off automatically after
approximately 60 seconds.
Move the selection marker with
buttonæ orç to the
Lighting
submenu.
Press buttonj ork repeatedly
until you see

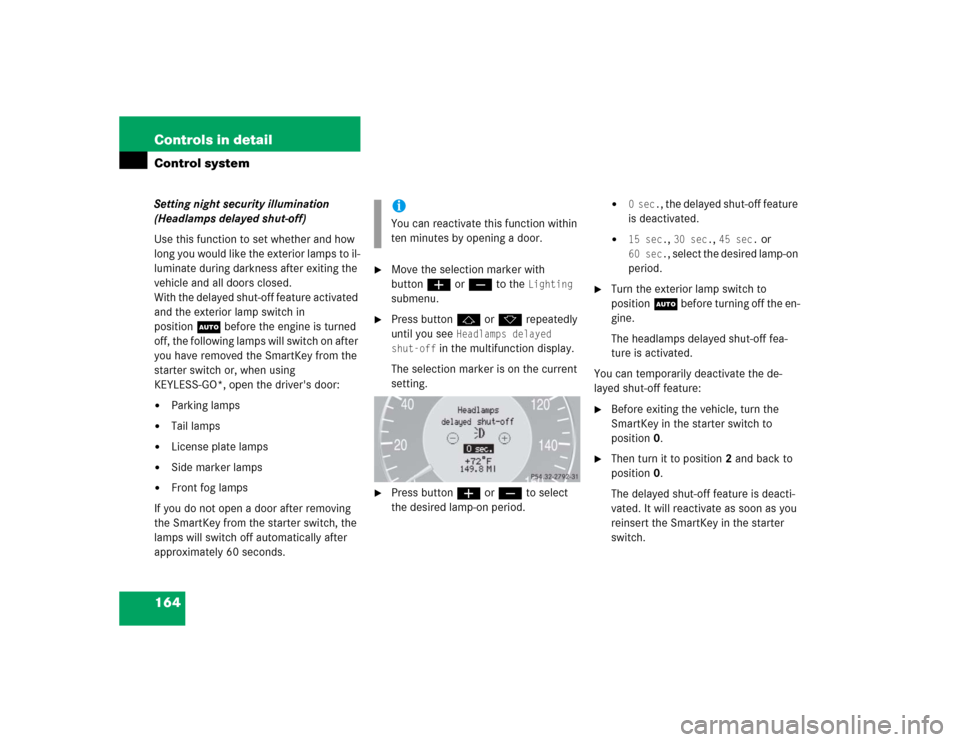

Headlamps delayed
shut-off
in the multifunction display.
The selection marker is on the current
setting.
Press buttonæ orç to select
the desired lamp-on period.
0 sec.
, the delayed shut-off feature
is deactivated.
15 sec.
, 30 sec.
, 45 sec.
or
60 sec.
, select the desired lamp-on
period.
Turn the exterior lamp switch to
positionU before turning off the en-
gine.
The headlamps delayed shut-off fea-
ture is activated.
You can temporarily deactivate the de-
layed shut-off feature:
Before exiting the vehicle, turn the
SmartKey in the starter switch to
position0.
Then turn it to position2 and back to
position0.
The delayed shut-off feature is deacti-
vated. It will reactivate as soon as you
reinsert the SmartKey in the starter
switch.
iYou can reactivate this function within
ten minutes by opening a door.
