Page 276 of 506
274 Controls in detailUseful features
Initiating an emergency call manually
1Cover
2SOS button
Briefly press on cover1.
The cover will open.
Press SOS button2 briefly.
The indicator lamp in SOS button2
will flash until the emergency call is
concluded.
Wait for a voice connection to the Re-
sponse Center.
Close cover after the emergency call is
concluded.
Warning!
G
If the indicator lamp in the SOS button is
flashing continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
Call failed
appears in the
multifunction display for approximately
ten seconds.
Should this occur, assistance must be sum-
moned by other means.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.
Page 277 of 506
275 Controls in detail
Useful features
Roadside Assistance button•
Located below the center armrest cover is
the Roadside Assistance button•.
Press and hold the button (for longer
than two seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
Connecting
call
will appear in the multifunction
display and the audio system is muted.
When the connection is established, the
message Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established.
Describe the nature of the need for as-
sistance.The Mercedes-Benz Roadside Assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest authorized
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information.
The following is only available in the USA:
Sign and Drive services: Services such
as a jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.
iThe indicator lamp on the Roadside As-
sistance button• remains illumi-
nated in red for approximately
ten seconds during the system
self-check after switching on the igni-
tion (together with the SOS button and
the Information button¡).
See system self-check (
page 272)
when the indicator lamp does not come
on in red or stays on longer than ap-
proximately ten seconds.
If the indicator lamp on the Roadside
Assistance button• is flashing con-
tinuously and there was no voice con-
nection to the Response Center
established, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network is not available). The
message
Call failed
appears in the
multifunction display.
Page 278 of 506
276 Controls in detailUseful featuresInformation button¡
The Information button¡ is located be-
low the center armrest cover.
Press and hold button (for longer than
two seconds).
A call to the Customer Assistance Cen-
ter will be initiated. The button will
flash while the call is in progress. The
message
Connecting call
will appear
in the multifunction display and the au-
dio system is muted.
When the connection is established, the
message
Call connected
appears in the
multifunction display. The Tele Aid system
will transmit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. Information regarding the operation
of your vehicle, the nearest authorized
Mercedes-Benz Center or Mercedes-Benz
USA products and services is available to
you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only). Roadside Assistance calls can be ter-
minated using the tbutton on the
multifunction steering wheel or the re-
spective button for ending a telephone
call on the COMAND headunit.
iThe indicator lamp on the Information
button¡ remains illuminated in red
for approximately ten seconds during
the system self-check after switching
on the ignition (together with the SOS
button and the Roadside Assistance
button•).
See system self-check (
page 272)
when the indicator lamp does not come
on in red or stays on longer than ap-
proximately ten seconds.
If the indicator lamp on the Information
button¡ is flashing continuously
and there was no voice connection to
the Response Center established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able). The message
Call failed
ap-
pears in the multifunction display.
Information calls can be terminated us-
ing the tbutton on the multifunc-
tion steering wheel or the respective
button for ending a telephone call on
the COMAND headunit.
Page 280 of 506
278 Controls in detailUseful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve SmartKey is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.
Then return to your vehicle and pull the
trunk recessed handle for a minimum
of 20 seconds until the SOS button is
flashing.
The message
Call connected
appears
in the multifunction display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.
iWhen a Tele Aid call has been initiated,
the COMAND system audio is muted
and the selected mode (radio or CD)
pauses. The optional cellular phone (if
installed) switches off. If you must use
this phone, the vehicle must be parked.
Disconnect the coiled cord and place
the call. The COMAND navigation*
system (if engaged) will continue to
run. The display in the instrument clus-
ter is available for use, and spoken
commands are only available by press-
ing the RPT button on the COMAND
unit. A pop-up window will appear in
the COMAND display to indicate that a
Tele Aid call is in progress.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
Call connected
will appear in the
multifunction display to indicate re-
ceipt of the door unlock command.
Once the vehicle is unlocked, a Re-
sponse Center specialist will attempt
to establish voice contact with the ve-
hicle occupants.
If the trunk recessed handle was pulled
for more than 20 seconds before door
unlock authorization was received by
the Response Center, you must wait
15 minutes before pulling the trunk re-
cessed handle again.
Page 307 of 506
305 Operation
Engine compartment
Checking engine oil level with the con-
trol system
When checking the oil level
the vehicle must be parked on level
ground
with the engine at operating tempera-
ture, the vehicle must have been
stationary for at least five minutes with
the engine turned off
with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned off
To check the engine oil level via the multi-
function display, do the following:
Switch on the ignition (
page 33).
The standard display (
page 145) should
appear in the multifunction display.
Press button k or j, on the
steering wheel until the following
message is seen in the multifunction
display:One of the following messages will
subsequently appear in the indicator:
Engine oil level ok
Add 1.0 Qt.
to reach max. oil level(Canada:
1.0 Liter
)
Add 1.5 Qts.
to reach max. oil level(Canada:
1.5 Liters
)
Add 2.0 Qts.
to reach max. oil level(Canada: 2
.0 Liters
)
If necessary, add engine oil.
For adding engine oil, see (
page 306).
For more information on engine oil, see the
“Technical data” section (
page 461) and
(
page 464).
Other display messages
If the SmartKey or KEYLESS-GO start/stop
button* is not in position 2, the following
message will appear:
Switch on ignition
to check engine oil level
Switch on the ignition (
page 33).
If you see the message:
Observe waiting period
iIf you want to interrupt the checking
procedure, press thek orj
button on the multifunction steering
wheel.
Page 325 of 506
323 Operation
Tires and wheels
Switch on the ignition (
page 33).
Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu ap-
pears in the multifunction display
(page 150).
Press the j or k button until the
current inflation pressures for each tire
appear in the multifunction display.iPossible differences between the read-
ings of a tire inflation pressure gauge of
an air hose, e.g. gas station equipment,
and the vehicle’s control system can
occur. The readings issued by the con-
trol system are more precise.
Warning!
G
When the tire pressure monitoring system
warning light is lit, one or more of your tires
is significantly under-inflated. You should
stop and check your tires as soon as possi-
ble, and inflate them to the proper pressure
as indicated on the vehicle’s tire information
placard. Driving on a significantly under-in-
flated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Each tire, including the
spare, should be checked monthly when
cold and set to the recommended inflation
pressure as specified in the vehicle placard
and owner’s manual.iThe recommended tire inflation pres-
sures for your vehicle can be found on
the placard on the driver’s door B-pillar
or the inside of the fuel filler flap, not in
the owner’s manual.
Warning!
G
The tire pressure monitoring system does
not indicate a warning for wrongly selected
inflation pressures. Always adjust tire infla-
tion pressure according to the placard locat-
ed on the driver’s door B-pillar or the inside
of the fuel filler flap.
The tire pressure monitoring system is not
able to issue a warning due to a sudden dra-
matic loss of pressure (e.g. tire blowout
caused by a foreign object). In this case
bring the vehicle to a halt by carefully apply-
ing the brakes and avoiding abrupt steering
maneuvers.iOperating radio transmission equip-
ment (e.g. wireless headsets, two-way
radios) in or near the vehicle could
cause the tire pressure monitoring sys-
tem to malfunction.
Page 326 of 506
324 OperationTires and wheels
Reactivating the tire pressure monitor-
ing system
The tire pressure monitoring system must
be reactivated in the following situations:
If you have changed the tire inflation
pressure
If you have replaced the wheels or tires
If you have installed new wheels or
tires
Using the tire placard on the driver’s
door B-pillar or, if available, the inside
of the fuel filler flap, make sure the tire
inflation pressure of all four tires is cor-
rect.
Press button j or k repeatedly
until you see the current inflation pres-
sures for each tire appear in the multi-
function display or the following
message appears in the multifunction
display:Tire pressure
displayed only
after driving
a few mins.
Press the reset button on the instru-
ment cluster (
page 24).
The following message will appear in
the multifunction display:
Check current
tire pres.?
Warning!
G
Follow recommended tire inflation pres-
sures.
Do not overinflate tires. Overinflating tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Do not overload the tires by exceeding the
specified vehicle capacity weight (as indicat-
ed by the label on the pillar in the driver’s
door opening). Overloading the tires can
overheat them, possibly causing a blowout.
iIf you are transporting a deflated tire in
the vehicle, do not activate the tire
pressure monitoring system until
the deflated tire is no longer in the
vehicle
you have inflated the tire to the cor-
rect pressure
Page 327 of 506
325 Operation
Tires and wheels
Press the æ button.
The following message will appear in
the multifunction display field:Tire pres. monitor
reactivated
The tire pressure monitoring system
will now monitor the tire inflation pres-
sure values of all four tires.
The following message will appear in
the multifunction display field:
Tire pressure
displayed only
after driving
a few mins. This display appears until the individual
inflation pressure values are matched
with the tires. The individual values are
then displayed (
page 396).If you wish to cancel activation:
Press the ç button.
If one of the following messages appears in
the multifunction display:
reactivate tire
pressure monitor
after rectifying
pressure
Tire pressure
Please rectify
Check the tire inflation pressures and
correct them if necessary.
Reactivate the tire pressure monitoring
system.
iAfter you have reactivated the tire
pressure monitoring system, the cur-
rent tire inflation pressure values will
only be shown after several minutes of
driving. During this time, the following
message appears in the display:Tire pressure
displayed only
after driving
a few mins. The time before the tire inflation pres-
sures are shown depends on whether
or not
you have mounted new tires
the old tires are still on the vehicle
If you have mounted new tires, it will
take slightly longer before the tire infla-
tion pressures are shown in the display.
Page 345 of 506
343 Operation
Maintenance
Maintenance
We strongly recommend that you have
your vehicle serviced by an authorized
Mercedes-Benz Center, in accordance with
the Maintenance Booklet at the times
called for by the maintenance service indi-
cator display.
Failure to have the vehicle maintained in
accordance with the Maintenance Booklet
and maintenance service indicator at the
designated times /mileage will result in ve-
hicle damage not covered by the
Mercedes-Benz Limited Warranty.
The maintenance service indicator will no-
tify you when your next maintenance ser-
vice is due.

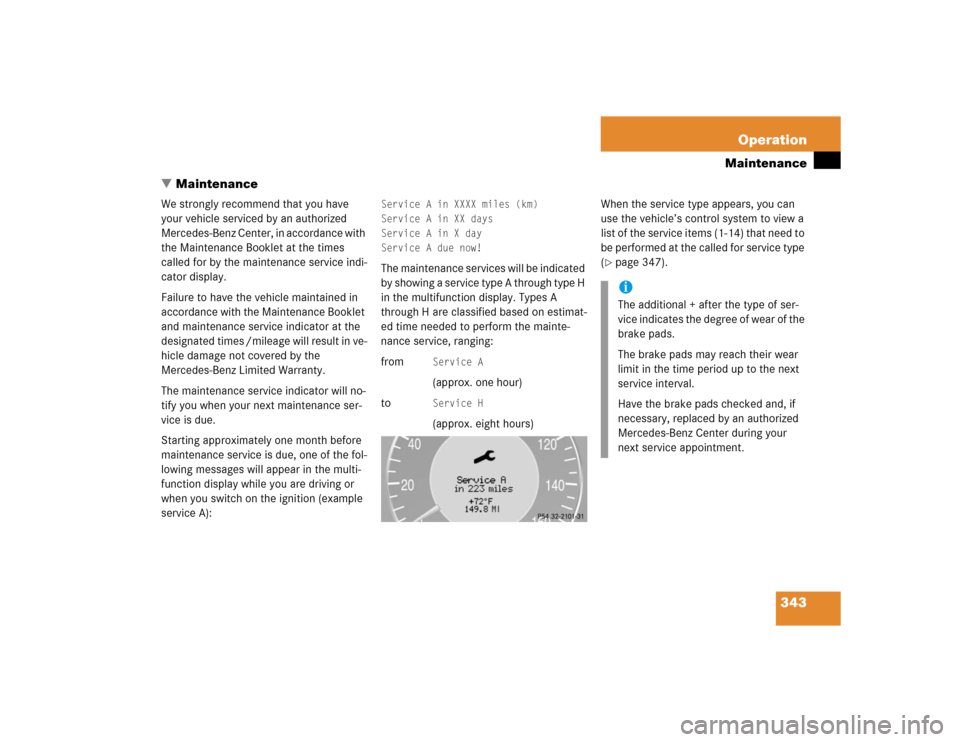

Starting approximately one month before
maintenance service is due, one of the fol-
lowing messages will appear in the multi-
function display while you are driving or
when you switch on the ignition (example
service A):
Service A in XXXX miles (km)
Service A in XX days
Service A in X day
Service A due now!The maintenance services will be indicated
by showing a service type A through type H
in the multifunction display. Types A
through H are classified based on estimat-
ed time needed to perform the mainte-
nance service, ranging:
from
Service A(approx. one hour)
toService H(approx. eight hours)When the service type appears, you can
use the vehicle’s control system to view a
list of the service items (1-14) that need to
be performed at the called for service type
(
page 347).iThe additional + after the type of ser-
vice indicates the degree of wear of the
brake pads.
The brake pads may reach their wear
limit in the time period up to the next
service interval.
Have the brake pads checked and, if
necessary, replaced by an authorized
Mercedes-Benz Center during your
next service appointment.
Page 346 of 506
344 OperationMaintenance
Clearing the maintenance service indicator
You can clear the maintenance service in-
dicator.

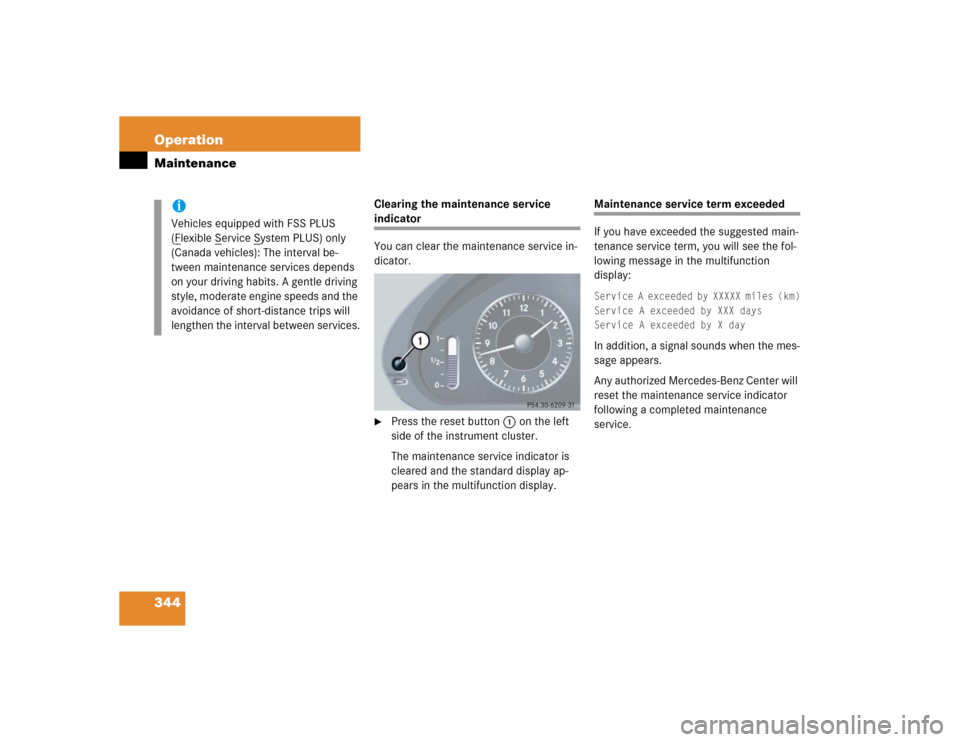

Press the reset button 1 on the left
side of the instrument cluster.
The maintenance service indicator is
cleared and the standard display ap-
pears in the multifunction display.
Maintenance service term exceeded
If you have exceeded the suggested main-
tenance service term, you will see the fol-
lowing message in the multifunction
display:Service A exceeded by XXXXX miles (km)
Service A exceeded by XXX days
Service A exceeded by X day In addition, a signal sounds when the mes-
sage appears.
Any authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.
iVehicles equipped with FSS PLUS
(Flexible S
ervice S
ystem PLUS) only
(Canada vehicles): The interval be-
tween maintenance services depends
on your driving habits. A gentle driving
style, moderate engine speeds and the
avoidance of short-distance trips will
lengthen the interval between services.
