MERCEDES-BENZ E350 2006 W211 Owner's Manual

240 Controls in detailPanorama roof with power tilt/sliding panel*Fully opening the roller sunblinds (Ex-
press-open)
Move the roof panel/roller sunblinds
switch past the resistance point in di-
rection of arrow1 and release.
The roller sunblinds opens completely.
Stopping the roller sunblinds during
Express-operation

Move the roof panel/roller sunblinds
switch in any direction.Opening and closing the panorama roof
with power tilt/sliding panel
The tilt/sliding panel is opened and closed
electrically. The switch for the tilt/sliding
panel is on the overhead control panel.
The tilt/sliding panel only operates with
the roller sunblinds opened.Roof panel switch1Push back to slide roof panel open
2Push forward to slide roof panel closed
3Push up to raise roof panel
4Pull down to lower roof panel
Warning!
G
When closing the roller sunblinds, make
sure that no one is in danger of being injured
by the closing procedure. The closing of the
roller sunblinds can be immediately halted
by releasing the switch.
Warning!
G
When opening or closing the tilt/sliding pan-
el, make sure that there is no danger of any-
one being harmed by the opening or closing
procedure.
The opening procedure of the tilt/sliding
panel can be immediately halted by releas-
ing the switch or, if the switch was moved
past the resistance point and released, by
moving the switch in any direction.
The closing procedure of the tilt/sliding
panel can be immediately halted by releas-
ing the switch.
The panorama roof with power tilt/sliding
panel is made out of glass. In the event of an
accident, the glass may shatter. This may re-
sult in an opening in the roof.


241 Controls in detail
Panorama roof with power tilt/sliding panel*

Switch on the ignition (
page 36).Opening and closing the panorama roof
with power tilt/sliding panel

To open, close, raise, or lower the
tilt/sliding panel, move the roof panel
switch to resistance point in the re-
quired direction of arrows1 to4.
Release the roof panel switch when the
tilt/sliding panel has reached the de-
sired position.
Fully opening (Express-open) the pan-
orama roof with power tilt/sliding pan-
el

Move the roof panel switch past the re-
sistance point in direction of arrow1
and release.
The tilt/sliding panel opens
completely.
Stopping the panorama roof with power
tilt/sliding panel during Express-open

Move the roof panel switch in any di-
rection.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts prop-
erly as entire body parts or portions of them
may protrude from the passenger compart-
ment.
When leaving the vehicle, always remove the
SmartKey or the SmartKey with
KEYLESS-GO* from the starter switch, take
it with you, and lock the vehicle. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment can
cause an accident and/or serious personal
injury.!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
panel.
Do not open the tilt/sliding panel if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding panel can be opened or
closed manually should an electrical
malfunction occur (
page 429).
iYou can also open or close the tilt/slid-
ing panel using the SmartKey (summer
opening/convenience closing feature)
(page 234) or (
page 235).
Depending on current position, the
tilt/sliding panel may also open or
close when the air recirculation
button, in the control panel of the
climate control (
page 204),
(
page 216) or (
page 217) is
pressed and held.

242 Controls in detailPanorama roof with power tilt/sliding panel*Synchronizing the panorama roof with power tilt/sliding panel
The tilt/sliding panel must be
synchronized

after the battery has been
disconnected or discharged


after the tilt/sliding panel has been
closed manually (
page 429)


after a malfunction


if the tilt/sliding panel does not open
smoothly

Remove the fuse from the main fuse
box (
page 461).

Reinsert the fuse in the main fuse box.

Switch on the ignition (
page 36).

Move and hold the roof panel switch in
direction of arrow2 until the roller
sunblinds are fully closed.

Keep holding the roof panel switch in
direction of arrow2 for approximately
1 second.

Move and hold the roof panel switch in
direction of arrow1 until the roller
sunblinds are fully opened.

Keep holding the roof panel switch in
direction of arrow1 for approximately
1 second.

Move and hold the roof panel switch in
direction of arrow3 until the tilt/slid-
ing panel is fully raised.

Keep holding the roof panel switch in
direction of arrow3 for approximately
1 second.

Move and hold the roof panel switch in
direction of arrow2 until the tilt/slid-
ing panel is fully closed.

Keep holding the roof panel switch in
direction of arrow2 for approximately
1 second.

Check the Express-open feature of the
tilt/sliding panel (
page 241).
If the tilt/sliding panel opens com-
pletely, the roof is synchronized. Other-
wise repeat the above steps.

243 Controls in detail
Driving systems
Driving systems
The driving systems of your vehicle are de-
scribed on the following pages:

Cruise control and Distronic*, with
which the vehicle can maintain a preset
speed


Airmatic DC* adjusts the vehicle sus-
pension characteristics automatically
and controls the vehicle level


Parktronic system*, which assists the
driver during parking maneuvers
For information on BAS, ABS, electrohy-
draulic brake system and ESP
® driving sys-
tems, see “Driving safety systems”
(
page 92).
Cruise control
The cruise control automatically maintains
the speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed above 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 22).
Warning!
G
The cruise control is a convenience system
designed to assist the driver during vehicle
operation. The driver is and must remain at
all times responsible for the vehicle speed
and for safe brake operation.
Only use the cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate the cruise control when driv-
ing in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

244 Controls in detailDriving systems1Set current or higher speed
2Set current or lower speed
3Cancel cruise control
4Resume at last set speedSetting current speed

Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.
The selected speed appears in the multi-
function display for approximately
5 seconds, and the corresponding speed-
ometer segments from the selected speed
to the vehicle maximum speed are illumi-
nated.
Warning!
G
The cruise control brakes automatically so
that the set speed is not exceeded.
Keep in mind that the cruise control is a
convenience system designed to assist the
driver during vehicle operation. The driver is
and must remain at all times responsible for
the vehicle speed and for safe brake
operation.
iOn uphill or downhill grades, the cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
On downhill grades, the cruise control
maintains the set speed with active
braking action.
In addition, on longer downhill grades
the automatic transmission will auto-
matically downshift.

245 Controls in detail
Driving systems
Canceling cruise control
There are several ways to cancel the cruise
control:
Step on the brake pedal.
The cruise control is canceled. The last
speed set is stored for later use.
or

Briefly push the cruise control lever in
direction of arrow3 (
page 244).
The cruise control is canceled. The last
speed set is stored for later use.
iThe last stored speed is canceled when
you turn off the engine.
iThe cruise control switches off auto-
matically if

you step on the brake pedal.


you depress the parking brake
pedal.
In this case the segments in the
multifunction display (
page 249)
go out and no warning sounds.


the vehicle speed is below 20 mph
(30 km/h).


the ESP
® is in operation or
switched off with the ESP
® switch
(
page 96).


you move the gear selector lever to
position N while driving.
The segments in the multifunction dis-
play (page 249) go out, and an
acoustic warning sounds.
!Moving gear selector lever to
positionN while driving also cancels
the cruise control. However, the gear
selector lever should not be moved to
positionN while driving except to coast
when the vehicle is in danger of skid-
ding (e.g. on icy roads).iDepressing the accelerator pedal does
not deactivate the cruise control. After
brief acceleration (e.g. for passing), the
cruise control will resume the last
speed set.

246 Controls in detailDriving systemsSetting a higher speed
Lift cruise control lever in direction of
arrow1 (
page 244) and hold it up
until the desired speed is reached.

Release the cruise control lever.
The new speed is set.
Setting a lower speed

Depress the cruise control lever in di-
rection of arrow2 (
page 244) and
hold it down until the desired speed is
reached.

Release cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip the cruise control lever in di-
rection of arrow1 (
page 244).
Slower

Briefly tip the cruise control lever in di-
rection of arrow2 (
page 244).Setting to last stored speed
(“Resume” function)

Briefly pull the cruise control lever in di-
rection of arrow4 (
page 244).
The cruise control resumes the last set
speed.

Remove your foot from the accelerator
pedal.
The selected speed appears in the multi-
function display for approximately
5 seconds, and the corresponding speed-
ometer segments from the selected speed
to the vehicle maximum speed are illumi-
nated.
iWhen you use the cruise control lever
to decelerate, the brake system will au-
tomatically brake the vehicle if the en-
gine’s braking power does not brake
the vehicle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to the pre-
set speed could cause an accident and/or
serious injury to you and others.

247 Controls in detail
Driving systems
Distronic*
When activated, the Distronic adaptive
cruise control system increases driving
convenience afforded by the cruise control
during travel on expressways and other
major roads.

If the Distronic distance sensor detects
a slower moving vehicle directly ahead,
your vehicle speed will be reduced so
that you follow that vehicle at a preset
distance.


If there is no vehicle directly ahead of
you, Distronic will function in the same
way as cruise control (
page 252).
Warning!
G
Distronic adaptive cruise control is no sub-
stitute for active driving involvement. It does
not react to stationary objects, nor recog-
nize or predict the curvature and lane layout
or the movement of vehicles ahead.
Distronic can only apply a maximum of 20%
of the vehicle’s braking power.
It is the driver’s responsibility at all times to
be attentive to road, traffic and weather con-
ditions and to provide the steering, braking
and other driving inputs necessary to retain
control of the vehicle.Warning!
G
Distronic is a convenience system, its speed
adjustment reduction capability is intended
to make cruise control more effective and
usable when traffic speeds vary. It is not
however, intended to, nor does it, replace
the need for extreme care. The responsibili-
ty for the vehicle speed and the distance to
the vehicle ahead, including most impor-
tantly brake operation to assure safe stop-
ping distance, always rests with the driver.
Distronic cannot take street and traffic con-
ditions into account.
Warning!
G
Distronic requires familiarity with its opera-
tional characteristics. We strongly recom-
mend that you review the following
information carefully before operating the
system.iUSA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.

248 Controls in detailDriving systems
iCanada only:
This device complies with RSS-210 of
Industry Canada. Operation is subject
to the following two conditions:
(1) This device may not cause interfer-
ence, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation of the device.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.Warning!
G
Distronic cannot take street and traffic con-
ditions into account. Only use Distronic if
the road, weather and traffic conditions
make it advisable to travel at a steady
speed.
Warning!
G
Use of Distronic can be dangerous on slip-
pery roads. Rapid changes in tire traction
can result in wheel spin and loss of control.
Distronic does not act upon adverse sight
distance conditions. Do not use Distronic
during conditions of fog and heavy rain,
snow or sleet.
Warning!
G
Distronic cannot take weather conditions
into account. Switch off Distronic or do not
turn it on if:

roads are slippery or covered with snow
or ice. The wheels could lose traction
while braking or accelerating, and the
vehicle could skid.


the sensor is dirty or visibility is
diminished due to snow, rain or fog. The
distance control could be impaired.
Always pay attention to traffic conditions
even while Distronic is switched on. Other-
wise, you may not be able to recognize
dangerous situations until it is too late and
could cause an accident resulting in person-
al or fatal injury to you or others.

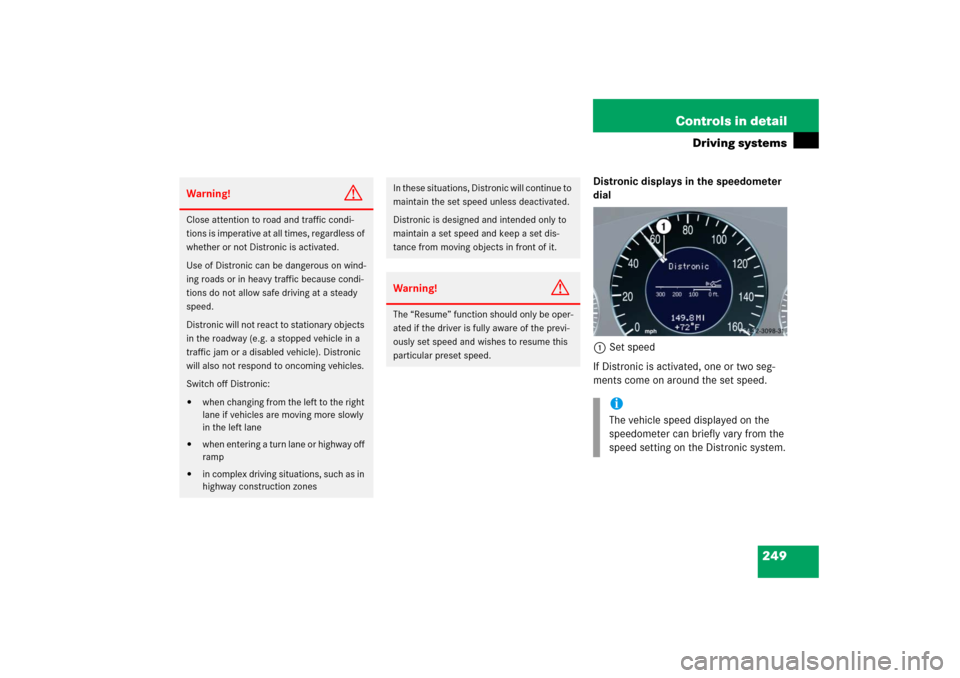

249 Controls in detail
Driving systems
Distronic displays in the speedometer
dial
1Set speed
If Distronic is activated, one or two seg-
ments come on around the set speed.
Warning!
G
Close attention to road and traffic condi-
tions is imperative at all times, regardless of
whether or not Distronic is activated.
Use of Distronic can be dangerous on wind-
ing roads or in heavy traffic because condi-
tions do not allow safe driving at a steady
speed.
Distronic will not react to stationary objects
in the roadway (e.g. a stopped vehicle in a
traffic jam or a disabled vehicle). Distronic
will also not respond to oncoming vehicles.
Switch off Distronic:

when changing from the left to the right
lane if vehicles are moving more slowly
in the left lane


when entering a turn lane or highway off
ramp


in complex driving situations, such as in
highway construction zones
In these situations, Distronic will continue to
maintain the set speed unless deactivated.
Distronic is designed and intended only to
maintain a set speed and keep a set dis-
tance from moving objects in front of it.Warning!
G
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.
iThe vehicle speed displayed on the
speedometer can briefly vary from the
speed setting on the Distronic system.
