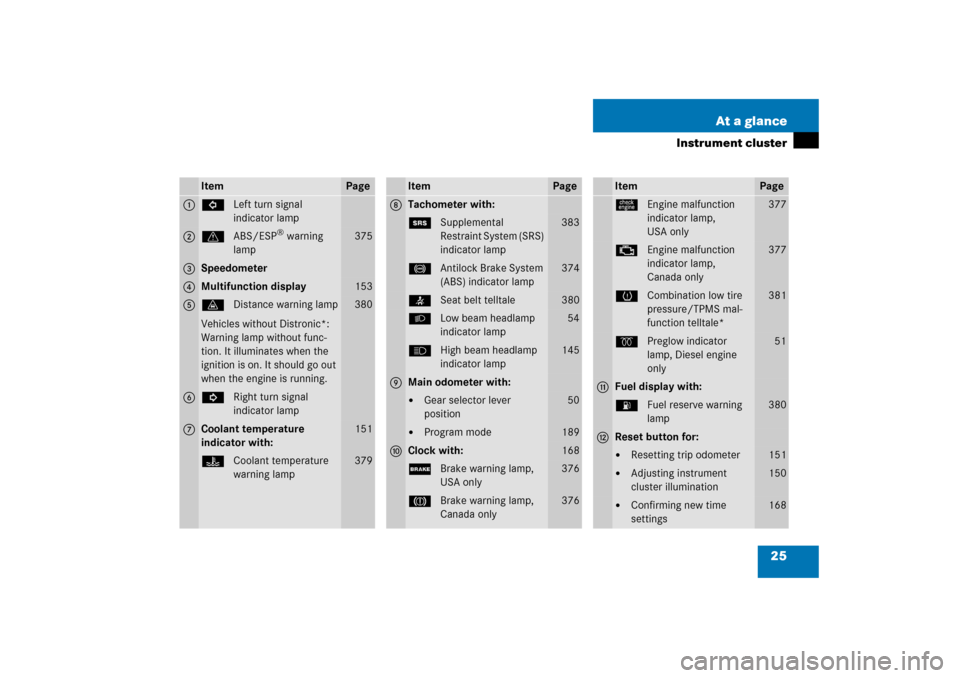

25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal
indicator lamp
2
vABS/ESP
® warning
lamp
375
3
Speedometer
4
Multifunction display
153
5
lDistance warning lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates when the
ignition is on. It should go out
when the engine is running.
380
6
KRight turn signal
indicator lamp
7
Coolant temperature
indicator with:
151
•Coolant temperature
warning lamp
379
Item
Page
8
Tachometer with:1Supplemental
Restraint System (SRS)
indicator lamp
383
-Antilock Brake System
(ABS) indicator lamp
374
BLow beam headlamp
indicator lamp
54
AHigh beam headlamp
indicator lamp
145
9
Main odometer with:
Gear selector lever
position
50
Program mode
189
a
Clock with:
168
;Brake warning lamp,
USA only
376
3Brake warning lamp,
Canada only
376
Item
Page
úEngine malfunction
indicator lamp,
USA only
377
±Engine malfunction
indicator lamp,
Canada only
377
HCombination low tire
pressure/TPMS mal-
function telltale*
381
qPreglow indicator
lamp, Diesel engine
only
51
b
Fuel display with:AFuel reserve warning
lamp
380
c
Reset button for:
Resetting trip odometer
151
Adjusting instrument
cluster illumination
150
Confirming new time
settings
168
Page 340 of 521
339 Operation
Tires and wheels
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least 3 hours or driven
less than 1 mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than 3 hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire in-
flation pressure. Otherwise, the tire will be
underinflated.
Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.
Firmly press a tire gauge onto the
valve.
Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
placard on the driver’s door B-pillar
(page 332). If necessary, add air to
achieve the recommended tire inflation
pressure.
Install the valve cap.
Repeat this procedure for each tire.Checking tire pressure electronically
with the Tire Pressure Monitoring
System* (TPMS*), (USA only)iIf you have overfilled the tire, release
tire inflation pressure by pushing the
metal stem of the valve with e.g. a tip of
a pen. Then recheck the tire inflation
pressure with the tire gauge.
iThe T
ire P
ressure M
onitoring S
ystem*
(TPMS*) is equipped with a combina-
tion low tire pressure/TPMS malfunc-
tion telltale in the instrument cluster
(
page 25). Depending on how the
telltale illuminates, it indicates a low
tire pressure condition or a malfunction
in the TPMS system itself:
If the telltale illuminates continu-
ously, one or more of your tires is
significantly under-inflated. There is
no malfunction in the TPMS.
If the telltale flashes for 60 seconds
and then stays illuminated, the
TPMS system itself is not operating
properly.
Page 341 of 521

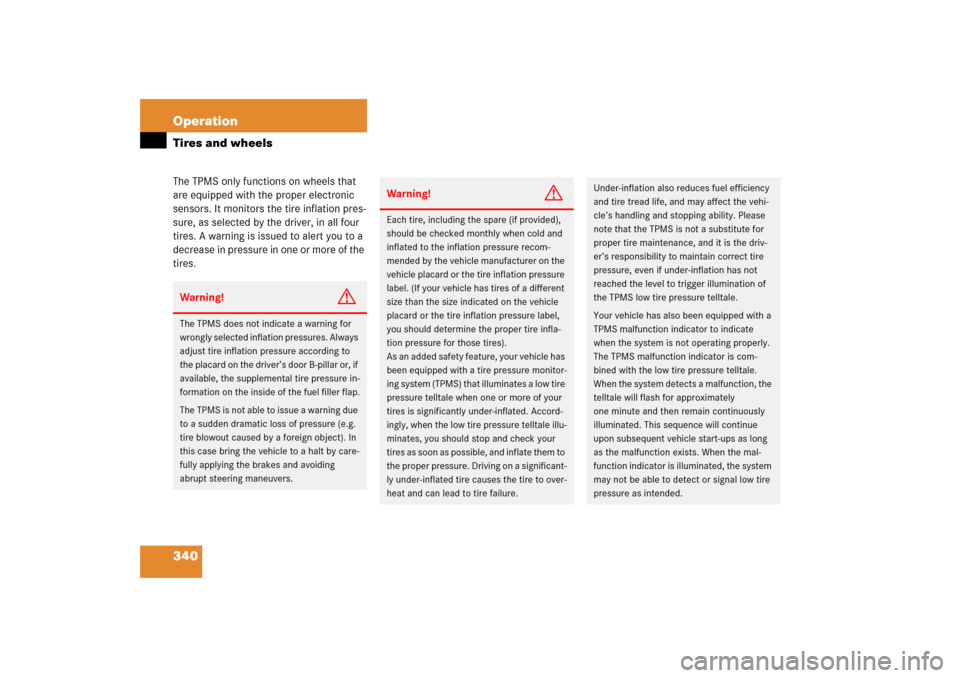

340 OperationTires and wheelsThe TPMS only functions on wheels that
are equipped with the proper electronic
sensors. It monitors the tire inflation pres-
sure, as selected by the driver, in all four
tires. A warning is issued to alert you to a
decrease in pressure in one or more of the
tires.Warning!
G
The TPMS does not indicate a warning for
wrongly selected inflation pressures. Always
adjust tire inflation pressure according to
the placard on the driver’s door B-pillar or, if
available, the supplemental tire pressure in-
formation on the inside of the fuel filler flap.
The TPMS is not able to issue a warning due
to a sudden dramatic loss of pressure (e.g.
tire blowout caused by a foreign object). In
this case bring the vehicle to a halt by care-
fully applying the brakes and avoiding
abrupt steering maneuvers.
Warning!
G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or the tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or the tire inflation pressure label,
you should determine the proper tire infla-
tion pressure for those tires).
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significant-
ly under-inflated tire causes the tire to over-
heat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately
one minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the mal-
function indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended.
Page 342 of 521

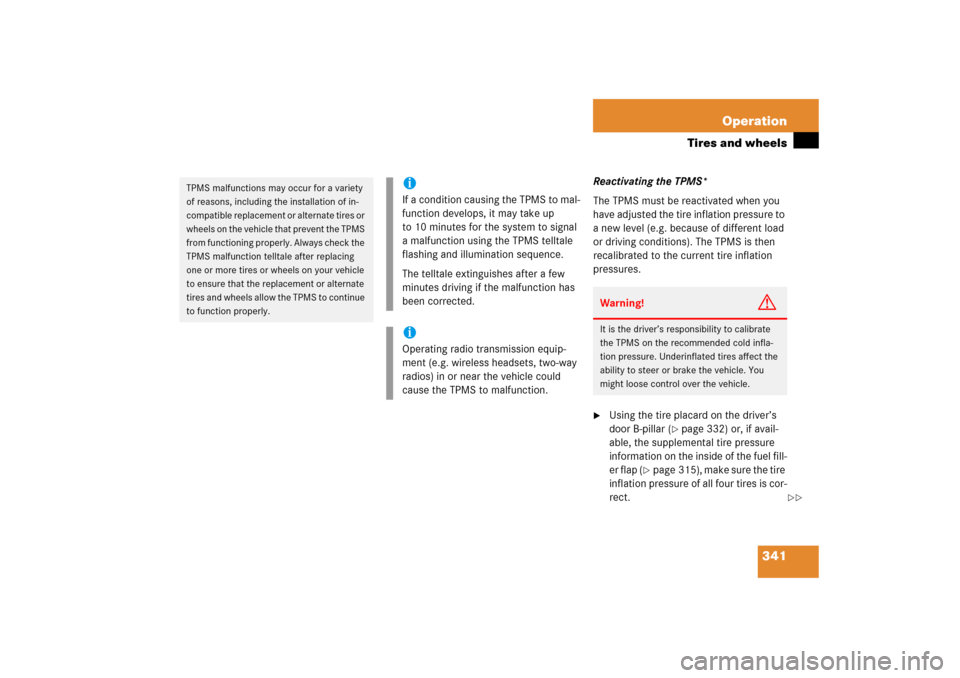

341 Operation
Tires and wheels
Reactivating the TPMS*
The TPMS must be reactivated when you
have adjusted the tire inflation pressure to
a new level (e.g. because of different load
or driving conditions). The TPMS is then
recalibrated to the current tire inflation
pressures.
Using the tire placard on the driver’s
door B-pillar (
page 332) or, if avail-
able, the supplemental tire pressure
information on the inside of the fuel fill-
er flap (
page 315), make sure the tire
inflation pressure of all four tires is cor-
rect.
TPMS malfunctions may occur for a variety
of reasons, including the installation of in-
compatible replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.
iIf a condition causing the TPMS to mal-
function develops, it may take up
to 10 minutes for the system to signal
a malfunction using the TPMS telltale
flashing and illumination sequence.
The telltale extinguishes after a few
minutes driving if the malfunction has
been corrected.iOperating radio transmission equip-
ment (e.g. wireless headsets, two-way
radios) in or near the vehicle could
cause the TPMS to malfunction.
Warning!
G
It is the driver’s responsibility to calibrate
the TPMS on the recommended cold infla-
tion pressure. Underinflated tires affect the
ability to steer or brake the vehicle. You
might loose control over the vehicle.
Page 343 of 521
342 OperationTires and wheels
Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu ap-
pears in the multifunction display
(page 153).
Press thej or kbutton repeat-
edly until you see the flowing message:Tire pressure
monitor active
Reactivation possible:
R-button
Press the reset button.
The following message will appear in
the multifunction display:Check current
tire pressure?
Press the æbutton.
The following message will appear in
the multifunction display:Tire pres. monitor
reactivatedAfter driving a few minutes the system
verifies that the current tire inflation
pressures are within the system’s
specified range. Afterwards the current
tire inflation pressures are accepted as
reference pressures and then moni-
tored.
If you wish to cancel activation:
Press the çbutton.
iReactivate the TPMS after adjusting
the tire inflation pressure to the infla-
tion pressure recommended for the
vehicle operating condition. Tire pres-
sure should only be adjusted on cold
tires. Observe the recommended tire
inflation pressure on the placard on the
driver’s door B-pillar (
page 332).
Some vehicles may have supplemental
tire pressure information for driving at
high speeds (
page 338) or for vehicle
loads less than the maximum loaded
vehicle condition. If such information is
provided, it can be found on the inside
of the fuel filler flap.
Page 344 of 521

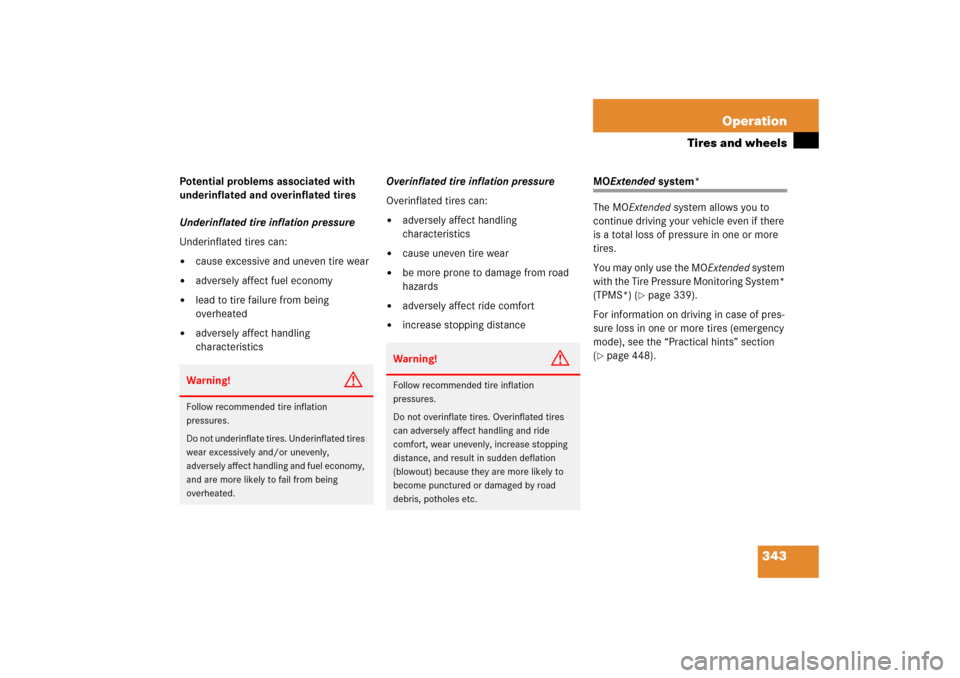

343 Operation
Tires and wheels
Potential problems associated with
underinflated and overinflated tires
Underinflated tire inflation pressure
Underinflated tires can:
cause excessive and uneven tire wear
adversely affect fuel economy
lead to tire failure from being
overheated
adversely affect handling
characteristicsOverinflated tire inflation pressure
Overinflated tires can:
adversely affect handling
characteristics
cause uneven tire wear
be more prone to damage from road
hazards
adversely affect ride comfort
increase stopping distance
MOExtended system*
The MOExtended system allows you to
continue driving your vehicle even if there
is a total loss of pressure in one or more
tires.
You may only use the MOExtended system
with the Tire Pressure Monitoring System*
(TPMS*) (
page 339).
For information on driving in case of pres-
sure loss in one or more tires (emergency
mode), see the “Practical hints” section
(
page 448).
Warning!
G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Warning!
G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Page 358 of 521

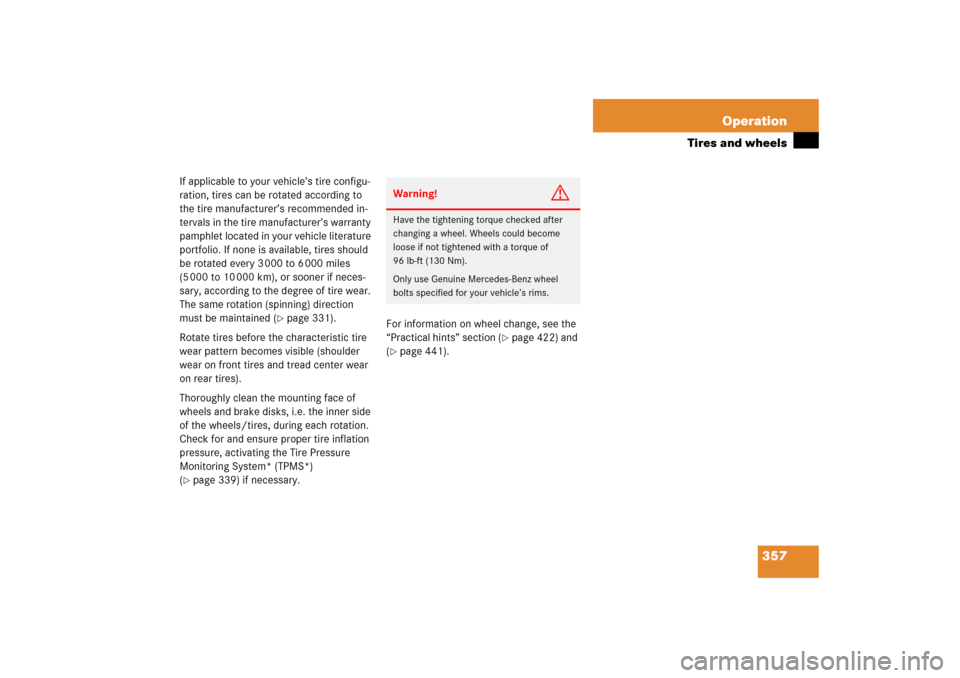

357 Operation
Tires and wheels
If applicable to your vehicle’s tire configu-
ration, tires can be rotated according to
the tire manufacturer’s recommended in-
tervals in the tire manufacturer’s warranty
pamphlet located in your vehicle literature
portfolio. If none is available, tires should
be rotated every 3 000 to 6 000 miles
(5 000 to 10 000 km), or sooner if neces-
sary, according to the degree of tire wear.
The same rotation (spinning) direction
must be maintained (
page 331).
Rotate tires before the characteristic tire
wear pattern becomes visible (shoulder
wear on front tires and tread center wear
on rear tires).
Thoroughly clean the mounting face of
wheels and brake disks, i.e. the inner side
of the wheels/tires, during each rotation.
Check for and ensure proper tire inflation
pressure, activating the Tire Pressure
Monitoring System* (TPMS*)
(
page 339) if necessary.For information on wheel change, see the
“Practical hints” section (
page 422) and
(
page 441).Warning!
G
Have the tightening torque checked after
changing a wheel. Wheels could become
loose if not tightened with a torque of
96 lb-ft (130 Nm).
Only use Genuine Mercedes-Benz wheel
bolts specified for your vehicle’s rims.
Page 382 of 521

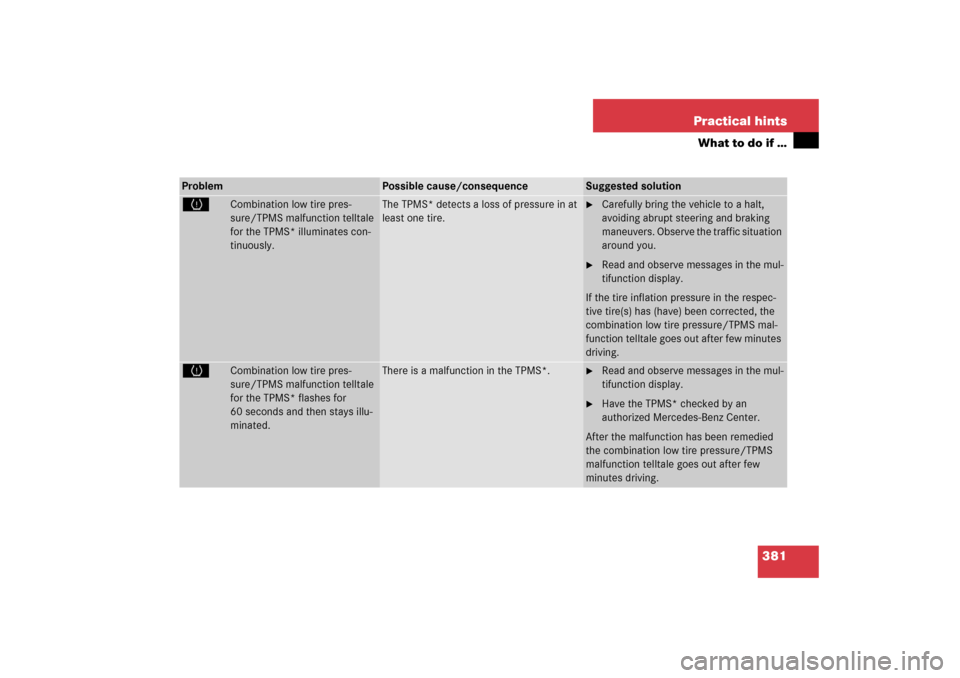

381 Practical hints
What to do if …
Problem
Possible cause/consequence
Suggested solution
H
Combination low tire pres-
sure/TPMS malfunction telltale
for the TPMS* illuminates con-
tinuously.
The TPMS* detects a loss of pressure in at
least one tire.
Carefully bring the vehicle to a halt,
avoiding abrupt steering and braking
maneuvers. Observe the traffic situation
around you.
Read and observe messages in the mul-
tifunction display.
If the tire inflation pressure in the respec-
tive tire(s) has (have) been corrected, the
combination low tire pressure/TPMS mal-
function telltale goes out after few minutes
driving.
H
Combination low tire pres-
sure/TPMS malfunction telltale
for the TPMS* flashes for
60 seconds and then stays illu-
minated.
There is a malfunction in the TPMS*.
Read and observe messages in the mul-
tifunction display.
Have the TPMS* checked by an
authorized Mercedes-Benz Center.
After the malfunction has been remedied
the combination low tire pressure/TPMS
malfunction telltale goes out after few
minutes driving.
Page 383 of 521

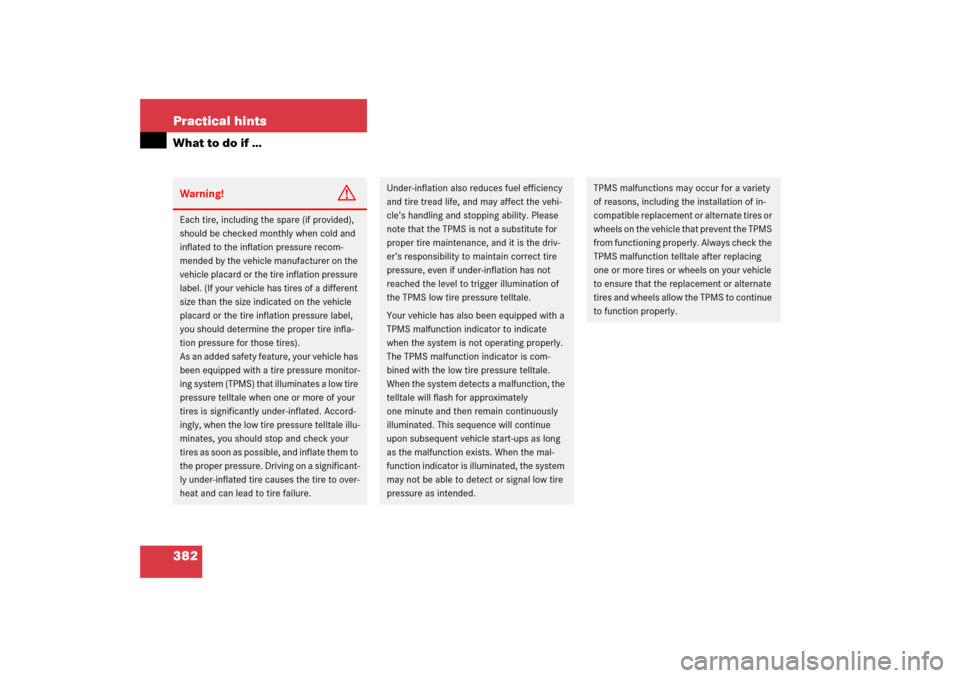

382 Practical hintsWhat to do if …Warning!
G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
vehicle placard or the tire inflation pressure
label. (If your vehicle has tires of a different
size than the size indicated on the vehicle
placard or the tire inflation pressure label,
you should determine the proper tire infla-
tion pressure for those tires).
As an added safety feature, your vehicle has
been equipped with a tire pressure monitor-
ing system (TPMS) that illuminates a low tire
pressure telltale when one or more of your
tires is significantly under-inflated. Accord-
ingly, when the low tire pressure telltale illu-
minates, you should stop and check your
tires as soon as possible, and inflate them to
the proper pressure. Driving on a significant-
ly under-inflated tire causes the tire to over-
heat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehi-
cle’s handling and stopping ability. Please
note that the TPMS is not a substitute for
proper tire maintenance, and it is the driv-
er’s responsibility to maintain correct tire
pressure, even if under-inflation has not
reached the level to trigger illumination of
the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is com-
bined with the low tire pressure telltale.
When the system detects a malfunction, the
telltale will flash for approximately
one minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as long
as the malfunction exists. When the mal-
function indicator is illuminated, the system
may not be able to detect or signal low tire
pressure as intended.
TPMS malfunctions may occur for a variety
of reasons, including the installation of in-
compatible replacement or alternate tires or
wheels on the vehicle that prevent the TPMS
from functioning properly. Always check the
TPMS malfunction telltale after replacing
one or more tires or wheels on your vehicle
to ensure that the replacement or alternate
tires and wheels allow the TPMS to continue
to function properly.

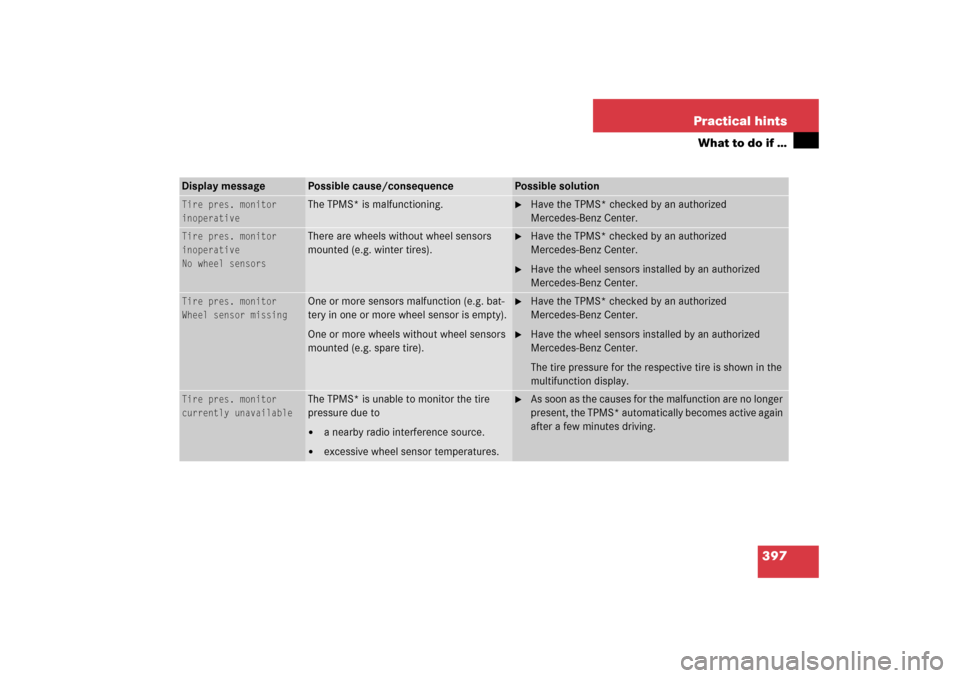

Page 398 of 521
397 Practical hints
What to do if …
Display message
Possible cause/consequence
Possible solution
Tire pres. monitor
inoperative
The TPMS* is malfunctioning.
Have the TPMS* checked by an authorized
Mercedes-Benz Center.
Tire pres. monitor
inoperative
No wheel sensors
There are wheels without wheel sensors
mounted (e.g. winter tires).
Have the TPMS* checked by an authorized
Mercedes-Benz Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Center.
Tire pres. monitor
Wheel sensor missing
One or more sensors malfunction (e.g. bat-
tery in one or more wheel sensor is empty).
One or more wheels without wheel sensors
mounted (e.g. spare tire).
Have the TPMS* checked by an authorized
Mercedes-Benz Center.
Have the wheel sensors installed by an authorized
Mercedes-Benz Center.
The tire pressure for the respective tire is shown in the
multifunction display.
Tire pres. monitor
currently unavailable
The TPMS* is unable to monitor the tire
pressure due to
a nearby radio interference source.
excessive wheel sensor temperatures.
As soon as the causes for the malfunction are no longer
present, the TPMS* automatically becomes active again
after a few minutes driving.
